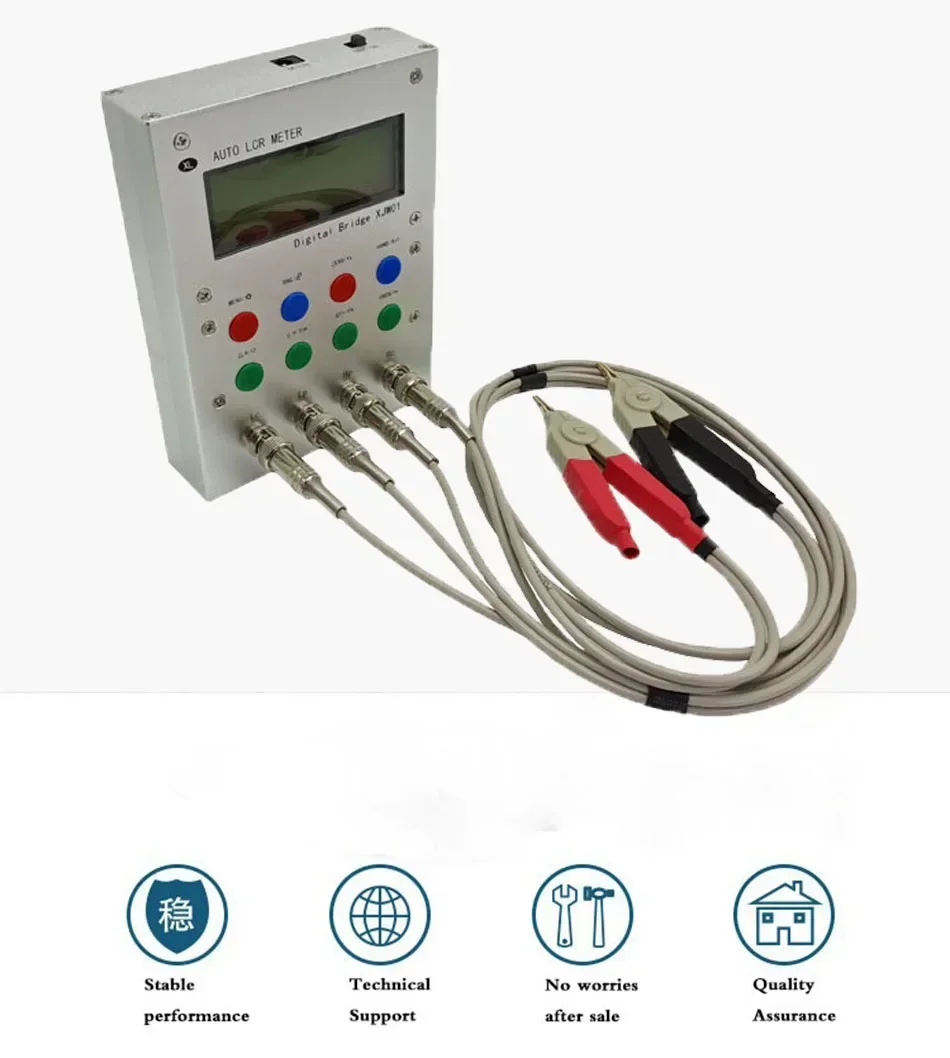

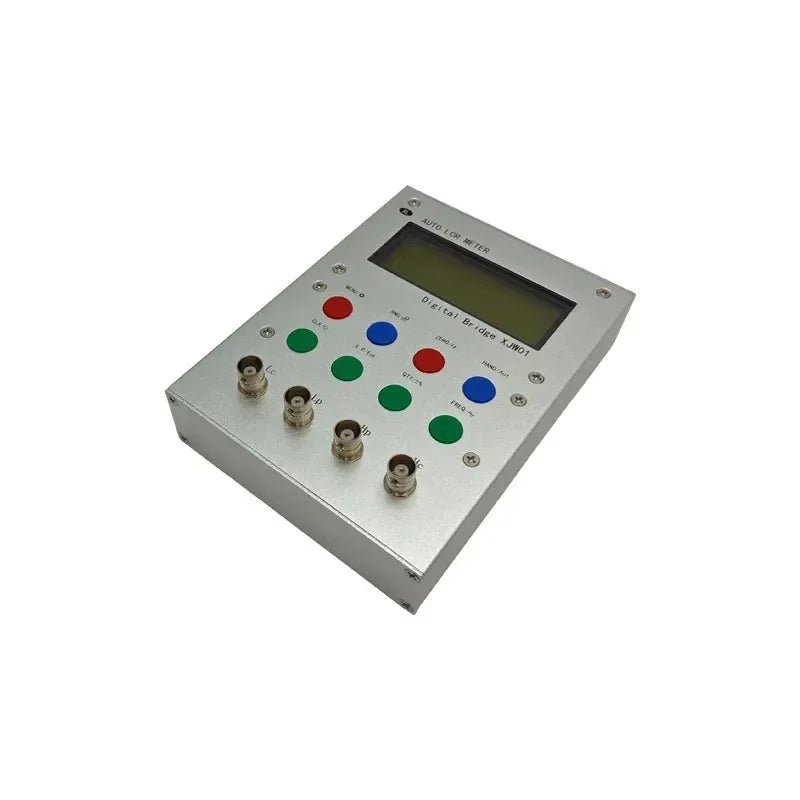

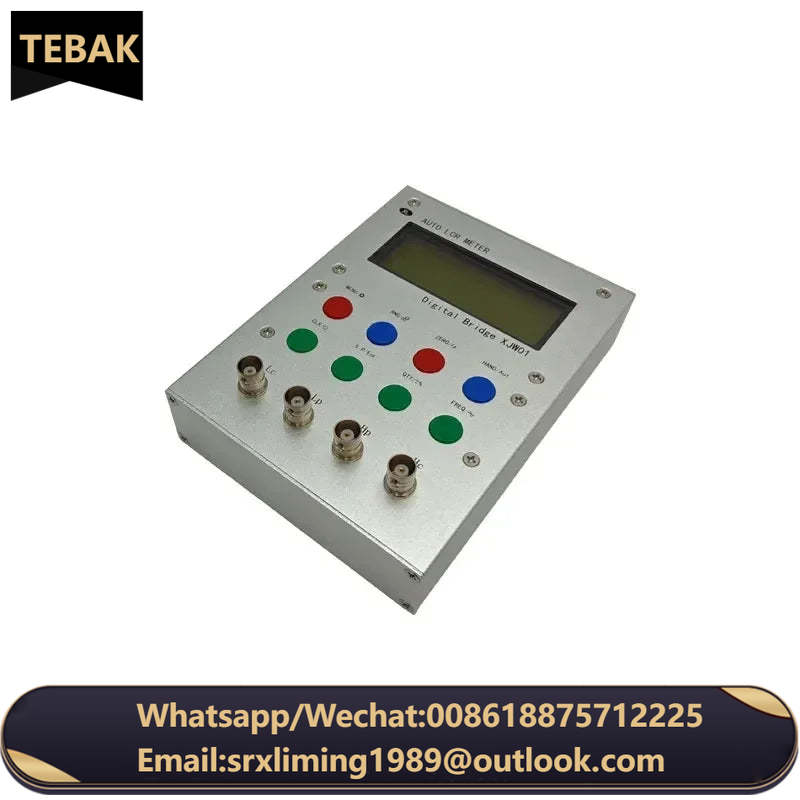

XJW01 digital bridge 0.3% LCR tester resistance inductance capacitance ESR meter finished product

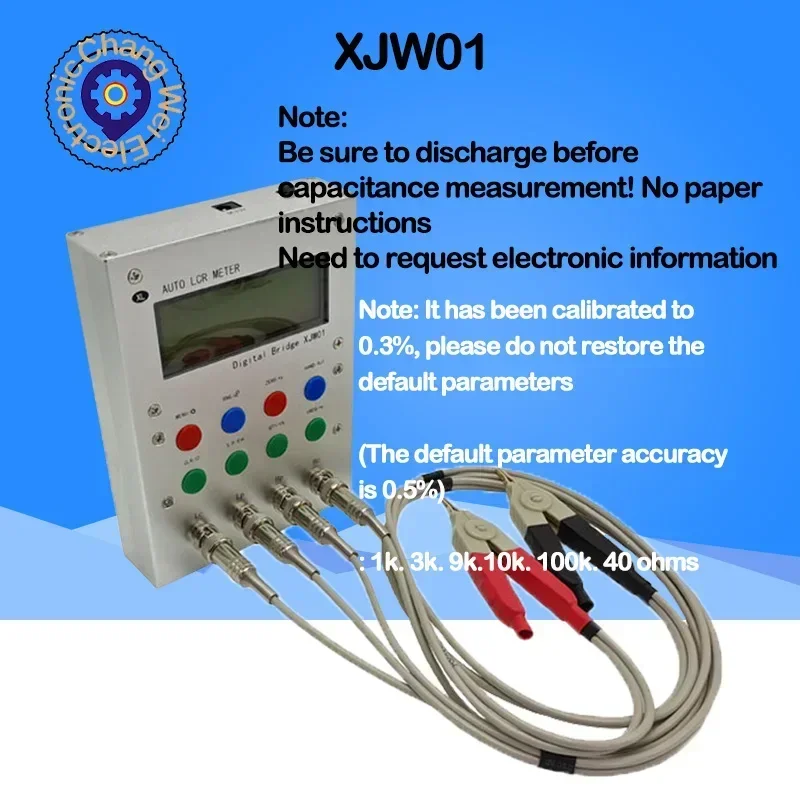

Note:

Be sure to discharge before measuring capacitance! If there is no paper description, you need to ask for electronic information.
Note: It has been calibrated to 0.3%, please do not restore the default parameters (the default parameter accuracy is 0.5%), send 6 0.1% precision resistance verification accuracy: 1k. 3k. 9k. 10k. 100k.40Ω
HC HP is a set of red clips LC LP is a set of black clips

This bridge uses 12V1A power adapter,
The standard adapter for Huawei Light Cat produced by Huntkey (disassembled), please do not replace the power supply of other manufacturers at will!

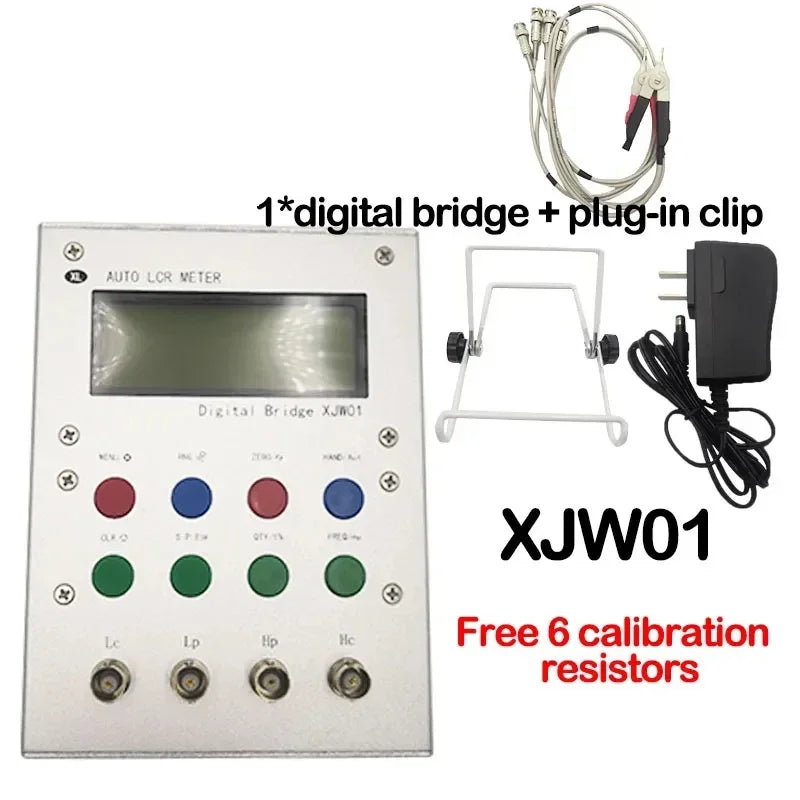

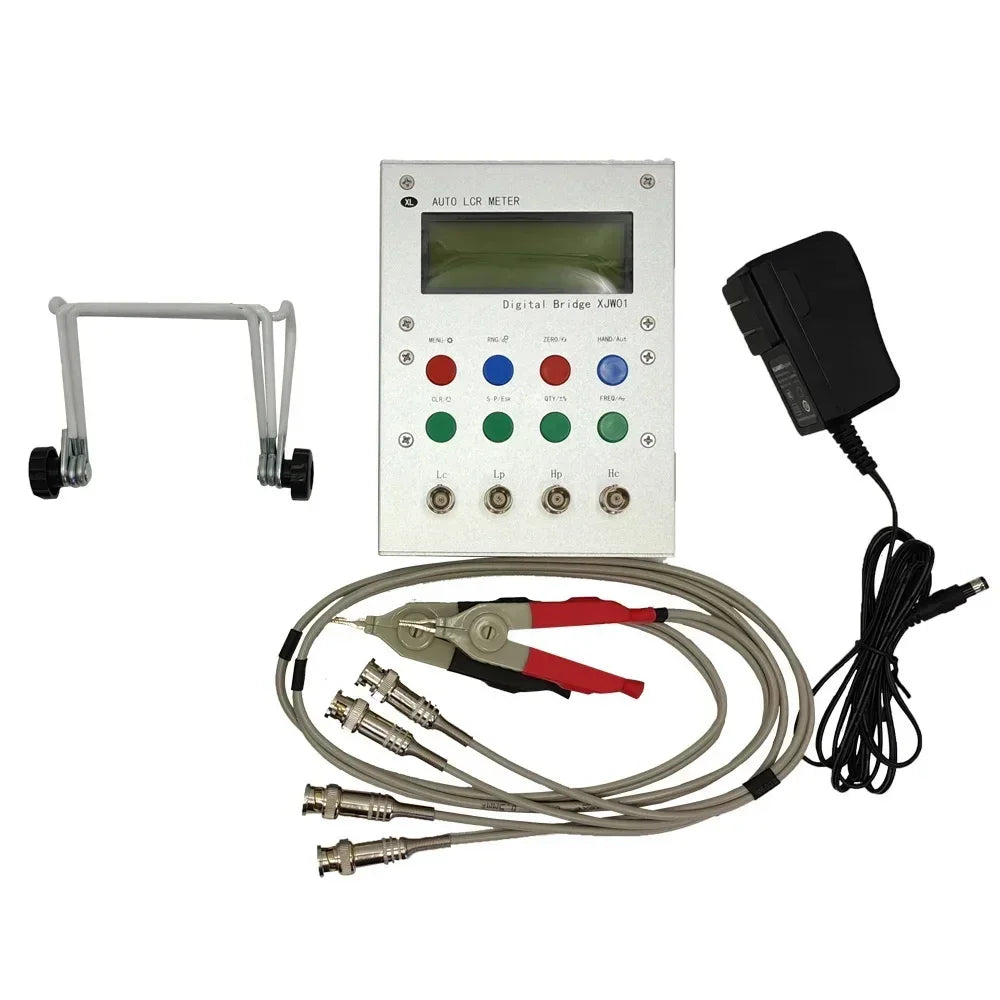

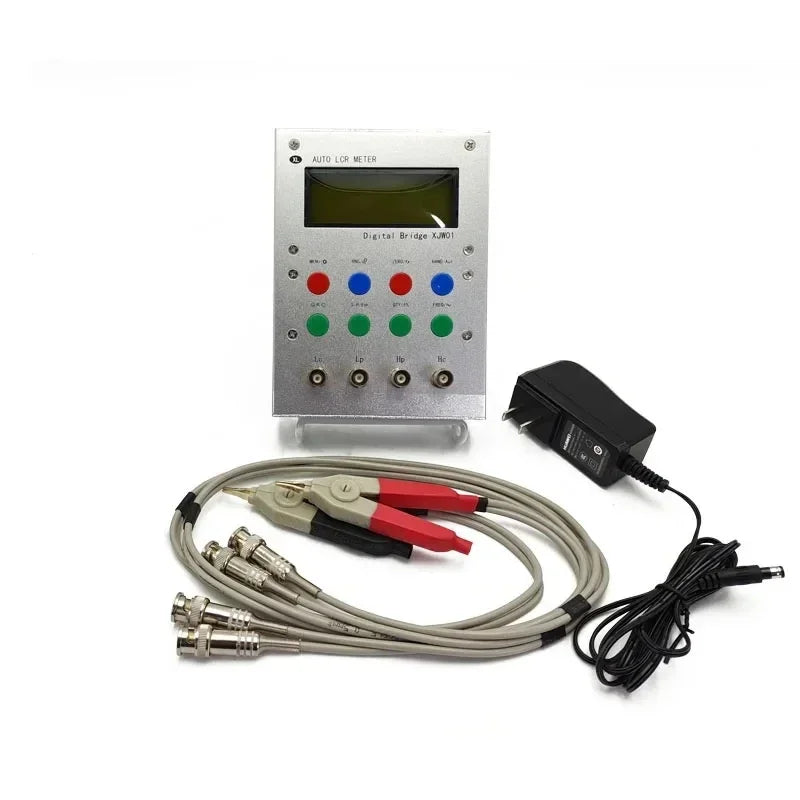

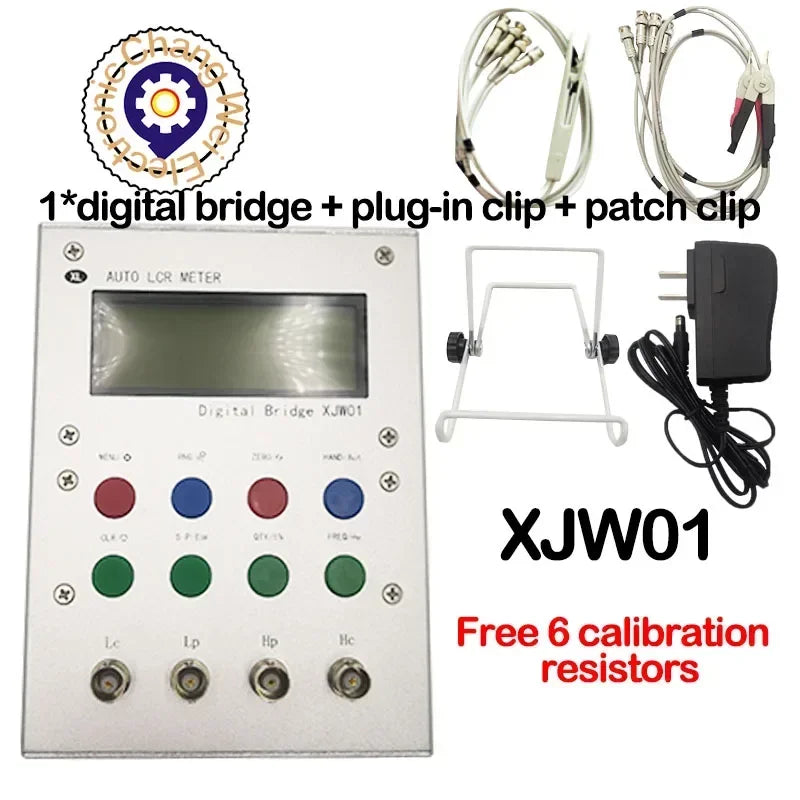

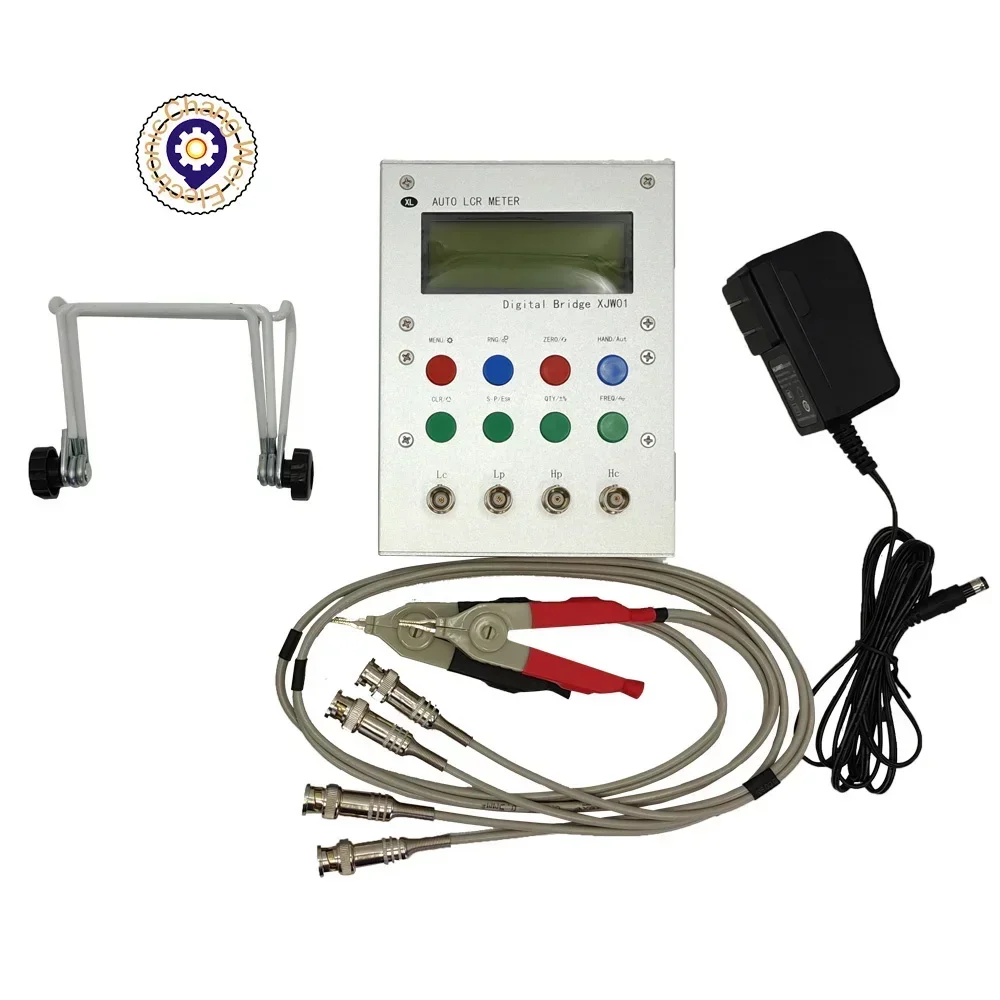

Product packaging

Digital bridge*1
Plug-in folder*1
Patch clip*1
Bracket*1

And:

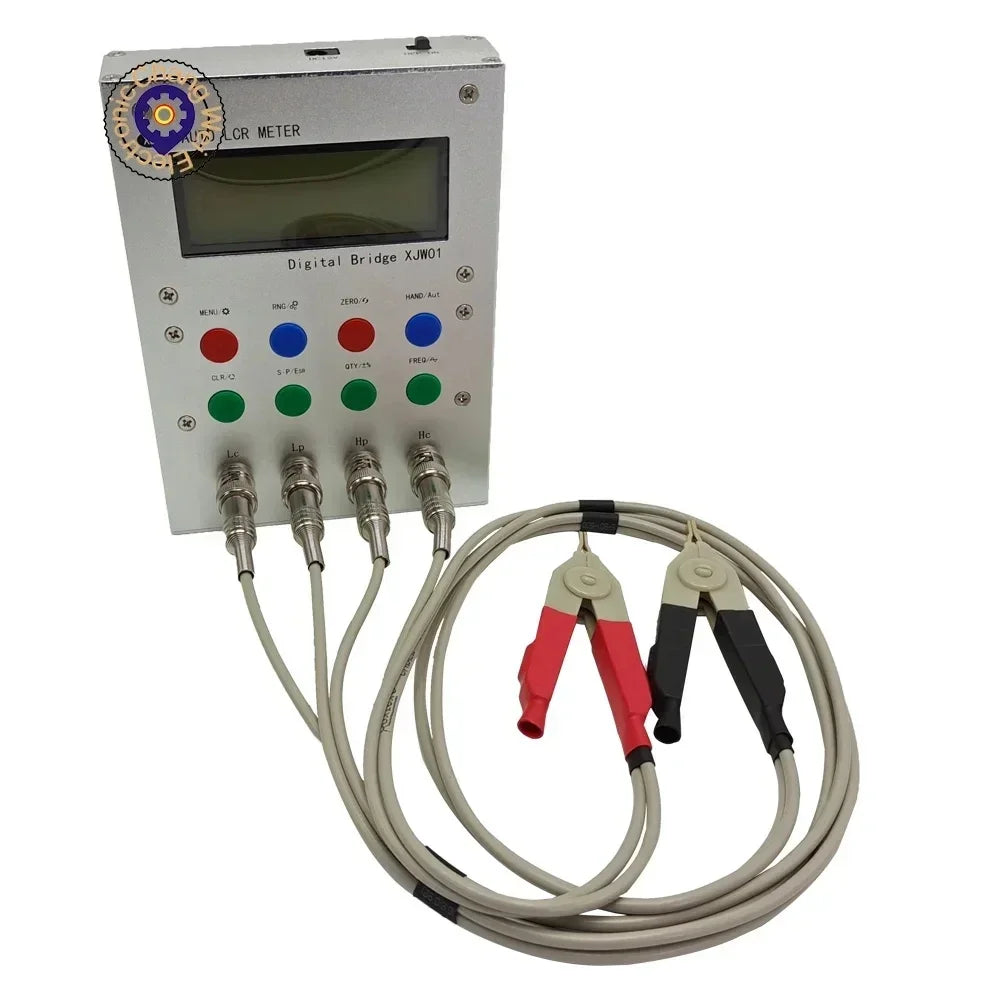

HC HP is a group, connect the red clip. LC LP is a group, connect the black clip
Do not measure live components before testing capacitance
Please do not connect the chassis to the ground or touch other live objects! ! !

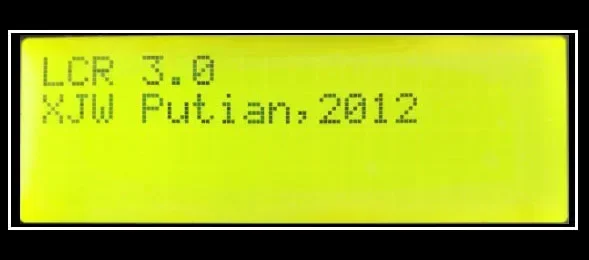

Turn on the power and turn on the switch.

Logo

Details

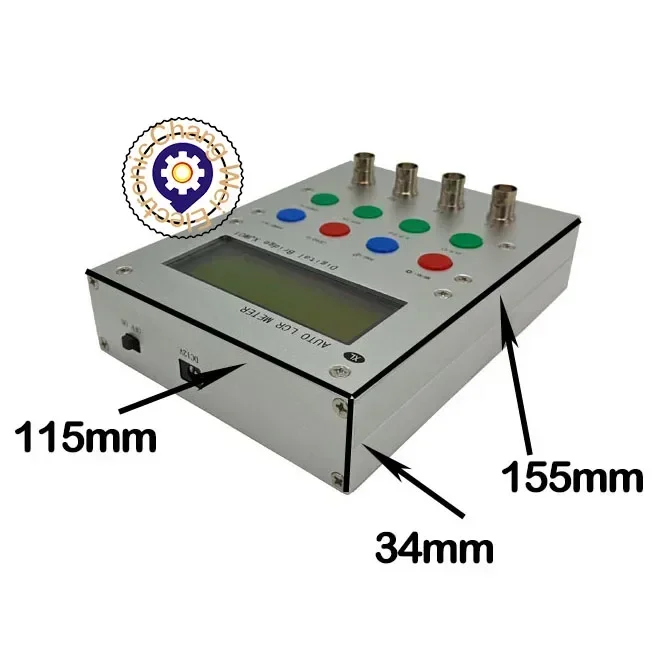

Size
