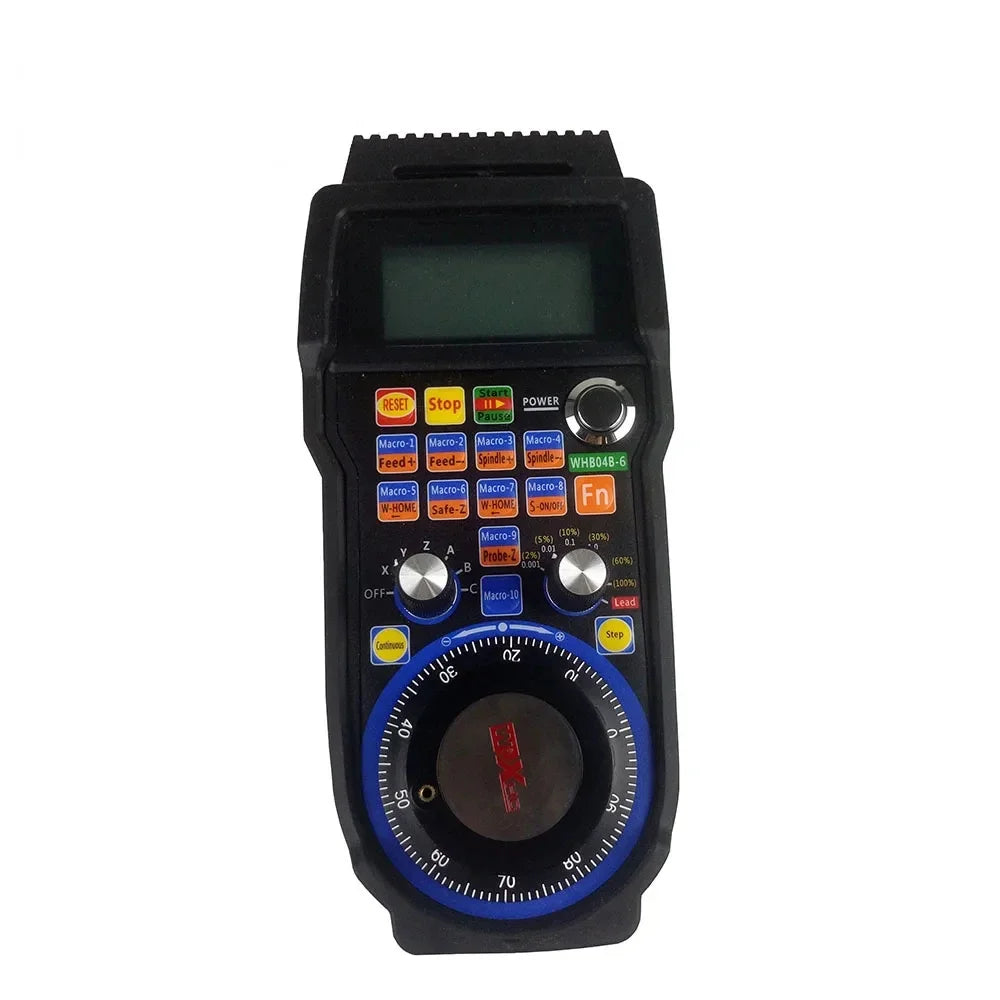

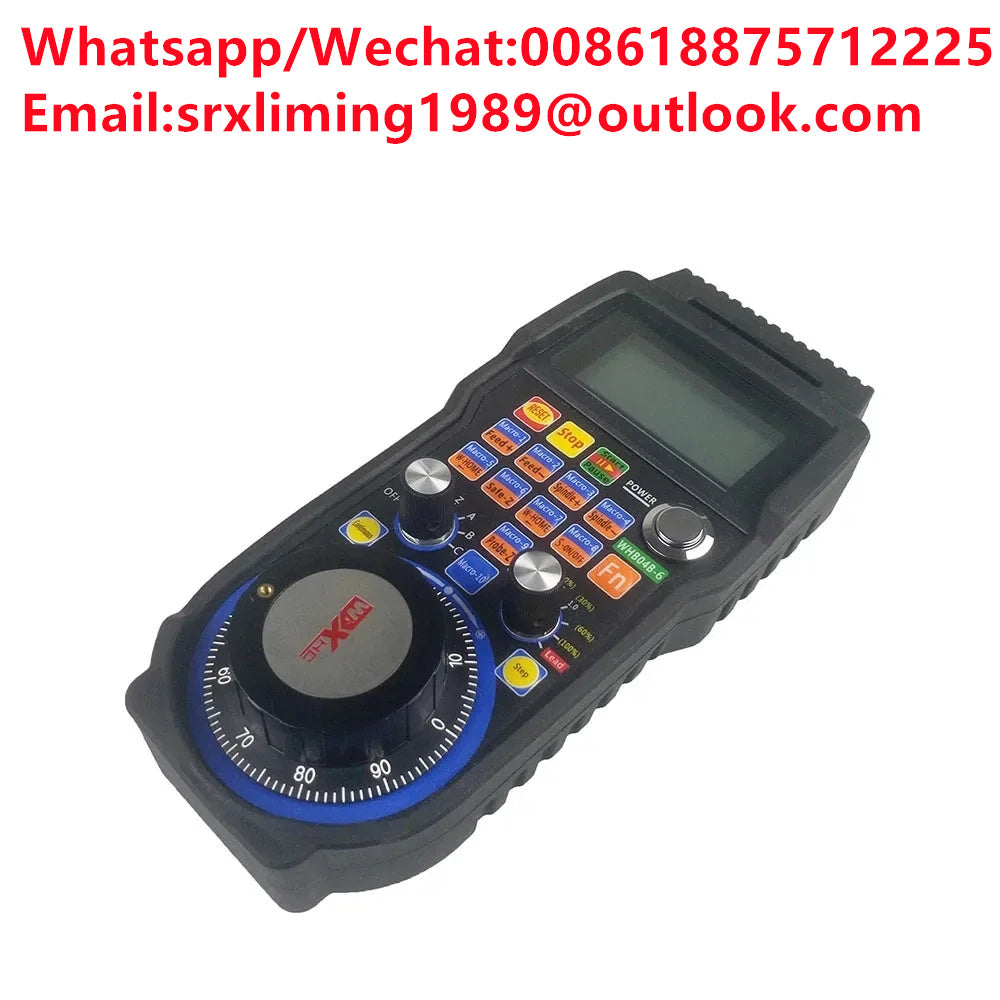

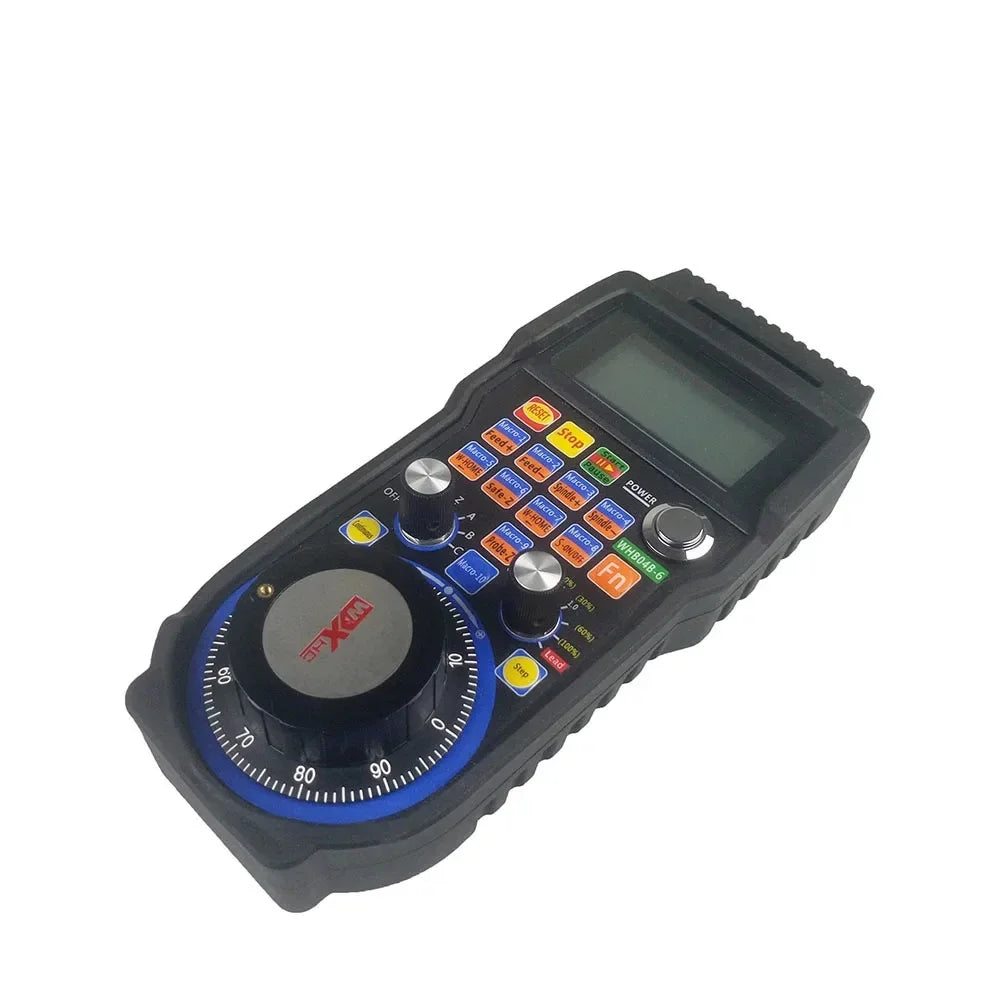

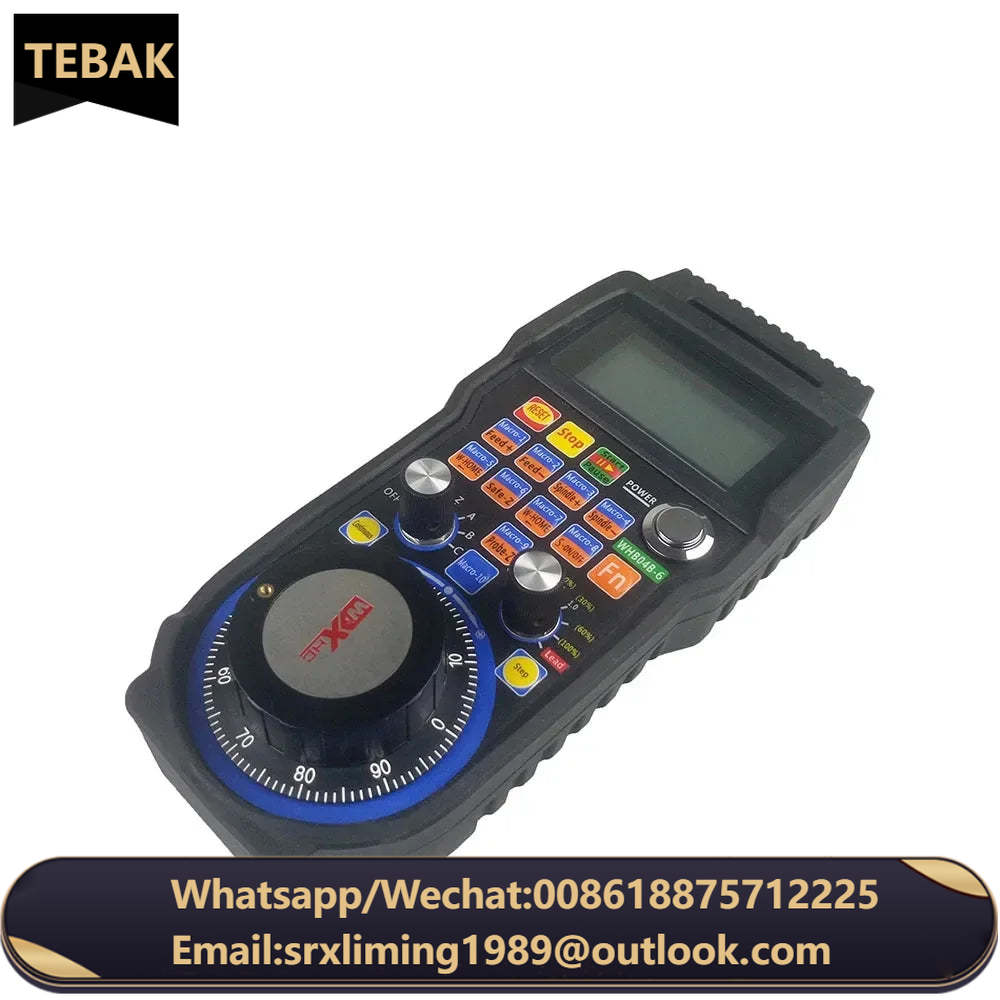

WHB04B-4 WHB04B-6 CNC Wireless 4/6axis Mach3 MPG Pendant Handwheel For MITSUBISHI FANUC LNC SYNTEC System

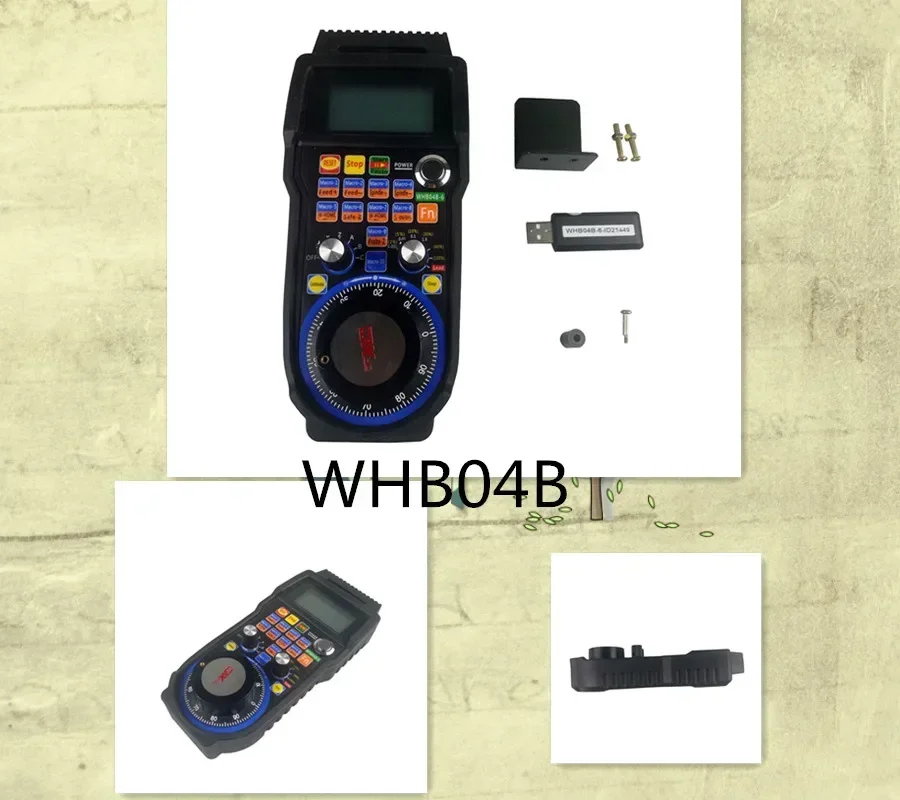

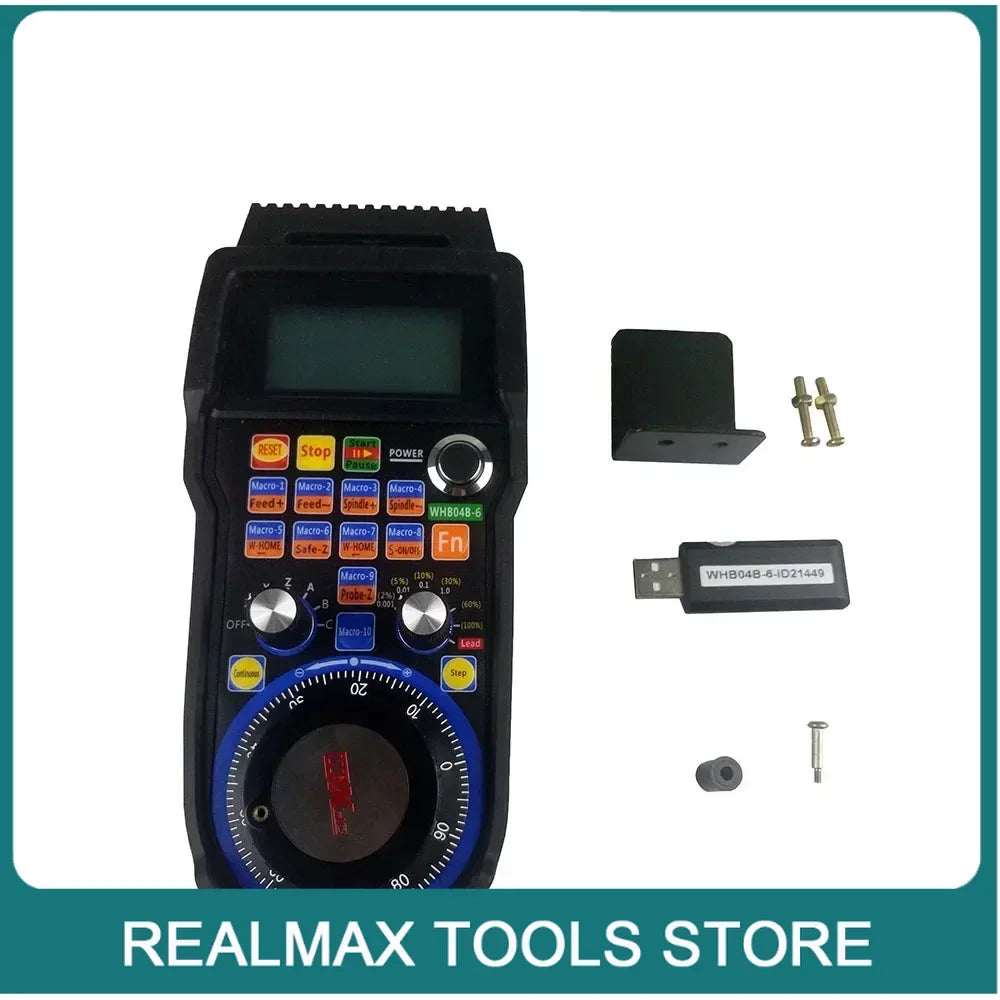

Product Package

1 x Wireless 4 or 6 Axis MACH3 Handwheel)
1 x USB Wireless Receiver
1 x protection case

Product Description

The CNC 4/6 Axis handheld controller MPG Pendant with x1, x10, x100 selectable, the MPG pendant for 4/6 axis CNC machine, it equipped with our popular machined MPG unit with 4/6axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.
It suit both commercial machine as a replacement jog control unit or other computer based controller. Which add great control flexibility to the system.

1.Features:

-Adopt frequency hopping transmission, strong anti-interference ability. Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.
-With 64 frequency hopping channels, each channel interval 1MHZ. Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code.
-Frequency hopping transmission technology, the same room, can support 32 sets of equipment at the same time, do not affect each other.

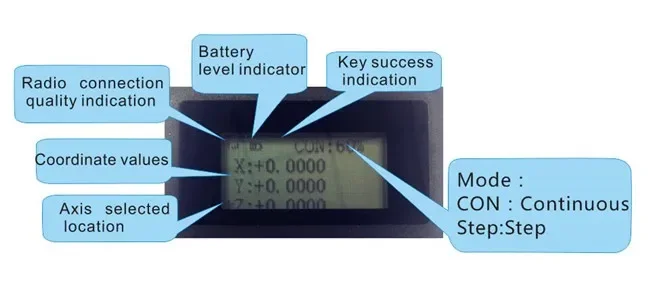

LCD display. Display Y Z A X axis of the mechanical coordinates and workpiece coordinates. Show the spindle speed, the value of the feed rate. Dot matrix LCD with backlight. Axis selection, power band switch control.
-Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control. The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.
-The series of remote control, providing DLL library files for customers to carry out the 2 development, suitable for the customer's own a variety of numerical control system. The series of remote control, based on the WINDOWS system.

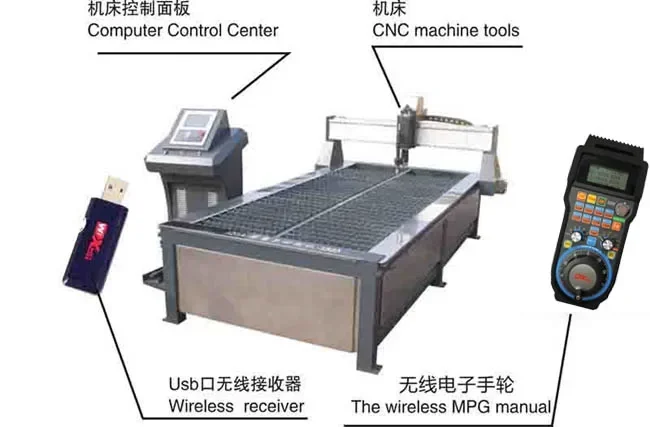

2.Product connection define and method

HandWheel Introduce:
Switch band to x,will jog x.the lcd MC will show machine coordinate. The WC will show work offset coordinate.
Switch band to y, will jog y, the lcd MC will show machine coordinate. The WC will show work offset coordinate.
Switch band to z, will jog z, the lcd MC will show machine coordinate. The WC will show work offset coordinate.
Switch band to a, will jog a, the lcd MC will show machine coordinate. The WC will show work offset coordinate.
Switch band to spindle, will adjust spindle speed the lcd S: will show current spindle speed and the percent number of maximum spindle speed.
Switch band to feed, will adjust feed speed. the lcd will show current feed speed and the percent number of maximum feed speed.

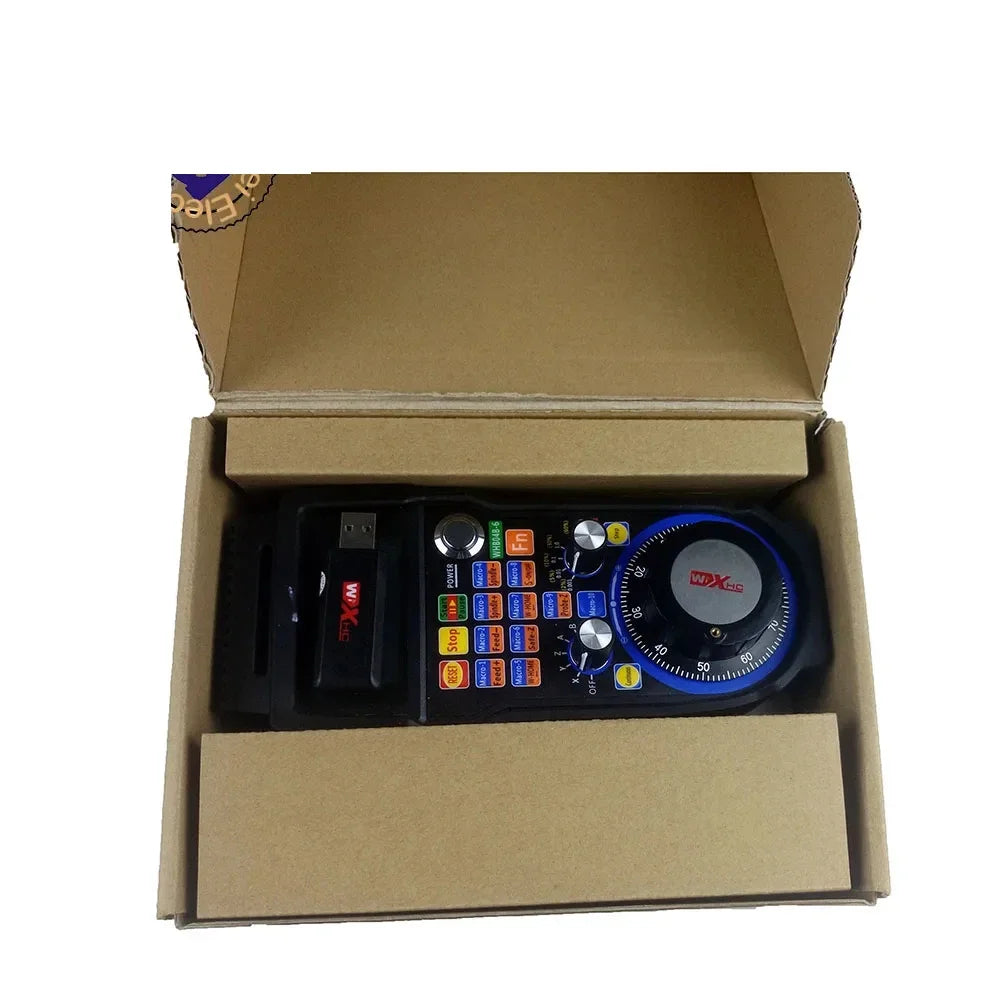

3.Product packaging display
