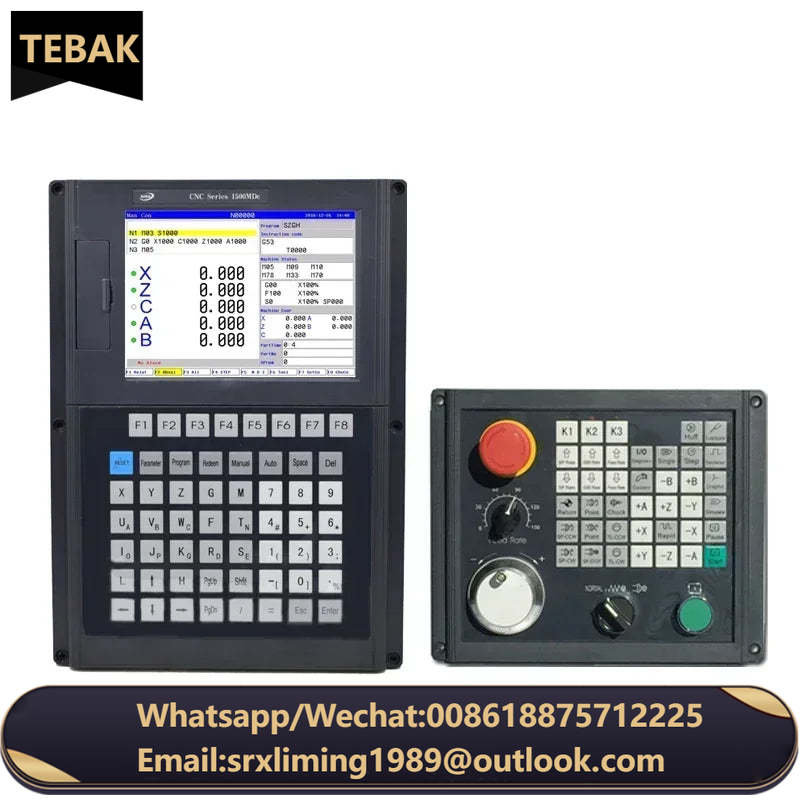

Vertical absolute 4 axis G-code CNC Milling controller total CNC vmc solution similar as GSK logo customized CNC1500MDC-4

Vertical absolute 4 axis G-code CNC Milling controller total CNC vmc solution similar as GSK logo customized CNC1500MDC-4

$1,663.51 USD
$1,663.51 USD $1,663.51 USD
Sale Sold out
Voltage

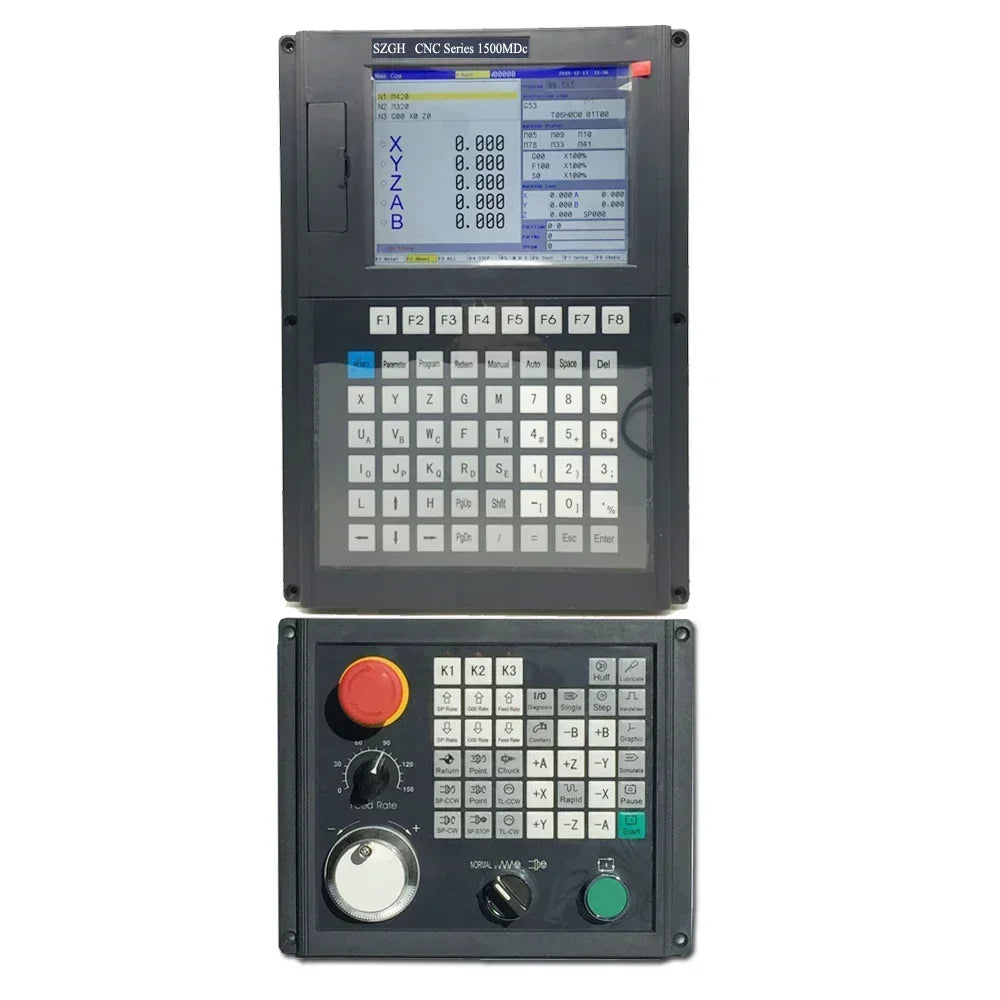

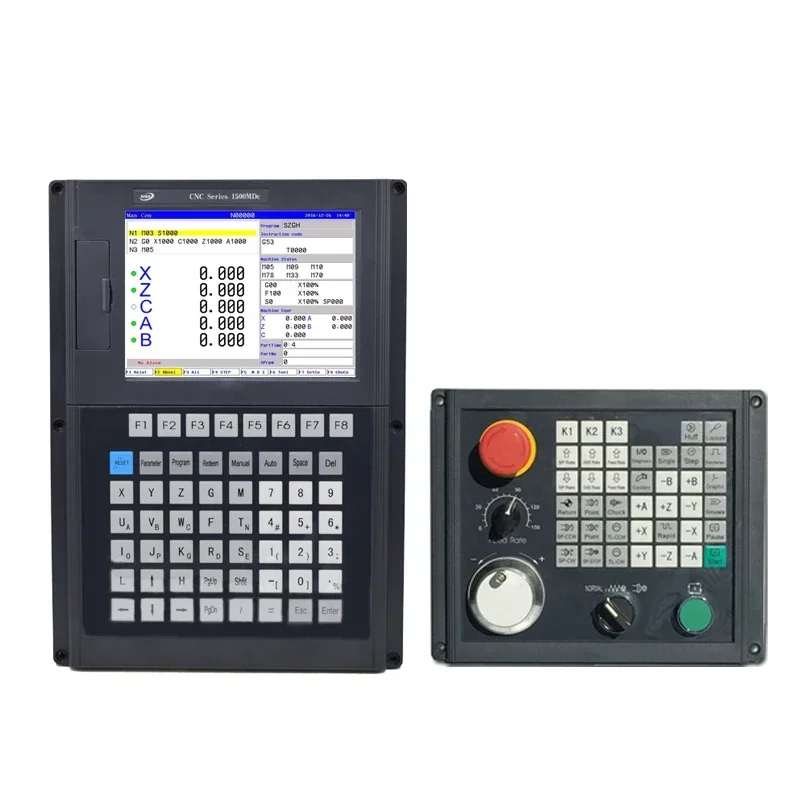

SZGH-CNC1500MDc is vertical CNC milling controller with USB and 2-6 axis , it supports X,Y,Z and A,B ,C and adopt modbus technology , and ARM, DSP , and FPGA , very high performance.



Feature

1) adopt modbus technology , and ARM, DSP , and FPGA , very high performance.

2) Vertical CNC Lathe controller with USB and 2-5 axis more beautiful interface

3) 128Mb user store room, not limit for programming quantity.

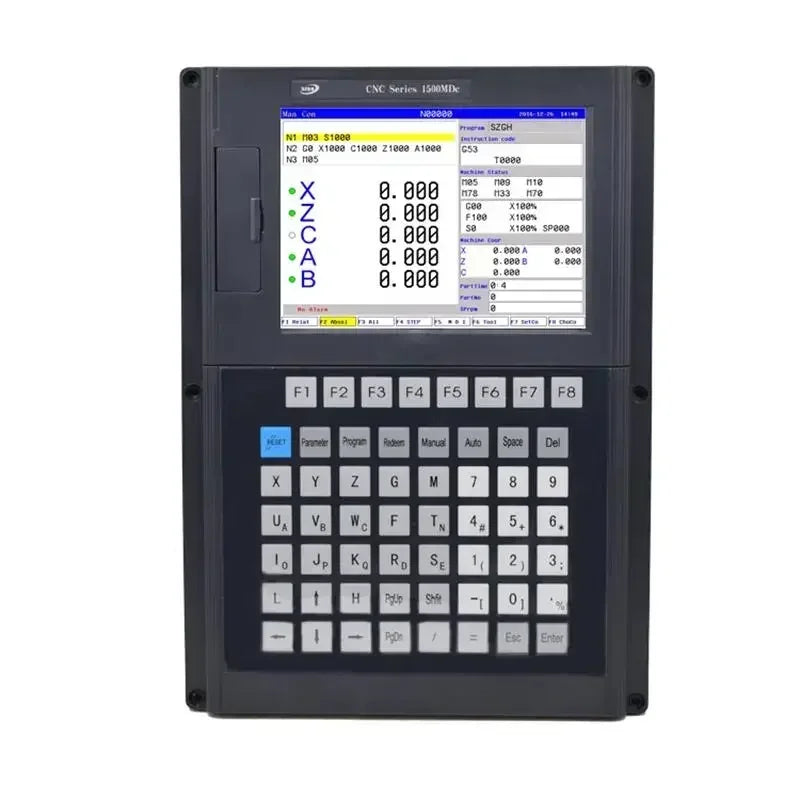

4) 640x480 8 inch real colour LCD displayer, I/O 56X32

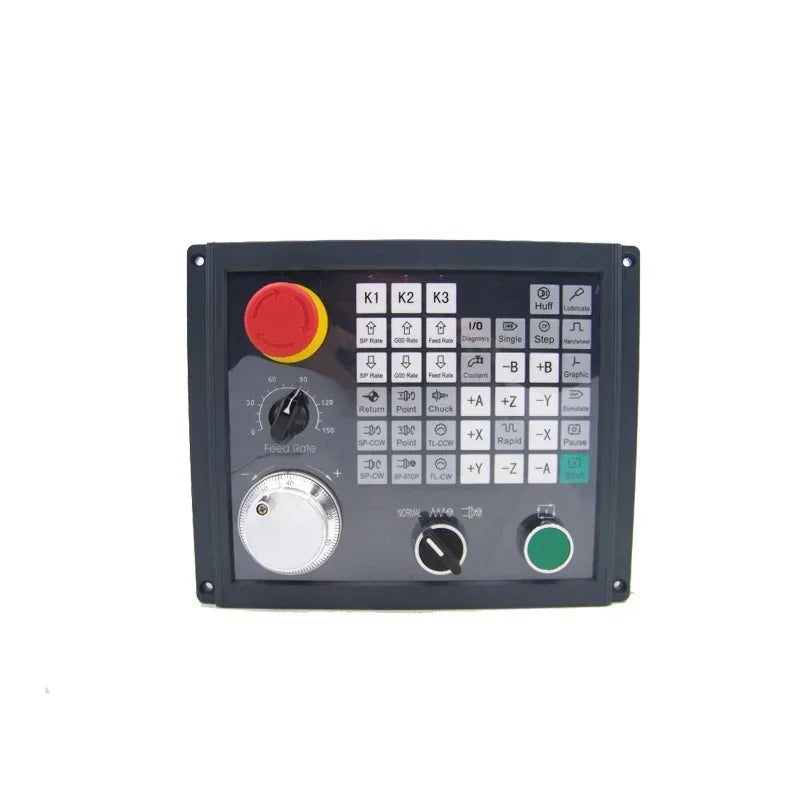

5) with addtional operation panel and MPG, supply power

6) Pulse Output Frequency: 5MHz, Max speed 300m/min, progressing speed 0.01-150m/min

7) USB movable U disc copy interface.

8) RS232 interface.U flash DNC function

9) Spindle servo speed control/spindle frequency convertion speed control.

10) Manual pulse generator.

11) PLC programming and macro function

12) English menu, program and interface, full screen edition

13)  can work with absolutely servo system , support the tool magazine function such as: umbrella type, line type, disc type etc

Technical specifications

Controllable axes:X.Y.Z.A.B,C six axes.
Linkage axes:Arc 2-3 axes, liner 2-6 axes.
Pulse equivalent:X.Y.Z.A.B,C axes:0.001mm.
Max speed:X.Y.Z.A.B,C:60000mm/min.
Cutting speed:1-10000mm/min.
Min input unit:0.001mm.
Program size range:± 99999.999.
99 tools management.
Program code ISO-840 international standard.
Program coordinate system definition ISO-841.
Chassis protection complies with regulation of IP43
Tool compensate: length compensate, tool top compensate, C compensate(G40,G41,G42)
Input and output : I/O 56X32
Feeding speed:0.01-30m/min
Straight line interpolation: G01
Arc interpolation: G02/G03
Screw thread cutting: G32
End face cutting circle: G94
Screw thread cutting circle : G92
Mixed mode screw thread cutting circle: G76
Inch/metric programming: G20 and G21
Feeding mode command: G98 and G99

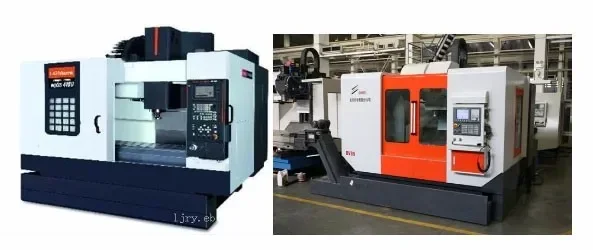

Application: CNC milling machinery; machining center; milling center; wood working machine; numerically control grinder



Product Dimension :



About Package

1. Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2. Commercial packing: plastic bag+ foam boxes + carton

3. As your requirement. If you have any special requirement about the packaging, please contact us at any time.
