TEBAK

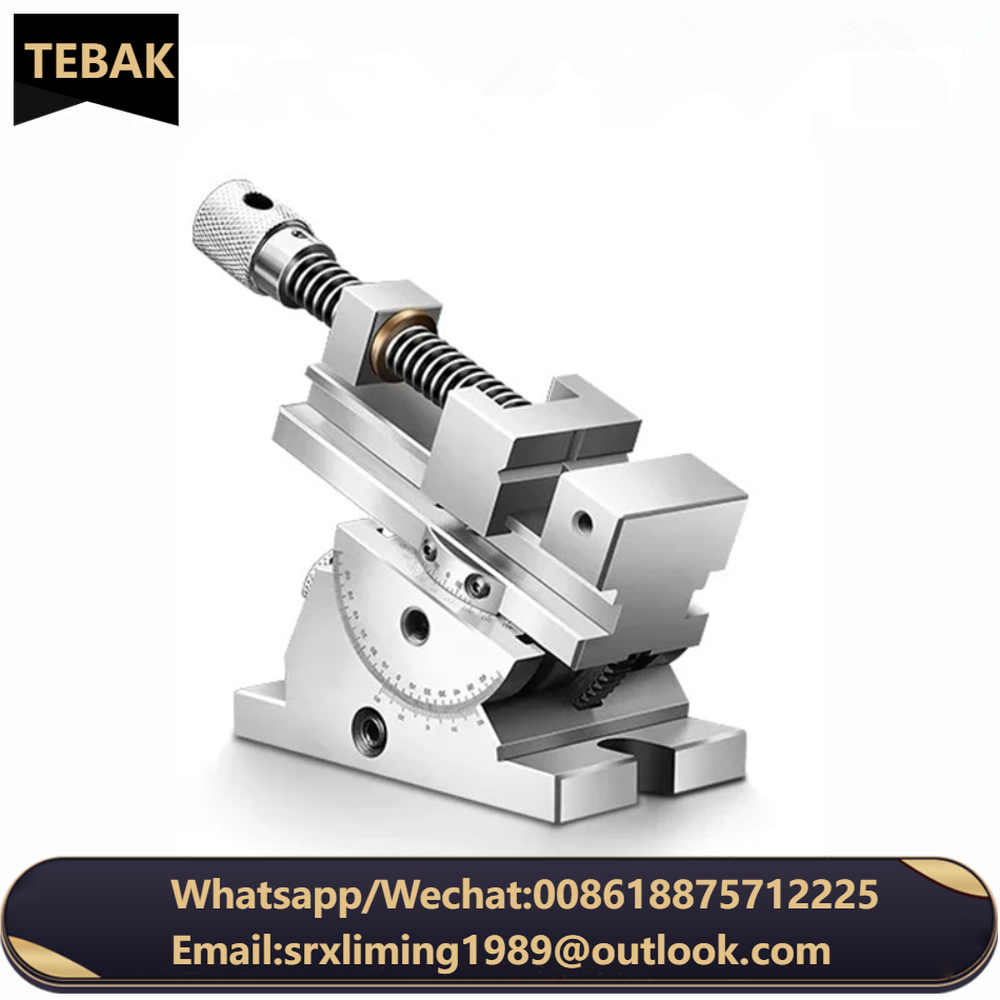

Universal Flat Jaw Precision Vise, Rotating vise，size 2 to 3 inches, 360° Rotation Adjustable angle, Vertical tilt up to 50°
Universal Flat Jaw Precision Vise, Rotating vise，size 2 to 3 inches, 360° Rotation Adjustable angle, Vertical tilt up to 50°
Couldn't load pickup availability

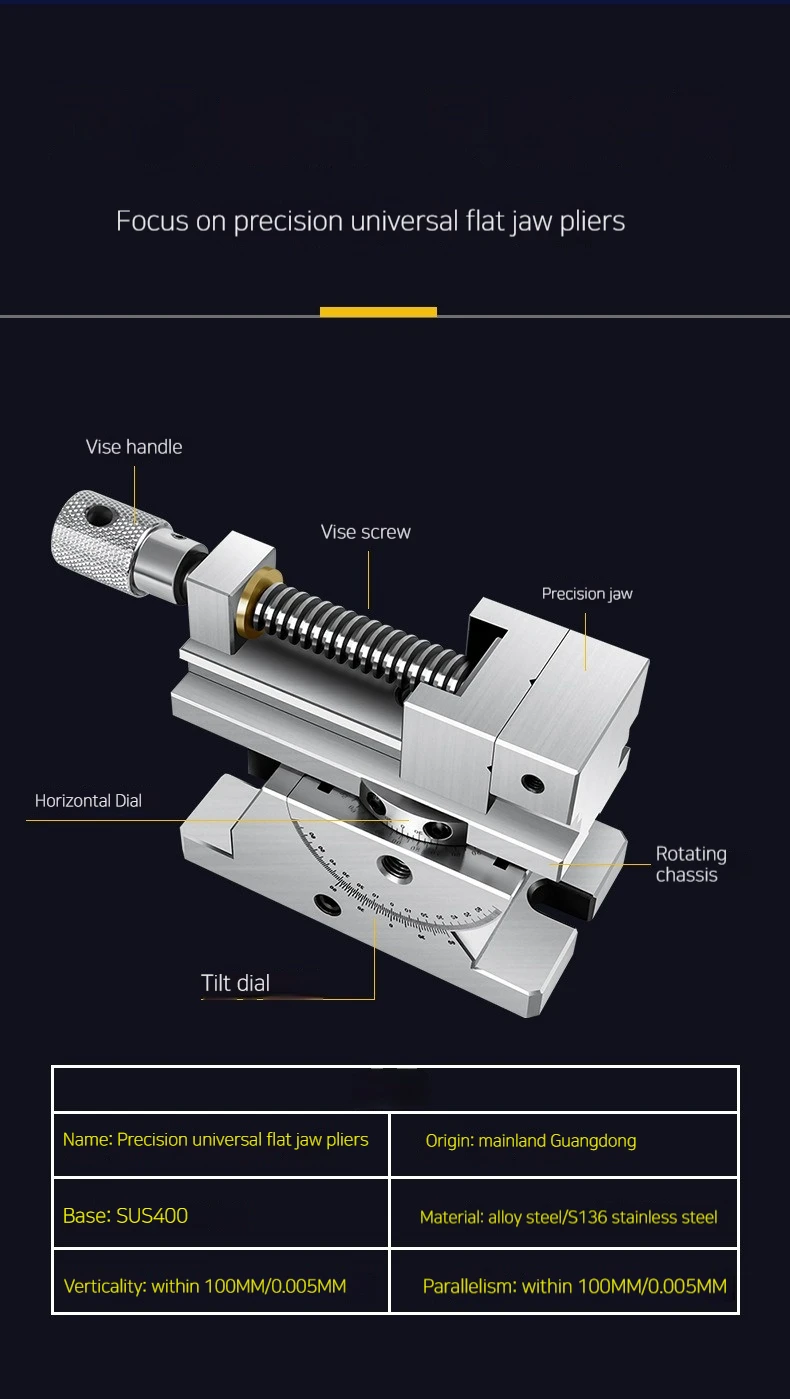

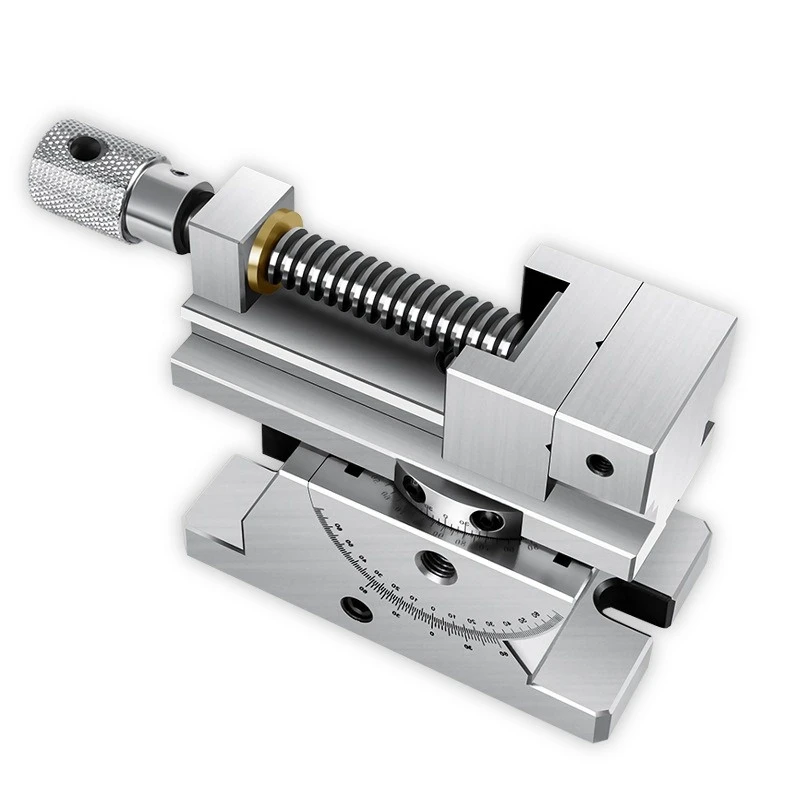

Product name: Universal precision vise
Verticality: 0.005MM
Parallelism: 0.005MM/100MM
Product accuracy: ±0.005MM
Material: 20 CrMnTi
Jaw hardness Working surface hardness: HRC55-64

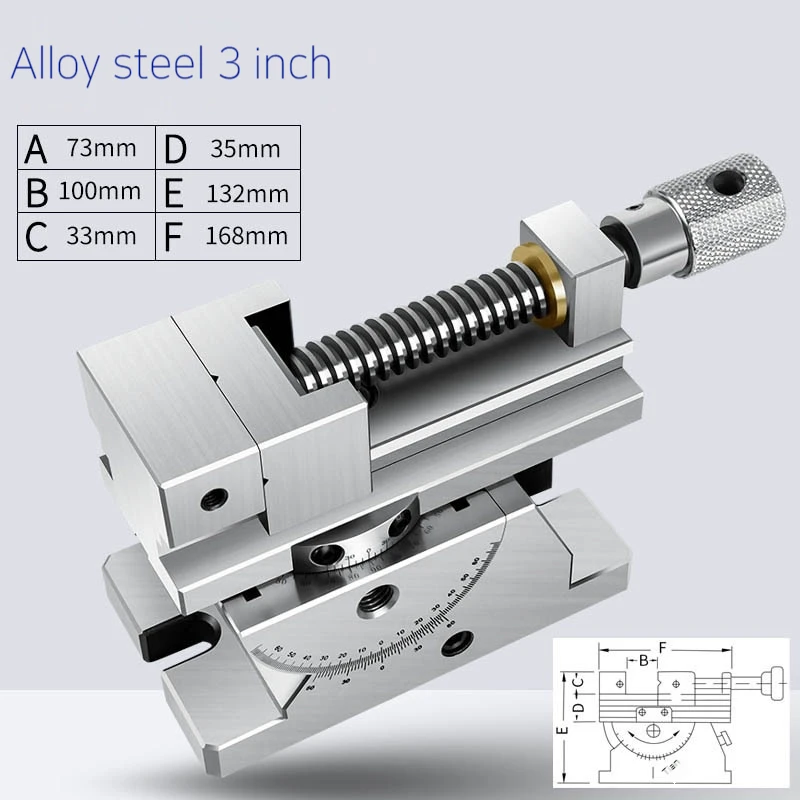

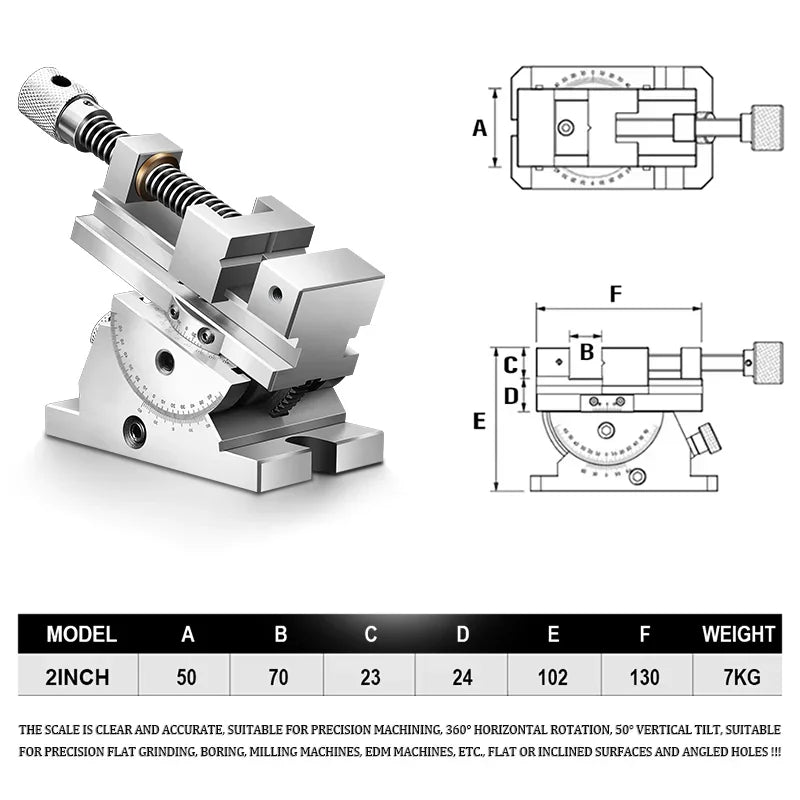

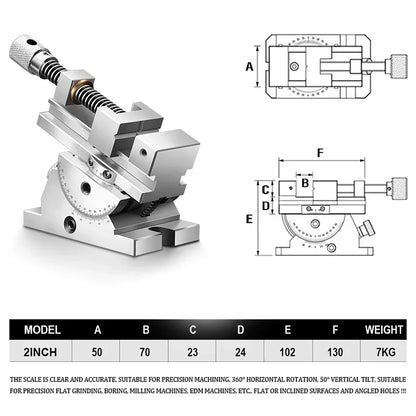

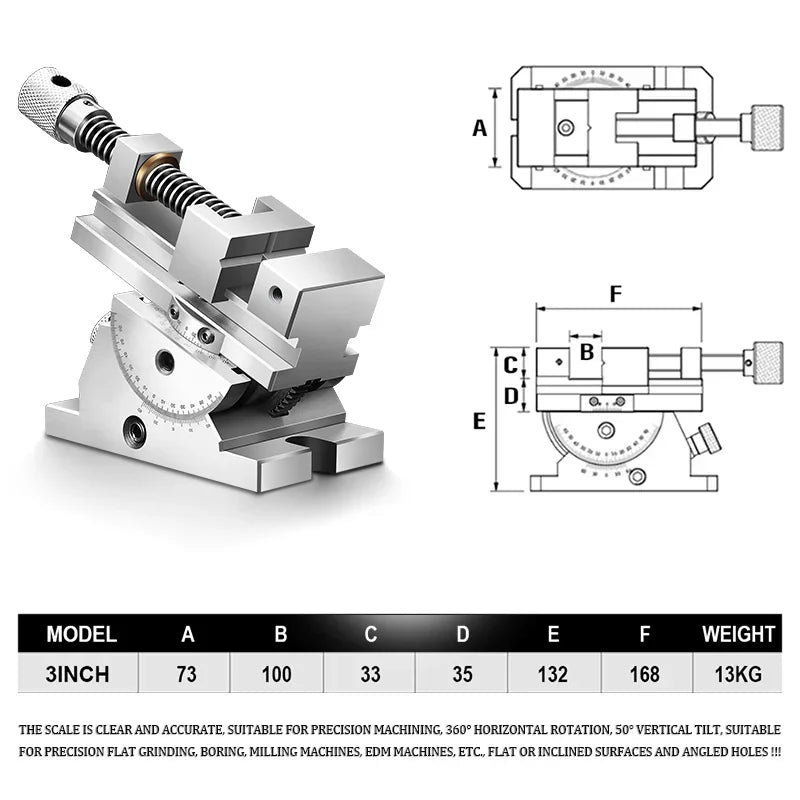

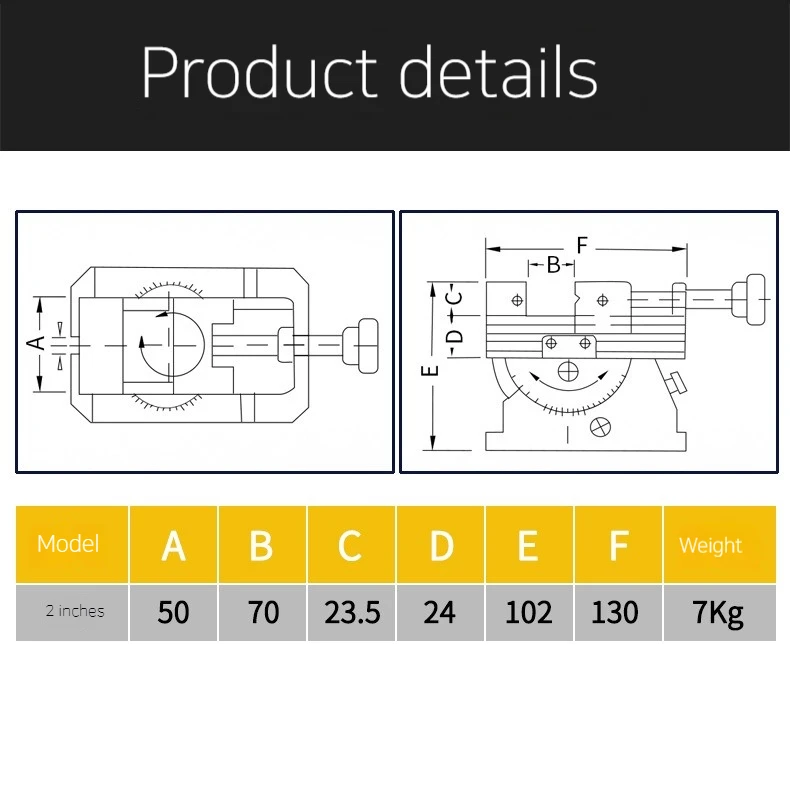

Product model: 2inch - 3inch
It is committed to the production and sales of metal cutting tools, measuring tools, fixtures, CNC/machine tool accessories. Over the years, we have accumulated practical experience in application, understand customer needs and provide high-quality application solutions to customers, improve production efficiency for customers, and solve processing problems. The company continues to pursue technological breakthroughs and provide customers with high-quality products and services with integrity and a pragmatic attitude.

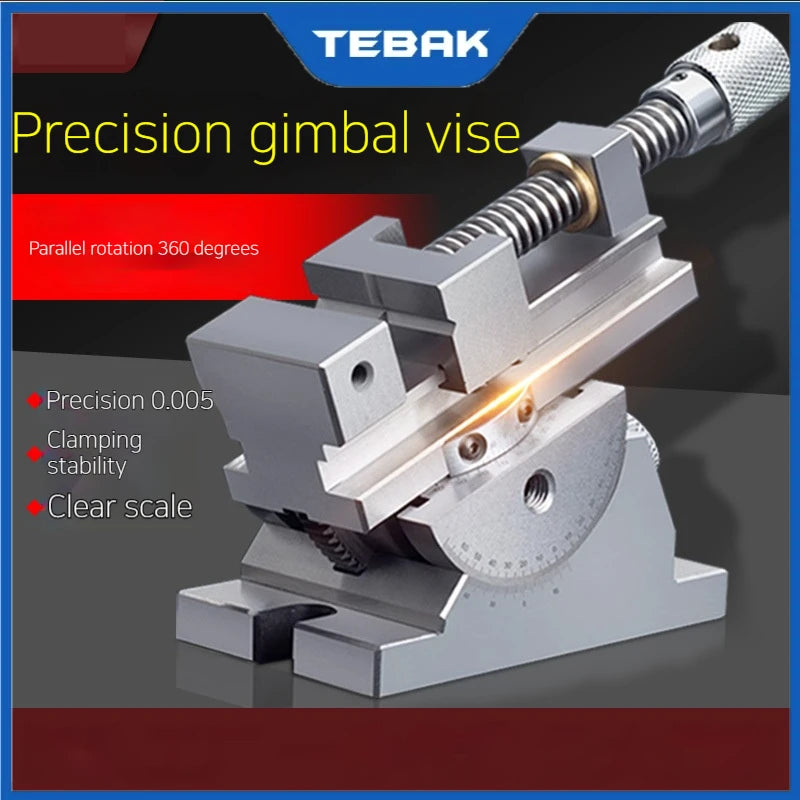

Flexible operation, precise scale, fast operation. You can get ±7 accuracy by naked eye calibration. 90-degree horizontal tilt, suitable for angular hole processing on flat or inclined surfaces, easily meet your needs! Precision scale, universal precision vise, high-precision clamping stability, selected materials, 360° horizontal rotation, accurate to detail measurement, hardness 58-62°! Universal adjustment to meet different angle requirements!

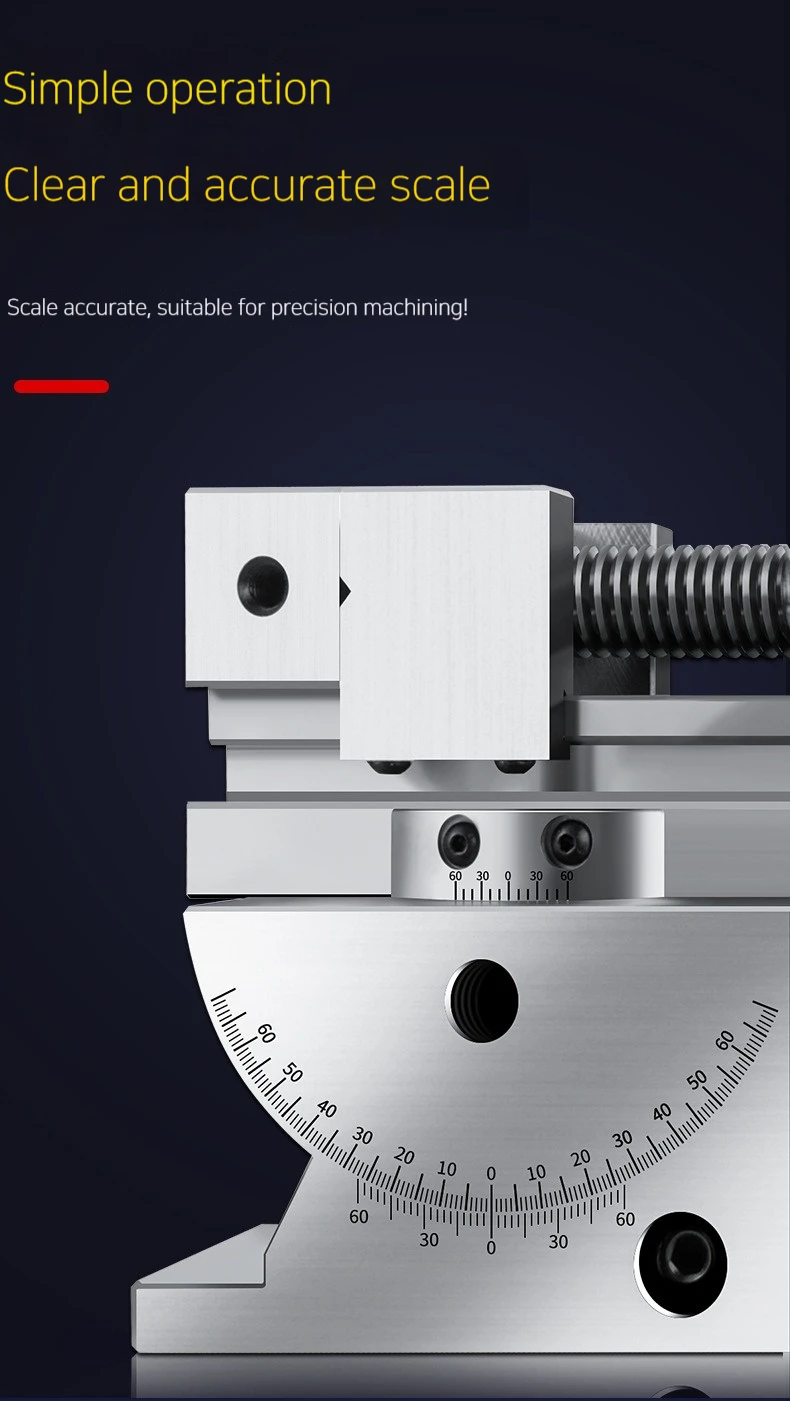

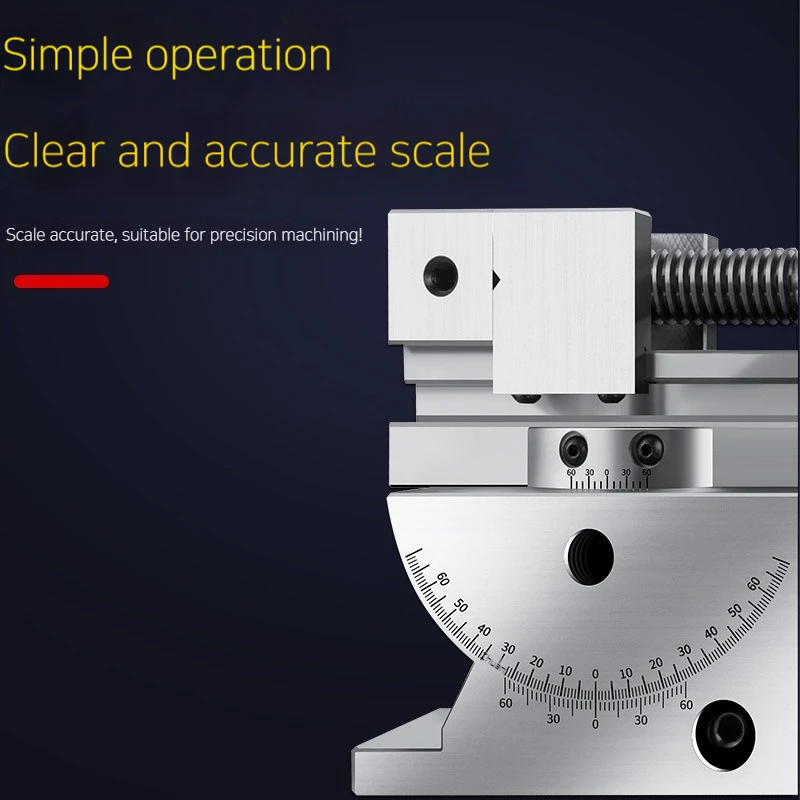

【Standard scale】【Clear and accurate】Easy to adjust the angle, easy to use and operate. The material used is tool steel, which is durable and has a longer service life!

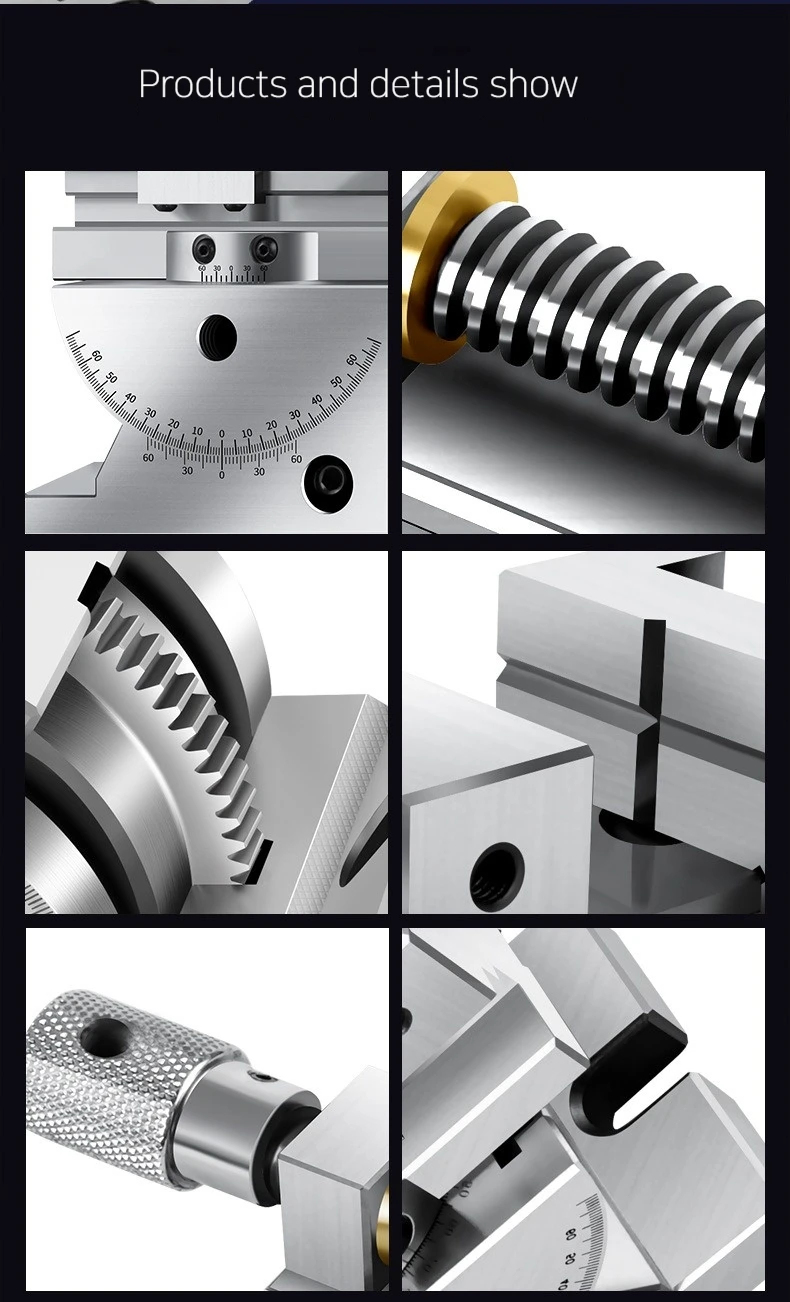

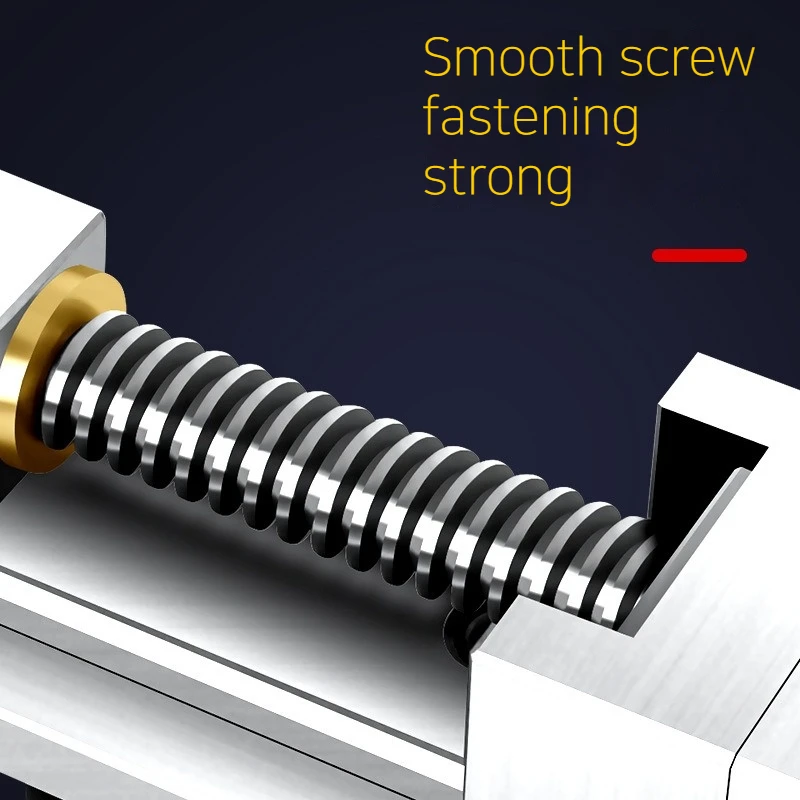

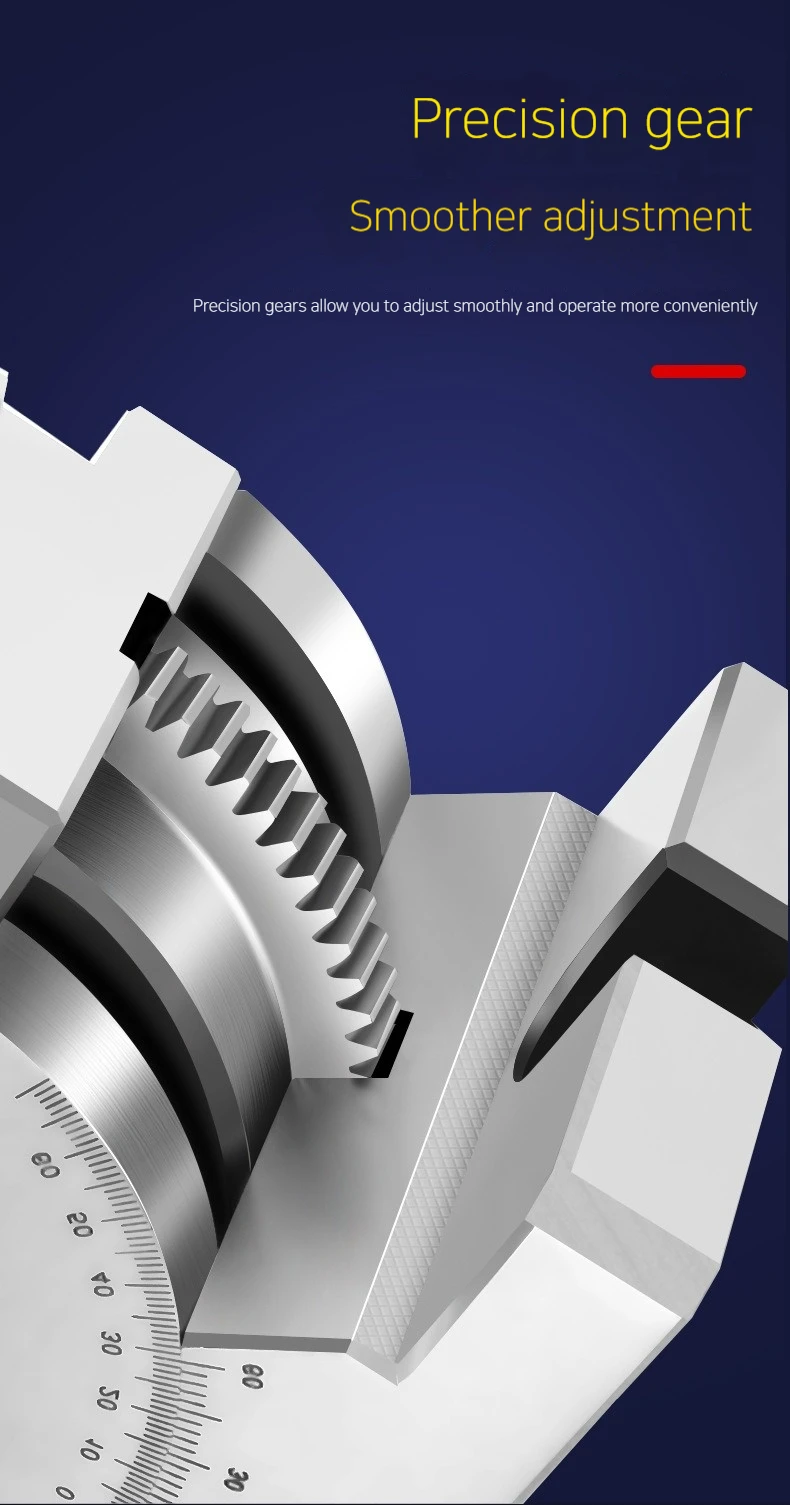

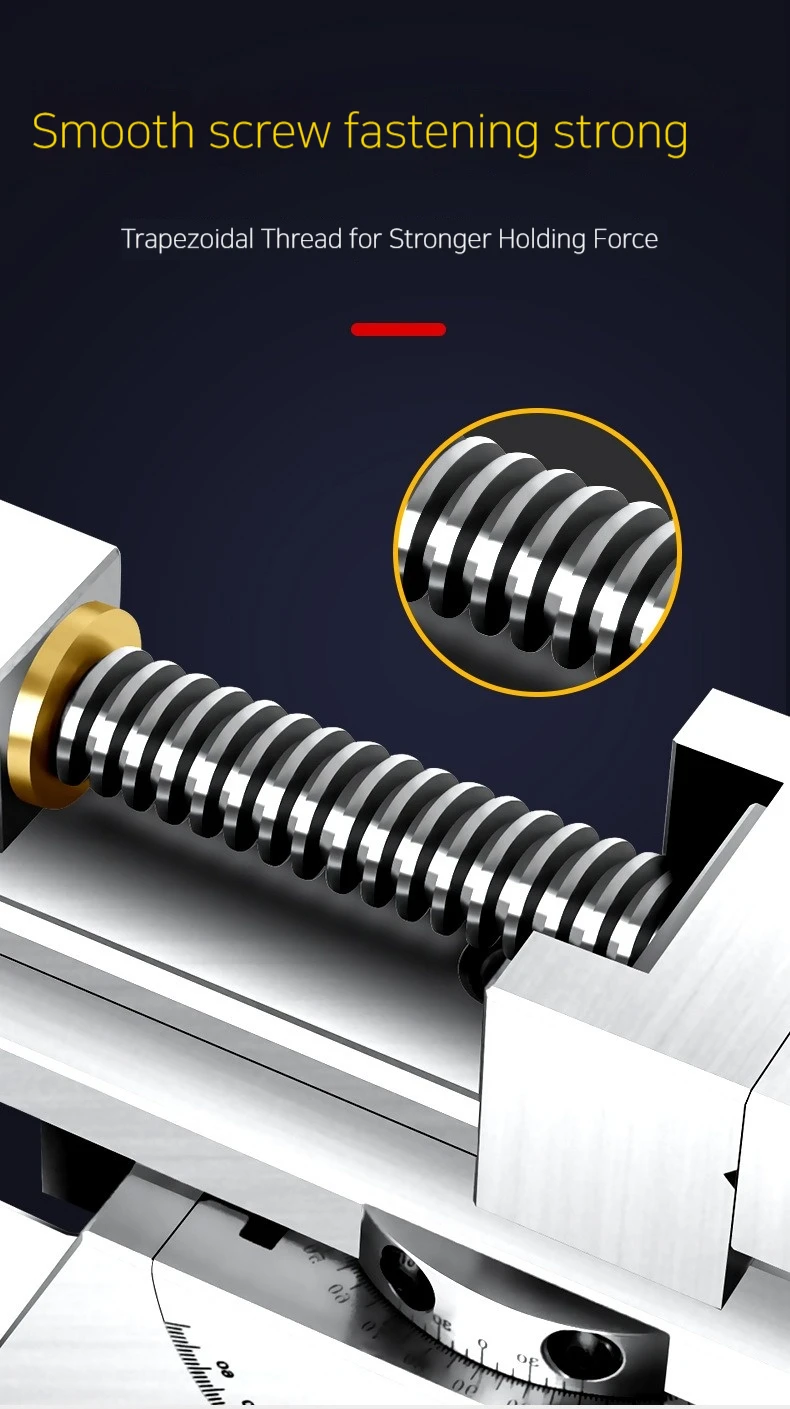

Worm gears, precision matching and adjustment, assembly quality improvement, maintain a small assembly gap! Every detail is visible! For surface grinders, milling machines, EDM, and wire cutting machines, it can complete the processing of angle planes, grooves and plane oblique holes, and can be used for the measurement of various angle parts. Whether it is horizontal, vertical, or flat, it can maintain a very high progress during work.

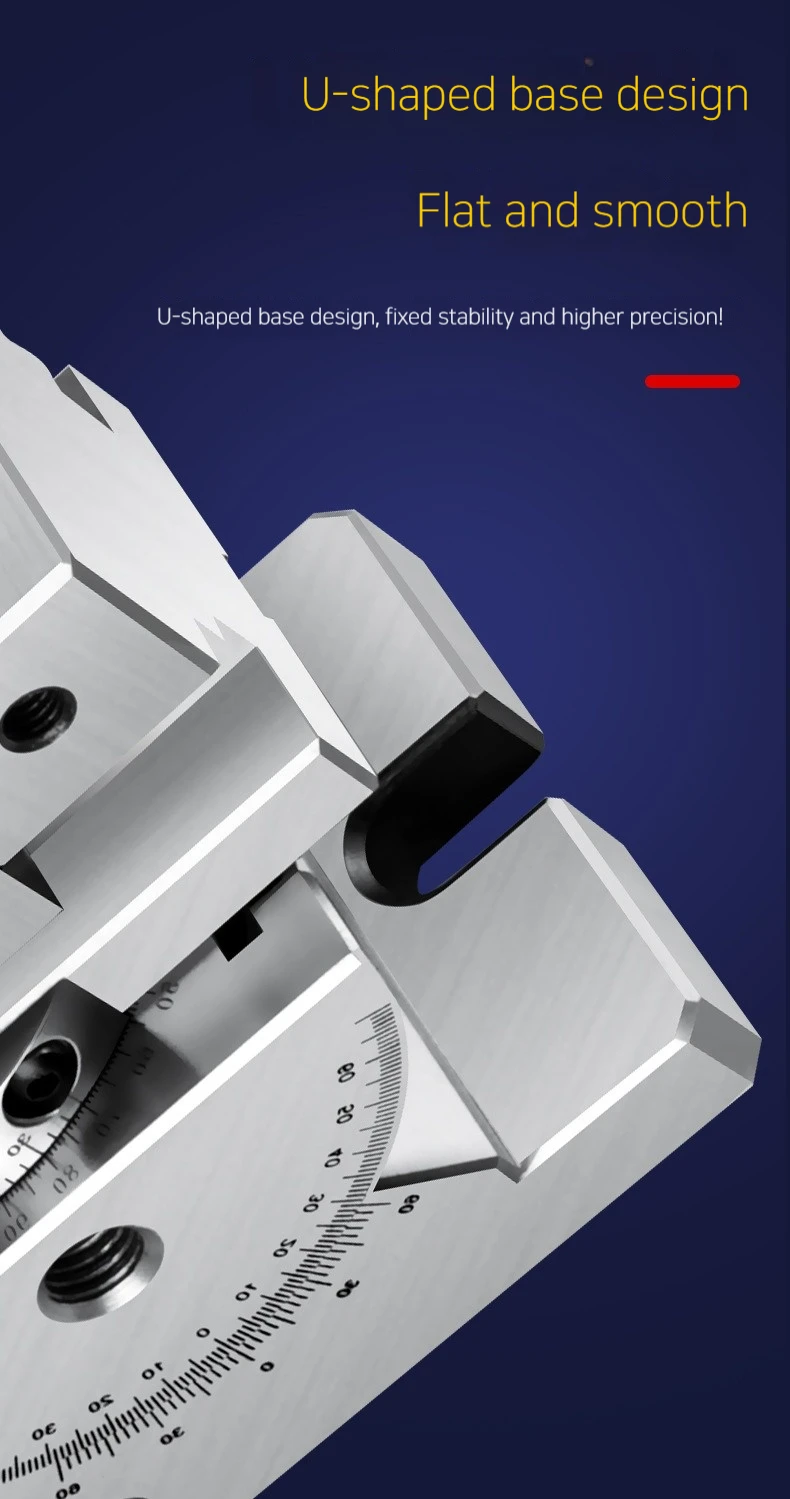

Surface grinding, stable clamping, flexible operation, surface roughness reaches 0.8um!
We have always paid special attention to details, and have been continuously improving product quality and quality control, and constantly absorbing customer opinions. If you have any questions or comments about our products, please feel free to contact us! In addition, we also support non-standard customization!

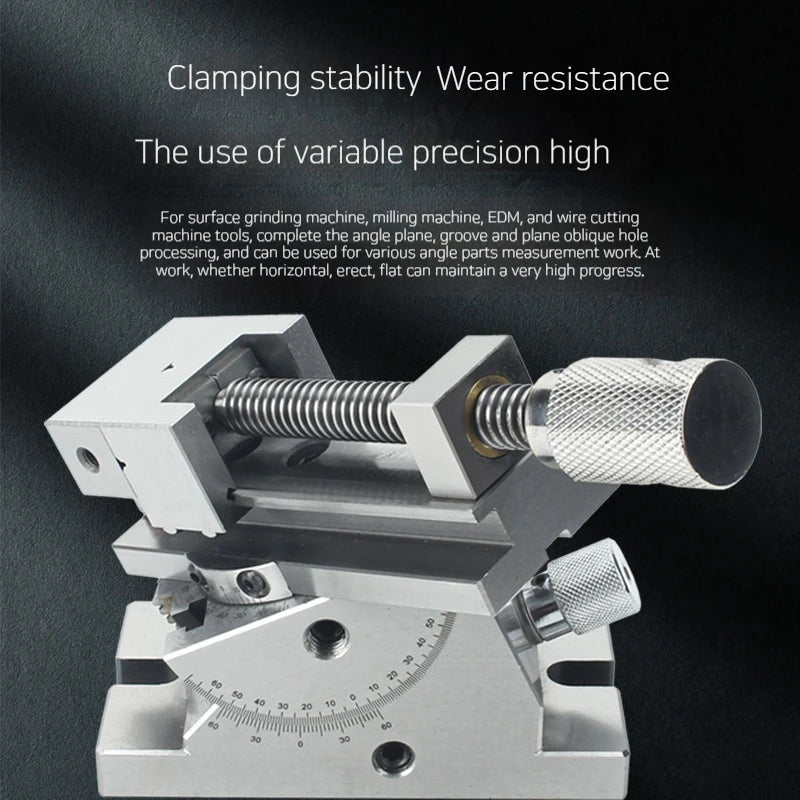

[Product Operation] The flat jaws of the universal precision vise can be rotated within 360° in the horizontal direction and 45° in the vertical direction with the help of a rotating seat. It can be used for precision grinders, milling machines, etc. to process planes, bevels, oblique holes, etc. at a certain angle.
[Parallelism Adjustment Operation] When the parallel surface of the workpiece does not meet the requirements, just loosen the screws "4" on both sides, turn the handle "3", and align the scale to zero.
When the parallel surface requirements of the workpiece are strict, a micrometer can be used to measure the surface of the pliers body so that the parallelism meets the predetermined requirements.

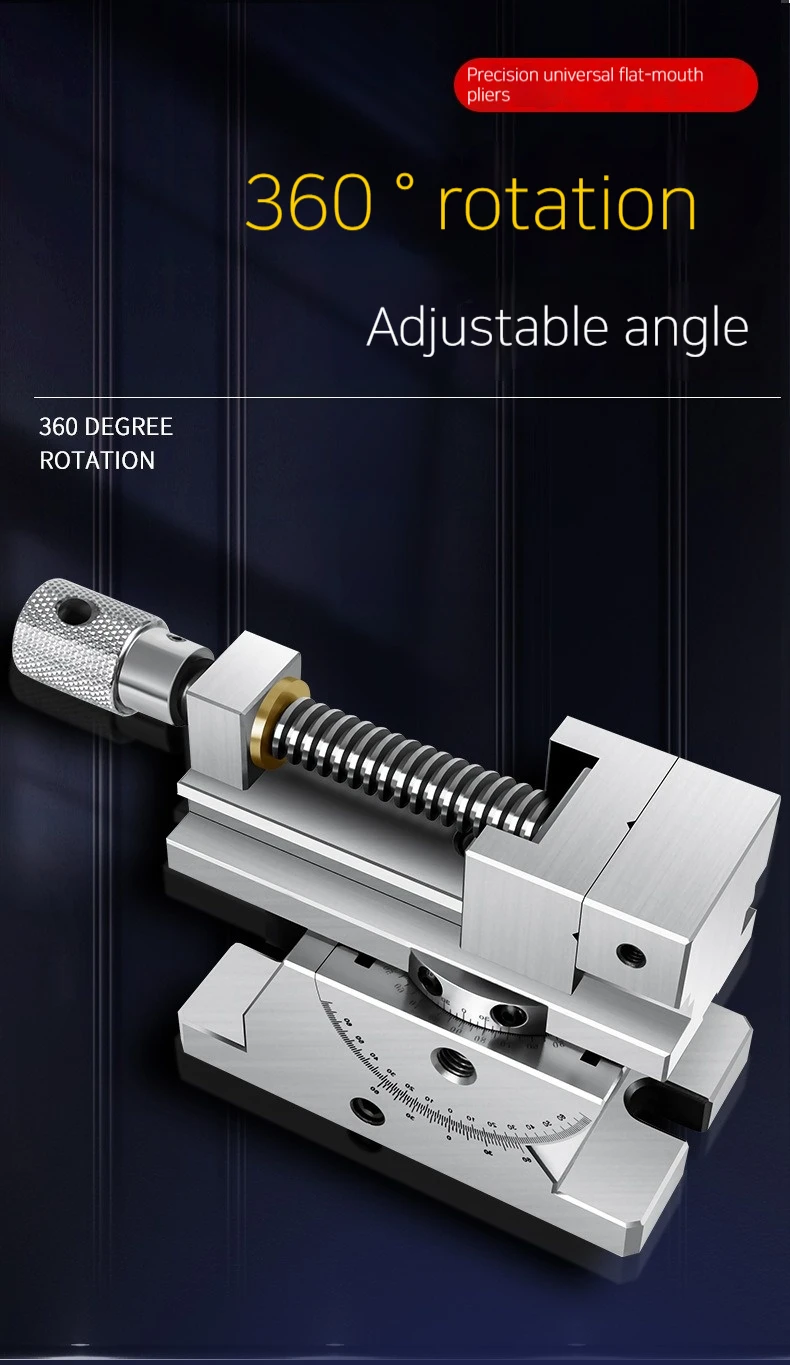

[Angle Adjustment] Angle adjustment within the horizontal range: loosen the screws "2" on both sides, turn the flat jaws to the required angle, and then tighten the screws "2".
Angle adjustment within the vertical plane: loosen the screws "4" on both sides, turn the handle "3" to adjust to the required angle, and then tighten the screws on both sides
If you encounter any problems, such as dents, cracks, damage, incorrect items, functional issues or not as described, JCWIN is always here to help you with free returns, full refunds and compensation claims. (please contact us via inbox chat)
Have any questions? Please feel free to inbox us. Our friendly team is always ready to provide prompt assistance !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
