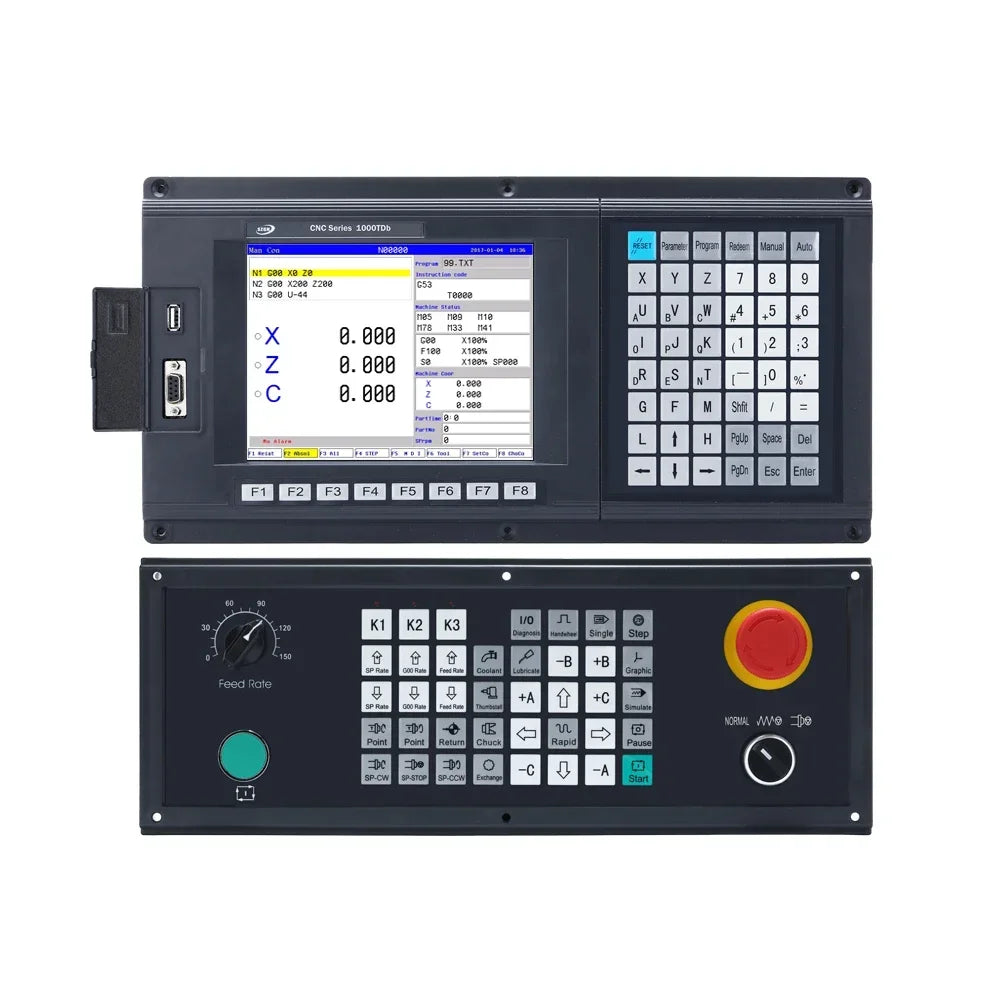

The most ideal 3-axis CNC lathe controller for CNC CNC1000TDb-3 retrofitted lathes and turning centers

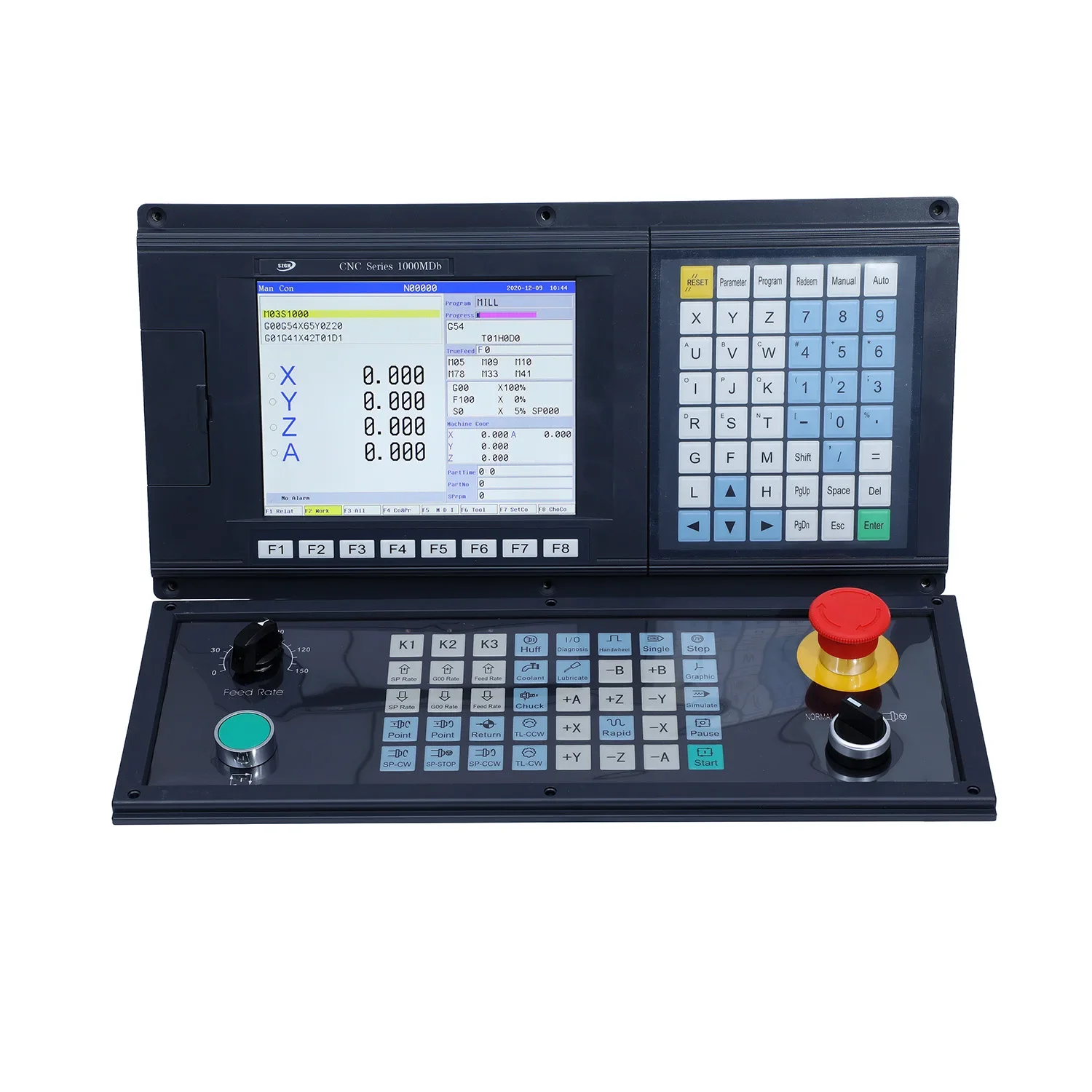

SZGH-CNC1000TDb-3 is 3 axis lathe CNC controller, with 8 inch display(800x600) and 2-channel analog, with cutter offset, I/O 40X24, PLC and macro function.

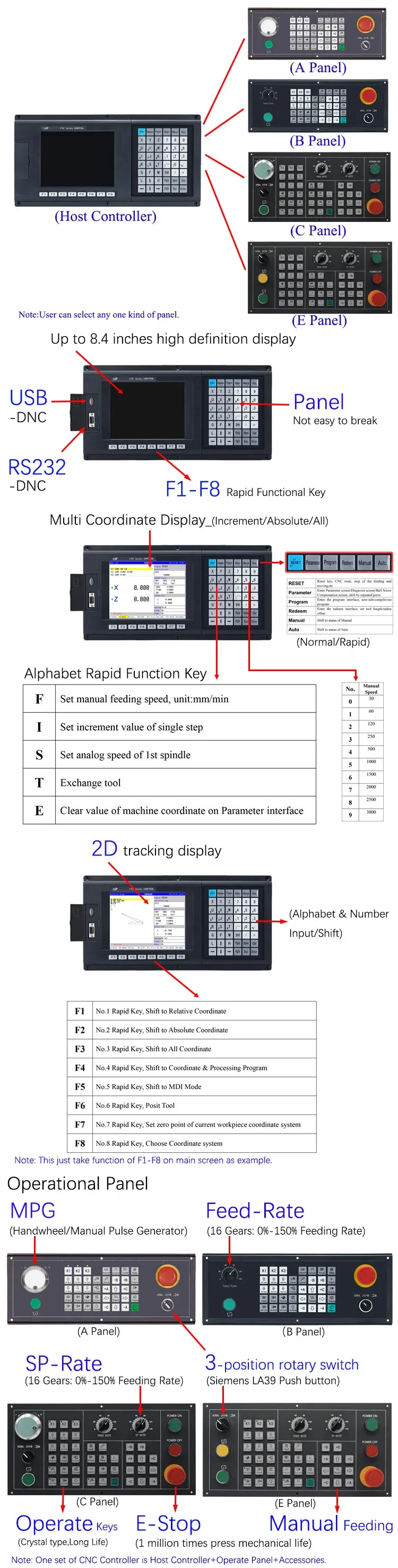

Features

1) 800x600 8.4 inchs real color LCD displayer

2) Support PLC and macro function, and automatic tool exchange function

3) 128MB Memory , 100Mb user store room,

4) The max speed is 30m/min, feeding speed is 15m/min

5) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing

6) High anti-jamming switch power(220VAC -> 24VDC)

7) Built-in many plc programs,which can be edited freely.

8) With USB interface,it supports file operation in flash disk,system configuration and software upgrade

9) Display in chinese or english,which can be selected by parameter.

10) Analog voltage output of 0~10V in two channels,support double spindles

11) 32 bits high performance, low power consumption industrial grade ARM microprocessor.

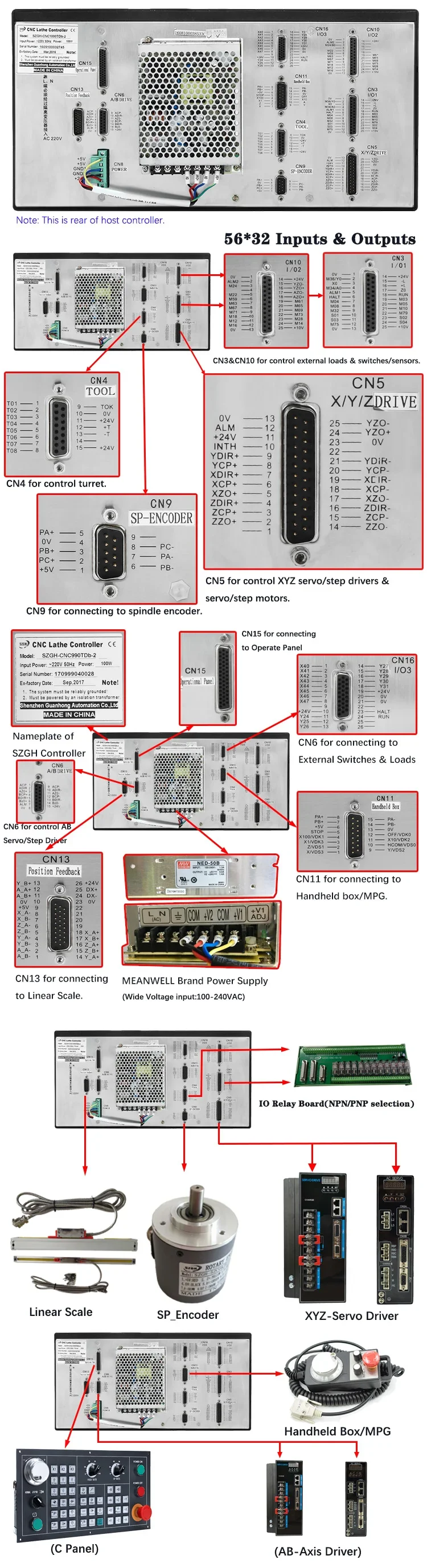

12) I/Os : 56*32, 40*24 I/Os can be edited freely

13) cutter offset : C

14) English menu, program and interface, full screen edition

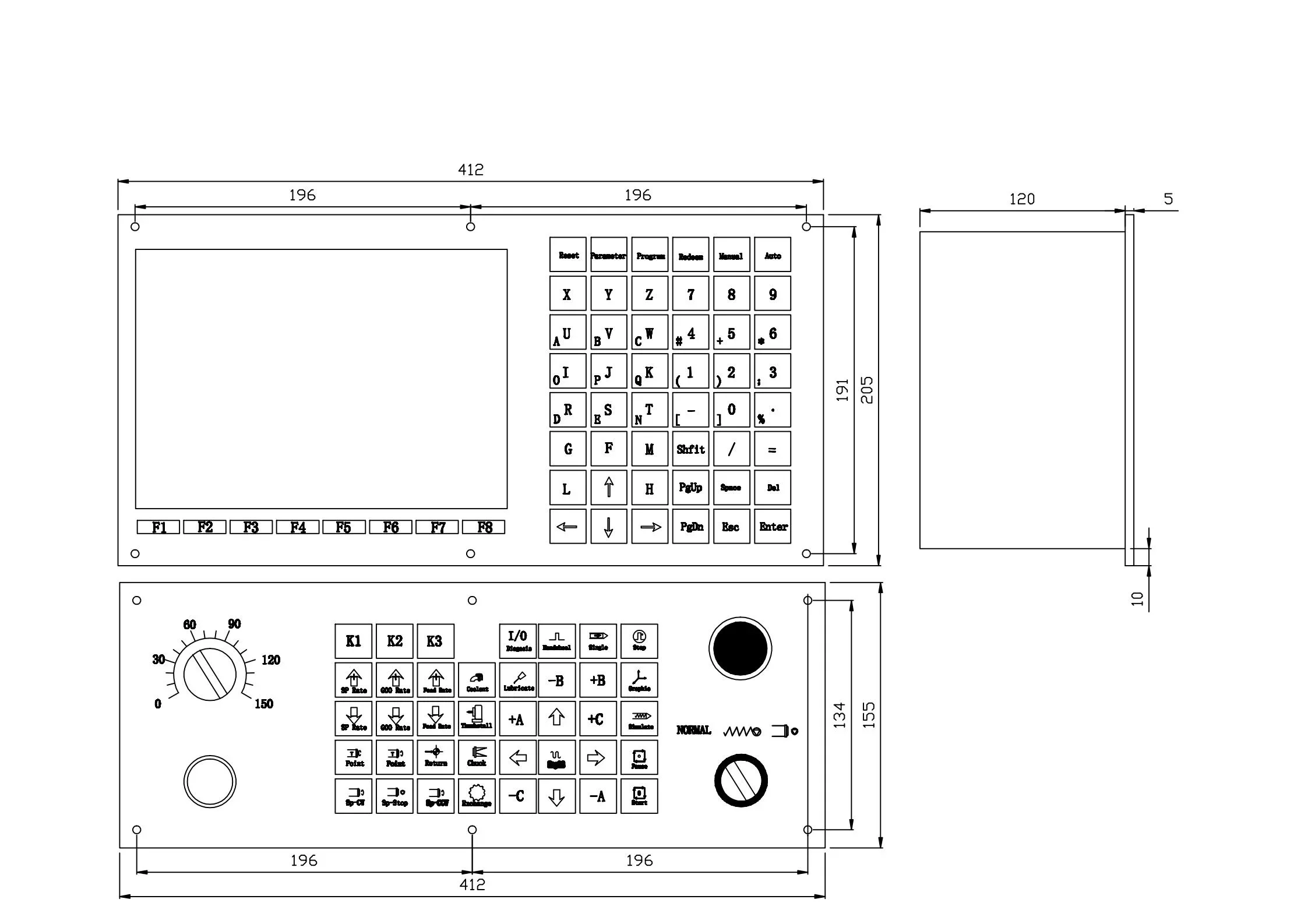

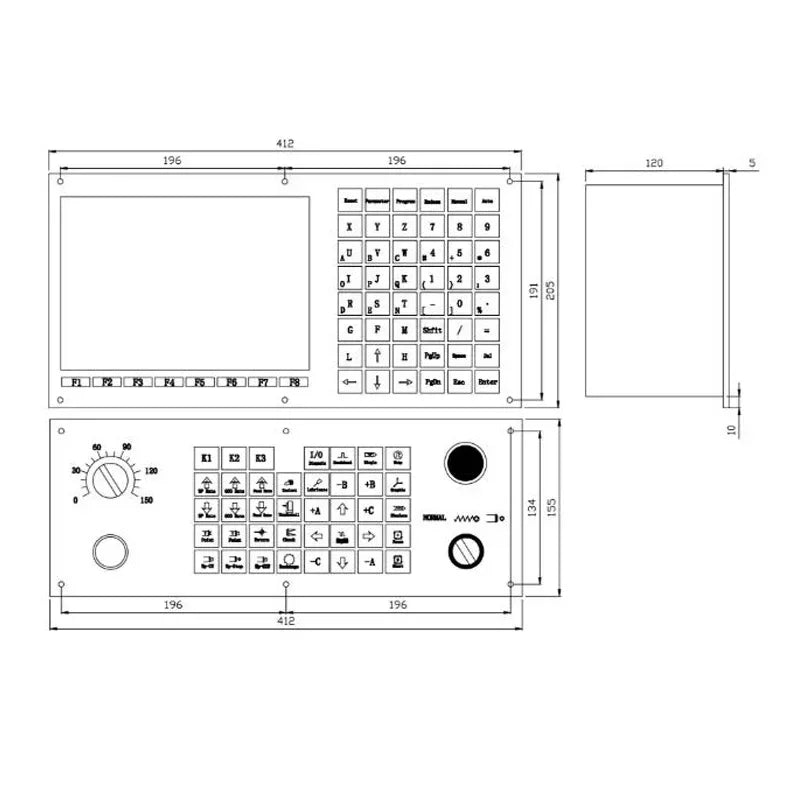

Size Information:

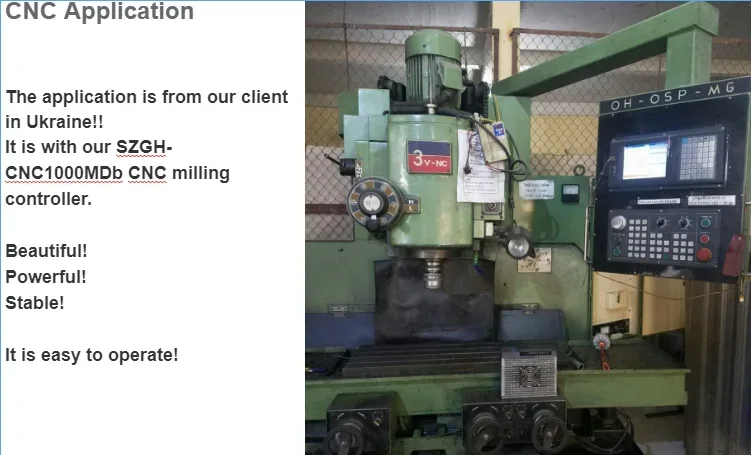

Application

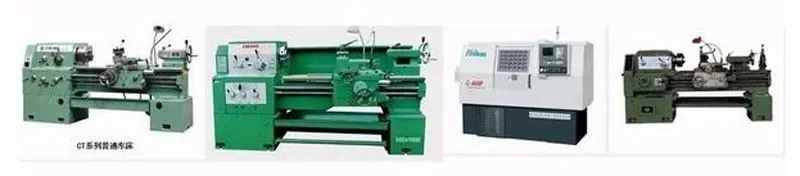

Mini-type special lathe machinery,CNC lathe machinery,hardware processing industry,and automatic equipment,etc.
