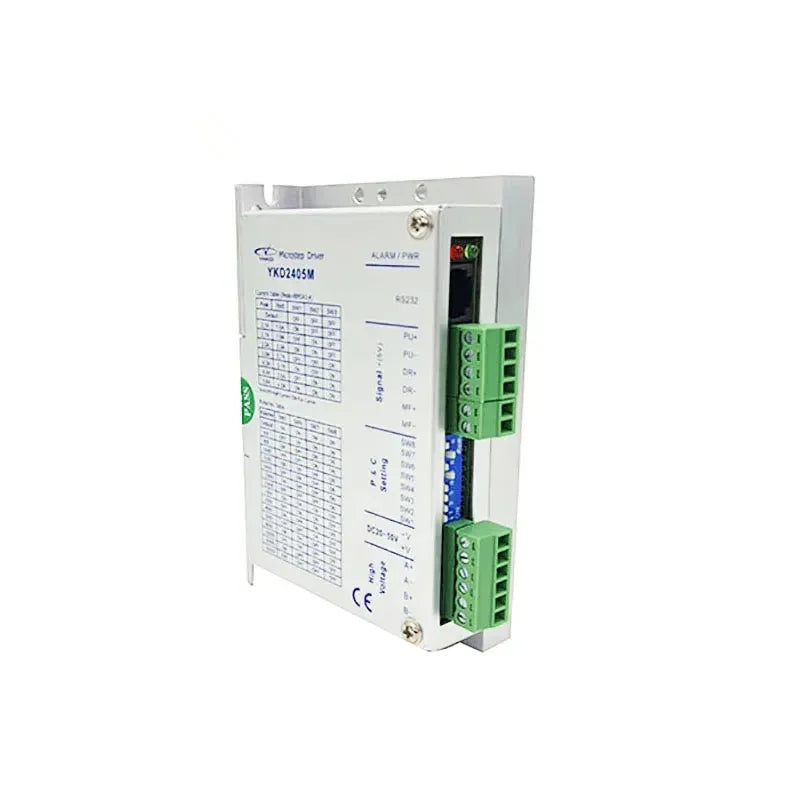

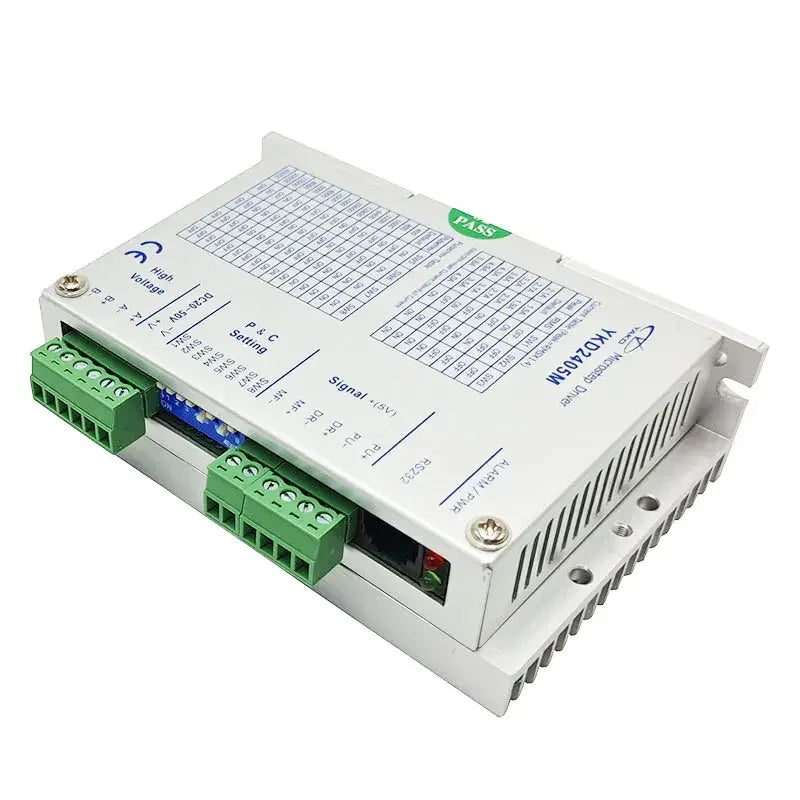

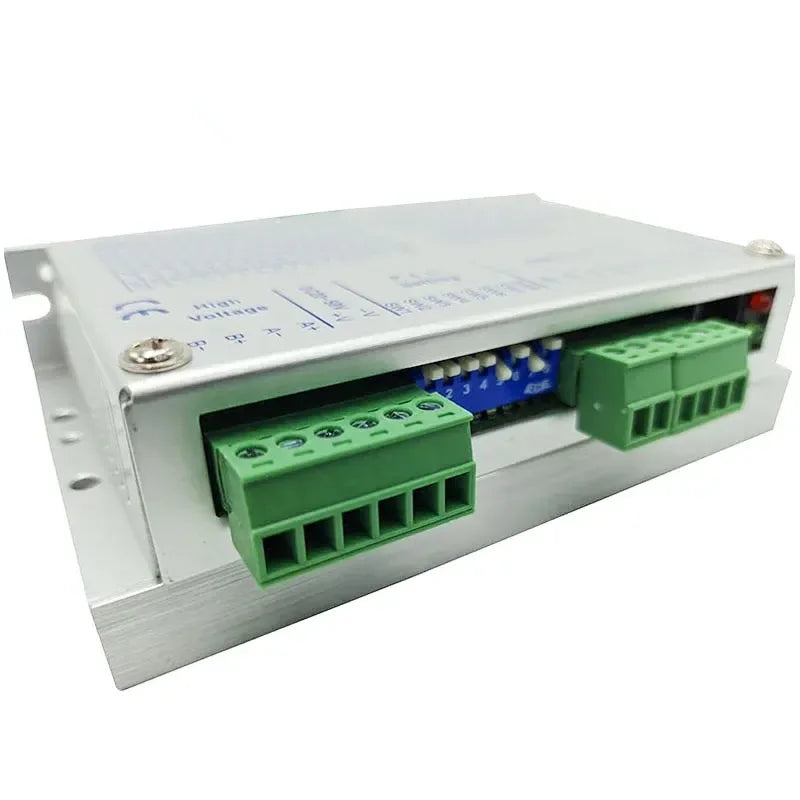

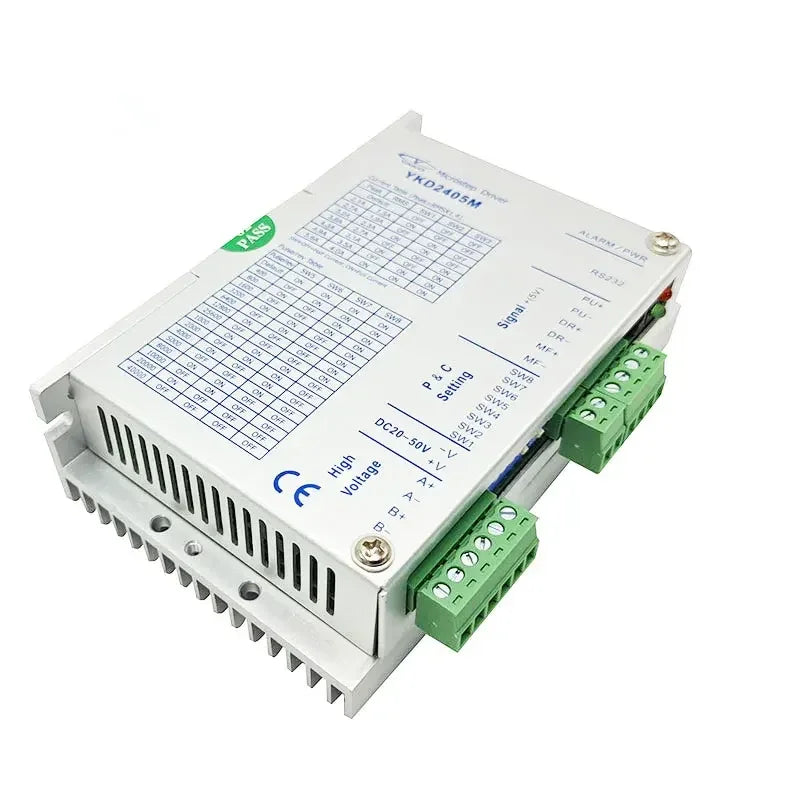

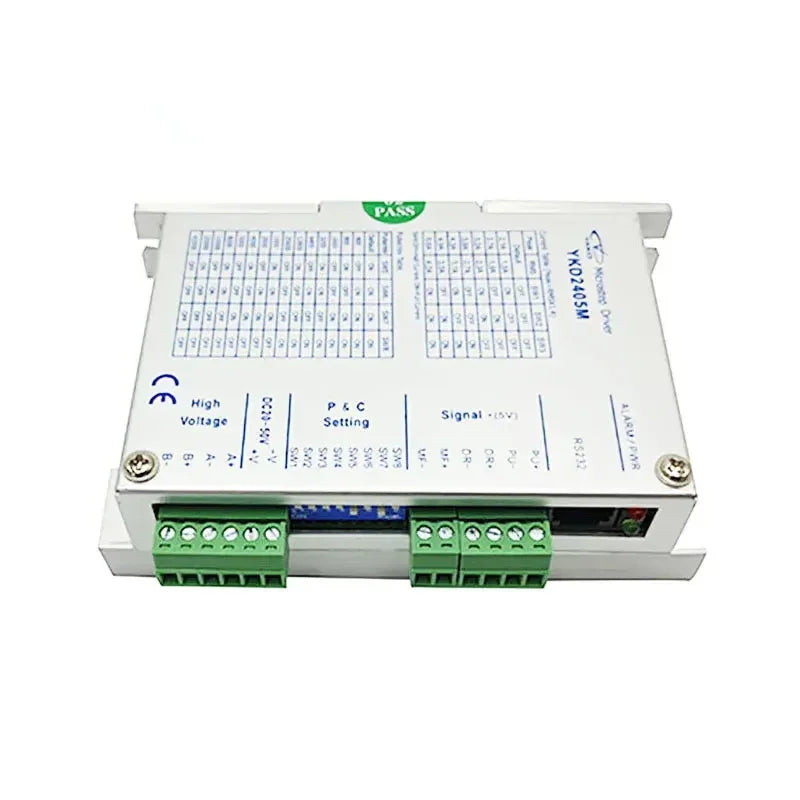

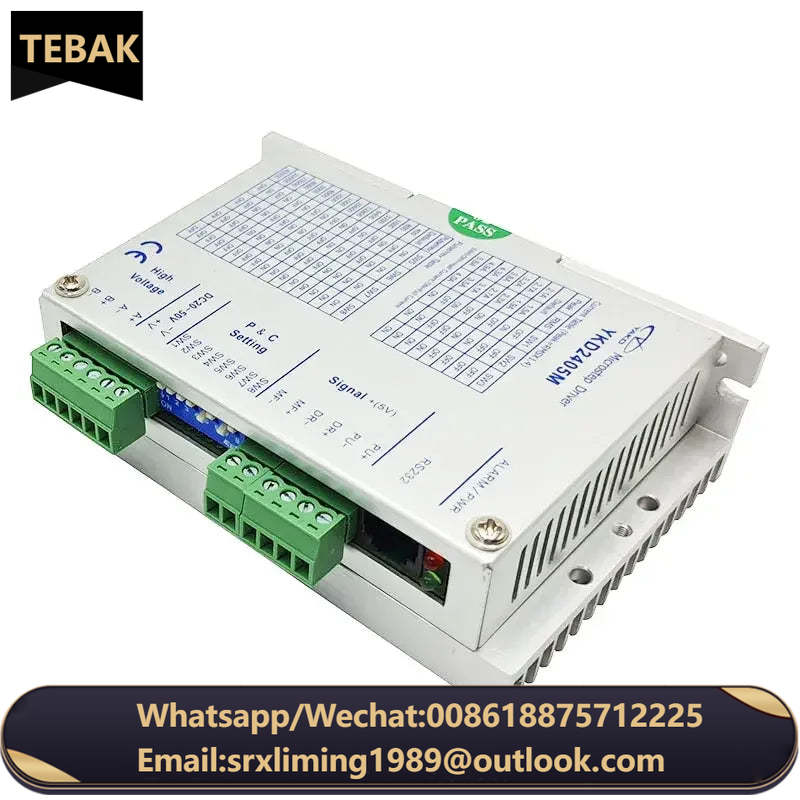

TEBAK YKD2405M Origin32 Bit DSP Digital Stepper Driver 2 Phase Step Drive DC20-50V 4.0A Driver for 42-86mm Flange Stepper Motor

TEBAK YKD2405M Origin YAKO 32 bit DSP Digital Stepper driver  2 phase step drive DC20-50V 4.0A Driver for 42-86mm flange stepper motor
Features:

1.32-bit DSP control, low noise and superior vibration performance

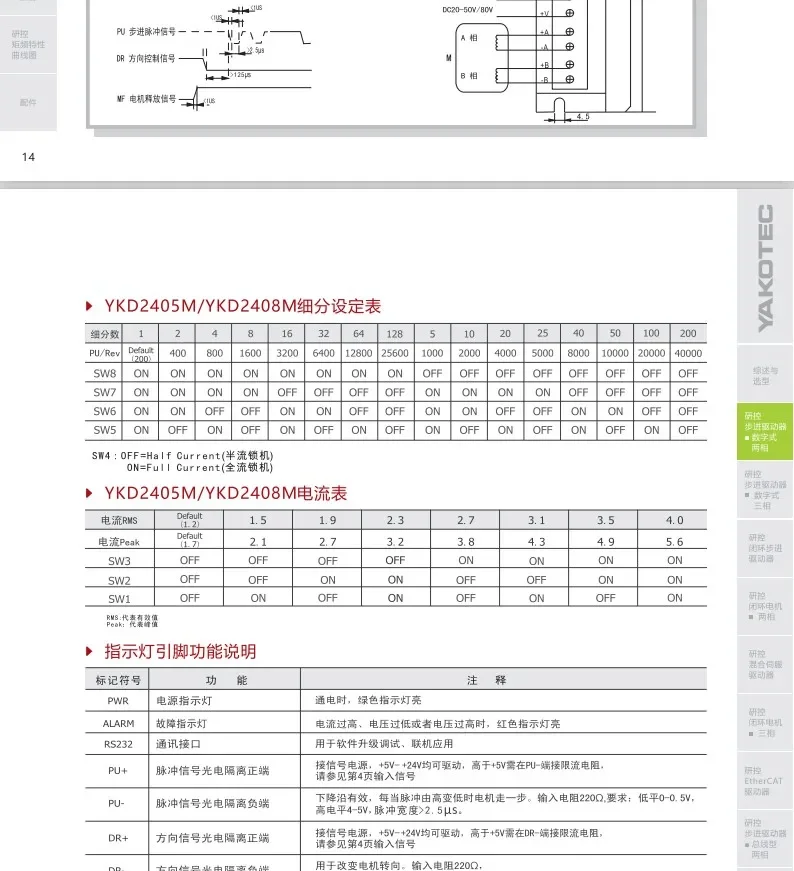

2.16 constant torque microstep setting, up to 200 microsteps
3.Smooth and accurate current control, effectively reduce motor heating
4.The highest pulse response frequency is 200Kpps
5.When the pulse stops over 200ms, the motor current is halved
6.Excellent smoothness in low frequency microsteps
7.Optically isolated differential signal input, strong anti-interference ability

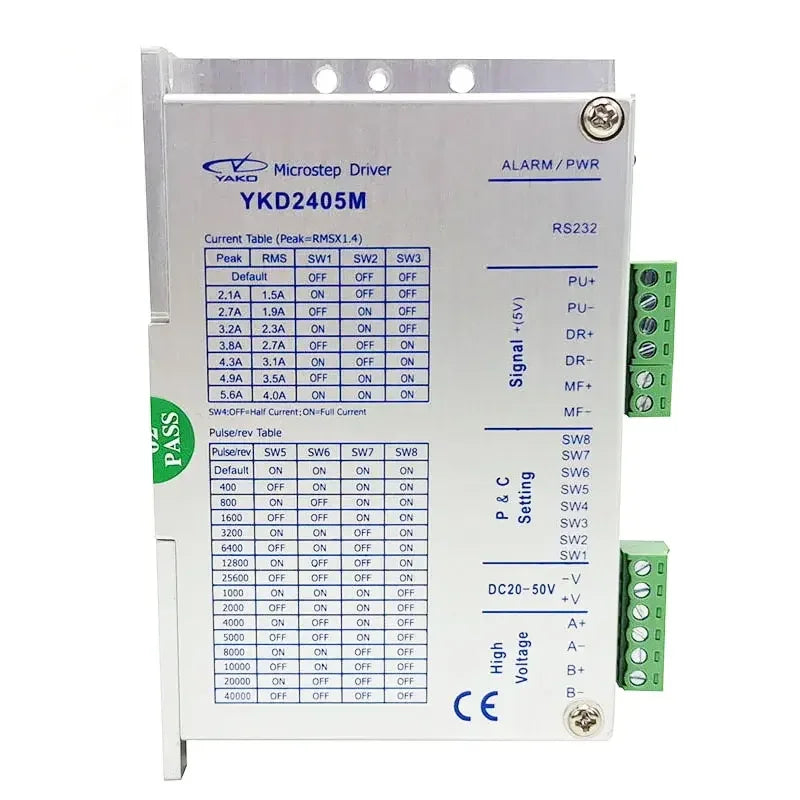

8.Drive current is adjustable below 4.0A
9.Voltage input range: DC20~50V(YKD2405M)/DC20~80(YKD2408M)
With over voltage, under voltage etc. fault protection

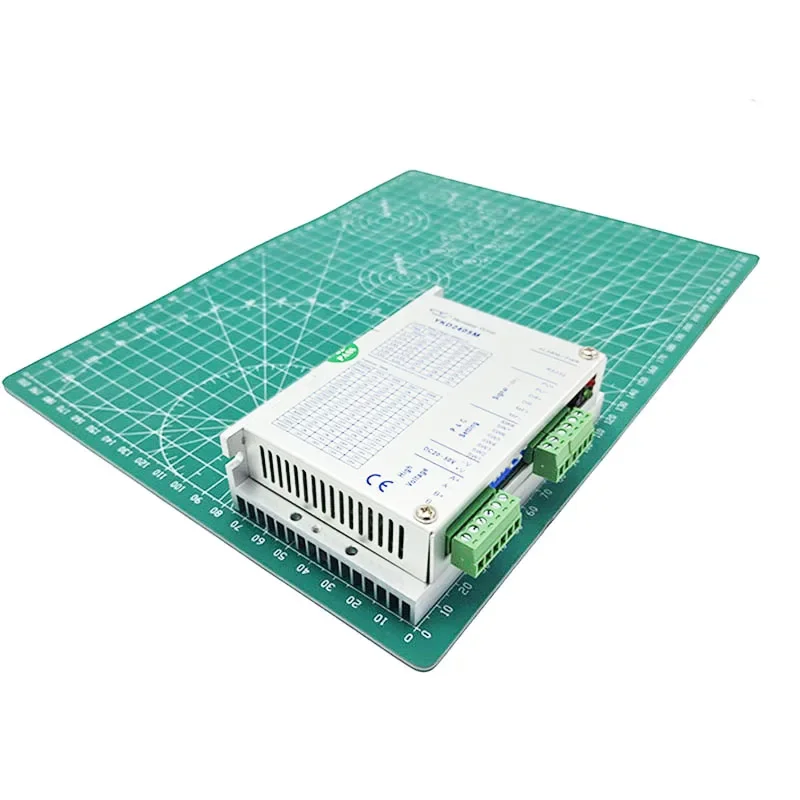

10.Small size, volume 118*76*33 (mm³), weight 0.3kg
11.Suitable for 42/57/86mm(NEMA17/23/34) 2 phase open-loop stepper motors.

Applicable areas:

Mainly used in laser cutting machine, laser welding machine, laser marking machine, lock screw
machine, medical equipment, robot, dispenser, electronic equipment and engraving machine

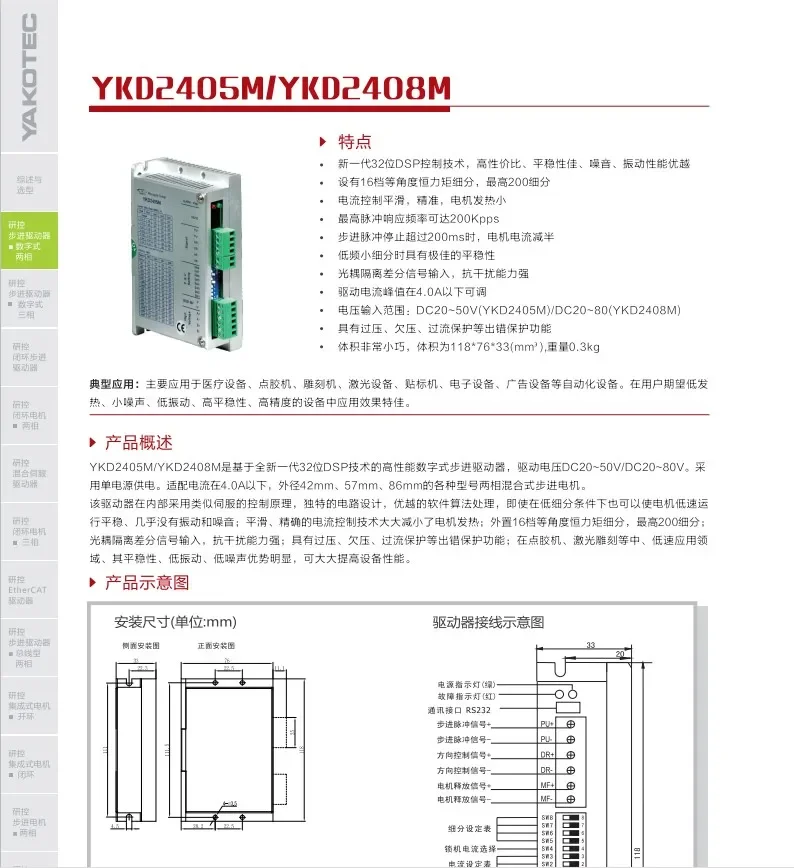

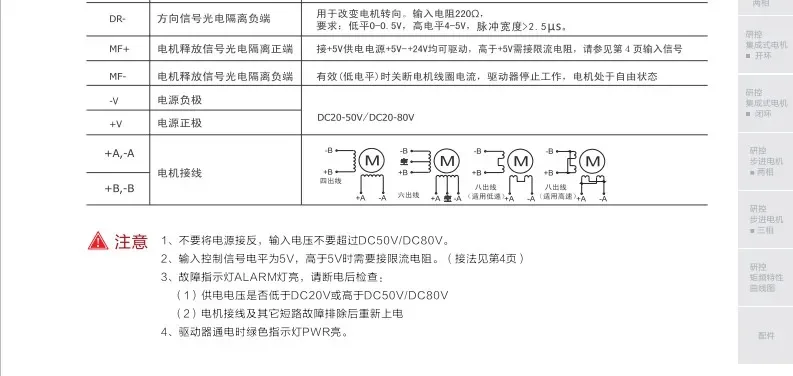

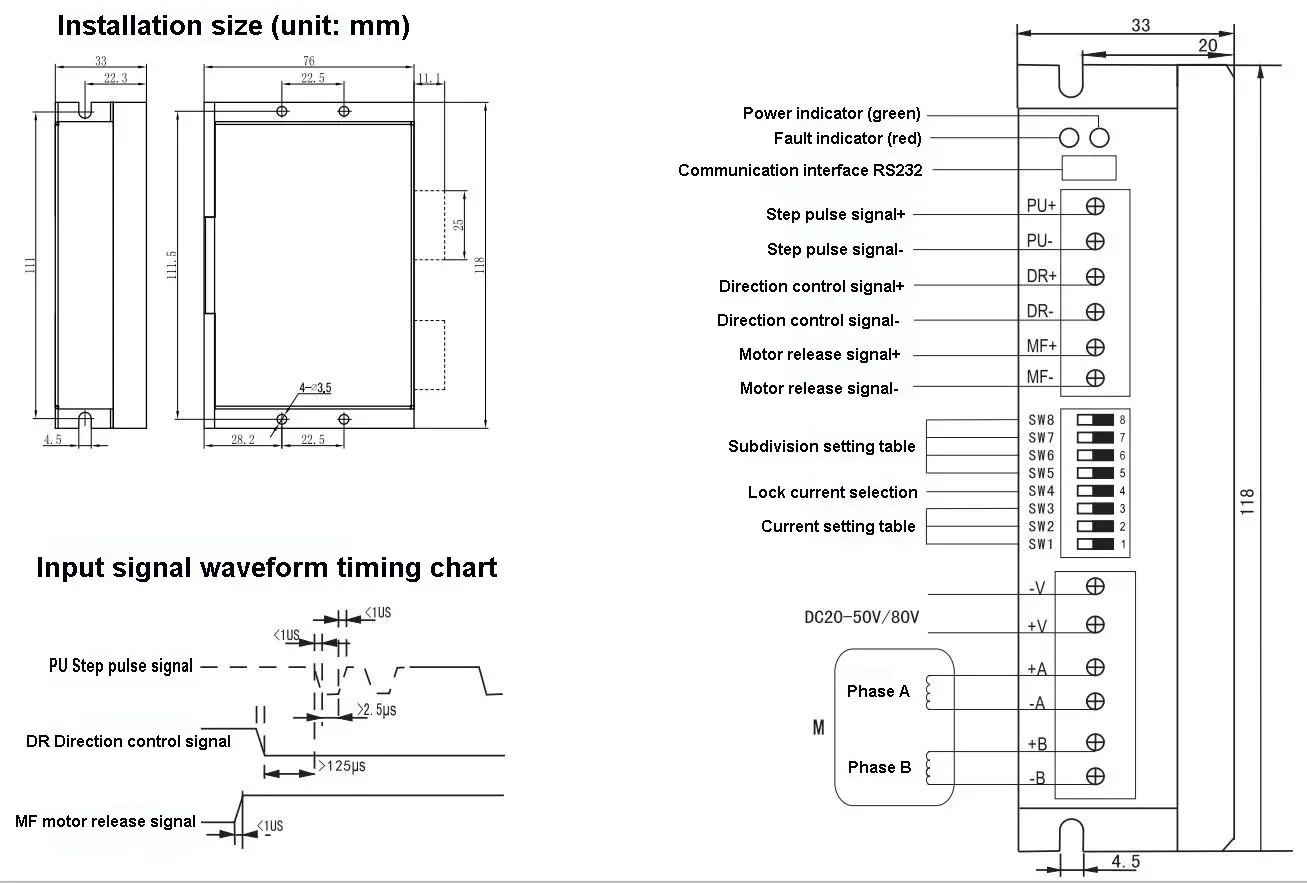

Dimensions and wiring:

Introduction:

The YKD2405M/YKD2408M is a high-performance digital stepper driver based on a new generation of 32-bit DSP technology with a drive voltage of DC20~50V/DC20-80V. Pick
Power from a single power supply. Various types of two-phase hybrid stepping motors with adapter currents below 4.0A and outer diameters of 42mm, 57mm, and 86mm. The driver adopts servo-like control principle internally, unique circuit design and superior software algorithm processing. Even under low subdivision conditions, the motor can run smoothly at low speed with almost no vibration and noise. Smooth and precise current control technology The motor heating is greatly reduced; the external 16-speed constant torque subdivision is divided into 16 subdivisions;
Optocoupler isolated differential signal input, strong anti-interference ability; with over-voltage, under-voltage, over-current protection and other error protection functions; in the field of low-speed applications such as dispensers, laser engraving, its smoothness, low vibration, low noise The advantages are obvious, which can greatly improve the performance of the equipment.
