TEBAK YAKO YKD2204M 2Phase Stepper Motor Driver DC18-36V 100KHz Use for CNC Router Engraving Machine Absolutely Genuine.

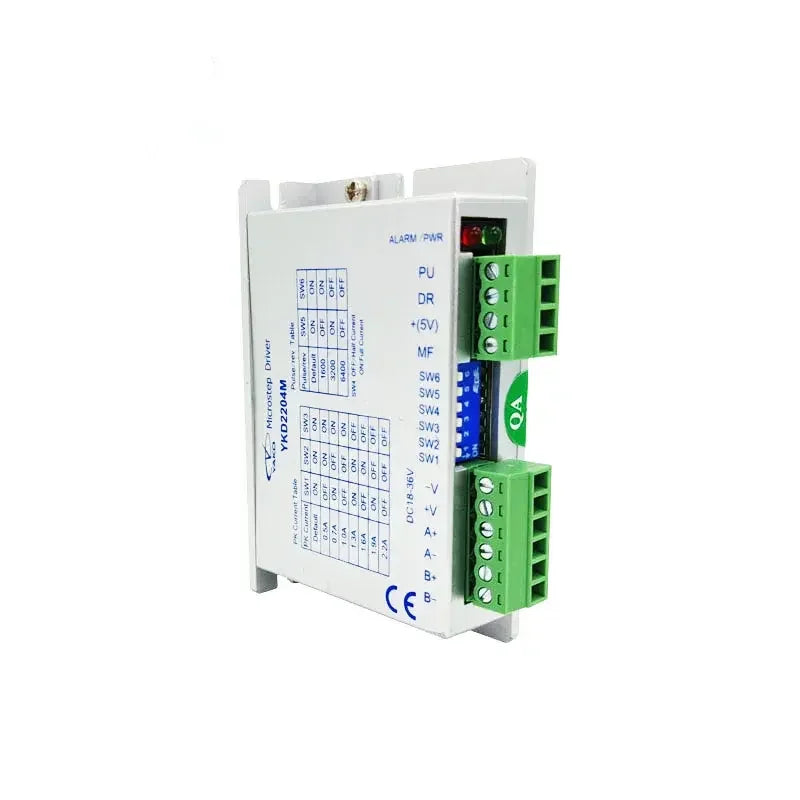

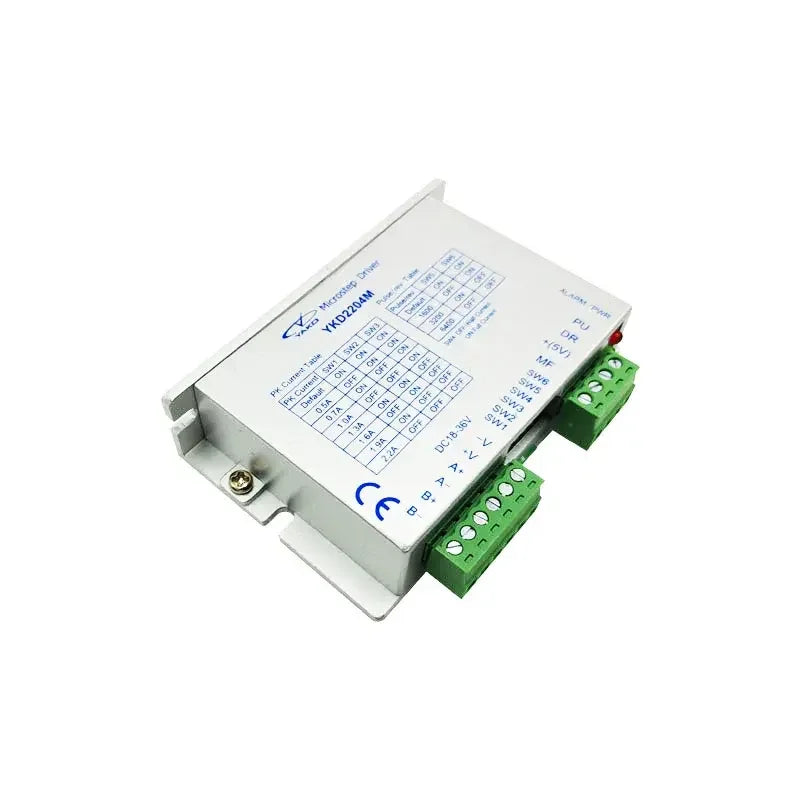

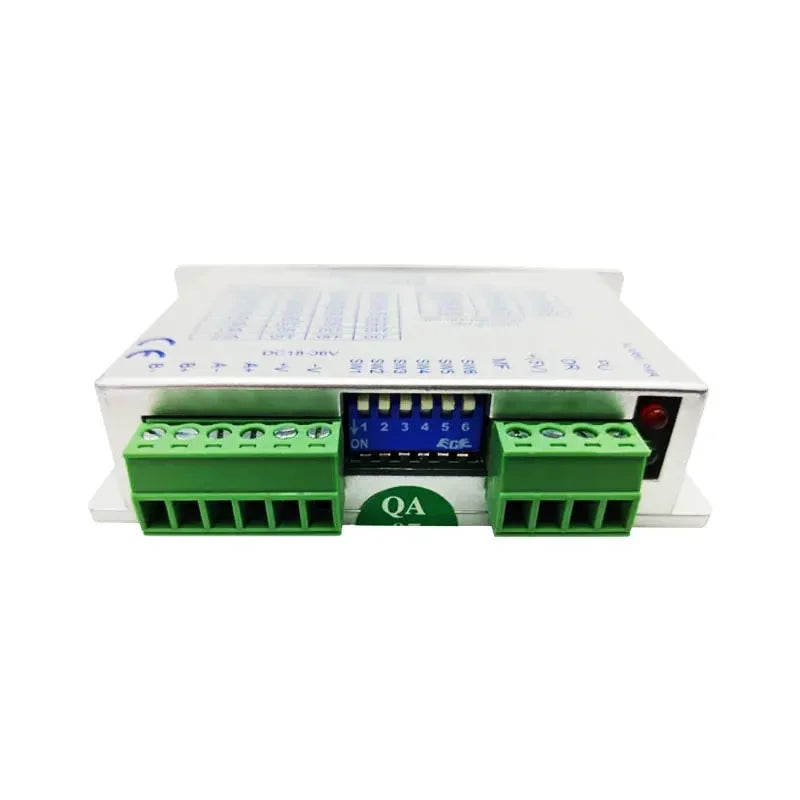

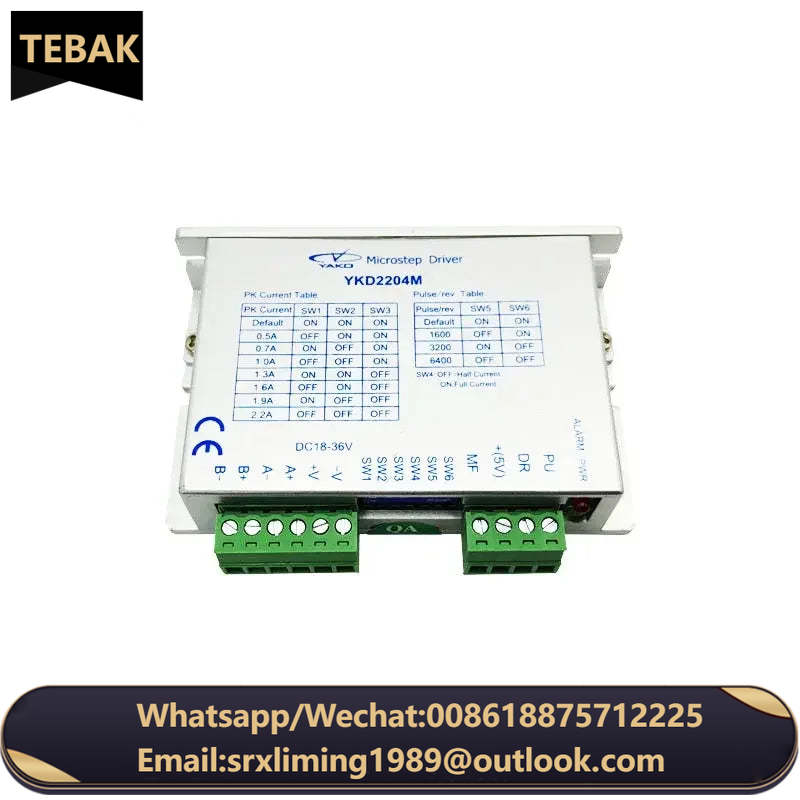

TEBAK YAKO YKD2204M 2Phase Stepper Motor Driver  DC18-36V 100KHz use For CNC Router Engraving Machine Absolutely genuine
Product packaging

1*motor driver

Features

1. A new generation of 32-bit DSP control technology, high cost performance, good stability, and superior vibration performance 2. Equipped with 4 levels of constant angle and constant torque subdivision, up to 32 subdivisions 3. The current control is smooth and precise, and the motor generates little heat 4. The highest impulse response frequency can reach 100KHz 5. When the step pulse stops for more than 200ms, the motor current is halved 6. Excellent smoothness in low frequency subdivision 7. Photoelectrically isolated differential signal input, strong anti-interference ability. 8. The peak drive current is adjustable below 2.2A 9. Voltage input range: DC18~36V 10. With overvoltage, undervoltage and other error protection functions 11. The volume is very small, the volume is 86*55*21(mm'), and the weight is 0.12kg

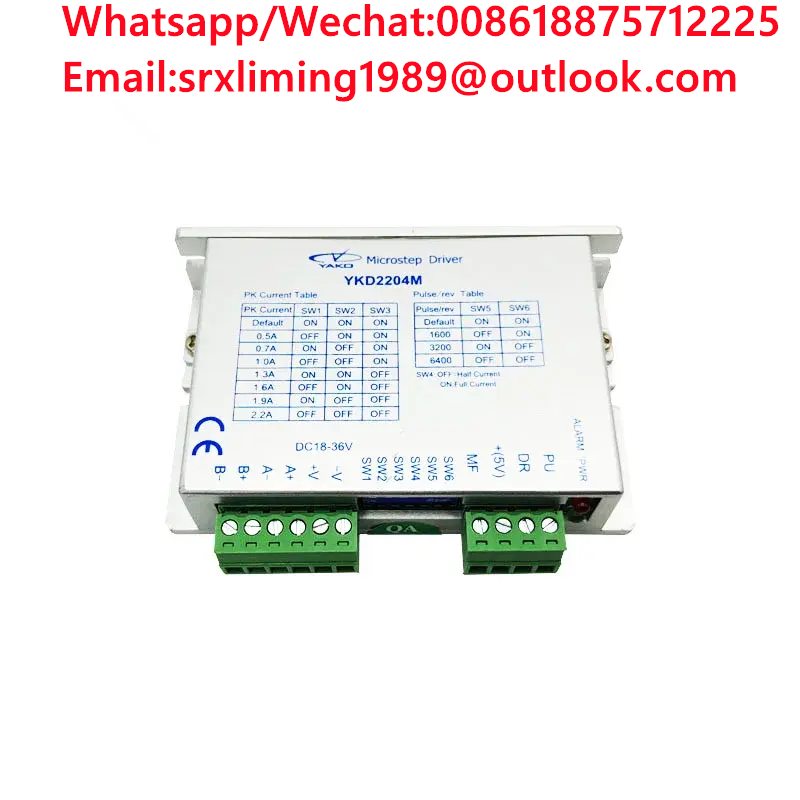

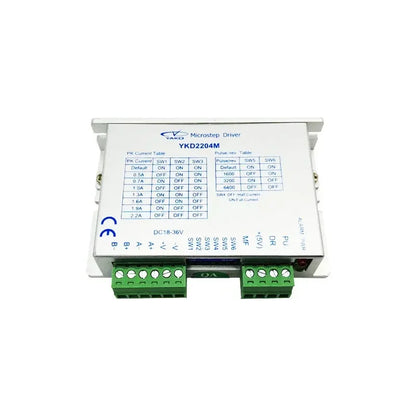

Product description

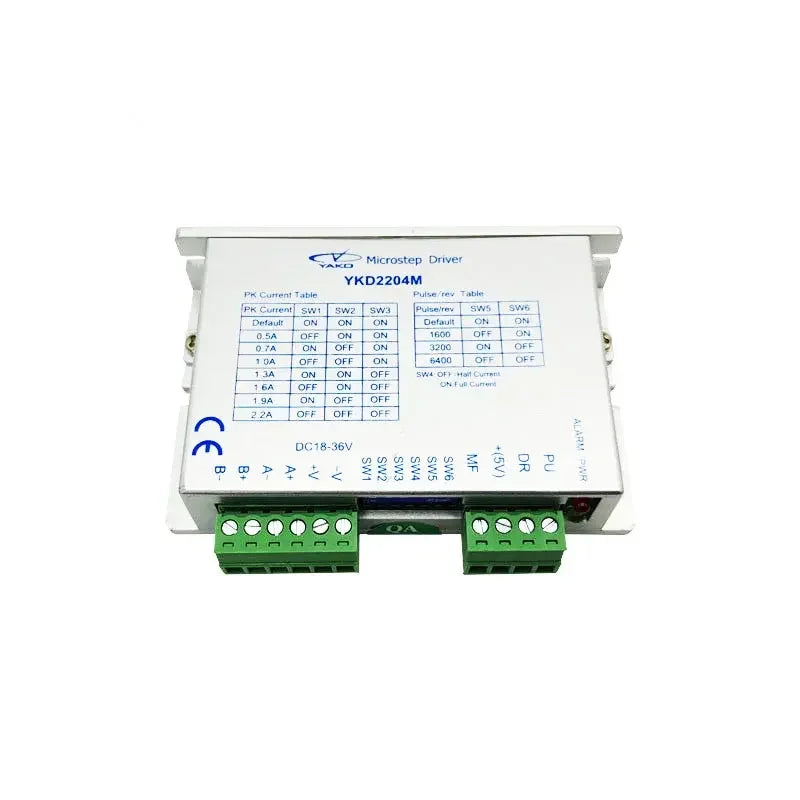

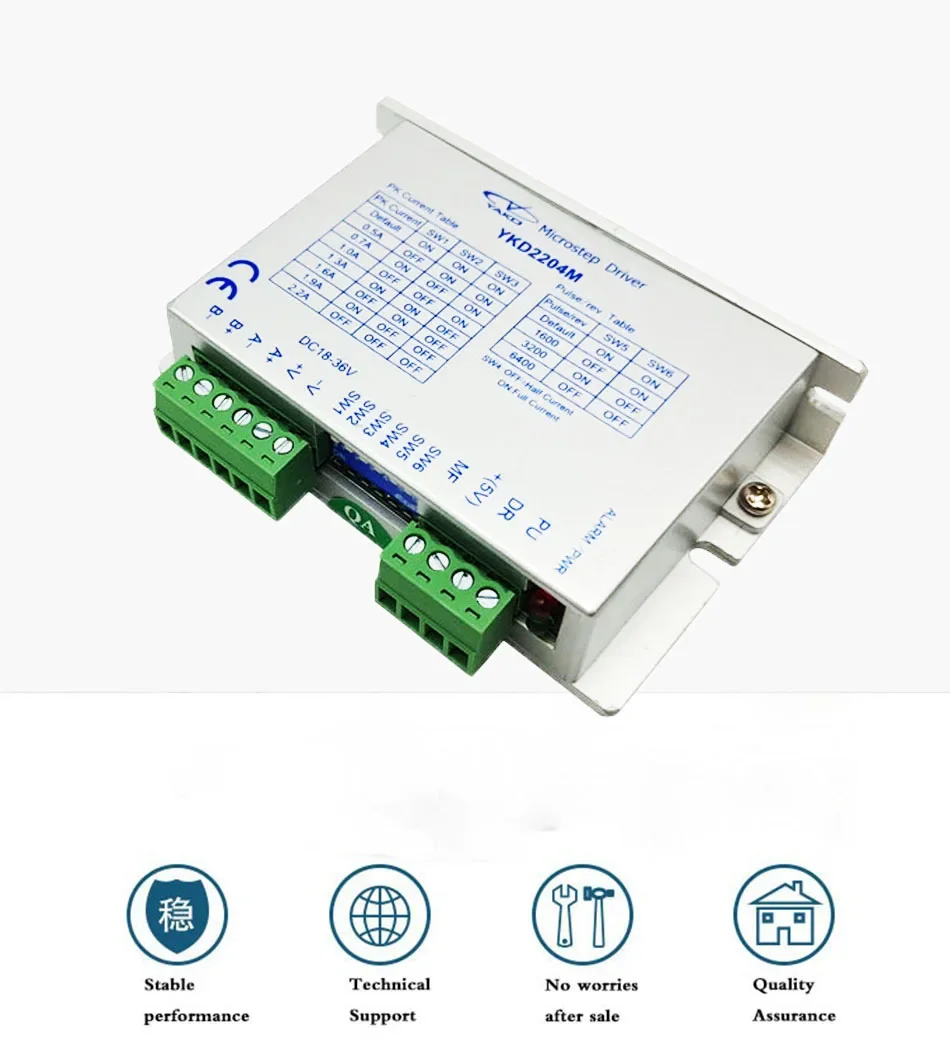

1. YKD2204M is a high-performance digital stepping driver based on a new generation of 32-bit DSP technology, with a driving voltage of DC18~36V. Adaptation peak current is below 2.2A, external Various types of two-phase hybrid stepping motors with a diameter of 4 2mm. 2. The drive uses a servo-like control principle internally, unique circuit design, and superior software algorithm processing, which makes the motor run smoothly, noise, vibration, etc. It has superior performance in terms of performance; smooth and accurate current control technology greatly reduces motor heating; external 4-speed equal angle constant torque subdivision, up to 32 subdivisions; optocoupler isolation Common anode signal input, strong anti-interference ability; with over-voltage, under-voltage and other error protection functions; stable in medium and low-speed applications such as medical equipment, dispensers, and laser engraving The advantages of performance, low vibration and low noise are obvious, which can greatly improve equipment performance.

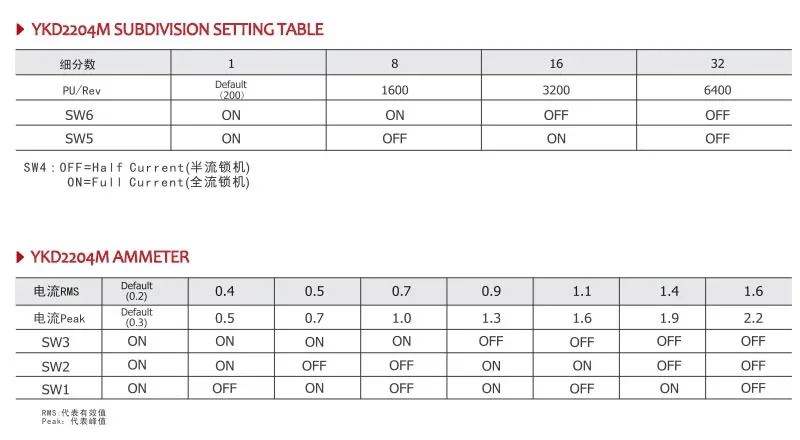

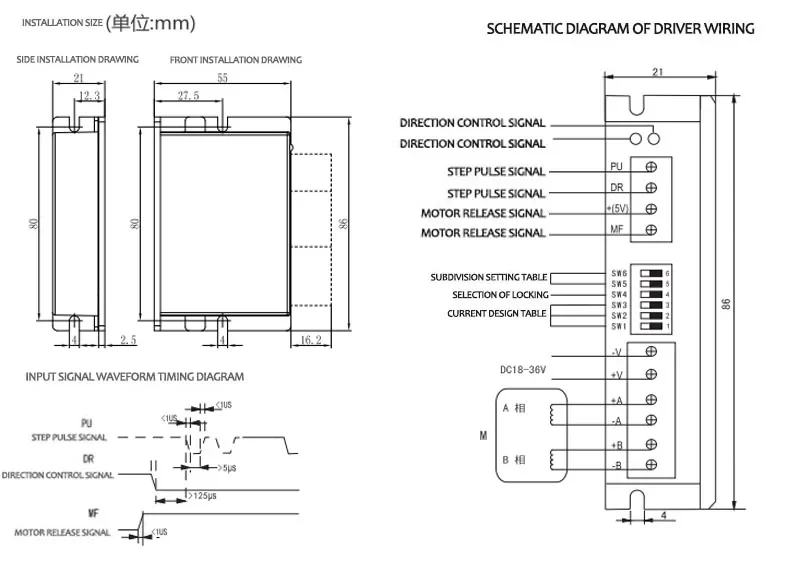

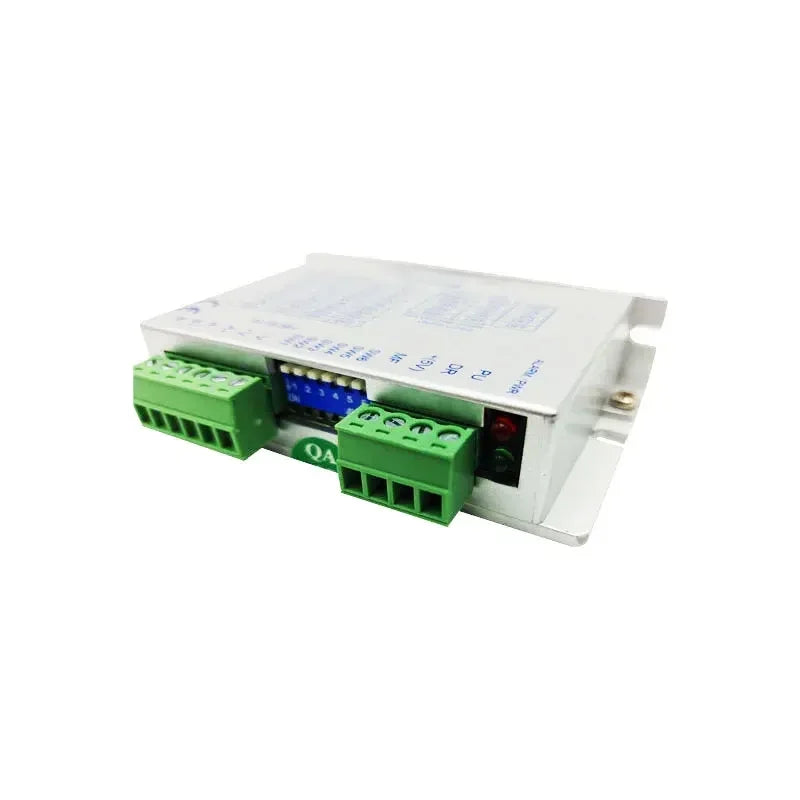

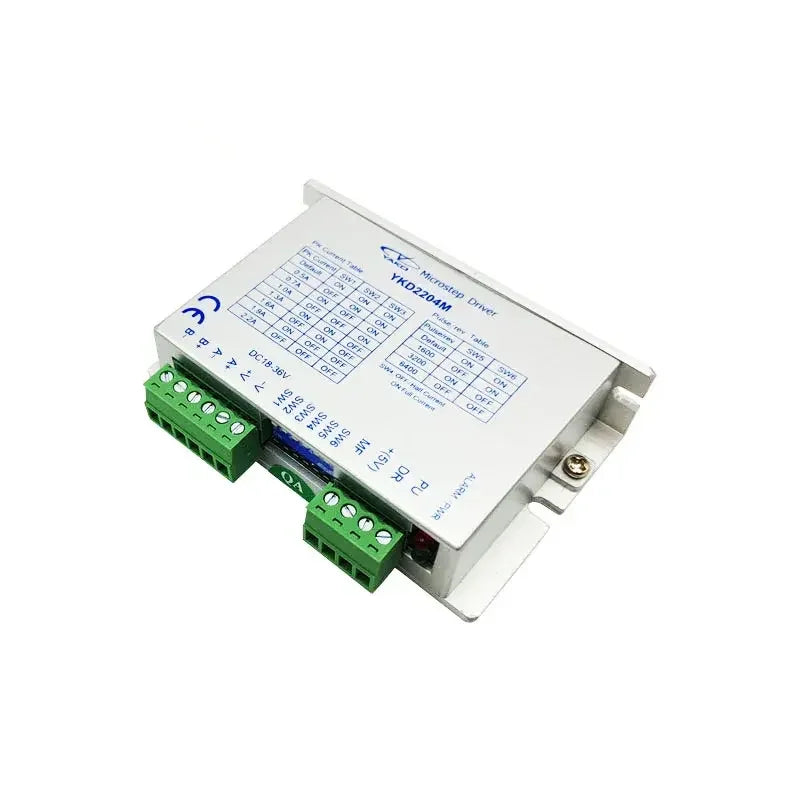

Size

Note

1. Do not reverse the power supply, and the input voltage should not exceed DC36V 2. The input control signal level is 5V, and a current limiting resistor is required when it is higher than 5V 3. The fault indicator AL ARM light is on, please check after power off: (1) Is the power supply voltage lower than DC18V or higher than DC36V (2) Re-power on after removing the motor wiring and other short-circuit faults 4. The green indicator light PWR is on when the drive is powered on
