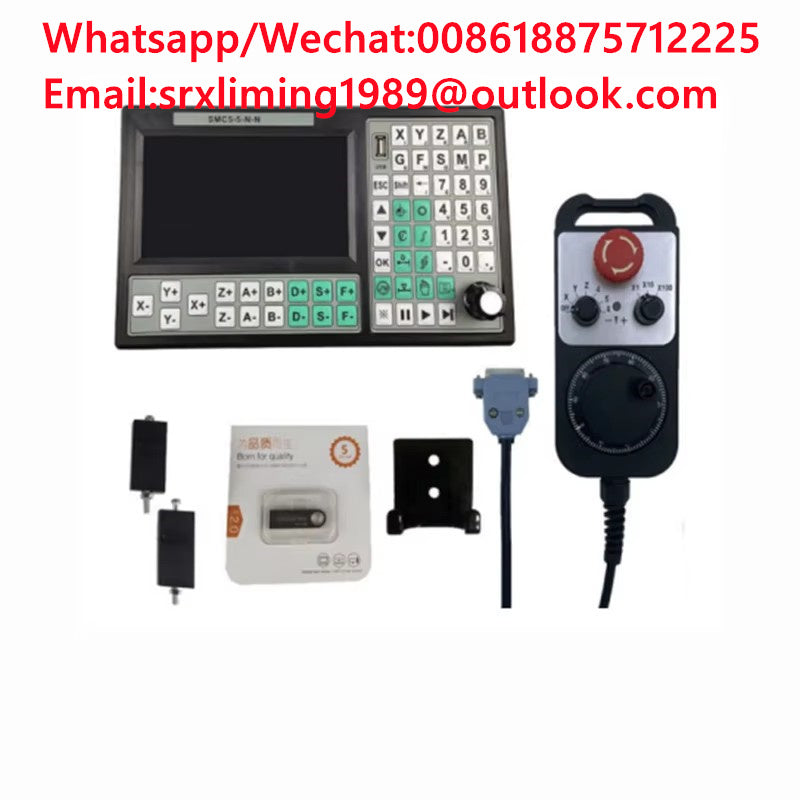

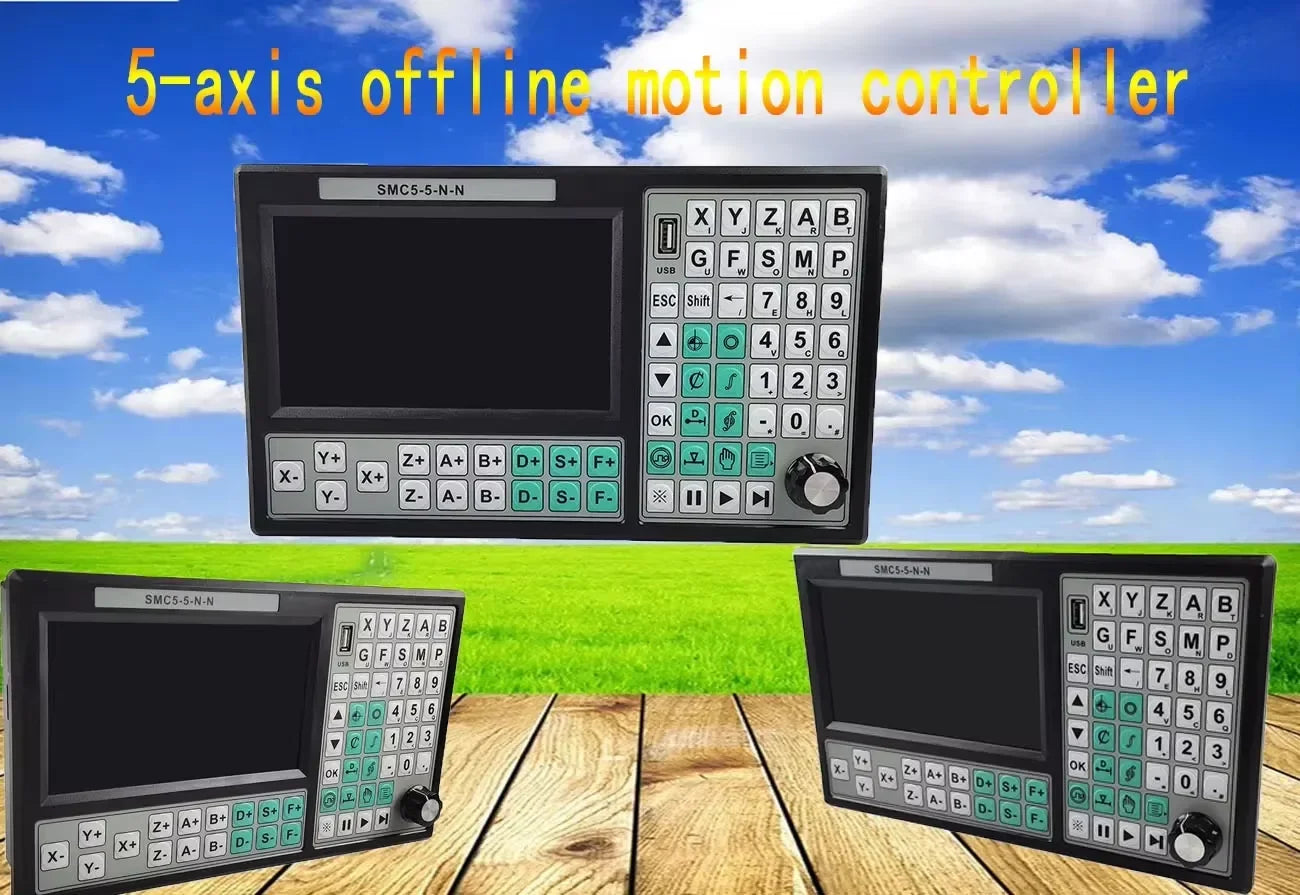

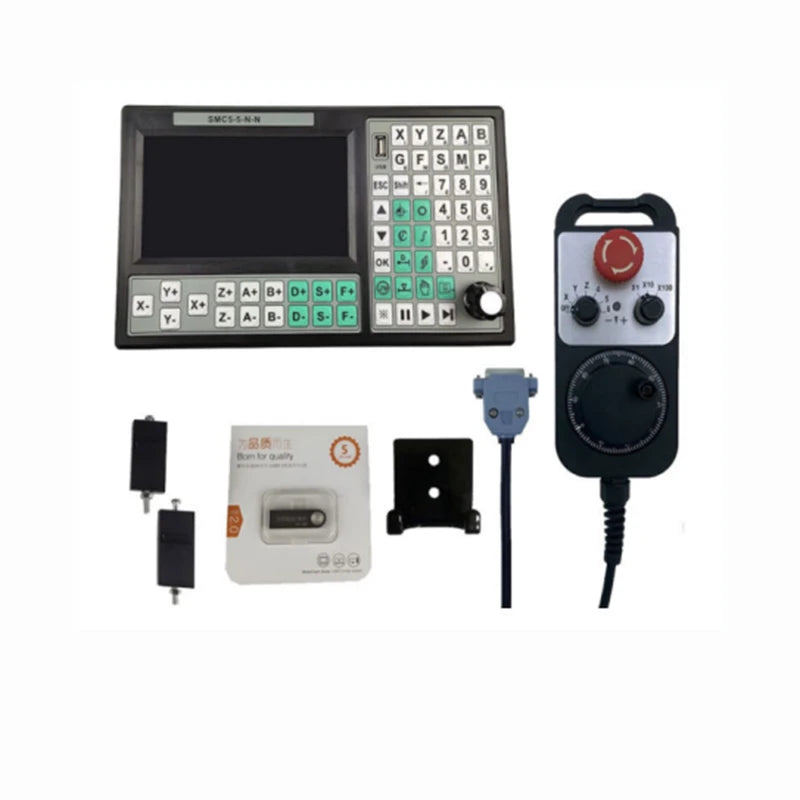

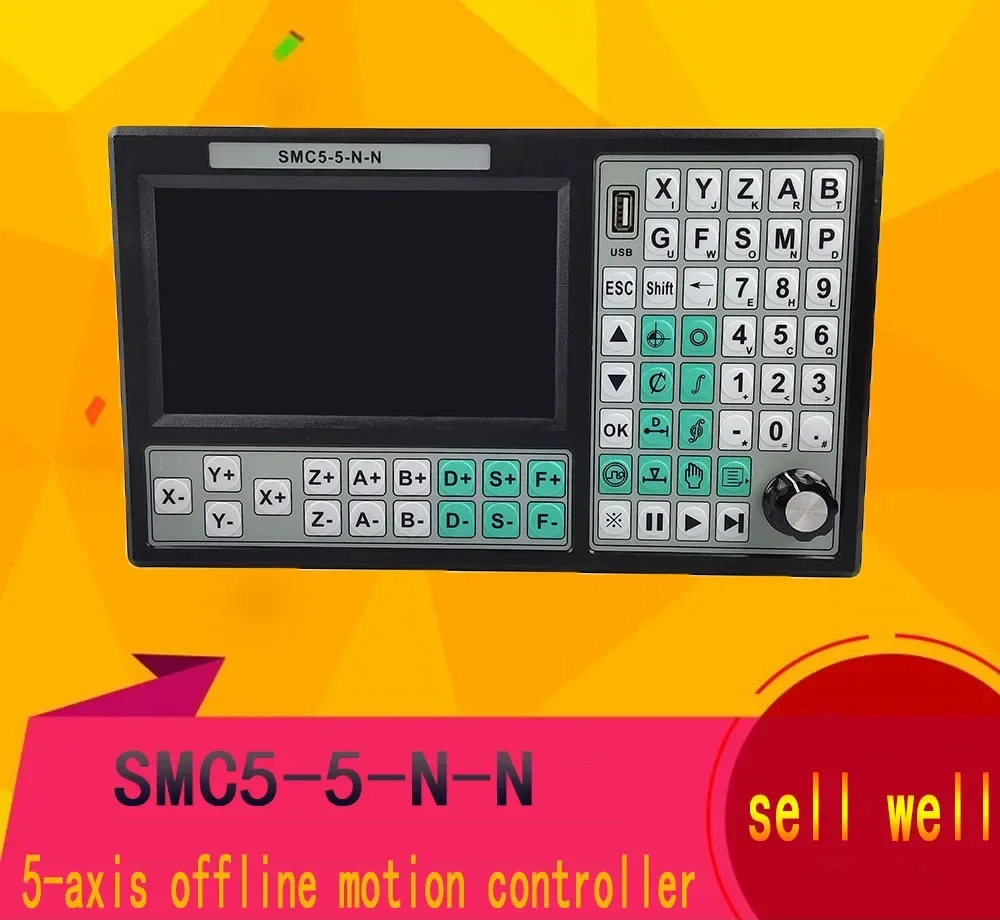

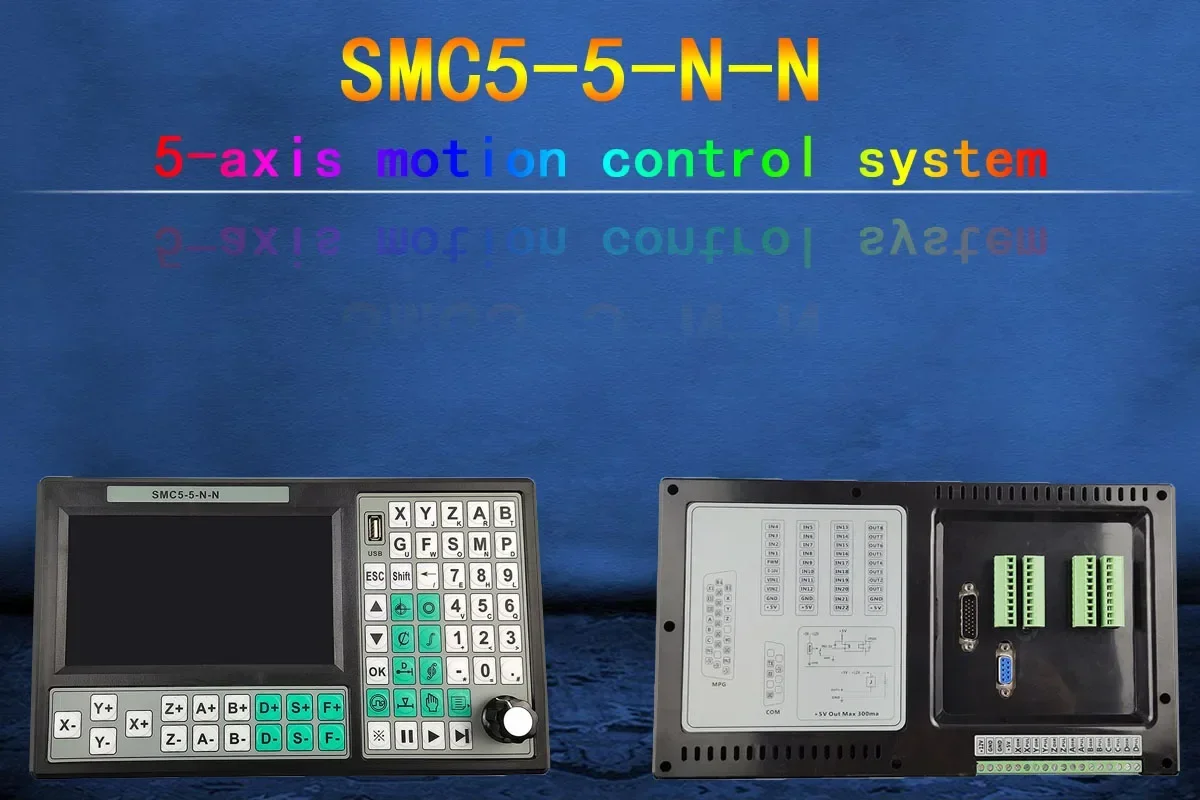

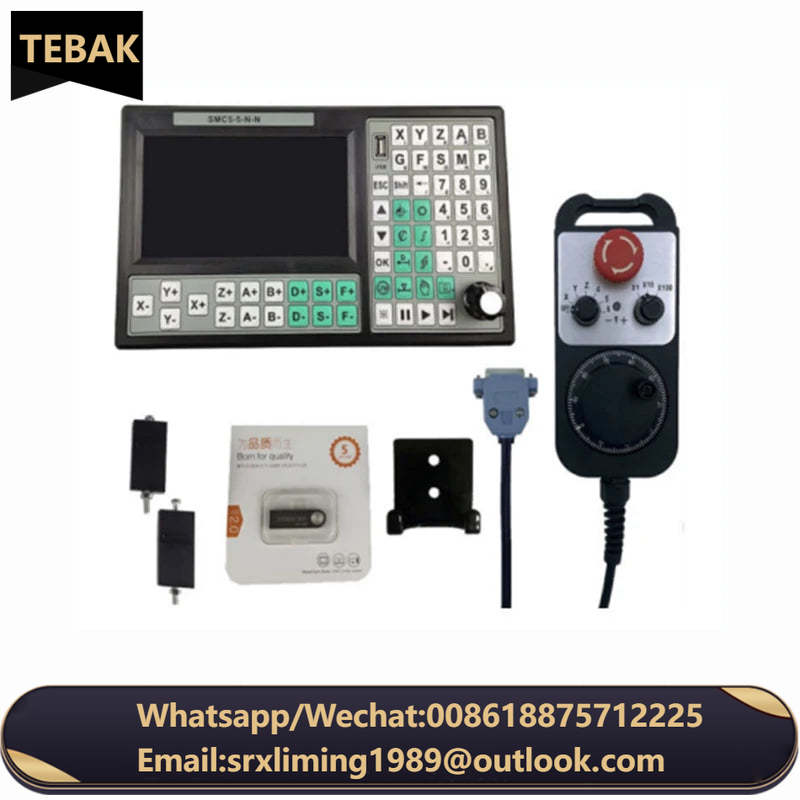

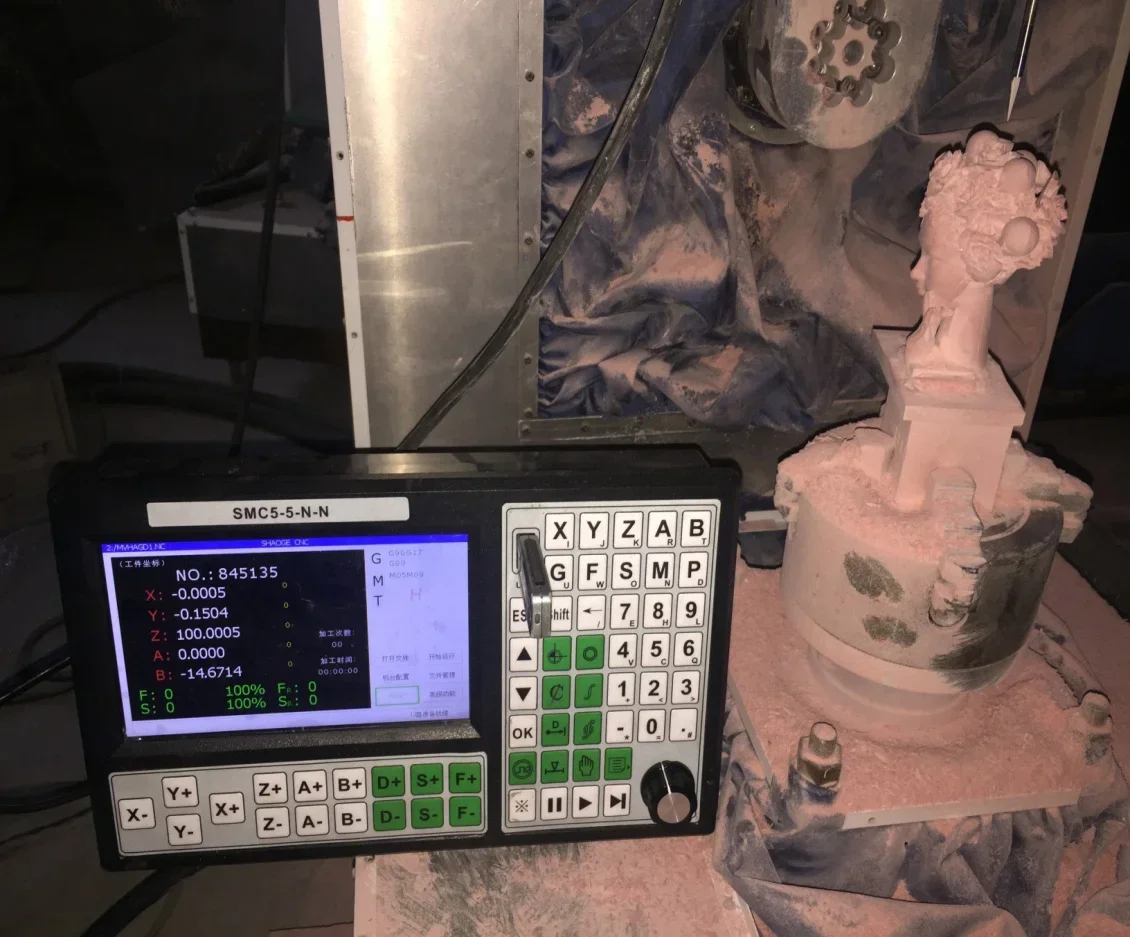

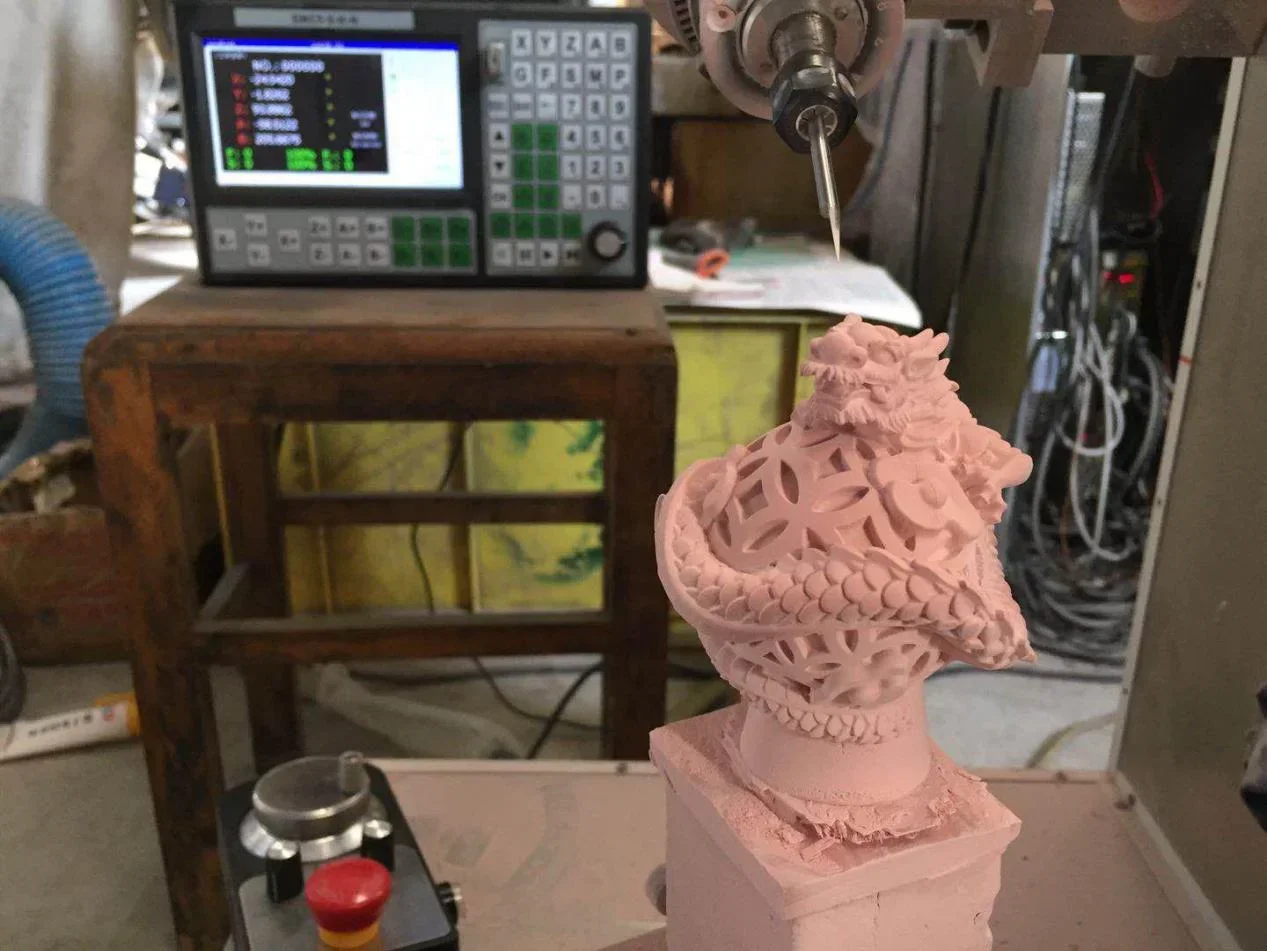

TEBAK SMC5-5-N-N CNC Offline Controller 5 Axis Group 500KHz Motion Control System 6 Axis Emergency Stop Handwheel

Introduction:

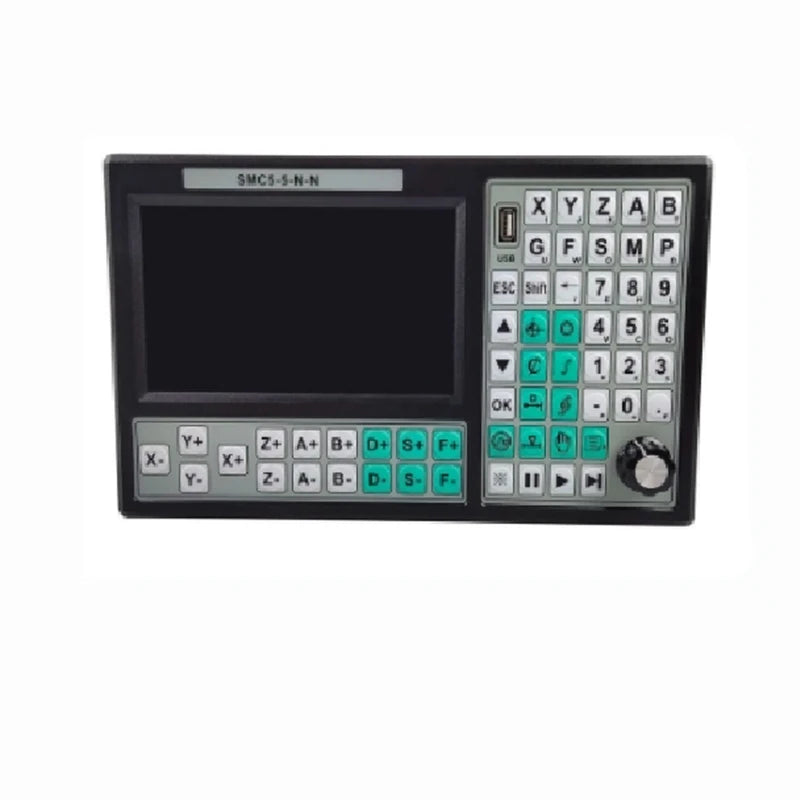

The control system is the newly developed "motion controller" using high-performance 32-bit CPU and high-performance FPGA, equipped with a seven-inch LCD display, user-friendly window-type human-machine interface, memory with external USB port and built-in TF card (user Optional), large storage space, working voltage 12-24 volts ultra-wide input, touch-operated keyboard.
The system has the characteristics of high reliability, high precision, low noise and convenient operation. Simple, clear parameters make your operation easy and fast. The input/output setting function is convenient for your use and maintenance.

Features:

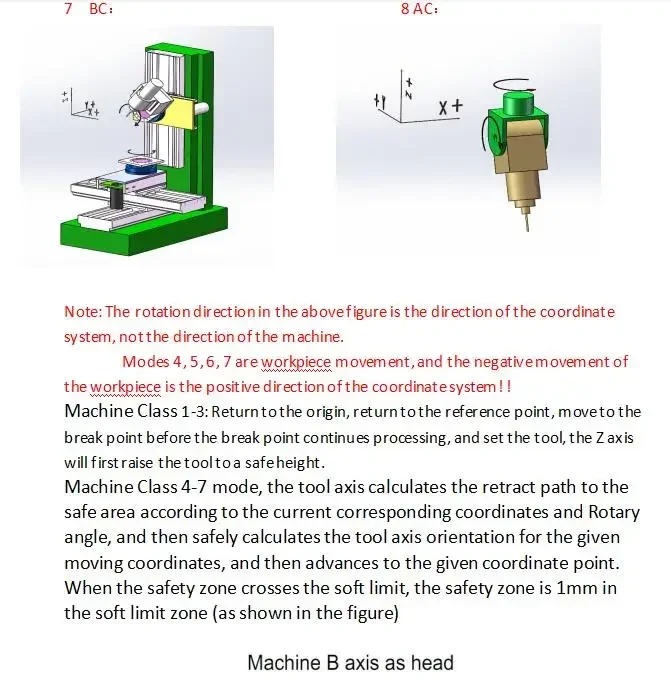

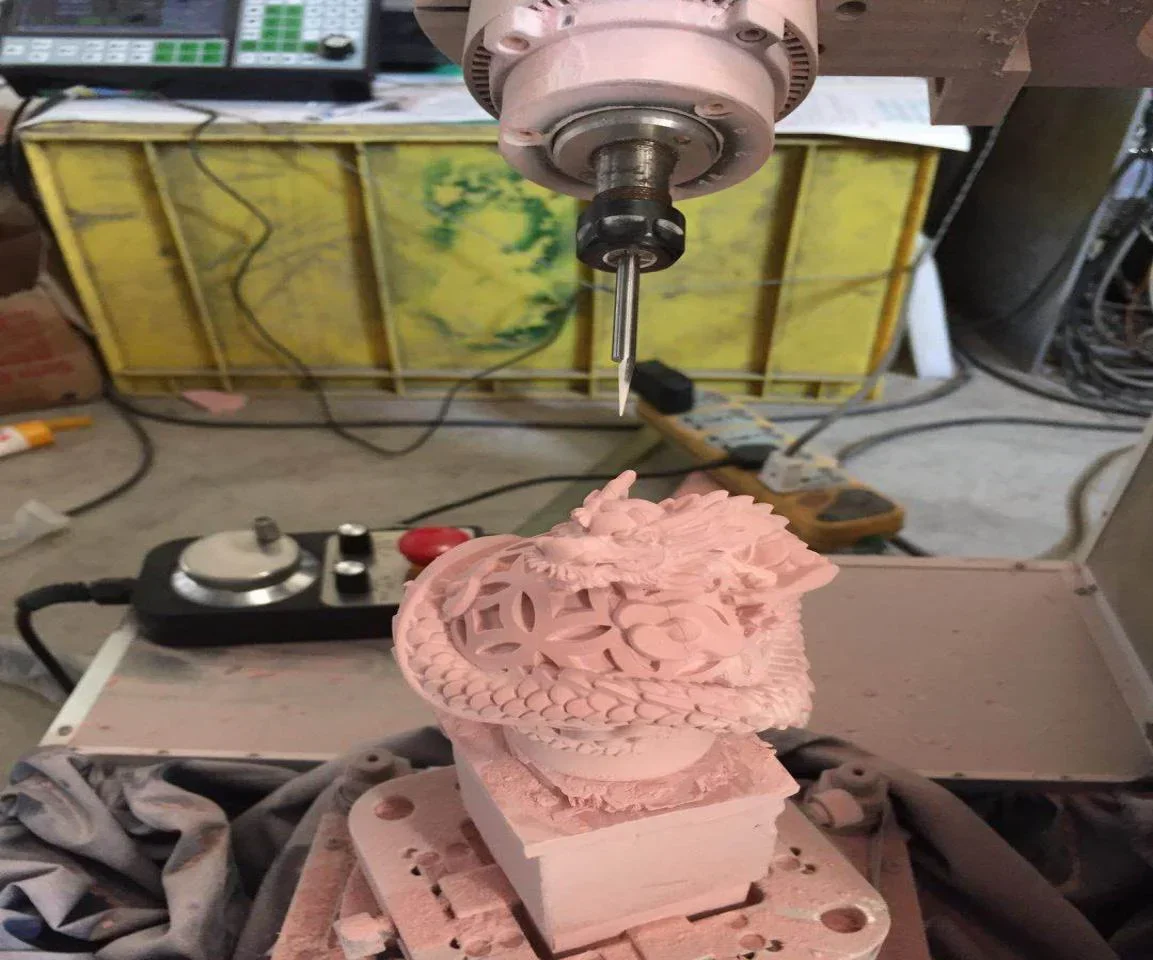

Five-axis linkage
Multi-micro multi-line segment forward control algorithm
Five-axis linear interpolation and five-axis multi-micro multi-line continuous interpolation
Broken line continue to control
Power-down storage coordinate function
Support handwheel control interface.

The main function:

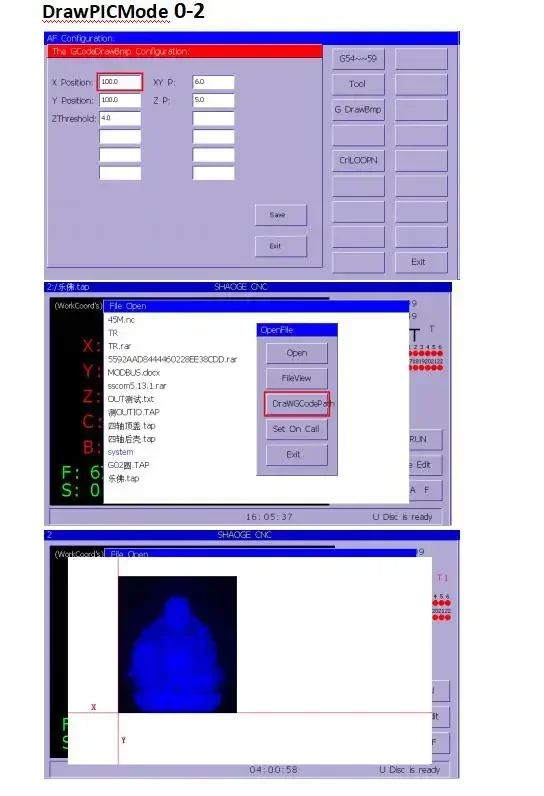

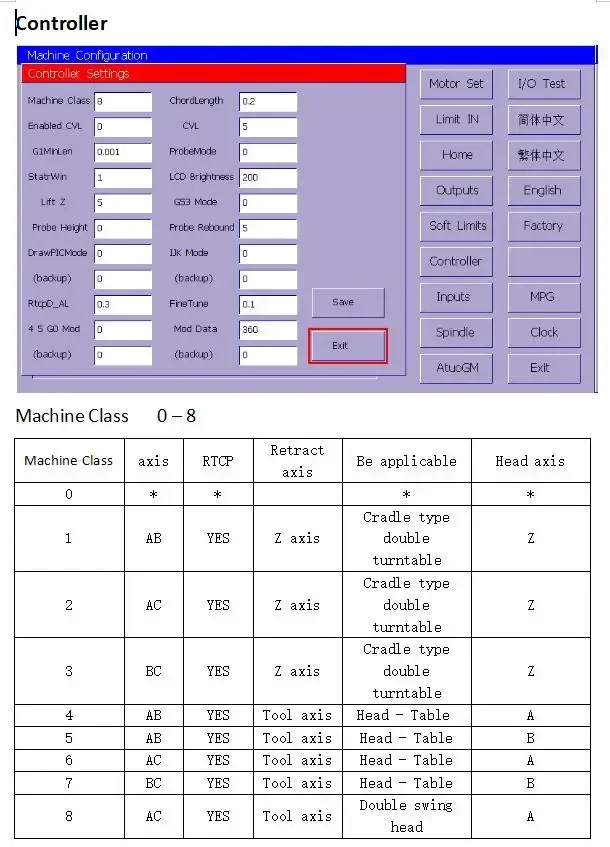

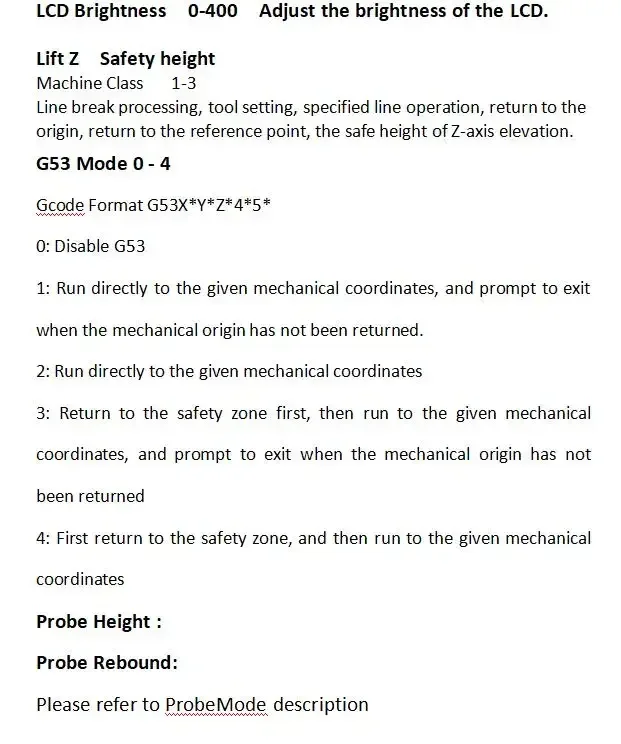

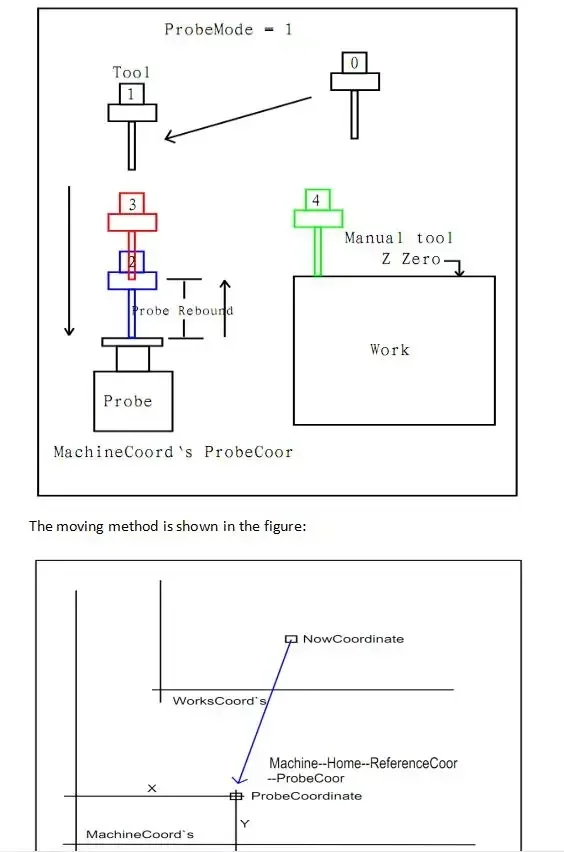

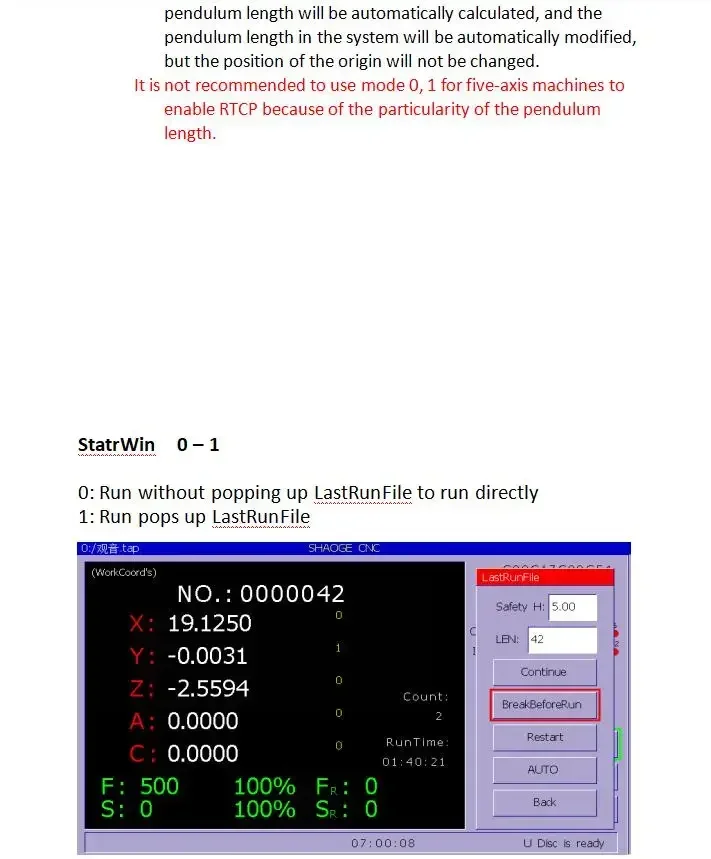

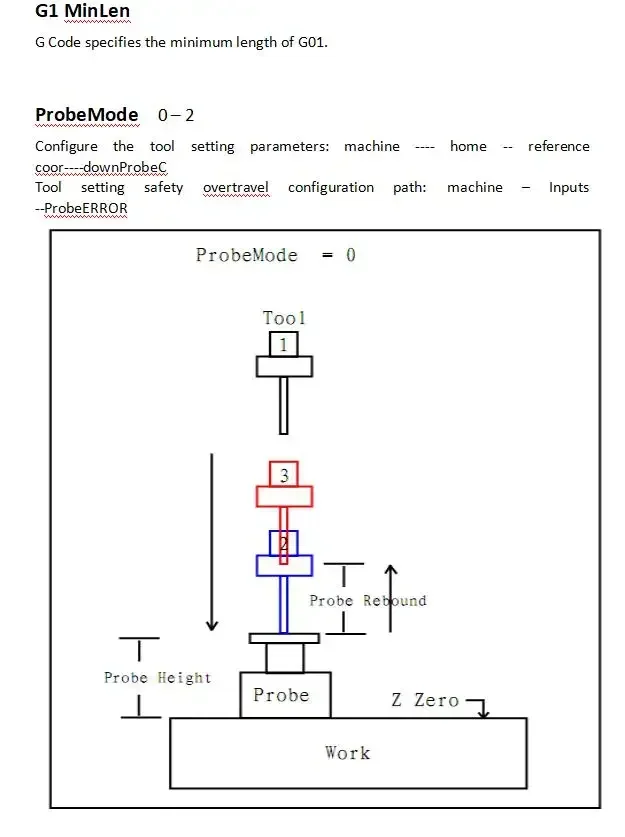

Parameter setting: It can set various control parameters related to machining and operation to achieve the best processing result.
Manual operation: It can realize manual, jog, return to program zero, return to mechanical zero, coordinate clearing and other operations.
Program management: New, delete, modify, read, save, copy and paste, automatic processing, continuous, pause and other functions can be performed on the program.
External Manual: A variety of external manual functions can be defined for ease of use
External handwheel controller: You can set the step size of each step, supporting both position and speed modes.

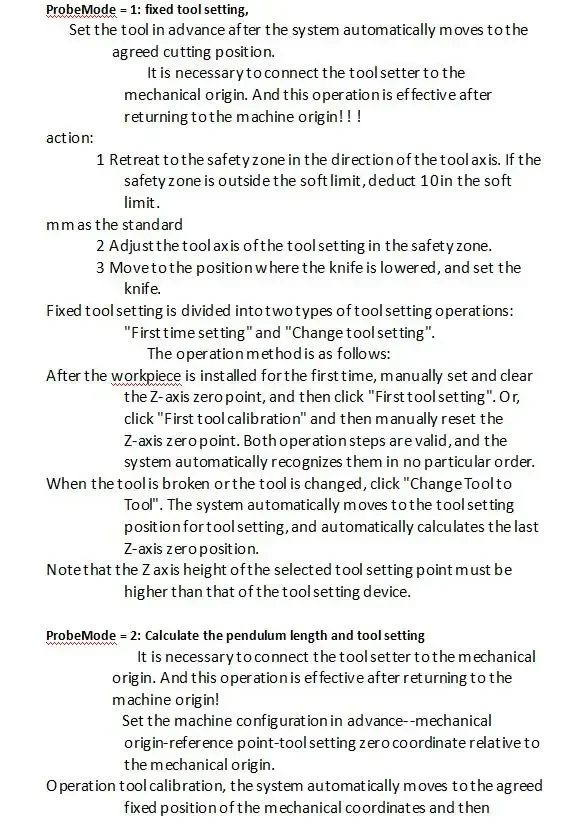

Teach function: External input or panel control input can be defined.
Free choice of input function: enable limited input ports to achieve various user needs

Dimensions:

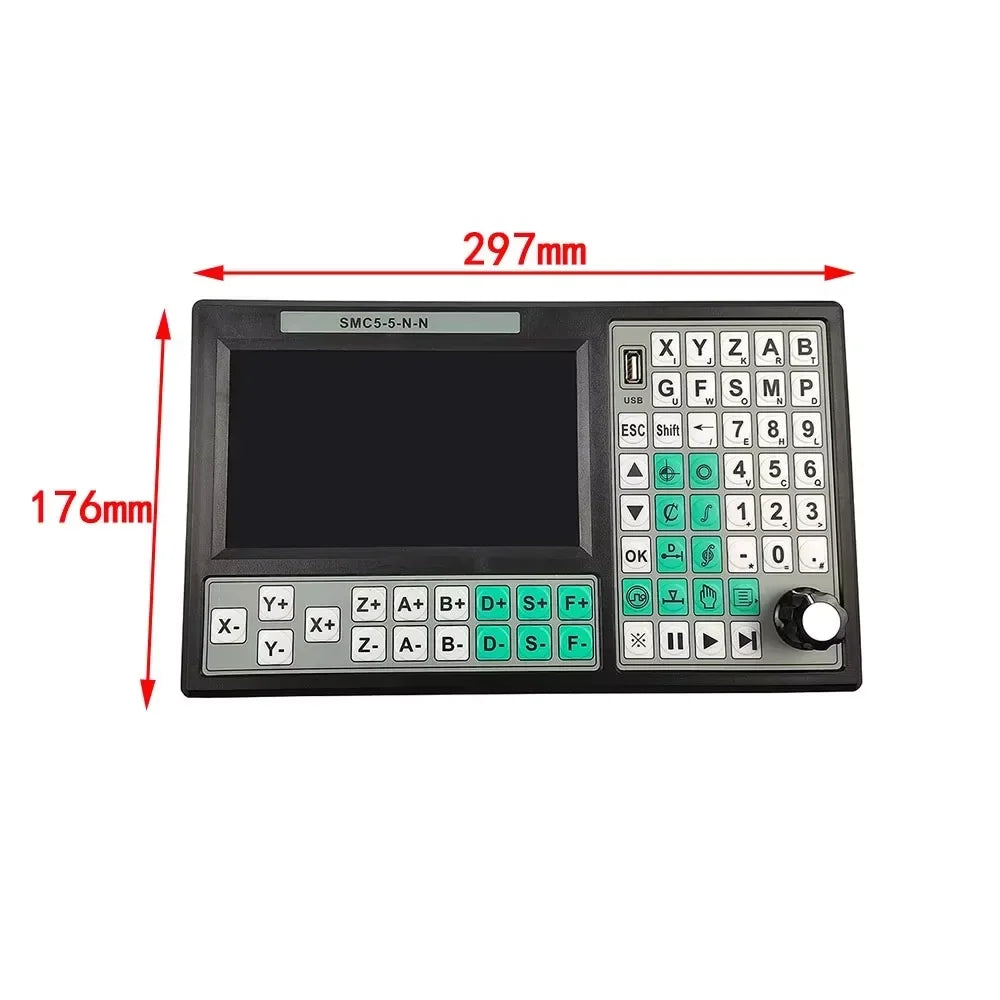

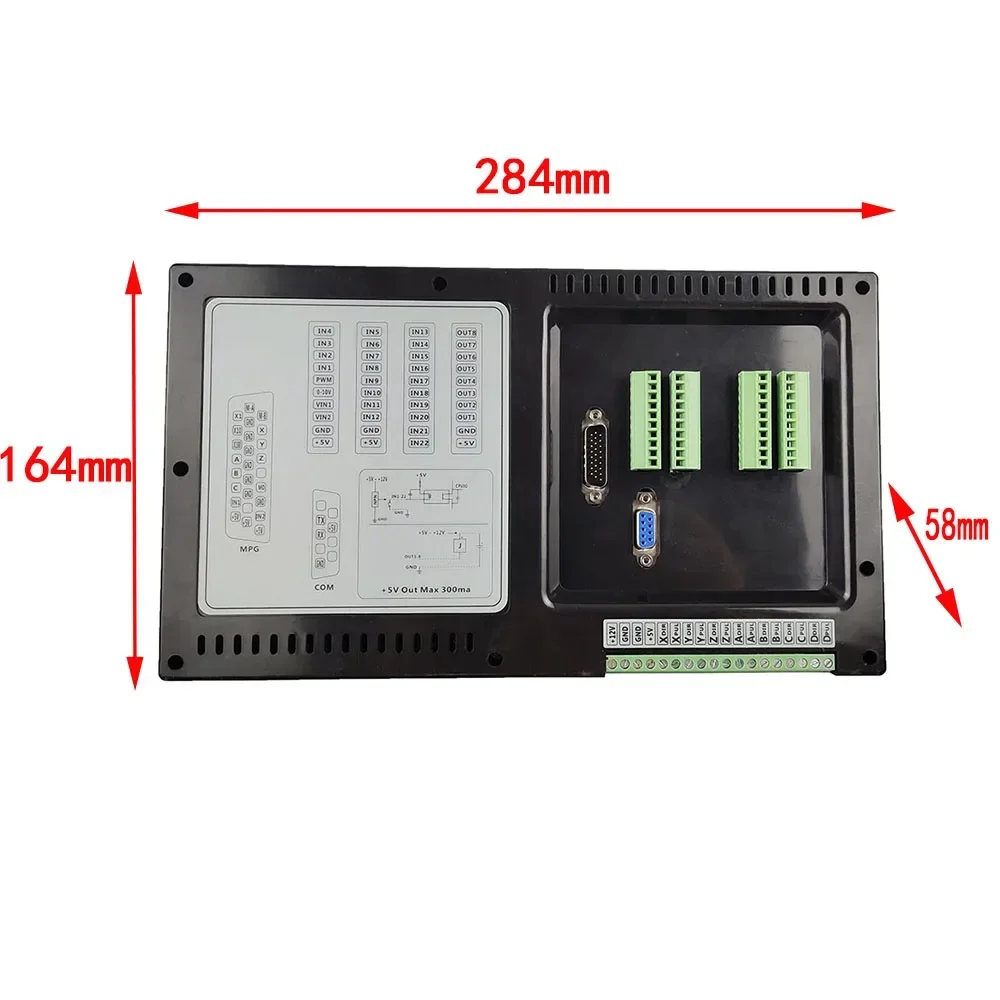

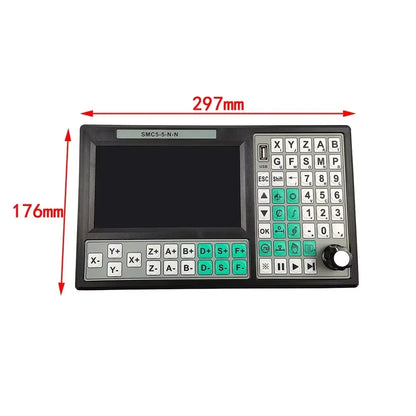

Appearance: (panel 297mm*176mm) (inlay: 284mm*164mm) (thickness 58mm)

Hardware composition:

High performance, high speed 32-bit ARM CPU, high performance FPGA
LCD display (resolution: 800 × 480)

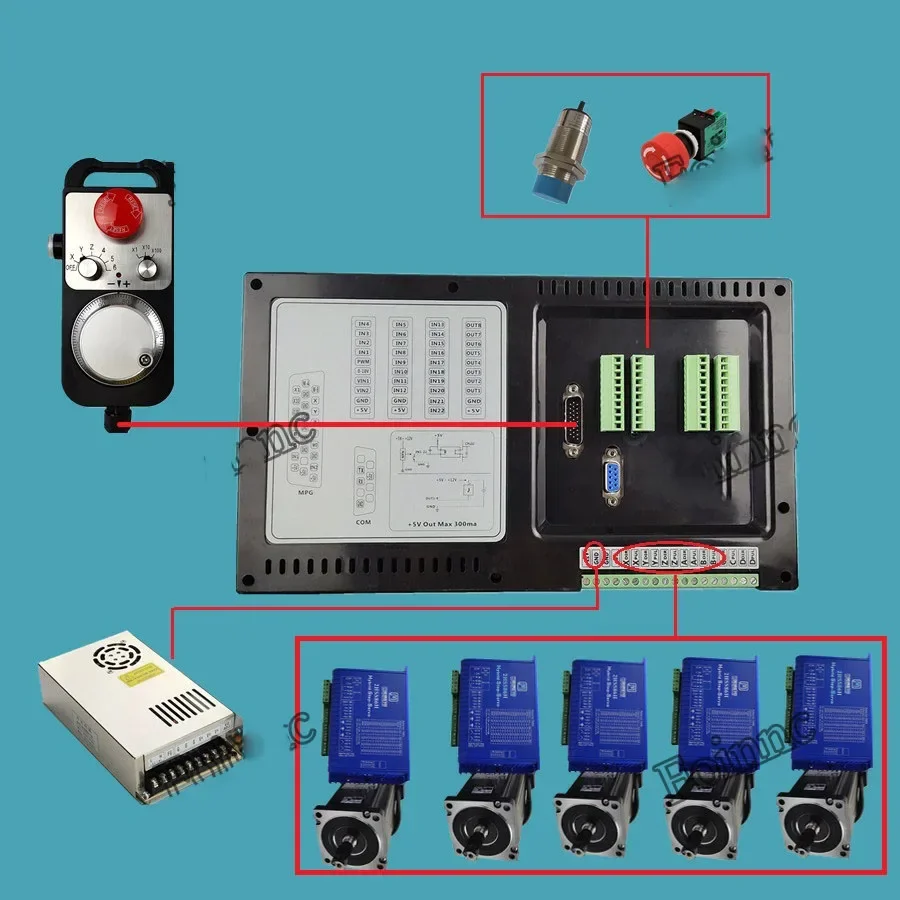

Input / output (2 channels of optical isolation 10mA input, 8 channels of optical isolation, down tank flow 500mA output)

Technical indicators:

1 Minimum display data unit: 0.001mm
2 The normal accuracy is: ±2PP

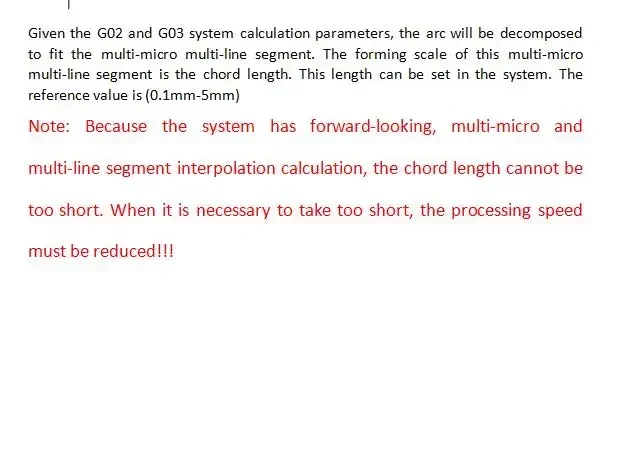

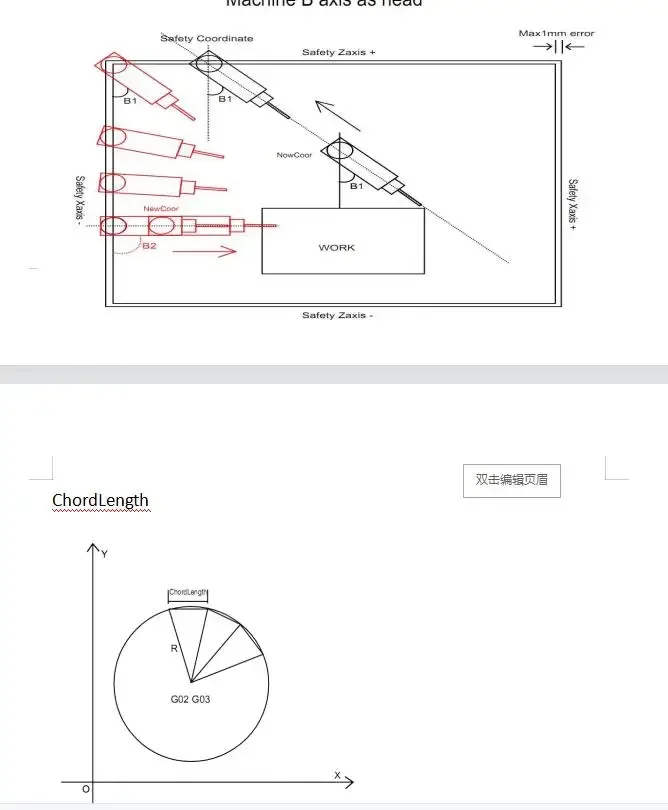

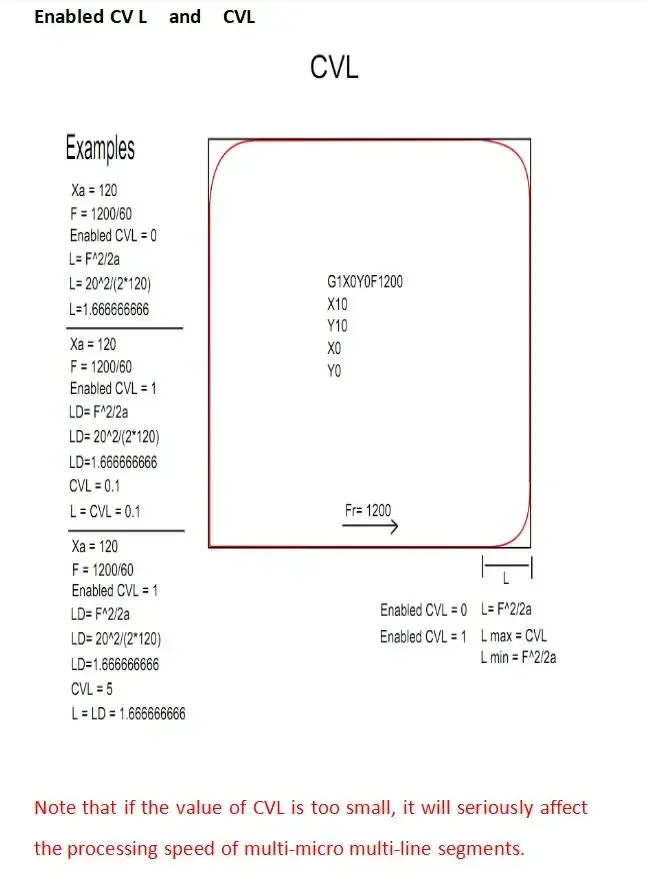

3 Continuous straight-line corner accuracy: In normal state, it is 1/4 of the corner bow height (can be defined as any value)
4 Maximum data size ± 99999.999mm
5 The highest pulse output frequency is 500KHz (all five axes can be 500KHZ at the same time)

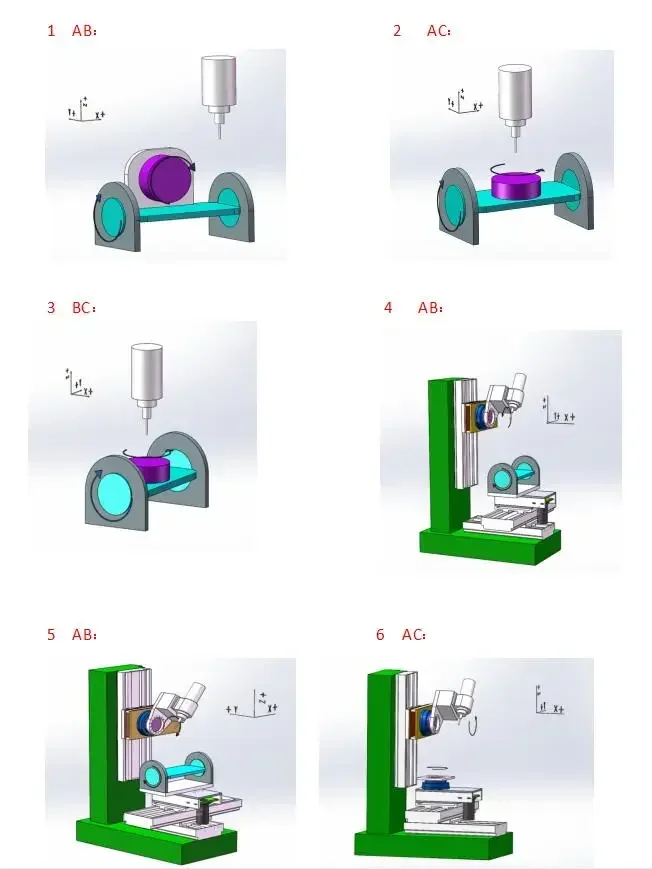

6 Number of control axes 5 axes (X, Y, Z, 4, 5)
7 Number of linkage axes 5-axis linkage and 5-axis multi-micro multi-line segment forward-looking interpolation control
8 Support handwheel control input Optional speed mode or position mode
9 Intelligent software limit Predict the deceleration point in advance, the reverse will be automatically released, making the control more user-friendly
10 Support U disk, built-in memory can be expanded to reach 32G high storage capacity
