TEBAK Ok Integrated Clamp Vise CNC Machining Center Tooling Multi Station Batch Clamp Fixed Small Clamping Block F06 S06 S08 S10 S12

Precautions for use

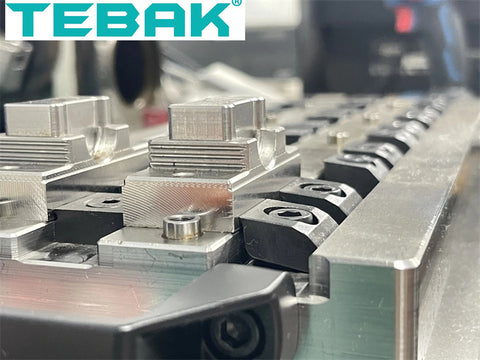

S06 and F06 are suitable for the machining of heavy cutting blank parts, with small footprint and strong clamping force. Low clamping position, saving material cost.

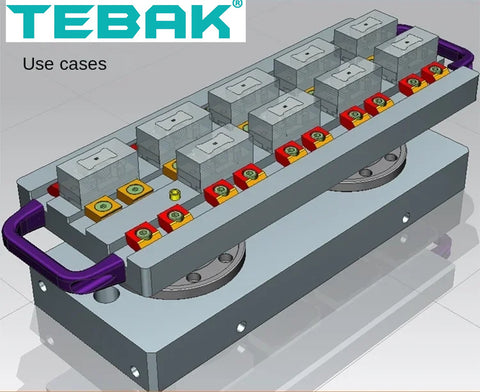

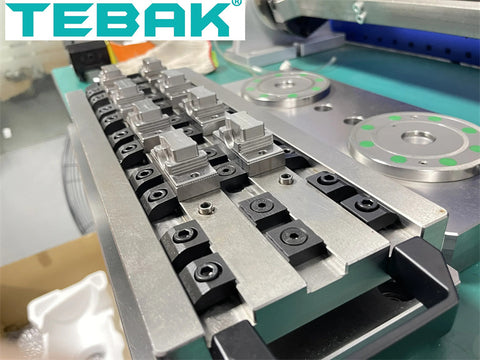

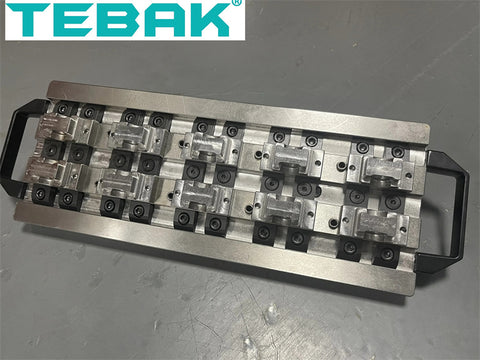

The F06 clip has the function of positioning and locking. Installed or cooperated with S06 batch typesetting processing, high efficiency, strong clamping force, and auxiliary fixing of blank materials.
S06 has a locking function. The fixture needs to process the groove width and threaded holes by itself, and the S06 locking screw can generate a downward occlusal force. Fixed blank material.

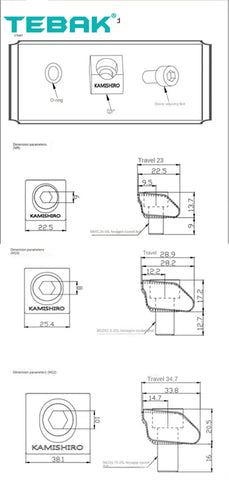

S06: 19.5*19.5*11, when using, make sure that the toothed part holds 2-5mm in the blank.
F06: 19.5*19.5*8, when using, make sure that the toothed part holds 2-5mm in the blank.
