TEBAK NVEM V5 CNC Mach3 Controller NVMPG Handwheel 6Axis Motion Controller Adopts the ARM Design Framework Cyclmotion

TEBAK NVEM V5 CNC Mach3 Controller NVMPG Handwheel 6Axis Motion Controller Adopts The ARM Design Framework Cyclmotion

Size

NVEMV2.1 motion controller is with the sealed shell structure,there are 4pcs setting holes
at the bottom.We can fix 4pcs 4mm diameter holes at the cabinet,and install the controller into
the cabinet.The controller appearance as the Figure 1-1 and Figure 1-2 show:

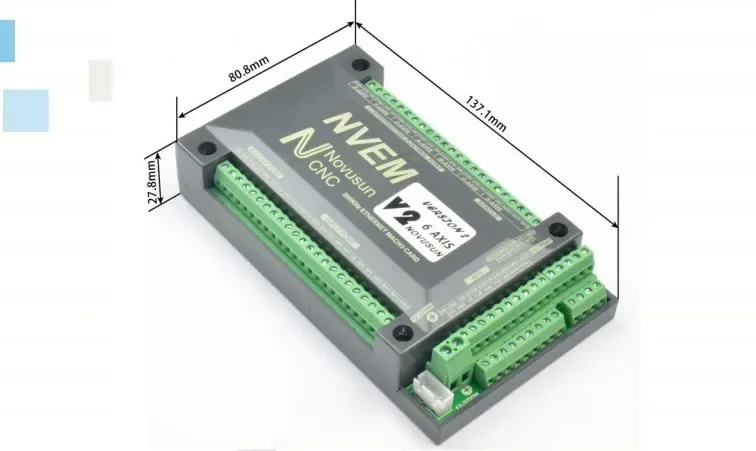

The products overall size is 163.1mm*80.8mm*27.8mm;

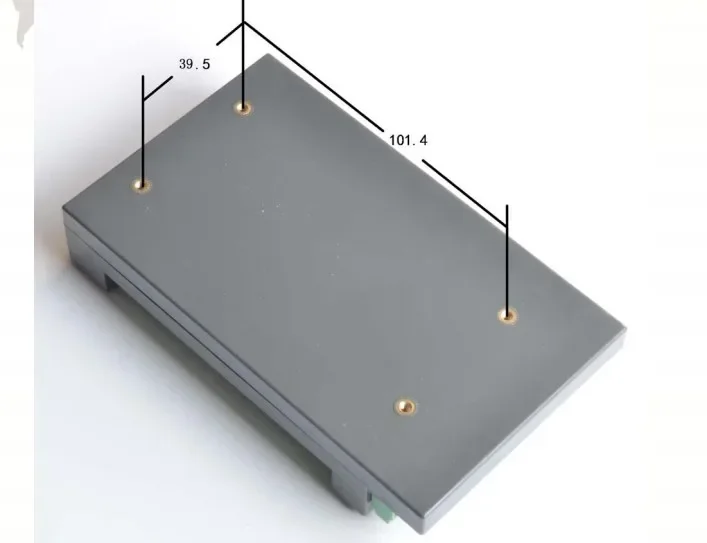

The bottom install size is 101.4mm*39.5mm.

Power

Performance parameters:

Support Ethernet;
12 ports photoelectric isolated input interface for ordinary digital data;
10 ports photoelectric isolated output interface for ordinary digital data;
1 port 0-10V spindle speed analog output interface(can change to PWM output);
can support 3-6 axis stepper systems,200KHz pulse output for every axis;
ARM motion control chip;
main device is 12V-32VDC power supply input,current should higher than 0.5A;
Compatible with MPG input,support the digital display MPG from our company.

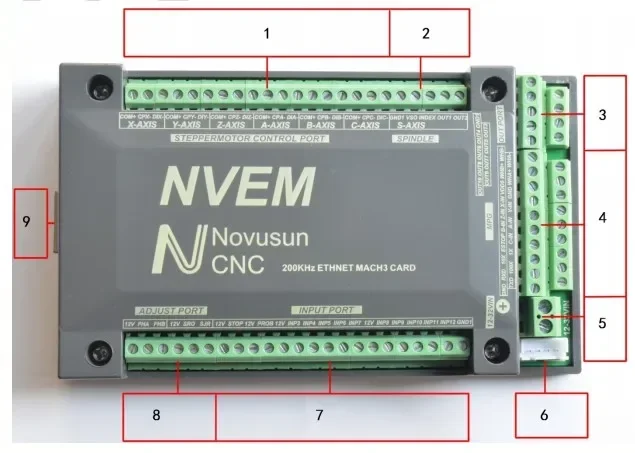

Wiring definition:

The connection of the controller includes power supply
interface,Ethernet connection interface,MPGinterface,Stepper/Servo control output
interface,spindle control output interface, Estop and limited switch and tool setting input interface
and so on. Now we descript them in details as below.

Product introduction:

NVEMV2.1 is the 3-6 axis motion controller we spend 4 years to design.
NVEMV2.1 support Mach3 software and standard MPG,through Ethernet to
communicate with computer,just use the Twine to connect directly or transfer with router.
NVEMV2.1 motion controller adopts the ARM design framework.The ARM design
includes communication,codeanalytic,underlying algorithm and pulse gerneration. Rational
design,reliablecontrol,convenient operation.

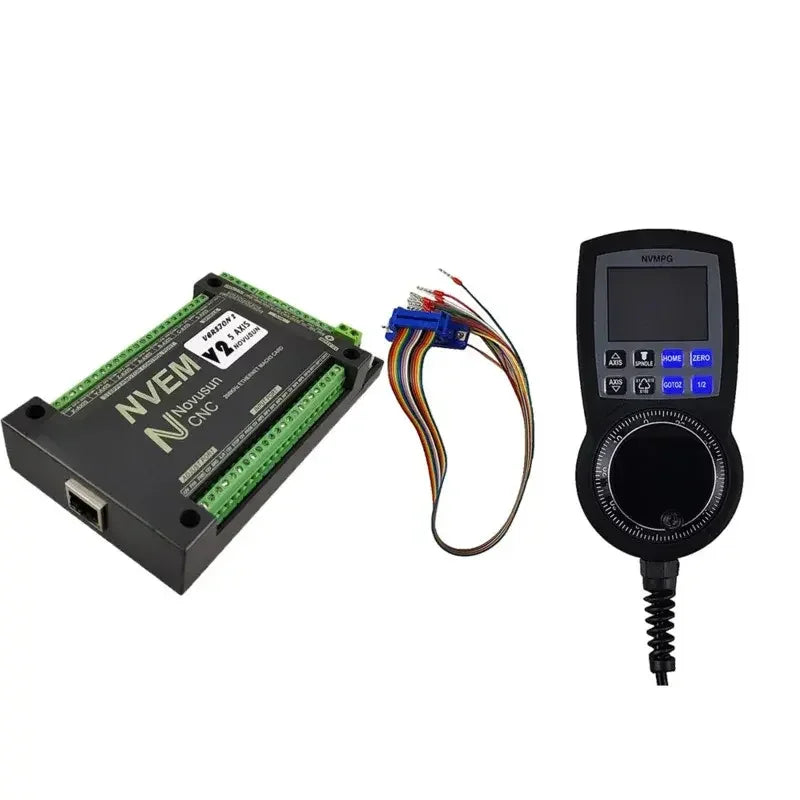

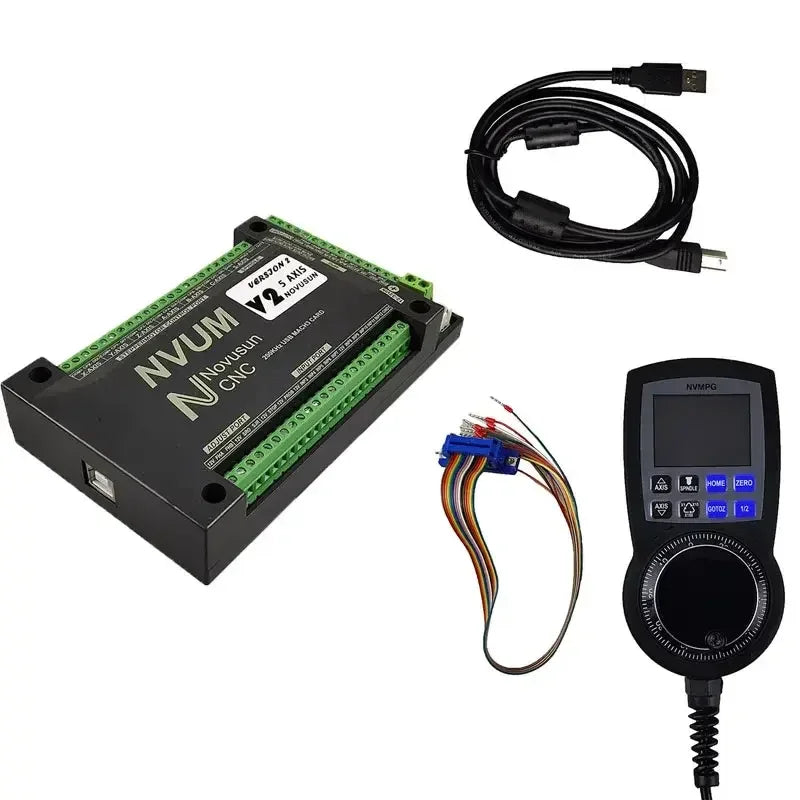

product content:

Control card*1
One meter cable *1
CD*1

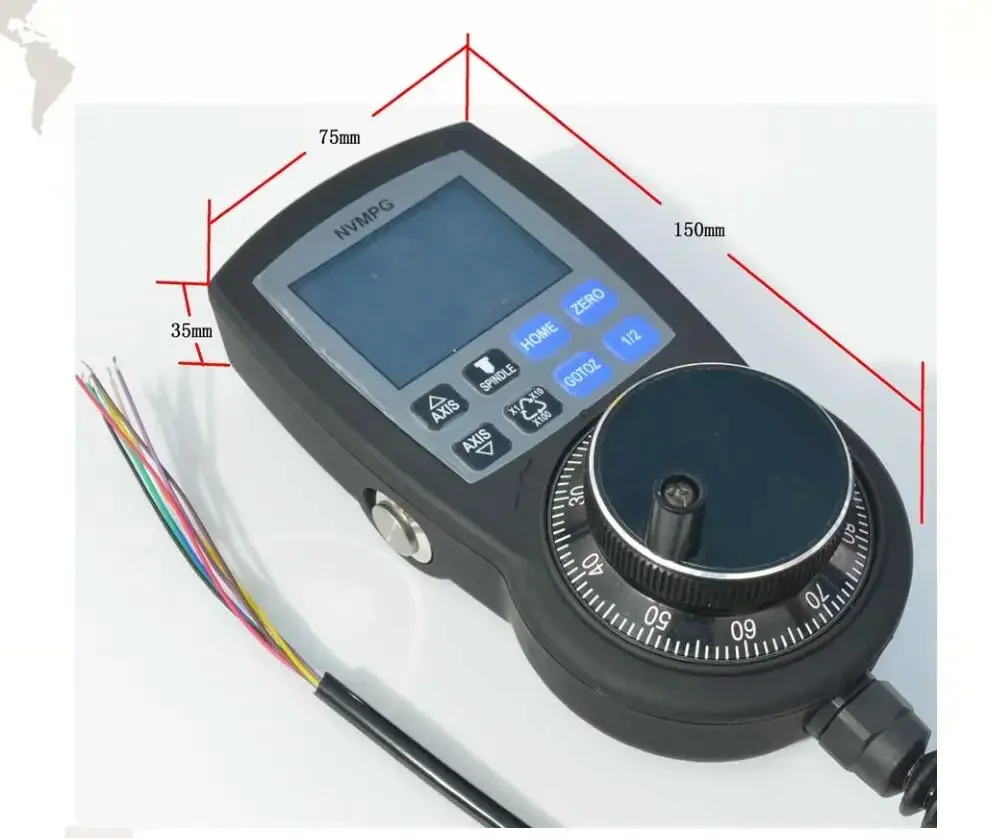

6-axis digital display handwheel * 1
Adapter cable * 1

Specification feature:

1) High performance, low prices
2) 2.2 'TFT Screen
3) 10 buttons
4) Voltage 5VDC
5) 8 wire control line
6) 6 axis coordinates /RESET/FRO/SRO/SJR/SPINDLE are display on the screen



Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
