TEBAK JY-18 CNC Router Engraver Industrial Engraving Machine 6040 Milling Machine
TEBAK JY-18 CNC Router Engraver Industrial Engraving Machine 6040 Milling Machine
Couldn't load pickup availability

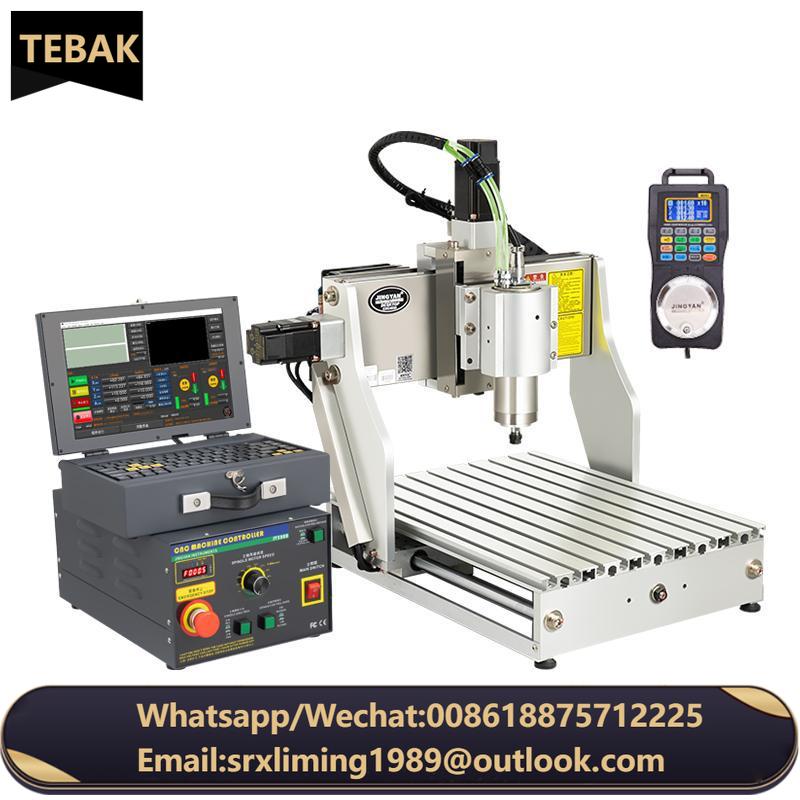

TEBAK JY-18 CNC Router Engraver Industrial Engraving Machine 6040 Milling Machine
| MODEL |
CNC 6040 router |
|||
| Attribute |
1.5KW 3axis |
1.5KW 4axis |
2.2KW 3axis |
2.2KW 4axis |
| Axis |
3axis |
4axis |
3axis |
4axis |
| Limit switch |
Yes |
Yes |
Yes |
Yes |
| With hand wheel |
Yes |
Yes |
Yes |
Yes |
| Spindle motor |
1.5KW |
1.5KW |
2.2KW |
2.2KW |
| Weigh |
85 |
95 |
88 |
98 |
| Machine Dimensions |
860X660X590mm |
|||
| Rack material |
6061 Hard aluminum alloy |
|||

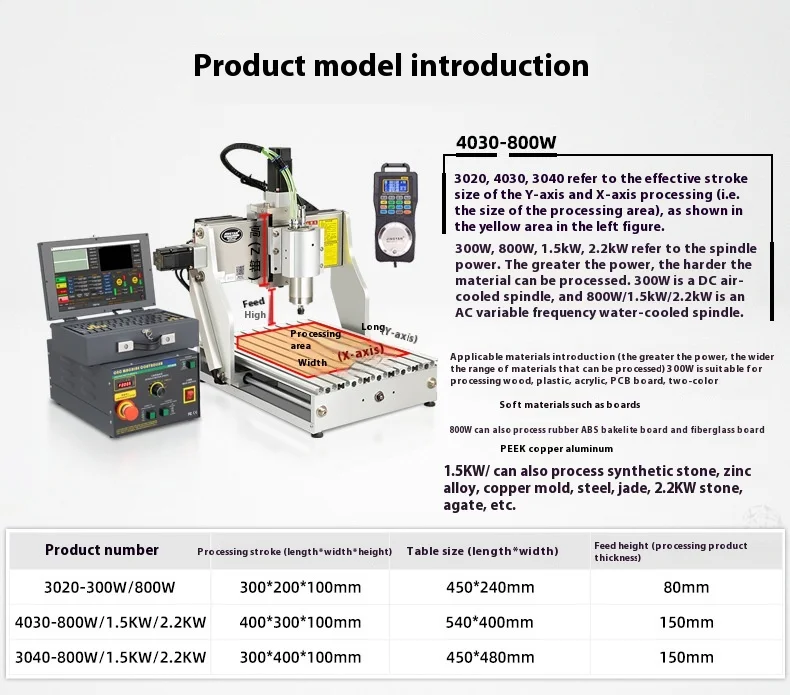

| Engraving area |
XYZ: 600*400*100mm |
|||
| Acceptable material thickness |
≤ 150mm |
|||
| Driving core |
XYZ: TBI 1605 ball screws |
|||
| Sliding core |
XYZ: Diameter 20*20*16mm |
|||
| Limit switch |
XYZ: each 2 Photoelectric limit switch |
|||
| Spindle motor |
VFD water-cooled spindle , 0-24000r/min |
|||
| Collet type |
1.5KW-ER11,2.2KW-ER20 (3.175mm) Collet |
|||
| Stepper motor and drive |
two-phase hybrid stepping motor 57 3A 1.8 Degree |
|||
| Maximum operating speed |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
| Positioning Accuracy |
0.05mm |
|||
| Repeatability precision |
0.01-0.02mm |
|||
| Communication interface |

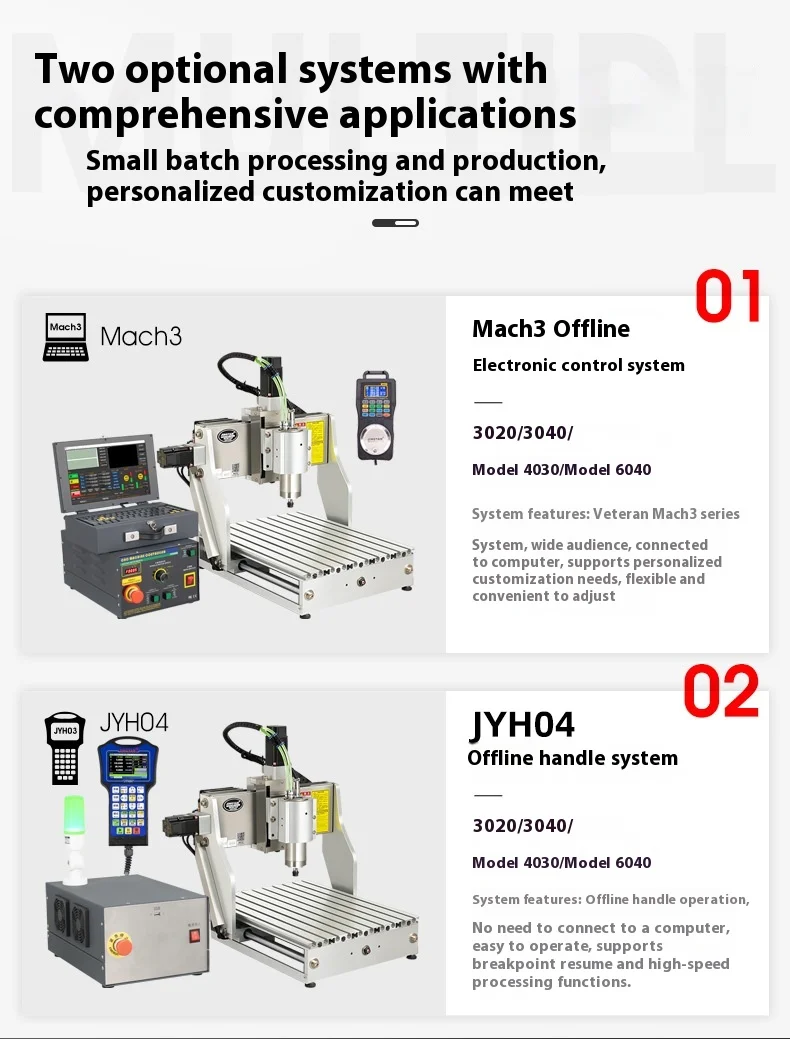

Parallel Port (mach3 control) |
|||
| System requirements |
Win-XP or win-7 8 10(32) operating system |
|||
| Software Compatability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
| Command code |
G code/.nc/.ncc/.tab/.txt |
|||

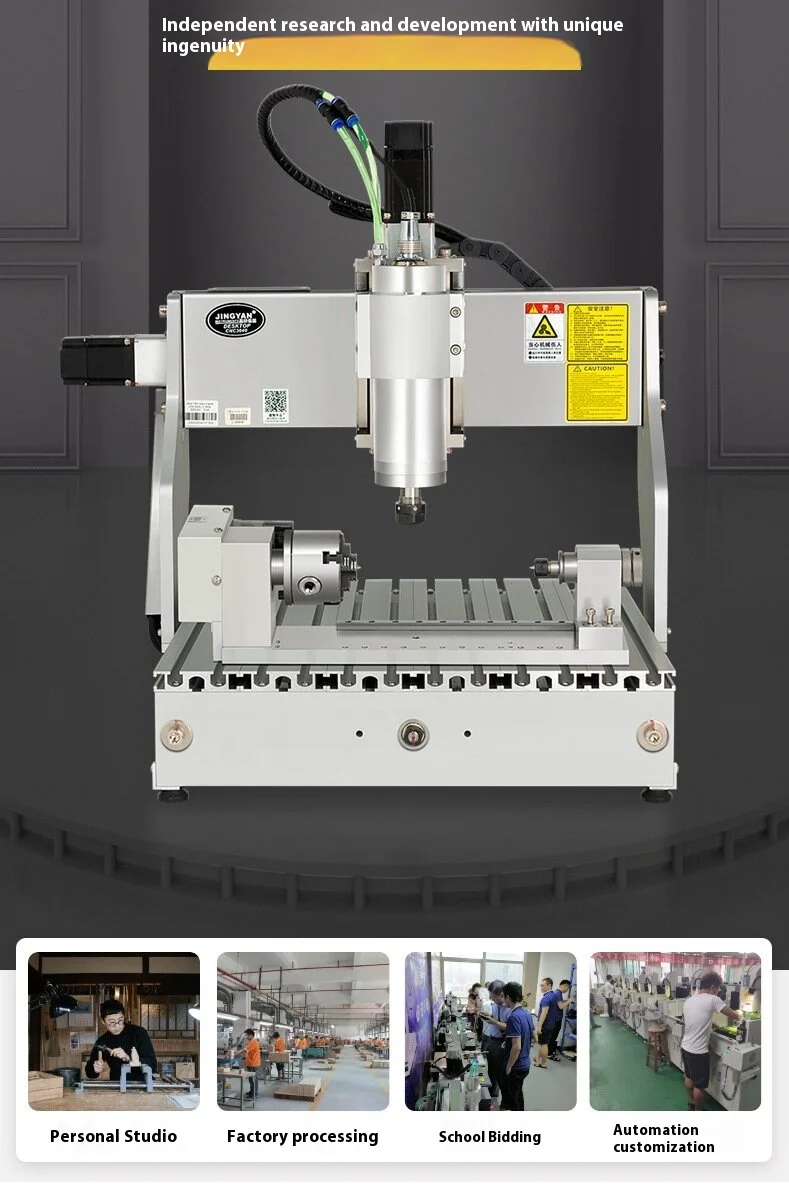

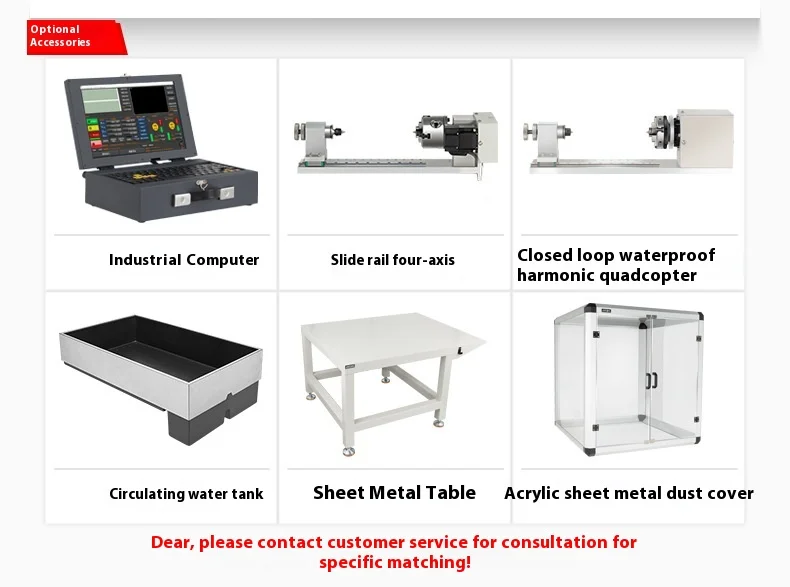

| Rotation Axis (4th Axis) Description |
Center height: H = 65mm Maximum turning diameter: ≤ 120mm Deceleration ratio: 6:1 Stepper motor: 57-3A-1.8 Weight: 7.5KG |
|||
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and
Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent
service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they
are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East
Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining
center and complete testing testing method, control all aspects of production and operation according to the standard process. We
have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the
international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
