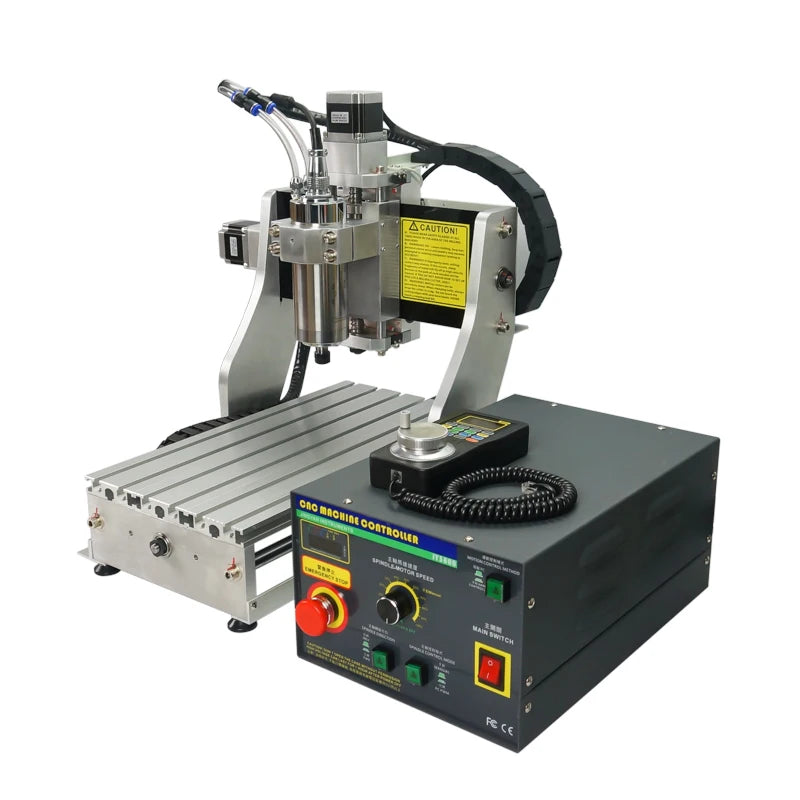

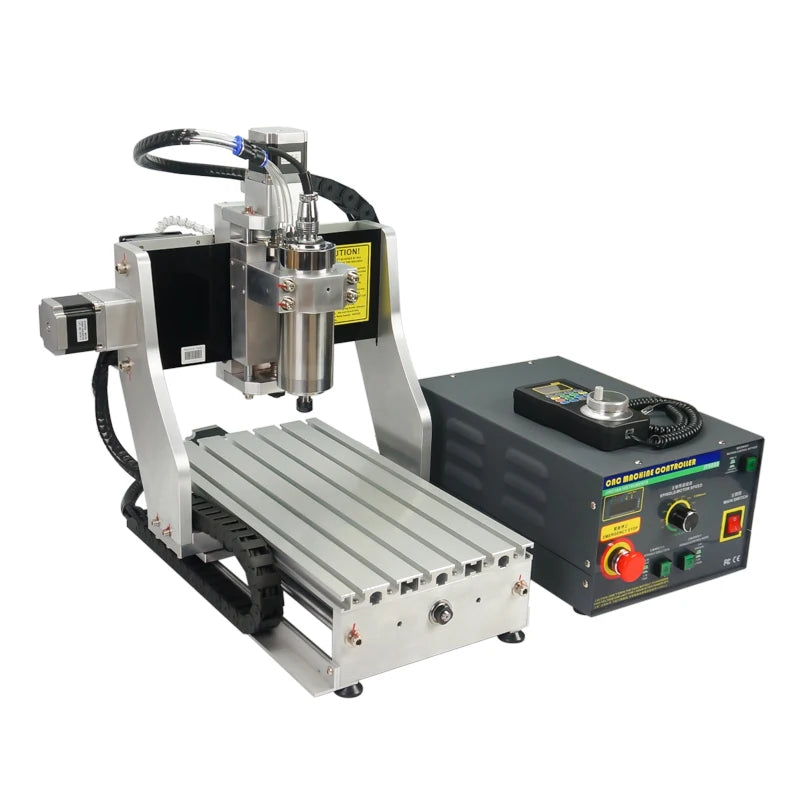

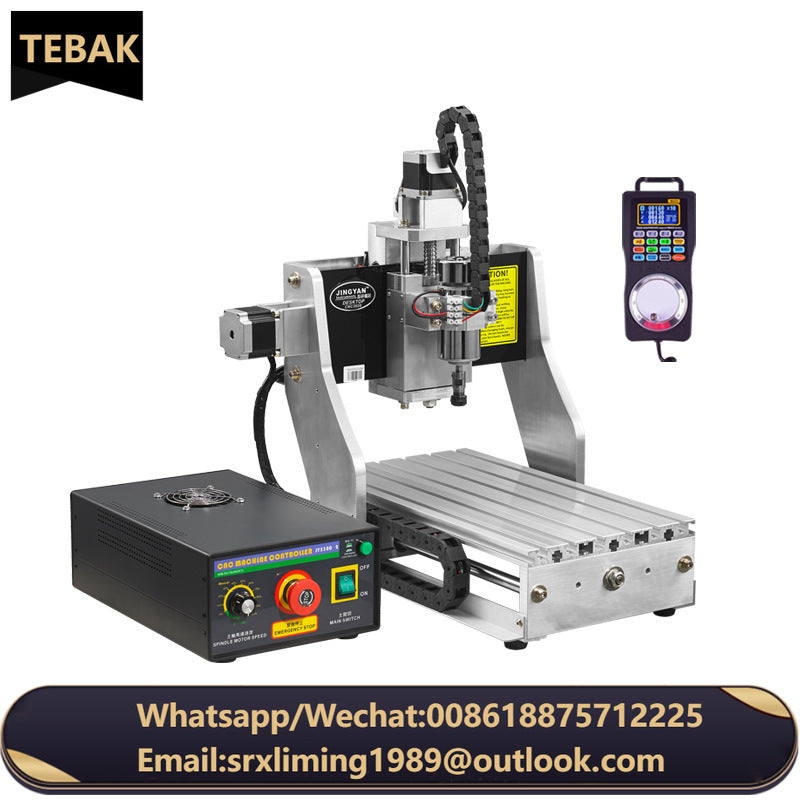

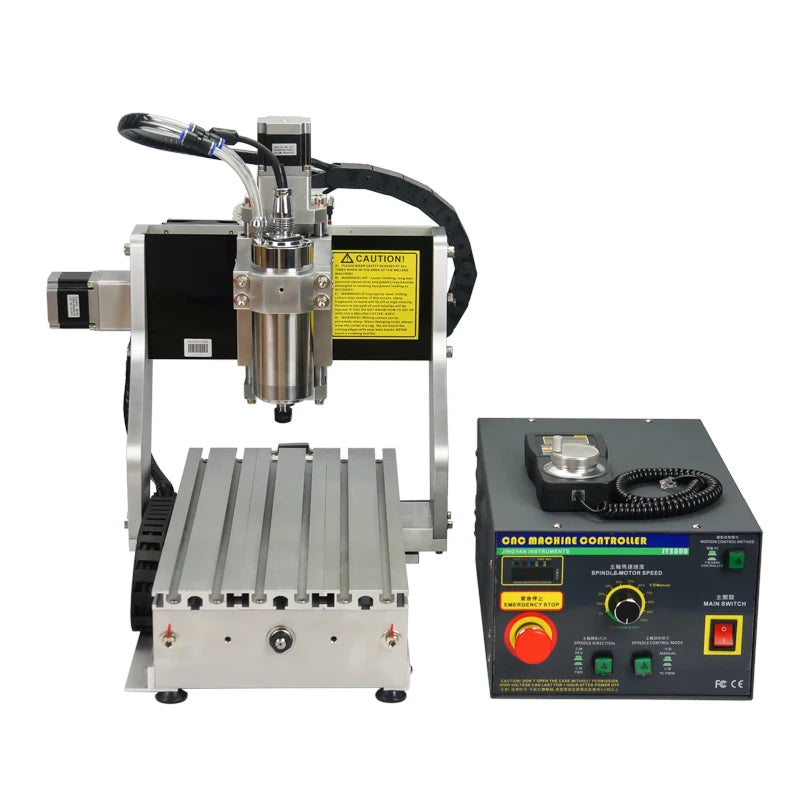

TEBAK JY-16 3020 800W Industrial Engraving Drilling Machine with Handwheel 300*200mm Carving Size 3 Axis 4 Axis
TEBAK JY-16 3020 800W Industrial Engraving Drilling Machine with Handwheel 300*200mm Carving Size 3 Axis 4 Axis
Couldn't load pickup availability
TEBAK JY-16 3020 800W Industrial Engraving Drilling Machine with Handwheel 300*200mm Carving Size 3 Axis 4 Axis
| MODEL |
CNC 3020 router |
|||
| Attribute |
0.8KW 3axis |
0.8KW 4axis |
|
|
| Axis |
3axis |
4axis |
|
|
| Limit switch |
Yes |
Yes |
|
|
| With hand wheel |
Yes |
Yes |
|
|
| Spindle motor |
0.8KW |
0.8KW |
|
|
| Weigh |
45 |
54 |
|
|
| Machine Dimensions |
450X550X520mm |
|||
| Rack material |
6061 Hard aluminum alloy |
|||
| Engraving area |
XYZ: 200X300X100mm |
|||
| Acceptable material thickness |
≤ 100mm |
|||
| Driving core |
XYZ: TBI 1605 ball screws |
|||
| Sliding core |
XYZ: Diameter 16*16*12mm |
|||
| Limit switch |
XYZ: each 2 Photoelectric limit switch |
|||
| Spindle motor |
VFD water-cooled spindle , 0-24000r/min |
|||
| Collet type |
0.8KW-ER11 (3.175mm) Collet |
|||
| Stepper motor and drive |
two-phase hybrid stepping motor 57 3A 1.8 Degree |
|||
| Maximum operating speed |
3500mm/min (Engraving speed: 300-3000mm/min) |
|||
| Positioning Accuracy |
0.05mm |
|||
| Repeatability precision |
0.01-0.02mm |
|||
| Communication interface |
Parallel Port (mach3 control) |
|||
| System requirements |
Win-XP or win-7 8 10(32) operating system |
|||
| Software Compatability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
| Command code |
G code/.nc/.ncc/.tab/.txt |
|||
| Rotation Axis (4th Axis) Description |
Center height: H = 75mm Maximum turning diameter: ≤ 120mm Deceleration ratio: 6:1 Stepper motor: 57-3A-1.8 Weight: 8KG |
|||
