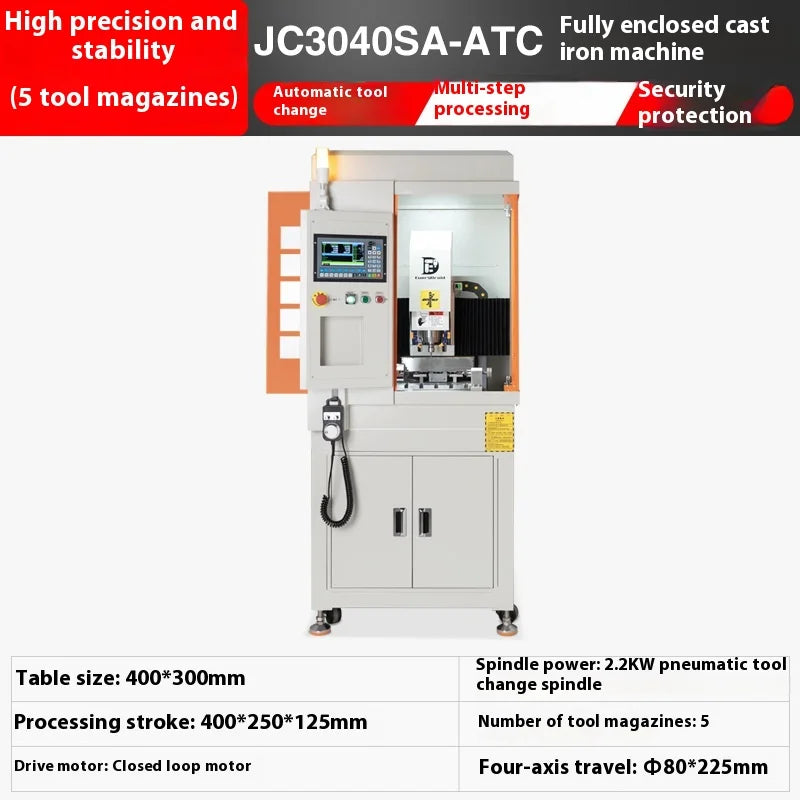

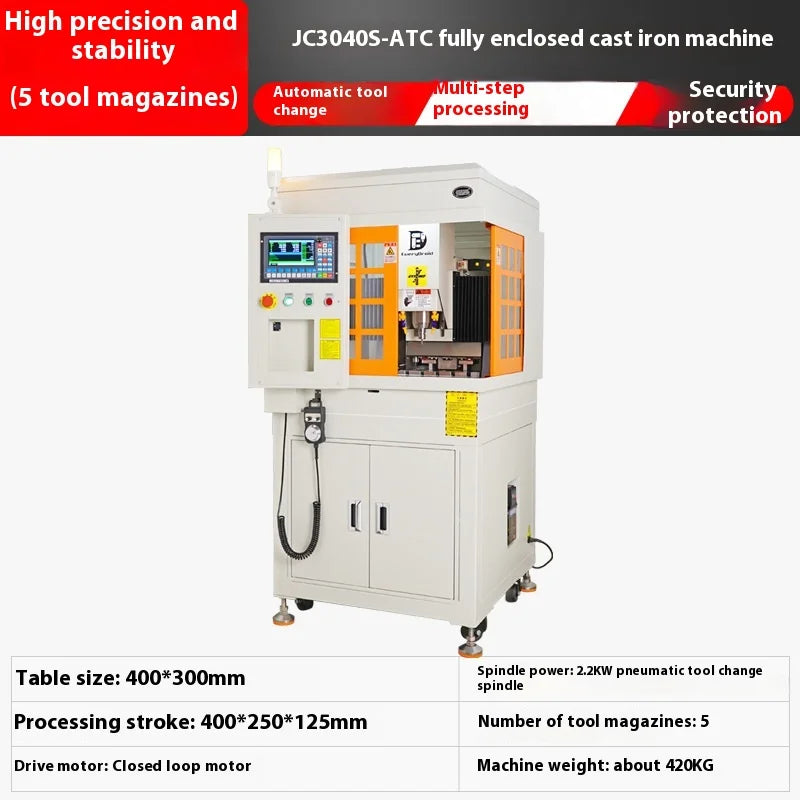

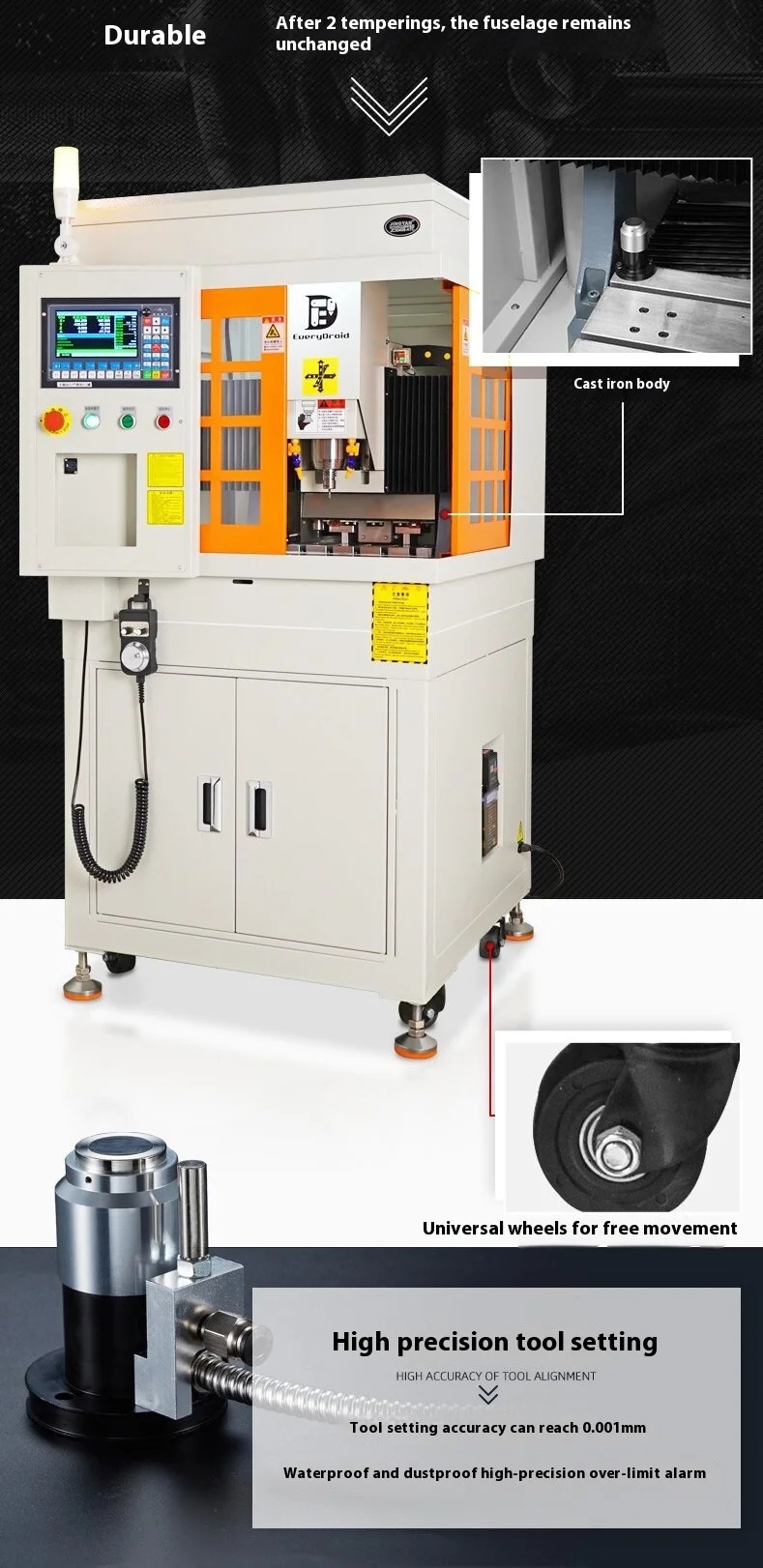

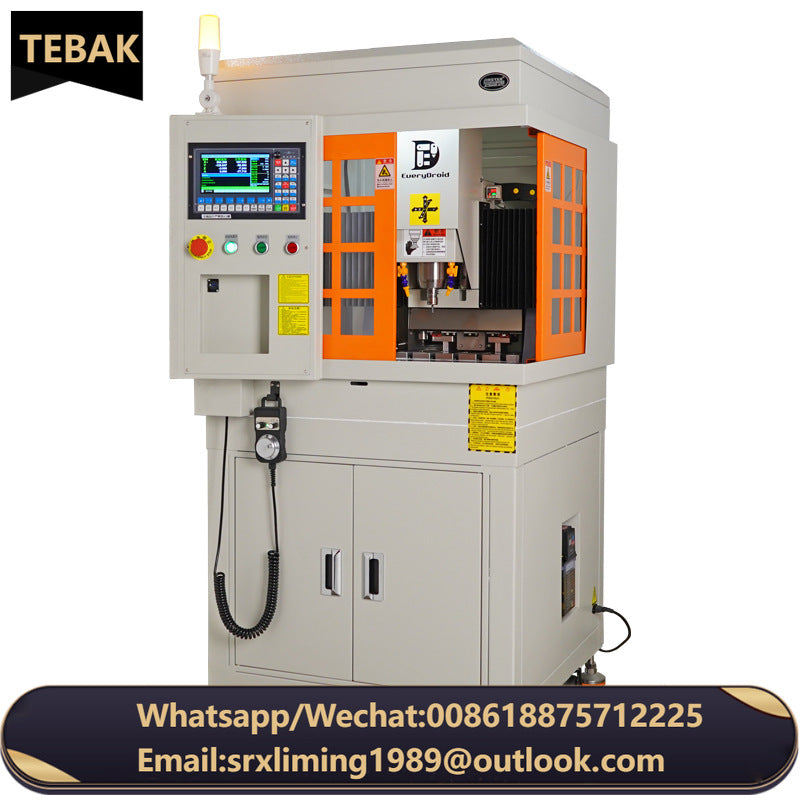

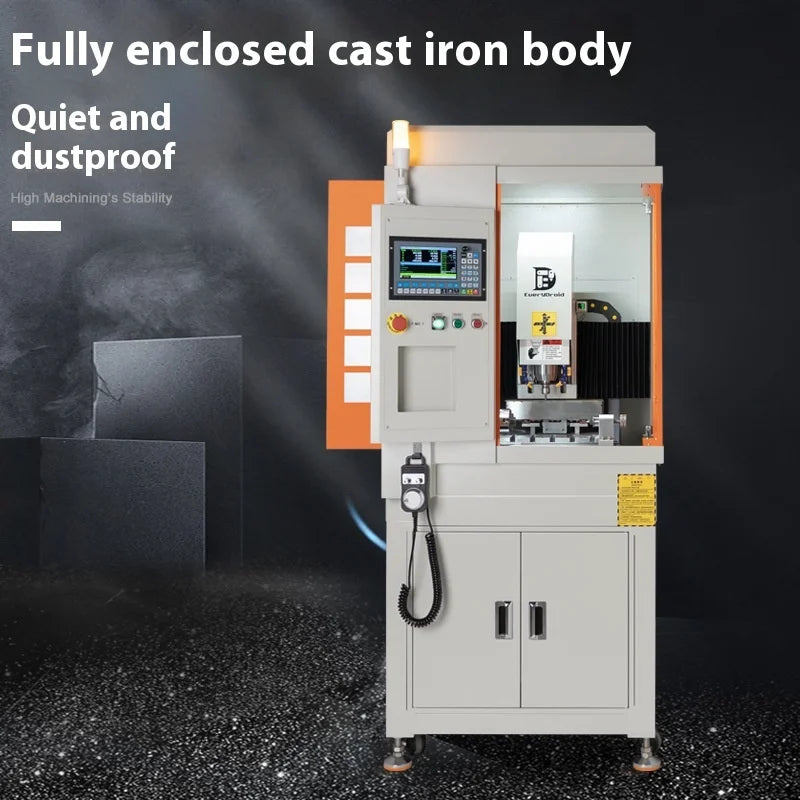

TEBAK JY-12 Industrial Full Cast Iron Metal CNC Router TEngraving Machine With Rolling Base Optional Aut Tool Change

TEBAK JY-12 Industrial Full Cast Iron Metal CNC Router TEngraving Machine With Rolling Base Optional Aut Tool Change

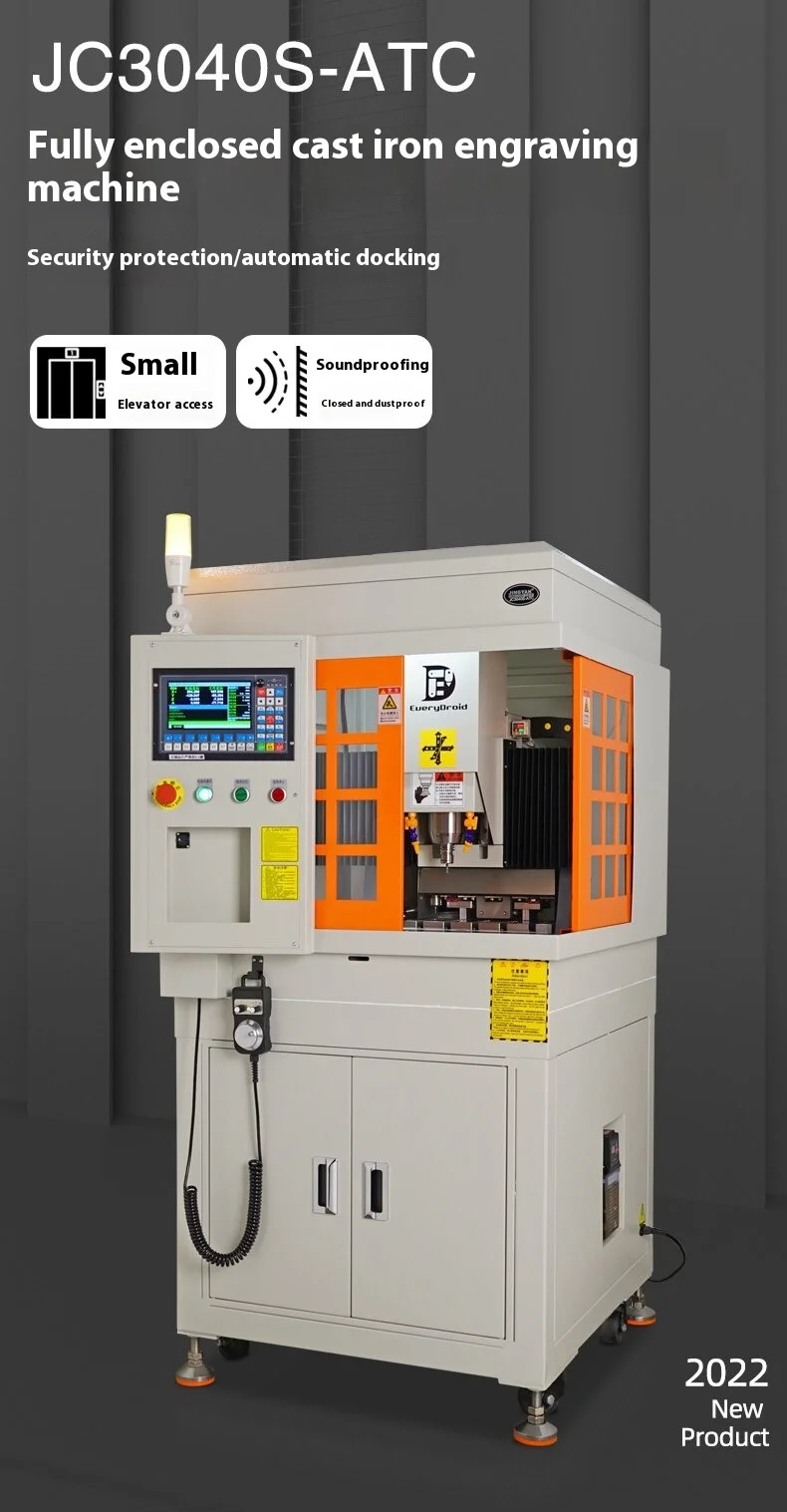

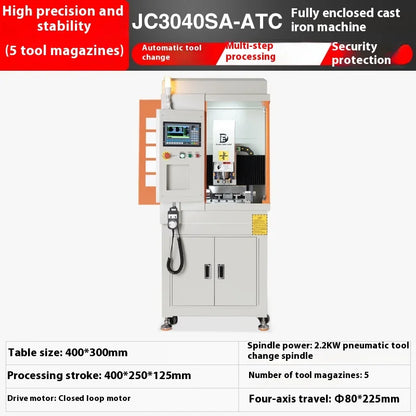

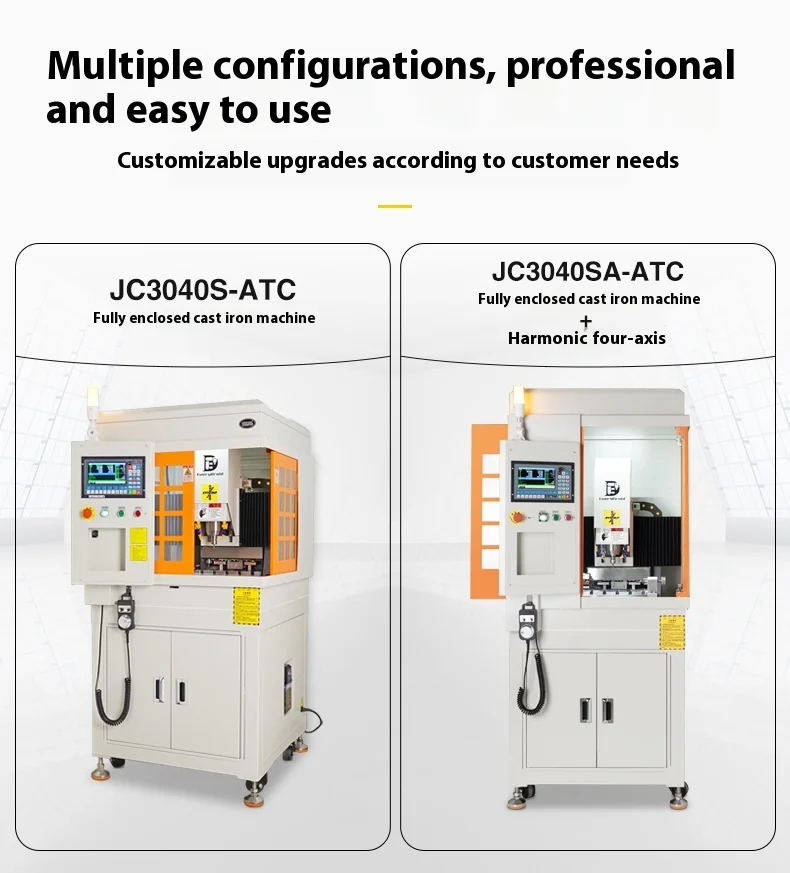

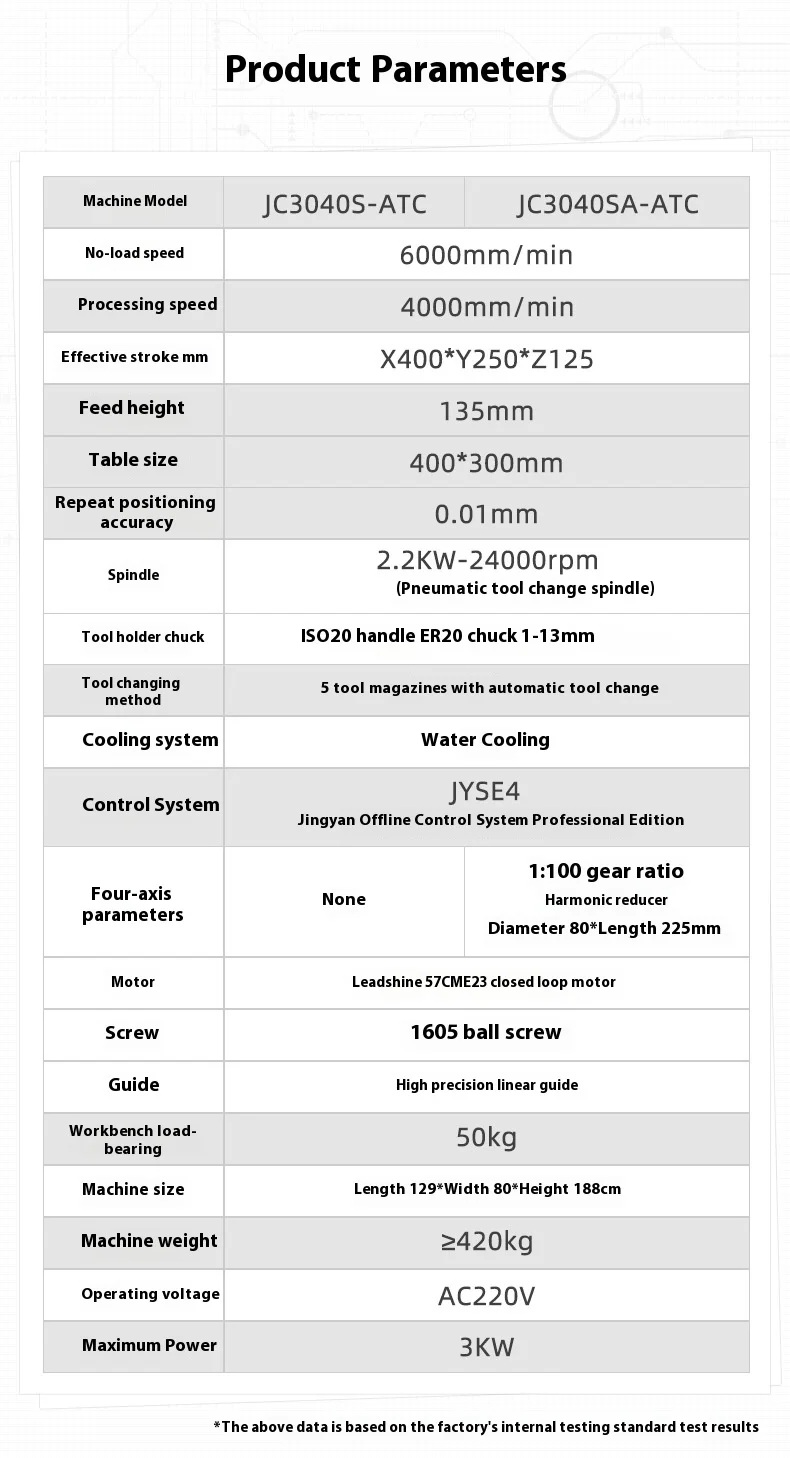

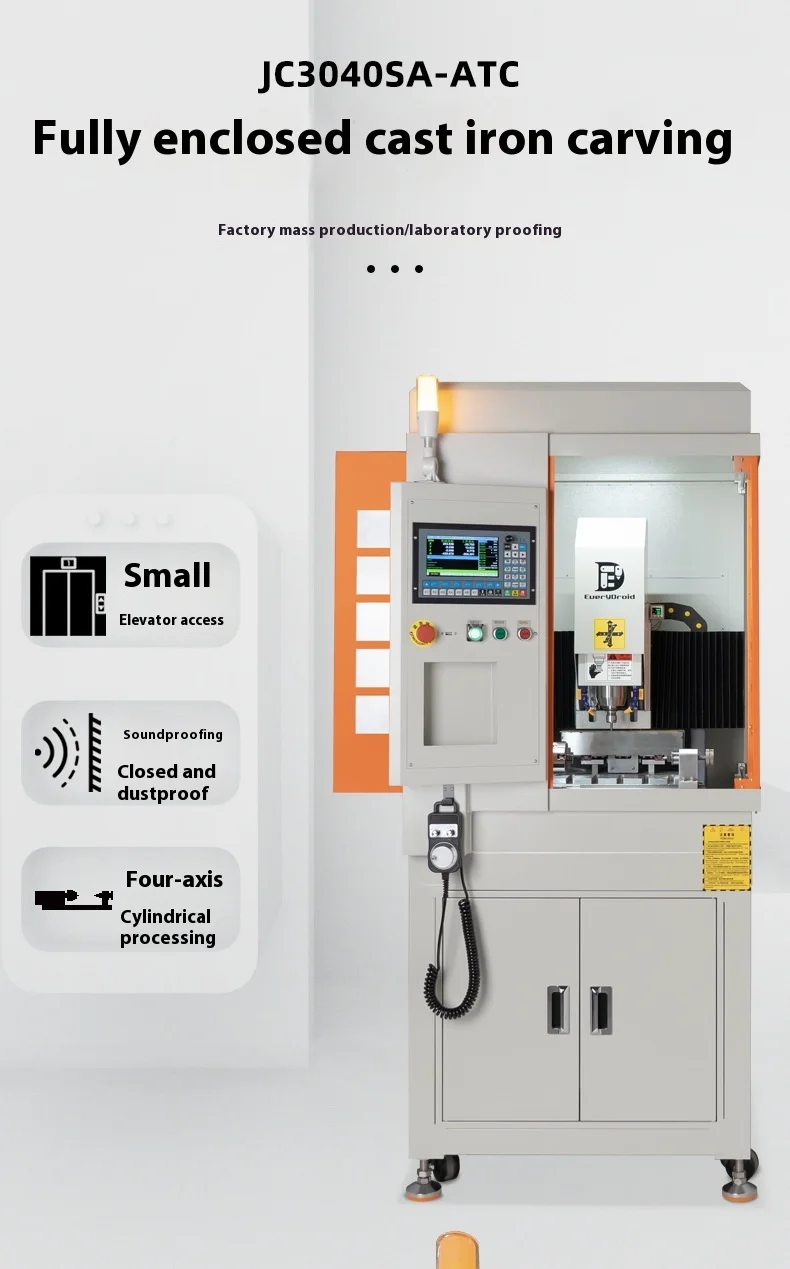

Model: LY 3040 / 3040ATC/ 3040S-ATC(Sealed)
No load speed 6000mm/min
Milling speed 4000mm/min
Work range X400*Y300*Z125/X400*Y220*Z125/X400*Y250*Z125
Feed height 135mm
Platform size 400*300mm
Accuracy 0.02mm
Repeat positioning Accuracy 0.01mm

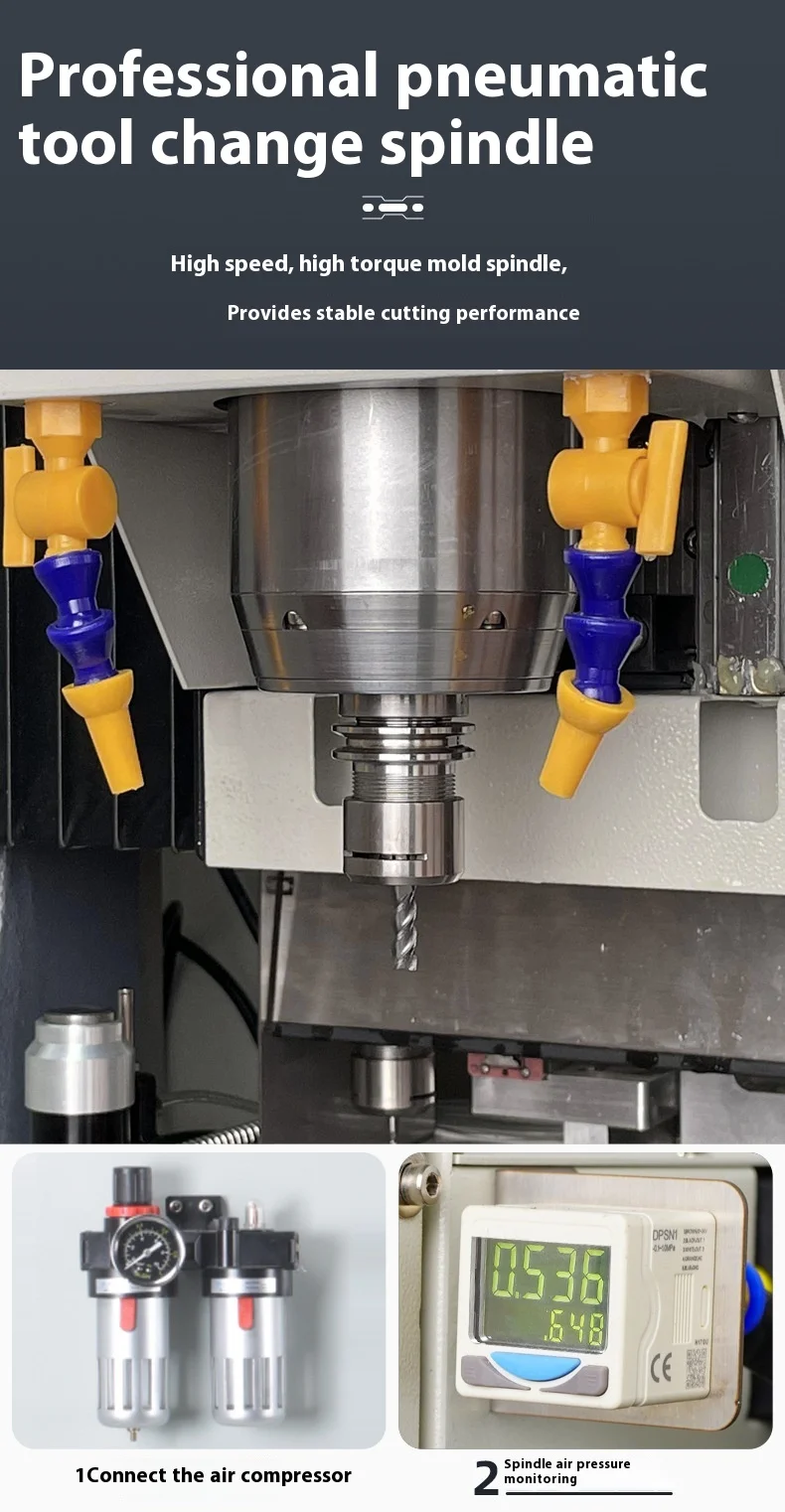

Spindle 2.2KW-24000rpm Normal / 2.2KW-24000rpm Spindle ISO20 ATC
Tip change Manual / Tool Magazine 4PCS / Tool Magazine 5PCS

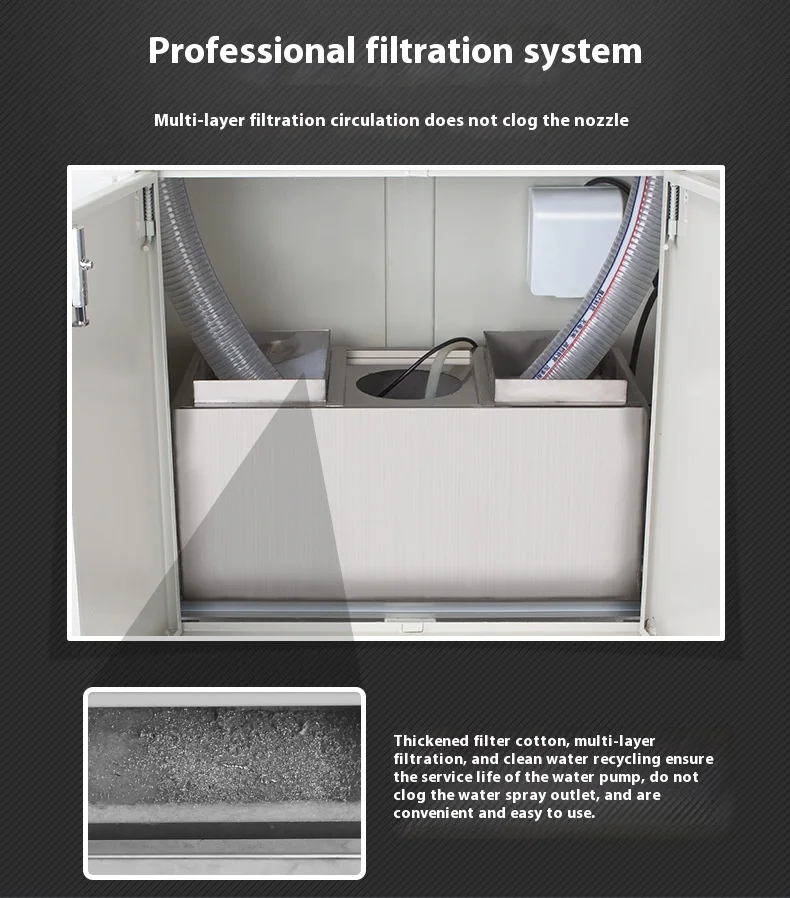

Cooling Water

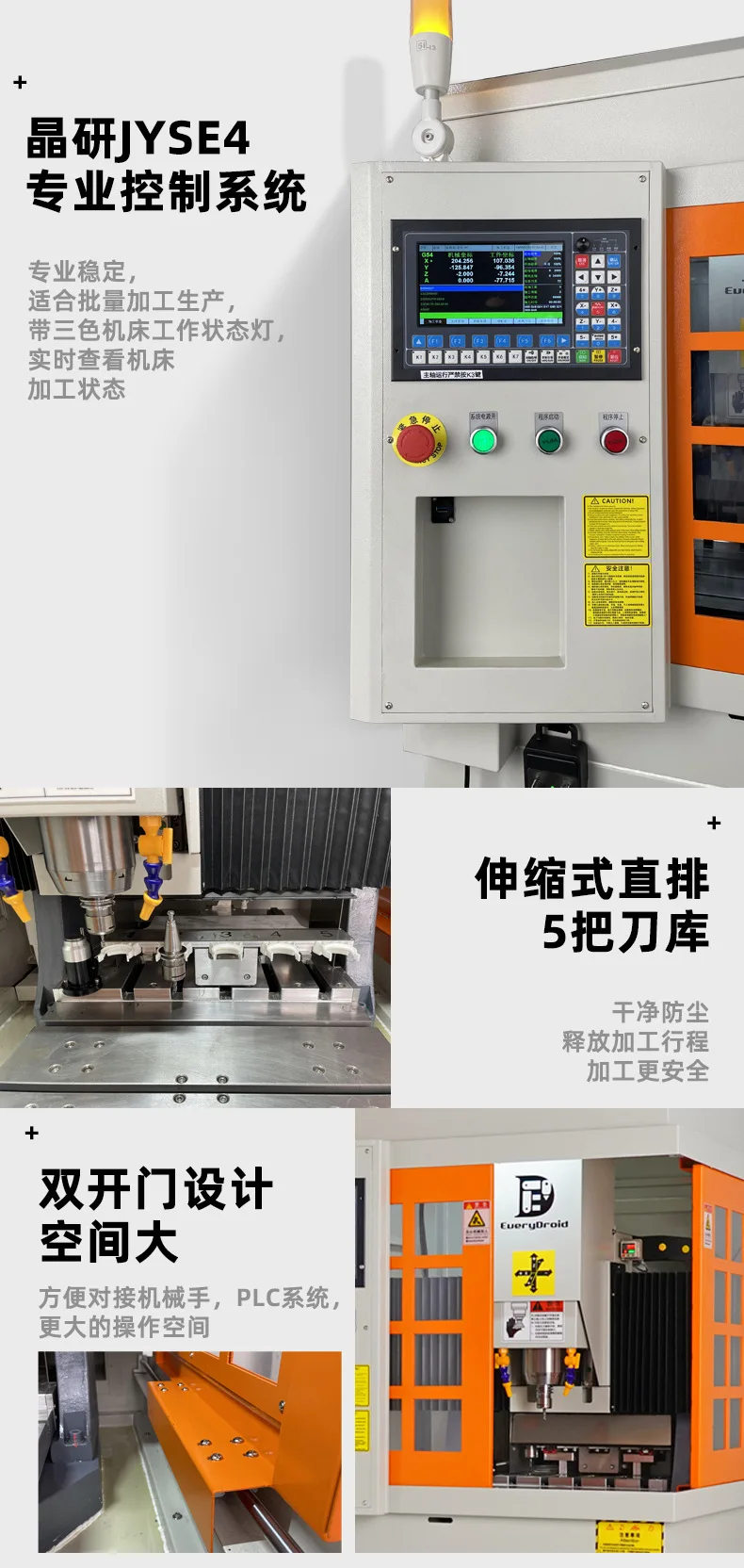

System: JYS4 Off-line system / JYSE4 Off-line system professional

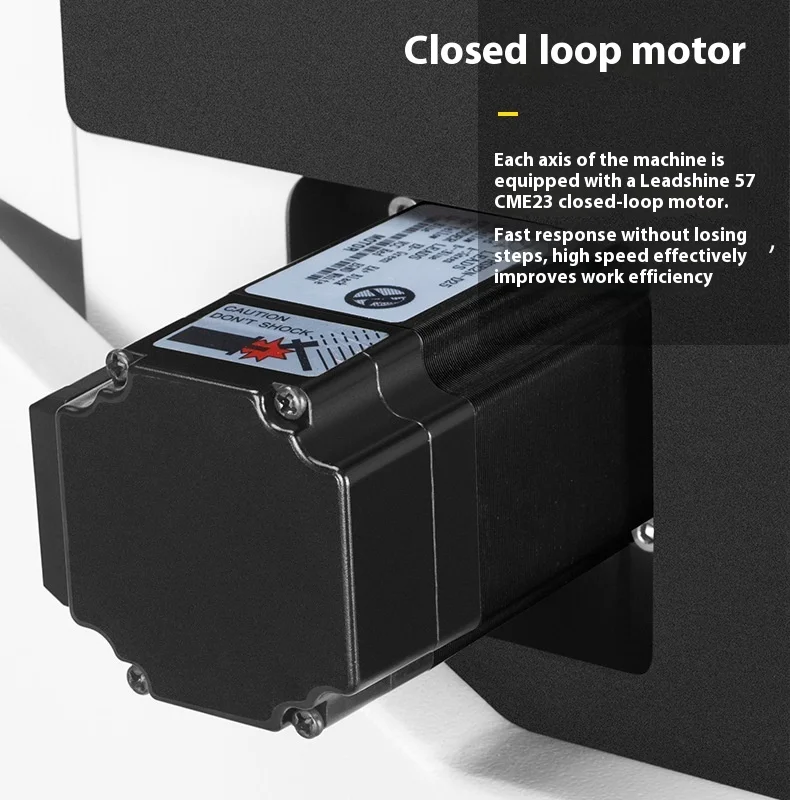

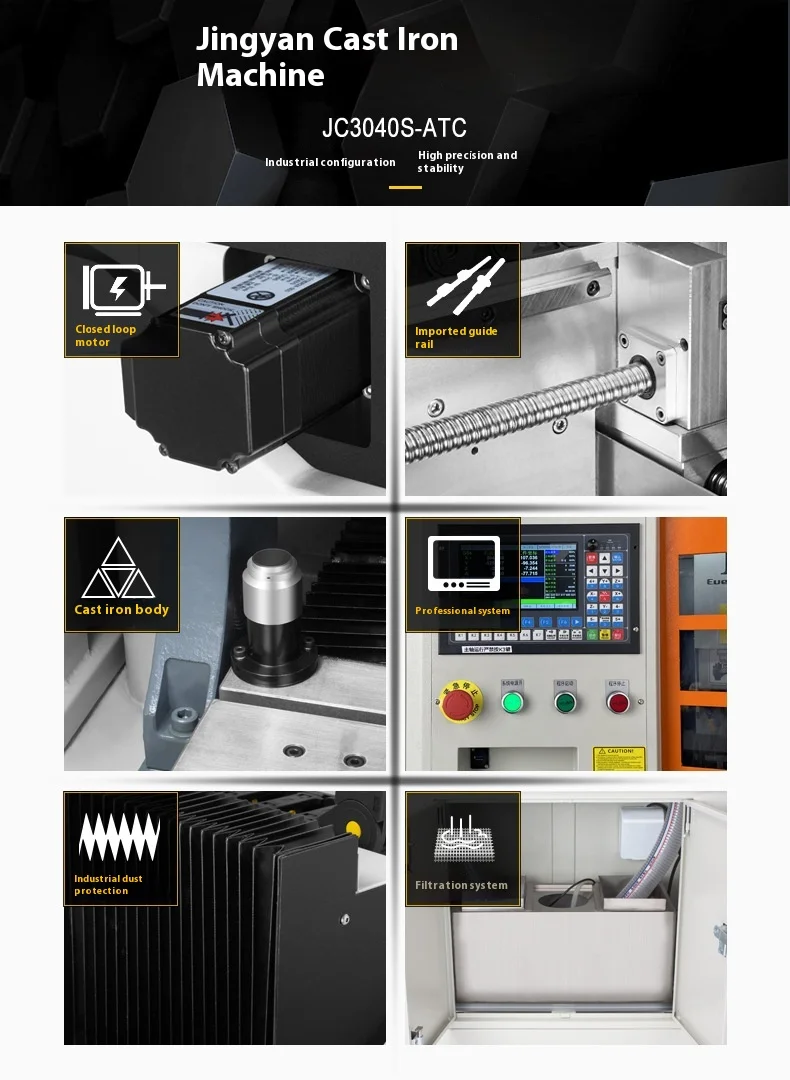

Motor Leadshine 57CME23 closed-loop
Lead screw 1605 ballscrew

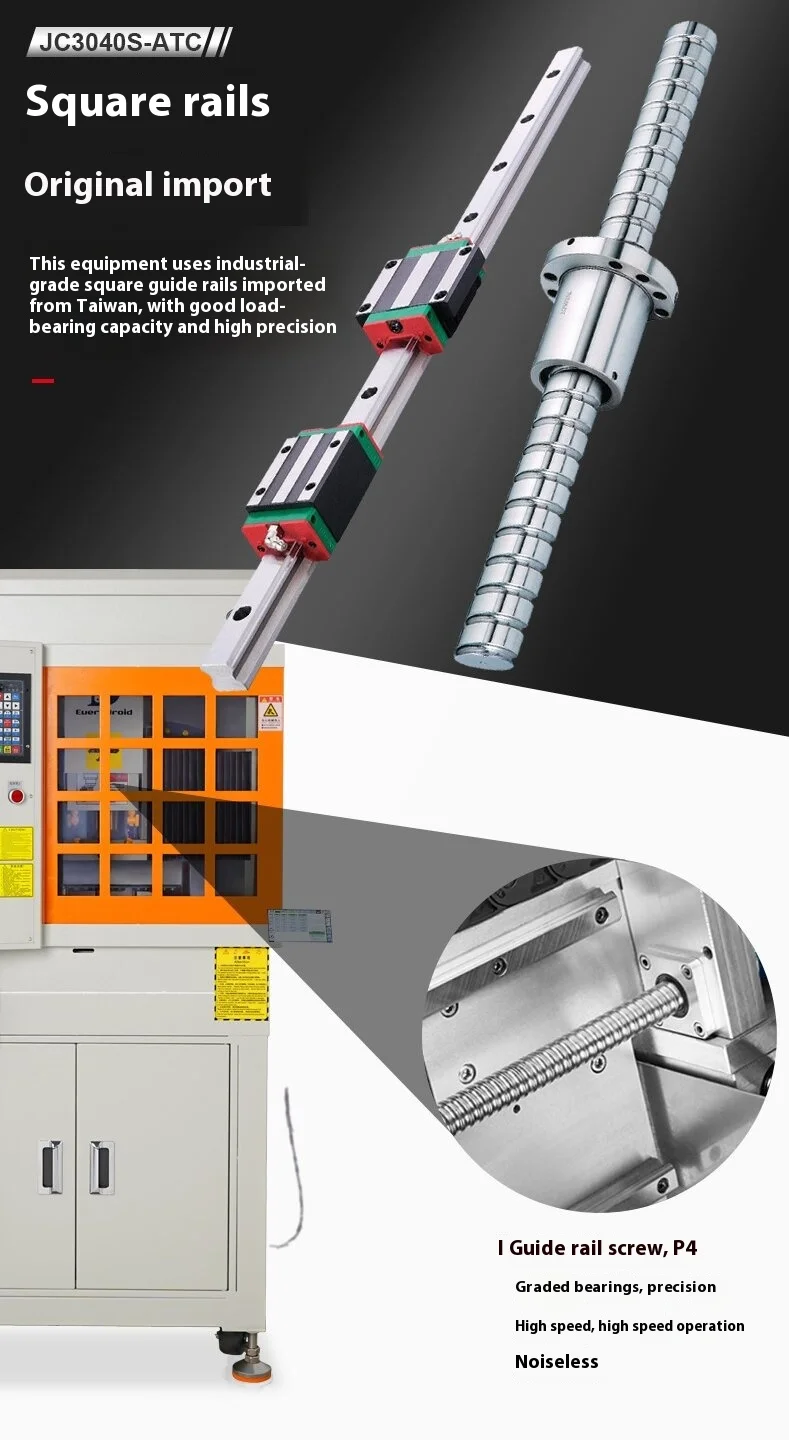

Guide rail : Linear
Max load 50kg
Size(CM) L90*W87*H163/L88*W87*H163/L80*W133*H182
Weight ≥340kg ≥355kg ≥420kg
Voltage AC220V
Power 3KW
OEM/ODM Accepted

  Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and
Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent
service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they
are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East
Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining
center and complete testing testing method, control all aspects of production and operation according to the standard process. We
have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the
international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
