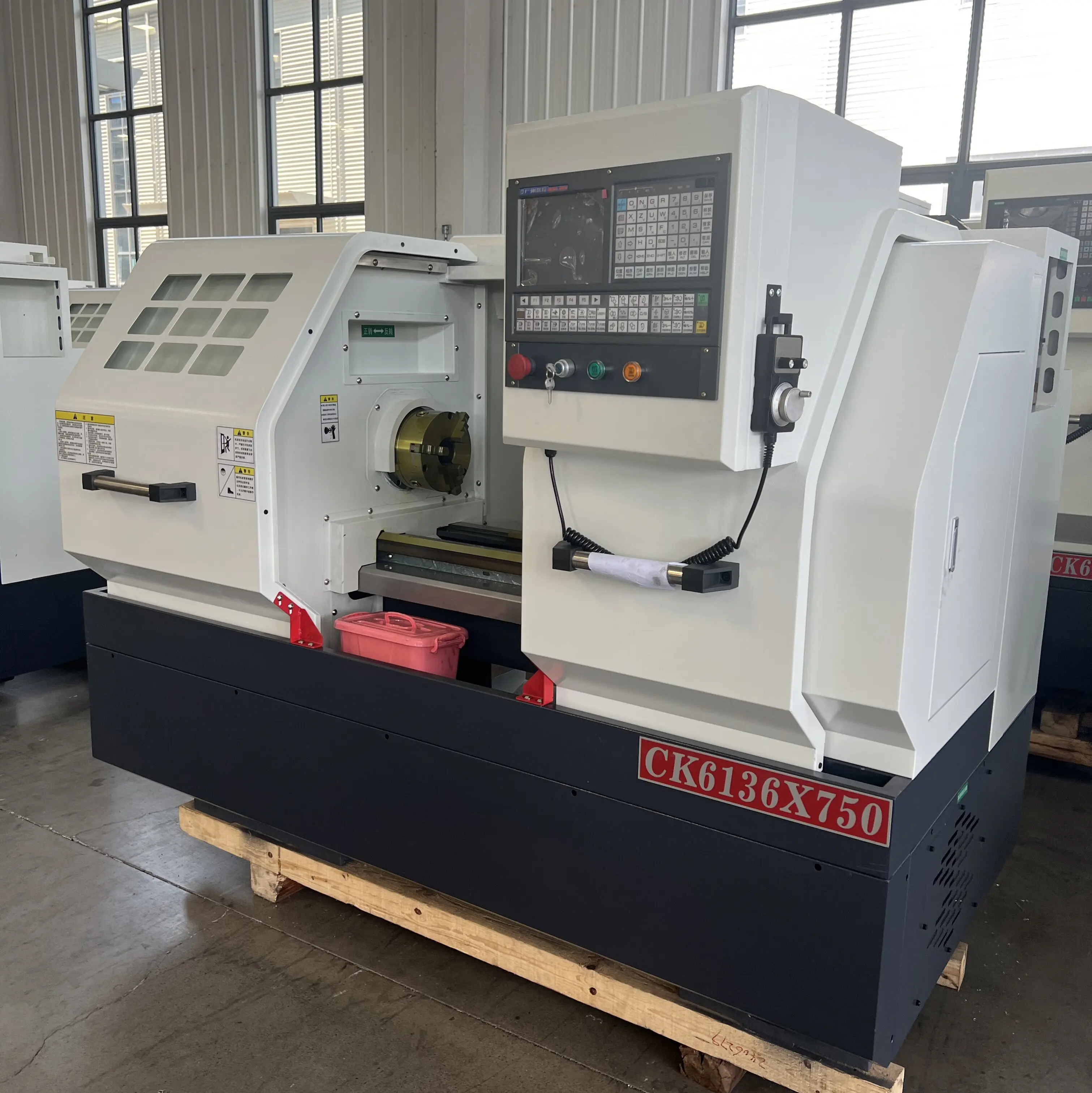

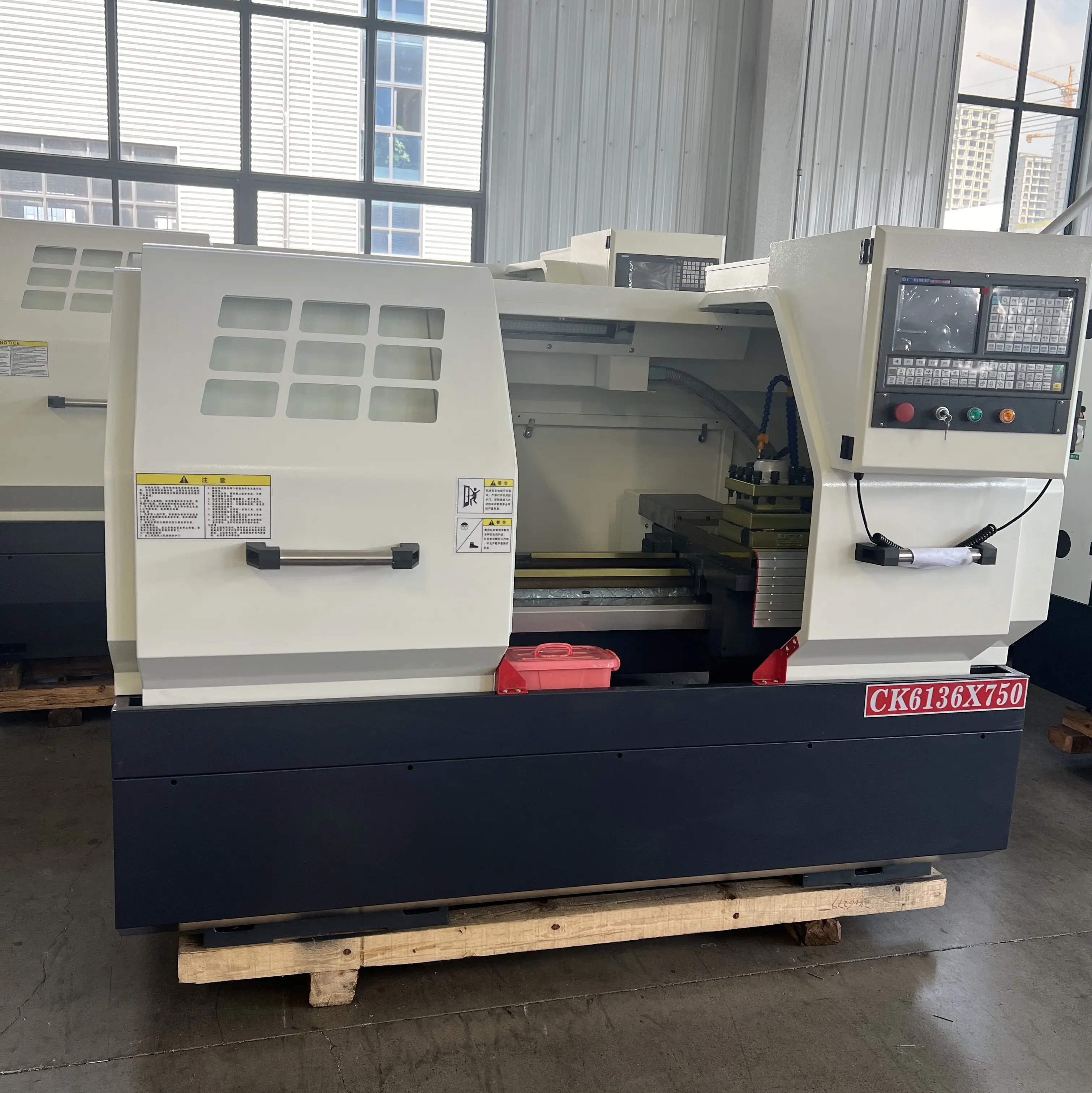

TEBAK Horizontal CK6136*750/1000 Manufacturer Parallel Cnc Lathe Machine Automatic Desktop CNC Lathe
TEBAK Horizontal CK6136*750/1000 Manufacturer Parallel Cnc Lathe Machine Automatic Desktop CNC Lathe
Couldn't load pickup availability
|
Specifications
|
CK6136
|
CK6140
|
CK6150
|
CK6163
|
|
The Max. turning diameter of the puller
|
φ180
|
φ200
|
φ290
|
φ330
|
|
Max. processing length
|
750/1000/1500
|
750/1000/1500
|
750/1000/1500/2000
|
1000/1500/2000/3000
|
|
Spindle end form
|
A2-6
|
A2-6
|
A2-8
|
A2-8
|
|
Spindle through hole diameter
|
52
|
52
|
82/105/130
|
105
|
|
Spindle hole front taper
|
MT5
|
MT5
|
MT6
|
MT6
|
|
Spindle motor power
|
5.5
|
5.5
|
7.5
|
11
|
|

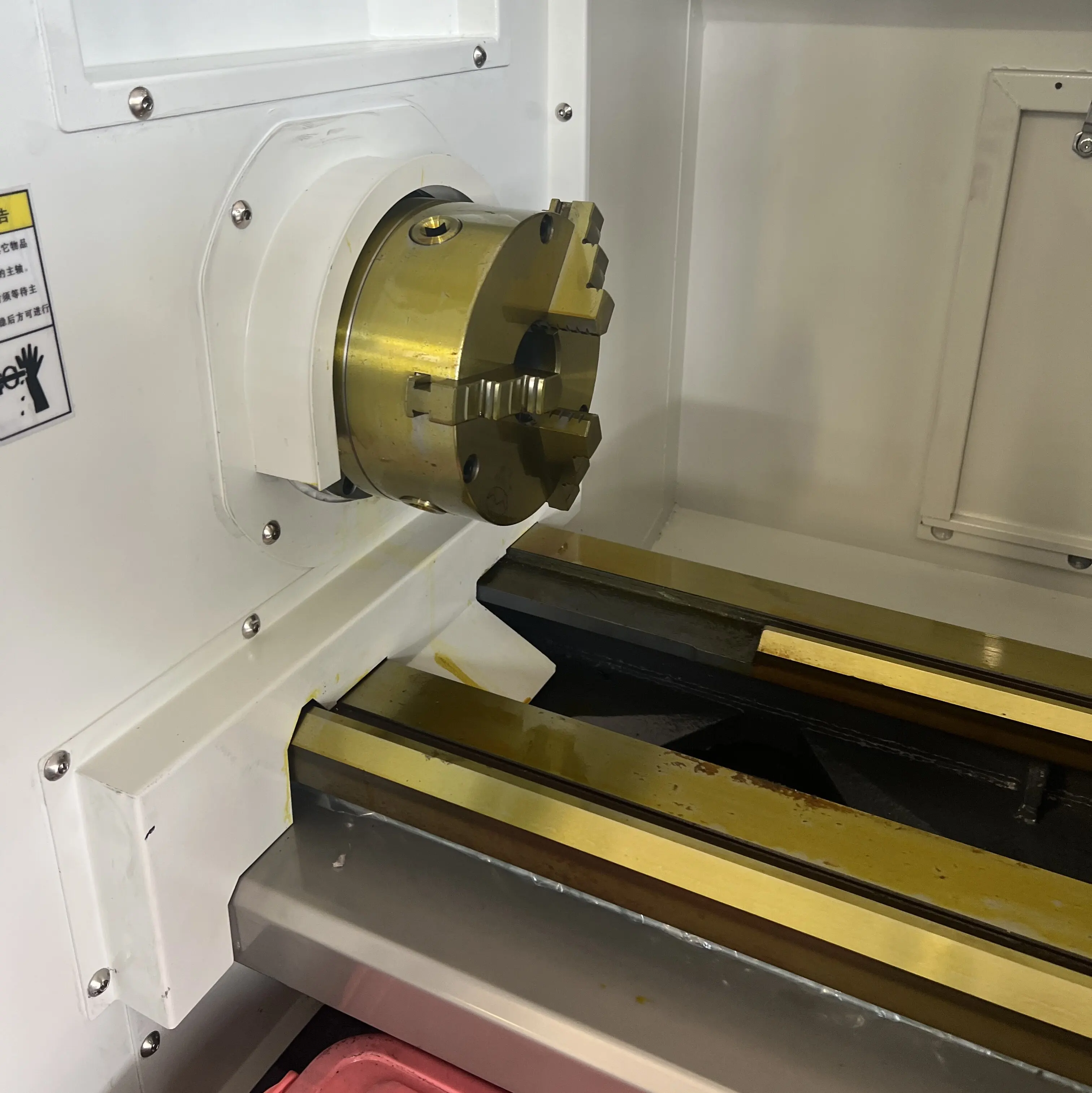

Chuck size
|
200
|
200
|
250
|
250
|
|
Ball screw specifications
|
2006/4008
|
2006/4008
|
2506/4008
|
2506/4008
|
|
Fast moving speed (x/z)
|
X:6 Z:8
|
X:6 Z:8
|
X:6 Z:8
|
X:6 Z:8
|
|
Repeated positioning accuracy(X/Z)
|
±0.005
|
±0.005
|
±0.005
|
±0.03
|
|
Workpiece machining accuracy
|
IT6-IT7
|
IT6-IT7
|
IT6-IT7
|
IT6-IT7
|
|
Workpiece surface roughness
|
Ral.6
|
Ral.6
|
Ral.6
|
Ral.6
|
|
Tailstock sleeve diameter
|
60
|
60
|
75
|
100
|
|
Tailstock sleeve stroke
|
130
|
130
|
140
|
250
|
|
Tailstock sleeve taper
|
MT4
|
MT4
|
MT5
|
MT6
|
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
