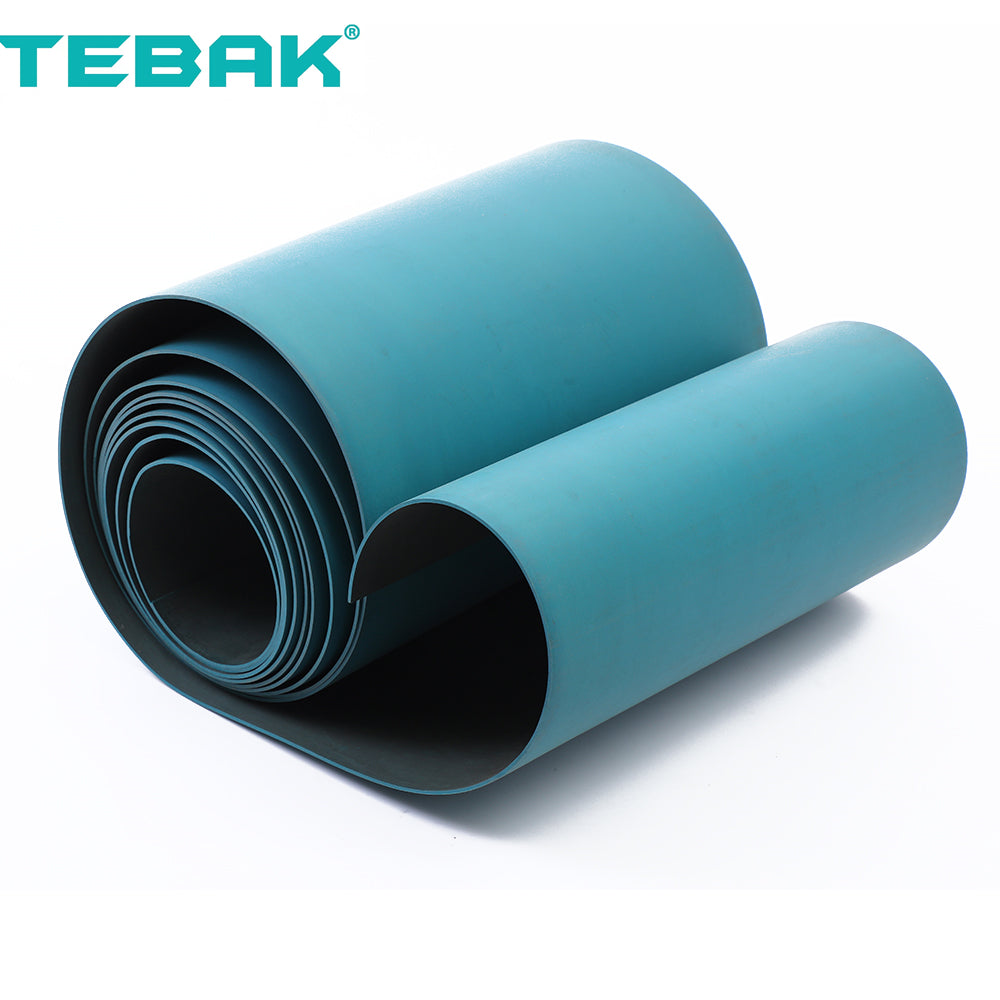

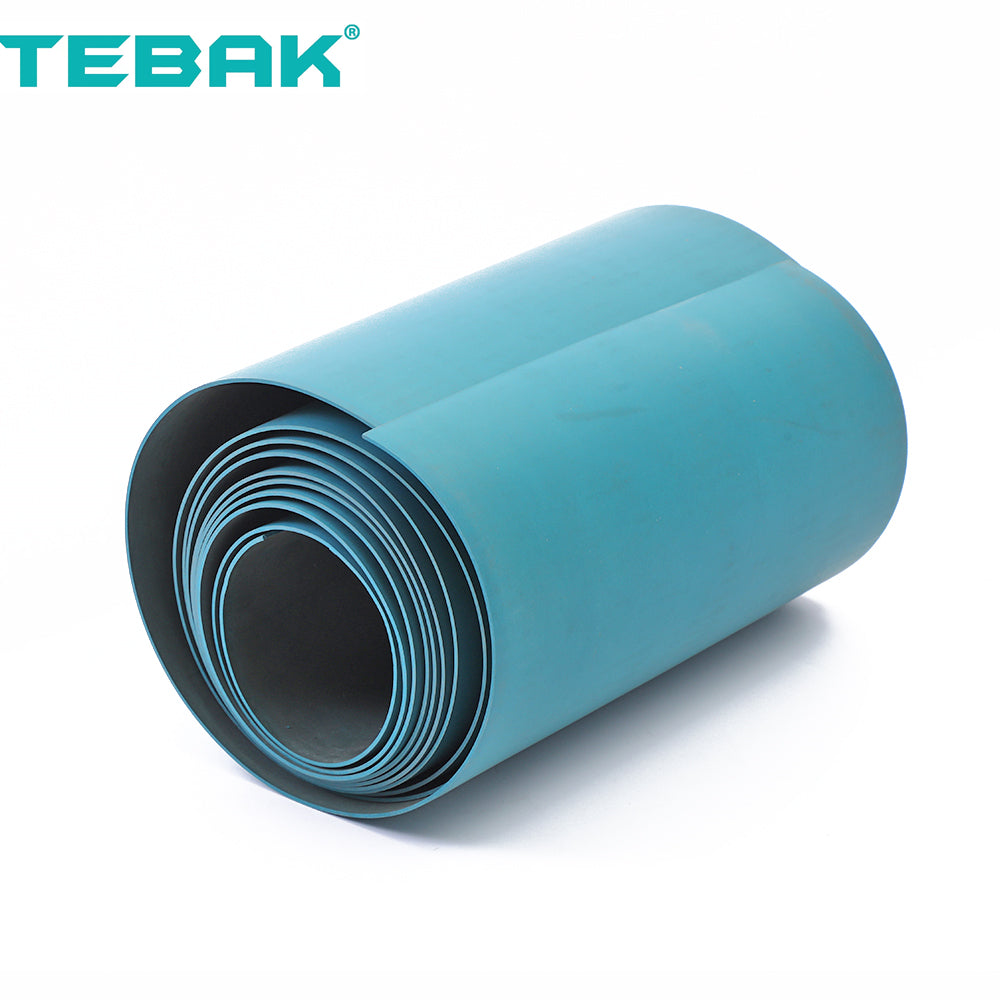

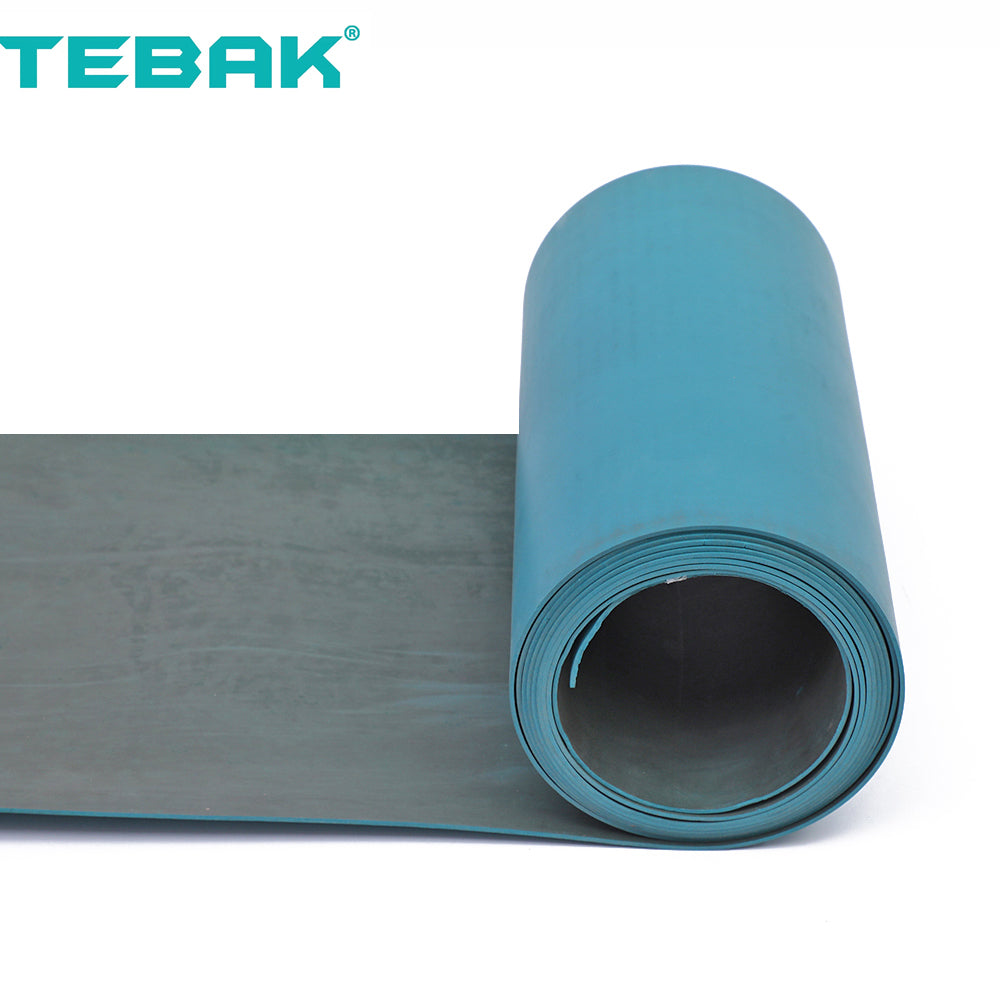

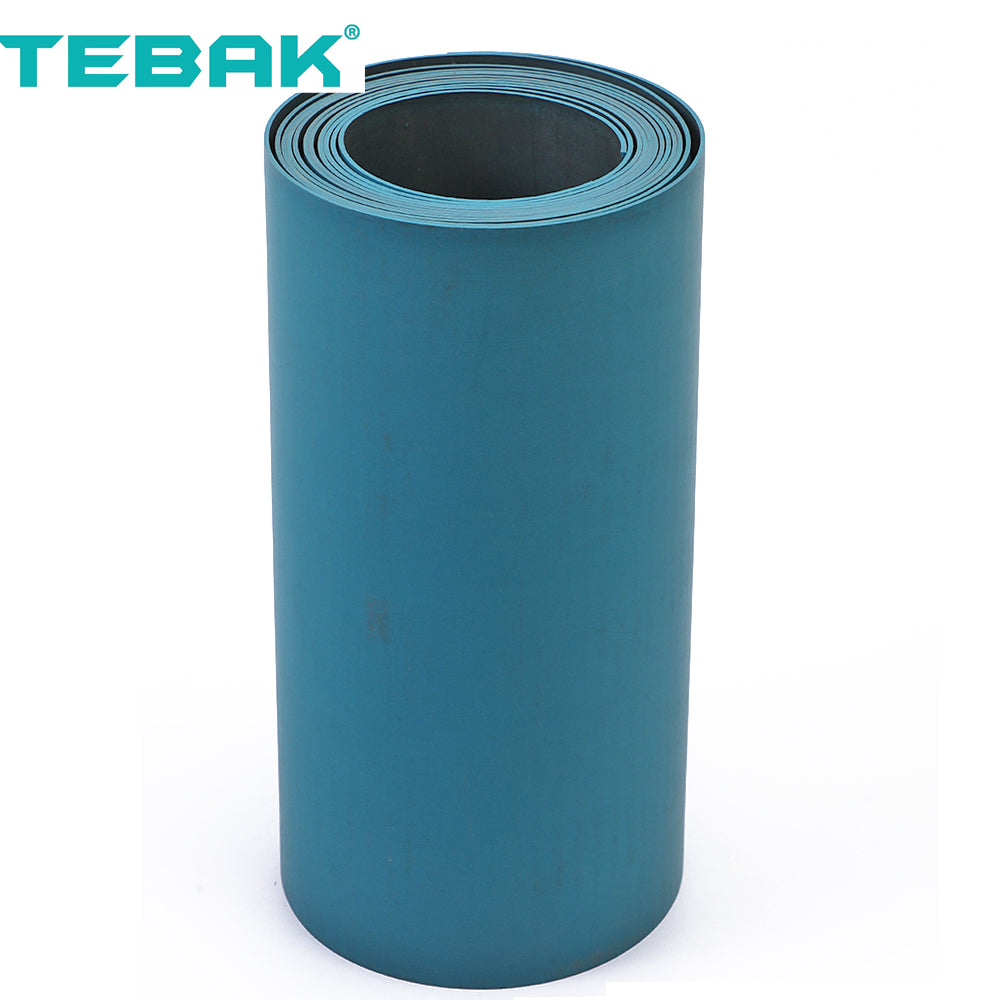

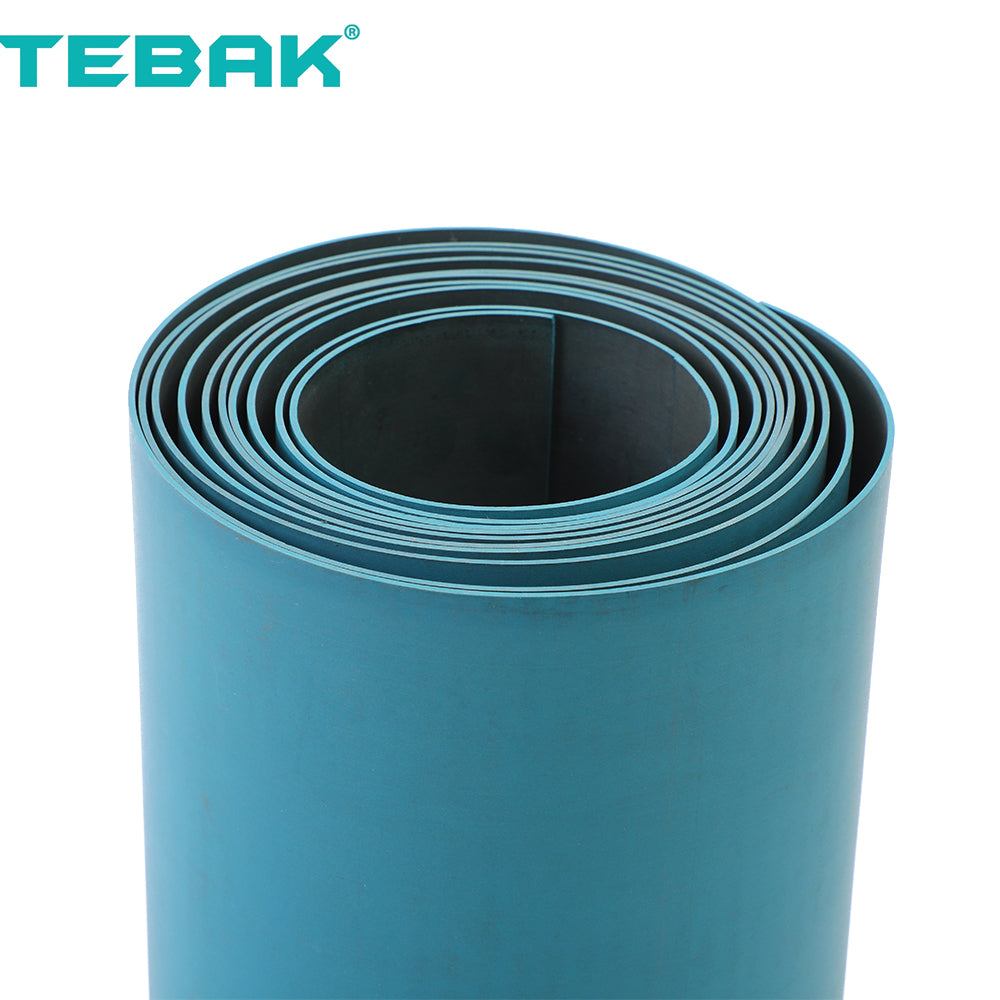

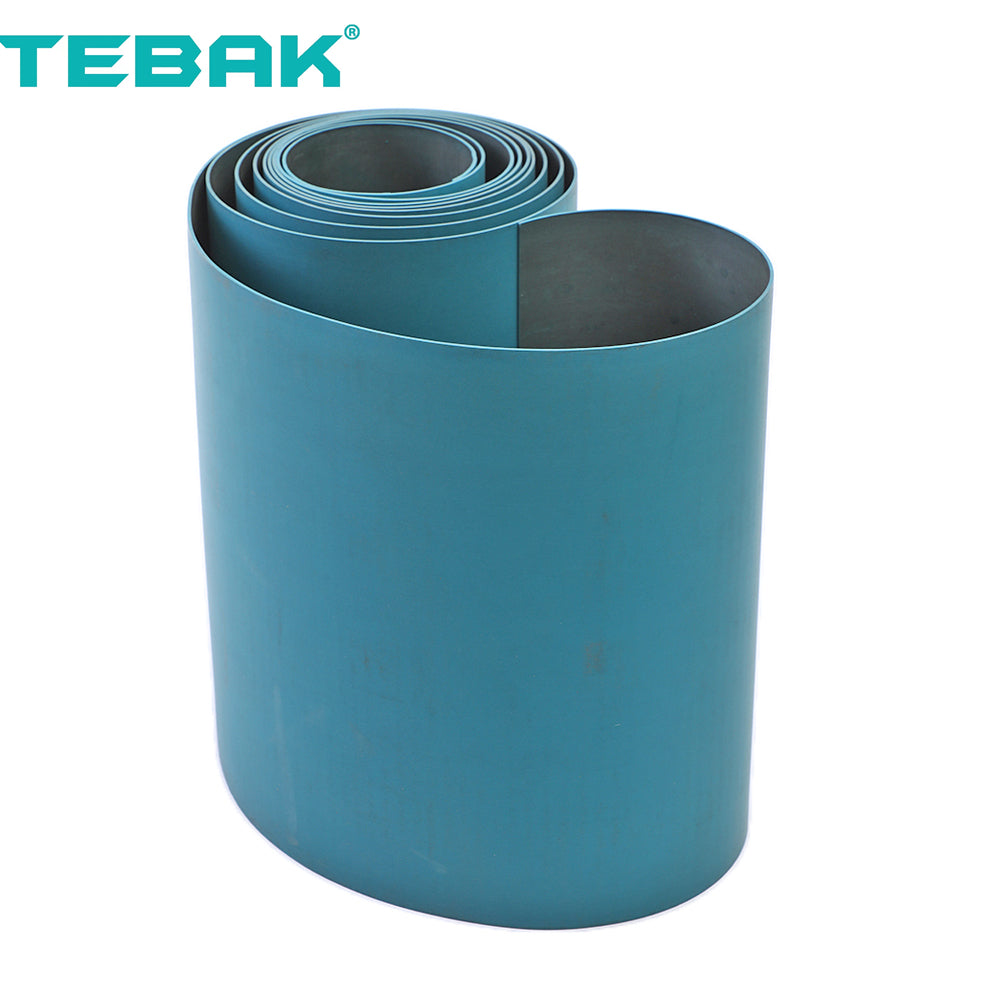

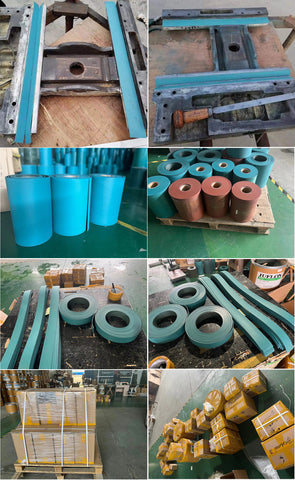

TEBAK PTFE soft belt thickniess 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm 2.5mm 3.0mm 1/8 1/16 1/24 1/32 inch width 50-300mm China Material Blue color Turcite B Sheet for CNC parts

TEBAK SLIDEWAY BLUE COLOR :
STANDARD WIDTH:
50MM,100MM,200MM,300MM.
OTHER SIZE WIDTH IS ALSO AVAILABLE ,PLEASE INQUIRY FOR US .
STANDARD LENGTH AND WEIGHT OF THE ROLL FOR 300MM.

OVERVIEW OF TEBAKSLIDEWAY SHEET

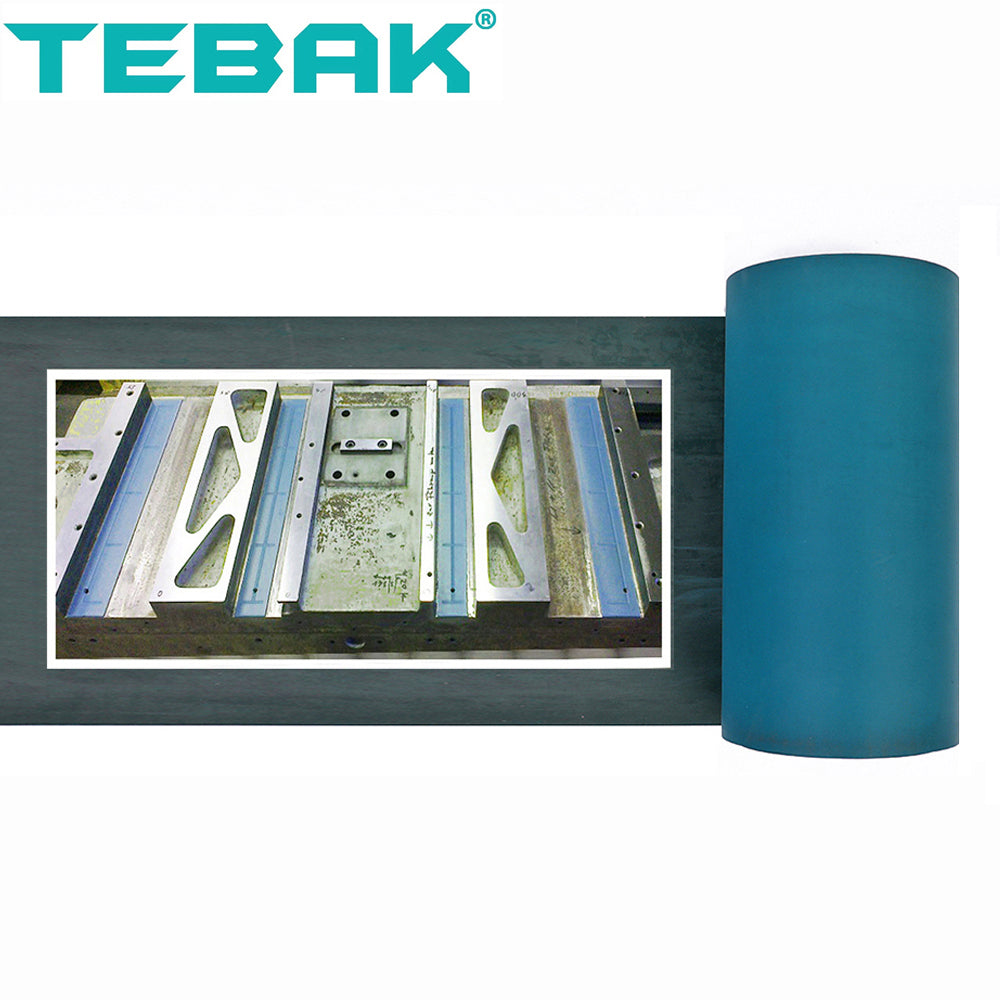

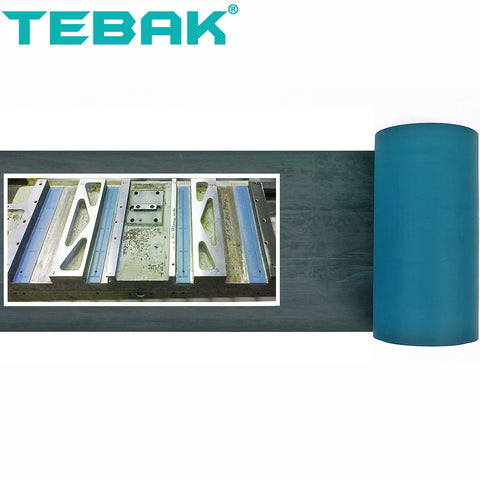

TEBAKSLIDEWAY – Linear Bearing Material
Turcite is PTFE (polytetrafluoroethylene) resins with added fillers such as bronze, that are extruded into solid billets as opposed to compression molding. Billets are then skived to a nominal thickness in 12″ wide rolls, with lengths varying depending on thickness. One side or both sides are etched depending on application to accept the adhesive. TEBAKSLIDEWAY is a polytetrafluoroethylene (PTFE) based bearing material with low friction for machine tool industry linear bearing applications.
1) Turcite B comes in 12″ wide rolls, or custom cut to your specifications.
2) Rolls up to 60 feet long are available upon request (lead-time may apply)
3) Bond Turcite B to steel surfaces with Waylock Adhesive
Testing has shown that PTFE based compounds are resistant to virtually all media, cutting fluids and slideway oils. Additionally, these compounds feature outstanding wear resistance and friction characteristics. Head-to-head material testing has shown that Turcite B outperforms key competitive materials for low friction. Turcite B was developed to meet the needs of machine tool manufacturers looking to improve machine tool efficiencies through low friction material technology and reduce stick-slip effect in machine transitions while still maintaining positioning accuracy and vibration damping.
