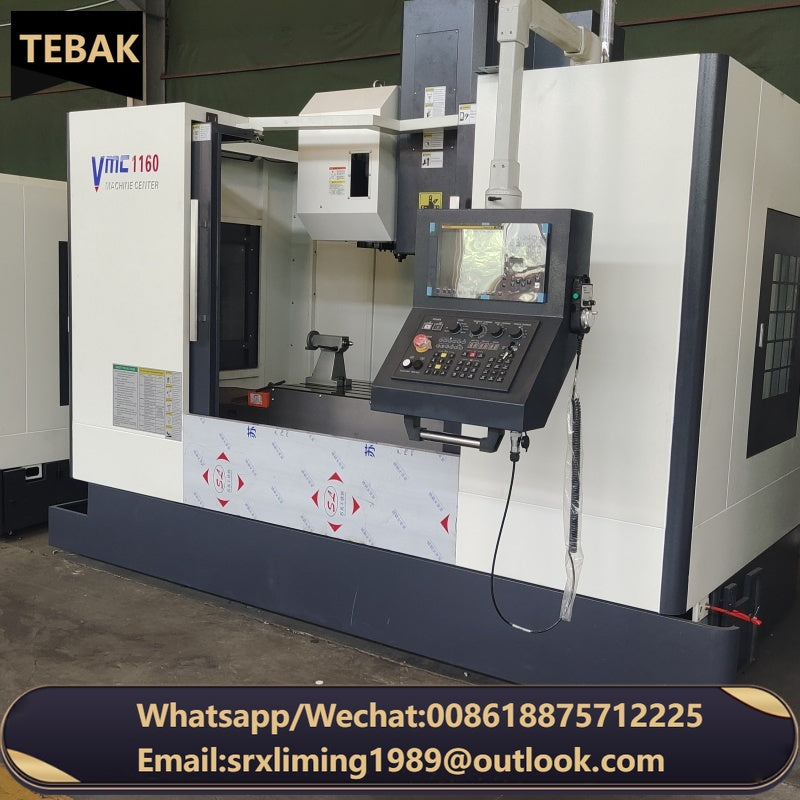

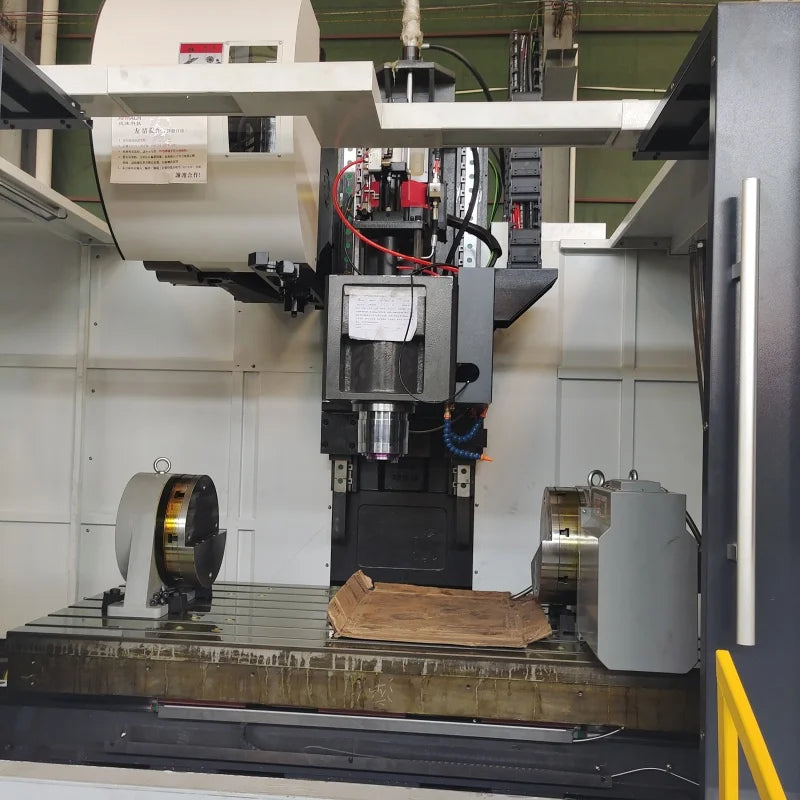

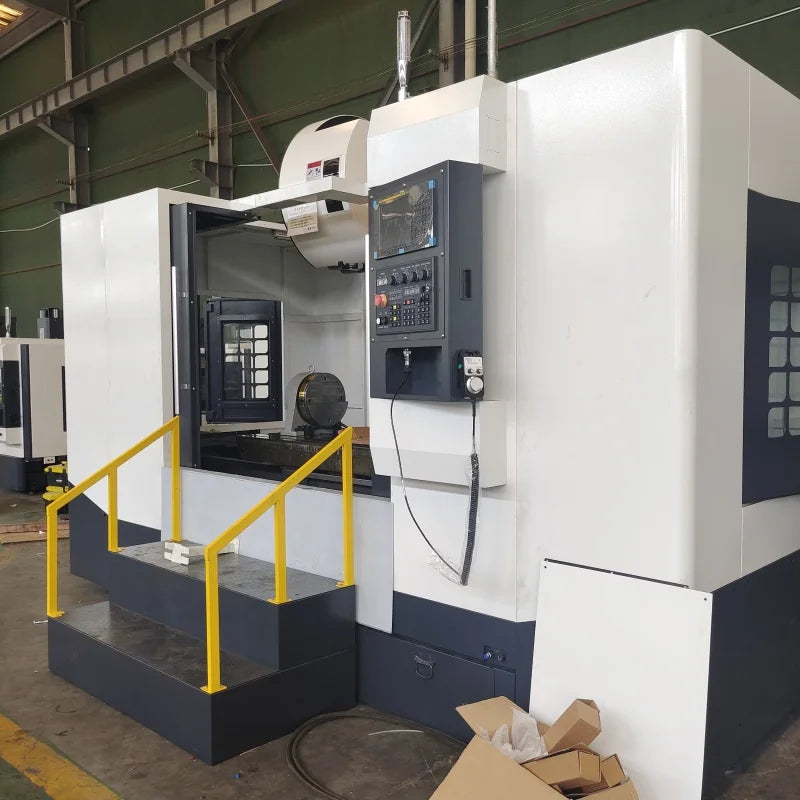

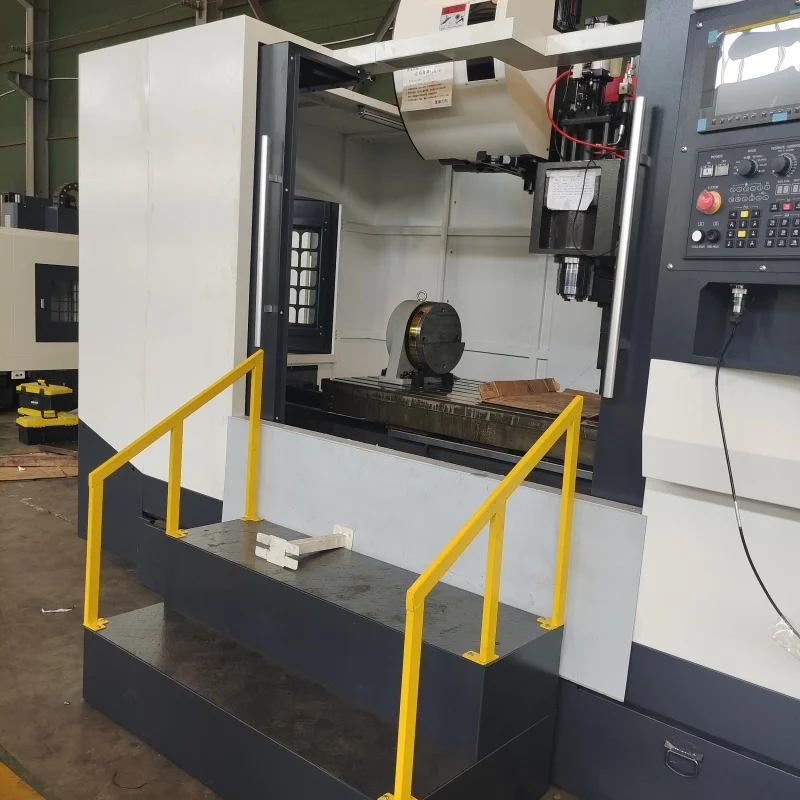

TEBAK Five-axis CNC Machining Center 1160 Cnc 5 Axis Milling Machine Center Heavy Duty 5-axes Vertical Machining Center

TEBAK five-axis CNC machining center 1160 cnc 5 axis milling machine center Heavy duty 5-axes vertical machining center

parameter	model	VMC850	VMC855	VMC1160
Table(mm)	table size	1000×500	900×550	1200×600
	max workpiece weight	500	500	800
	T slot number width   distance	5-18×90	5-18×90	5-18×100
travel (mm)	XYZ travel	800/500/500	800/550/500	1100/600/600
	max distance from spindle	120-650	120-670	120-720
	spindle center to Z aixs	570	595	650
spindle	spindle motor power	7.5/11	7.5/11	7.5/11
	max spindle speed	10000	8000	8000
	spindle taper	BT40	BT40	BT40
feed	3 axis rapid speed	48/48/36	48/48/36	36/36/36
	max cutting speed (m/min)	10	10	10
ATC	pull stud	MAS403 BT40-45	MAS403 BT40-45	MAS403 BT40-45
	ATC capacity	arm type BT40-24T	arm type BT40-24T	arm type BT40-24T
	max diameter of tool length	85×350	85×350	85×350
accuracy	positioning accuracy	0.004	0.004	0.004
	repeatability accuracy	0.003	0.003	0.003
others	CNC system	GSK FANUC	GSK FANUC	GSK FANUC
		SIEMENS 828	SIEMENS 828	SIEMENS 828
		MIRSUBISHI	MIRSUBISHI	MIRSUBISHI
	machine size L×W×H	2700×2400×2700	2700×2400×2750	3200×2500×2800
	machine weight	5300	5800	7000

Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
