TEBAK EMP25 3D Edge Finder 80.360.00NG Alternative CNC Machine Optical Edge Finder Manual Touch Probe

TEBAK EMP25 3D Edge Finder 80.360.00NG Alternative CNC Machine Optical Edge Finder Manual Touch Probe

$1.00 USD
$13.64 USD $1.00 USD
Sale Sold out
model number
TEBAK CNC edge finder Universal 3D Sensor long probe tip short probe cnc probe EMP25 3d taster edge finder 3d edge finder
Product Overview

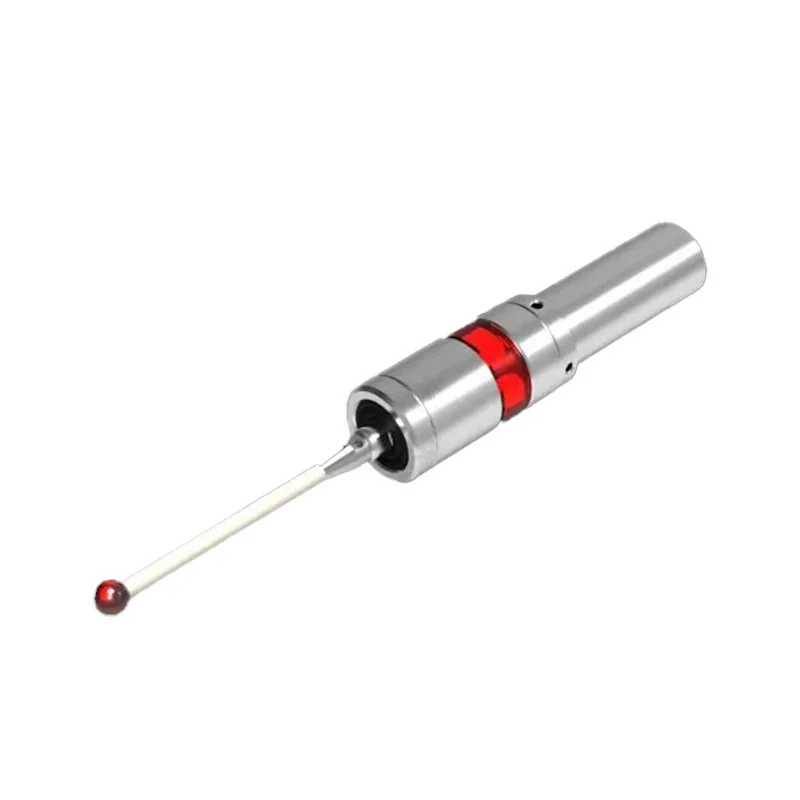

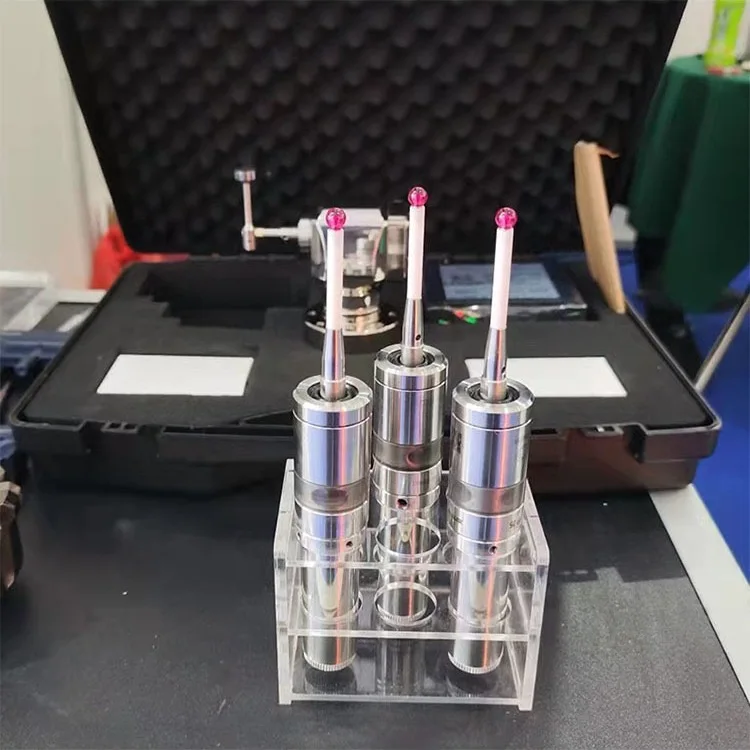

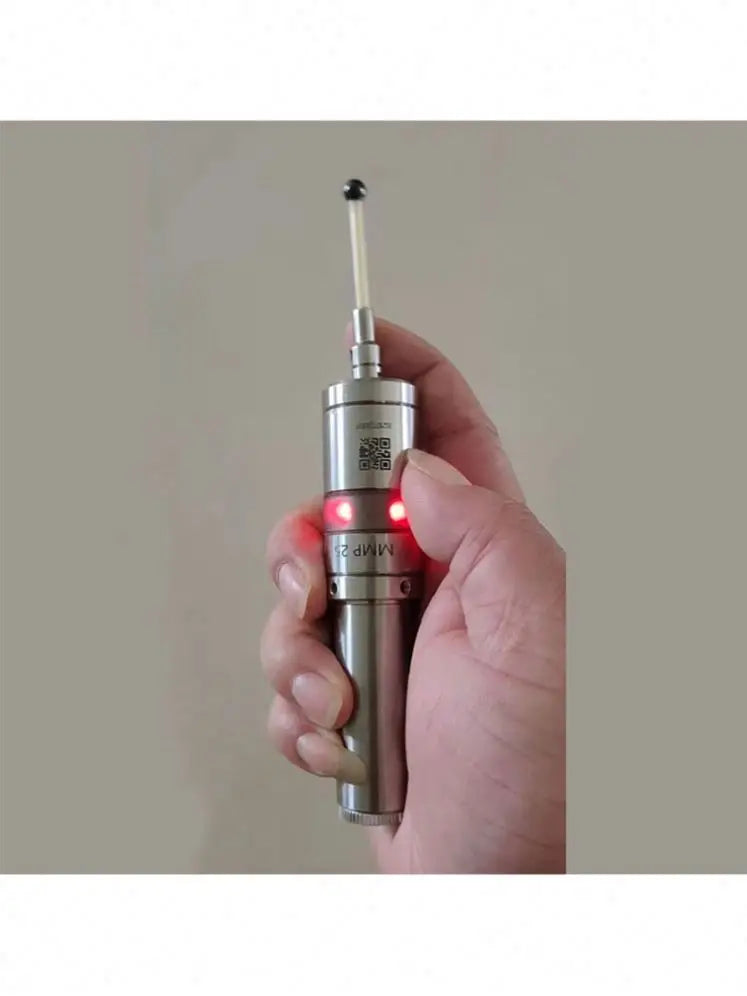

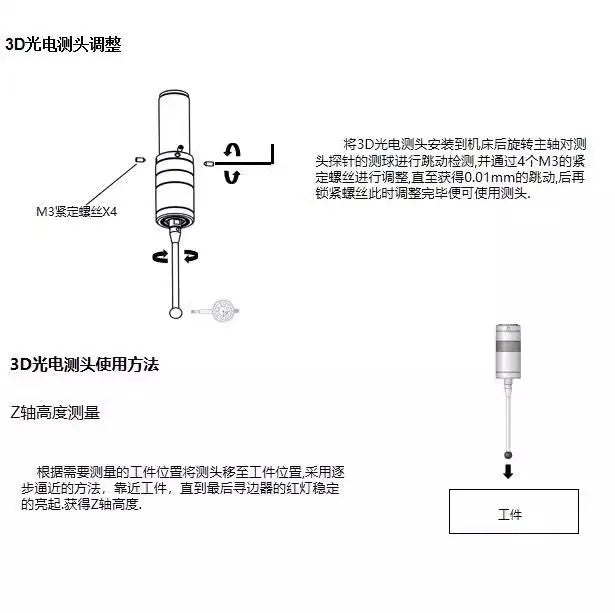

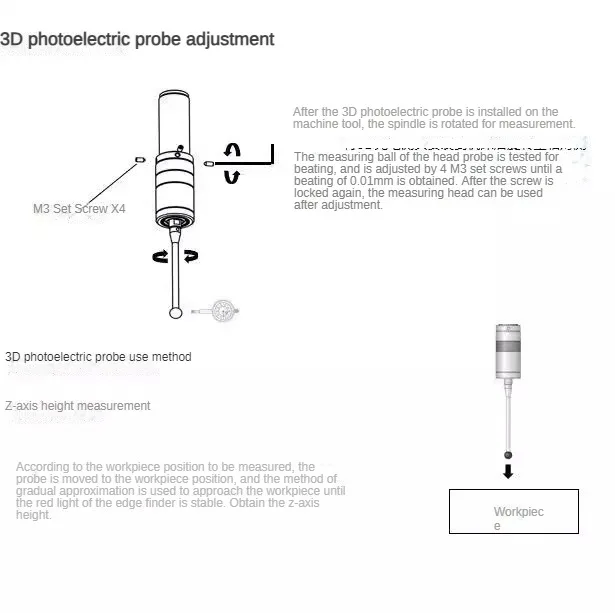

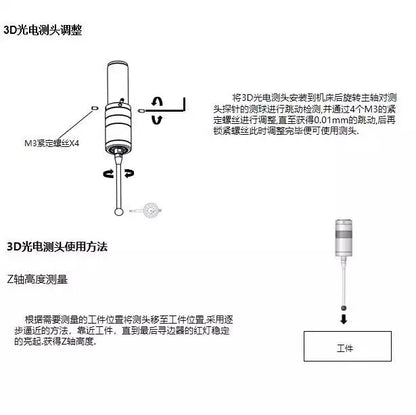

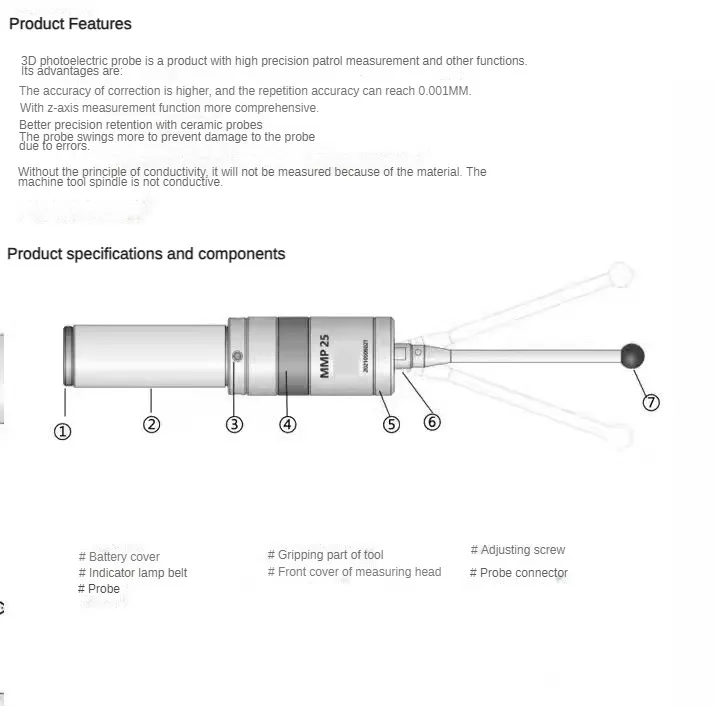

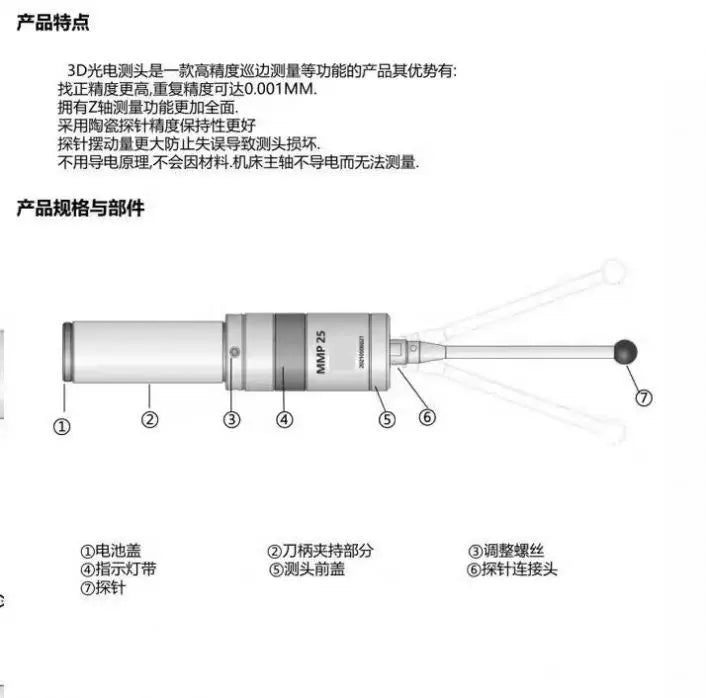

The EMP25 is a very precise and versatile measuring instrument for milling and EDM machines (insulated probe). The EMP25 is clamped into a tool holder and inserted into a milling spindle. Once clamped into the machine spindle, the run-out (T.I.R) is fully adjustable to Zero. Then, you are able to find exact positioning of the spindle axis on the edges of the workpiece. This allows for zeros to be set and the length to be measured quickly and easily. You may approach in any direction (X-, Y-, Z- axis – hence the name „3D-Sensor“) . When the dial gage shows zero, the spindle axis is exactly on the workpiece edge.
Principal application
measuring instrument for milling and EDM machines (insulated probe).

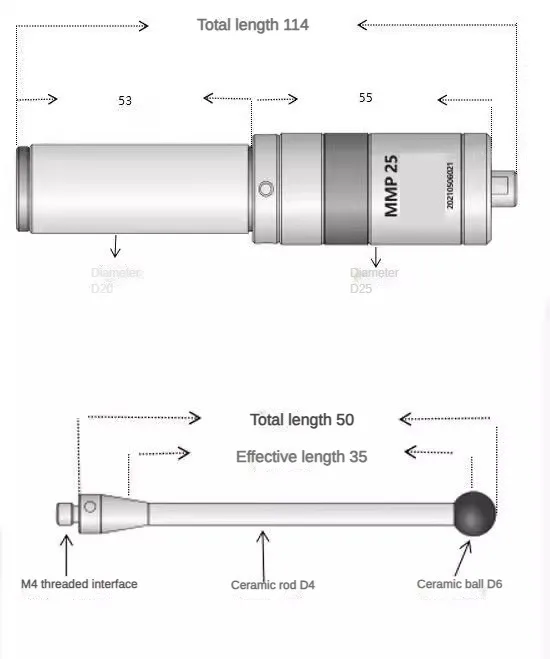

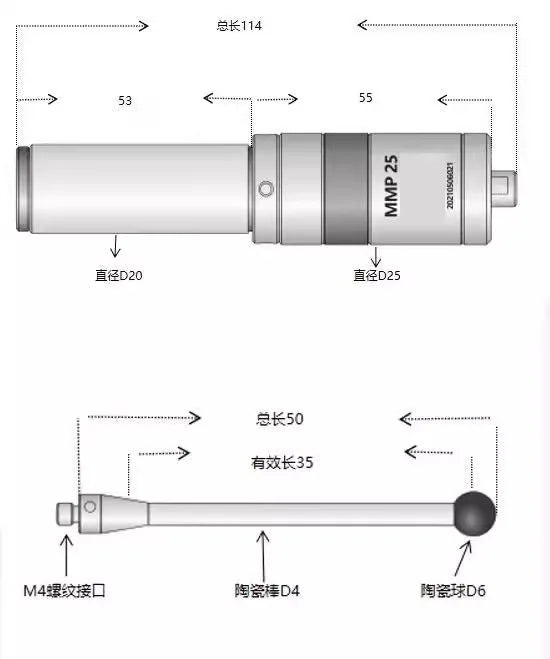

Gripper shank diameter
20mm

Weight
120g

Recommended styli
Ceramic, lengths 30 mm to 100 mm

Switch-on method/switch-off methods
Trigger open, no trigger close

Sense directions
±X, ±Y, +Z

Unidirectional repeatability
2.00 μm 2σ

Contact life time
8 million

Stylus trigger force
XY low force
XY high force
Z force

0.45 N
0.85 N
5.75 N

Stylus overtravel
XY plane ±12.5°
+Z plane 6.2mm

Environment
IP rating
IP67


Storage temperature
25 °C to +70 °C (−13 °F to +158 °F)


Operating temperature
+5 °C to +55 °C (+41 °F to +131 °F)
Manufacturing

Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
