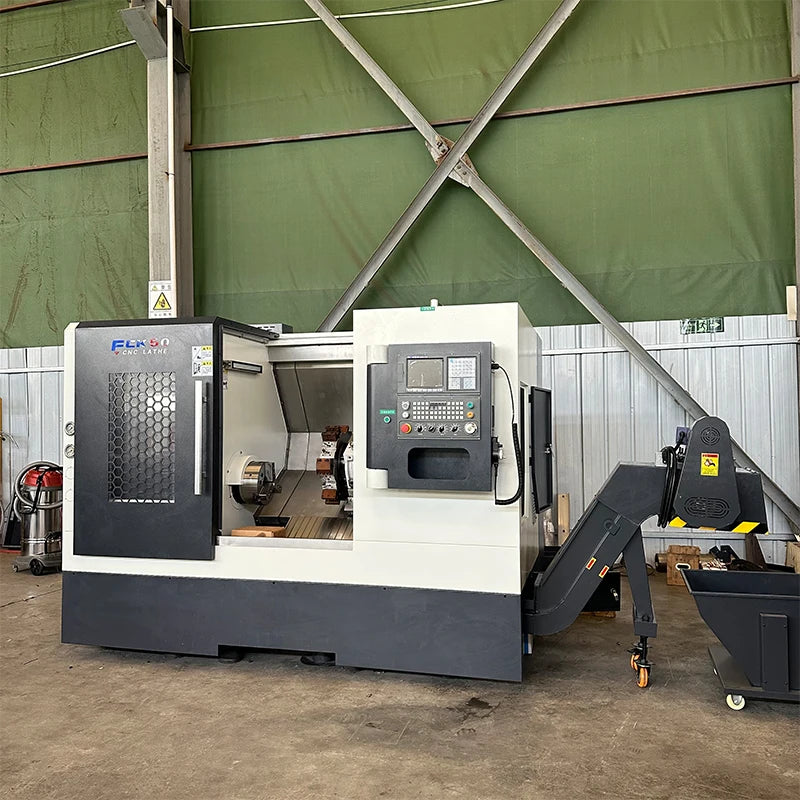

TEBAK CNC Turning Center FCK56 560x1000 mm with Milling Function Fanuc
TEBAK CNC Turning Center FCK56 560x1000 mm with Milling Function Fanuc
Regular price
$1.00 USD
Regular price
$16,000.00 USD
Sale price
$1.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
Product Description
|
Machine Model
|
Unit
|
TCK-50A
|
TCK-56A
|
TCK-66A
|
|
The maximum turning diameter on the bed
|
mm
|
Φ500
|
Φ560
|
Φ660
|
|
The maximum turning diameter on the slide
|
mm
|
240
|
Φ330
|
Φ500
|
|
cutting length
|
mm
|
500
|
500/750/1000
|
500/750/1000/1500
|
|
Spindle end type and code
|
|
A2-6
|
A2-6
|
A2-11 optional A2-8
|
|
Spindle through hole diameter
|
mm
|
Φ66
|
Φ66
|
Φ86 optional Φ112
|
|
Chuck
|
inch
|
8 inch hydraulic hollow chuck
|
10 inch hydraulic hollow chuck optional 8 inch
|
Hollow 15 inches optional 10 inches 12 inches
|
|
Spindle speed range
|
r/min
|
3500
|
3500rpm
|
2800rmin
|
|
main motor power
|
KW
|
7.5kw
|
11kw optional 15kw
|
22KW
|
|
X-axis rapid traverse speed
|
m/min
|
20
|
20
|
16
|
|
Z-axis rapid movement speed
|
m/min
|
20
|
16
|
16
|
|
X-axis travel
|
mm
|
210
|
250
|
380
|
|
Z axis travel
|
mm
|
450
|
600/860
|
600/850/1350/
|
|
Rail form
|
|
Taiwan HIWIN/PMI rail
|
Taiwan HIWIN/PMI rail
|
Taiwan HIWIN/PMI rail
|
|
Tool holder form
|
|
8-station servo turret
|
8-station servo turret (optional 12-station)
|
12-station servo turret
|
|
Tool size
|
mm
|
25X25 Φ32
|
25X25 Φ40
|
32×32 Φ40
|
|
Tailstock sleeve diameter/stroke
|
mm
|
φ75/L100
|
φ110/L100
|
φ150/L150
|
|
Tailstock sleeve taper
|
|
MT4
|
MT4
|
MT-5
|
|
Positioning accuracy X/Z
|
mm
|
0.01/0.01
|
0.01/0.012
|
0.01/0.018
|
|
Repeat positioning accuracy X/Z
|
mm
|
0.006/0.006
|
0.006/0.008
|
0.008/0.010
|
|
Precision
|
level
|
IT6
|
IT6
|
IT6
|
|
roughness
|
um
|
Ra≤0.8
|
Ra≤1.6
|
Ra≤1.6
|
|
Machine Tool Dimensions
|
mm
|
2800x1800x1600
|
2900/3100/4300x2000x2000
|
3450/3700/4200×2200×2200
|
|
Machine weight
|
kg
|
3000
|
3600/4000/5000
|
5000/5800/6800
|
Packing & Delivery
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, Our
brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are
leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for
expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and
Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and
complete testing testing method, control all aspects of production and operation according to the standard process. We have an
outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international
marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
