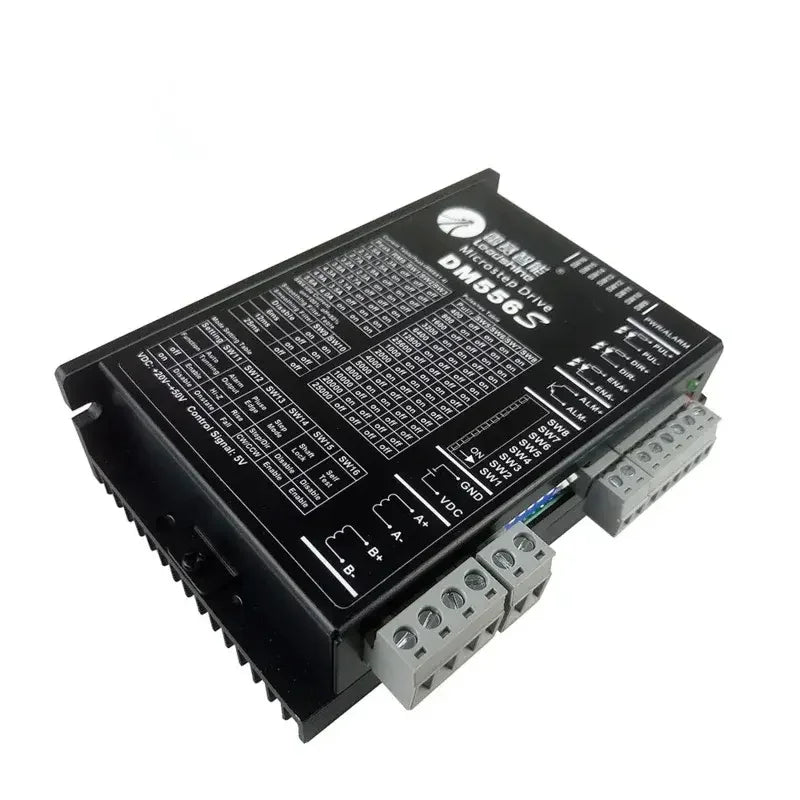

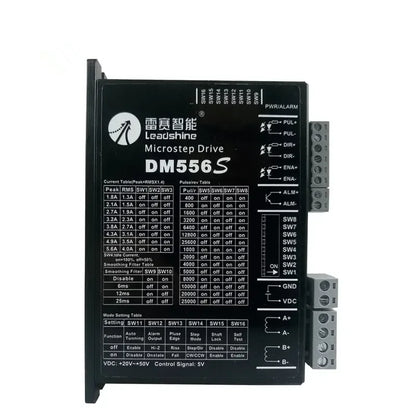

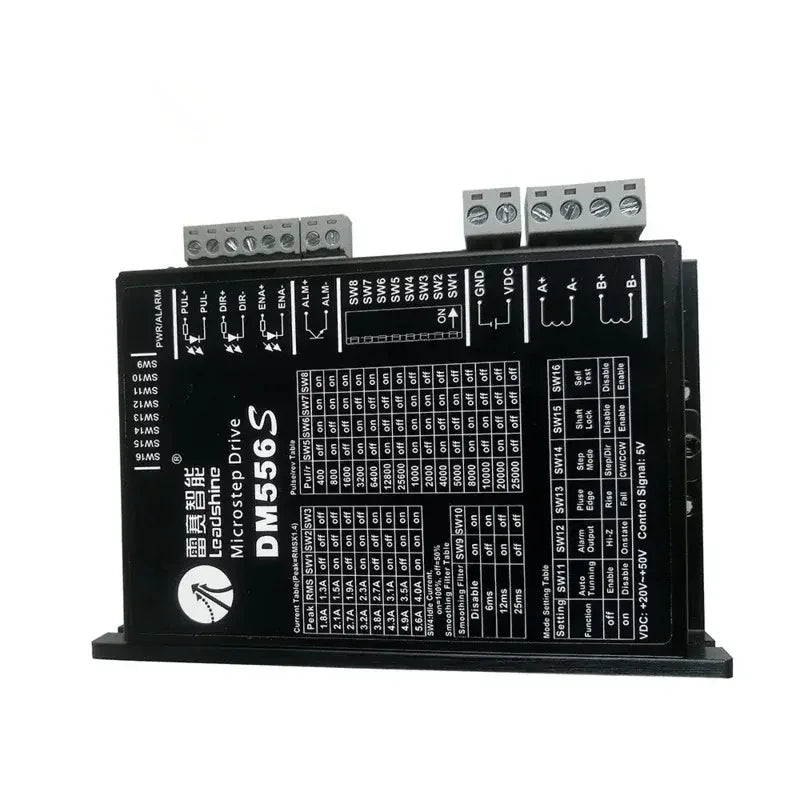

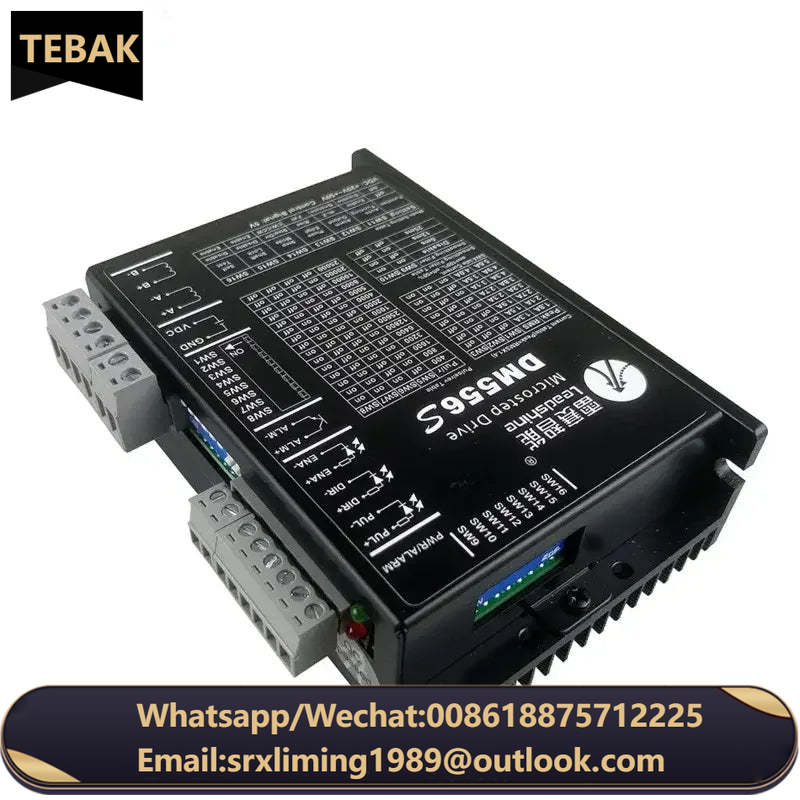

TEBAK CNC Spare Tools 2Phase Stepper Motor Driver DM556S Power Supply Voltage 20-50VDC Current 4.2A 5.6A Engraving Machine

TEBAK CNC Spare Tools 2Phase Stepper Motor Driver DM556S Power Supply Voltage 20-50VDC Current 4.2A 5.6A Engraving Machine

$59.00 USD
$59.00 USD $59.00 USD
Sale Sold out
model number

Leadshine Original New 2Phase Stepper Motor Driver DM556S Power Supply Voltage 20-50VDC Current 4.2A 5.6A Engraving Machine
Product Package:

1 x stepper motor drive

Product Description:

1.Introduction:

Can drive 4-wire, 8-wire two-phase stepper motor
Voltage input range: 18 ~ 48 VDC
Maximum current: 5.6A, resolution: 0.1A
Subdivision range: 200~51200ppr

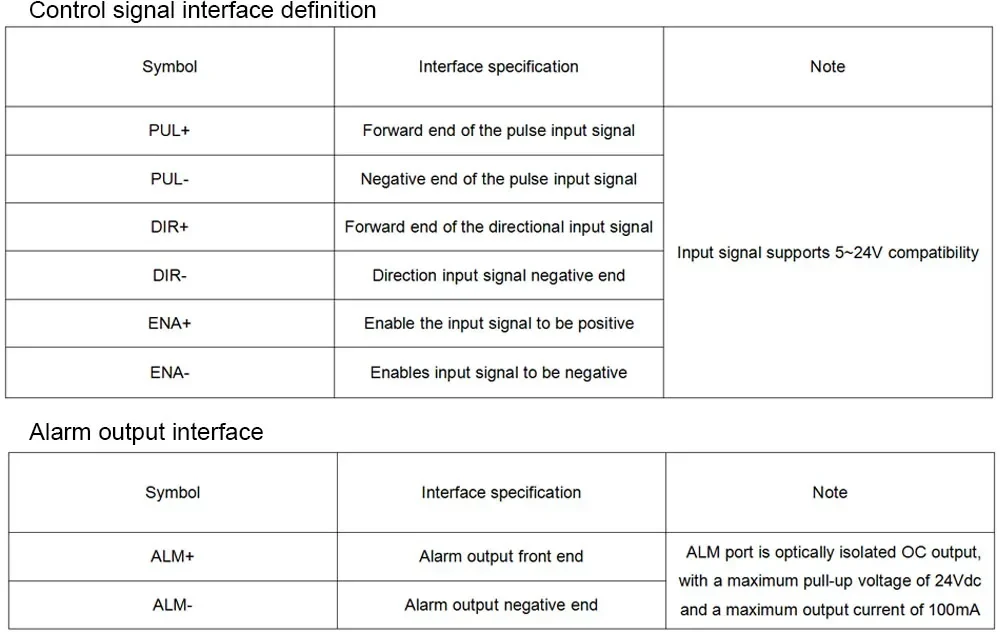

Signal input: differential / single-ended, pulse / direction or double pulse
Impulse response frequency: 200KHz

2.Features:

Anti-Resonance, provides optimum torque and nulls mid-range instability
Motor self-test and parameter auto-setup technology, offers optimum responses with different motors
Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
Microstep resolutions programmable, from full-step to 102,400 steps/rev
Supply voltage up to 50 VDC
Output current programmable, from 0.5A to 5.6A
Pulse input frequency up to 200 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Support PUL/DIR and CW/CCW modes
Over-voltage, over-current, phase-error protections

3.Specification:

3.Specification:

Model: DM556S

Power: 0.05 -0.1 (KW)

Rated voltage: 24 V-48 V

Speed response frequency: 200 (KHz)

Fit motor: 42/57/86 motor

Weight: Approx.268g/9.5oz

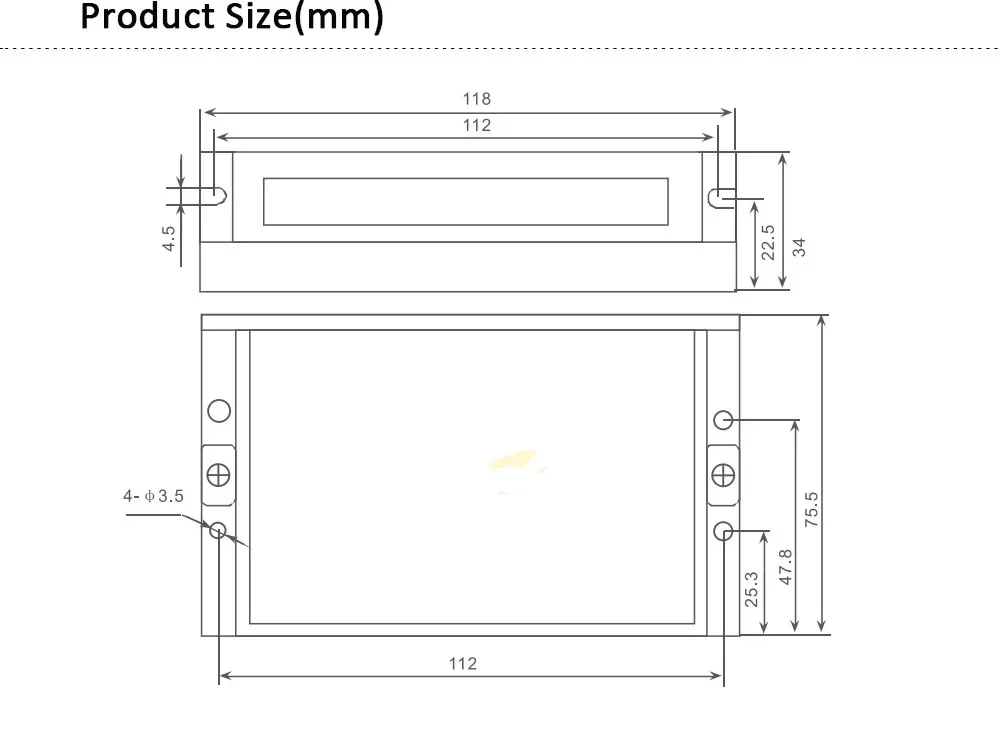

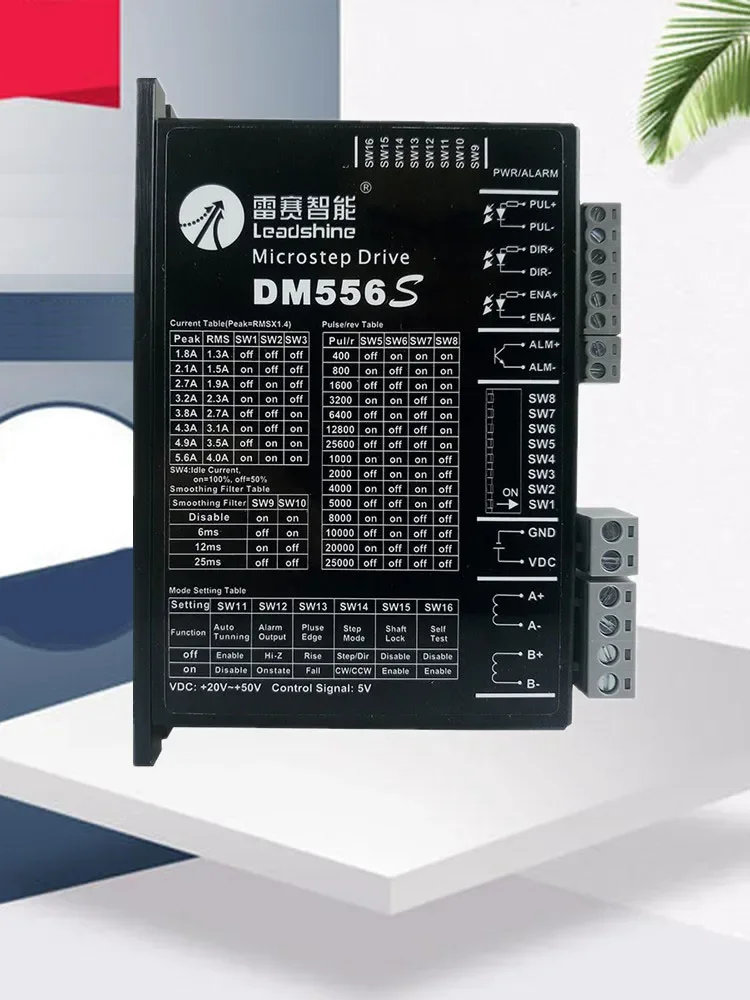

Appearance and size:

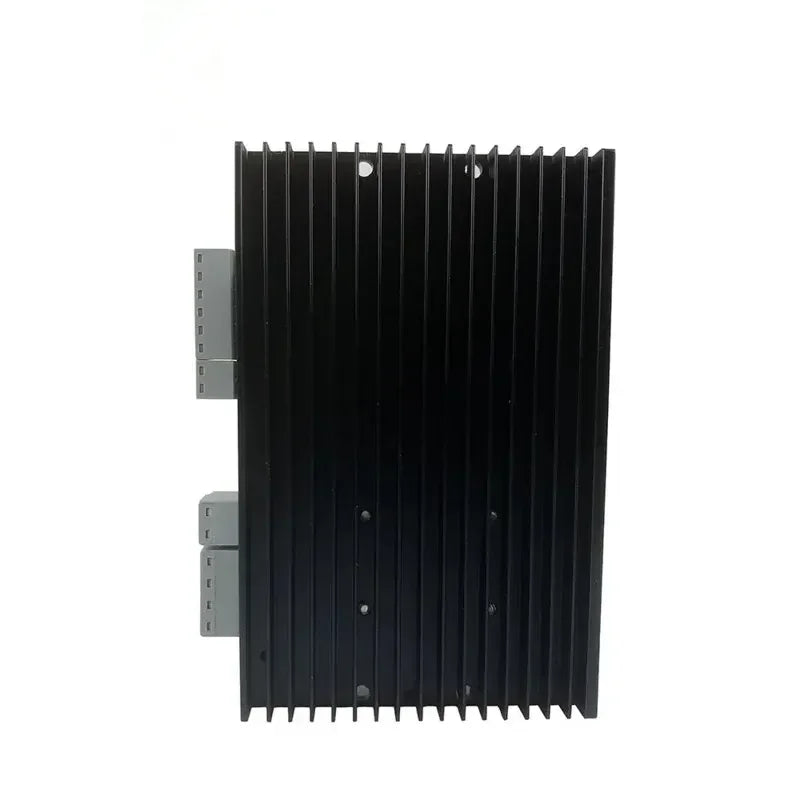

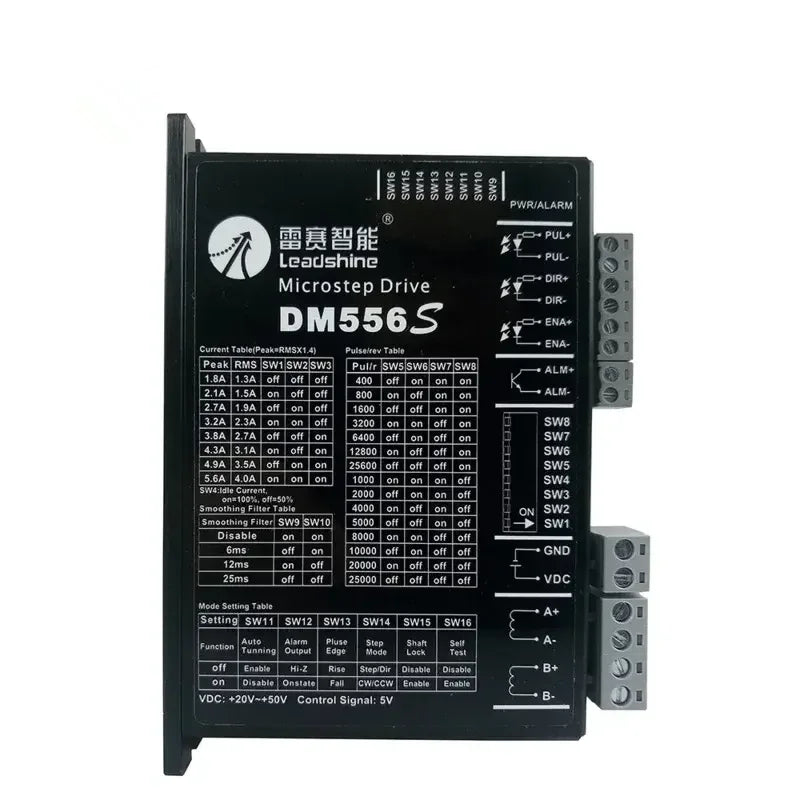

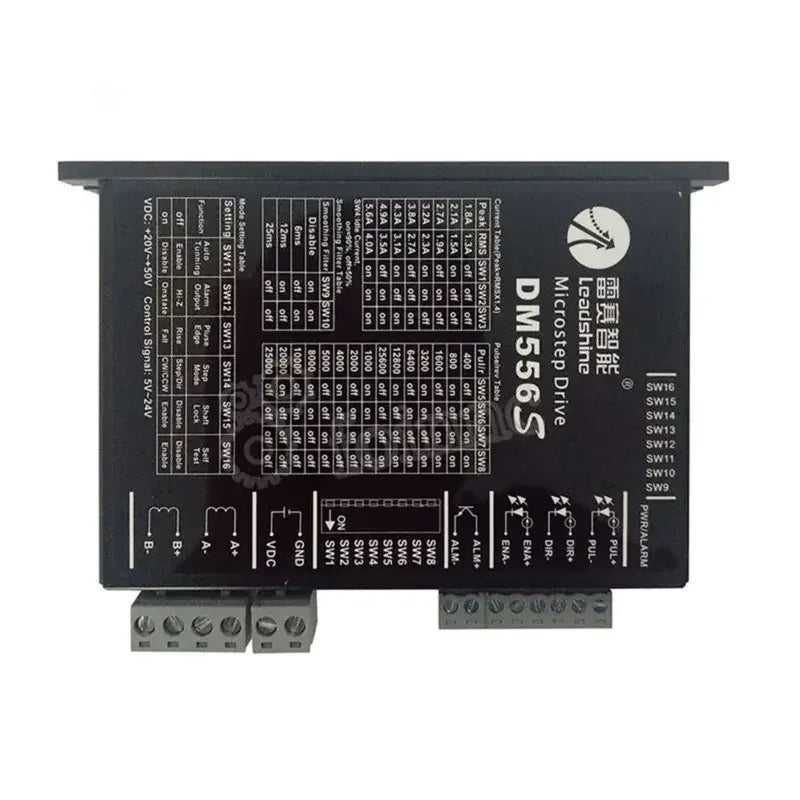

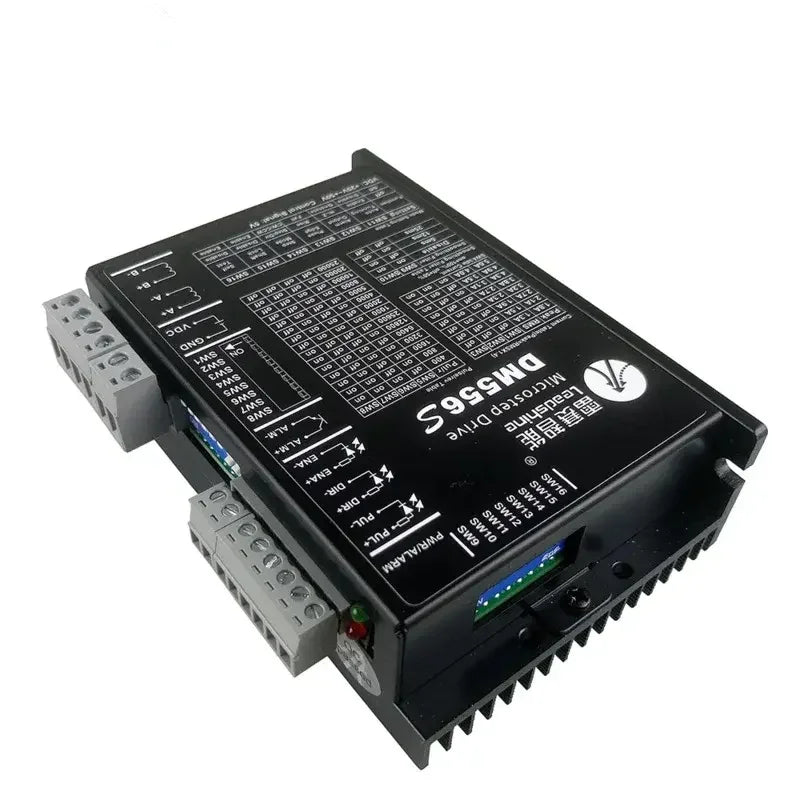

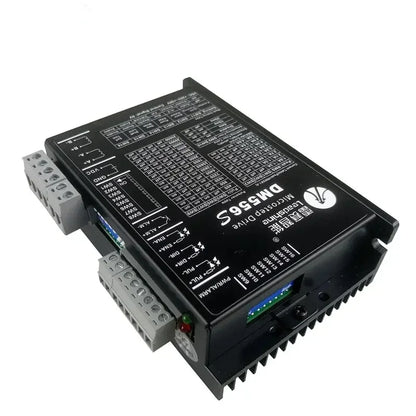

Details:

Note:

Buy as soon as possible!!





Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
