TEBAK CNC SMC5-5-N-N 5-axis RTCP Offline USB Controller 500KHz G Code 7-inch Large Screen Replaces Mach3 Cyclmotion

TEBAK CNC SMC5-5-N-N 5-axis RTCP Offline USB Controller 500KHz G Code 7-inch Large Screen Replaces Mach3 Cyclmotion

$59.00 USD
$59.00 USD $59.00 USD
Sale Sold out
model number

TEBAK CNC SMC5-5-N-N 5-axis RTCP Offline USB Controller 500KHz G code 7-inch large screen replaces Mach3 cyclmotion

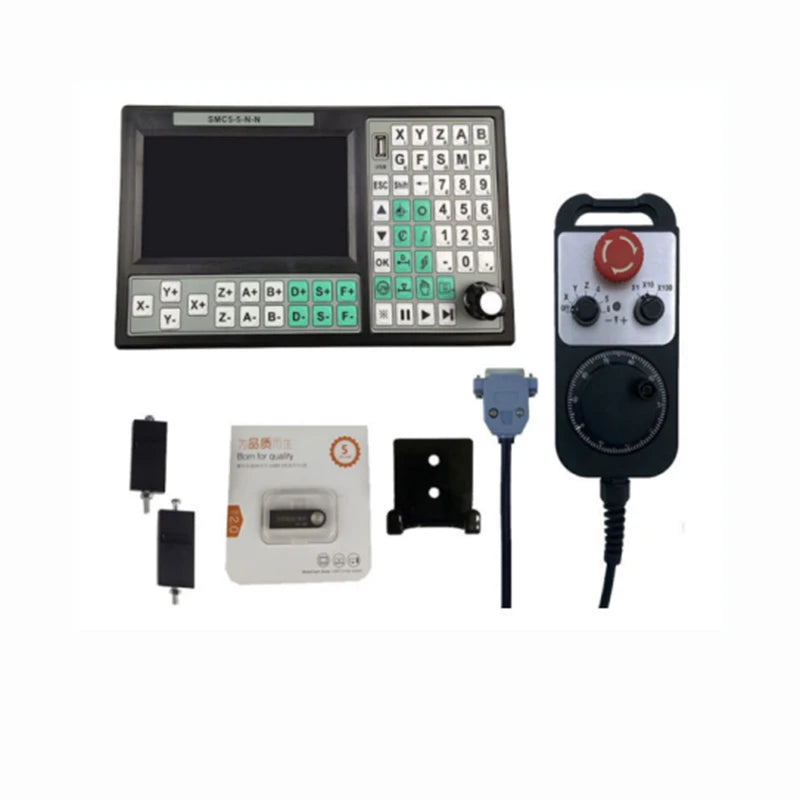

Product List:
Single controller*1
OR
Single MPG*1

Introduction:

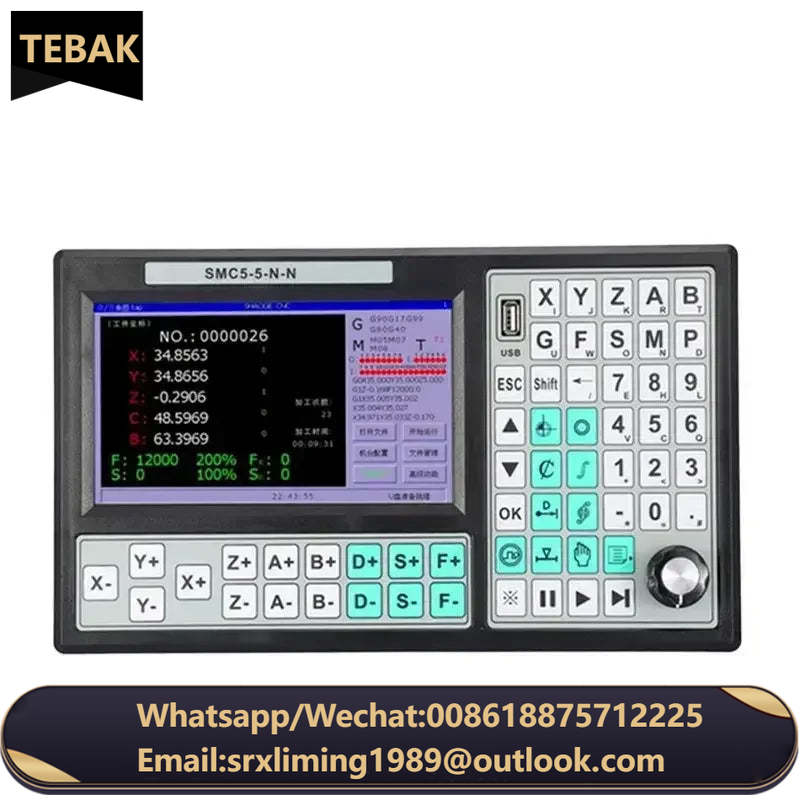

The control system is the newly developed "motion controller" using high-performance 32-bit CPU and high-performance FPGA, equipped with a seven-inch LCD display, user-friendly window-type human-machine interface, memory with external USB port and built-in TF card (user Optional), large storage space, working voltage 12-24 volts ultra-wide input, touch-operated keyboard.

The system has the characteristics of high reliability, high precision, low noise and convenient operation. Simple, clear parameters make your operation easy and fast. The input/output setting function is convenient for your use and maintenance.

Features:

Five-axis linkage

Multi-micro multi-line segment forward control algorithm

Five-axis linear interpolation and five-axis multi-micro multi-line continuous interpolation

Broken line continue to control

Power-down storage coordinate function

Support handwheel control interface.

The main function:

Parameter setting: It can set various control parameters related to machining and operation to achieve the best processing result.

Manual operation: It can realize manual, jog, return to program zero, return to mechanical zero, coordinate clearing and other operations.

Program management: New, delete, modify, read, save, copy and paste, automatic processing, continuous, pause and other functions can be performed on the program.

External Manual: A variety of external manual functions can be defined for ease of use

External handwheel controller: You can set the step size of each step, supporting both position and speed modes.

Teach function: External input or panel control input can be defined.

Free choice of input function: enable limited input ports to achieve various user needs

Dimensions:

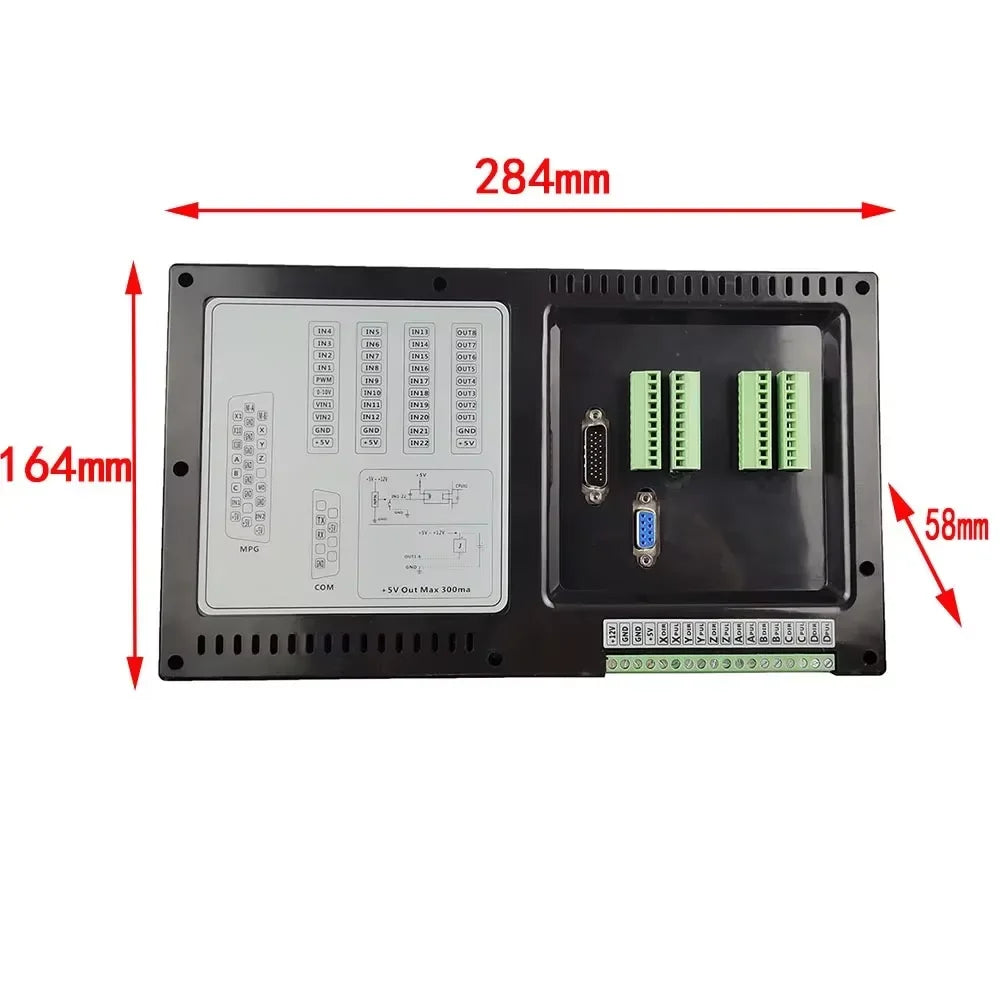

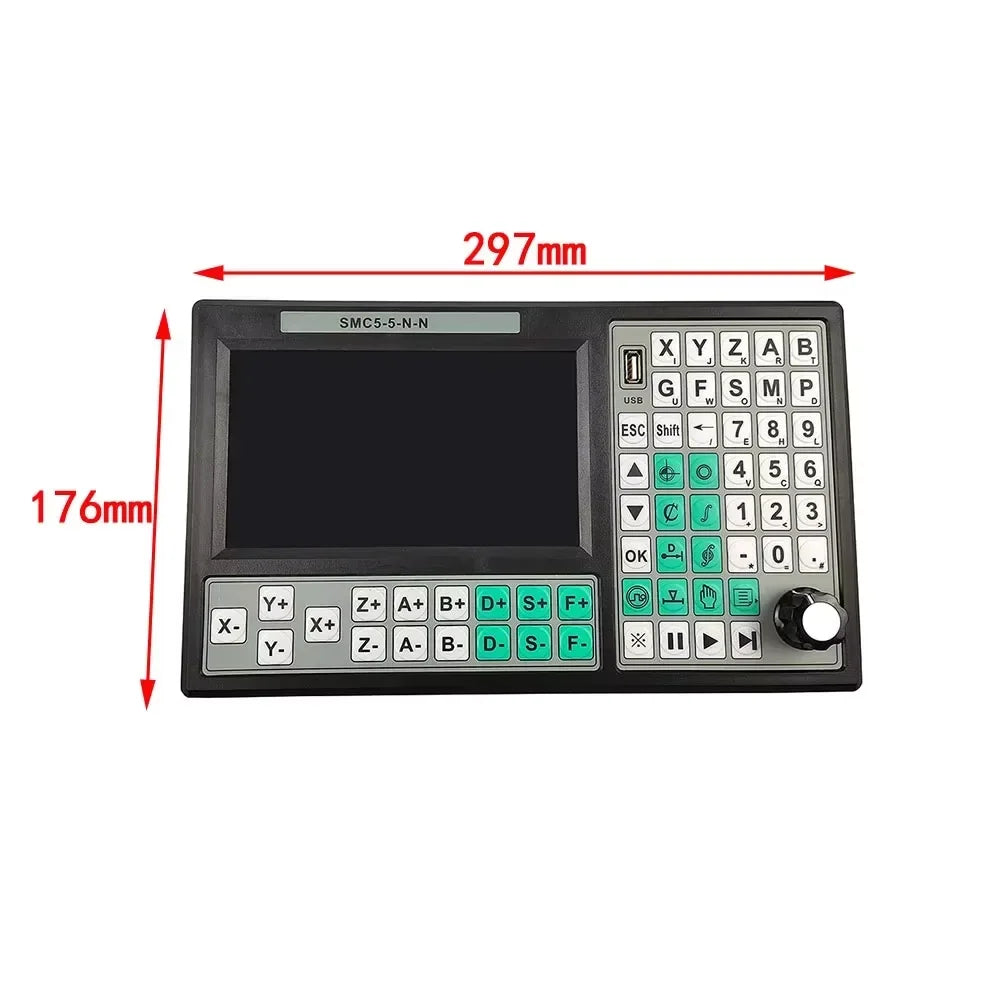

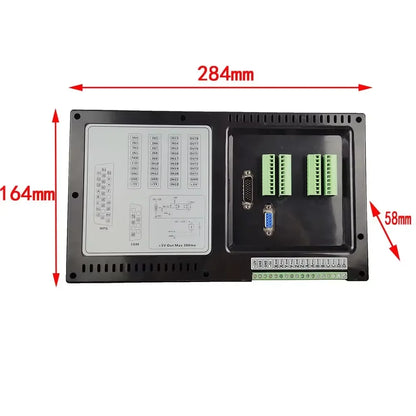

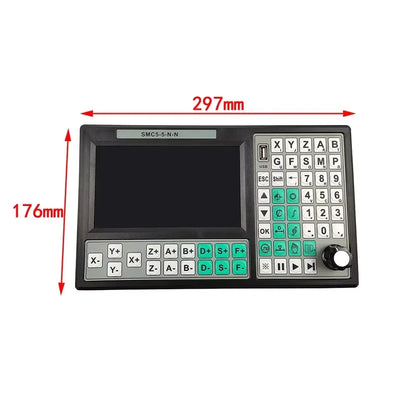

Appearance: (panel 297mm*176mm) (inlay: 284mm*164mm) (thickness 58mm)



Hardware composition:

High performance, high speed 32-bit ARM CPU, high performance FPGA

LCD display (resolution: 800 × 480)

Input / output (2 channels of optical isolation 10mA input, 8 channels of optical isolation, down tank flow 500mA output)
