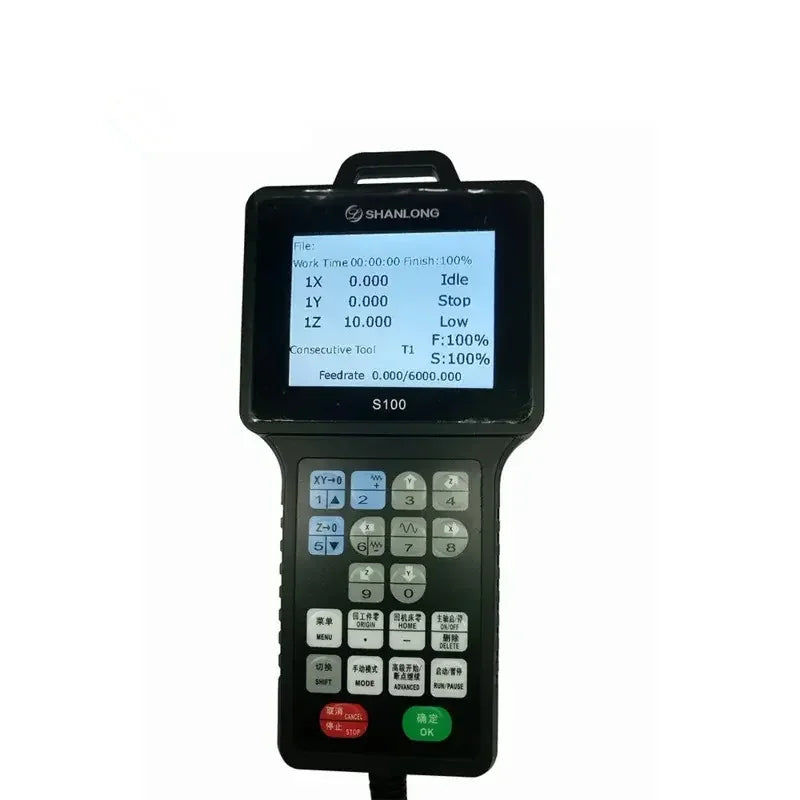

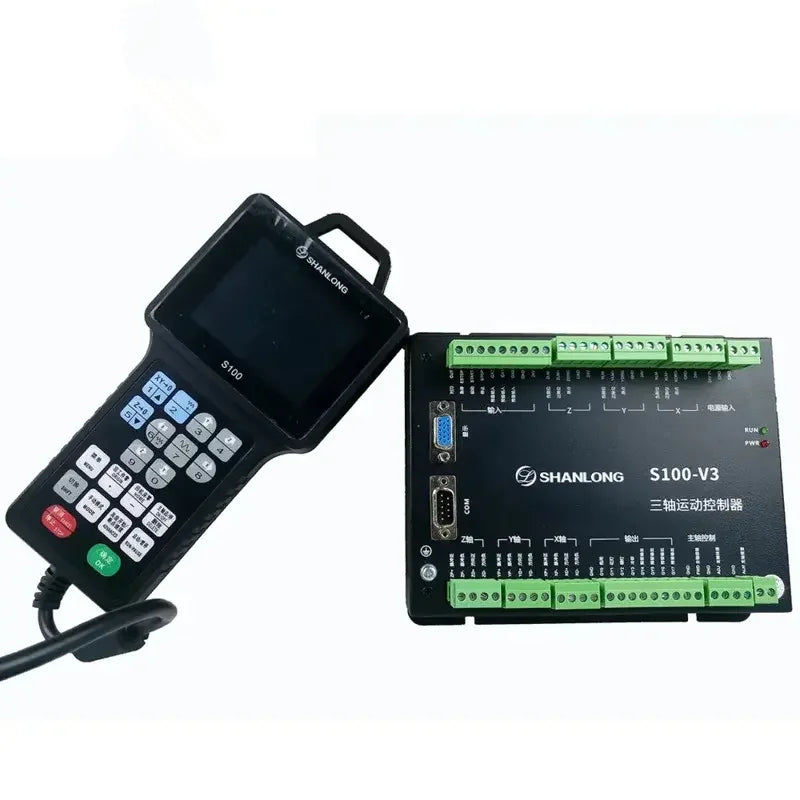

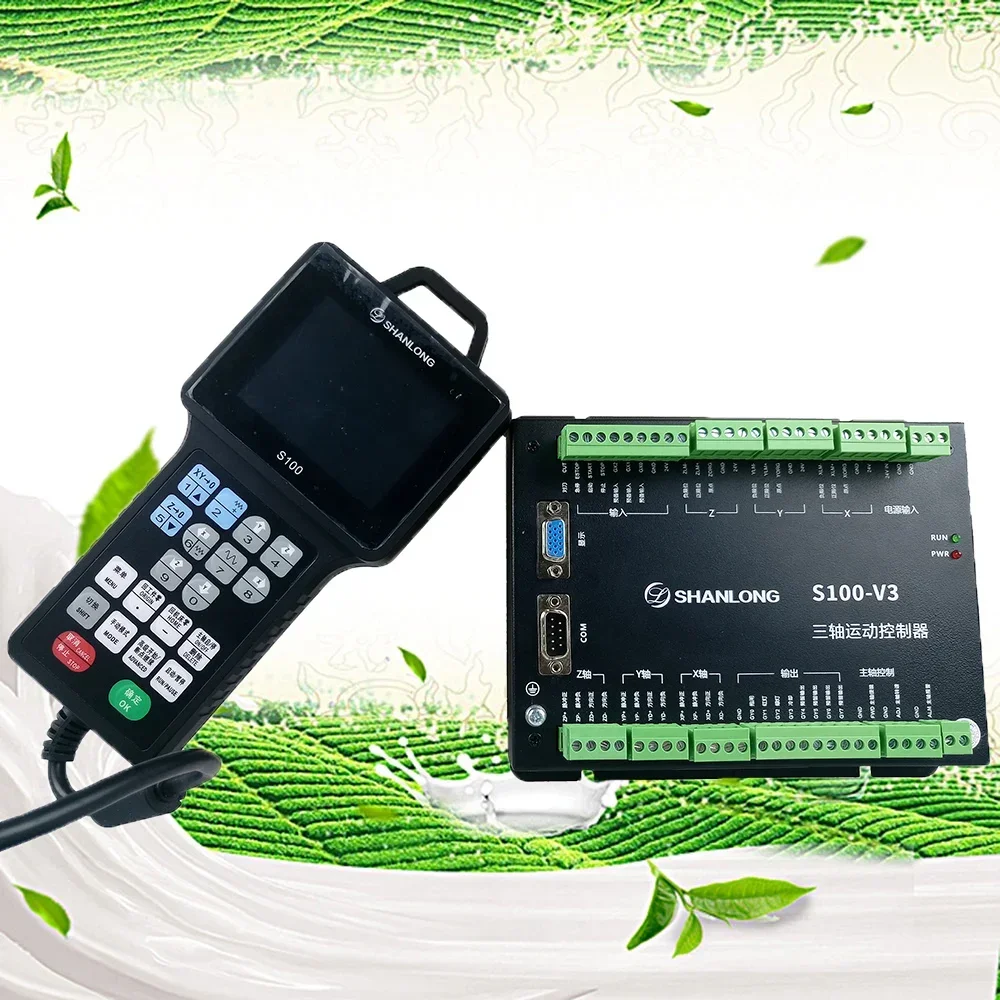

TEBAK CNC Handle Controller Motion Control System S100 3-axis Support G Code 500KHZ for Engraving Milling Machine

TEBAK CNC Handle Controller Motion Control System S100 3-axis  support G code 500KHZ For Engraving Milling Machine

This control system is of professional three-axis motion controller based on the embedded platform, running independently without PC. The embedded operation system is adopted so that computer virus can be avoided. To achieve high machining efficiency and high quality machining surface, advanced motion control algorithm of self-adoptive look-ahead velocity and spline interpolation are applied in this system. It is very easy for users to operate, learn and understand. And the installation is easy with little space occupation. This system can be applied to all kinds of engraving machines, engraving and milling machines, and cutting machines.

Features:

Compatible with data format such as standard G code, PLT and Eng. Support mainstream CAD/CAM software, such as ArtCam, MasterCam, ProE, etc., and data generated by full series of ENG5.18 to ENG5.50;
Max. amount of axes to control: triple; Support double/triple axes linear interpolation and double axes circular interpolation ;
Adopt triple axes spline interpolation function, operating fitting-interpolation to small lines under condition of spline, improving surface quality;
Operators can realize interaction of outside files with system through U disk without network completely;
Pretreatment of multi-lines and advanced self-adoptive look-ahead velocity control over machining path to realize fast speed, high precision, and good continuity;
Constant small lines machining at high speed and automatic selection of the most efficiency one among various kinds of small lines control algorithms;
The standard 4G data storage space can be extended to 32G at most, supporting program file of large capacity;
Manual, Auto processing function;
Block-skipping executive function: machining according to specified machining lines;
Possess the functions of breakpoint memorizing and power failure auto protection;
Machinery fault diagnosis and system log;
Auto tool setting function;
Possess the functions of automatic returning to origin, tool setting
Built-in program file editing manager: can check the file with standard G code below 5M;
The max pulse output frequency: 500KHZ;
Accelerating and decelerating mode: supporting straight line, S curved line accelerating and decelerating.

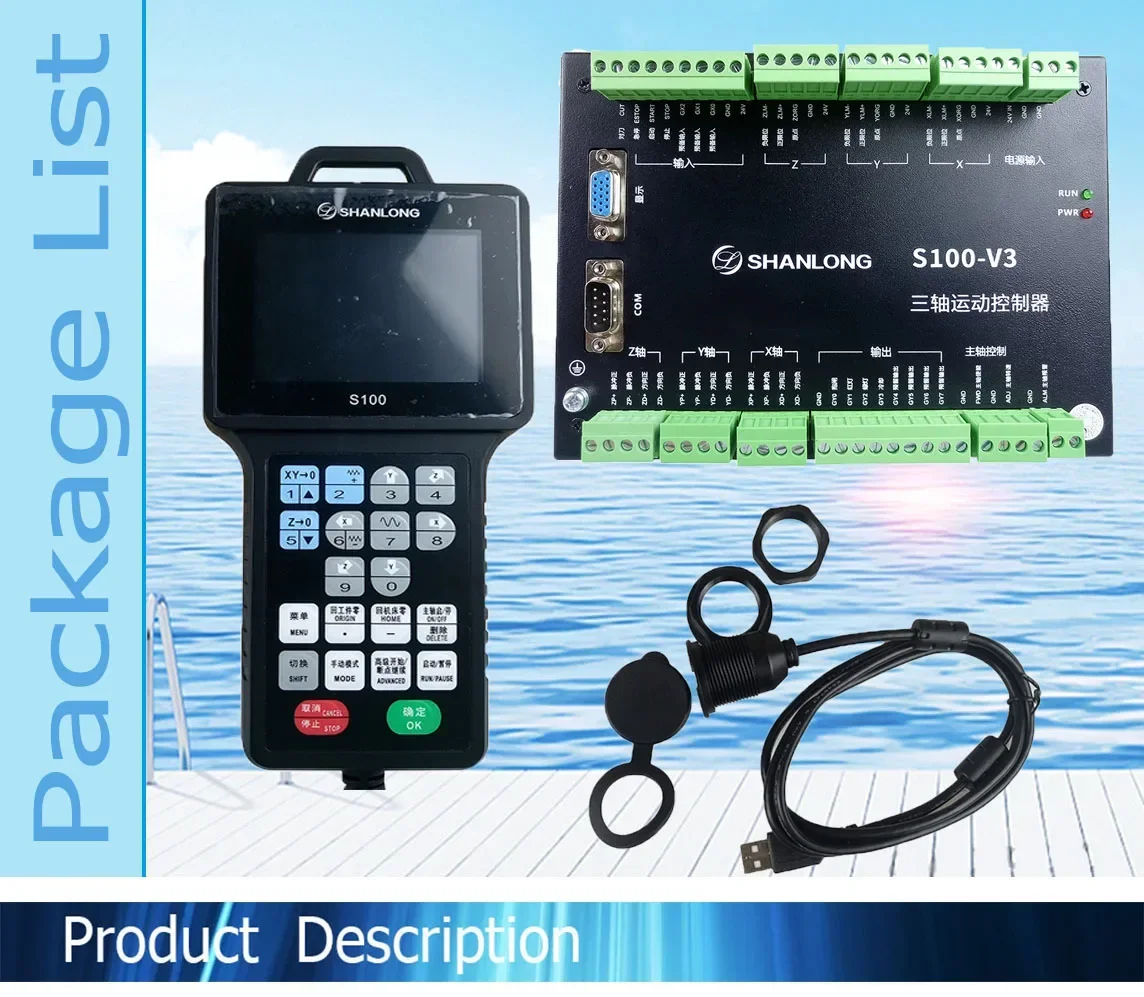

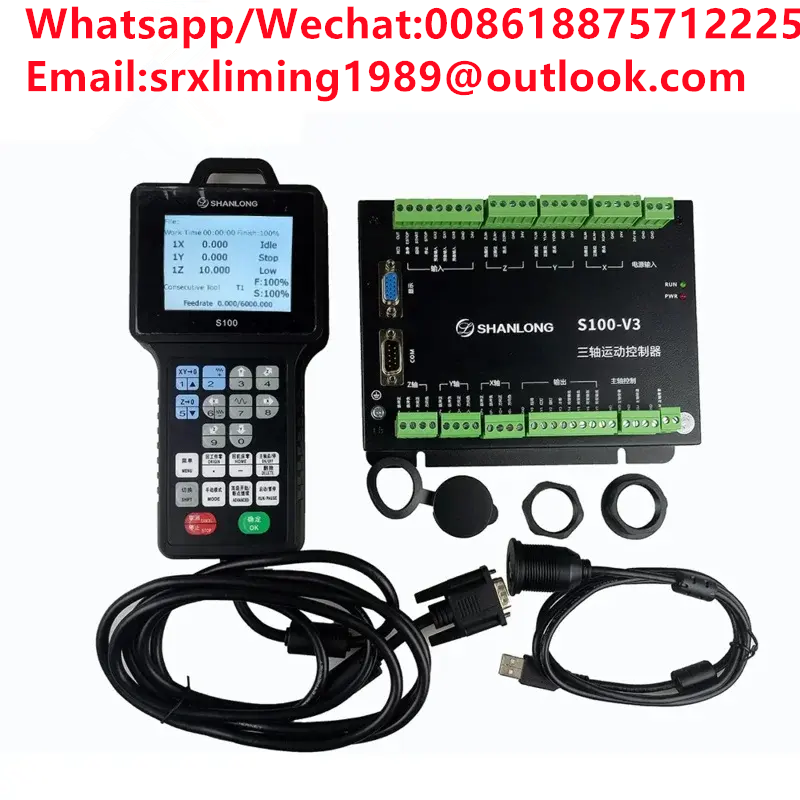

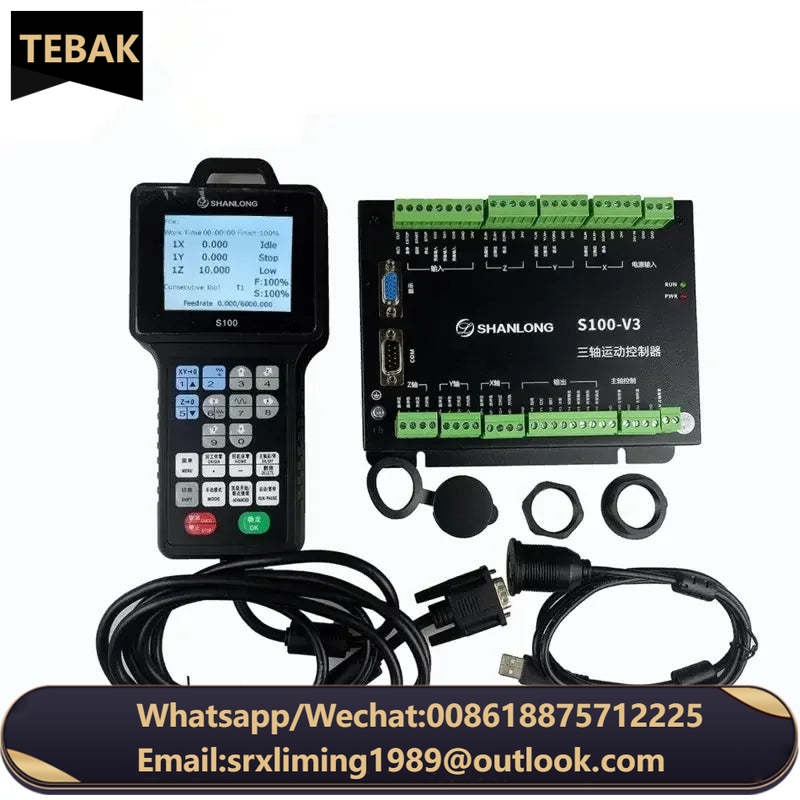

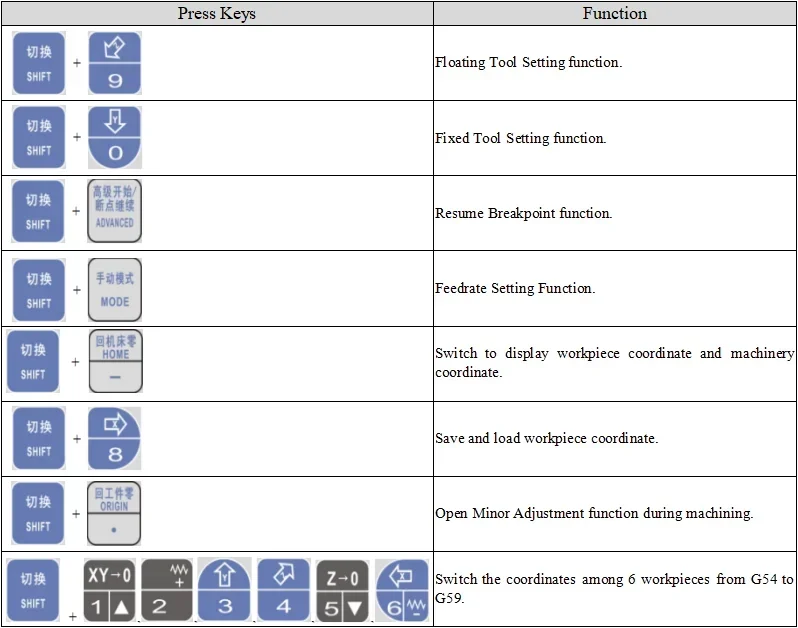

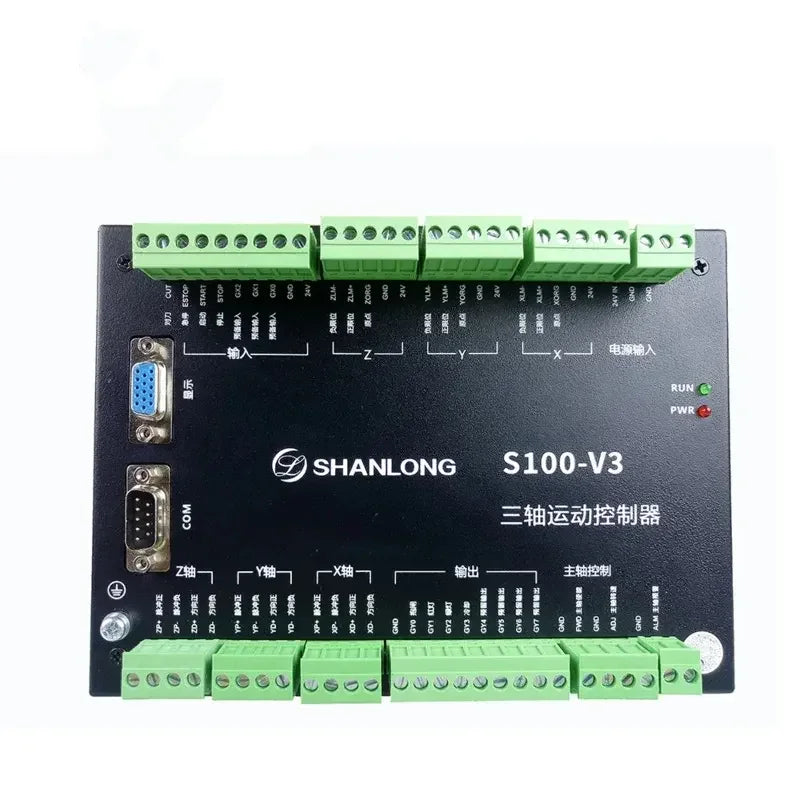

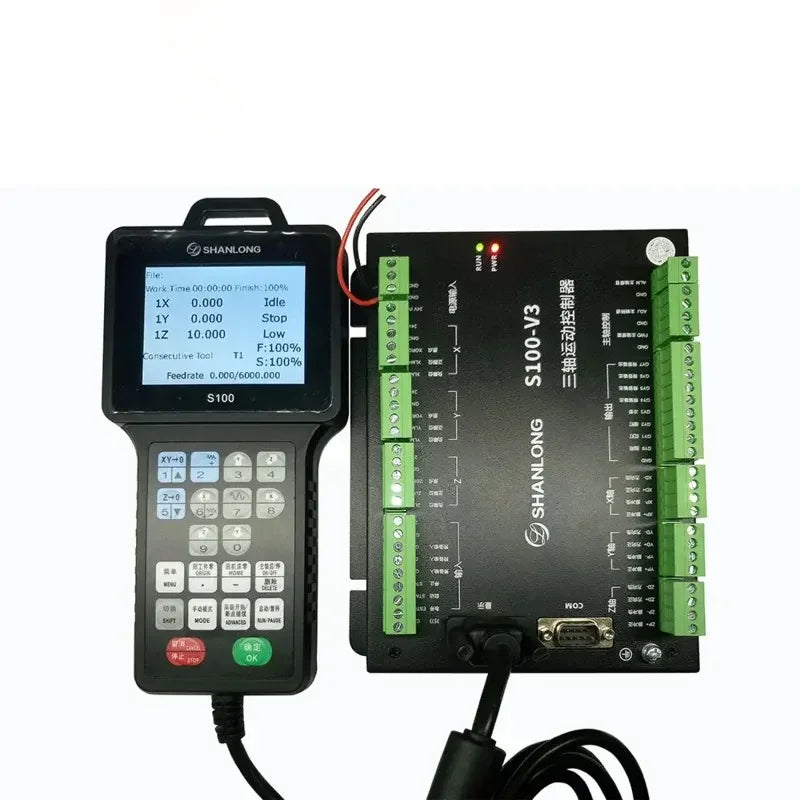

contrller define and method:

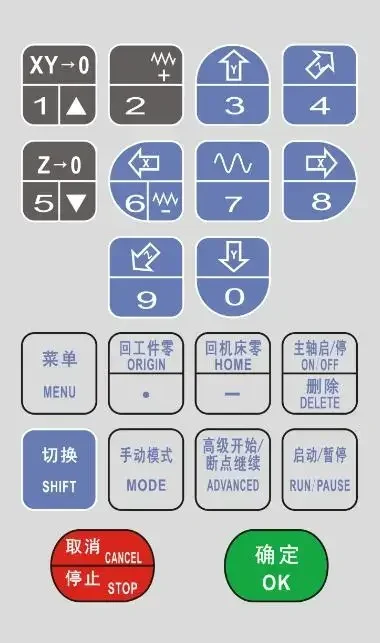

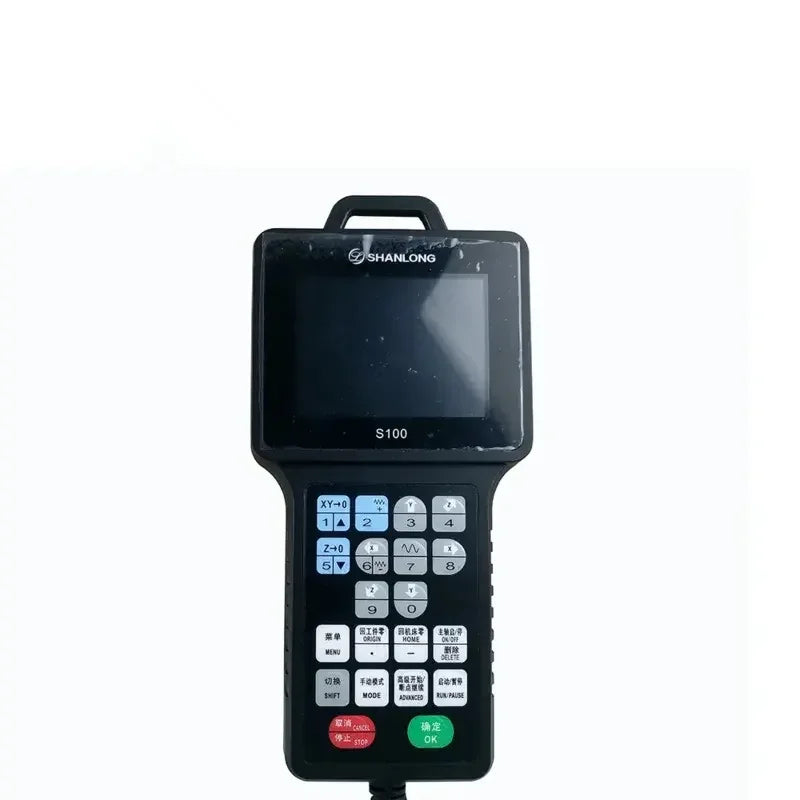

Panel Keys
