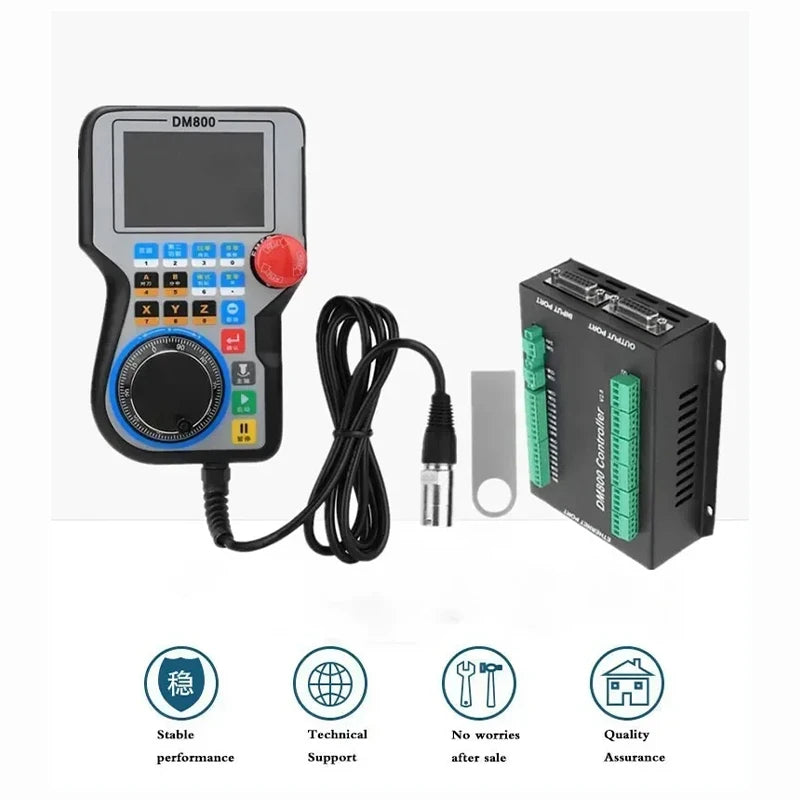

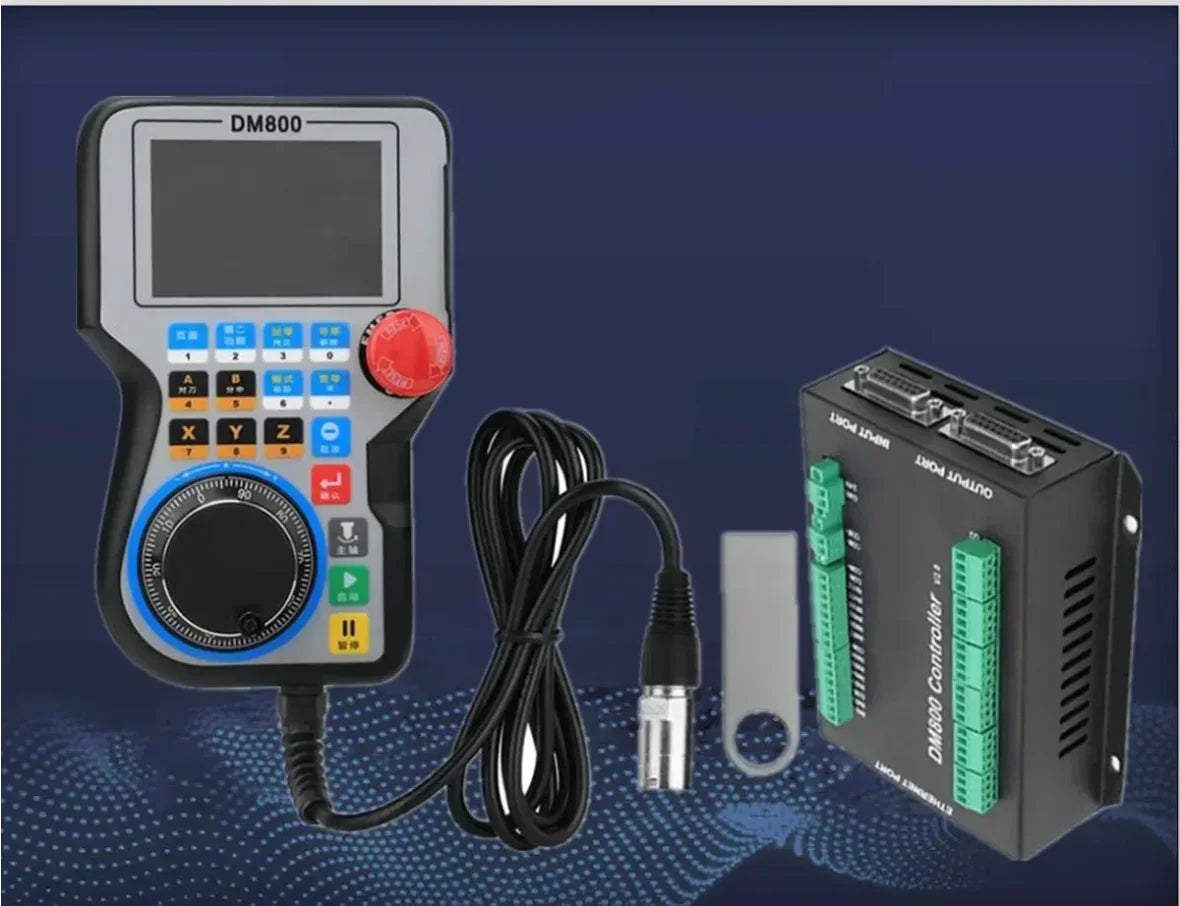

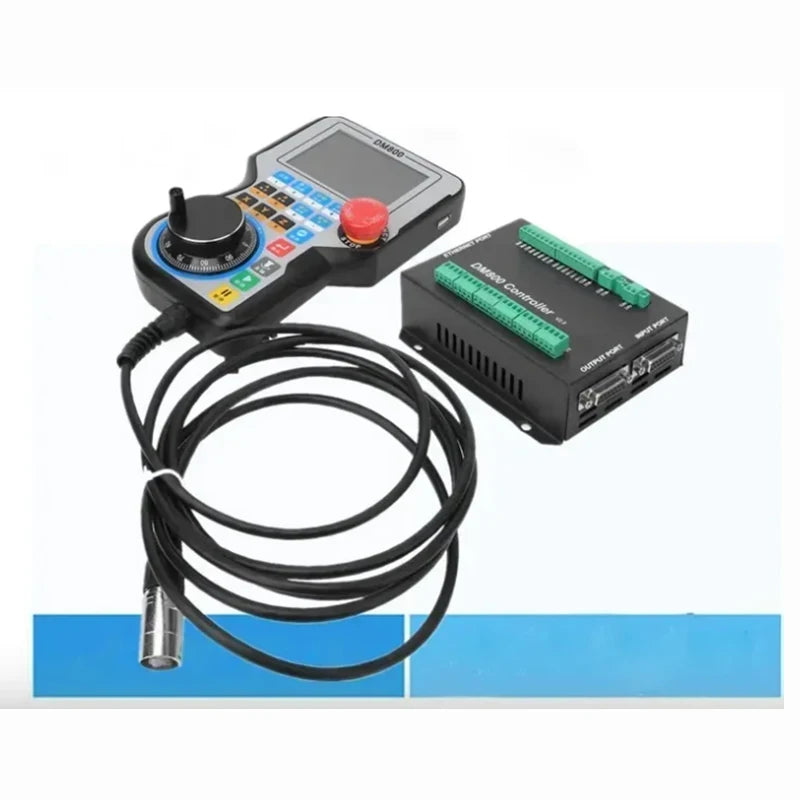

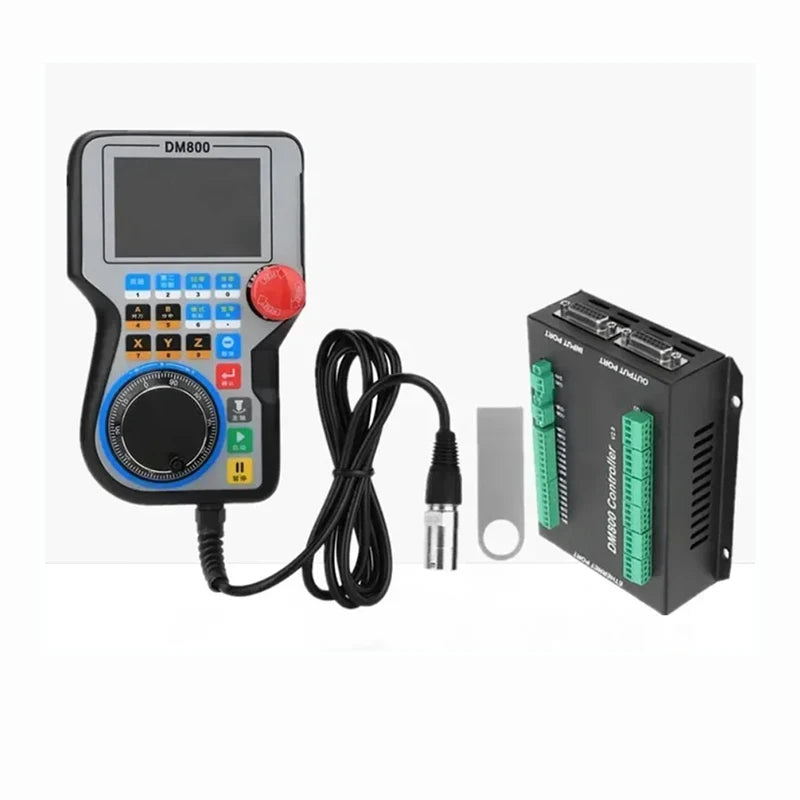

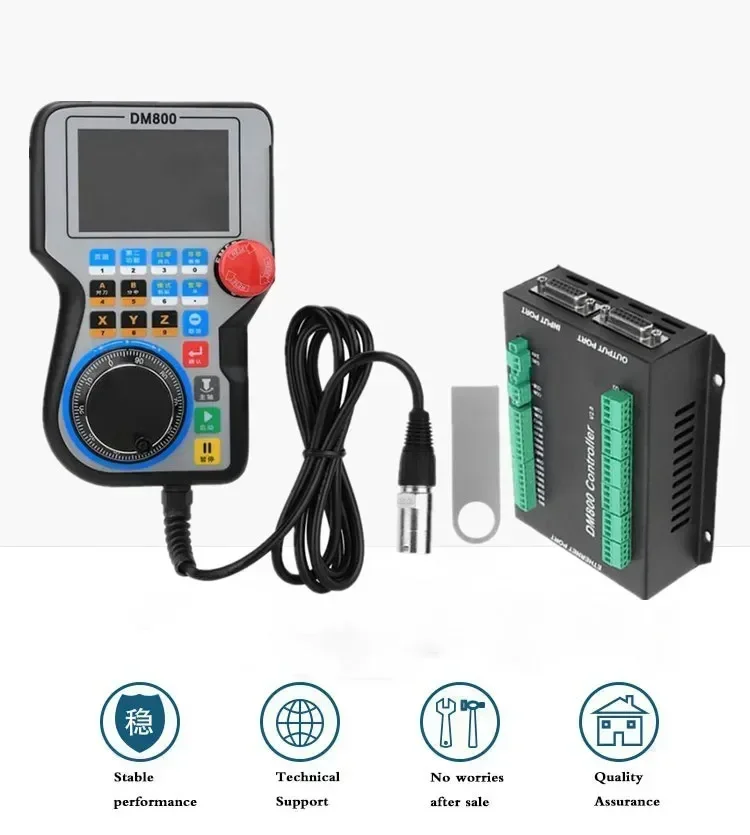

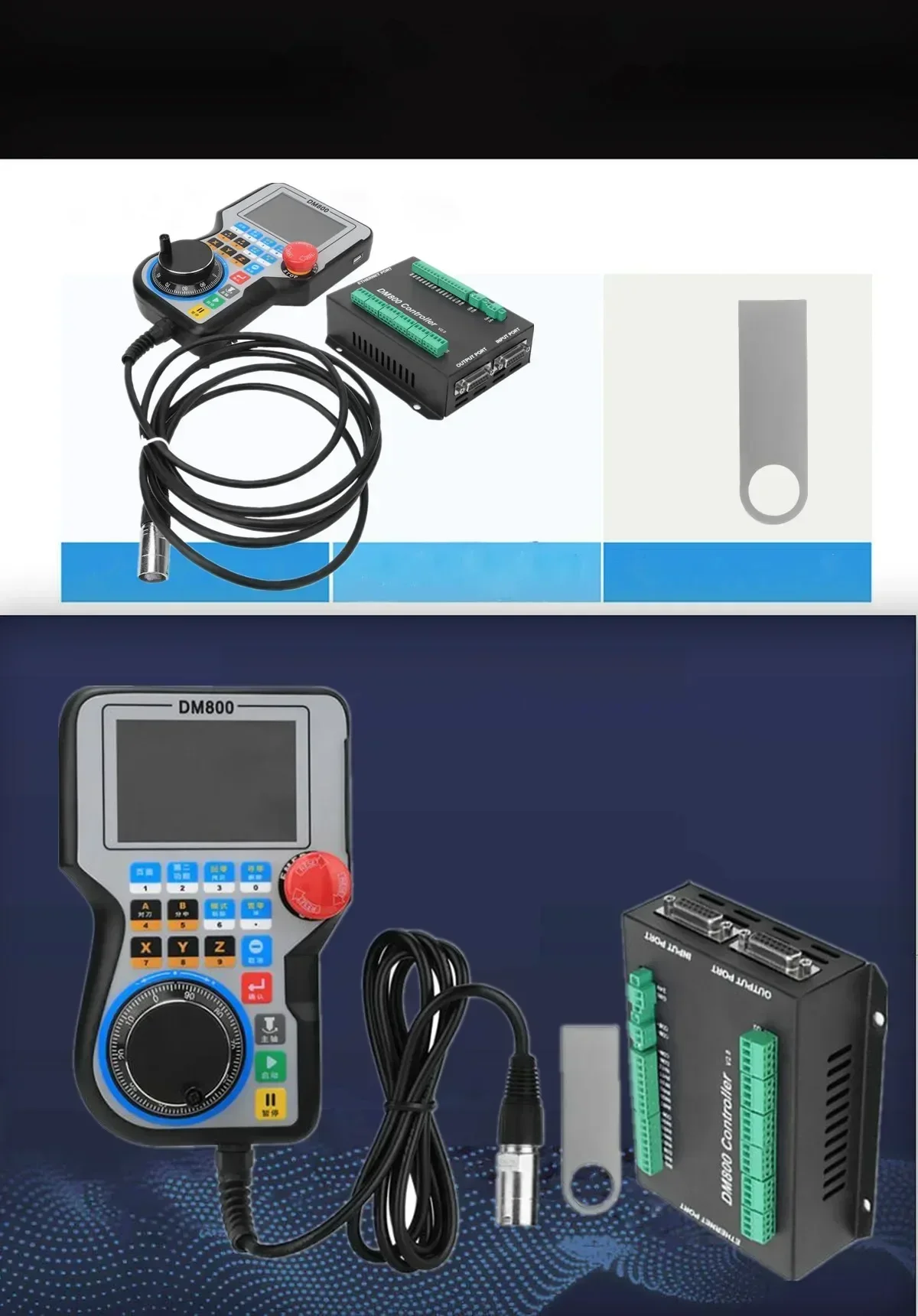

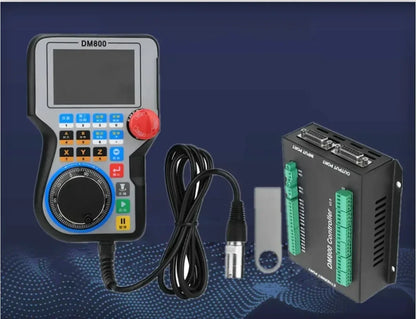

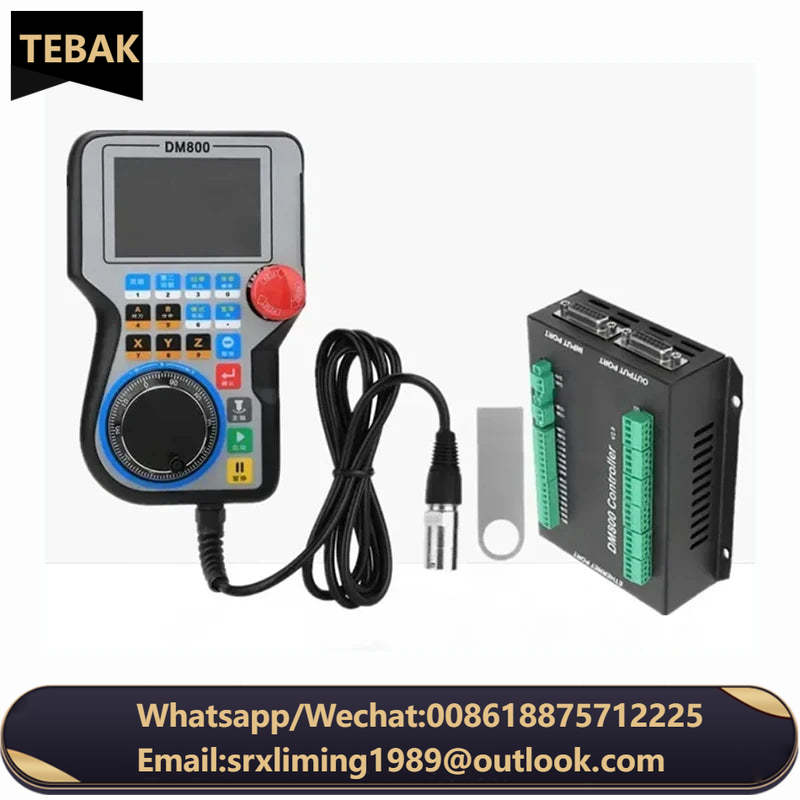

TEBAK CNC Handle Controller Motion Control System DM800 3/4/5 Axis 3.8 Inch Screen Plus Emergency Stop Button Supports G Code

Product Description

Introduction:

DM800 is a 3/4/5axis motion controller that we have spent 2 years designing.
DM800 is a CNC system without a computer.Just need the USB flash drive in the G-CODE file,
DM800 can read G files and run G files.

Features:

Read G code from U-DISK;
Built-in SD card
Ethernet communication from the handle to the motherboard.
No computer operation required;
20-port optically isolated input interface;
12-port optically isolated output interface;
1-port 0-10V spindle speed analog output interface (can be changed to PWM output);
Support 5-axis stepping system, 460KHz pulse output per axis;
ARM motion control chip;
The main equipment is a 24VDC power input and the current should be greater than 1A;
MPG built-in;
3.8-inch TFT screen;
16 user keys;

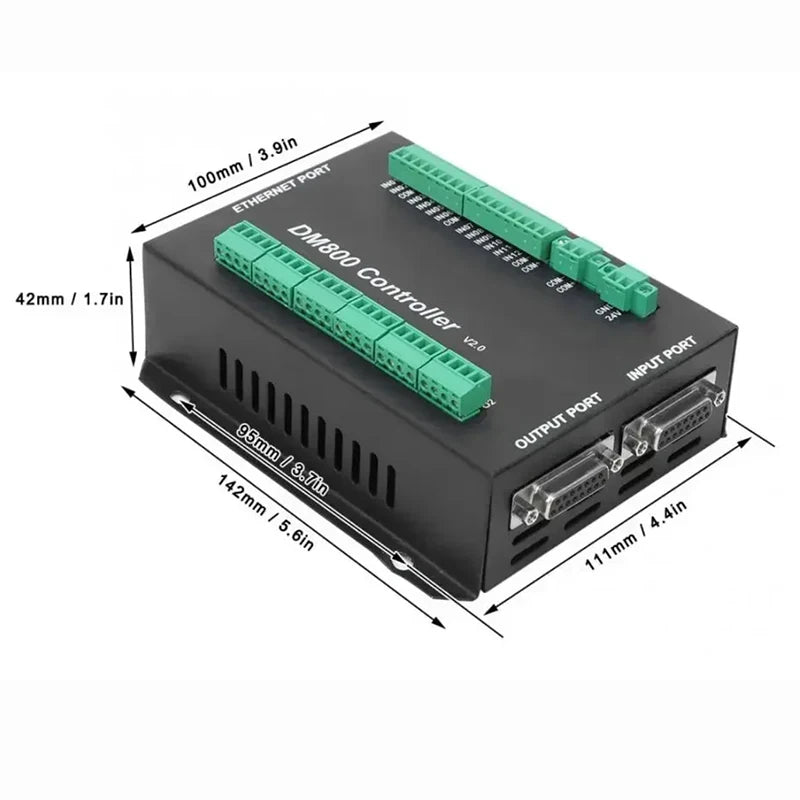

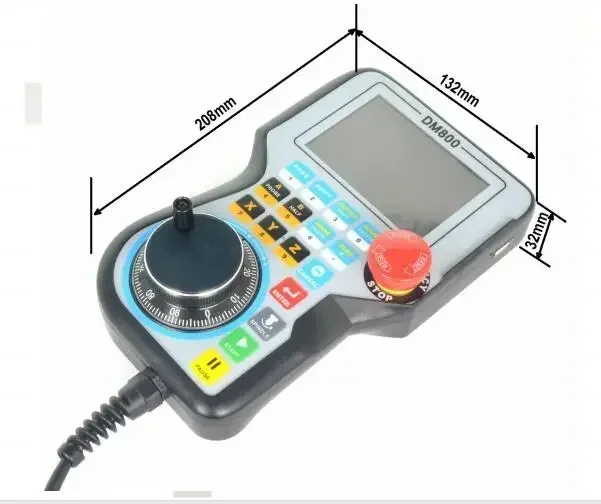

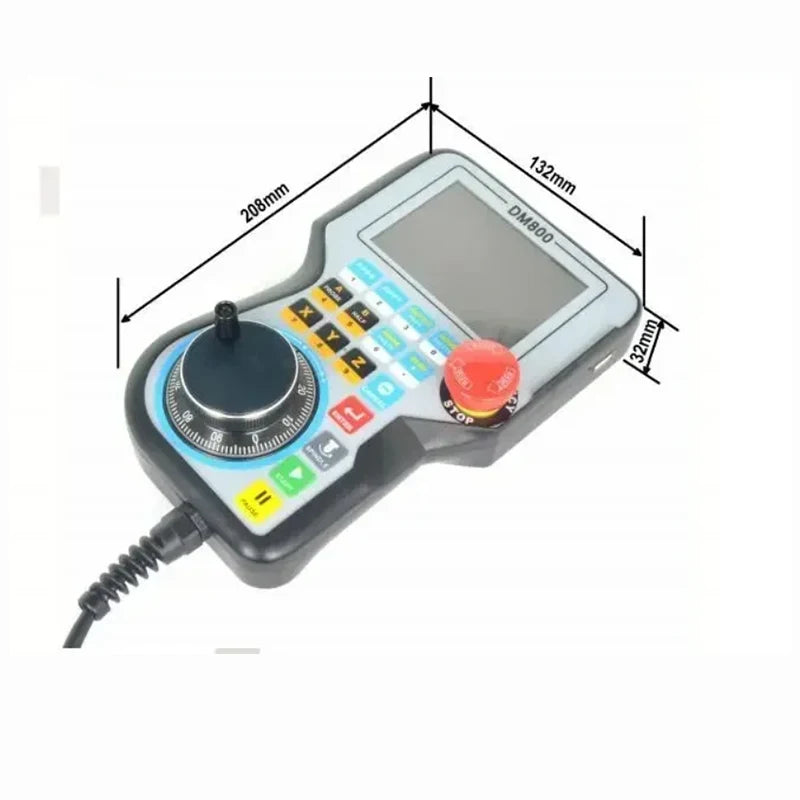

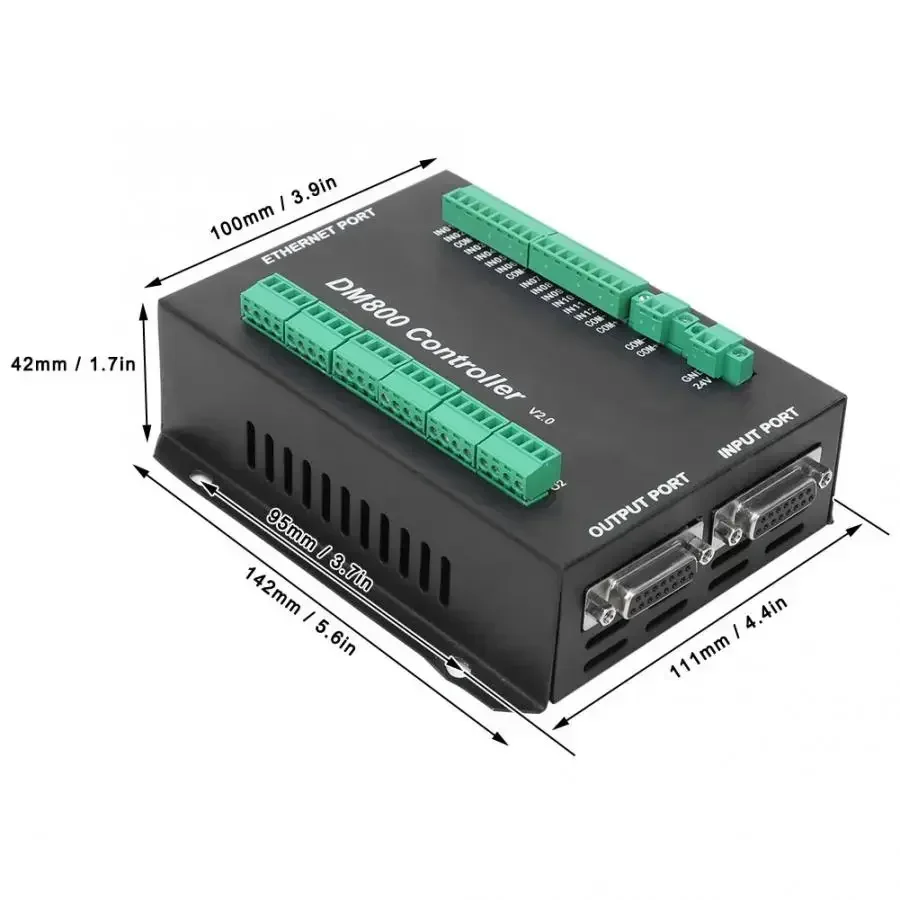

Appearance and size:
