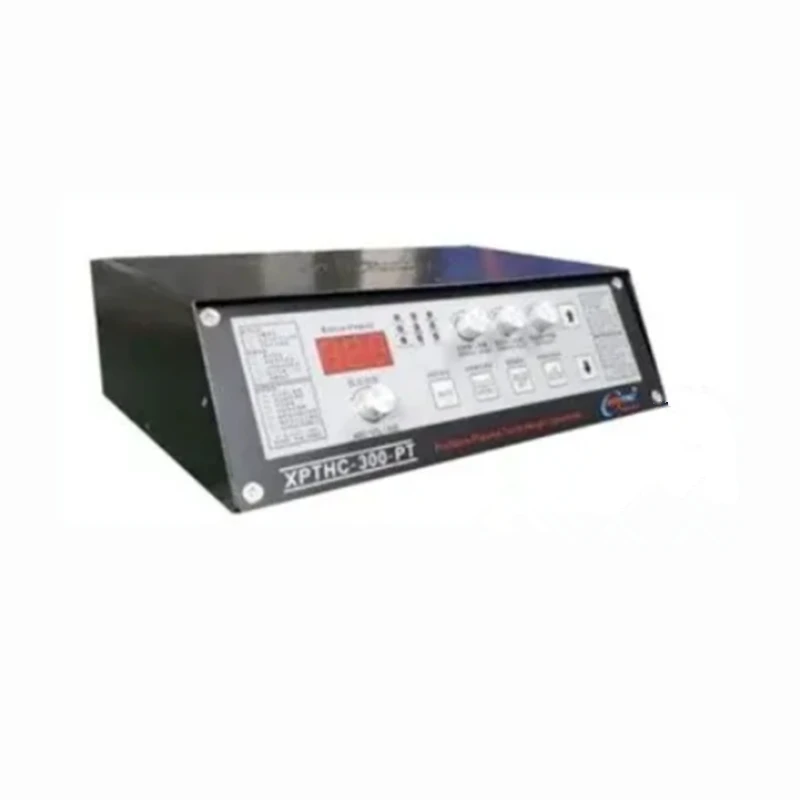

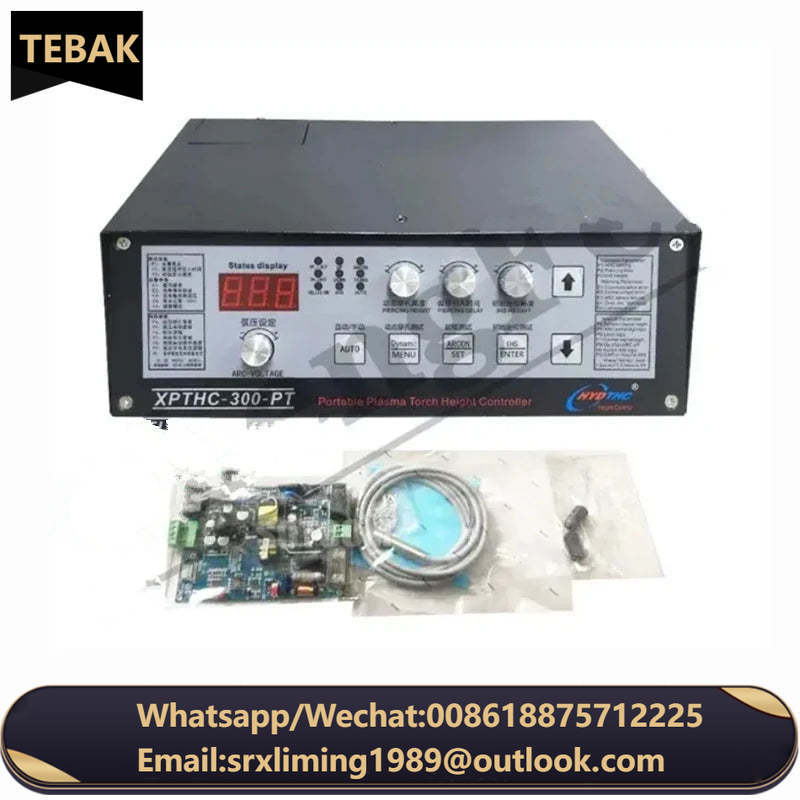

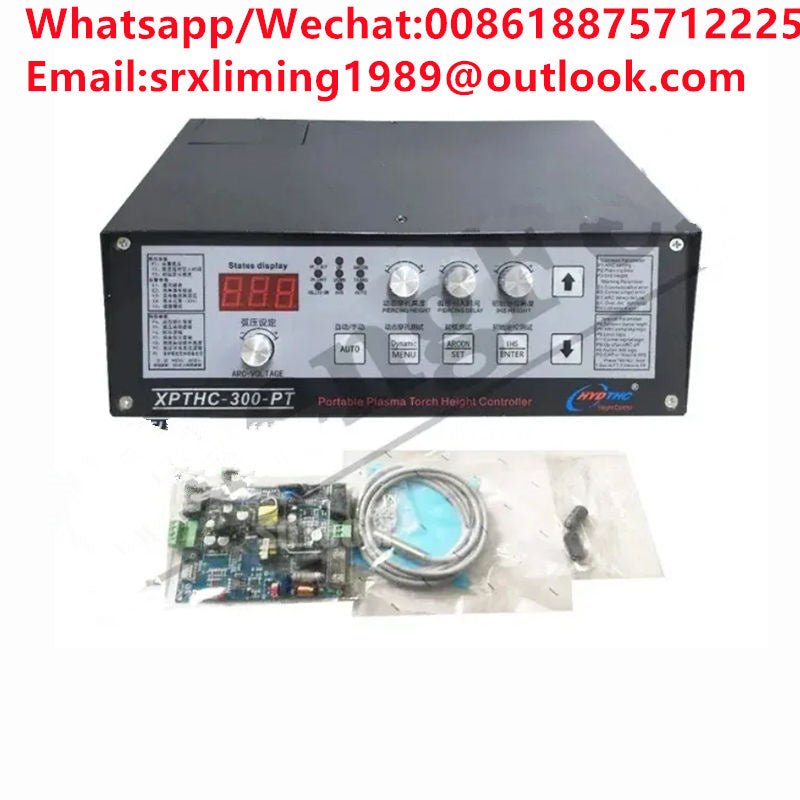

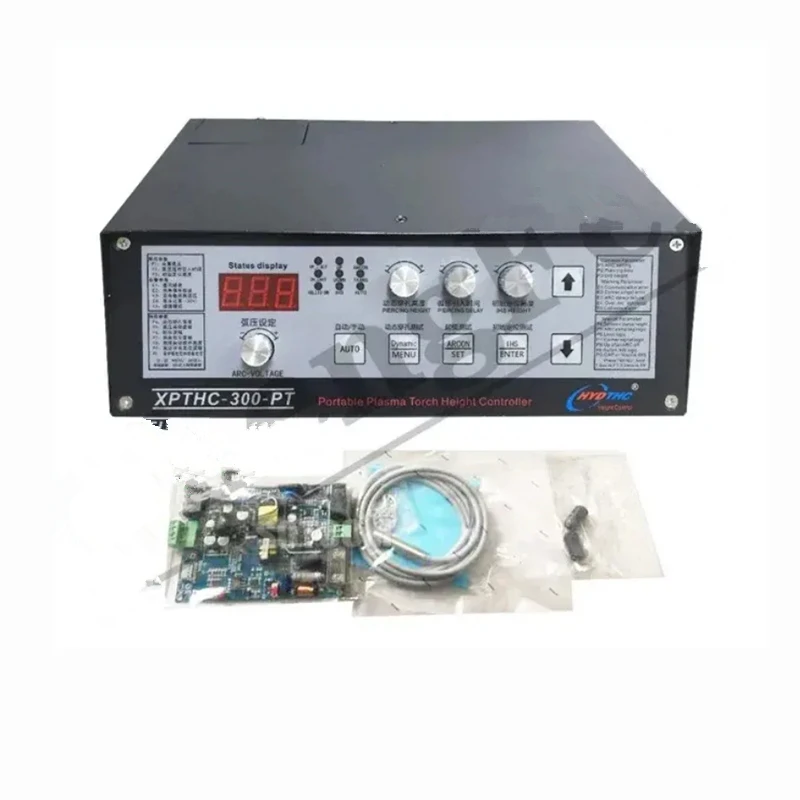

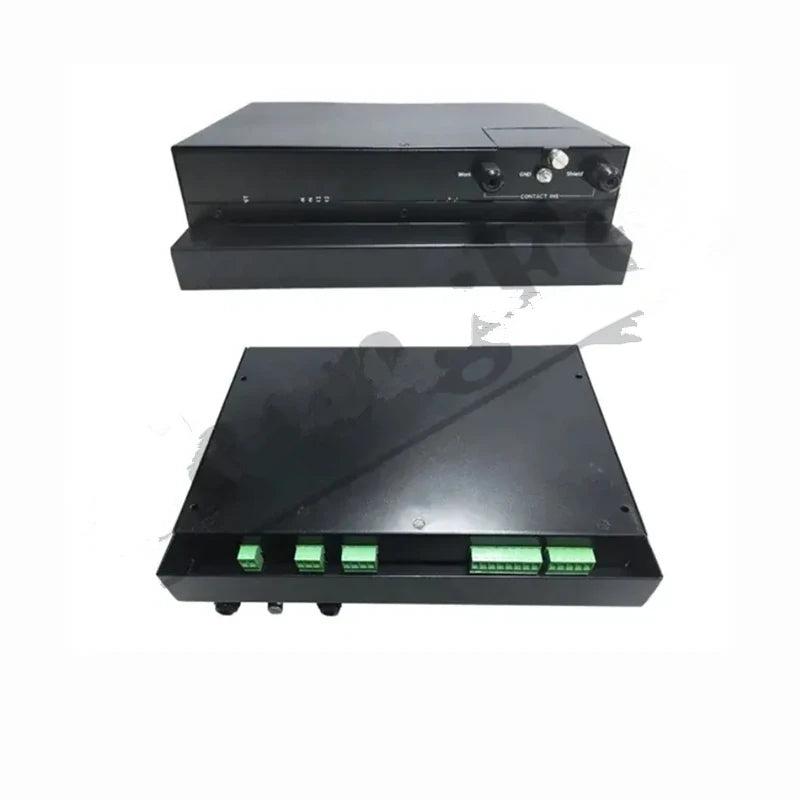

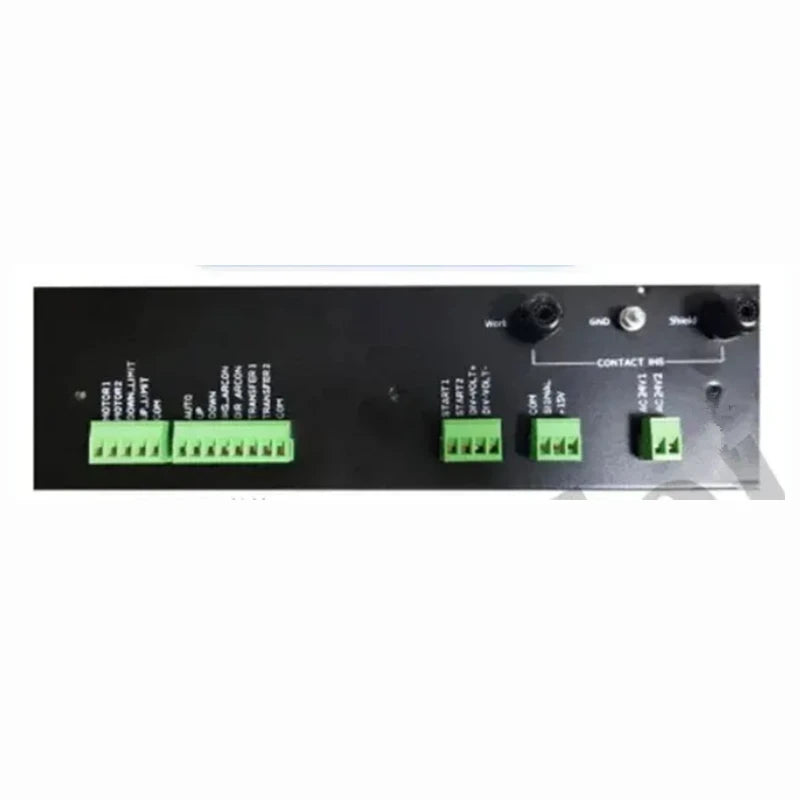

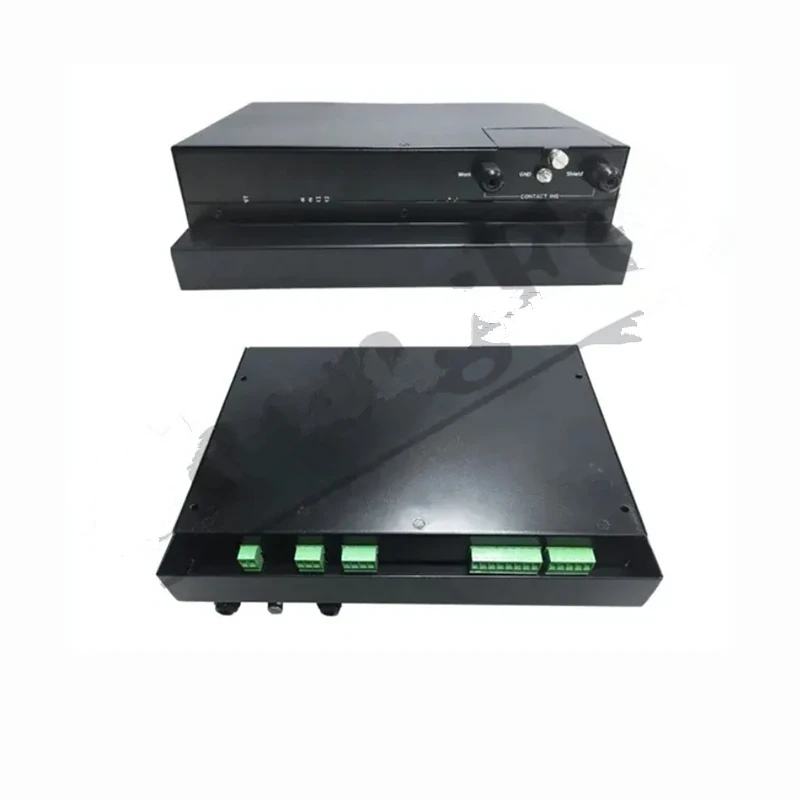

TEBAK Cnc Flame Plasma HYD Xpthc-300-Pt Arc Voltage Height Controller Cutting Gun Height Automatic Tracker Cyclmotion

TEBAK Cnc Flame Plasma HYD Xpthc-300-Pt Arc Voltage Height Controller Cutting Gun Height Automatic Tracker Cyclmotion









Safety and installation precautions:



Before using this product, be sure to read the instruction manual of this height controller carefully to avoid installation or operation errors



cause unnecessary losses. Special Note: The power supply voltage of this height controller is AC24V\DC24V power supply!



Non-professionals or unauthorized persons cannot open the height controller for inspection and maintenance;



Do not arbitrarily open the adjustable resistor sealed with screw glue to adjust it;



When not in use, please turn off the power of this height controller in time.



Do not put liquid on the height controller, so as not to enter the height controller.



Pay attention to dust prevention, do not let metal dust, etc. enter the height controller.



When handling, please handle with care to avoid damage.



The grounding position of the height controller must be well grounded, and the grounding resistance is less than or equal to 1Ω.



According to the positioning method used, set the correct positioning method of the height controller.

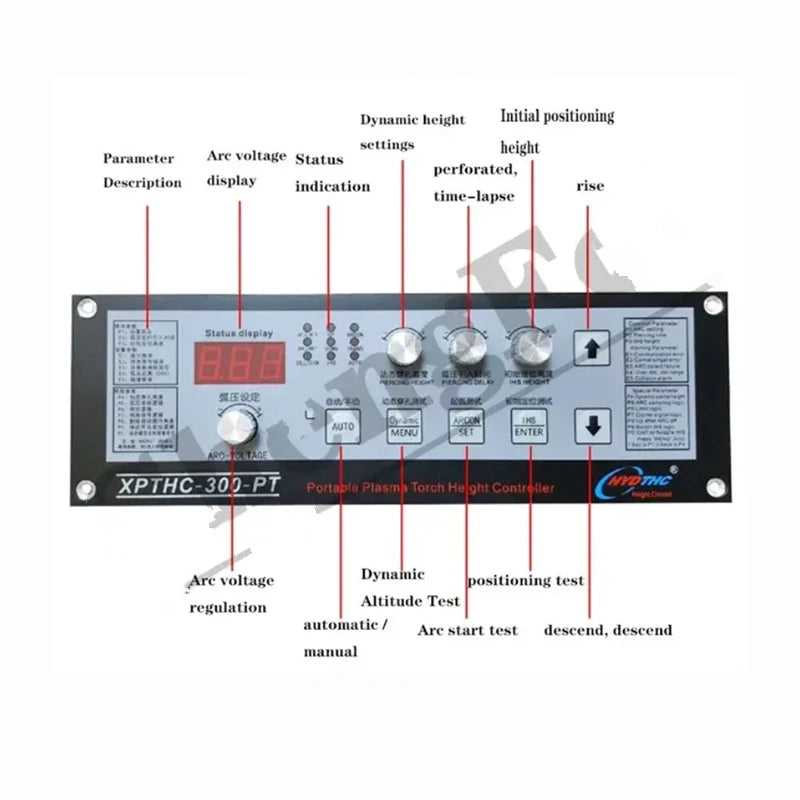

The ascending and descending directions on the height controller panel must be consistent with the lifter.

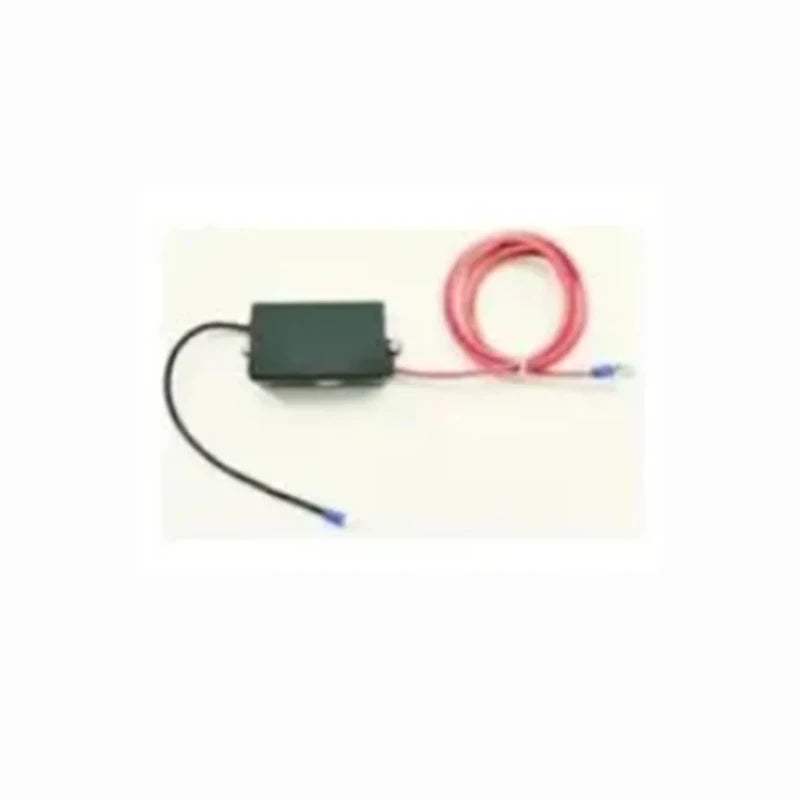

The arc voltage of the plasma must be connected to the voltage divider plate or the voltage divider positioning plate, and the plasma anode cable must be connected to the workpiece



The initial positioning operation of the protective cap contact type can be carried out only on the upper side.



Please do not install the height controller in the place of heat source, the normal working temperature of the height controller is -10℃~60℃. Take appropriate protective measures in environments with high temperature, humidity, dust or corrosive gases.





Basic parameters

Working power supply: DC20-36VorAC24V±10%, 50Hz/60Hz.

Adapter motor: DC24V DC motor.

Drive mode: PWM (pulse width modulation mode).

Output current: 1A-4A, maximum power 100W.

Working temperature: Height controller -10-60℃.

Initial positioning method: connect to this switch positioning method & (optional) protective cap contact positioning method.

Operation transmission mode: detect arc voltage enable, pierce complete output.

Divider ratio: 100:1, can be changed according to user requirements.

Control accuracy: The set arc voltage and the actual arc voltage are ±1V-±3V, which are related to the user's lifting mechanism and the starting voltage of the motor.

Dimensions: length X width X height: 272mmX225mmX80mm.

Torch lifting speed: 800mm/min-3000mm/min (please contact the supplier if the speed exceeds this speed).

Set arc voltage range: 30V-250V, which can be modified according to different applications.

Overload protection mode: PWM pulse width adjustment, overcurrent protection.

Maximum cutting tracking test speed: 6000mm/min (related to the user's starting voltage, speed and sensitivity settings of the lifting body).
