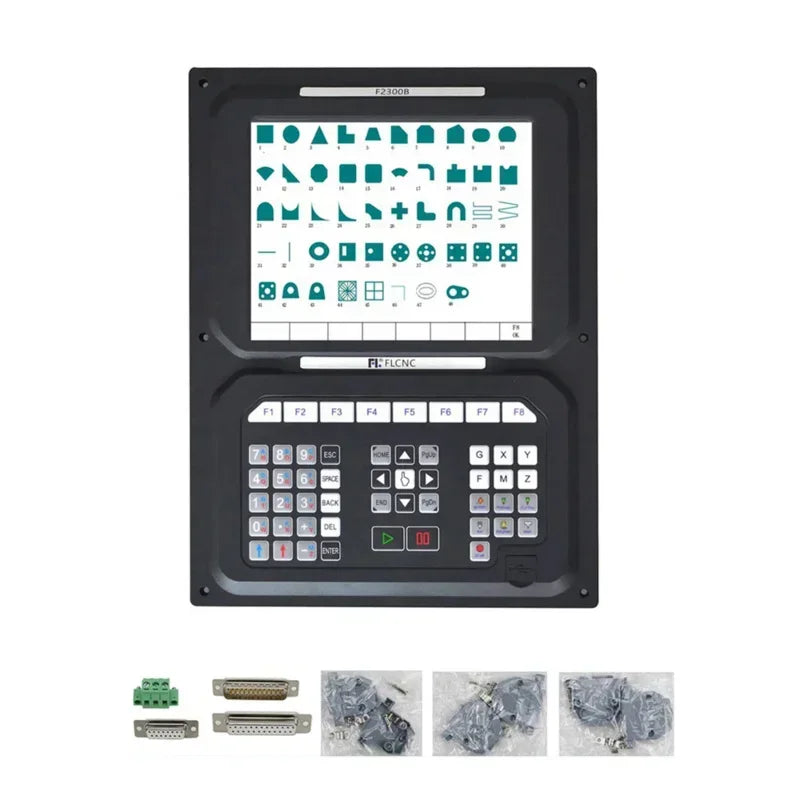

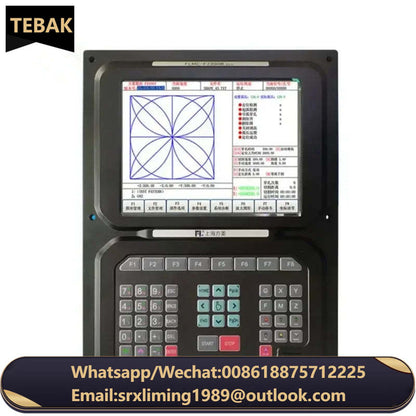

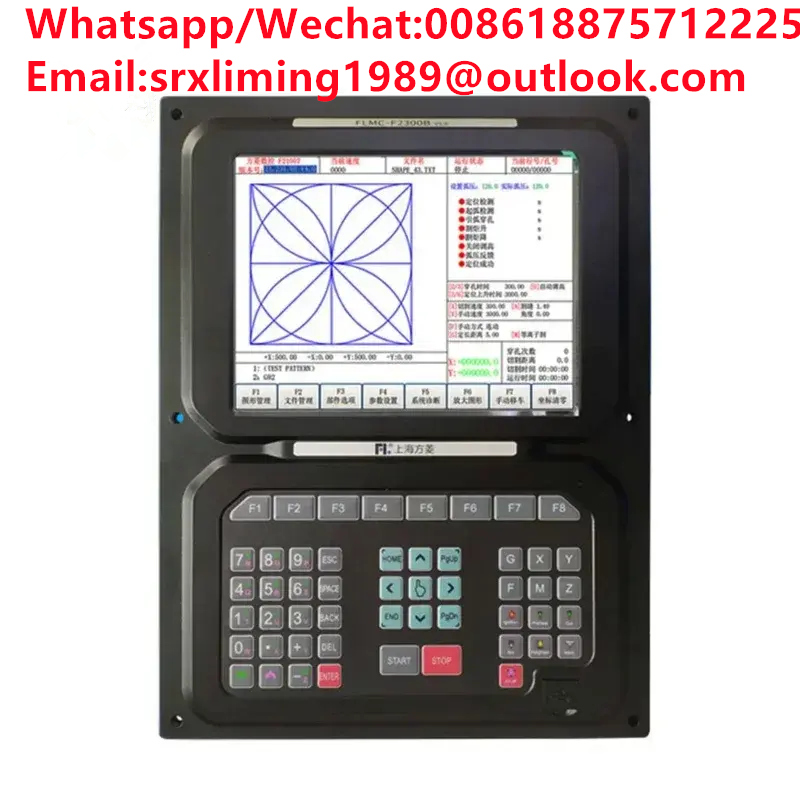

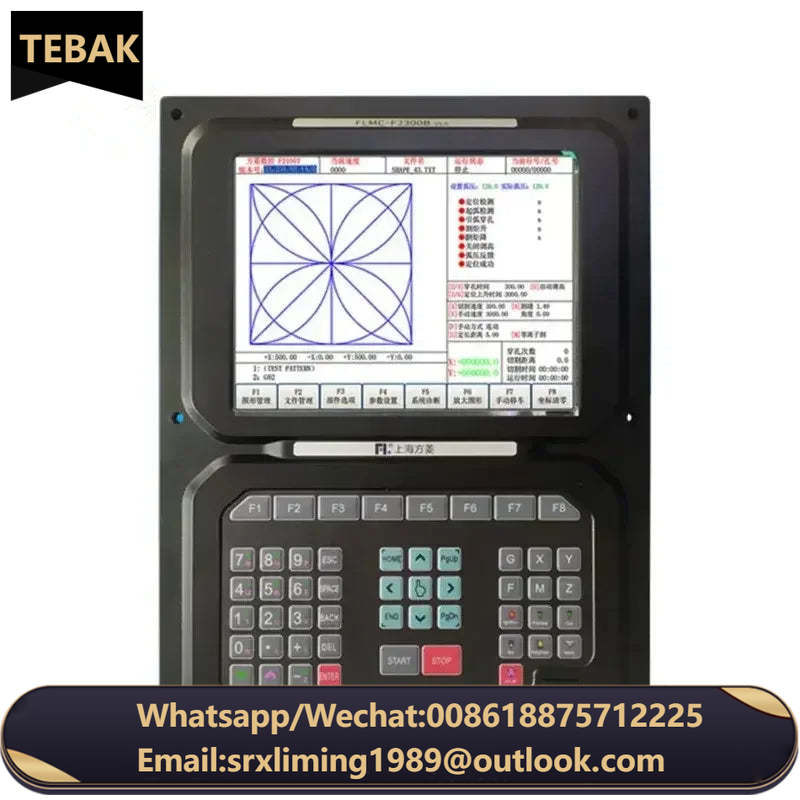

TEBAK CNC Flame and Plasma Cutting Machine F2300B V5.0/ F2300BT V5.0 10.4 Inch LCD 2-axis Connection to CNC Control System

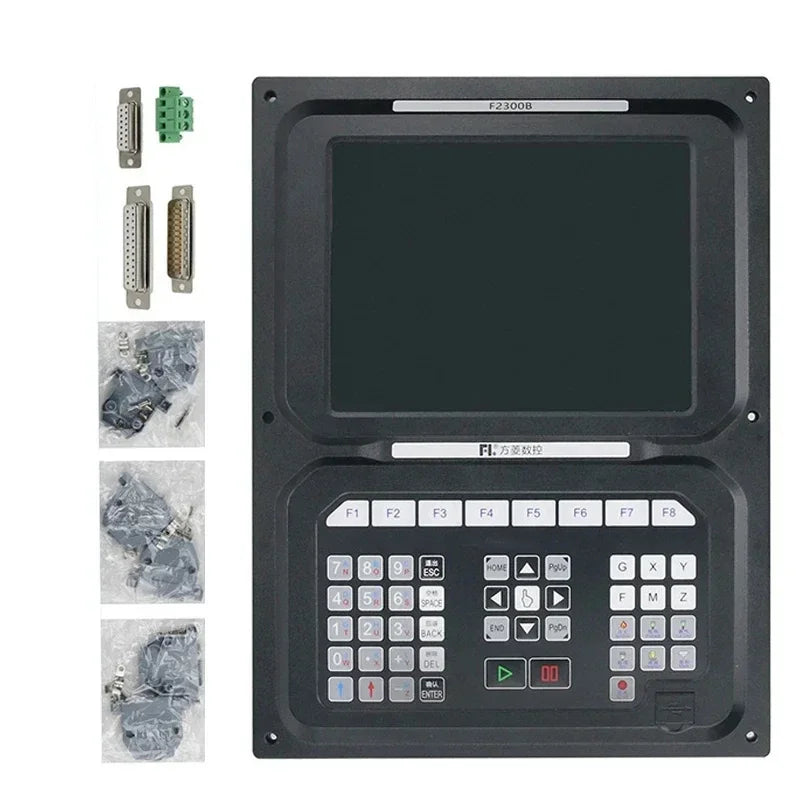

Package:

Controller * 1

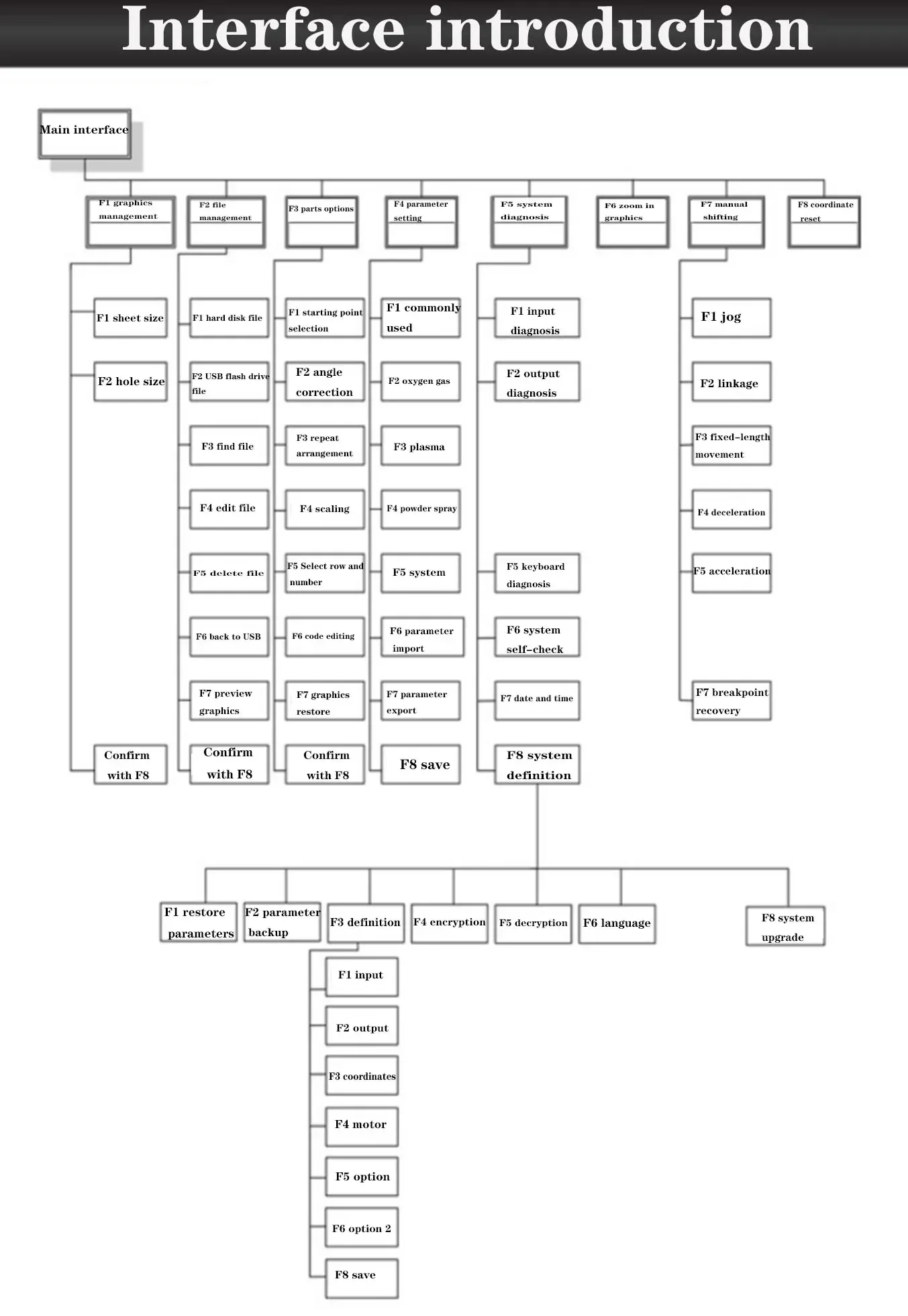

Features:

Compact keyboard design and easy to input files.

Shape have some operations such as Proportion, Rotate, and Mirror.

Shape can be arrayed in matrix, interaction, stacked modes.

Steel plate can be adjusted according to any steel side.

Coordinate system can be customized to support the two dimensional coordinates of all eight kinds.

All input and output port type and the number can be customized (normally open or normally closed).

Self-diagnostic function, to diagnose the key status and all the IO status, facilitate inspection and debug.

Provide a front USB interface for copying files.

System can be upgraded by USB interface easily, and we provide lifetime upgrade service.

All functions and techniques can upgrade online and don’t worry about the after sale service.

Import and export files by single or all files.

Parameters backup and parameter restore.

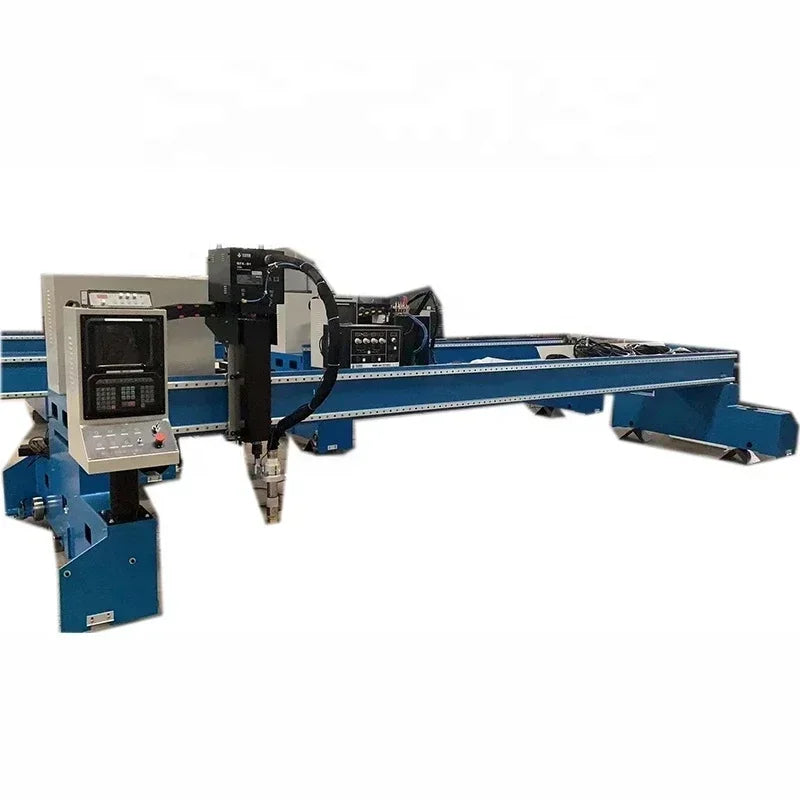

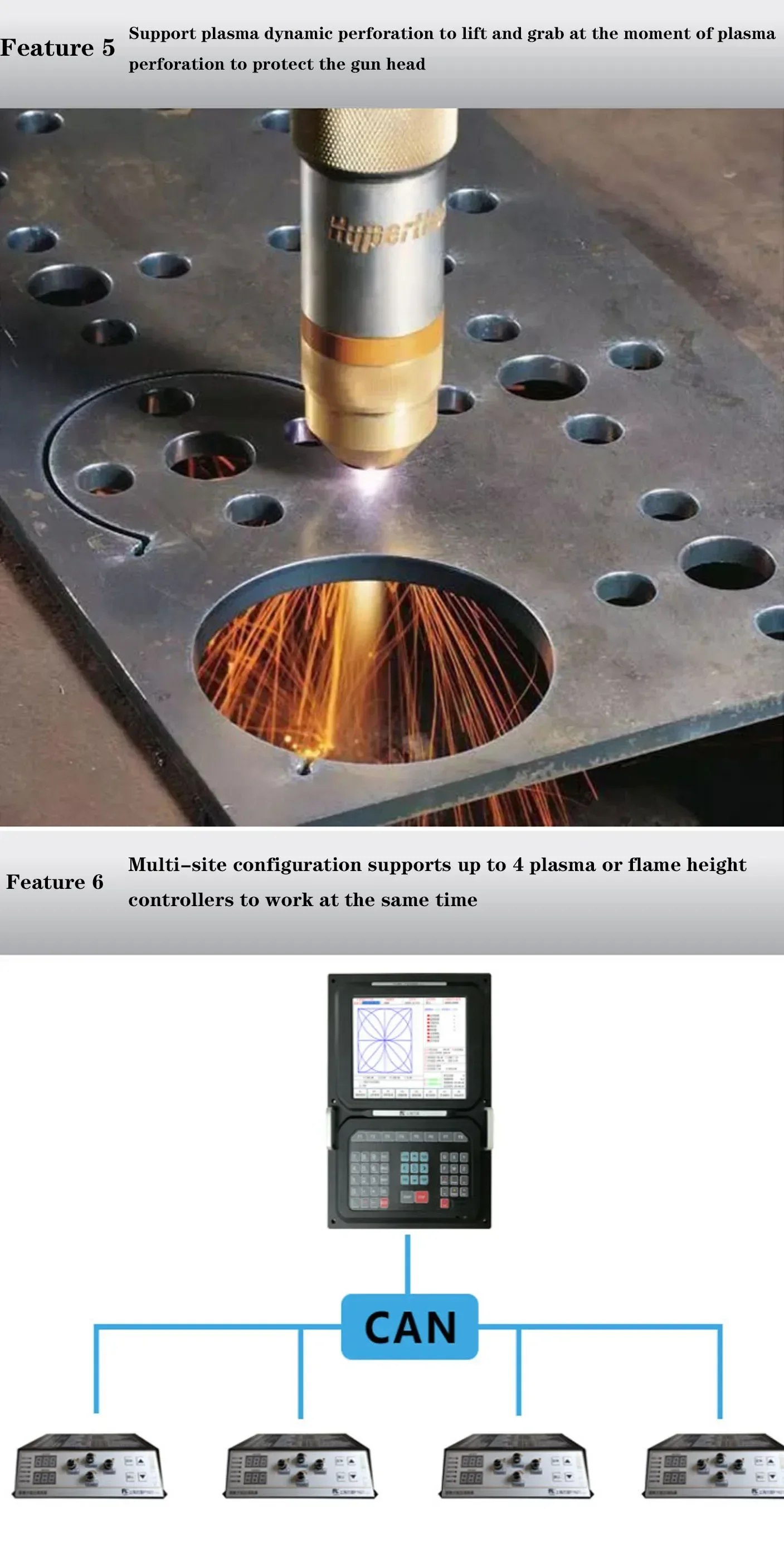

Support the Flame, Plasma, Marker and Demonstration four kinds of mode.

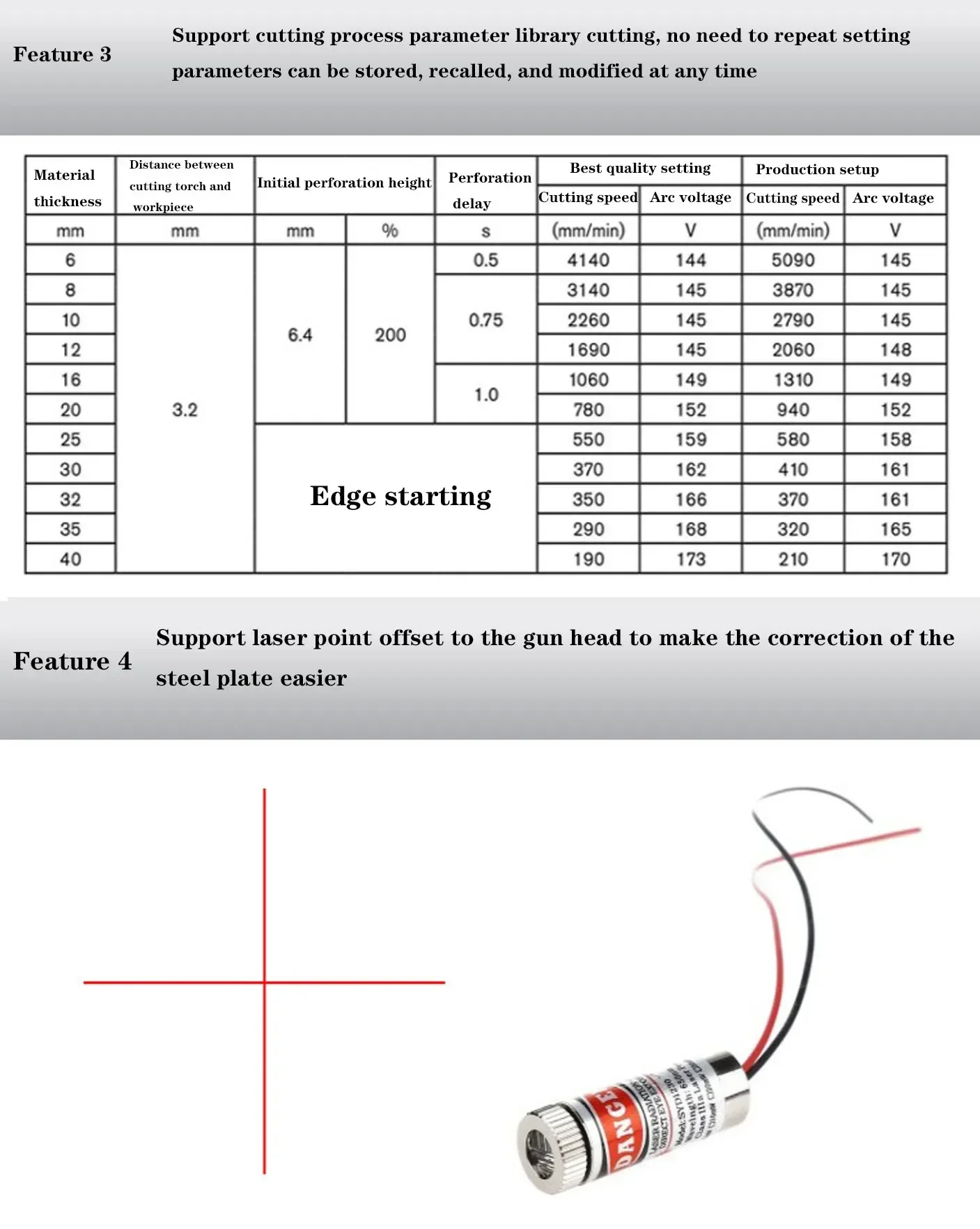

Including various types of processing parameters to meet the needs of different processes.

Flame and Plasma are separated in the control IO ports.

Support THC(Torch Height Control), two-level preheat, three-level pierce in flame mode.

Technical Indicator:

Control Axis: 2 axis linkage(3 axis customizable)

Control accuracy: /-0.001mm

Coordinate range: /- 99999.99mm

Max cuts: 200 kHz.

Max speed: 15,000 mm/m

Max lines of code: 80,000lines

Max size of single code file: 4M

Time resolution: 10ms

Working Voltage: DC 24V direct-current power input, power > 80W.

Working Temperature: -10℃~+60℃. Relative Humidity, 0~95%.

Max power of drive arc THC motor: 45W (suitable for models with “T”). if need more power, can select maximum value: 200W.

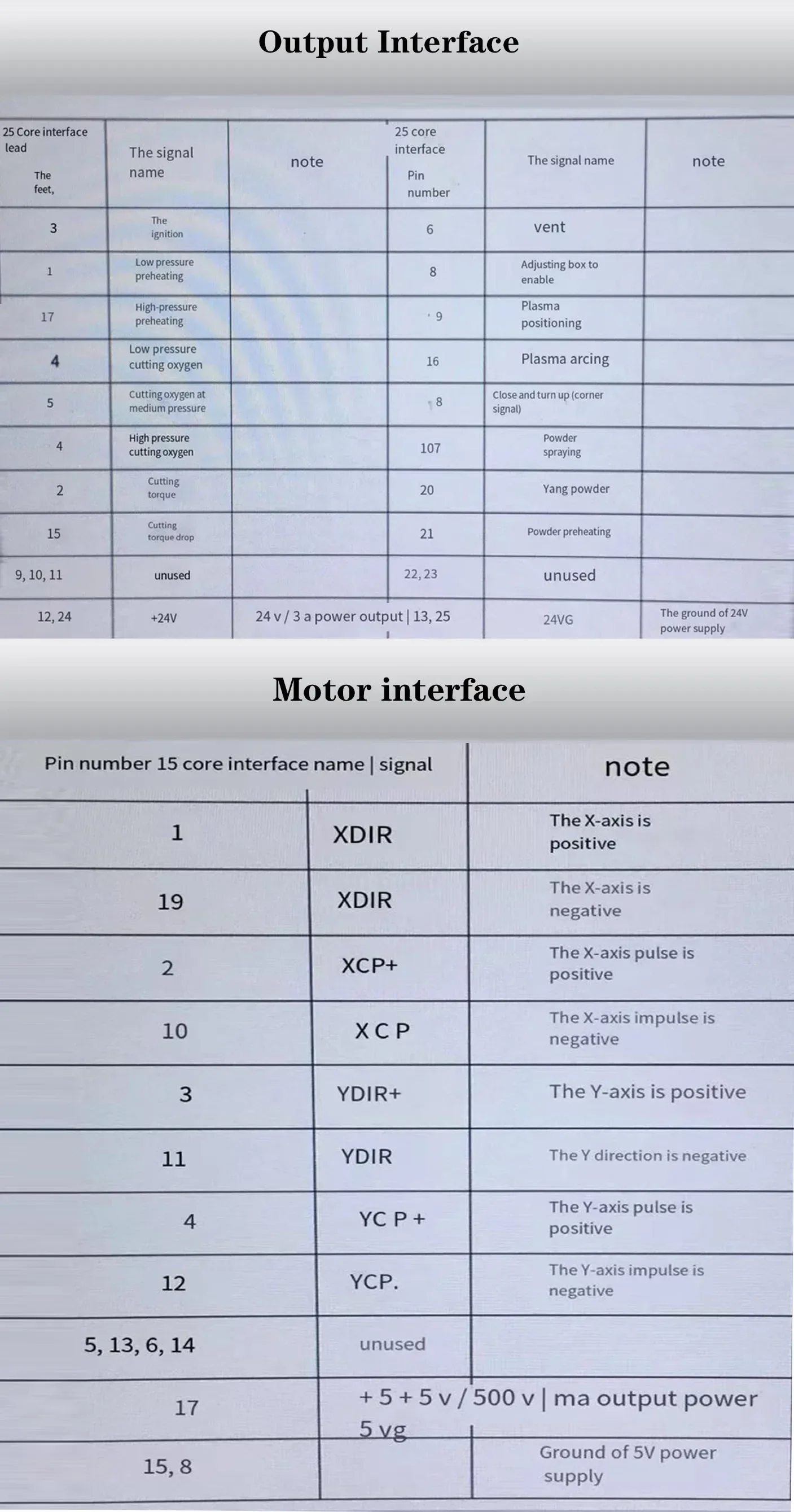

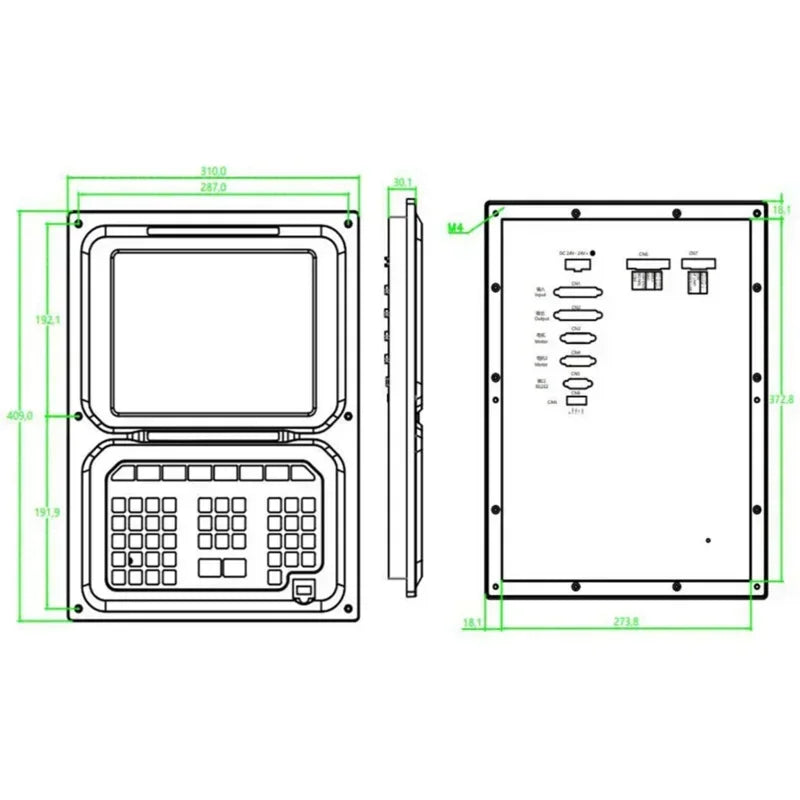

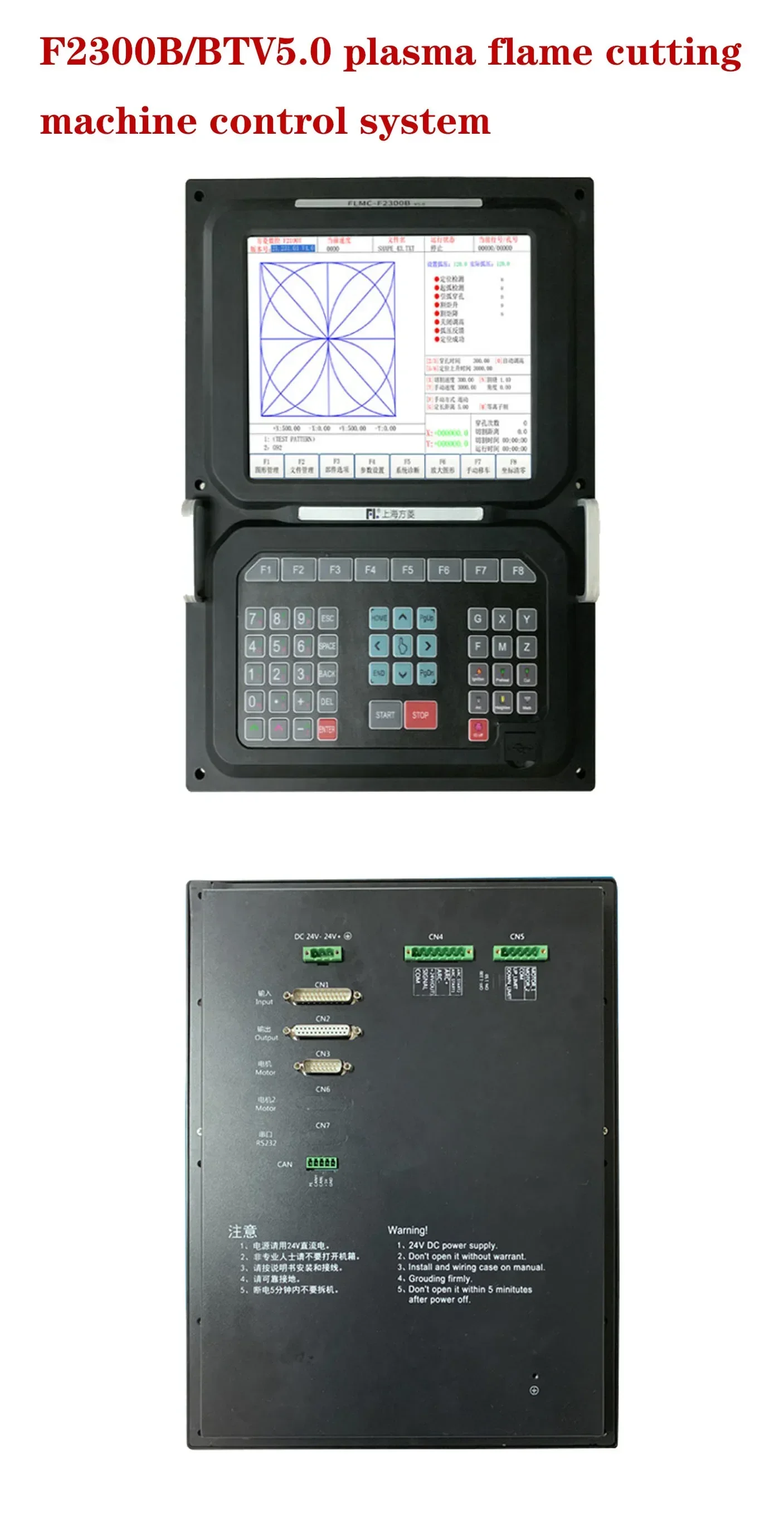

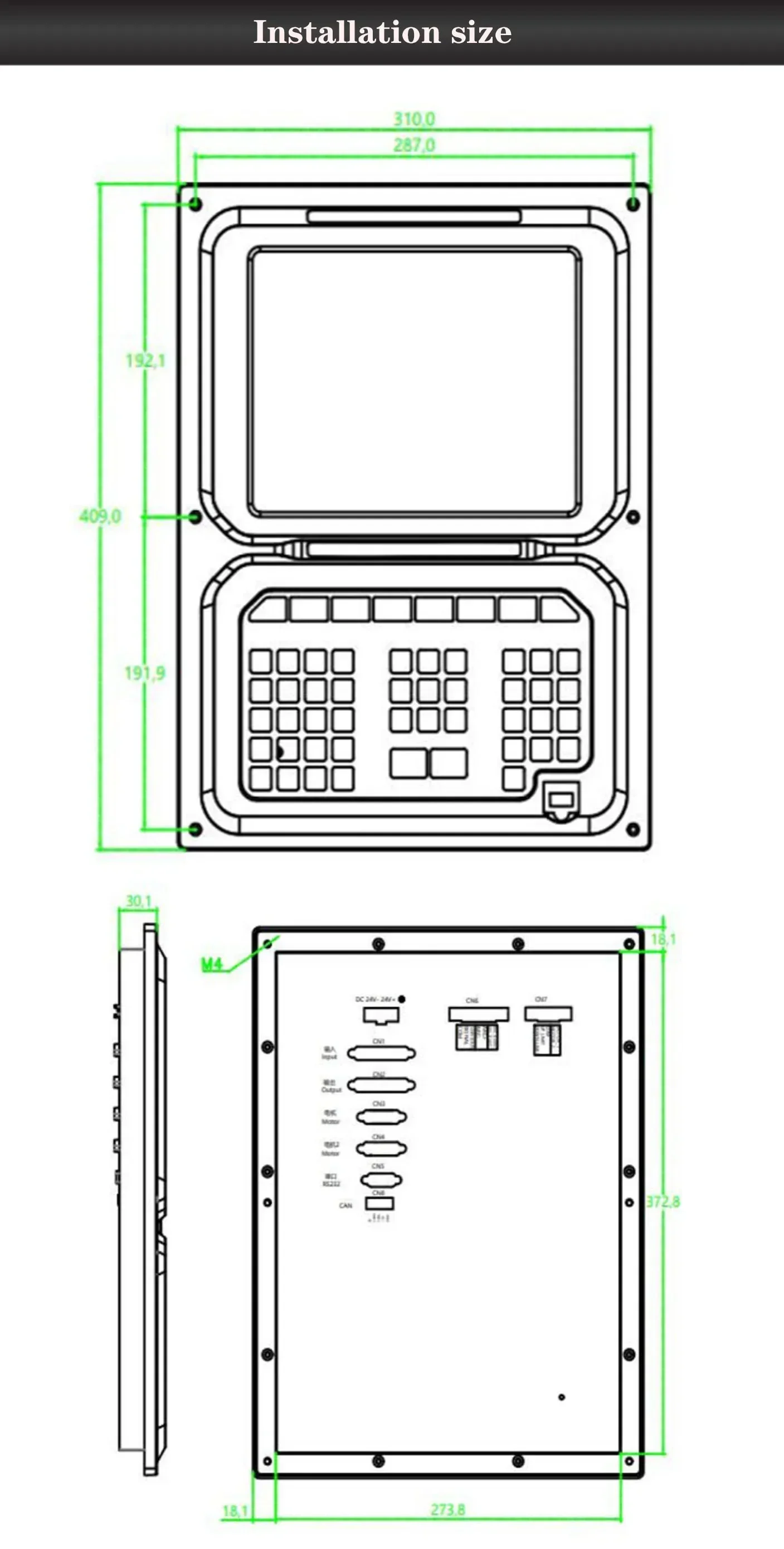

Controller Interface:

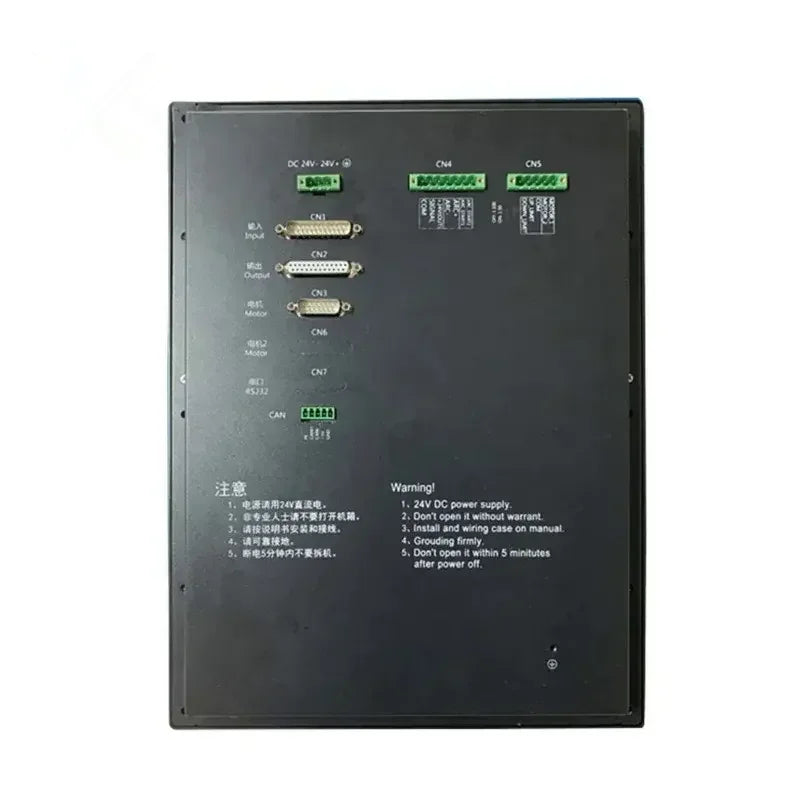

DB15 pins SMA Male interface of 2 axes of motor drive.

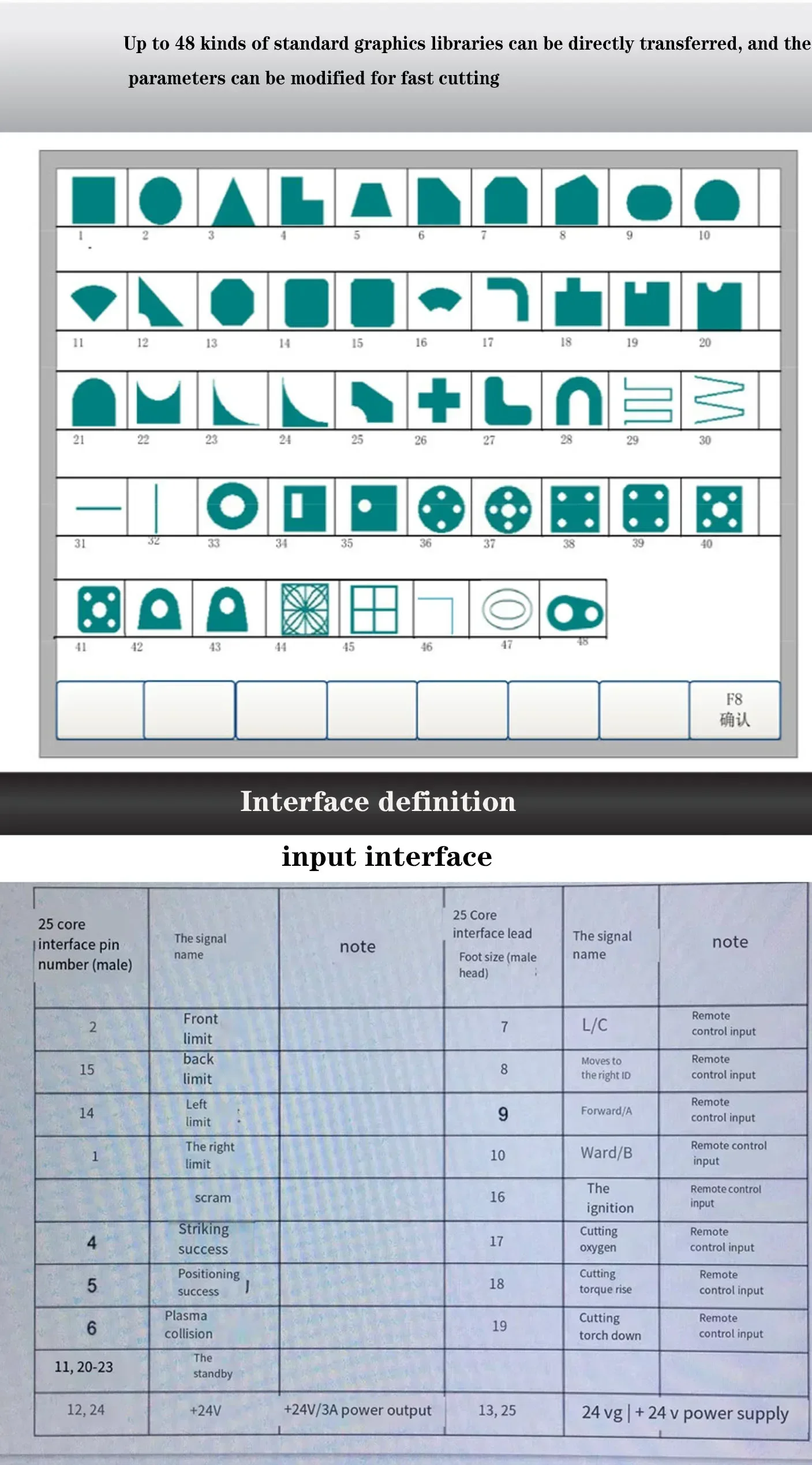

DB25 pins SMA Female interface of 16 channels optoelectronic isolation output ports max back flow current 300mA.

DB25 pins SMA Male interface of 16 channels optoelectronic isolation input ports,max output current 300mA.

USB interface on the front panel, for the convenience of transmitting cutting code.

Extend IO input/output ports, PWM input ports, analog input ports.

Optional standard DB9 core male serial port RS232 interface.

Hardware Configuration:

Monitor: 10.4 inch 800*600, high definition 16 million colors and high brightness LCD

Memory: 64M SDRAM

Program space available for user: 256M electronic hard disk

CPU frequency: 400MHz

USB: USB 1.1 front interface, at least 16GB U disk supportable

Keyboard: PCB keyboard

Chassis: full-steel structure completely shielded which defends electromagnetic radiation, interference and static electricity
