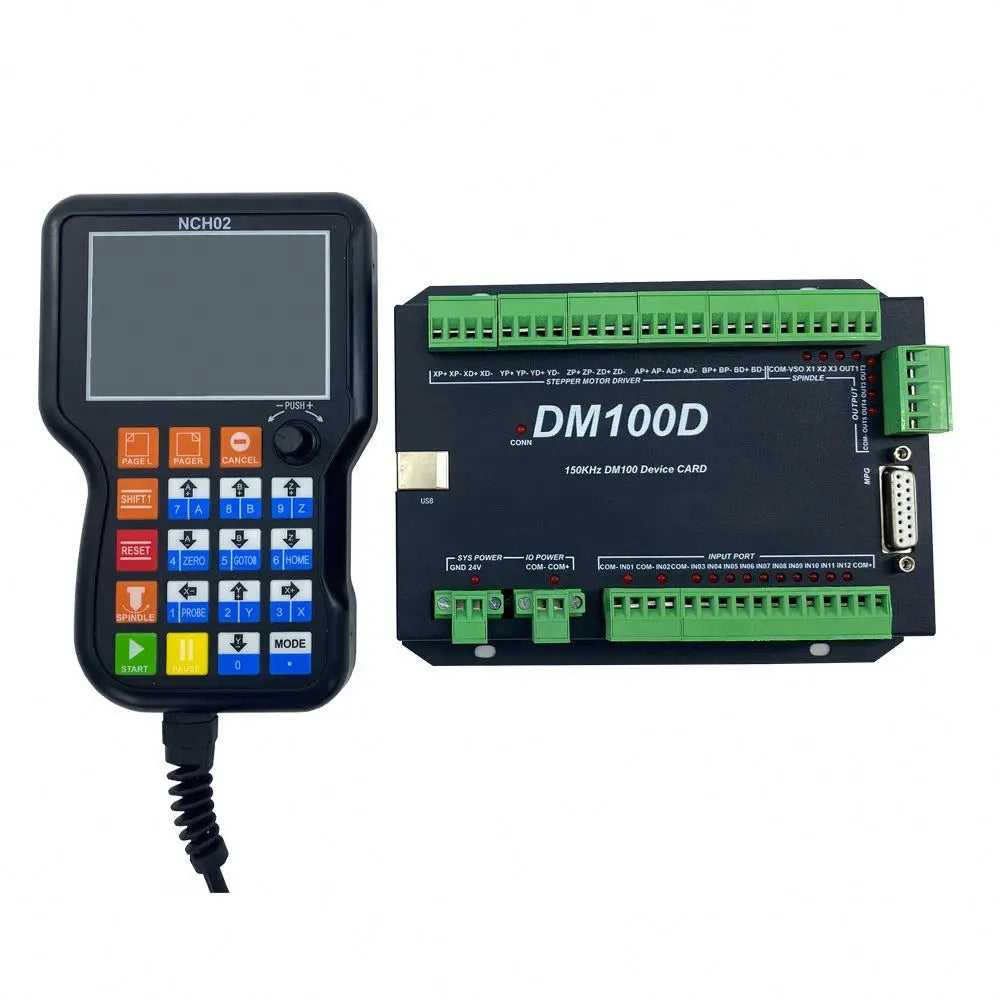

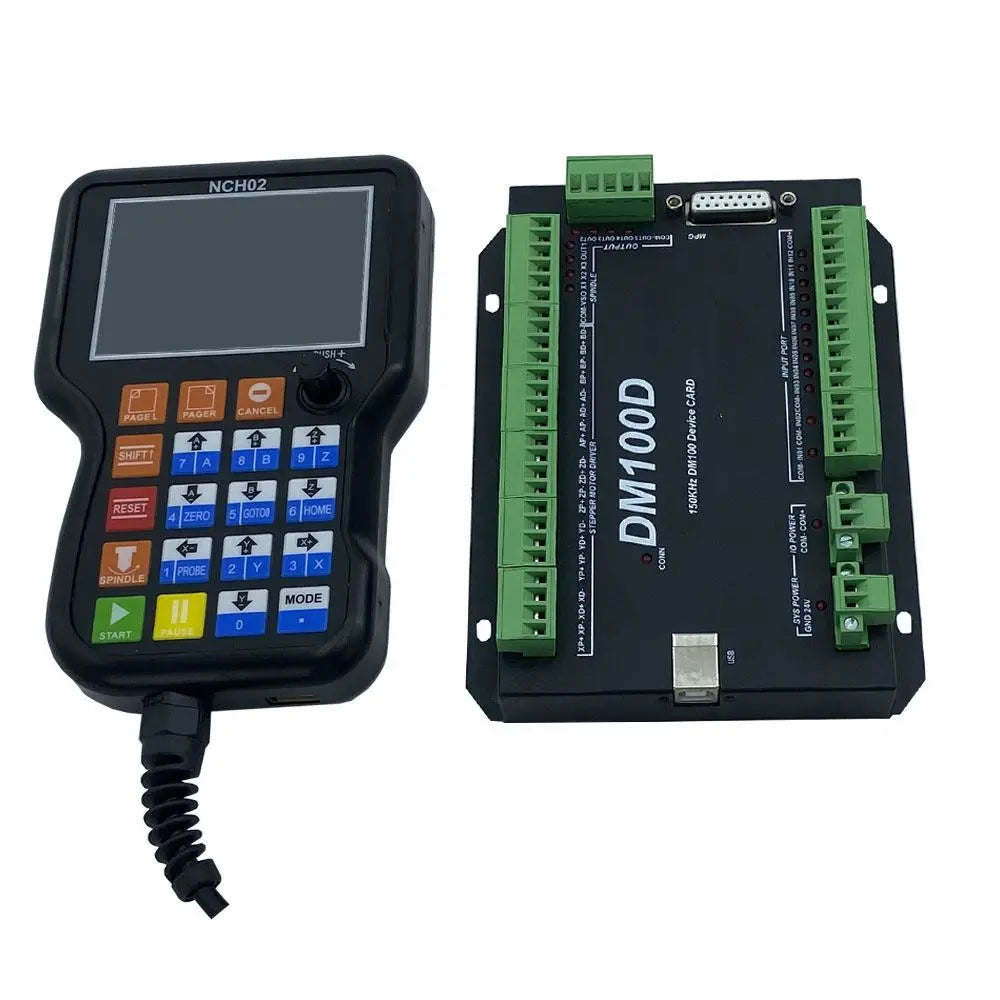

TEBAK CNC Engraving Machine Motion Control System NCH02 Upgraded Version DM100 3axis/4axis/5axis Handheld Offline Controller
TEBAK CNC Engraving Machine Motion Control System NCH02 Upgraded Version DM100 3axis/4axis/5axis Handheld Offline Controller
Regular price
$136.00 USD
Regular price
$136.00 USD
Sale price
$136.00 USD
Unit price
per
Couldn't load pickup availability
TEBAK CNC engraving machine motion control system NCH02 upgraded version DM100 3axis/4axis/5axis handheld offline controller

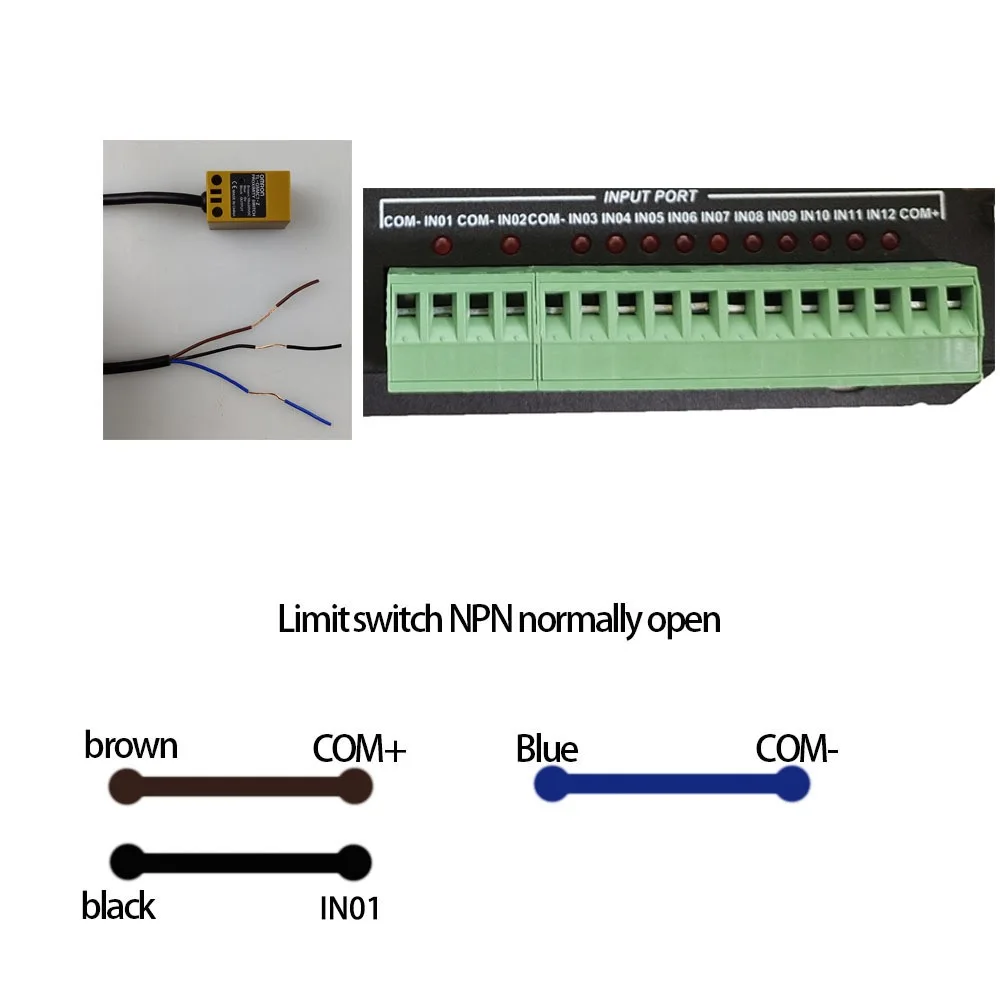

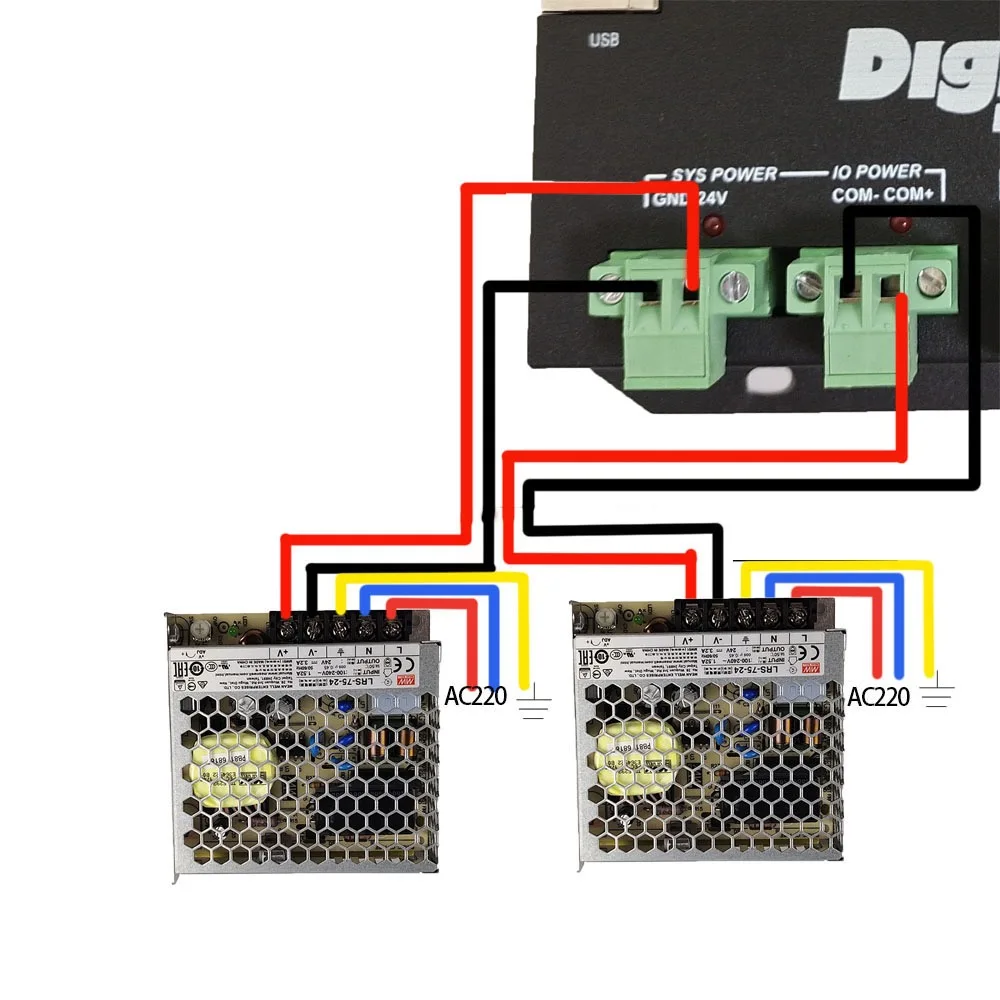

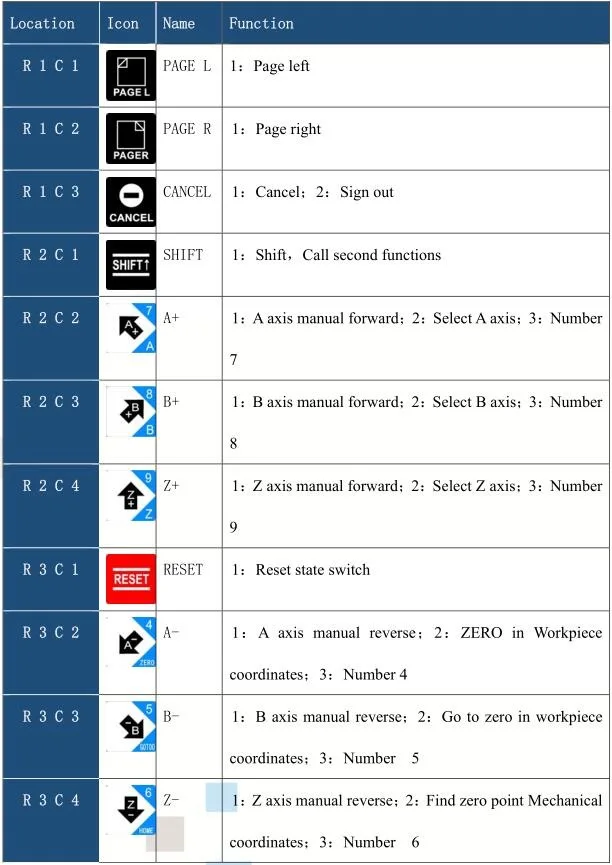

1) 8-channel optocoupler isolated ordinary digital input interface; 2) 5-way optocoupler isolated ordinary digital output interface;LOre 3) 1 0-10V spindle speed control analog output interface (can be modified to PWM output); 4) Supports up to 5 channels of stepper motor control, and a single channel can control pulse output up to 150kHz. 5) Arm main control chip; 6) 3.5-inch TFT screen, resolution 480*320; 7) 19 operation keys; 8) The main control device is a 24V power input with a current capacity of not less than 0.5A; 9) (Supports U disk reading of G commands, and there is no requirement for the size of the G command file; 10) Equipped with a hand vein interface to support common hand veins on the market. 11) Support panel button single-axis manual inching linkage operation; 12) Support the operation of quickly specifying the running location; 13) Support multiple coordinate systems;
Product Paramenters
Product Paramenters|
Controlled Axis Number
|
3 axis/4 axis /5 axis
|
|
|
Control Signal
|
differential signal
|
|
|
Drive System
|
step motor/servo motor
|
|
|
No Volt Protection
|
support
|
|
|
Breakpoint Processing Function
|
8
|
|
|
External Power Supply Voltage
|
24V DC
|
|
|
Manual Mode
|
Continuous/point move/distance
|
|
|
Interpolation Way
|
line/arc
|
|
|
Soft/Hard Limit
|
support
|
|
|
Max. Pulse Frequency
|
1M/S
|
|
|
Support Language
|
Power (kW):
|
other language
|

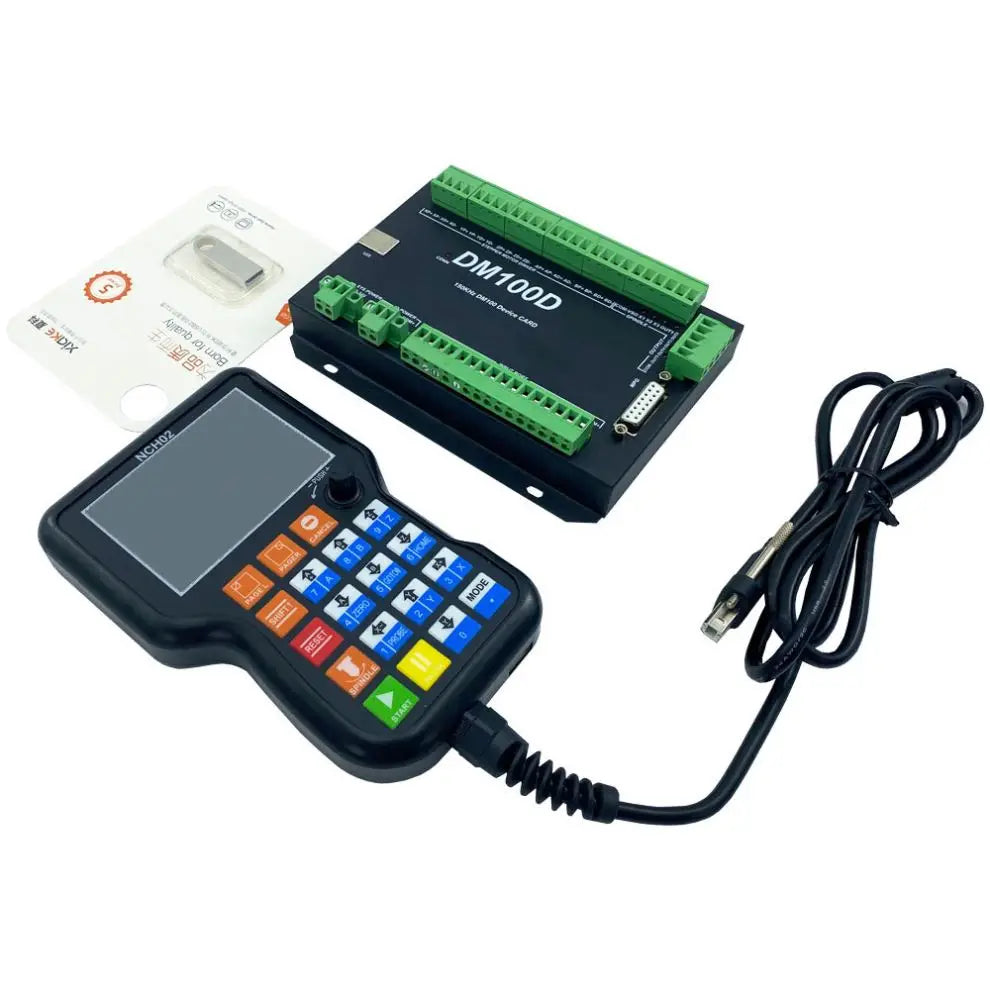

Product Packaging
