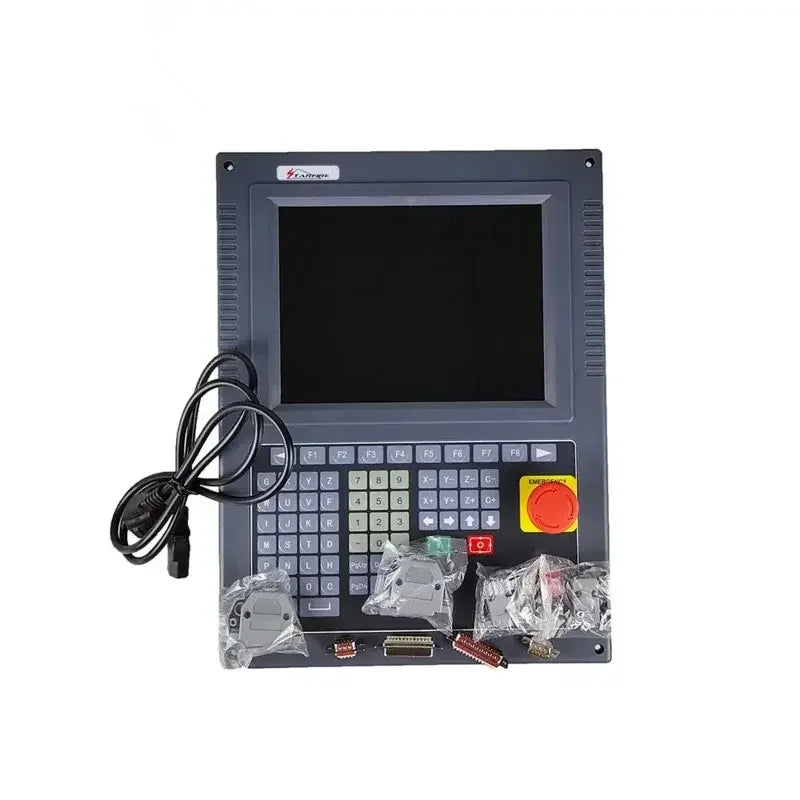

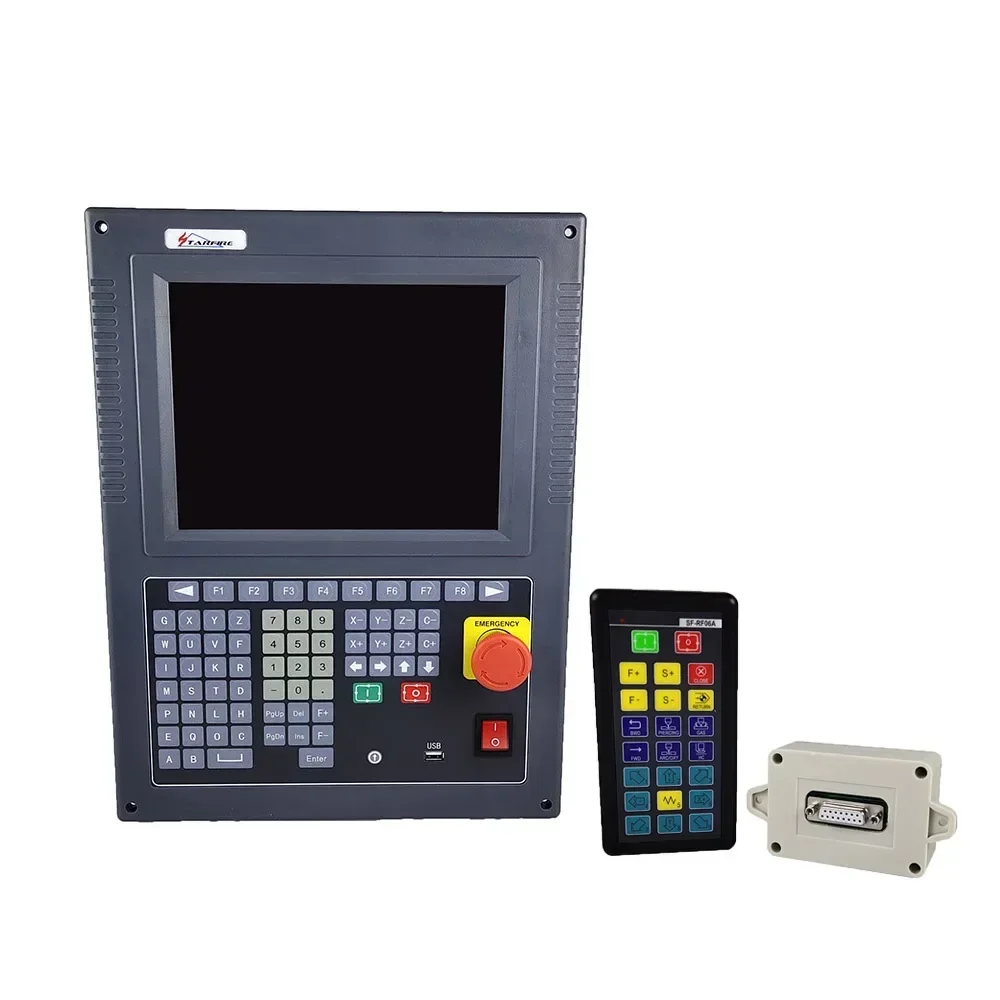

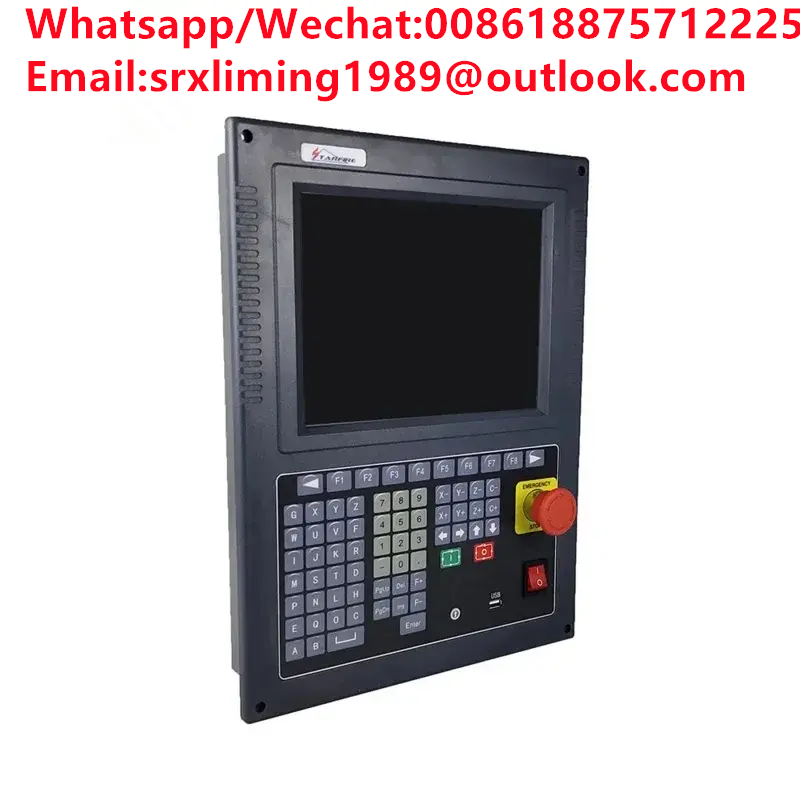

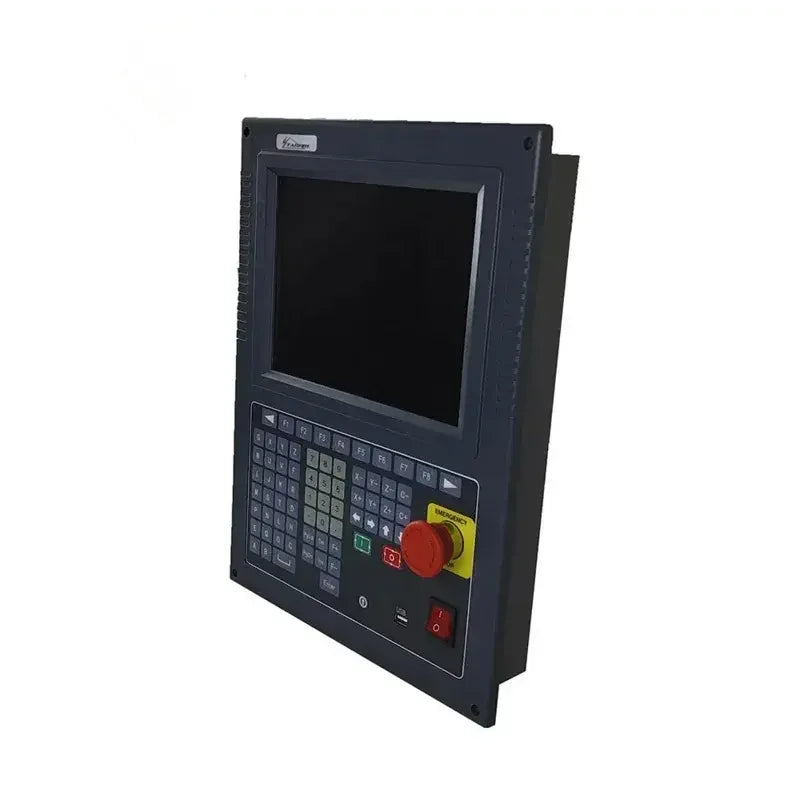

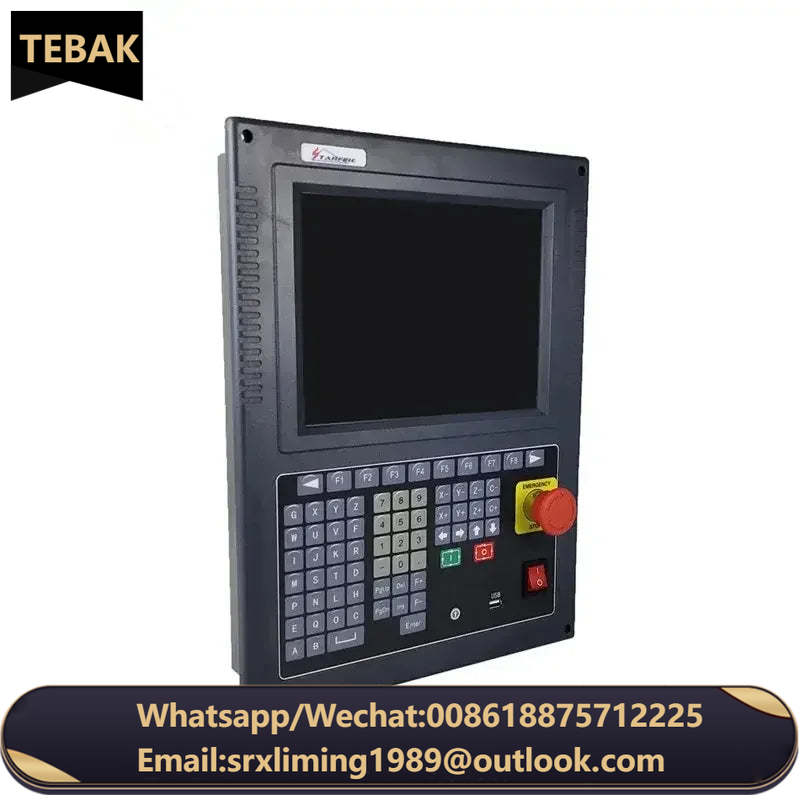

TEBAK CNC ControllerSF-2300S 2Axis Plasma Cutting Controller Flame Cutting Motion Controller System with Wireless Control Handle

CNC Controller SF-2300S 2Axis Plasma cutting controller Flame cutting motion controller system with wireless control handle

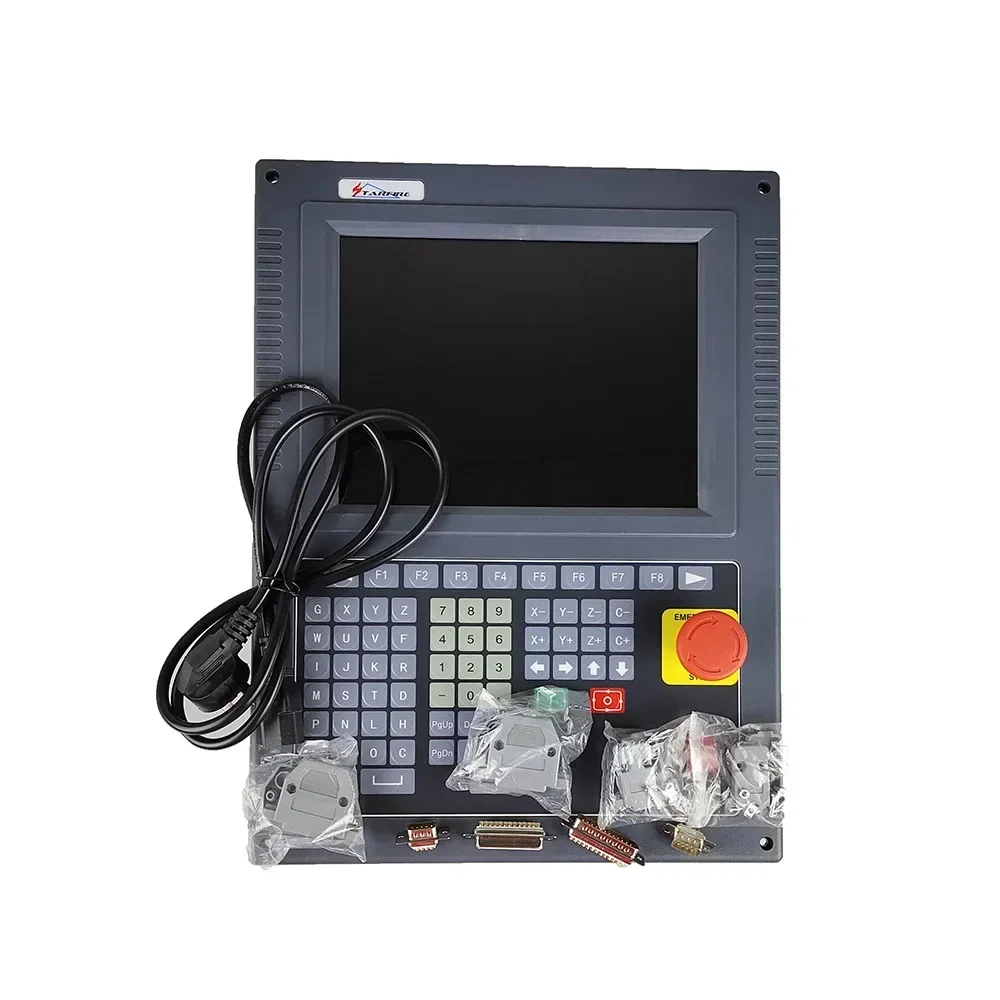

Product List:

Controller * 1
Power cord * 1
1 set of accessories

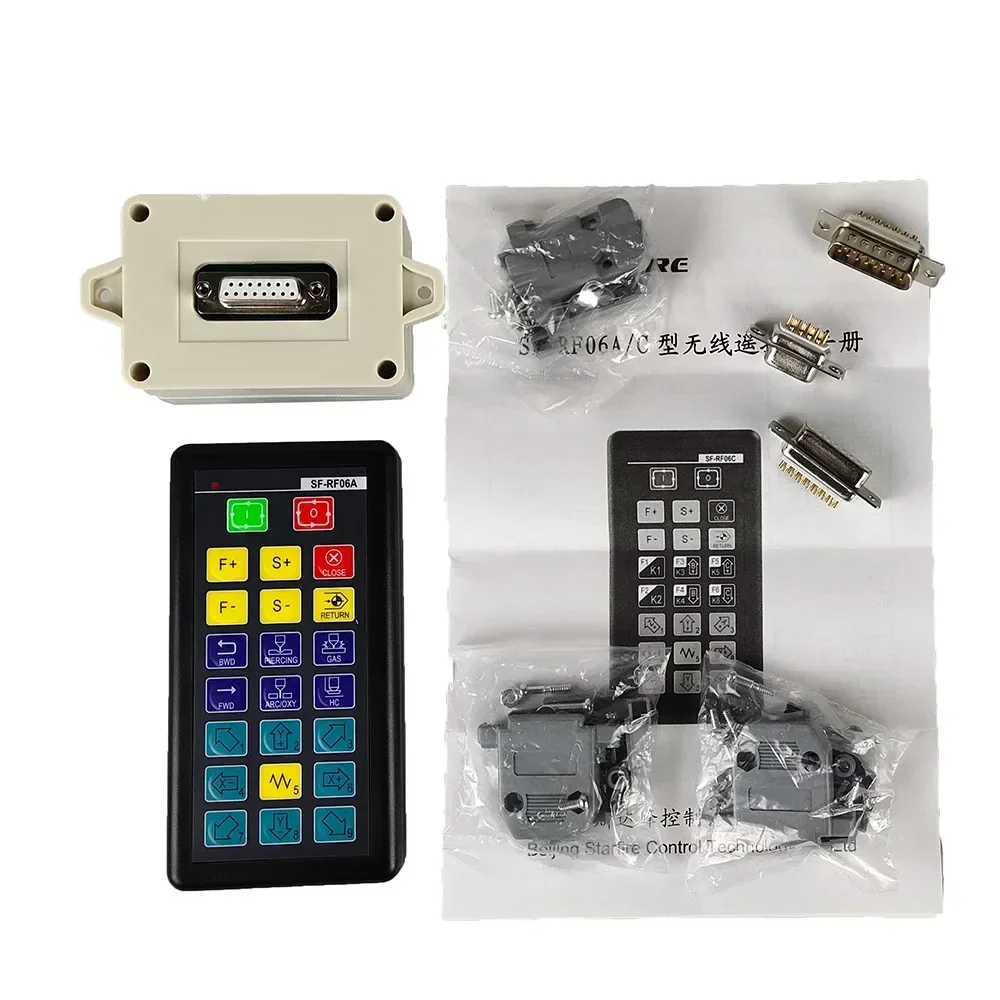

Wireless control handles and accessories

Features:

1. The system is highly reliable and has the ability to resist plasma interference, lightning strike and surge.
2. Practical flame / plasma cutting process. During plasma processing, corner speed control and height controller control are automatically completed; remote operation can be achieved by wireless remote control.
3. It has the function of kerf compensation and checks whether the compensation in the program is reasonable, and makes a corresponding report for users to choose;
4. Breakpoint recovery, automatic power-off recovery function, automatic breakpoint memory;
5. Arbitrary segment selection and perforation point processing functions;
6. With epitaxial perforation function for thick plates, and bridge function for thin plates;
7. Rollback, segment selection, breakpoint recovery, optional perforation position and other functions, greatly convenient for user control;
8. Special small line processing function is adopted, and the walking is smooth, which can be widely used in metal cutting, etc .;
9. Part library with 50 types of graphics (expandable), including commonly used basic machining parts;
10. Fully compatible with StarCAM nesting software, and compatible with mainstream nesting software such as FASTCAM;
11. Chinese and English operation interface conversion, dynamic graphic display, 1 to 8 times graphic enlargement, automatic tracking of moving points, U disk read program and timely software upgrade.

Specifications:

1. Processor: using industrial-grade ARM processing chip;
2. Display: 10-inch color LCD display;
3. Input \ output: the system provides 16 optical isolation inputs and 14 optical isolation outputs;
4. Number of linkage axes: 2 axes, which can be expanded to 4 linkage axes;
5. Maximum speed: not less than 24 m / min;
6. Pulse equivalent: flexible adjustment;
7. Storage space: 4G large user program storage capacity, unlimited processing programs;
8. Chassis size: 410 × 310 × 119 (mm);
9. Working temperature: 0 ℃ ~ 40 ℃; storage temperature: -40 ℃ ~ 60 ℃;

Application site:

SF-2300S cutting machine CNC system is suitable for various flame / plasma, waterjet cutting, laser cutting machines, widely used in metal processing, advertising, stone and other industries
