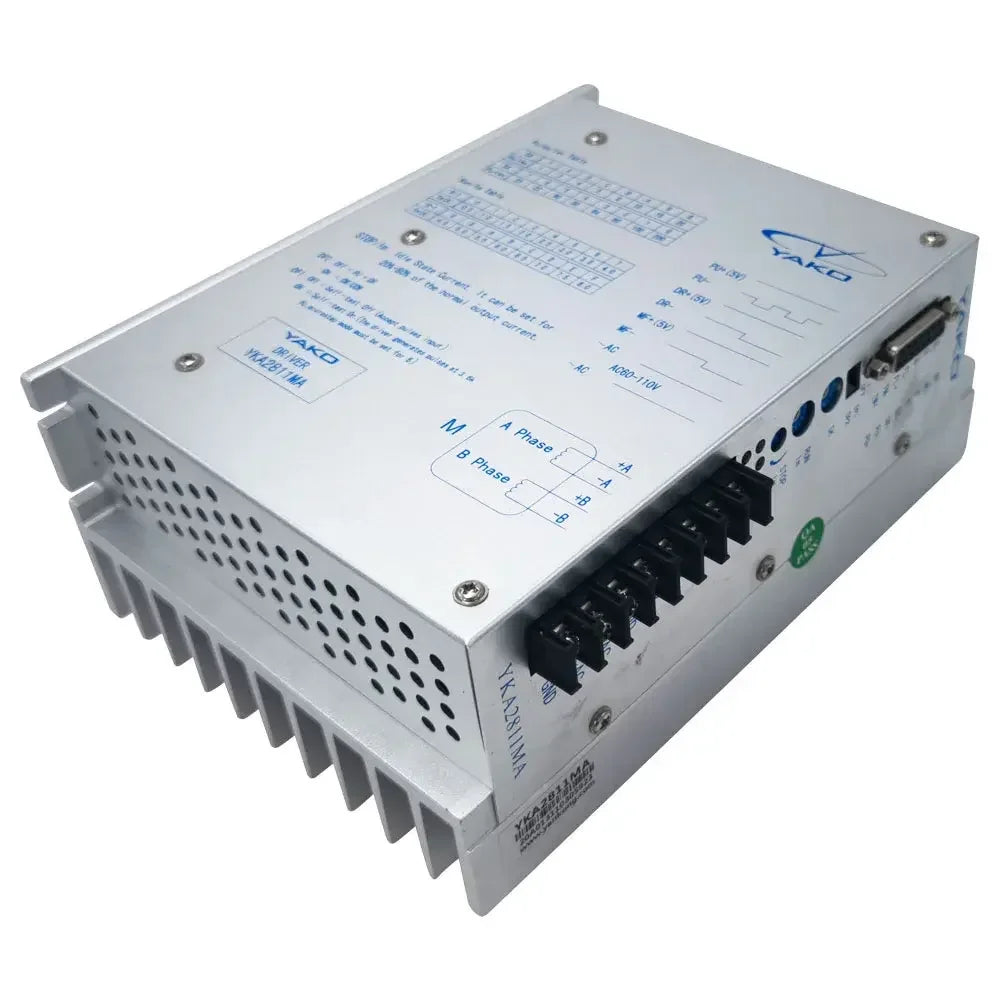

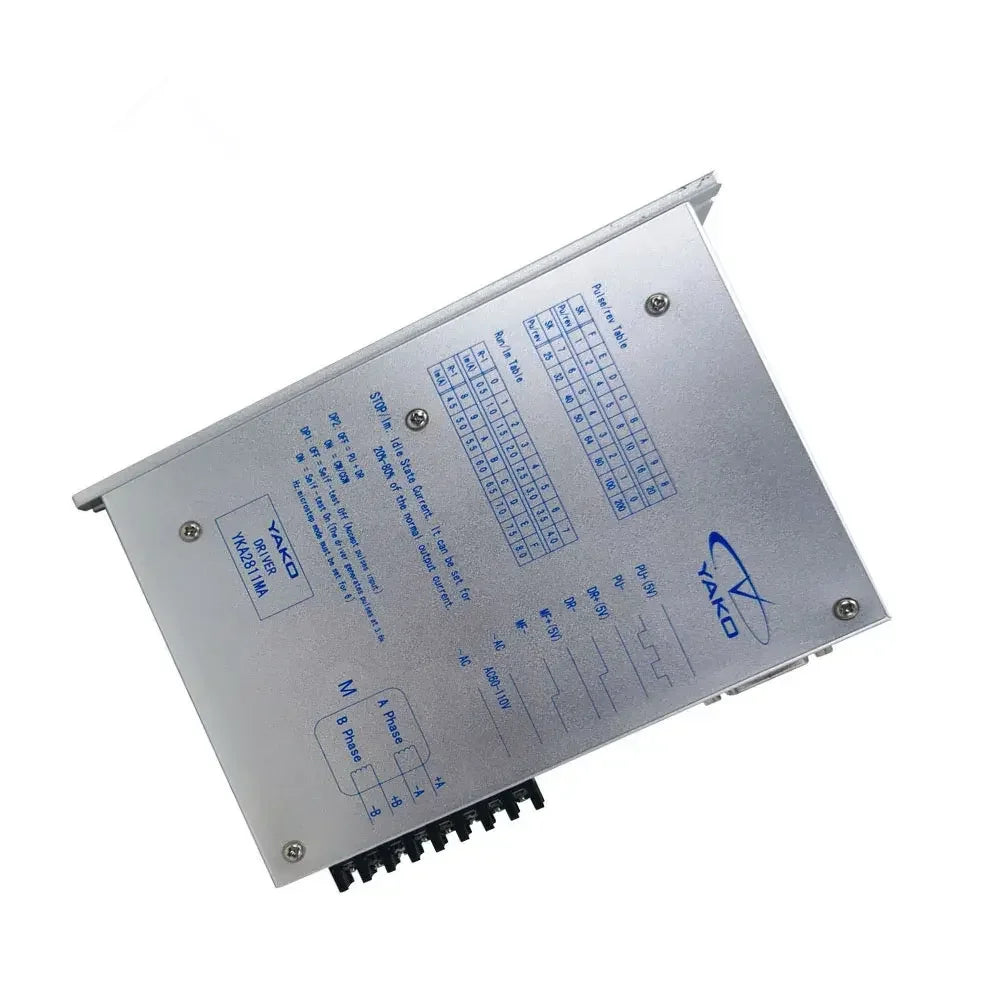

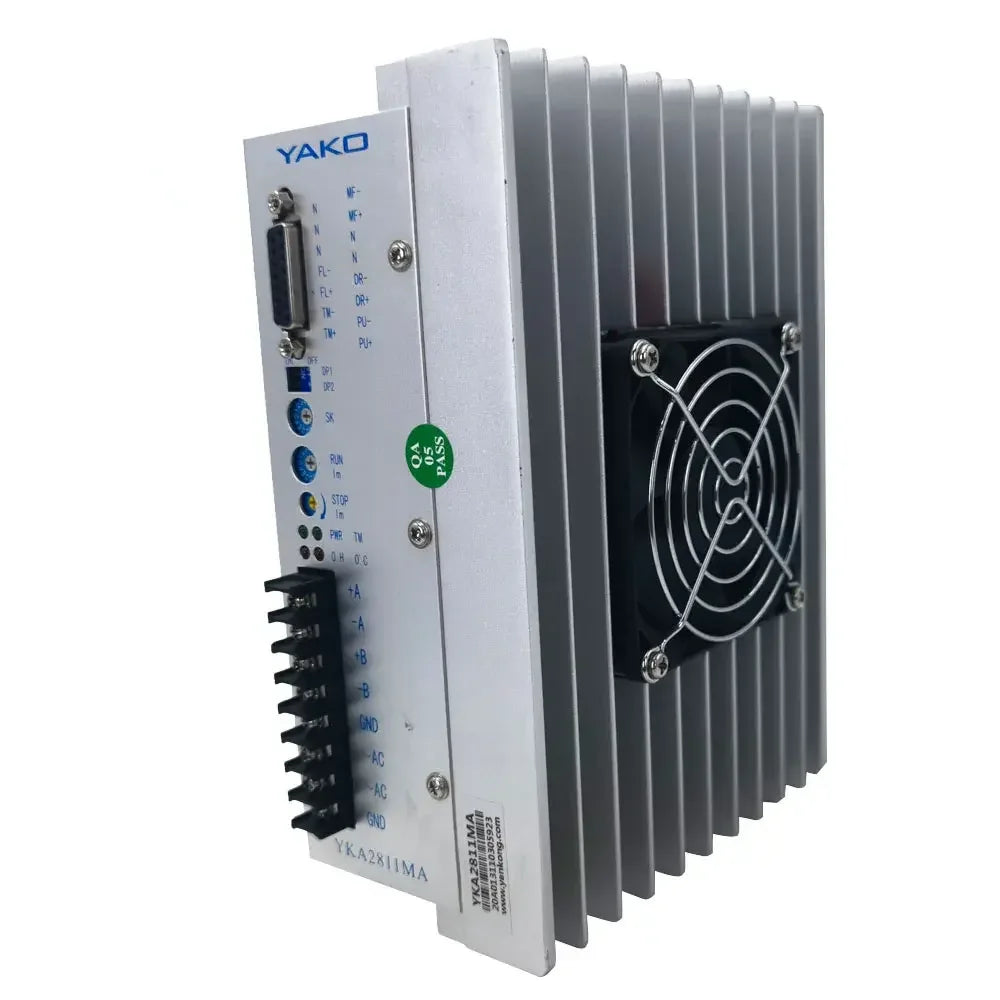

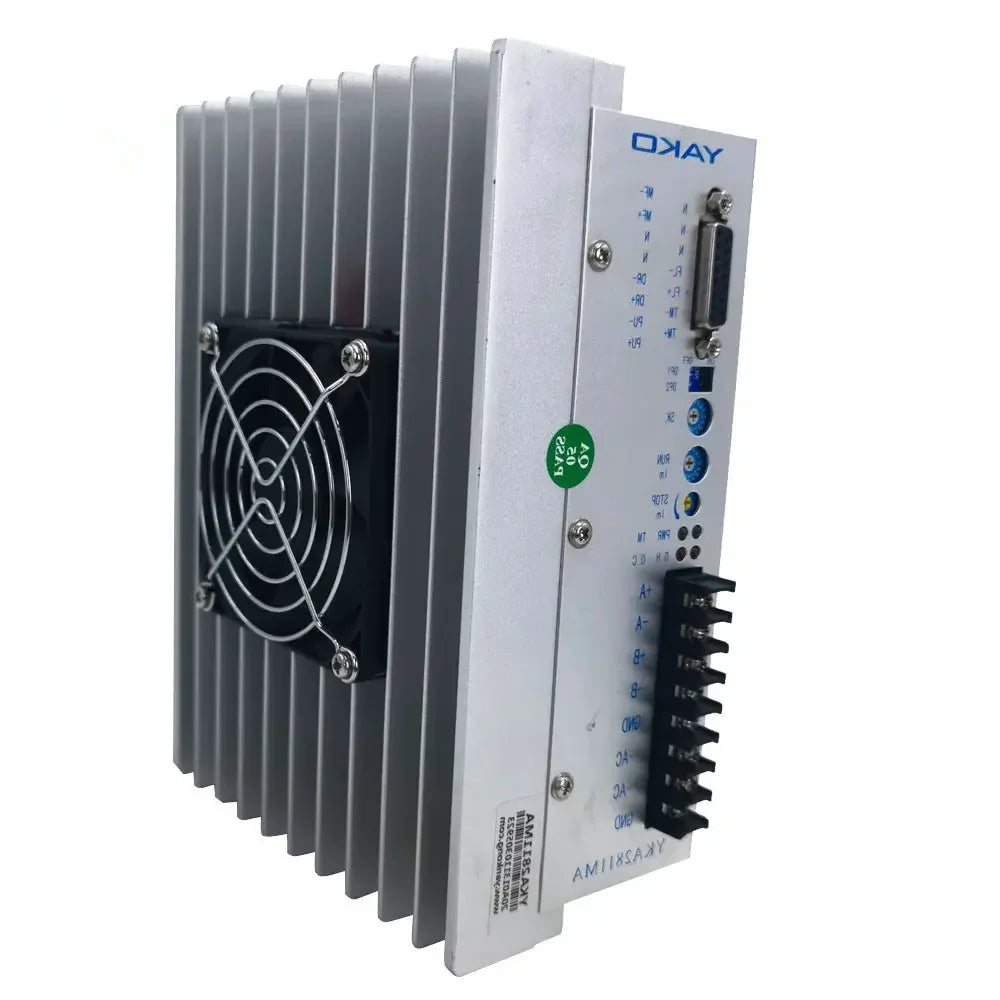

TEBAK CNC Controller YKA2811MA 60 -110VAC Original YAKO Stepper Driver Engine 8A for CNC Router NEWCARVE

TEBAK CNC Controller YKA2811MA 60 -110VAC Original YAKO Stepper Driver Engine 8A for CNC Router NEWCARVE

$59.00 USD
$59.00 USD $59.00 USD
Sale Sold out
model number

TEBAK CNC controller YKA2811MA 60 -110VAC Original YAKO  Stepper Driver Engine  8A For CNC Router NEWCARVE
Product packaging

YKA2811MA driver*1

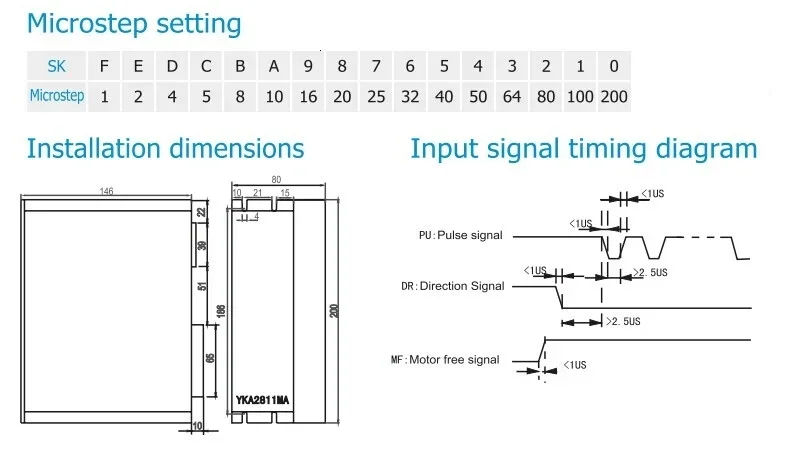

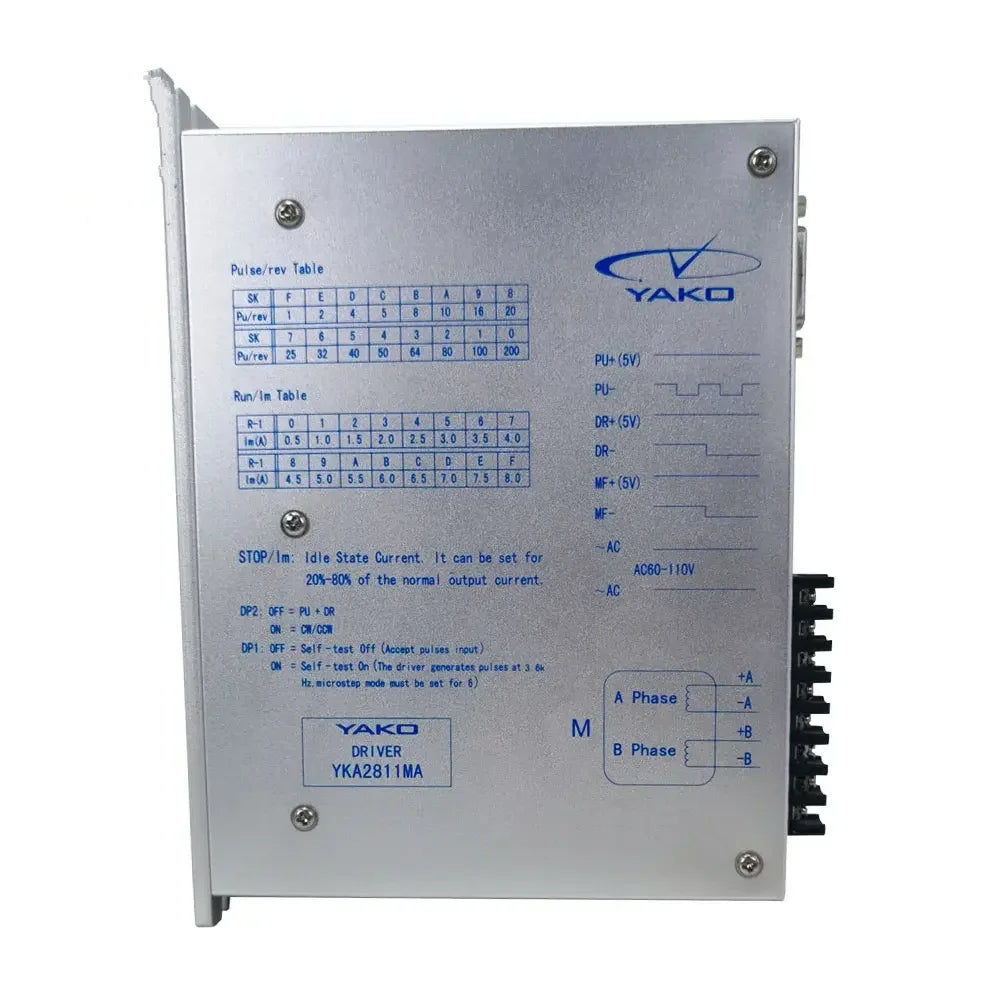

Microstep setting

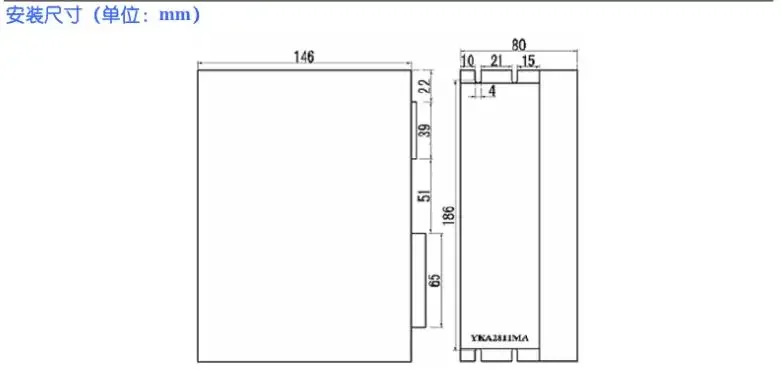

Size

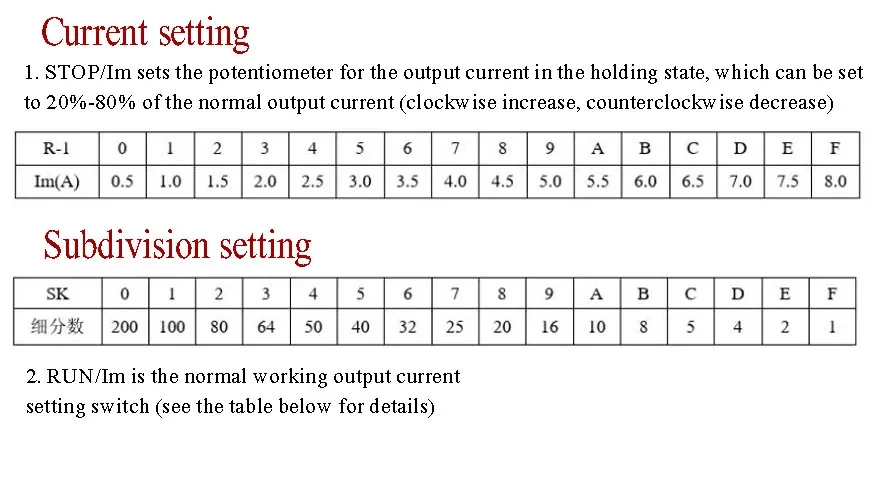

Current setting, subdivision setting

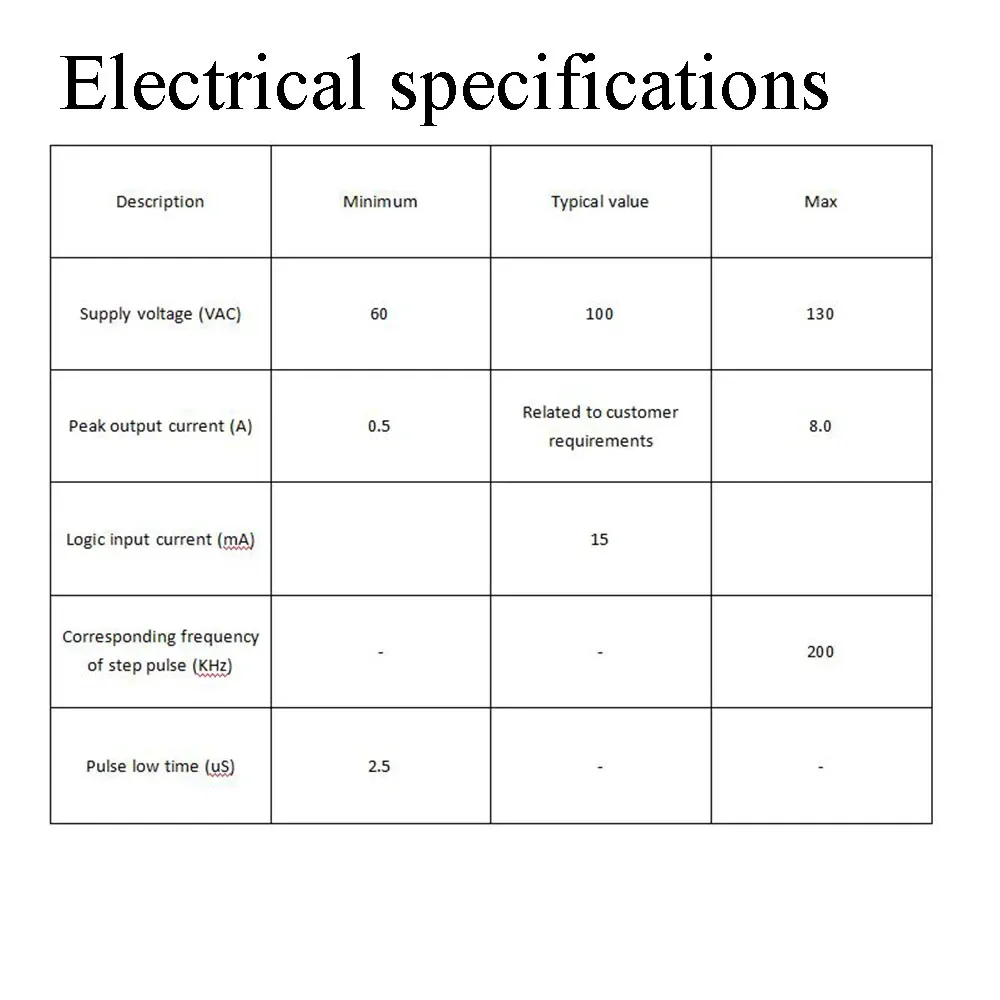

Electrical specifications

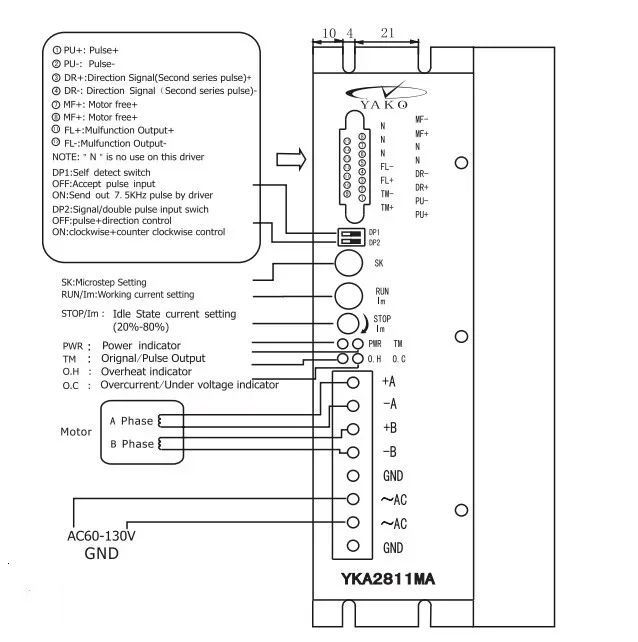

Driver wiring diagram

Features

Low noise, excellent stability
It has 16 stalls constant angle and constant torque stepper
Uses a unique control circuit, effectively reducing the noise, increased rotational stability
Maximum response frequency of up to 200Kpps
When the pulse stops over 100ms, the coil current is automatically reduced to 20% -80%
Bipolar constant current chopping mode, making the same motor can output more speed and power
Optically isolated signal input/output
Drive current from 0.5A / phase to 8.0A / phase separation speed adjustable 16
Single-supply input voltage range: AC60-130V
Error protection: thermal protection; over-current, low voltage protection
Volume 80x200x156mm, weight is 2.0kgs

Applications:

Engraving machines, laser marking machines, textile machinery, stripping machine, winding machines, packaging machines, machined springs, fluid

Pin function description
