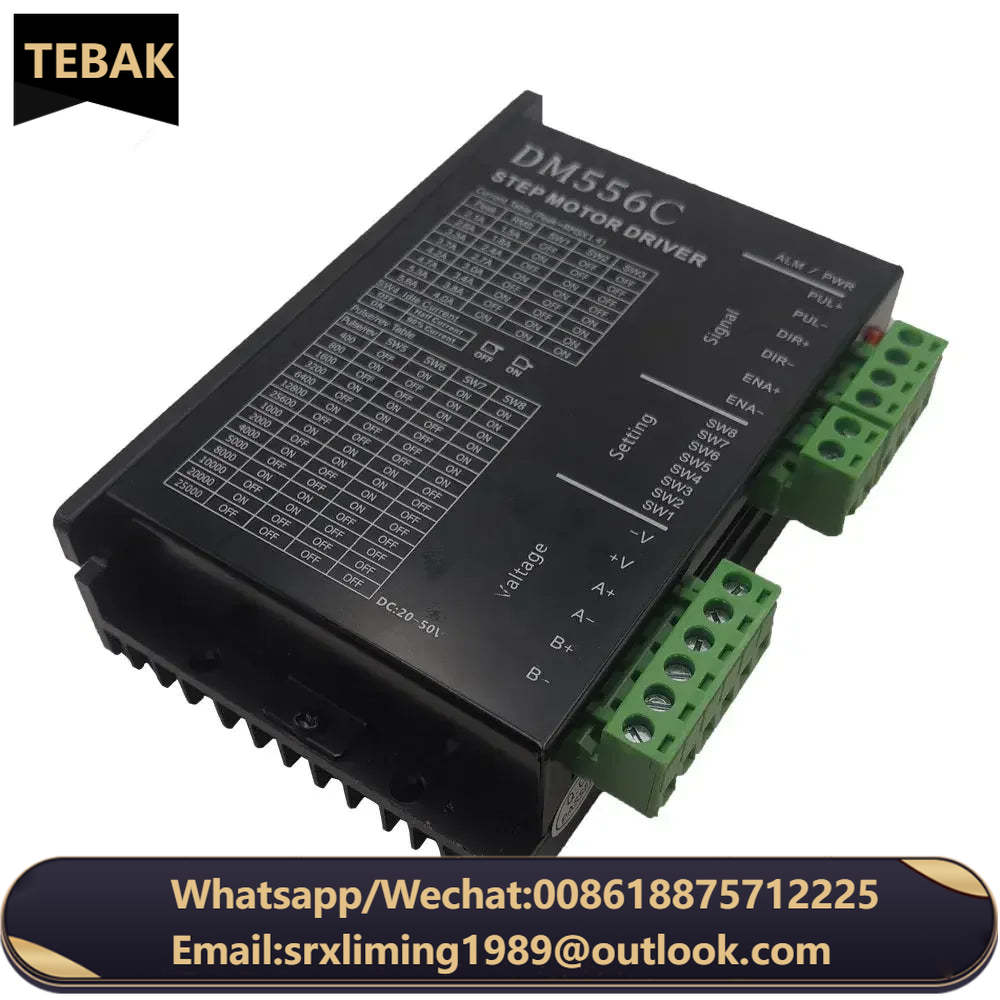

TEBAK CNC Accessories a Single Power Supply signal 5V-24V Universal 2-phase Digital Stepper Motor Driver DM556C DC20V-50V

TEBAK 2-phase Digital Stepper Motor Driver DM556C DC20V-50V with a single power supply signal 5V-24V universal
Product Package:

1 x stepper motor drive

Product Description:

Overview:

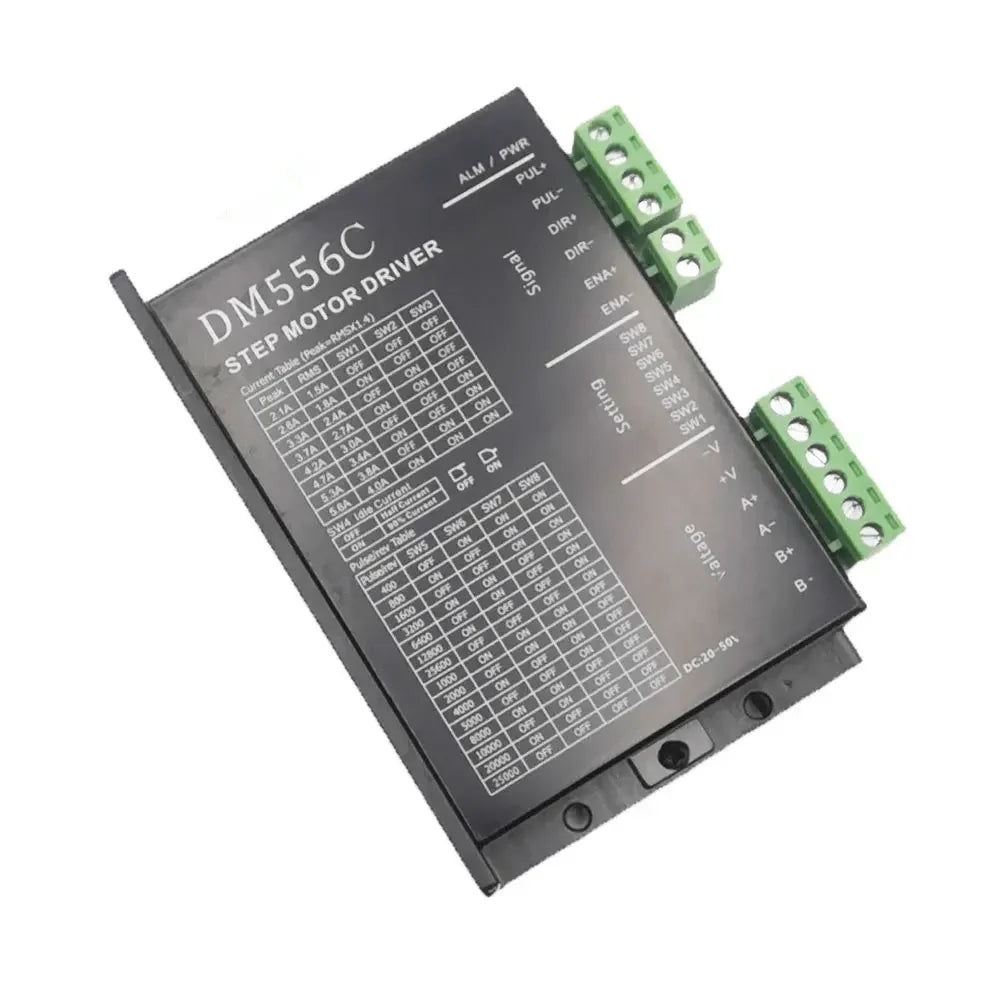

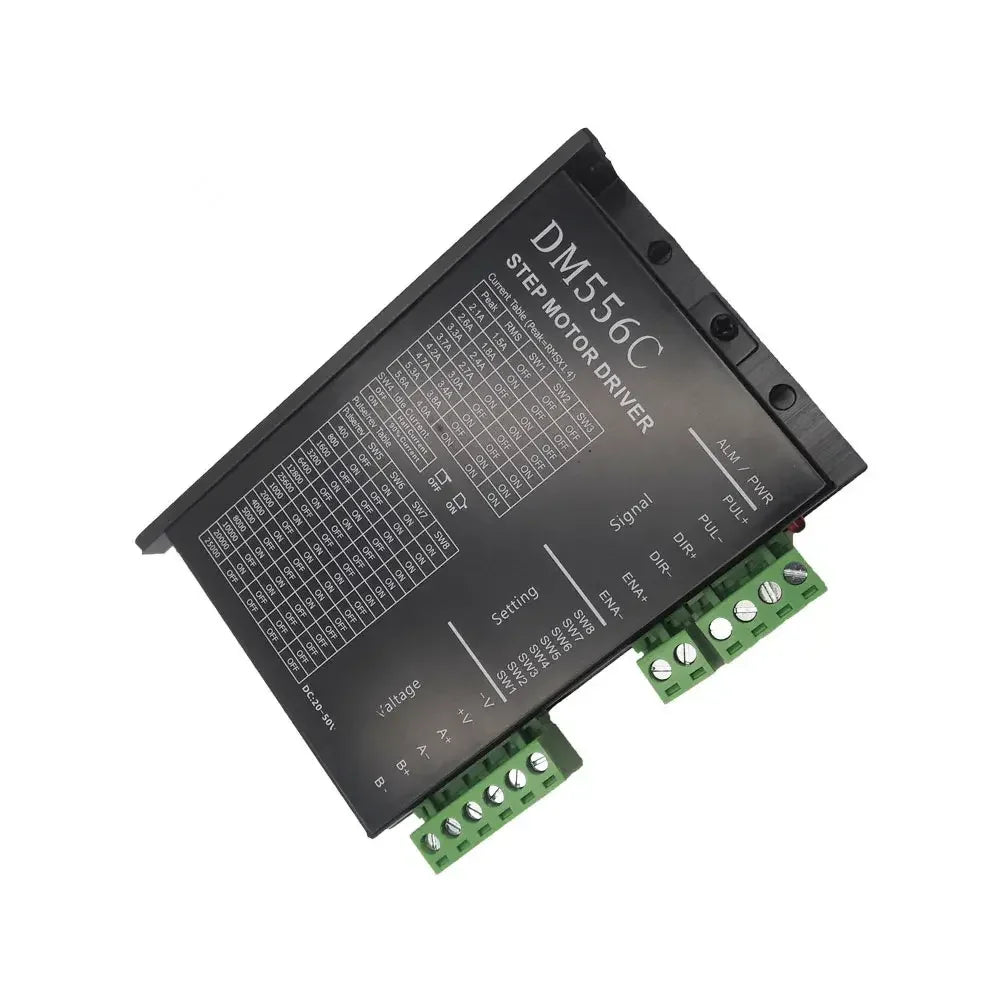

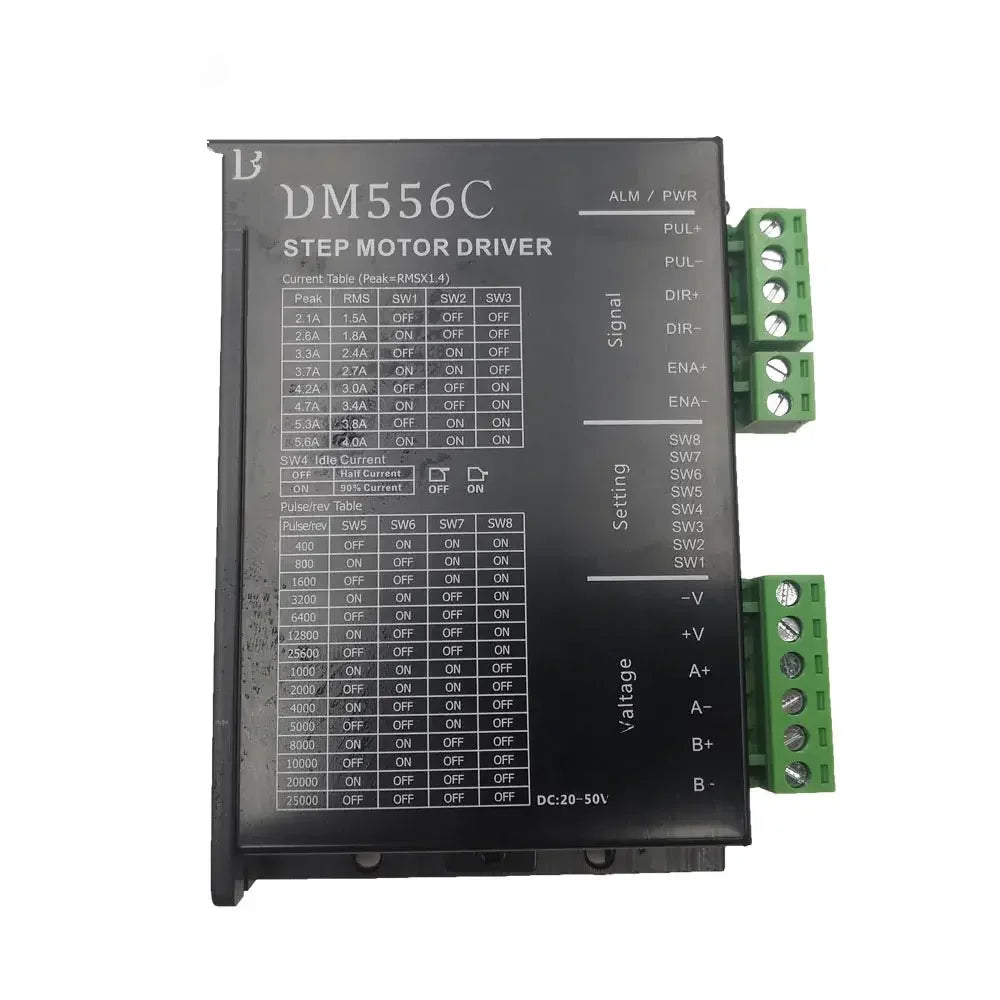

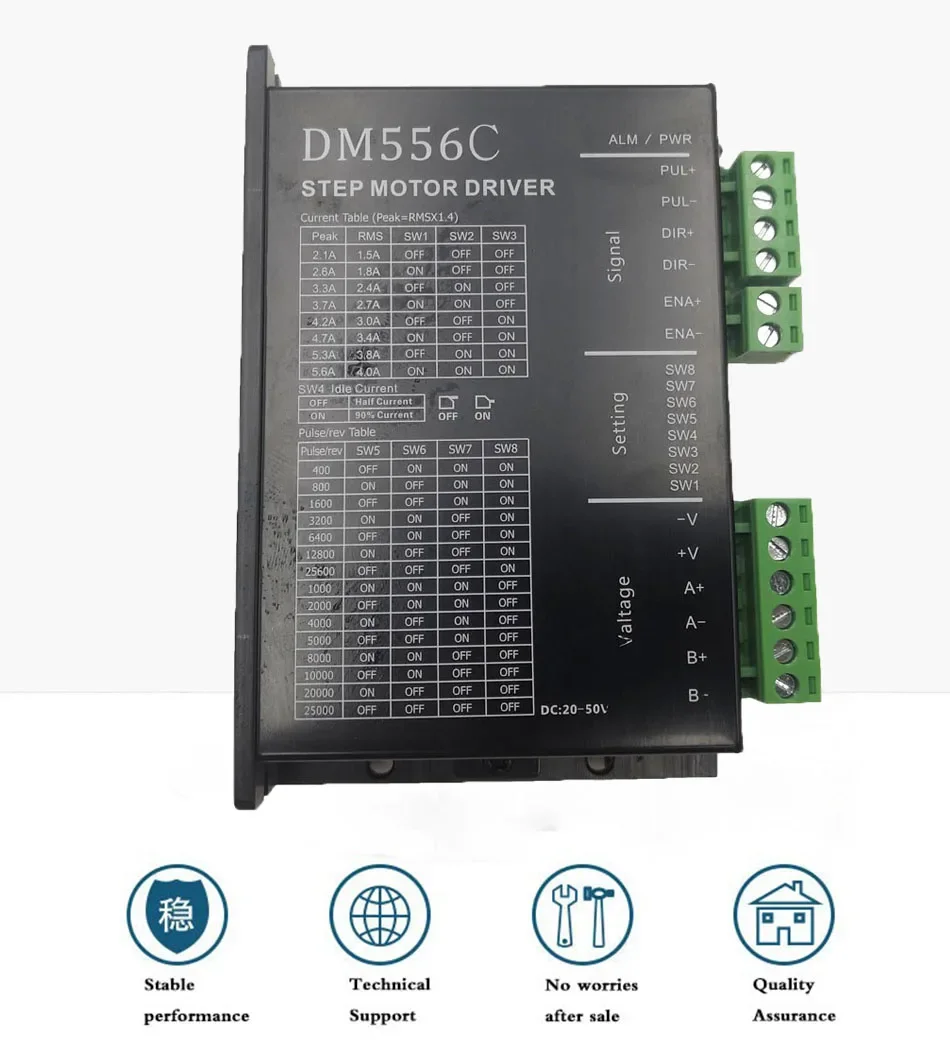

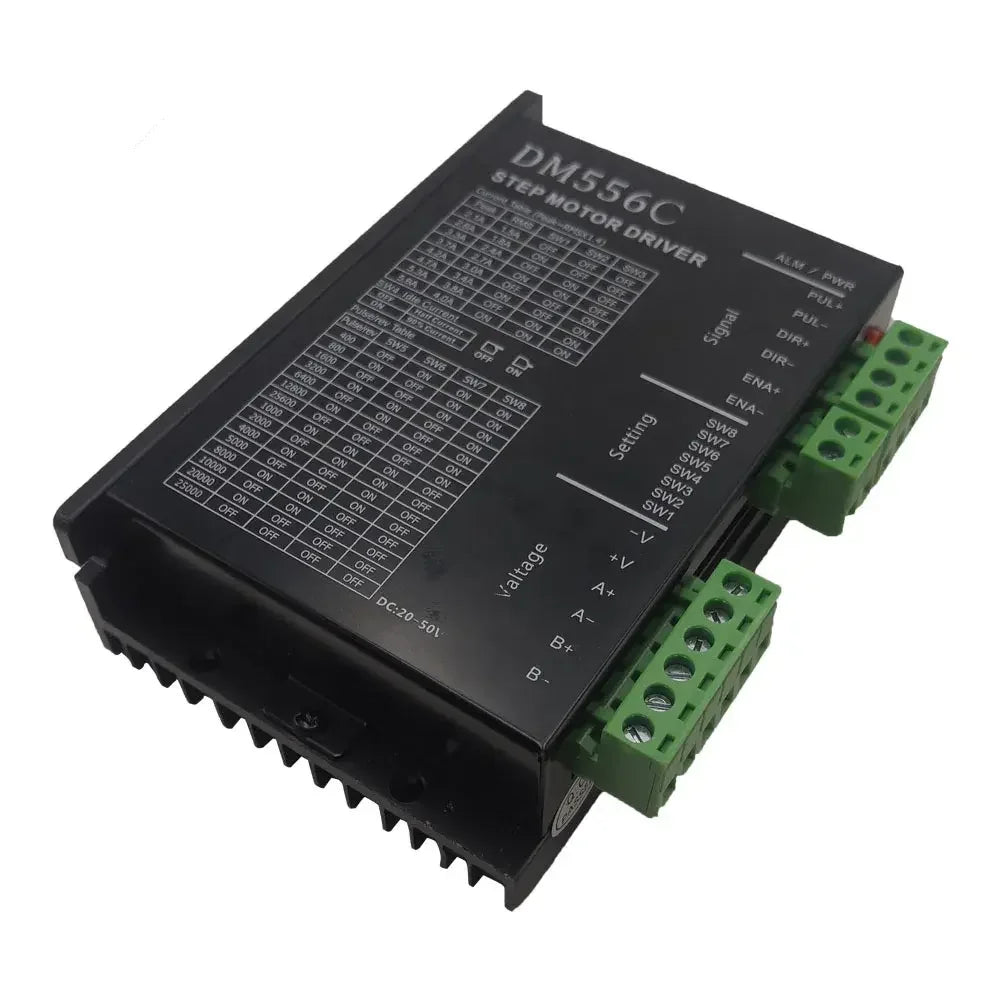

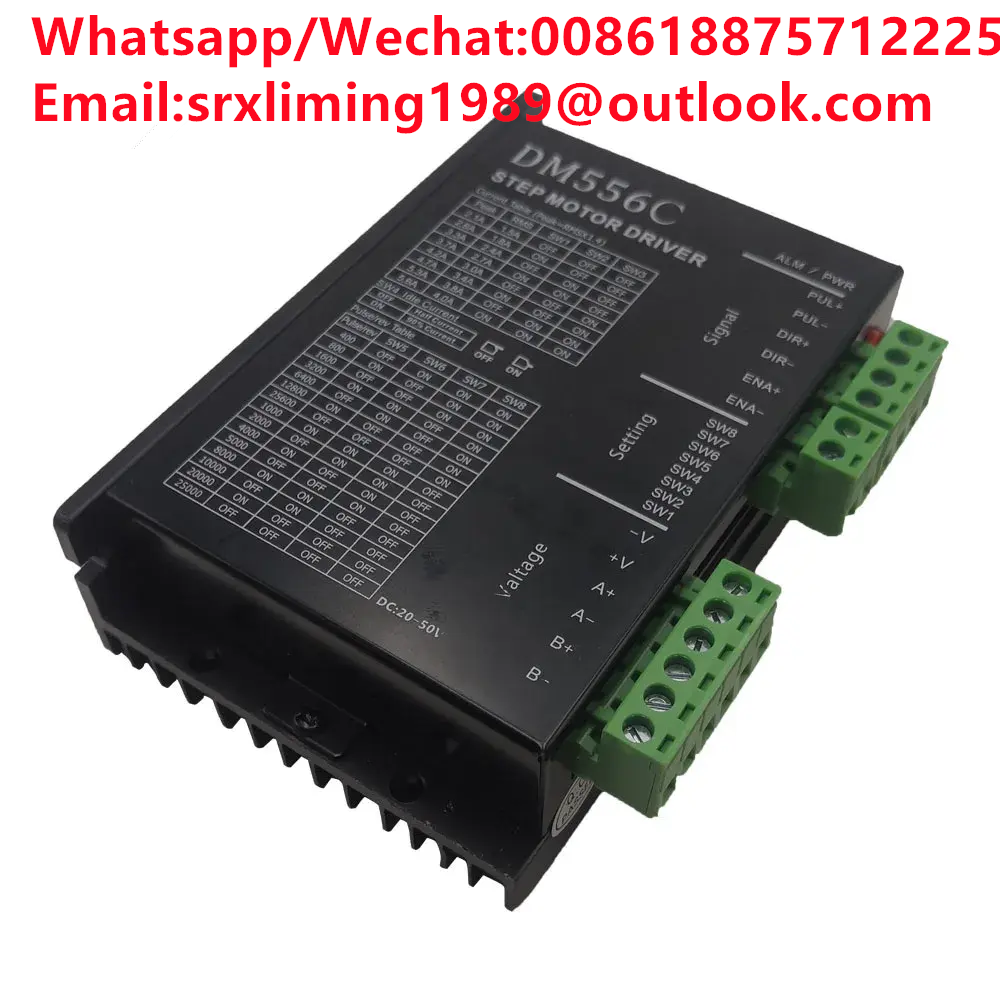

DM556C is a high-performance digital stepping driver with a drive voltage of DC20-50V and a single power supply. It is suitable for various types of two-phase hybrid stepping motors with currents below 4.0A and outer diameters of 42mm, 57mm, 60mm, 86mm. The drive uses a servo-like control principle internally, a unique circuit design, and superior software algorithm processing. Even under low subdivision conditions, it can make the motor run smoothly at low speed, with almost no vibration and noise; smooth and accurate current control technology Greatly reduce motor heating; external 15-speed equal-angle constant torque subdivision, up to 128 subdivisions; photoelectric isolation differential signal input, strong anti-interference ability; with overvoltage, undervoltage, overcurrent protection and other error protection functions; Dispenser, laser engraving, 3C manufacturing and other medium and low-speed application fields have obvious advantages in stability, vibration, and noise performance, which can greatly improve equipment performance.

Features:

1,A new generation of digital drives. 2,High cost performance, good stability, superior noise and vibration performance. 3,15 levels of constant angle and constant torque subdivision, up to 128 subdivisions. 4,The current control is smooth and precise, and the motor generates little heat. 5,The highest impulse response frequency can reach 300Kpps. 6,When the step pulse stops exceeding 200mS, the motor current is halved. 7,It has excellent smoothness in low frequency subdivision. 8,Optically isolated differential signal input, strong anti-interference ability. 9,The effective value of the drive current is adjustable below 4A. 10,Voltage range: DC: 20-50V. 11,It has error protection functions such as overvoltage, undervoltage, and overcurrent protection. 12,The volume is very small, DM556C is an economical and compact stepping driver, the volume is 118X76X33 (unit: mm) (without terminal). The net weight is 0.3kg.

Typical application:

Dispenser, engraving machine, laser equipment, medical equipment, labeling machine, electronic equipment, advertising equipment and other automation equipment. It is used in equipment where users expect low heat generation, low noise, low vibration, high stability and high precision.

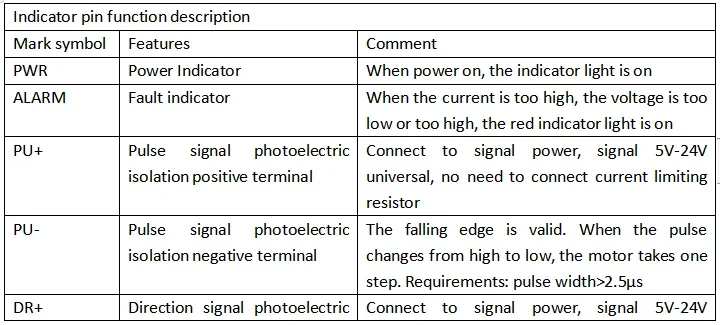

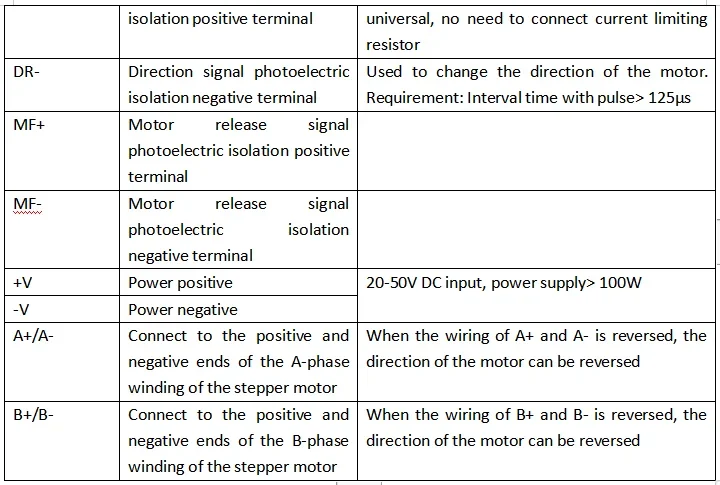

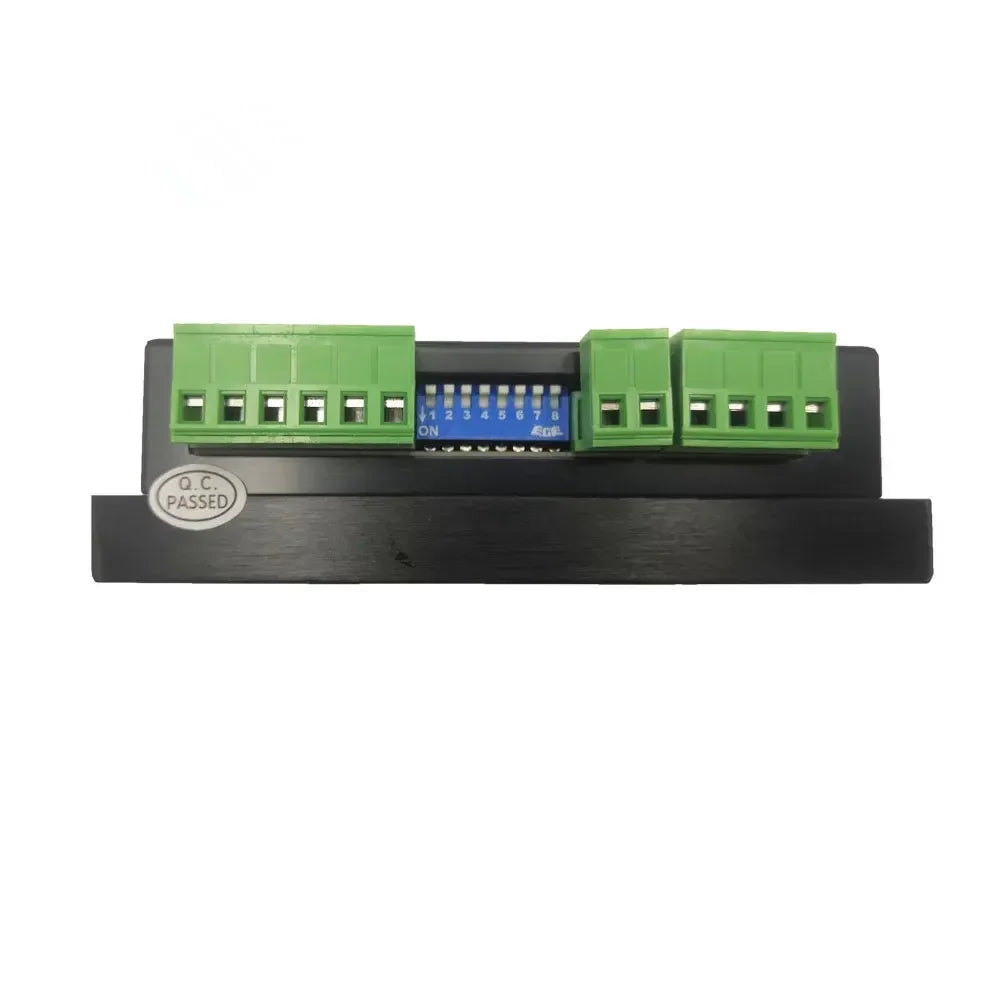

Indicator pin function description

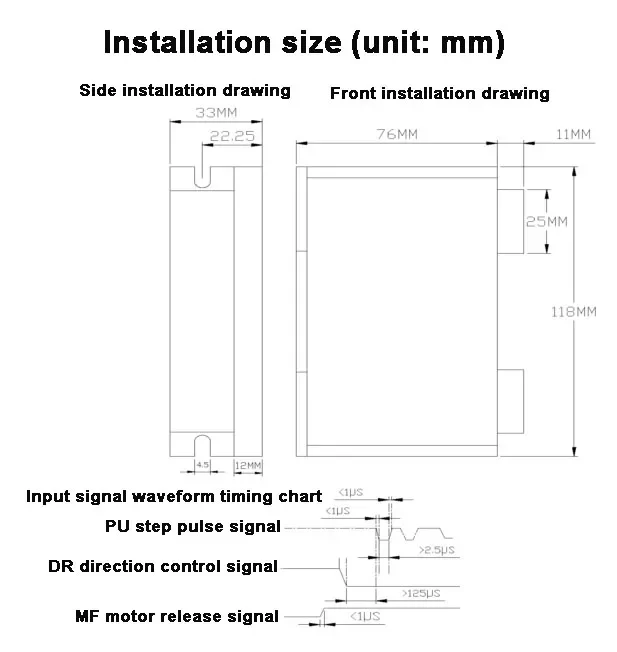

Installation size

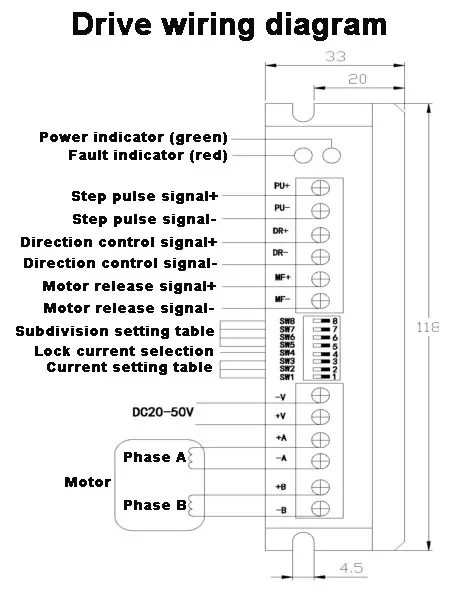

Wiring diagram
