Chinese Supplier New Fashion Industrial Vertical Automatic Tool Changer TCK56 CNC Lathe
| Item |
Unit |
FCK50 |
|
| 1 |
Max.Swing Over Bed |
mm |
520 |
| 2 |
Max.Swing Over Carriage |
mm |
300 |
| 3 |
Max.Turning Length |
mm |
500 |
| 4 |
Lathe Bed Structure |
|
45° Integral inclined lathe |
| 5 |
Spindle Nose |
|
A2-6 |
| 6 |
Spindle Speed Range |
Rpm/min |
35-3000 |
| 7 |
Spindle Bore |
mm |
66 |
| 8 |
Bar capacity |
mm |
50(Hydraulic chuck ) |
| 9 |
Main Motor (C Axis) Spindle Motor |
KW |
7.5KW Servo |
| 10 |

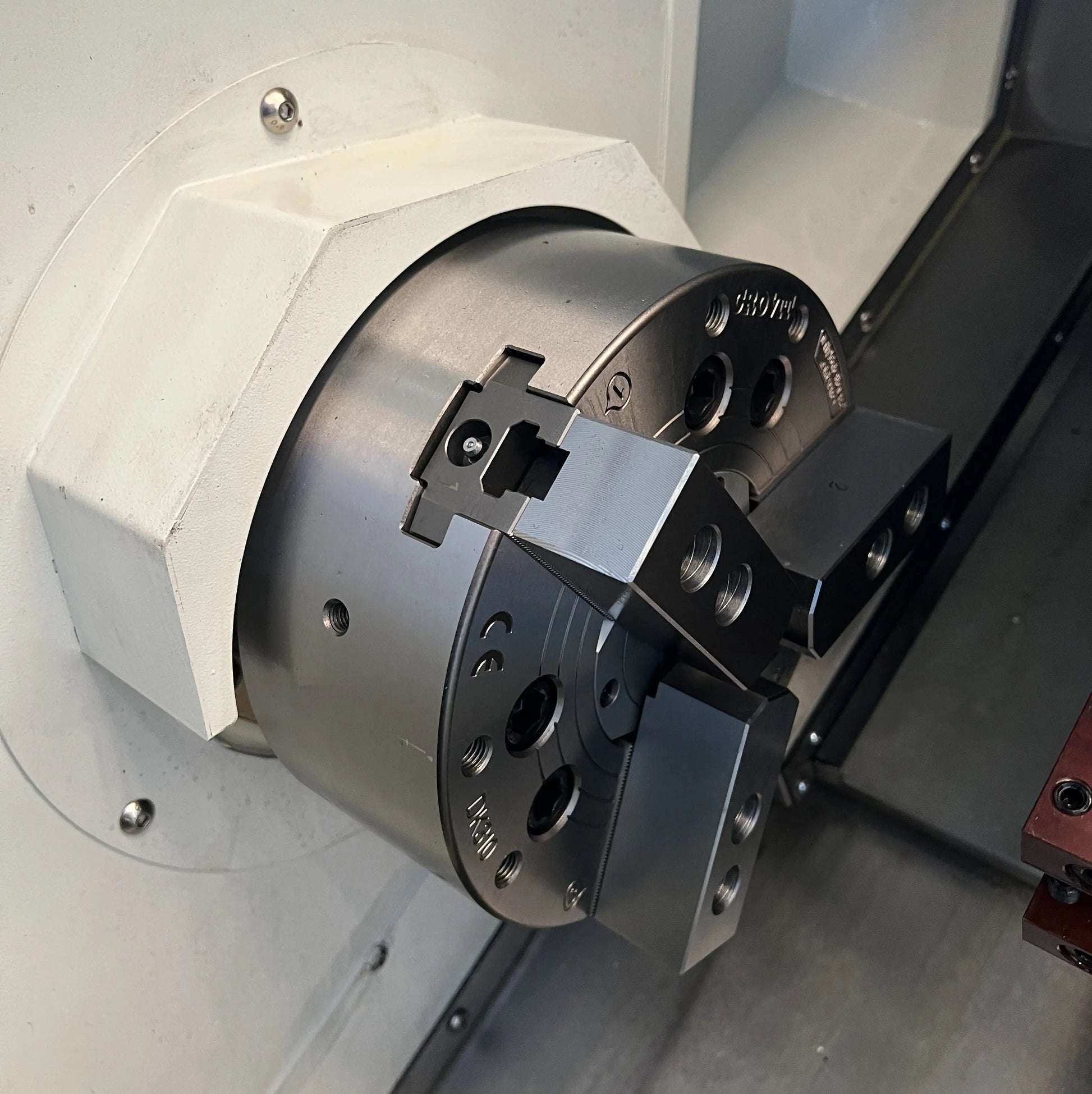

Chuck diameter |
inch |
10 |
| 11 |
X axis travel |
mm |
260 |
| 12 |
Z axis travel |
mm |
600 |
| 13 |
X axis rapid feed |
m/min |
24 |
| 14 |
Z axis rapid feed |
m/min |
24 |
| 15 |
Cutting feed |
mm |
0.1-6000min/mm |
| 16 |

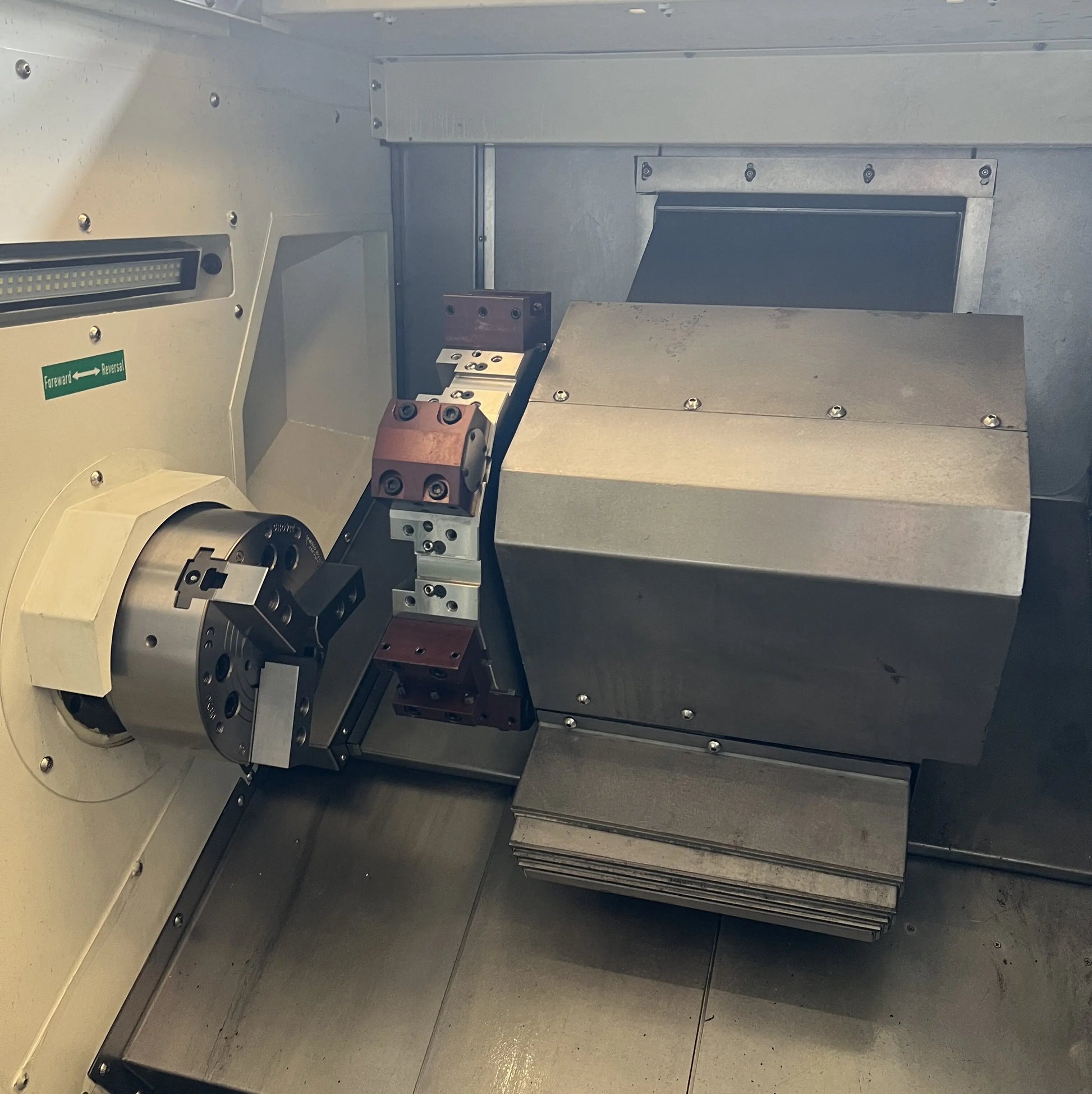

Turret |
|
12-Station servo Turret |
| 17 |

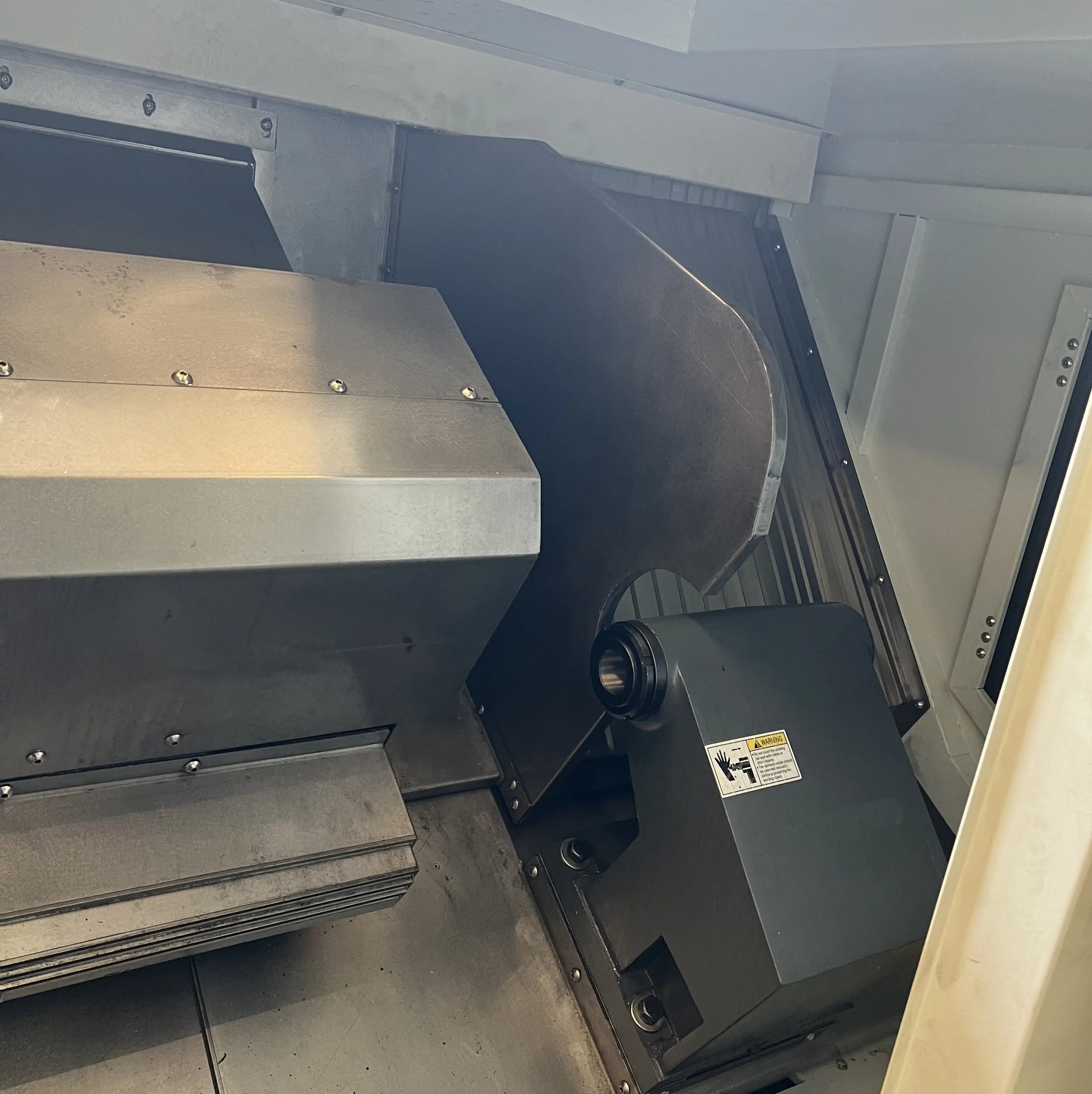

Diameter of Tailstock sleeve |
mm |
55mm |
| 18 |
Tail stock travel |
mm |
120mm |
| 19 |
Tail stock feed type |
|
Hydraulic tailstock |
| 20 |
Position accuracy |
mm |
0.008 |
| 21 |
Repositioning accuracy |
mm |
0.005 |
| 22 |
Weight |
KG |
3200 |
| 23 |
Machine Size |
MM |
2700 x 1800 x 1860 |
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
