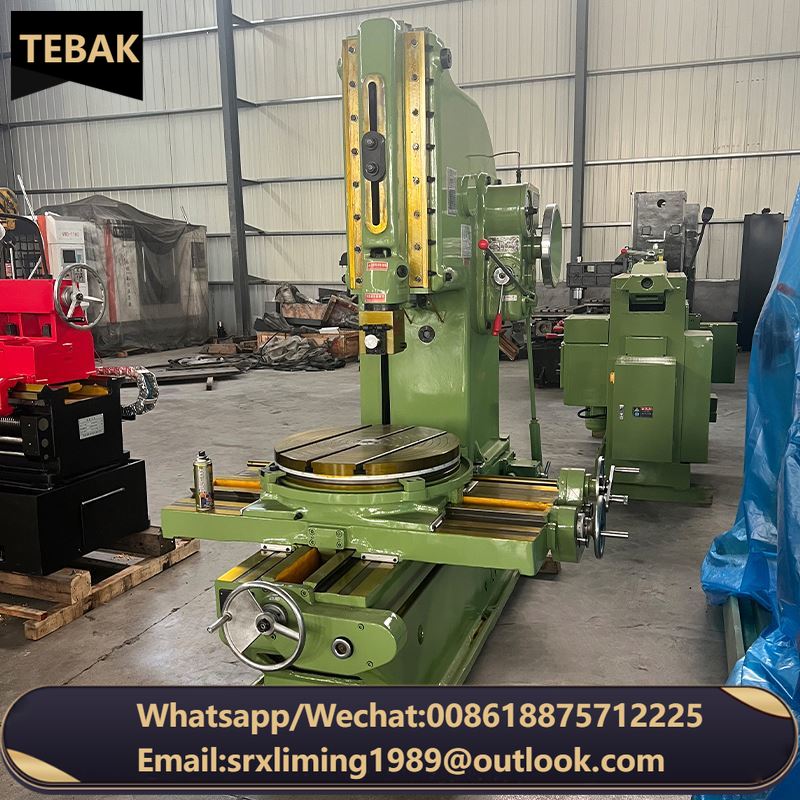

TEBAK B5020 Vertical CNC Metal Keyway Slotting Machine Milling Machine Horizontal Blind Hole Slotting Machine Manufacturer
TEBAK B5020 Vertical CNC Metal Keyway Slotting Machine Milling Machine Horizontal Blind Hole Slotting Machine Manufacturer
Couldn't load pickup availability
|
Specification
|
Units
|
B5020
|
B5032
|
B5040
|
|
Max.ram slotting length
|
mm
|
200
|
320
|
400
|
|
Ram moving frequency per minute
|
times/min
|
32-125
|
20-80
|
20-80
|
|
Ram title angle
|
.
|
0-8
|
0-8
|
0-8
|
|
Ram vertical adjustment distance
|
mm
|
230
|
315
|
315
|
|
Distance from cutter head to column surface
|
mm
|
485
|
600
|
600
|
|
Distance between ram lower end to table surface
|
mm
|
320
|
490
|
690
|
|
Table diameter
|
mm
|
500
|
630
|
630
|
|
Table longitudinal travel
|
mm
|
500
|
630
|
620
|
|
Table cross travel
|
mm
|
500
|
560
|
560
|
|
Table rotation angle
|
.
|
360
|
360
|
360
|
|
Table feed range(longitudinal and cross)
|
mm
|
0.08-1.21
|
0.08-1.21
|
0.08-1.21
|
|
Table rotary feed range
|
mm
|
0.052-0.783
|
0.052-0.783
|
0.052-0.783
|
|
Main motor power
|
kw
|
3
|
4
|
4
|
|
Machine weight
|
kg
|
2200
|
3000
|
3700
|
|
Overall dimension
|
mm
|
1916*1305*1995
|
2261*1495*2245
|
2290*1525*2485
|
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
