TEBAK

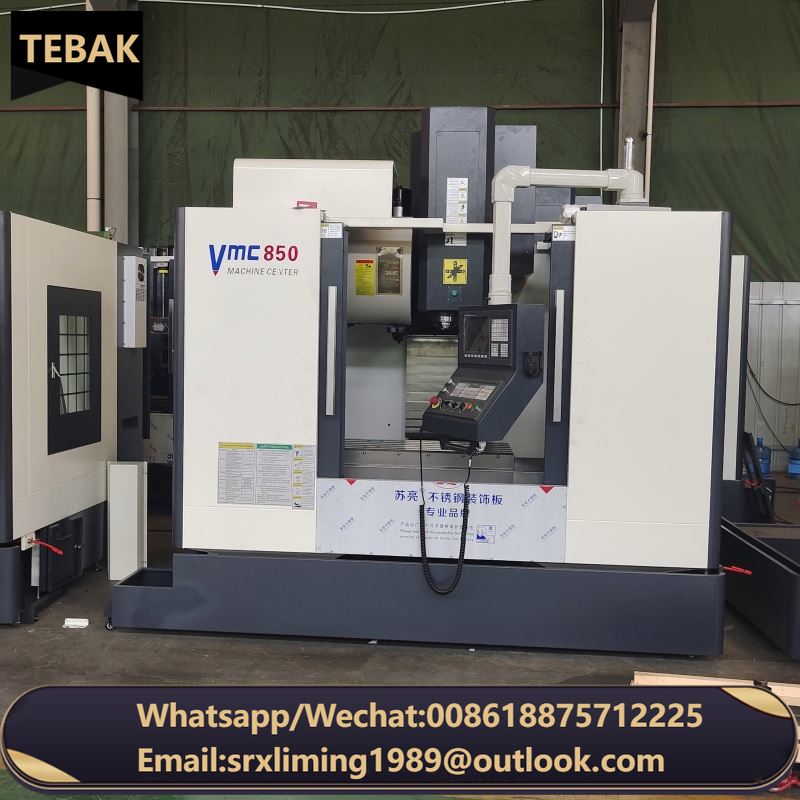

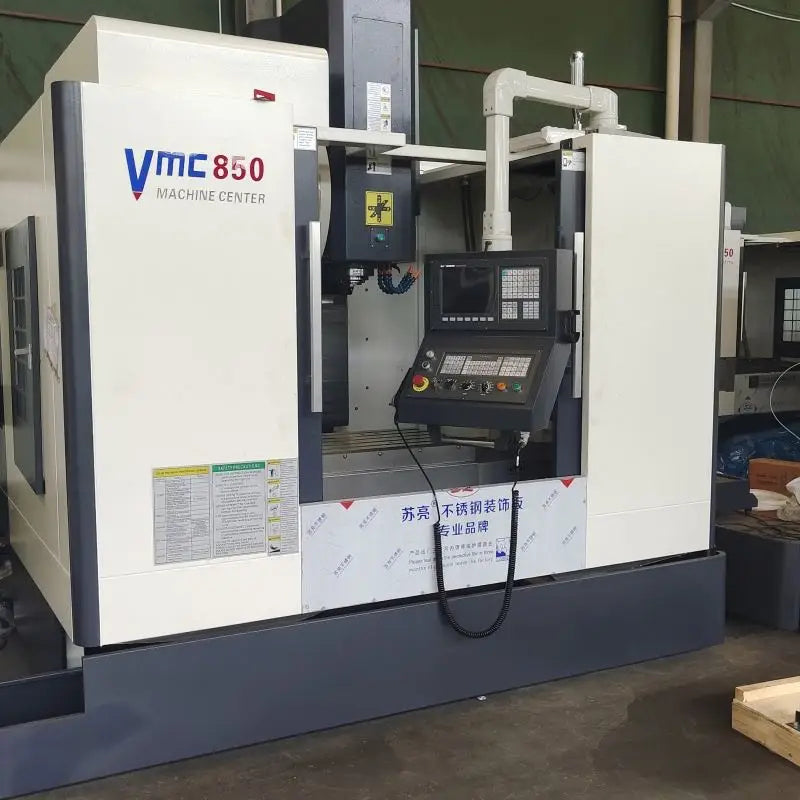

TEBAK 800*500*500 Factory CNC Vertical Machining Center VMC850 CNC Milling Machine
TEBAK 800*500*500 Factory CNC Vertical Machining Center VMC850 CNC Milling Machine
Regular price
$1.00 USD
Regular price
$1,000.00 USD
Sale price
$1.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
TEBAK 800*500*500 Factory CNC Vertical Machining Center VMC850 CNC Milling Machine
|
Specifications
|
VMC1160
|
VMC1270
|
VMC1370
|
VMC1580
|
|
X axis
|
1100mm
|
1200mm
|
1300mm
|
1500mm
|
|
Y axis
|
600mm
|
700mm
|
700mm
|
800mm
|
|
Z axis
|
700mm
|
700mm
|
700mm
|
700mm
|
|
Spindle end face to workbench
|
120-720mm
|
120-720mm
|
100-800mm
|
155-855mm
|
|
Spindle center to column guide rail
|
667mm
|
797mm
|
797mm
|
830mm
|
|
X-axis rapid movement
|
24m/min
|
24m/min
|
18m/min
|
12m/min
|
|
Y-axis rapid movement
|
24m/min
|
24m/min
|
18m/min
|
12m/min
|
|
Z-axis fast movement
|
16m/min
|
24m/min
|
15m/min
|
15m/min
|
|
Cutting feed
|
1-10m/min
|
1-10m/min
|
2.5-5000mm/min
|
1-10m/min
|
|
Three axis servo motor torque
|
25 N.m
|
25 N.m
|
25N.M
|
22N.M
|
|
Table area
|
1200×600mm
|
1300×700mm
|
1400x700mm
|
1600×800mm
|
|
Table bearing
|
800kg
|
900Kg
|
900kg
|
1000kg
|
|
T-groove
|
5-18×100mm
|
5×18×100mm
|
5×18-115mm
|
5×22×135mm
|
|
Spindle speed
|
8000 rpm
|
8000 rpm
|
8000rpm
|
8000 rpm
|
|
Spindle taper hole
|
BT40
|
BT40
|
BT50
|
BT50
|
|
Main motor power
|
11kw
|
11KW
|
11/15kw
|
11/15kw
|
|
Positioning accuracy (JIS standard)
|
±0.005/300mm
|
±0.005/300mm
|
±0.012mm
|
±0.01/300mm
|
|
Repeat positioning accuracy (JIS standard)
|
±0.003
|
±0.003mm
|
±0.005mm
|
±0.008mm
|
|
Overall dimension
|
3050×2300×2500mm
|
3300×2700×2600mm
|
3400x2750x2700mm
|
4050×2850×3800mm
|
|
Weight(kg)
|
6300
|
7300
|
9800
|
11000
|
Different Models
Hengshui Mengshang Trading Co., Ltd. is a main professional supplier in Product Machine,CNC Carbide inserts, Turning tools and Milling tools, Our brand is TEBAK, Design and Sales. We insists the principles of "High quality, Competitive price and Excellent service."We are leading OED&ODM manufacture many years of experience in this filed. TEBAK have various kinds of productc and they are 70% for expert. Our customers are from all over the world, such as North America, Europe, South America, the Middle east, East Asia and Africa. The quality control standards are based on ISO9001 certifications. TEBAK relies on advanced automatic machining center and complete testing testing method, control all aspects of production and operation according to the standard process. We have an outstanding team of designers to continuously launch innovative product design, in order to meet the needs of the international marked. Welcome send inquiry to us, we will provide high quality products and excellent service for you!
