TEBAK 25PPR 100PPR CNC Remote Controller Manual Pulse Generator CNC Machining Parts MPG Wireless Handwheel for CNC Systems

TEBAK 25PPR 100PPR CNC Remote Controller Manual Pulse Generator CNC Machining Parts MPG Wireless Handwheel for CNC Systems

$59.00 USD
$59.00 USD $59.00 USD
Sale Sold out
model number

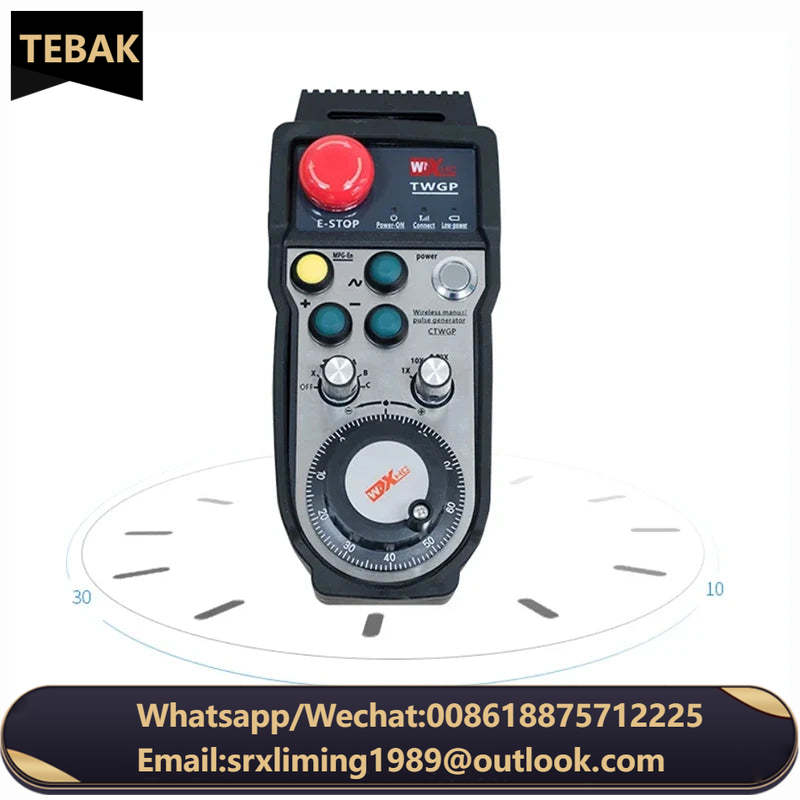

TEBAK 25PPR 100PPR CNC Remote Controller Manual Pulse Generator CNC Machining Parts MPG Wireless Handwheel For CNC Systems

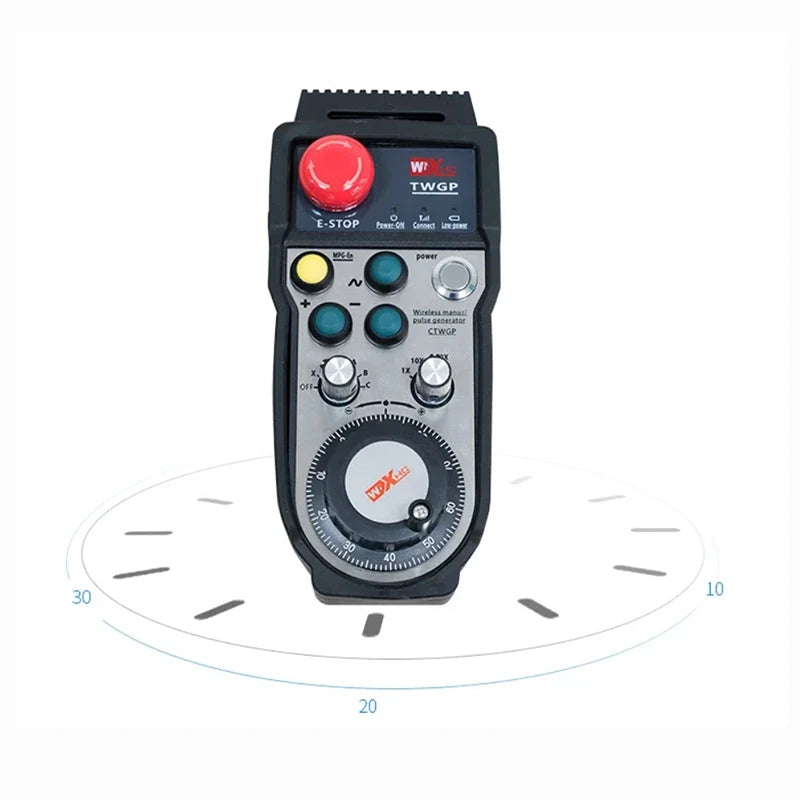

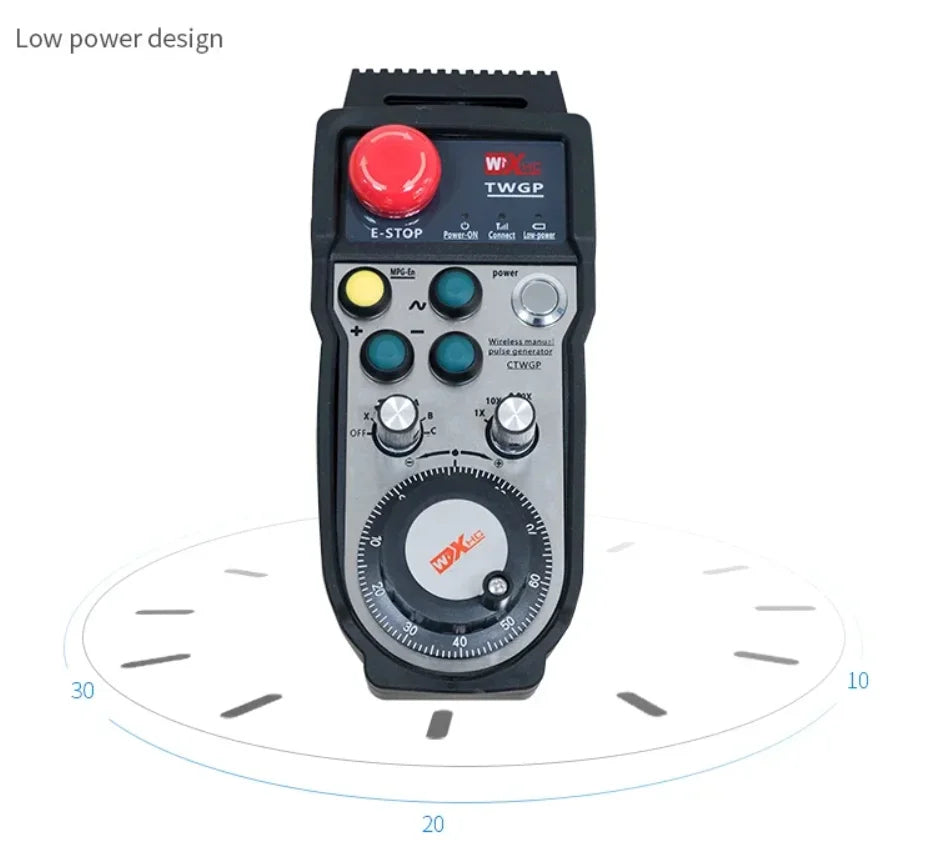

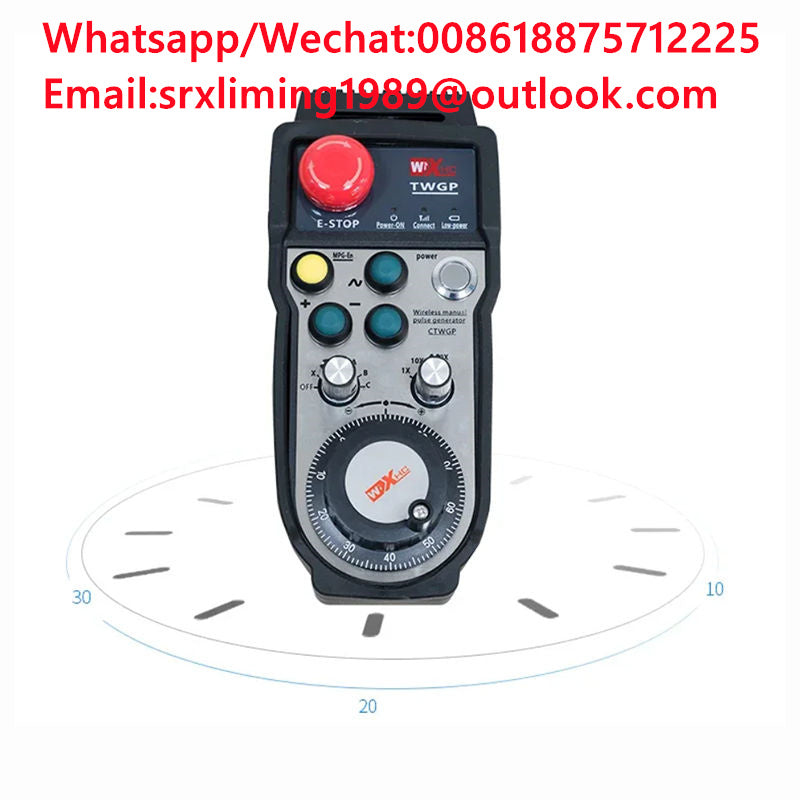

CNC remote control for FANUC Manual pulse generator  100PPR,DC5V



Support system:

SIEMENS,MITSUBISHI,FANUC,FAGOR,FRANCE NUM,TAIWAI BAOYUAN,XINDAI and so on.

The Manual For Fully functionl Wireless Handle for Engraving machine:

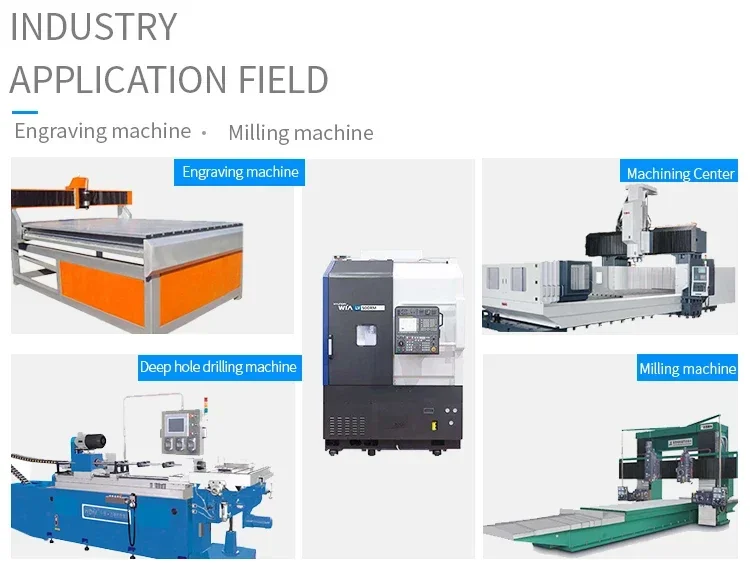

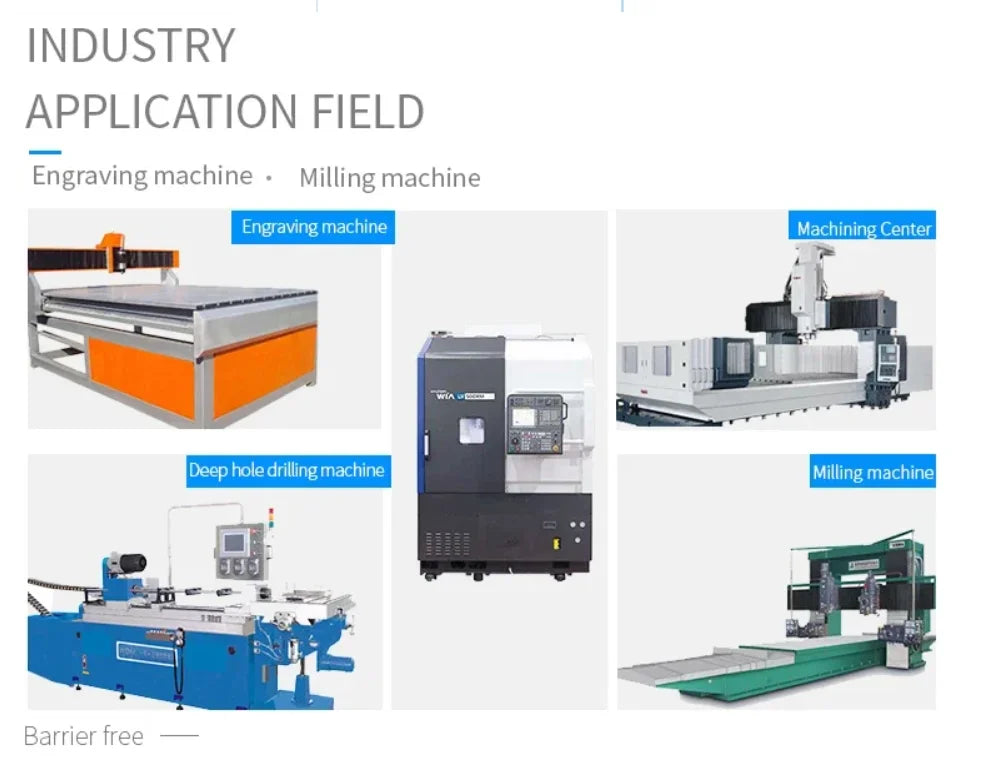

Typical applications:

A variety of CNC machine tools: Machining center,cnc, Vertical lathe, Longmen milling machine

Longmen engraving and milling machine.




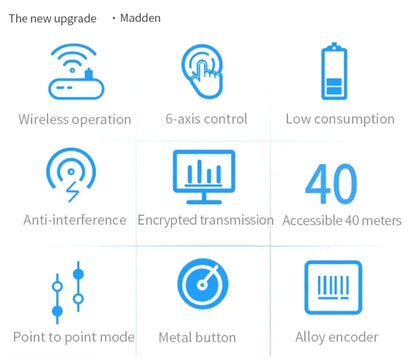

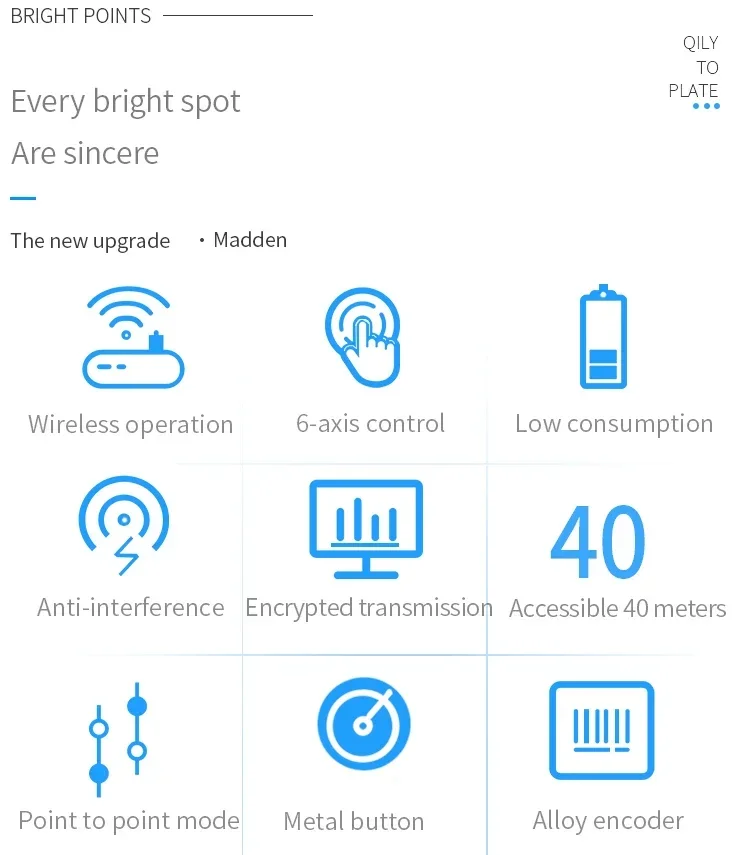

Product features:

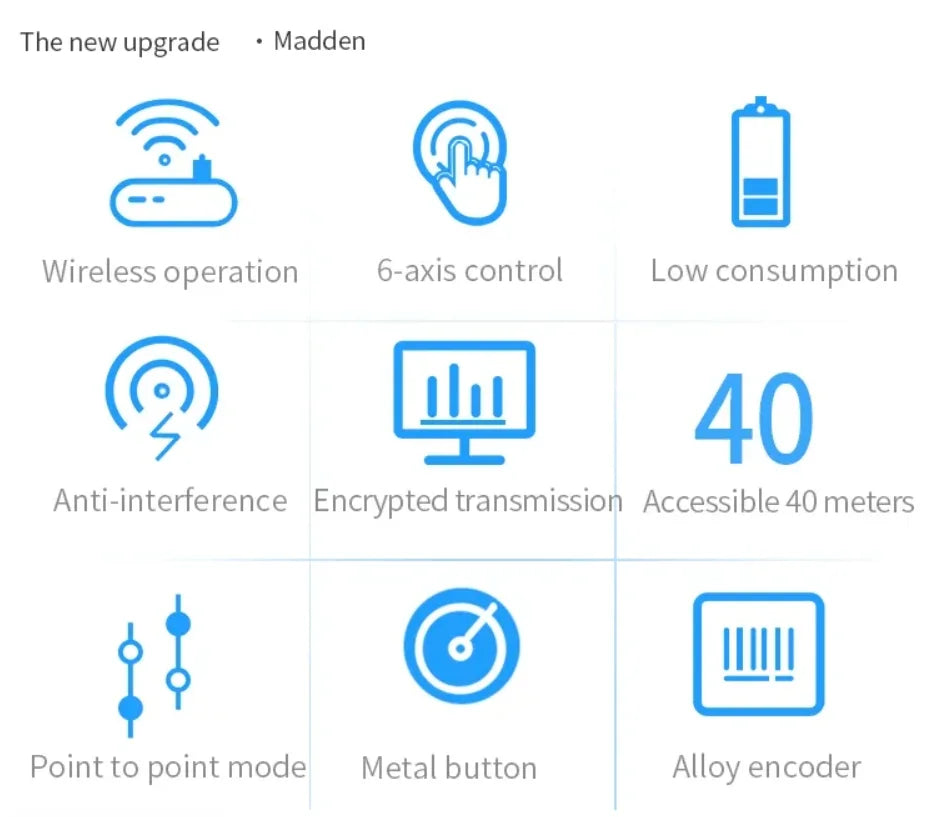

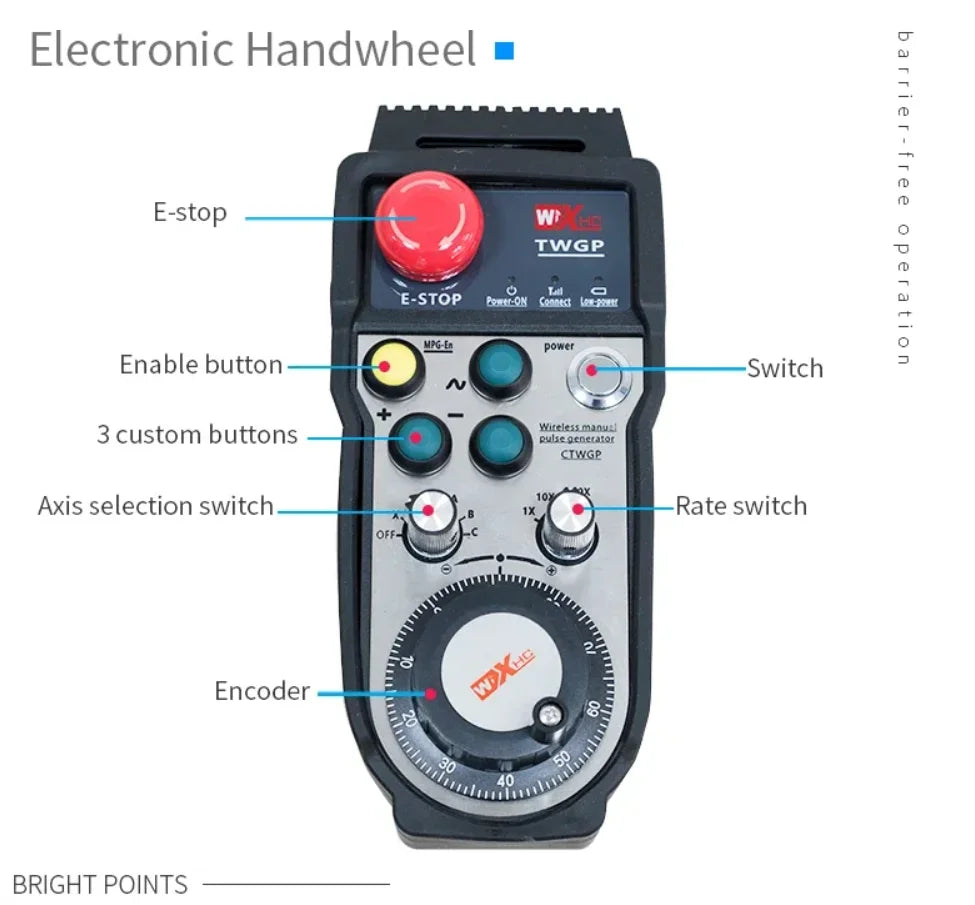

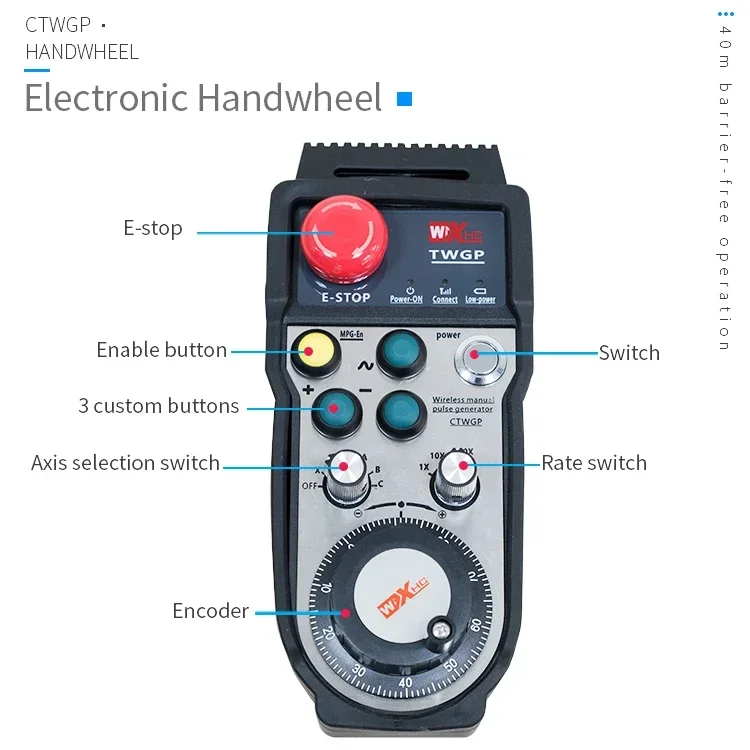

1.  The handwheel by brand encoder and touch feel is good, the service life is long, the tooth position clear.

2.  With LCD display, X axis, Y axis, Z axis, the 4 axis coordinate value, resolution of 1 micron(without LCD display has no function)



3.   With rate display 1X, 10X, 100X; having a shaft selected display X, Y, Z, 4, 5, 6

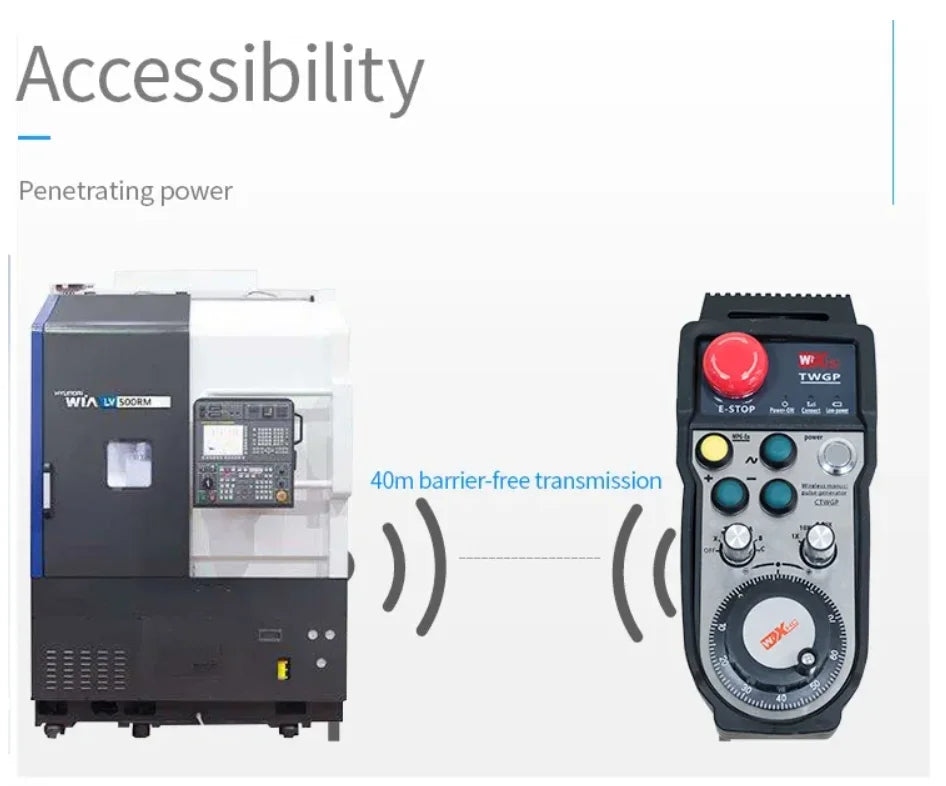

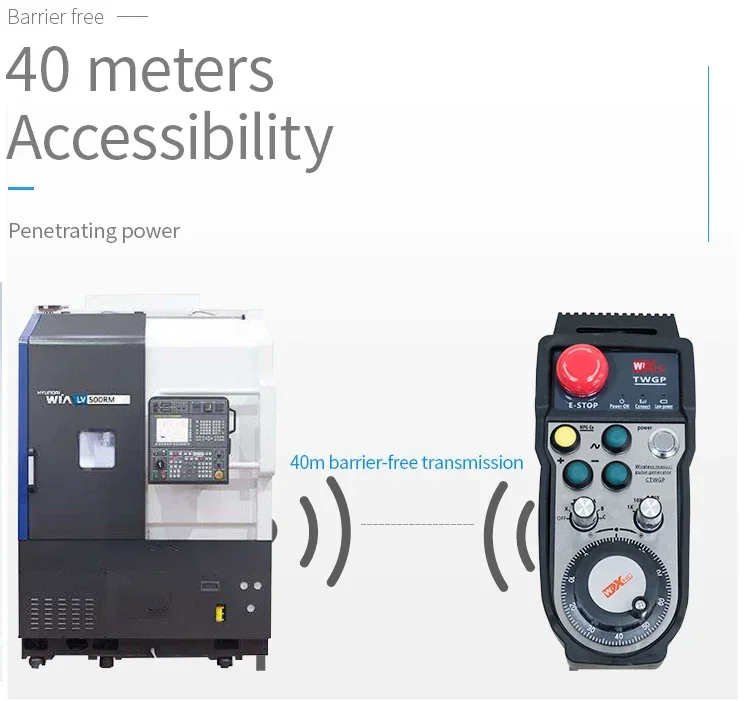

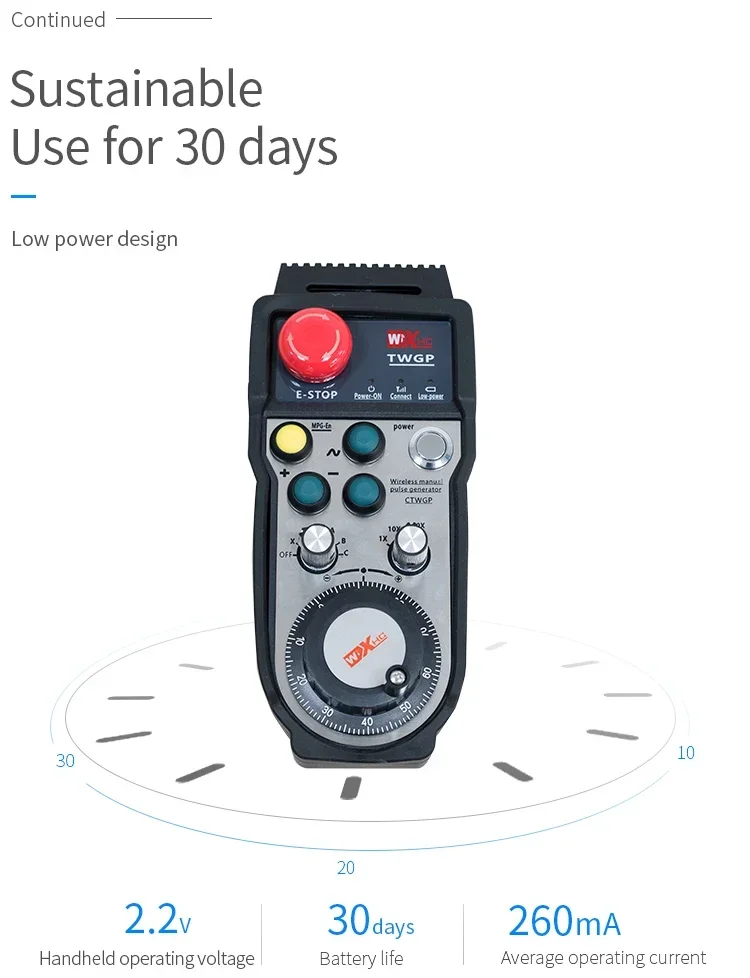

4.   Wireless hand wheel, far transmission distance, straight 60 meters can stable operation without obstacle

5.  wireless transmission frequency, 433MHZ, power of 10DB, the data encryption transmission, stable and reliable

6.  Using 64 channel frequency hopping, have 65536 different identities of ID numbers, the same room, maximum support 64 sets of equipment at the same time, no mutual interference.

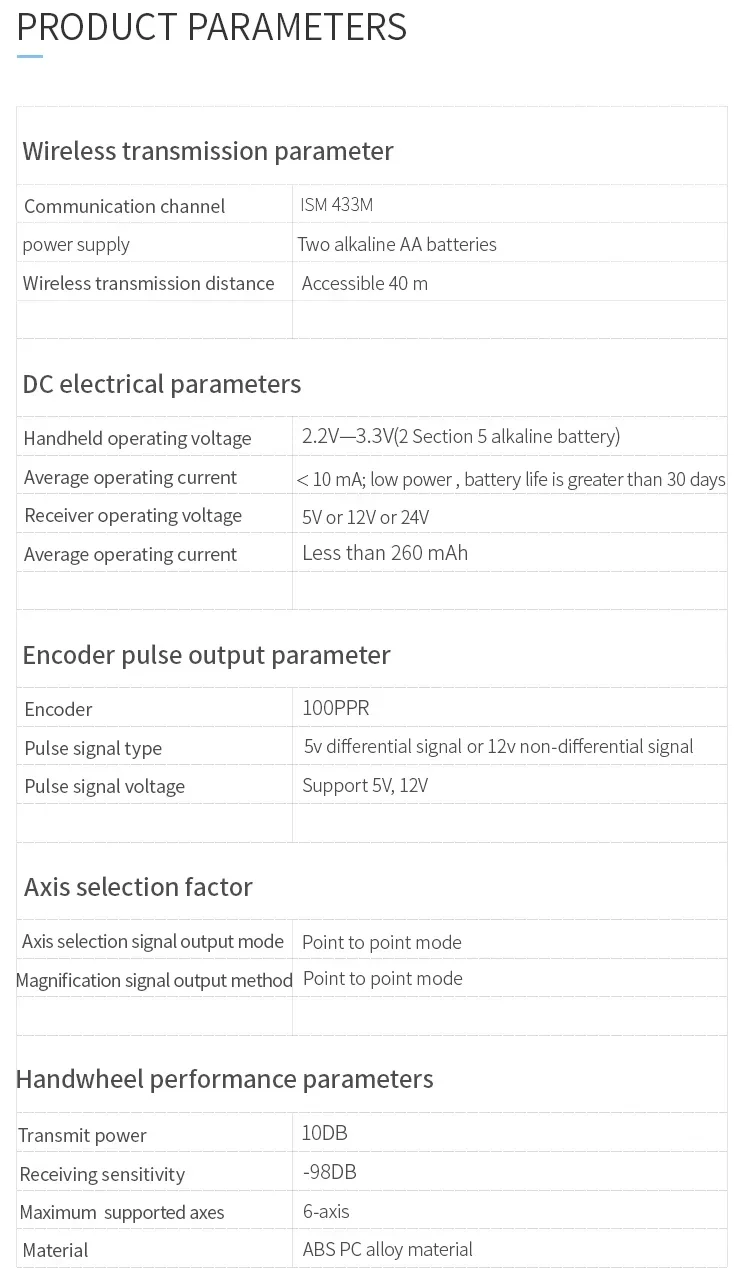

type

Wireless handwheel (instead of wired handwheel)

Number of axes

6

Applicable system

FANUC,Mitsubishi,Siemens,Higerman,Fagor,etc.If the system you use is not listed here, please refer to the table

Emergency stop button

Yes

Communication frequency

433MHZ

anti-interference

The same range supports 32 sets of equipment to operate stably at the same time

Pulse signal

Support differential and non differential, NPN, PNP and other signal types

Reliant

Support point to point, binary code, gray code, etc. for axis selection and ratio signal

Parameters related to model selection

Please let us know your model number after selection

Signal transmission distance

40 meters wireless operating distance

parameter

A pulse encoder, 100 pulses/turn

Model selection:

Selection parameters



1

Appearance of the product:



A /B/C/S/E represents the model of A/B/C/S/E .

2

TWGP: means with emergency stop button;



WGP: means without emergency stop button

3

Pulse signal standard:


01:Represents 5V, 25 mA; A, B pulse signal output: 100PPR


03:Represents 5V, differential signal; A, A-; B, B-; pulse signal output:100PPR


02:Represents 12V, 5 mA; A, B pulse signal output: 25PPR (suitable for Mitsubishi system)


04:Open circuit output; A, B pulse signal. Low level, NPN output. (suitable for PLC system)


05:Source output; A, B pulse signal, high level output, PNP output. (suitable for PLC system)

4

The number of axes supported by the handwheel:



5 means 5 axes;



6 means 6 axes;



7 means 7 axes

5

Handwheel axes selection output mode:



A means point-to-point output;


B means coded output (support binary, gray code, etc.)

6

Handwheel maglification output mode:



A means point-to-point output;


B means coded output (support binary, gray code, etc.)

7

Expansion buttons on the handwheel:



3 means supporting 3 expansion buttons;



X means that the magnification signal is a special output mode of pulse output, which is unique to Siemens systems.


No X means that the magnification signal is an ordinary signaloutput;

8

Indicates the working voltage of the wireless signal receiver:



05 means 5V power supply;


12 means 12V power supply; 24 means 24V power supply
