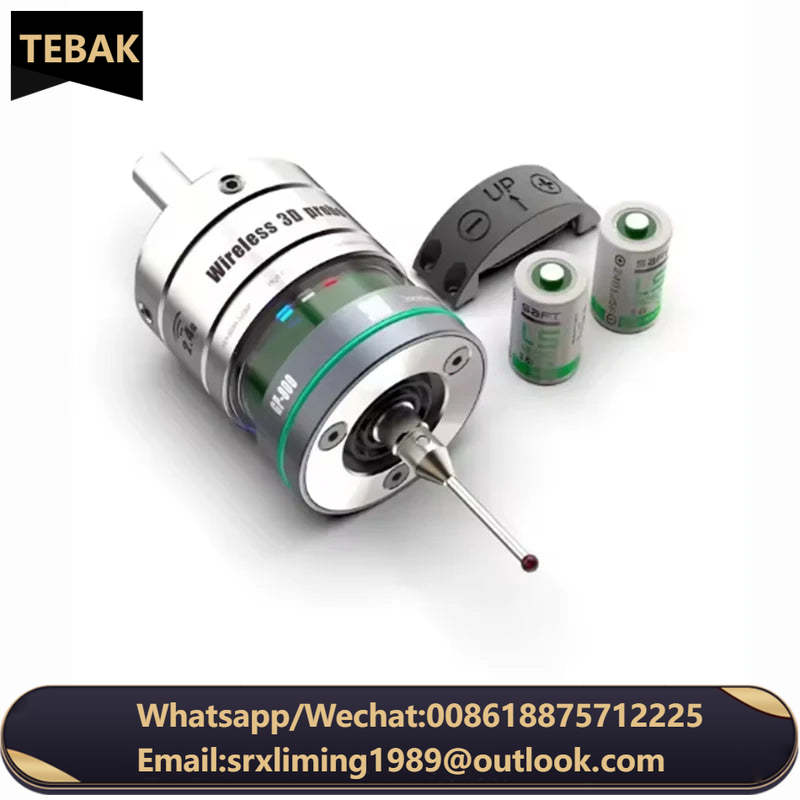

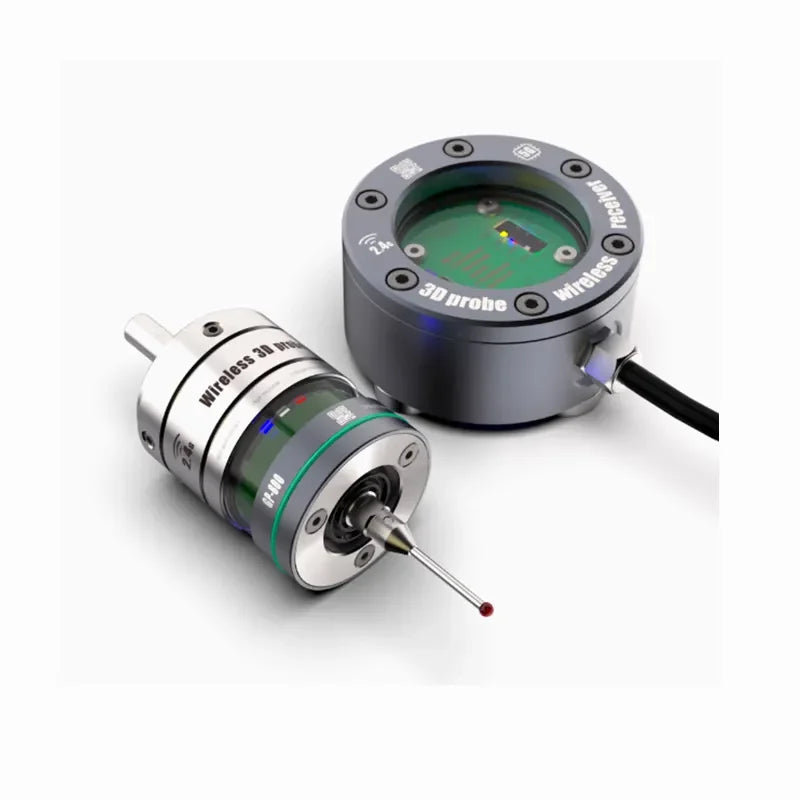

TEBAK 2025 edge finder GP-800 infrared wireless probe workpiece measurement 3D wireless centering replaces Renishaw OMP40-2

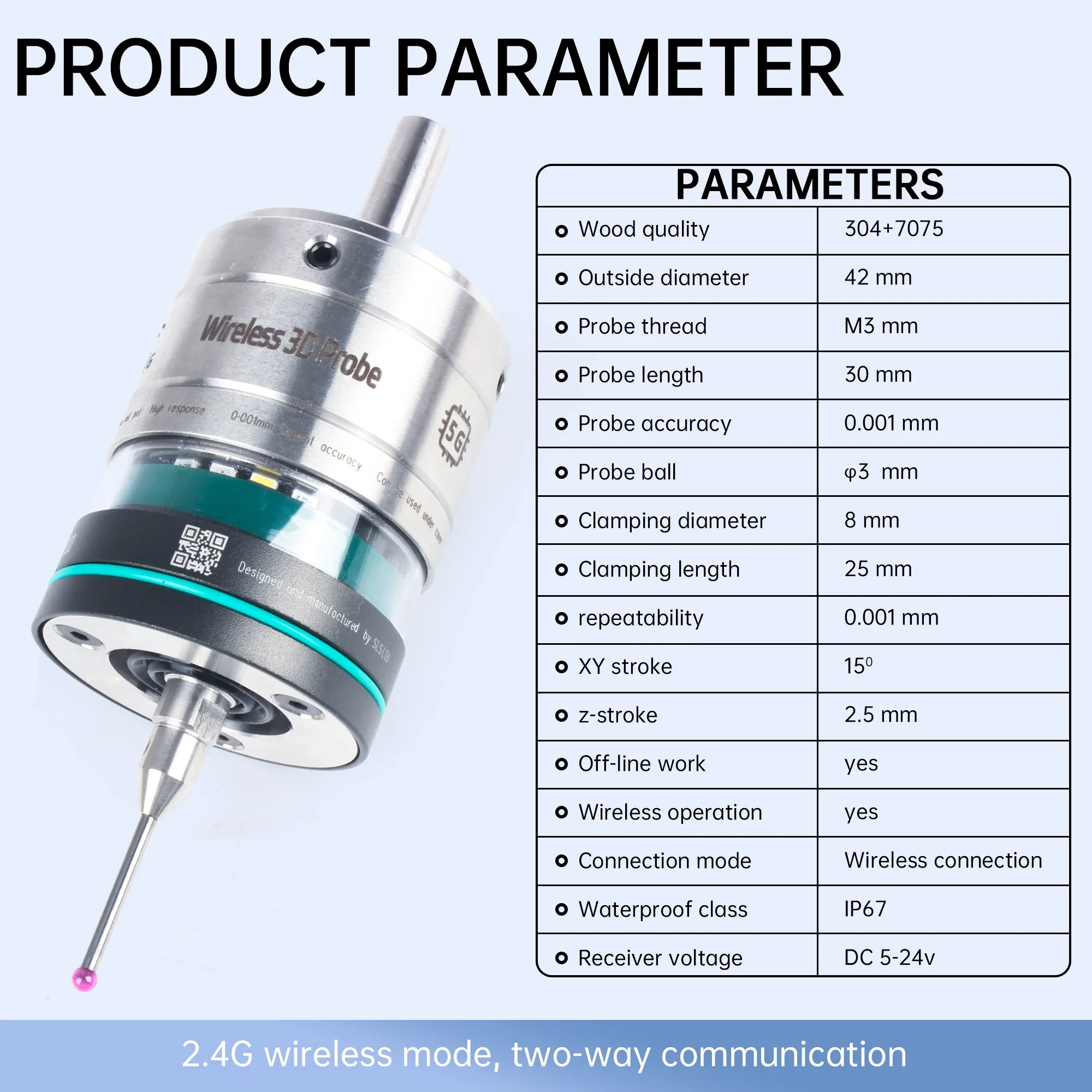

Parameters:
Material: 304 7075

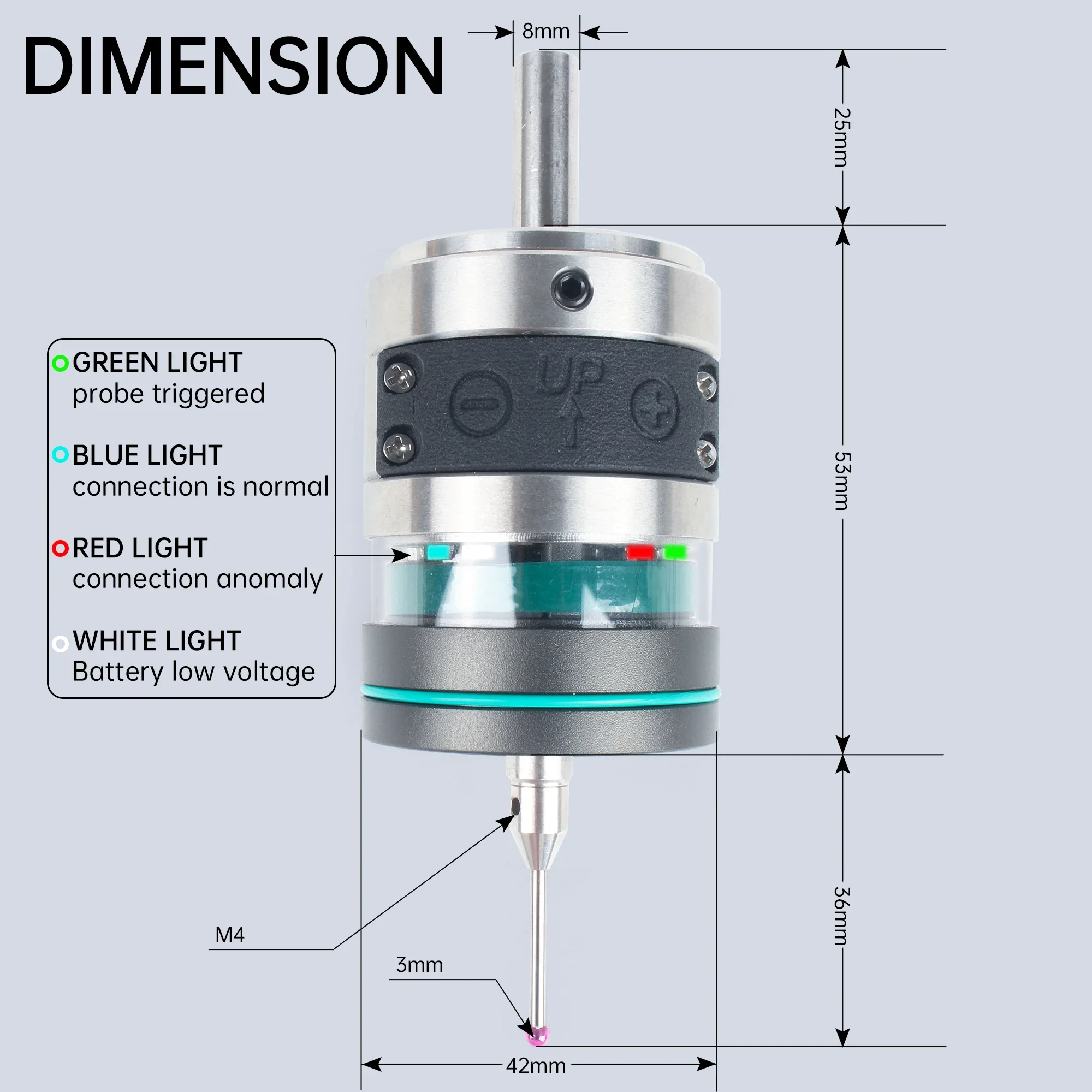

Outer diameter of edge finder: 42mm
Probe thread: M4mm
Probe length: 30mm as standard, user-replaceable
Probe ball head: φ3mm ruby
Clamping diameter: 8mm
Clamping Length: 25mm
Repeat accuracy: 0.001mm

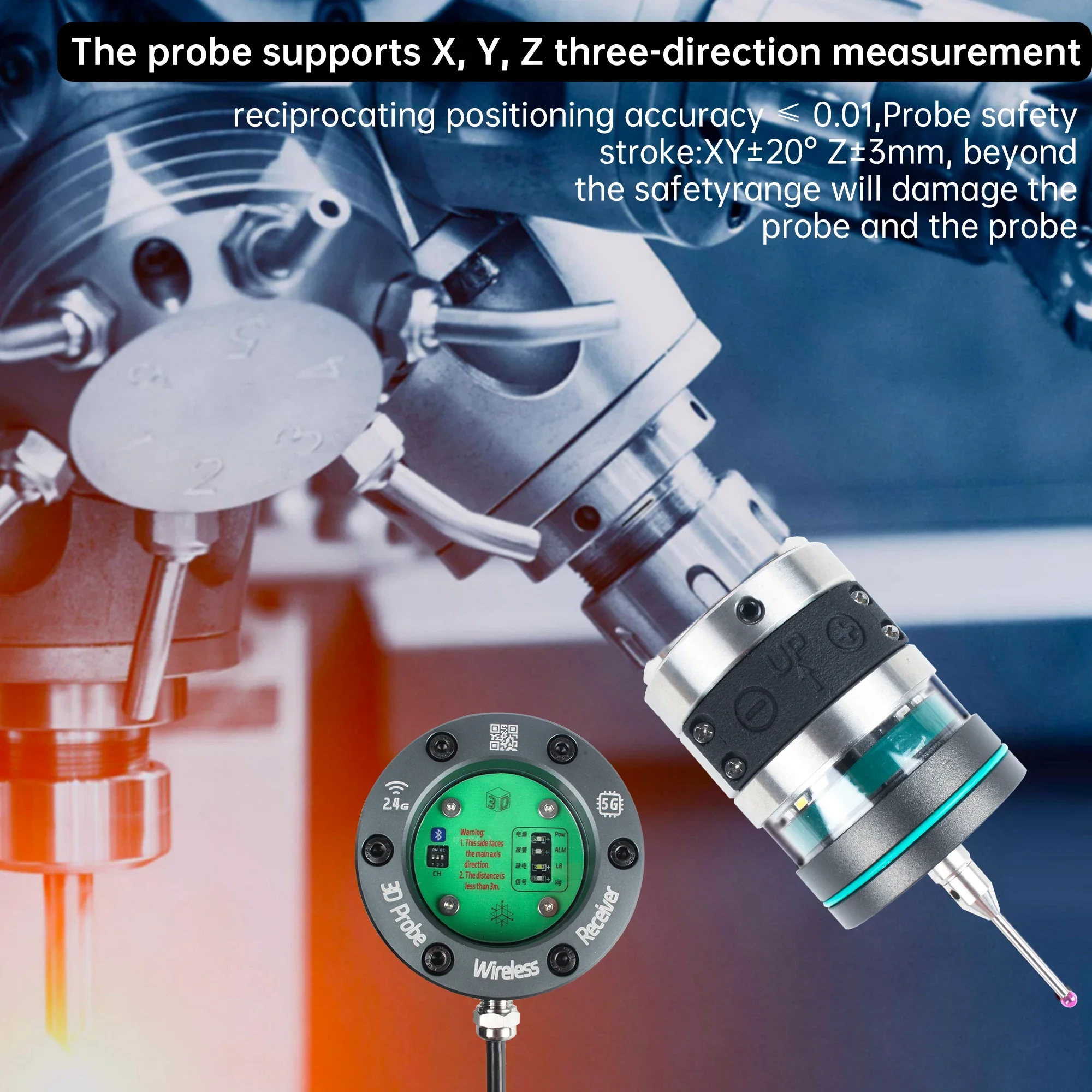

XY stroke: 3mm (will be damaged if exceeding the stroke)
Z stroke: 3mm (will be damaged if exceeding the stroke)
Wireless transmission mode: wireless mode
Wireless transmission distance: 5m (3 sets of adjustable dial chips for code matching)
Battery: 14250*2
Offline work: Yes (can be used as a photoelectric centering rod)
Wireless work: Yes (can be used with the system for automatic centering)
Connection mode: Wireless connection distance <5m
Waterproof level: IP67 (can work in a coolant spray environment)
