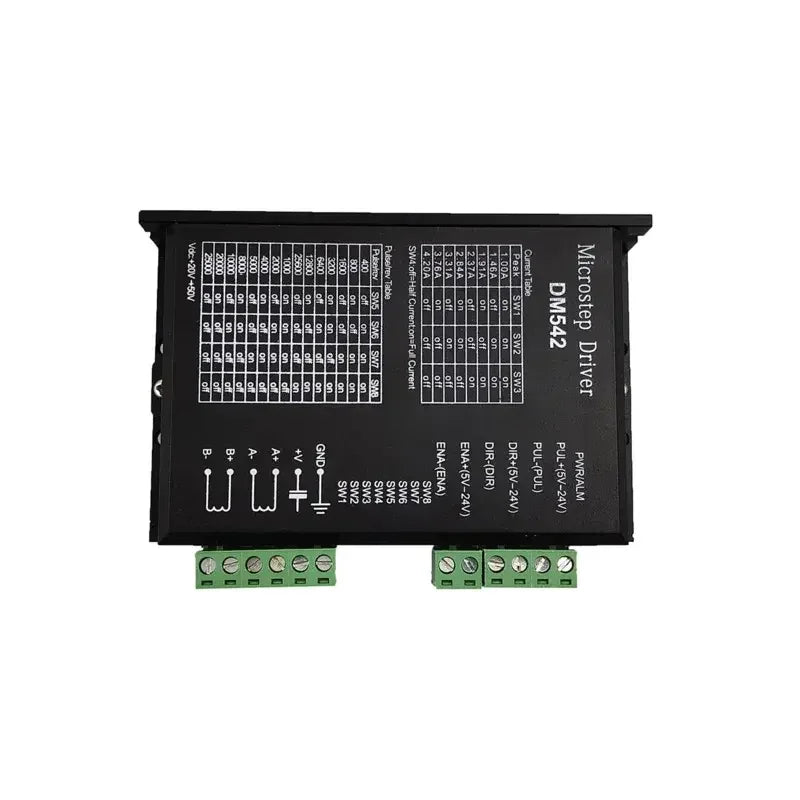

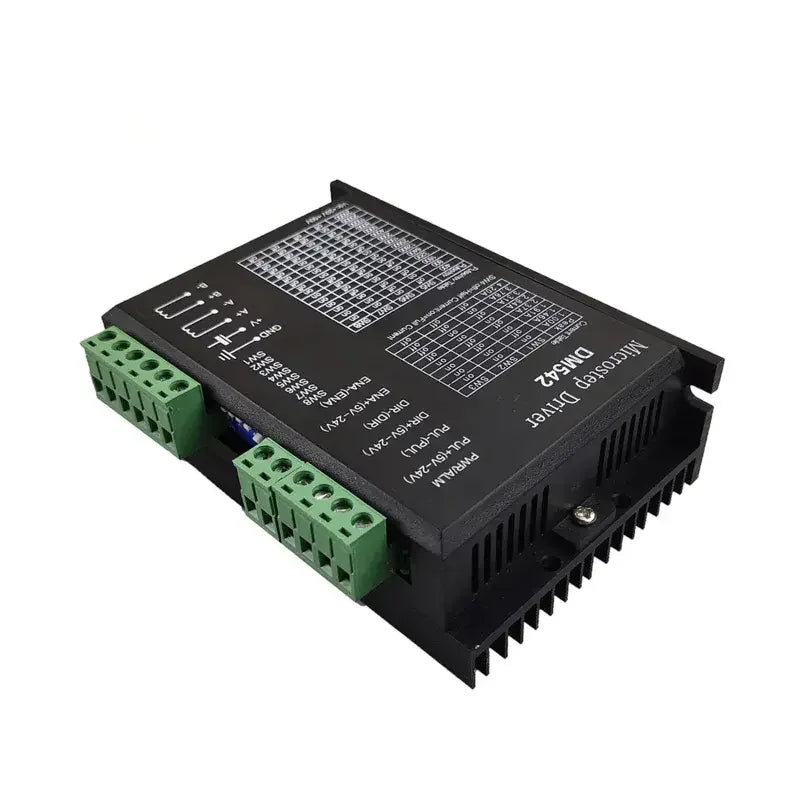

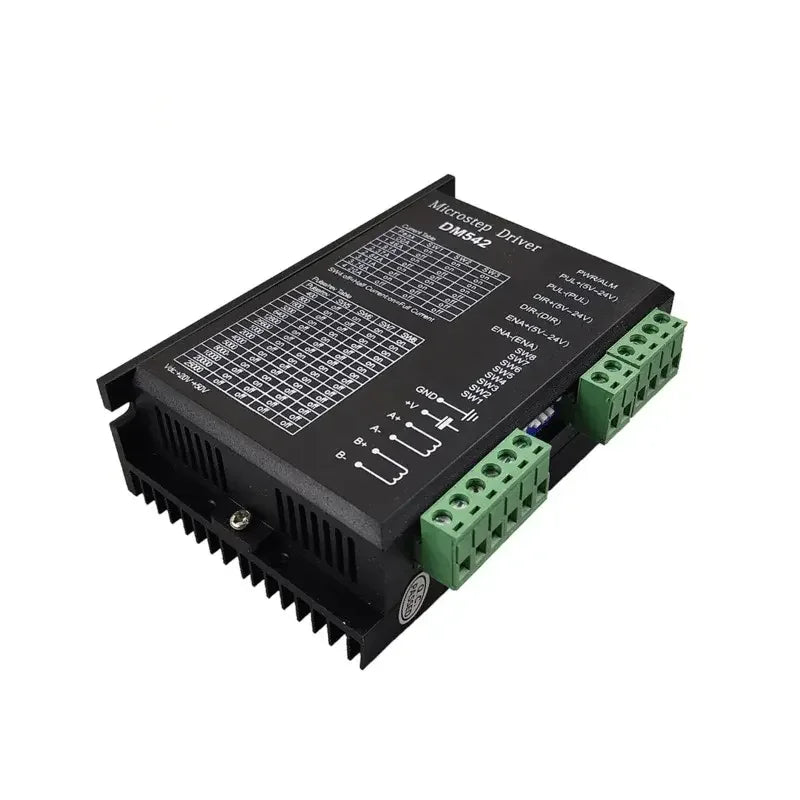

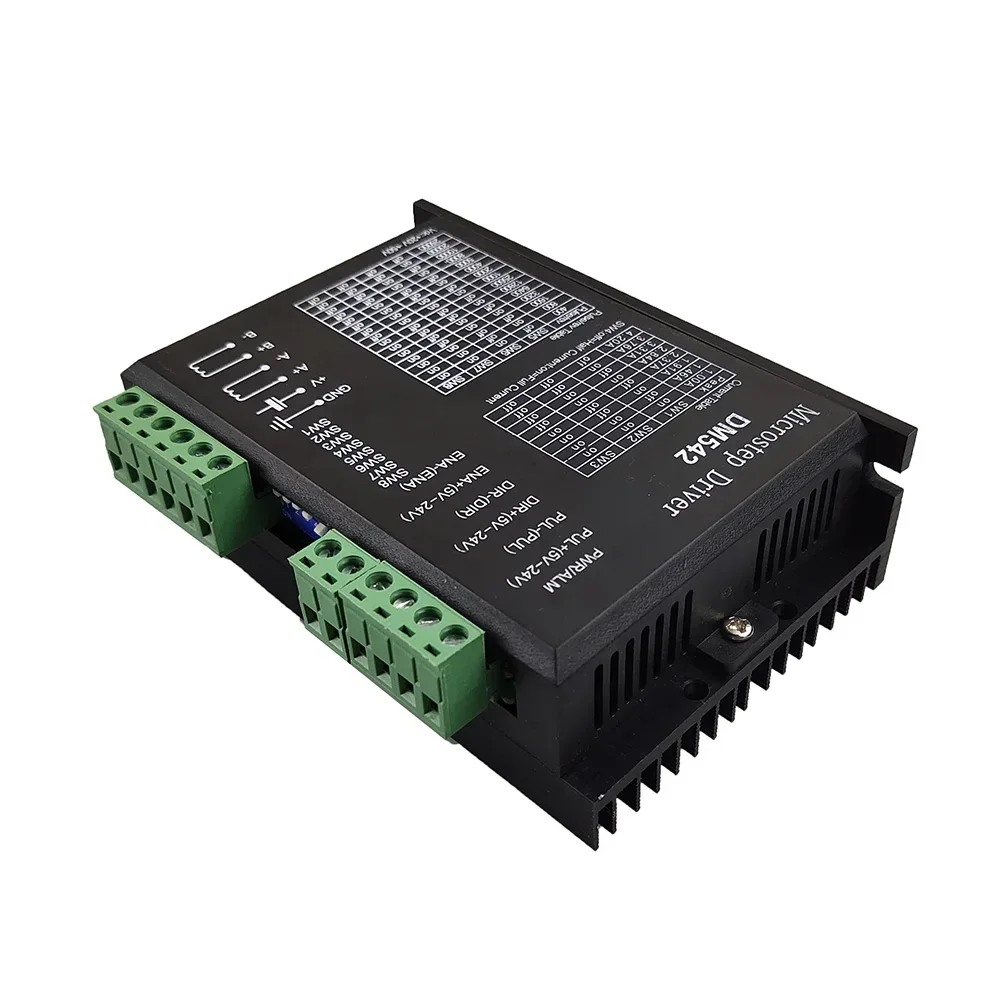

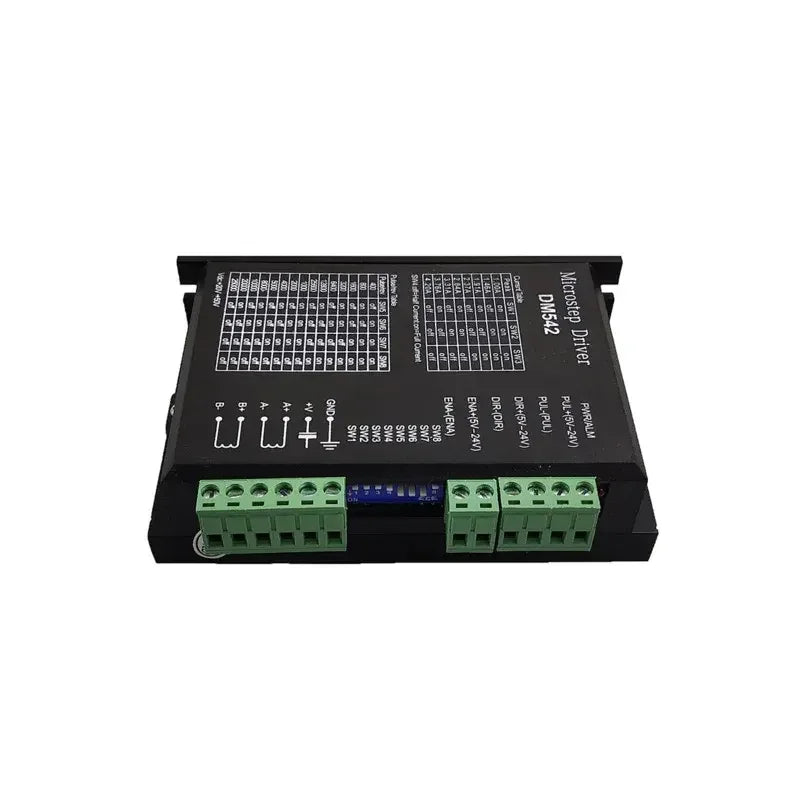

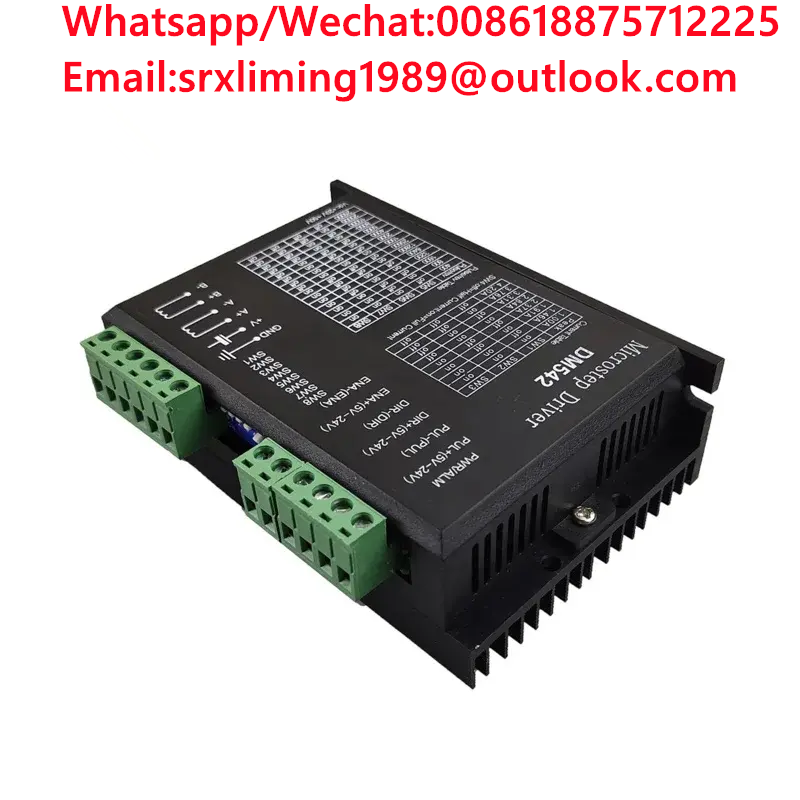

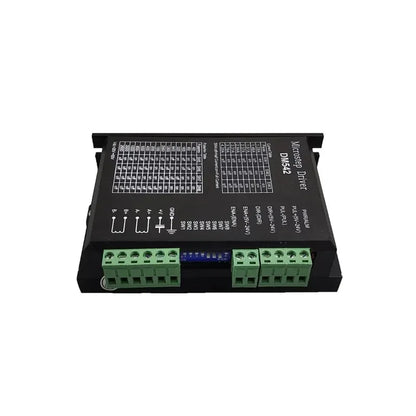

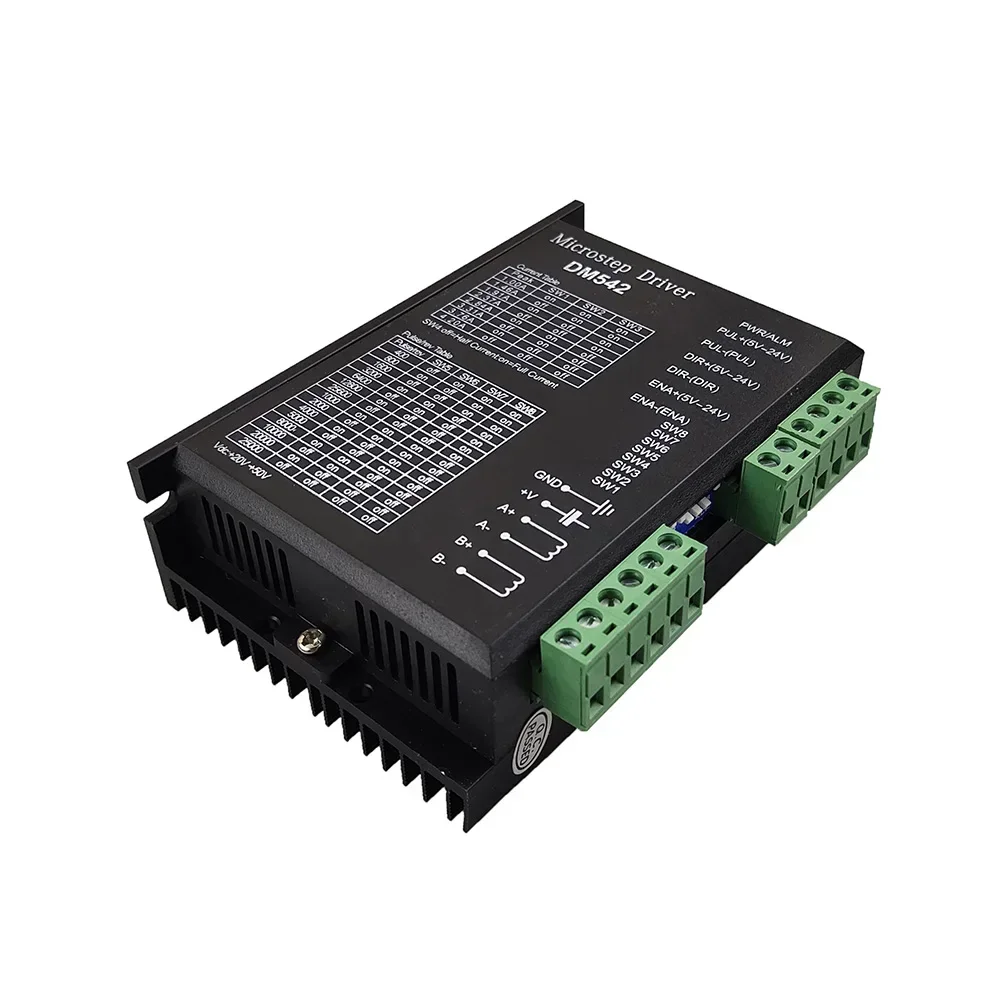

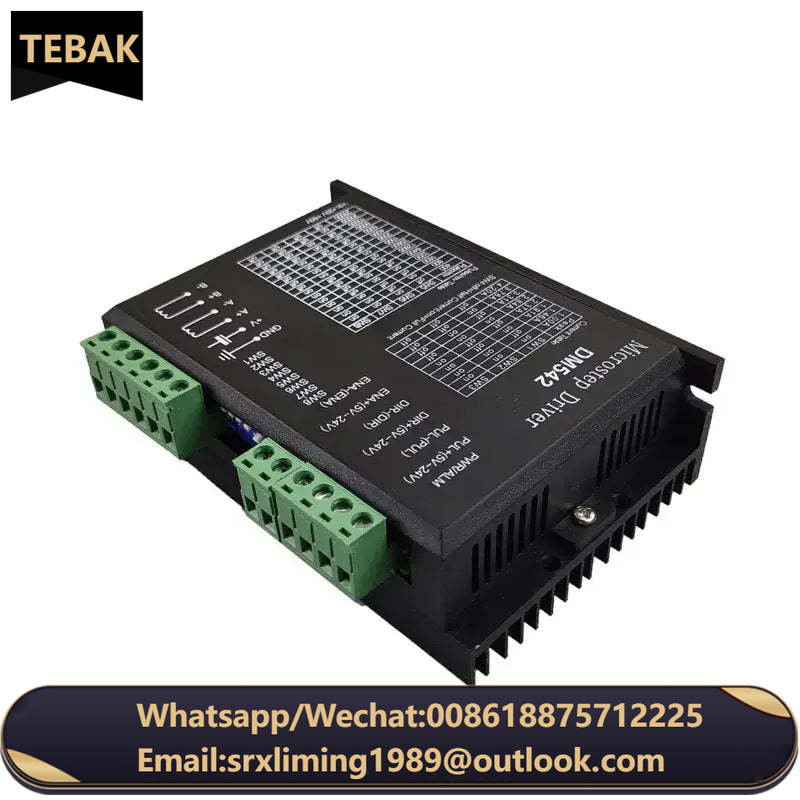

TEBAK 2-phase Digital Stepper Motor Driver DM542 DC24V-50V for 42/57(NEMA17/23) Series Stepper Motor 1.0-4.2A

TEBAK 2-phase Digital Stepper Motor Driver DM542 DC24V-50V for 42/57(NEMA17/23) Series Stepper Motor 1.0-4.2A

$59.00 USD
$59.00 USD $59.00 USD
Sale Sold out
model number

TEBAK 2-phase Digital Stepper Motor Driver DM542 DC24V-50V For 42/57(NEMA17/23) Series Stepper Motor 1.0-4.2A
Product Package:

1 x stepper motor drive

Product Description:

1.Introduction :

DM542 is a new type of two-phase hybrid stepping motor driver, The drive voltage of which is from 20VDC to 50VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 42mm to 86mm outside diameter and less than 4.0A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Hording torque when DM542 run under high speed is also significantly higher than the other two-phase driver, what‘s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, Computer embroider machine, packing machines and so on.

2.Feature:

20KHz chopping frequency
Optical isolation signal input

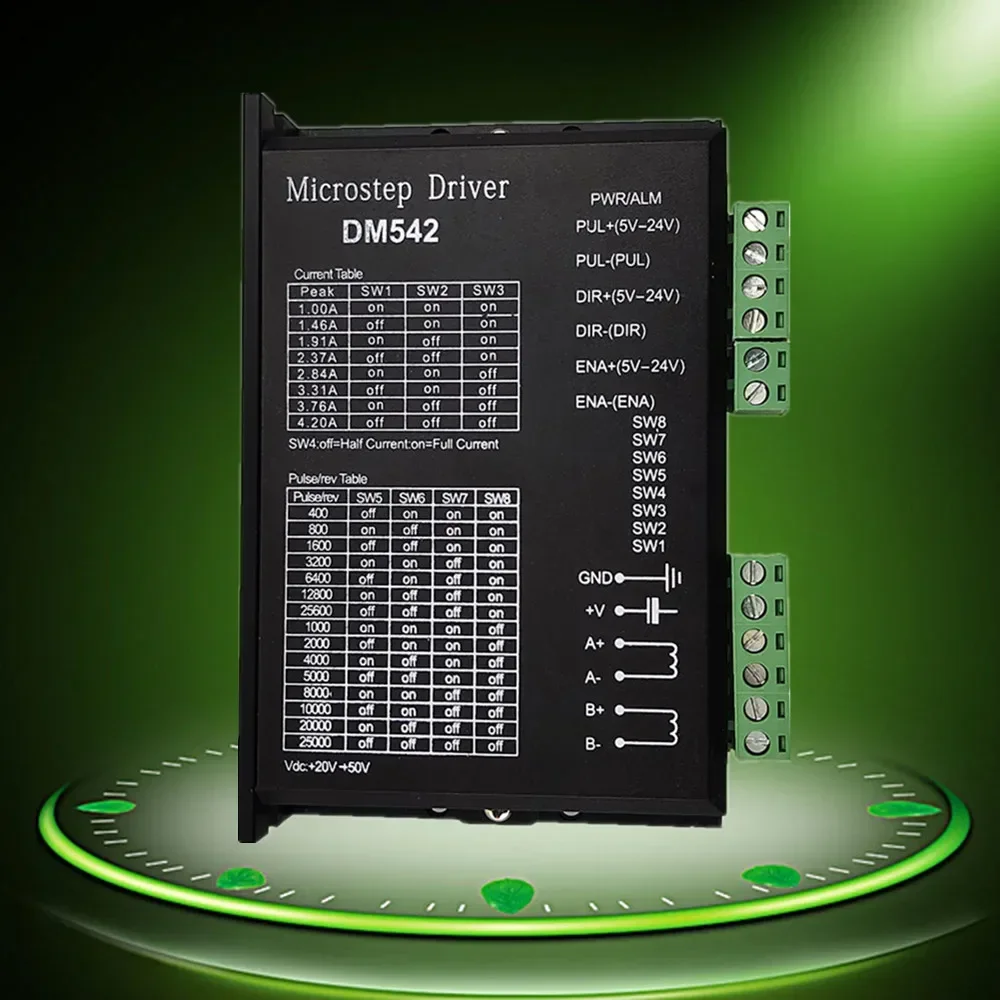

Output current DIP switch is adjustable
Bipolar constant current chopping method
High segmentation: 2,4,8,16,32,64,128,256. 5,10,25,50,125,200
TTL input signal compatible,while accepting differential signal input

3.Specifications:
Power supply:DC 24-60 (V)
Current maximum:4.5A
Output phase current:1.5A-4.5A
Logic input current:10-20mA
Operating temperature:-15°— 45°

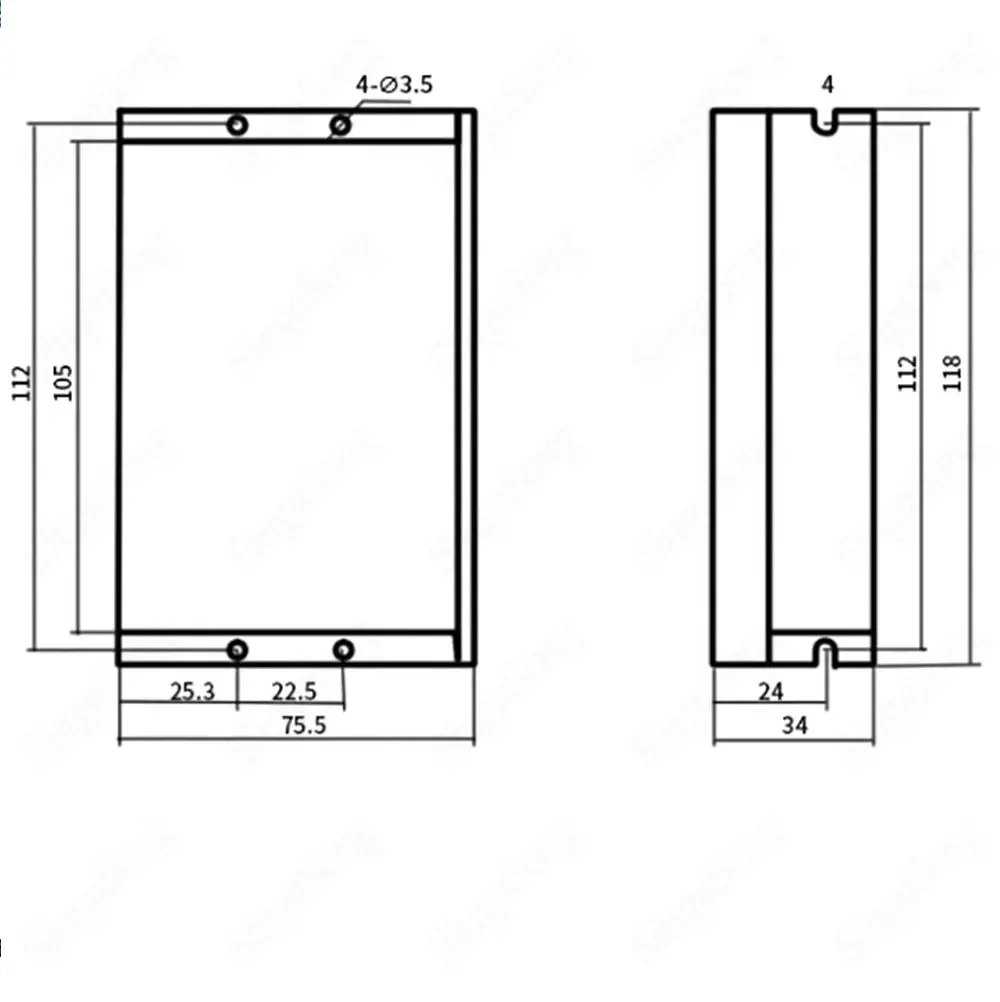

Size:11.7*8.5cm/4.61*3.35inch


4.Note:
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

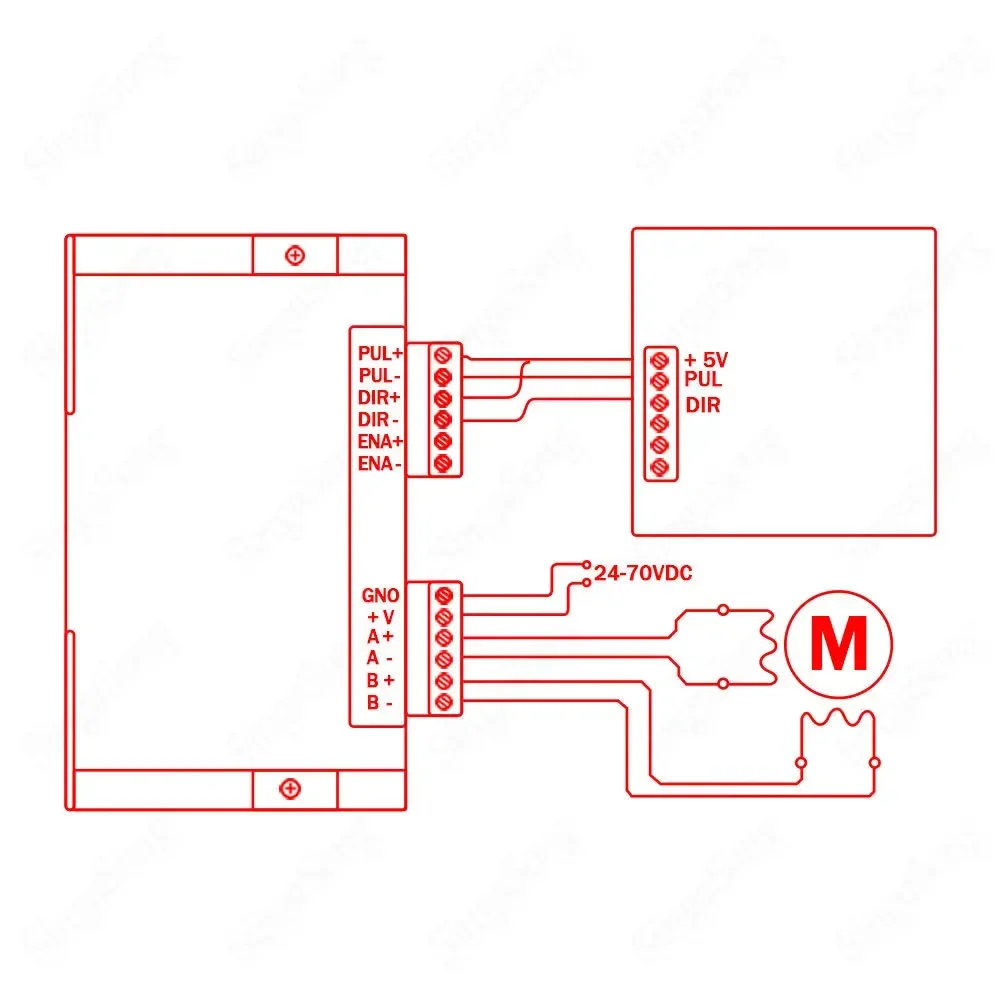

5.Product connection define and method
