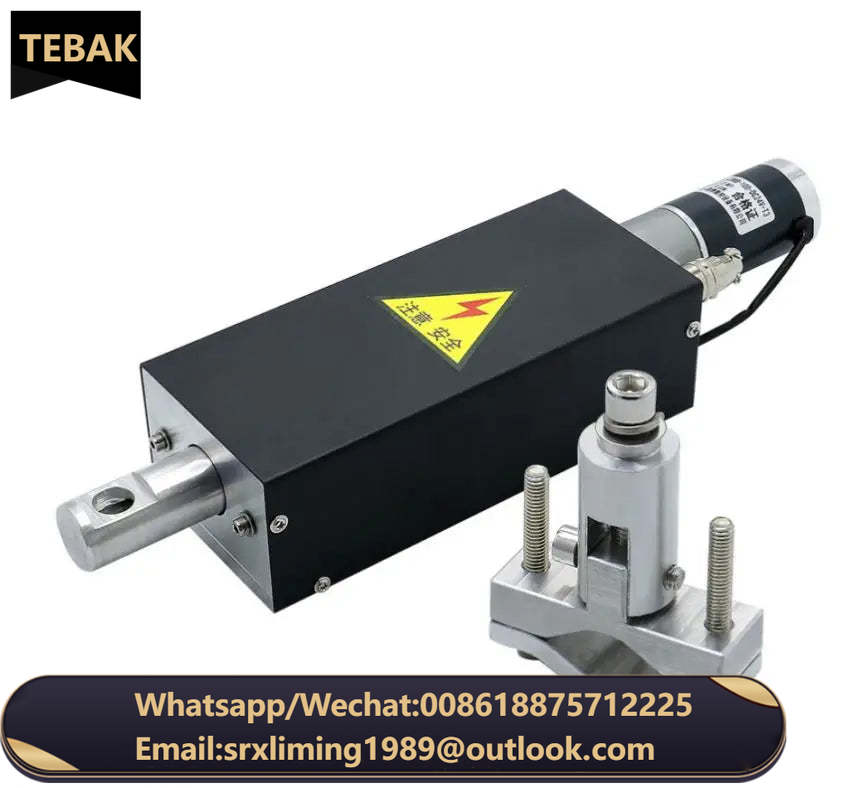

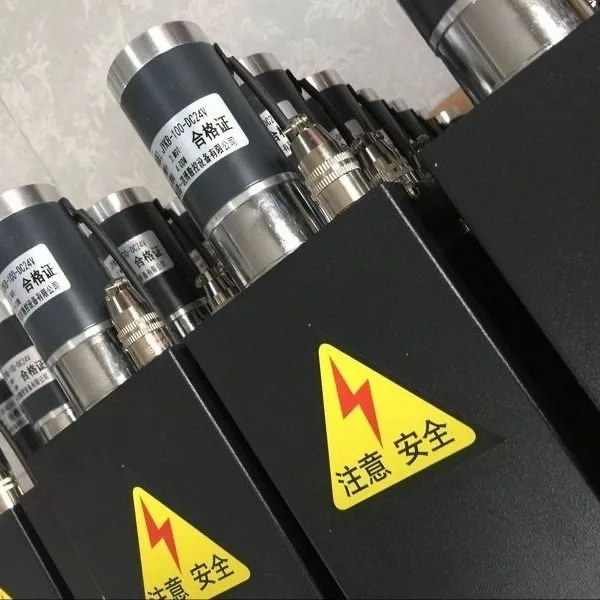

TEBAK 100mm DC24V Plasma Flame CNC Cutting Machine Cutting Torch Holder Z-axis Lifter
TEBAK 100mm DC24V Plasma Flame CNC Cutting Machine Cutting Torch Holder Z-axis Lifter
Regular price
$1.00 USD
Regular price
$96.00 USD
Sale price
$1.00 USD
Unit price
per
Couldn't load pickup availability
TEBAK Flame And Plasma Cutting Lifter 100mm Range DC24V 4 Core Aviation Plug 1600mm/min 2400mm/min Suitable
Product Description
Product Description

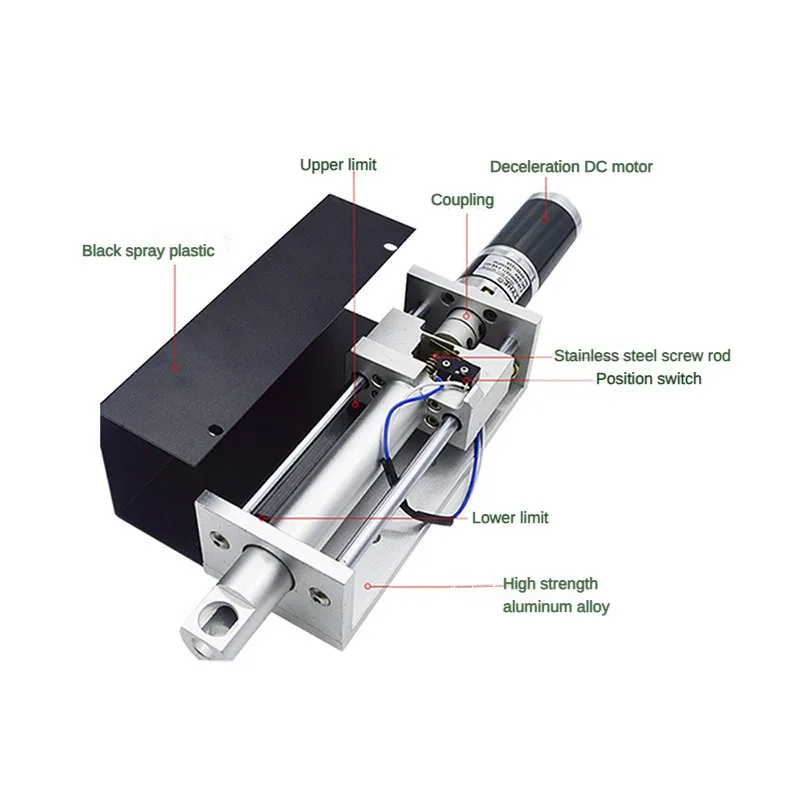

Lift adjustment device: Our company uses a deceleration DC motor to control the lifting body, driving the cutting torch to lift. The key parts that affect the cutting accuracy of the entire machine support CNC plasma cutting positioning function. The internal lifting transmission of the elevator adopts 304 stainless steel T-shaped lead screws, with optical axes and linear sliders at both ends to ensure smooth and reliable vertical operation in the up and down directions;Definition of flight control plug:
one
Foot - D+; (Positive pole of motor)
two
Foot - D -; (Negative pole of motor)
three
Foot - Zero; (Positioning normally open signal output)
four
Foot - COM; (Positioning normally open signal output)
Note: The built-in limit (using reverse diodes) does not bother you with wiring again
Related parameters
three hundred and four
Stainless steel T-shaped lead screw

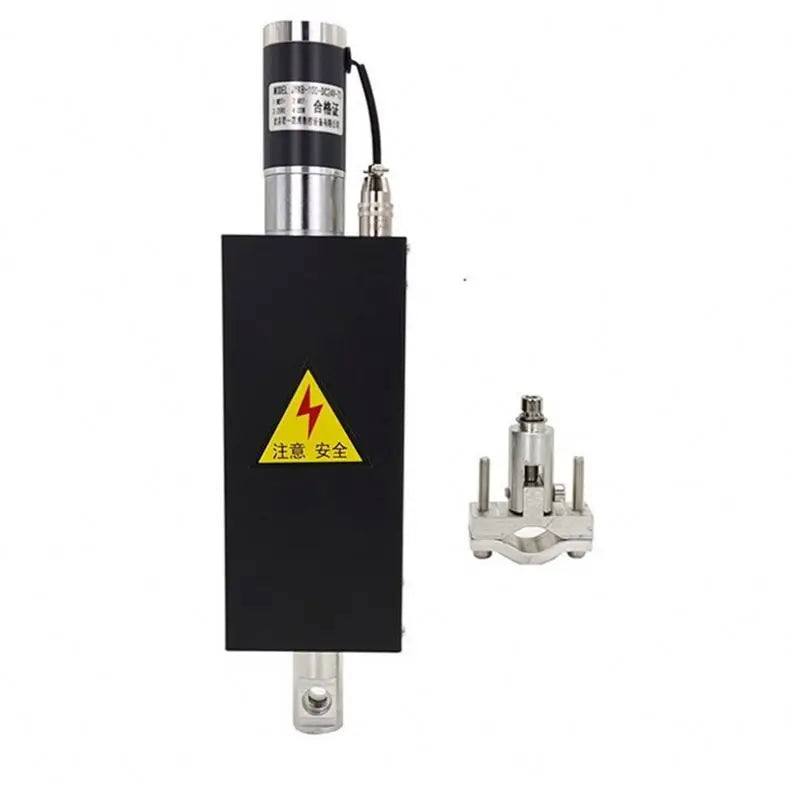

Including fixtures (cutting torch range 12mm-38mm)
There is a plasma arc positioning function inside the lifting body
The thickness of the main aluminum plate and the upper and lower aluminum plates is 8mm
Four core aviation plug
Color: Shell blue spray painted
Speed: 160mm/min
Working stroke: 100mm
Working voltage: DC24V
Weight: approximately 1.7 kilograms
Load capacity: 3 kilograms
Dimensions: length 320 * width 80 * height 60
Installation hole size length: 40mm between the center distance of two holes
Front of lifting body
|
Dimensions
|
32*80*60
|
|
Voltage
|
DC24V
|
|
Dimension(L*W*H)
|
320*80*60
|
|
Weight (KG)
|
1.8KG
|
|
Key Selling Points
|
High precission
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Shops
|
|
Marketing Type
|
Ordinary Product
|
|
Machinery Test Report
|
Provided
|
|
Core Components
|
Bearing, Gear
|
|
Product name
|
Lifting control device of Plasma cutting machine
|
|
Lead screw
|
304 Stainless steel T-screw
|
|
PLUG
|
Four-pin aviation plug
|
|
Clamp(Torch range)
|
12mm-38mm
|
|
Application(assorting)
|
CNC flame and plasma anti-collision gun features
|
|
Color
|
black
|
|
Mounting hole size
|
The center distance between the left and right holes is 40m
|
|
Work trip
|
100mm
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
