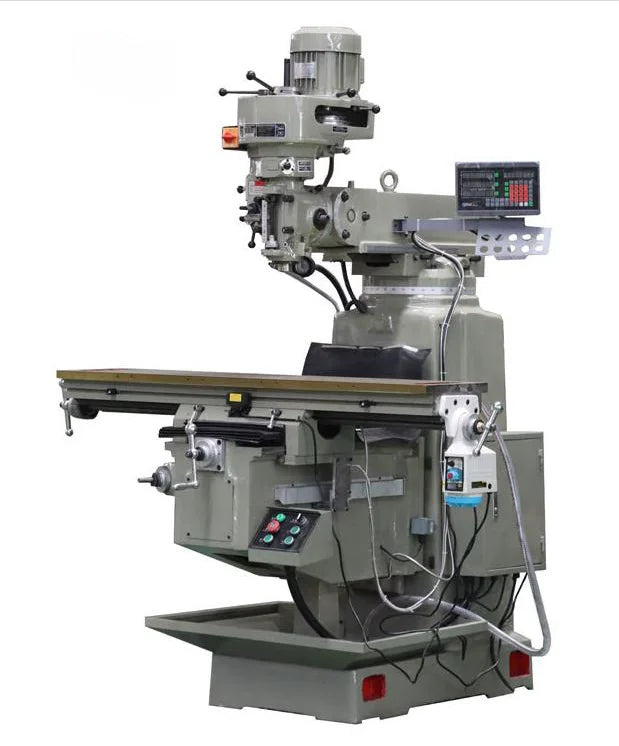

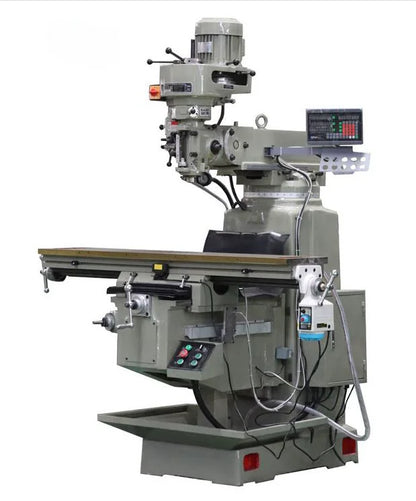

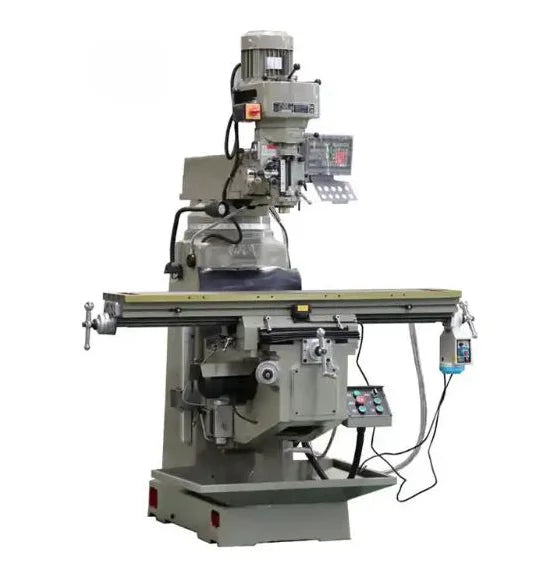

New Vertical 4H Milling Machine Turret X6325 Metal Milling Taiwan Vertical Turret Milling Machine
New Vertical 4H Milling Machine Turret X6325 Metal Milling Taiwan Vertical Turret Milling Machine
Regular price
$1.00 USD
Regular price
$3,729.00 USD
Sale price
$1.00 USD
Unit price
per
Couldn't load pickup availability
New vertical 4H Milling Machine Turret X6325 Metal Milling Taiwan Vertical Turret Milling Machine
product parameter
product parameter
Title goes here.
1.Robust construction and heavy duty design.
2.The machine body is made of Meehanite cast iron.
3.The milling head is made of SCM-21.Imported from TaiWan.
4.The milling head can swing 90°right and left side,45°front and back side.
5.The ram can swing 180°horizontally.
6.The working table and guide rail are heating treated and precision grinding.
7.DRO and dividing head are for option.
2.The machine body is made of Meehanite cast iron.
3.The milling head is made of SCM-21.Imported from TaiWan.
4.The milling head can swing 90°right and left side,45°front and back side.
5.The ram can swing 180°horizontally.
6.The working table and guide rail are heating treated and precision grinding.
7.DRO and dividing head are for option.
Machine Parameter
|
Specifications :X6325
|
Mainshaft travel :127 mm
|
|
Table size :1270 x 254(10 x 50 ") mm
|
Spindle feed range :0.04.0.08.0.15(3 steps)MM
|
|
Table stroke :780/1400/1420 mm
|
The distance between the spindle head and the surface of the table :90-510MM
|
|
T slotinumber-width-pitch): 3-16-50MM
|
Main motor power :2.2KW
|
|
Spindle taper: Standard :R8optionakIso40
|
Head rotation (left-right):+90°
|
|
Spindle speed range: Standard :16, 50HZ:65-4500, 60HZ:80-5440 Optional: variable 65-4000rpm
|
Head rotation (front - back):+45°
|
|
Weight :1400 kg
|
Total size :1550 x1650x2250
|
Packing & Delivery
Packing:
Machine packing inside is plastic films and outside is fumigation wooden case.
Our wooden case is very strong,it can bear long time shipping on the sea.
And machine with preservative film, it can stop the salt sea water enter into the machine and make the machine corrosion.
Delivery:
For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution: 1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us for confirm delivery cost before you place order.
