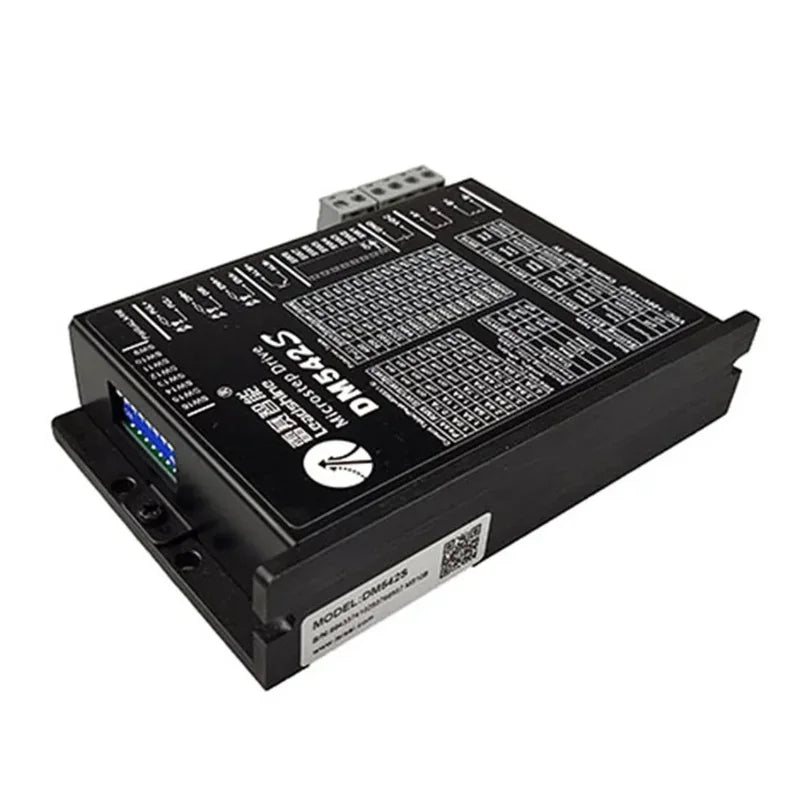

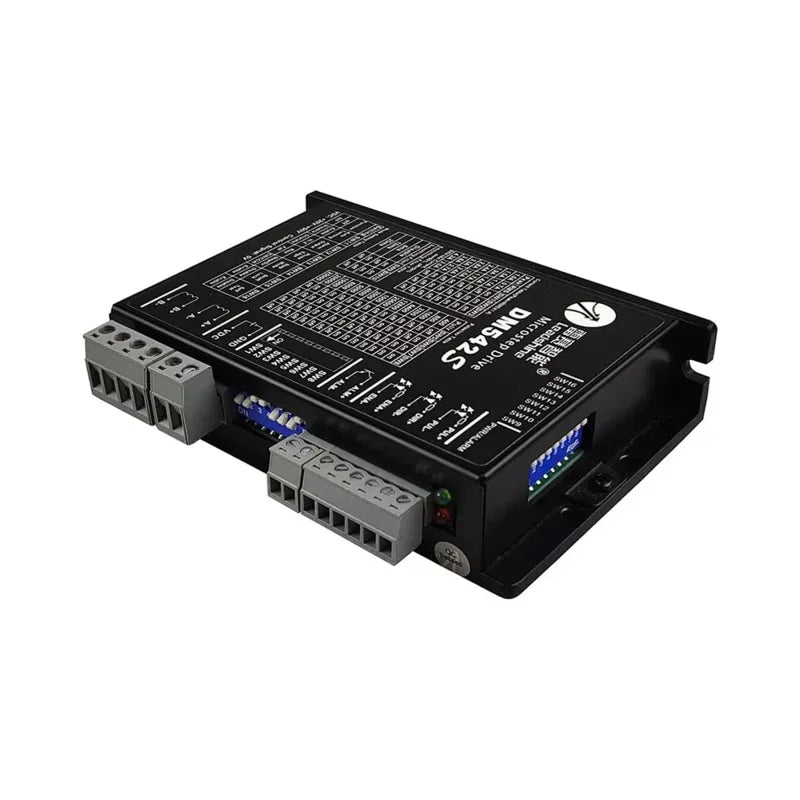

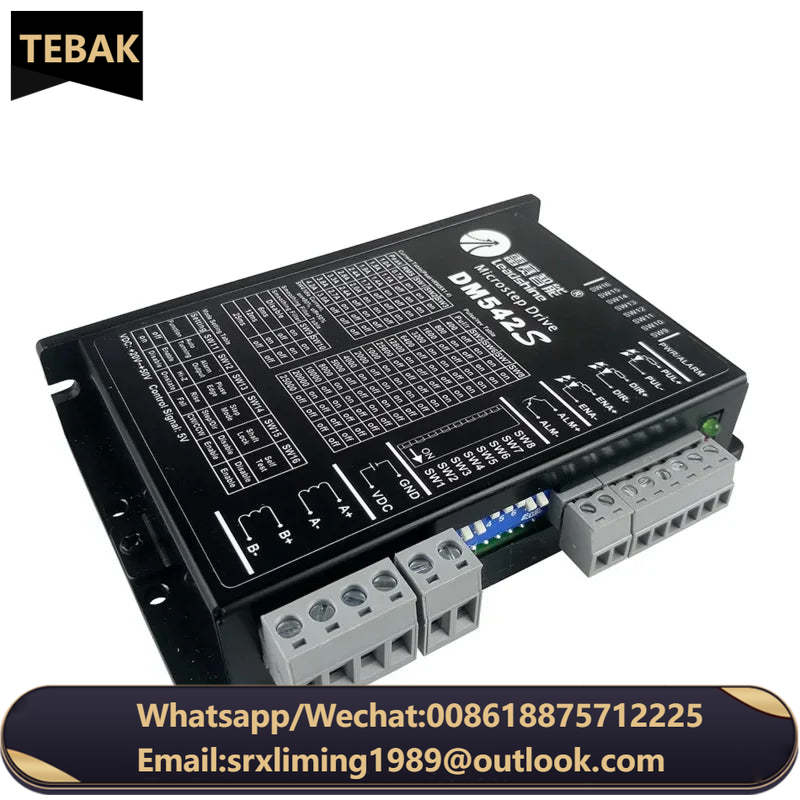

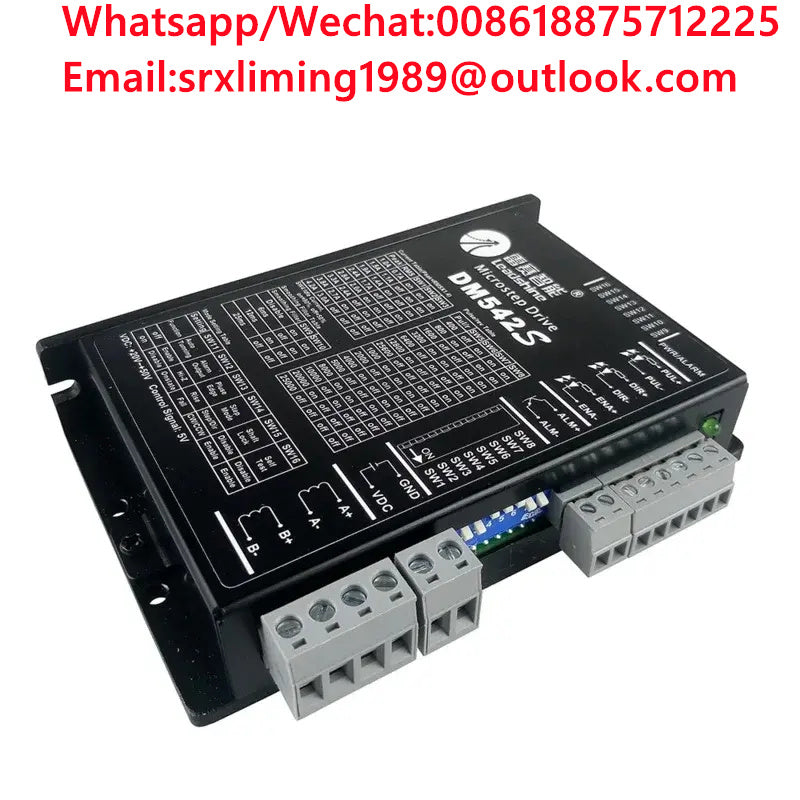

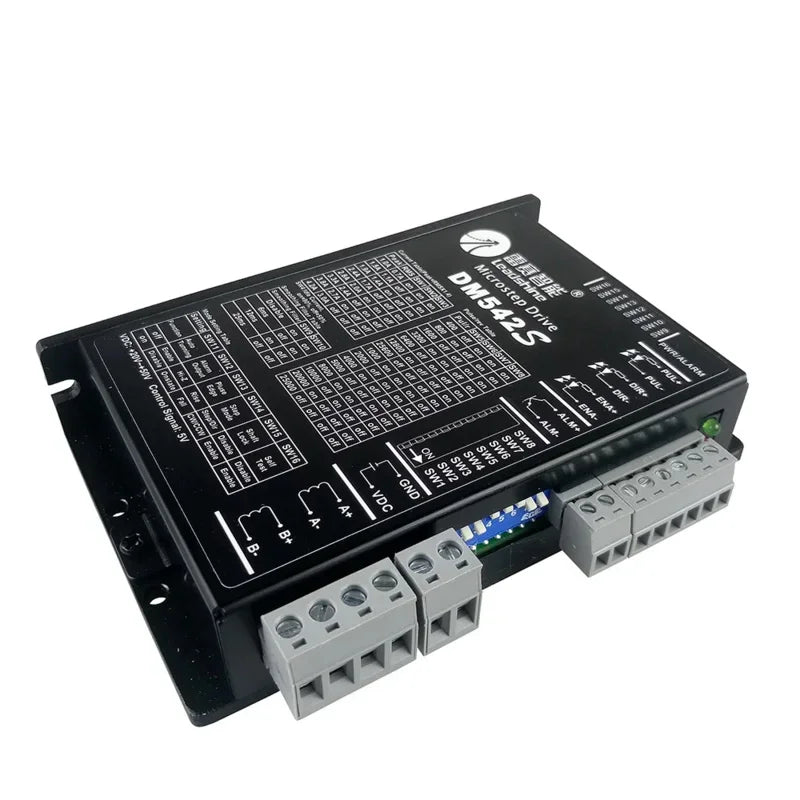

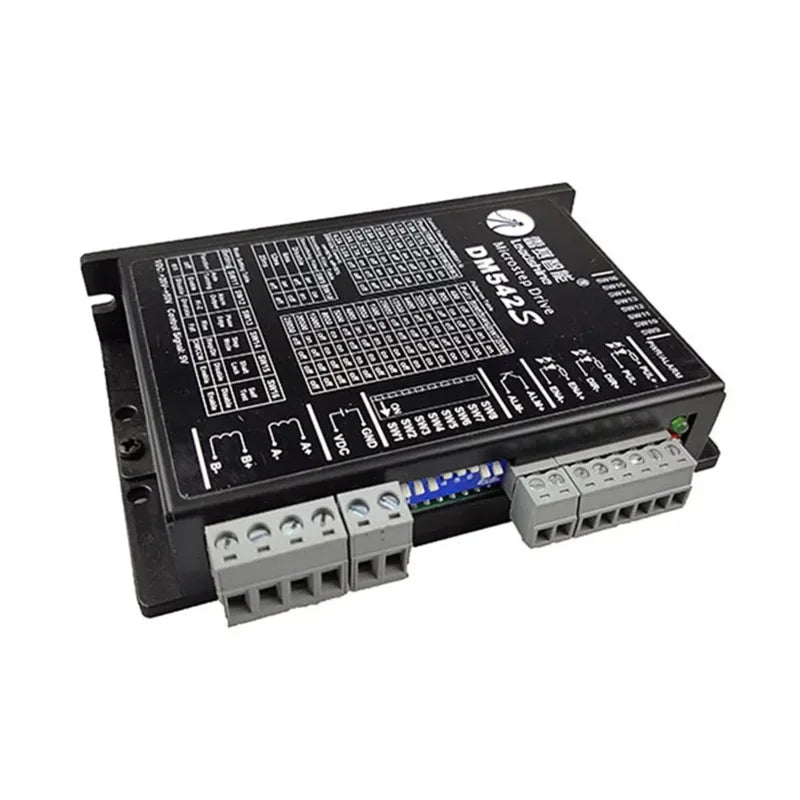

Leadshine 2Phase Stepper Motor Driver DM542S DC24V-50V For 42/57(NEMA17/23) Stepper Motor1.0-4.2A Replace Microstep Driver DM542

TEBAK Leadshine 2Phase Stepper Motor Driver DM542S DC24V-50V For 42/57(NEMA17/23) Stepper Motor1.0-4.2A Replace Microstep Driver DM542

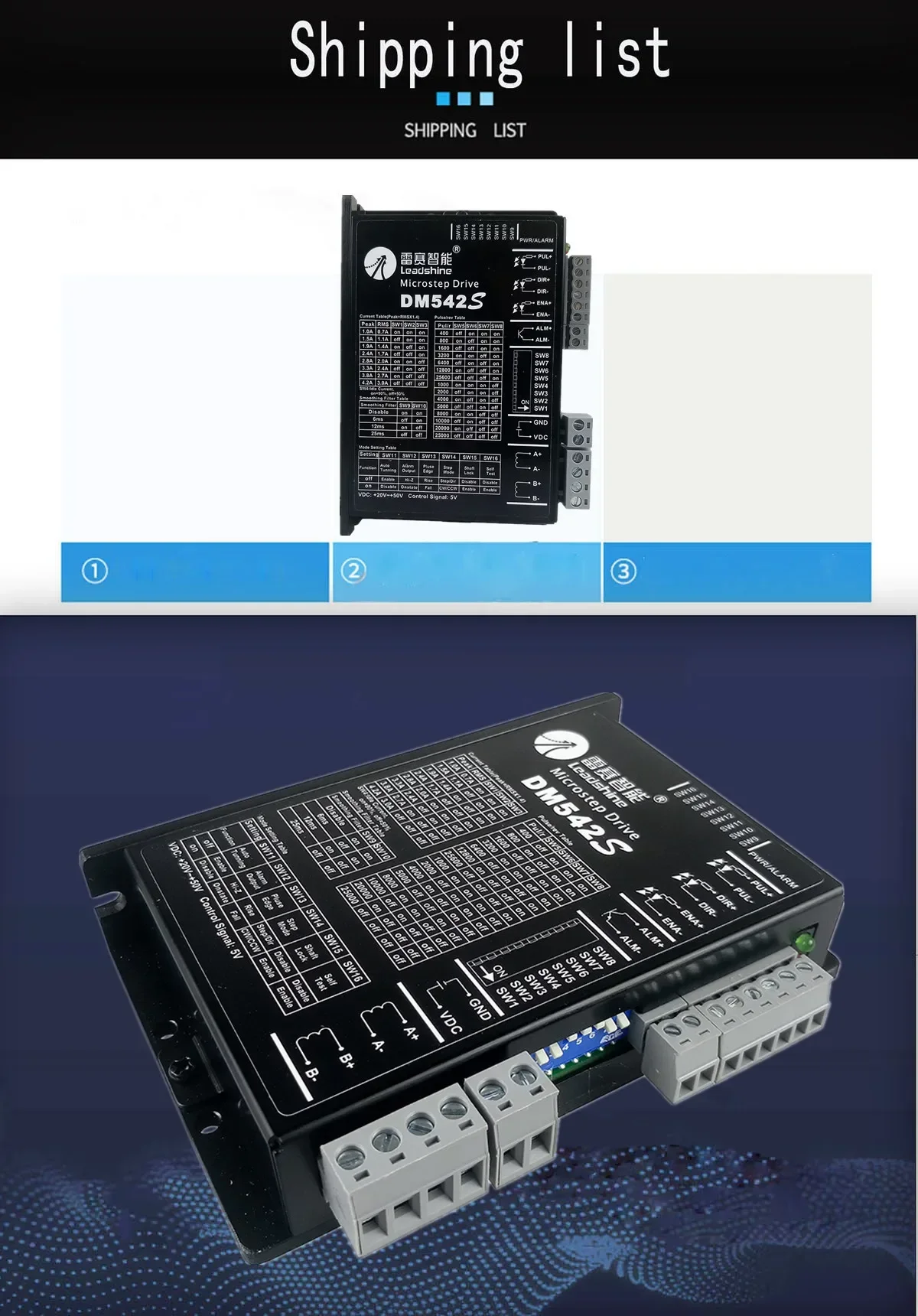

Product packaging

Controller*1

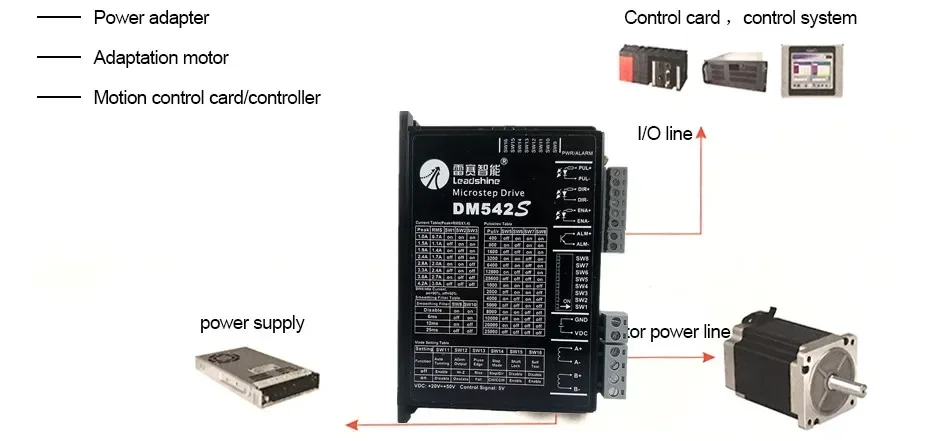

Product use

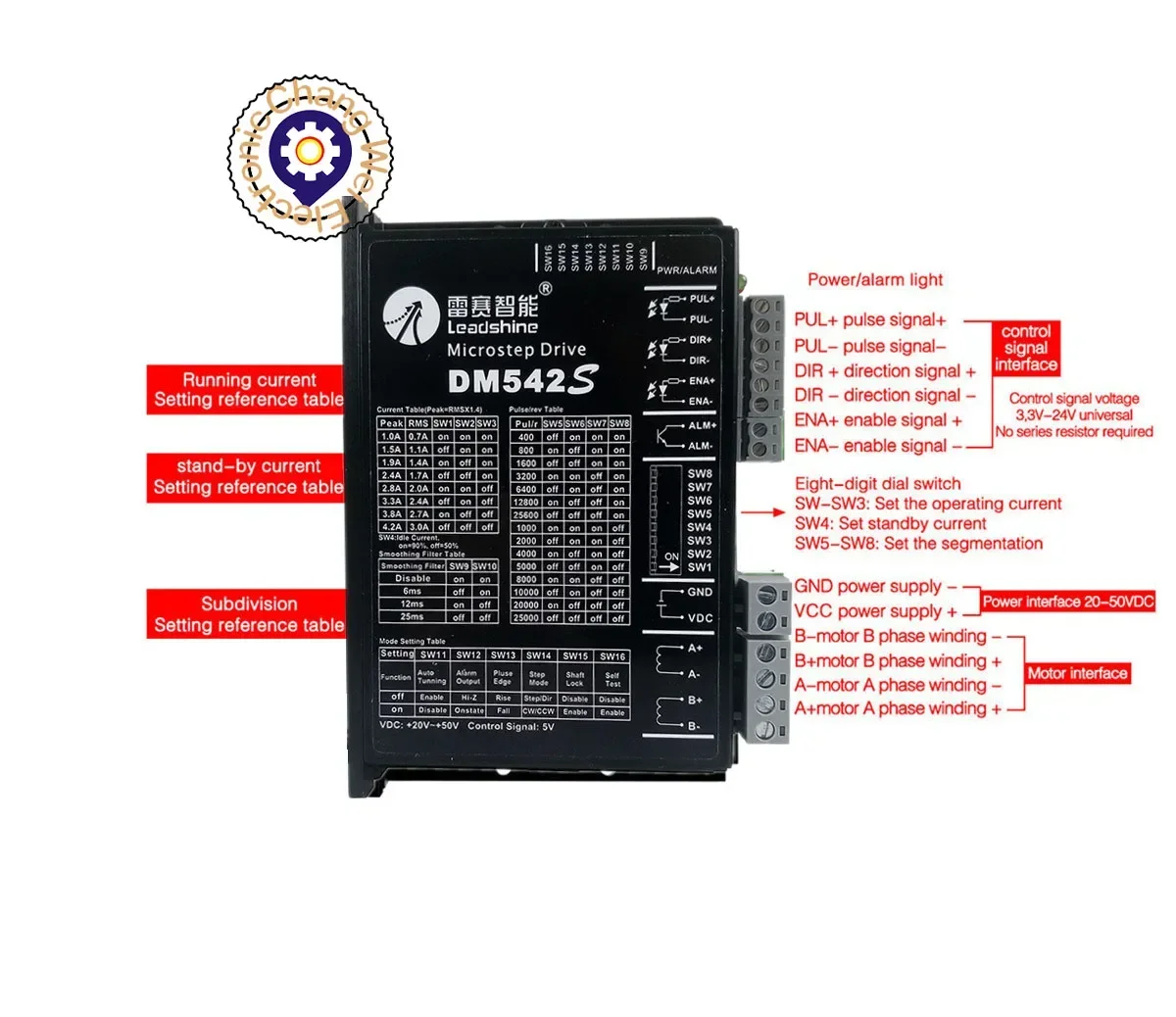

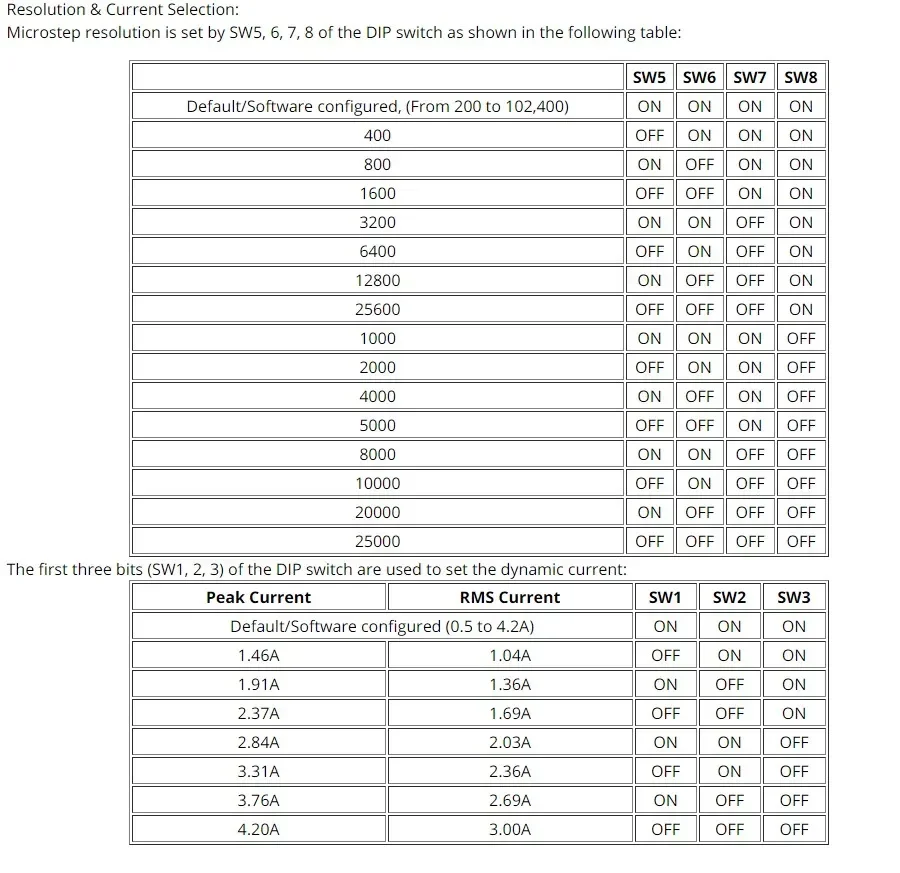

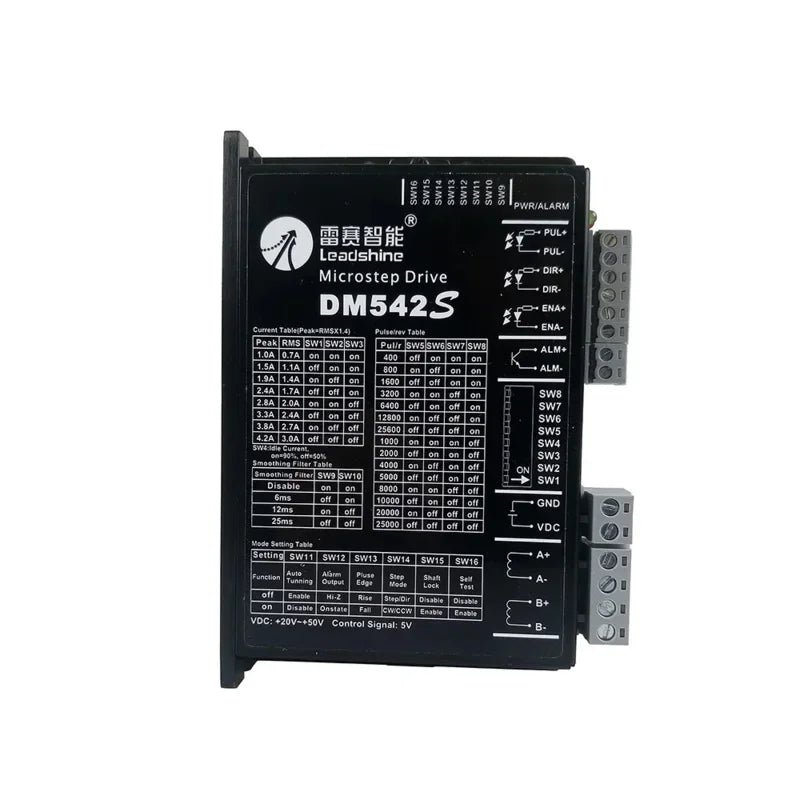

Resolution&Current Selection

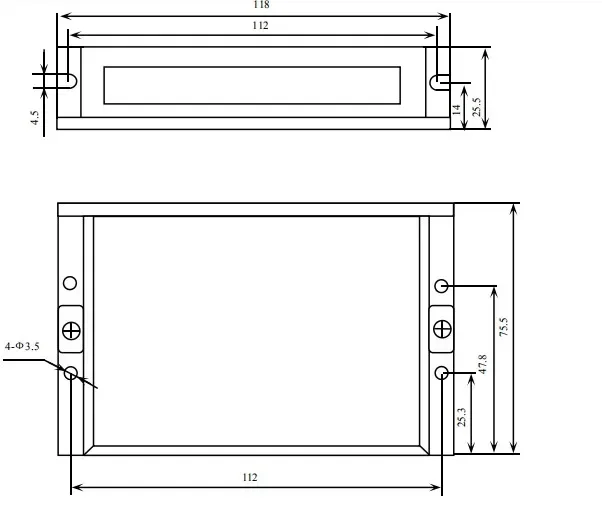

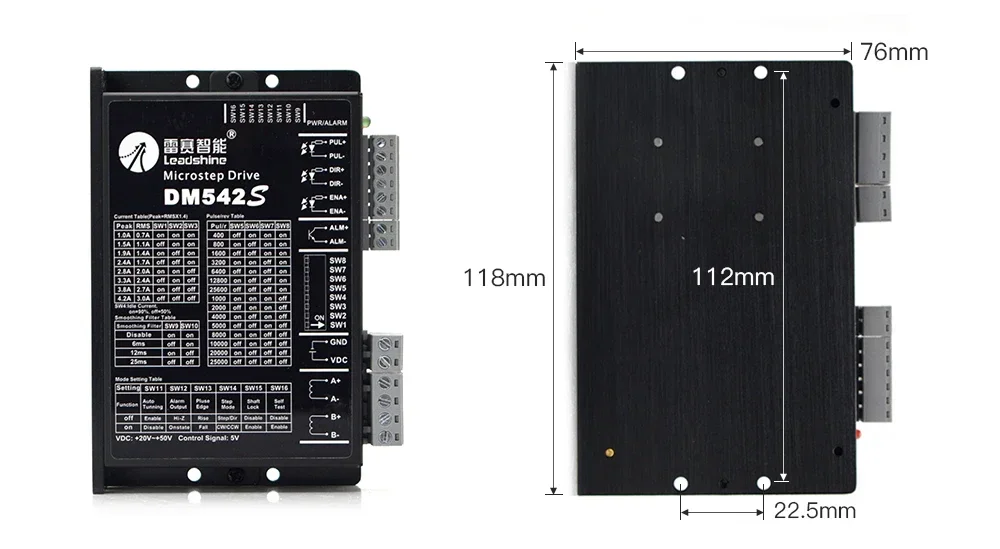

Size

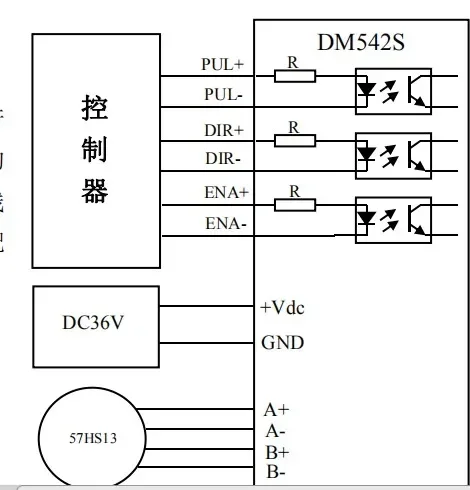

wiring:

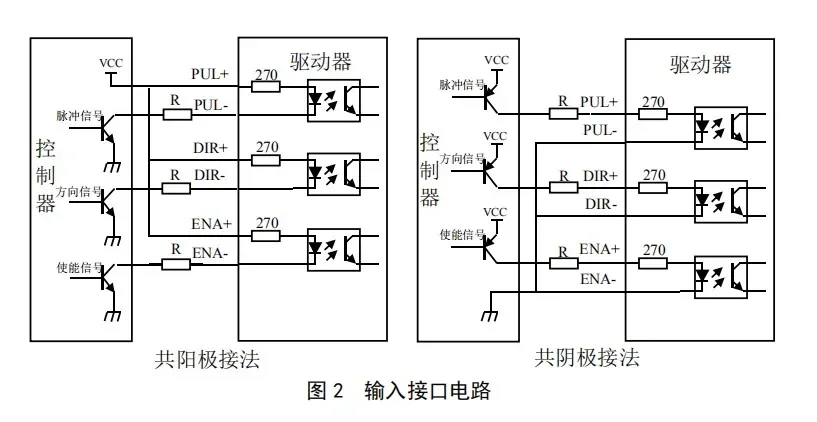

There are three wiring methods for the driver as shown below.
1.Common anode
2. Common cathode
3. Differential signal

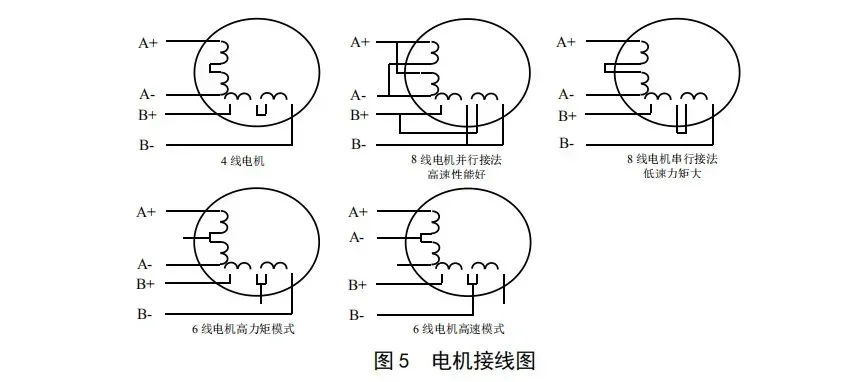

Product Wiring

Product definition

Overview:

The DM542S is a new high-performance digital two-phase stepper driver from Raytheon. It uses 32-bit DSP technology, and users can set the commonly used 8-speed current and 16-speed subdivision to meet the needs of most applications. Low, medium and high speed operation is very stable and low noise. A variety of functions can be selected through external dialing, which greatly facilitates the customer's application.

Characteristics:

● 32-bit DSP technology
  ● Ultra low vibration noise
  ● Built-in high subdivision, dialing code optional
  ● Power-on auto-tuning function, dialing code optional
  ● Precision current control greatly reduces motor heating
  ● The current is automatically halved at rest, SW4 selection
  ● Support single and double pulse, dial code selection
  ● Can drive 4,6,8 line two-phase stepper motor
  ● Optically isolated differential signal input
  ● Impulse response frequency up to 200KHz
  ● 3 digits of dialing, 8 steps can be set
  ● 4-digit dialing, adjustable 16-segment subdivision
  ● With overvoltage, short circuit and other protection functions
  ● External alarm output, maximum output current 100mA, withstand voltage 24Vdc

Application areas:

Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, automatic assembly equipment, etc.
