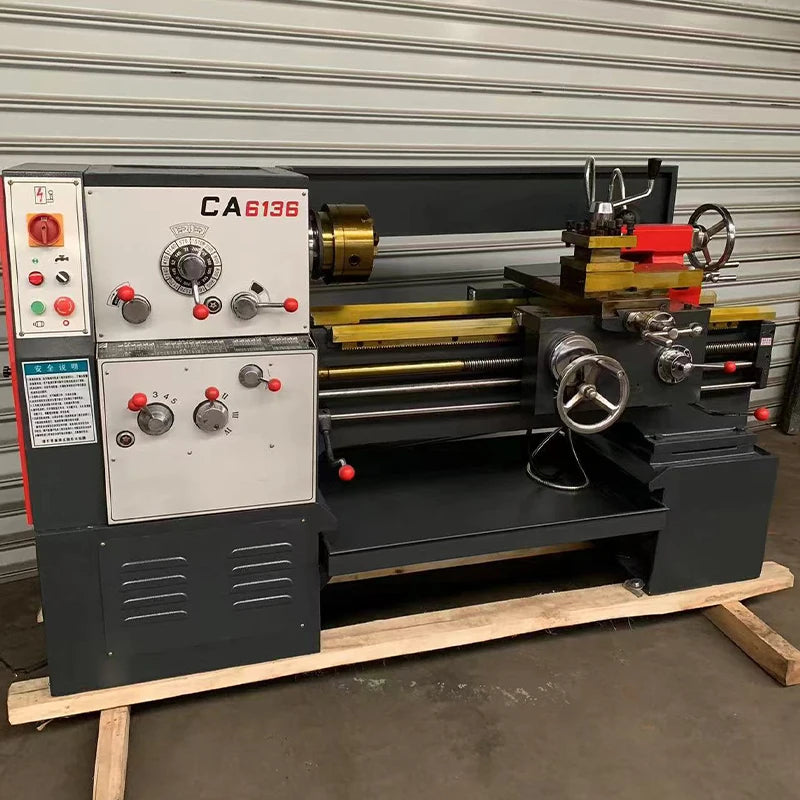

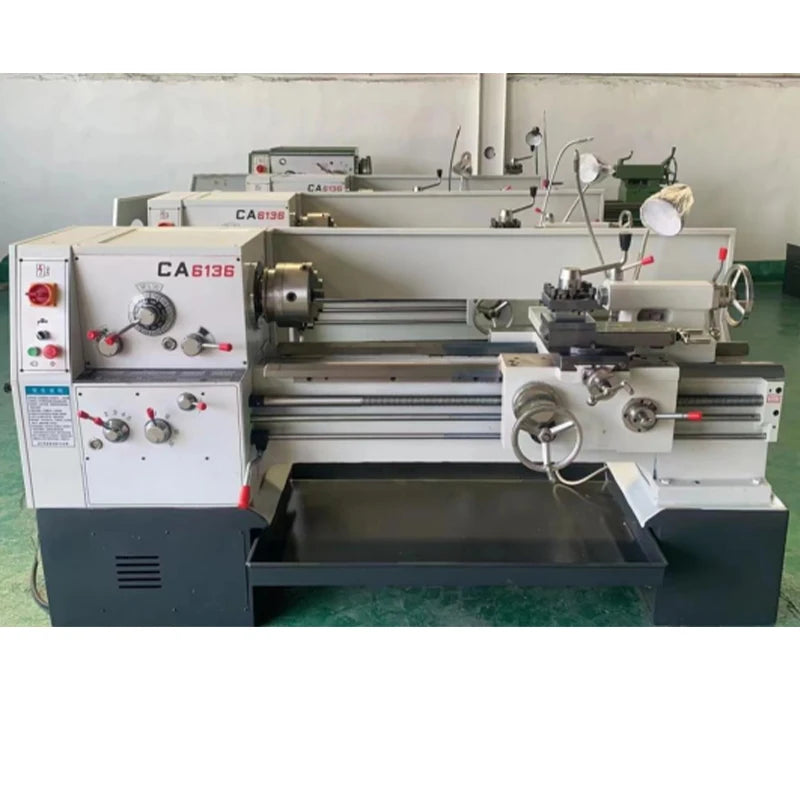

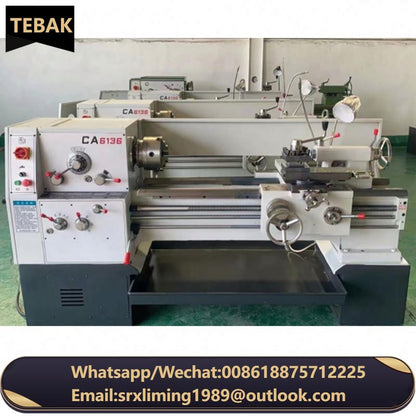

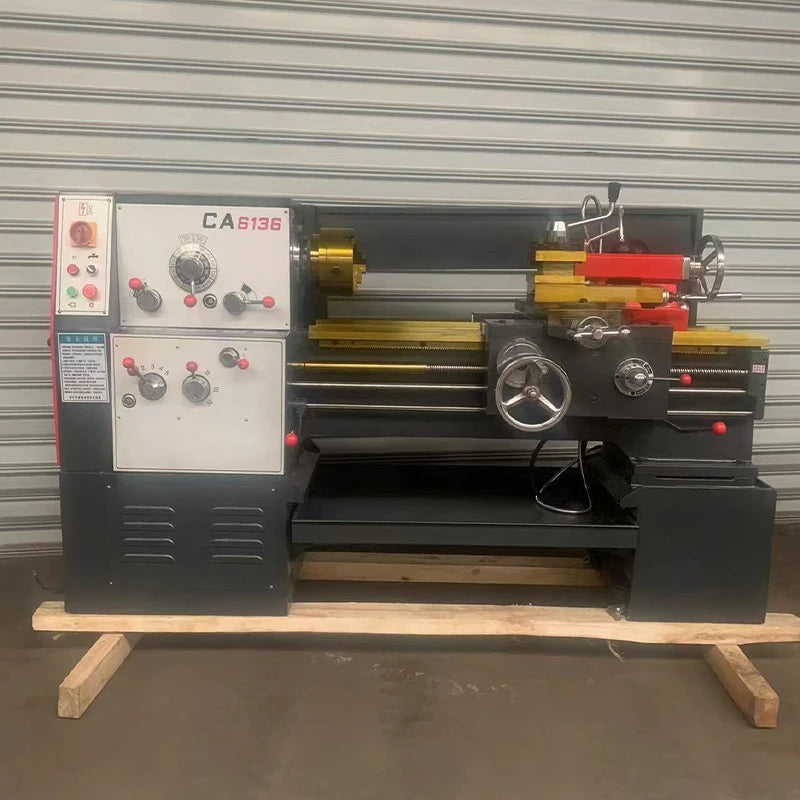

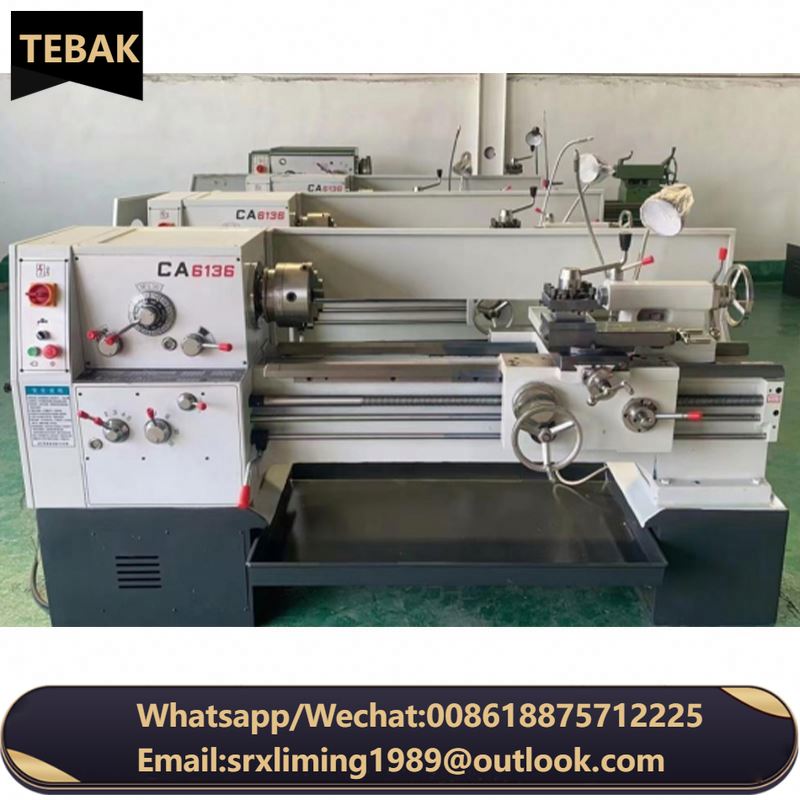

High Precision Horizontal CA6136 Metal Manual Lathe With Long Service Life and Stable Operation Supplied by Manufacturers
High Precision Horizontal CA6136 Metal Manual Lathe With Long Service Life and Stable Operation Supplied by Manufacturers
Couldn't load pickup availability
|
SPECIFICATIONS
|
|
Units
|
CA6136
|
CA6236
|
||
|
Maximum turning diameter of the bed
|
|
mm
|
360
|
360
|
||
|
Maximum turning diameter on the horizontal skateboard
|
|
mm
|
190
|
190
|
||
|
Maximum turning diameter of saddle
|
|
mm
|
520
|
520
|
||
|
Maximum workpiece length
|
|
mm
|
750/1000/1500/2000/3000
|
|
||
|
Spindle bore
|
|
mm
|
52(Optional 80)
|
52(Optional 80)
|
||
|
Spindlebore taper
|
|
-
|
MT6(pot.Metric 120)
|
MT6(pot.Metric 120)
|
||
|
Spindle speed range
|
|
rpm
|
40-1400
|
40-1400
|
||
|
Spindle speed steps
|
|
-
|
9
|
9
|
||
|
Middle drag plate travel
|
|
mm
|
180
|
180
|
||
|
The stroke of the small knife holder
|
|
mm
|
95
|
95
|
||
|
Tool size
|
|
mm
|
20*20
|
20*20
|
||
|
Longitudinal feed rate range
|
|
mm/r
|
0.0832-4.6569
|
0.0832-4.6569
|
||
|
Cross feed rate range
|
|
mm/r
|
0.048-2.688
|
0.048-2.688
|
||
|
Kindsof metric th reads
|
|
kinds
|
19
|
19
|
||
|
Rangeofmetricthreads
|
|
mm
|
0.25-14
|
0.25-14
|
||
|
Kinds ofinch threads
|
|
kinds
|
28
|
28
|
||
|
Range ofinch threads
|
|
T.P.I
|
2-40
|
2-40
|
||
|
Kindsofthreads module
|
|
kinds
|
17
|
17
|
||
|
Range ofthreads module
|
|
MP.
|
0.25-3.5
|
0.25-3.5
|
||
|
Tailstodk quill diameter
|
|
mm
|
65
|
65
|
||
|
Tailstock quill taper
|
|
-
|
MT4
|
MT4
|
||
|
Tailstock quilltravel
|
|
mm
|
130
|
130
|
||
|
Mein mator power
|
|
kw
|
4
|
4
|
||
|
Coolantmotor power
|
|
kw
|
0.09
|
0.09
|
||
|
Machine weight
|
Weightfor 750
|
kg
|
1200
|
1200
|
||
|
|
Weightfor 1000
|
kg
|
1300
|
1300
|
||
|
|
Weightfor 1500
|
kg
|
1500
|
1500
|
||
|
|
Weightfor 2000
|
kg
|
1700
|
1700
|
||
|
|
Weightfor3000
|
kg
|
1900
|
1900
|
||
|
|
Dimensionfor750
|
mm
|
2200*1140 *1500
|
2200*1140 *1500
|
||
|
|
Dimensionfor 1000
|
mm
|
2400*1140*1500
|
2400*1140*1500
|
||
|
|
Dimensionfor 1500
|
mm
|
2900*1140*1500
|
2900*1140*1500
|
||
|
|
Dimensionfor2000
|
mm
|
3400*1140*1500
|
3400*1140*1500
|
||
|
|
Dimensionfor3000
|
mm
|
4400*1140*1500
|
4400*1140*1500
|
||
