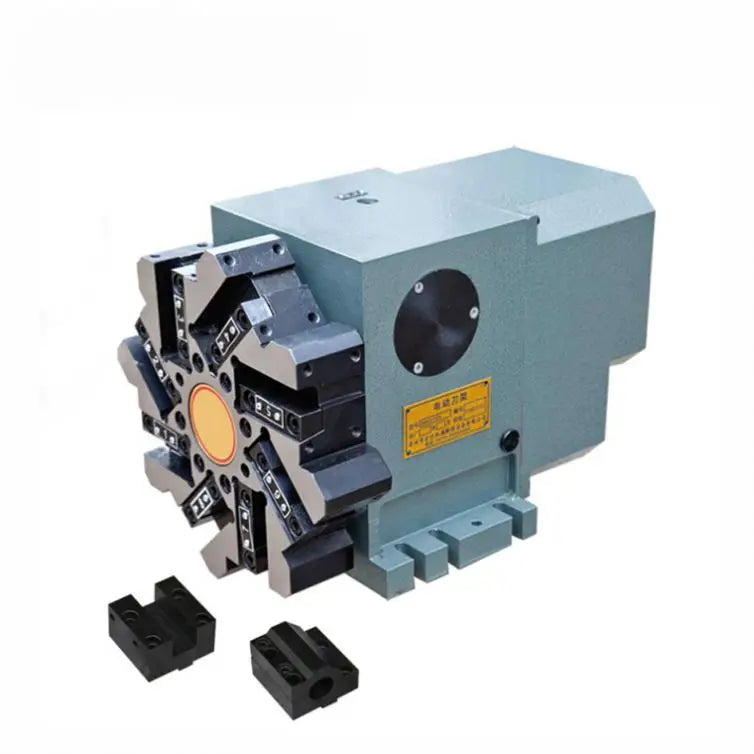

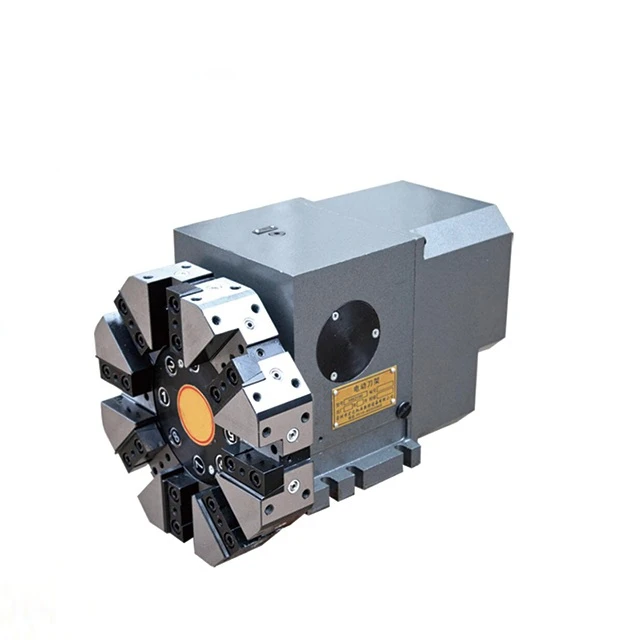

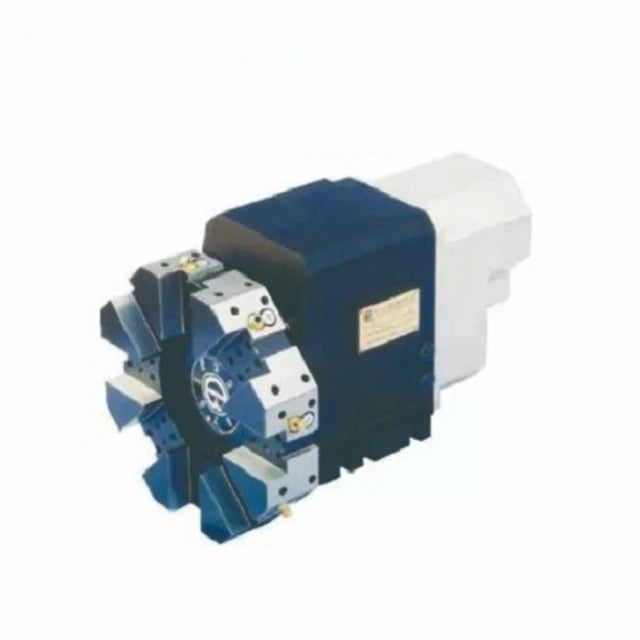

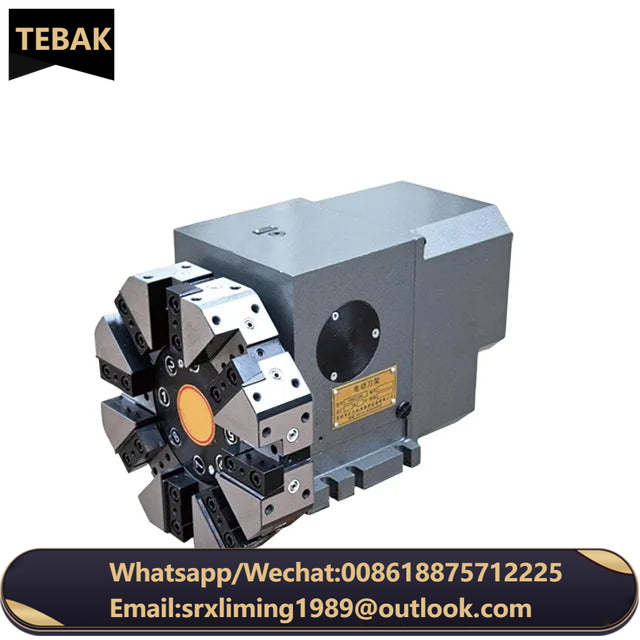

High Precision 8stations HAK31080 NC TURRET CNC Tool Lathe Power Turret

High precision 8stations HAK31080 NC TURRET CNC tool lathe power turret





Technical features:

HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without tool-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. It is the best choice for processing complex parts.



1. Confirm various parameters when choosing models of turret. Choose the number of stations according to quantity of part procedure and complicacy.

2. Choose tool specifications according to model of machine tool and cutting force. Choose the front type or rear type tool turret according to the cutting directions of the machine tool.

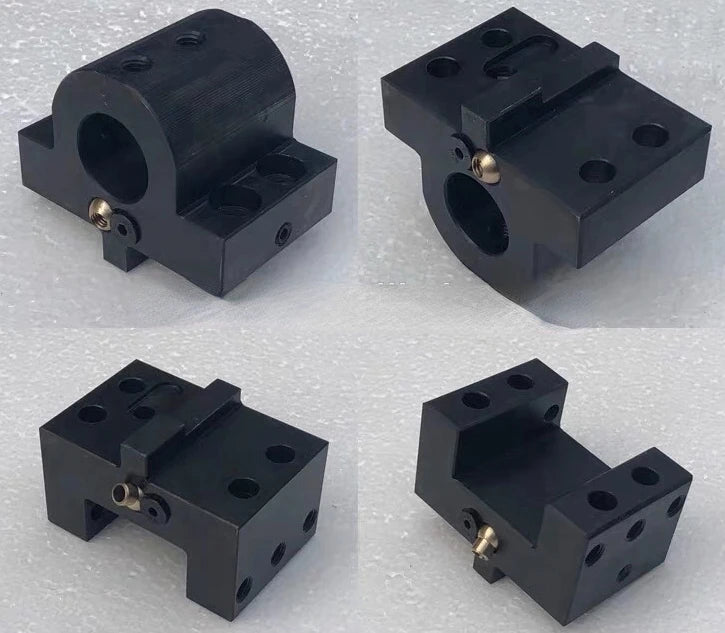

3. After the mounting of boring cutter seat of horizontal turret, Self-bore the inner hole according to the size of boring bar and make a corresponding mark. The tool should be fixed in the former position in the later mounting.

4. The distance tool reaching out of upper housing distance is usually not more than 2/3 upper housing size. Please note when placing an order,if more than the limit.

5. Touch by hand or other things is forbidden when turret is running to avoid injury or damage.

6. If customers have any special requirements or changes in parameters, please offer some data and contact with our company.



Performance Parameters

Model/Data	Center height (mm)	Station number		Max.tangential torque (N·m)	Repeatability accuracy(")	Time of changing tool and lock(s)
						45º	60º
HAK31063	63	6	8	600	±2	2.6	2.8
HAK31080	80	6	8	1000	±2	2.8	3
HAK31100	100	6	8	1500	±2	3.6	3.8
HAK31125	125	6	8	2500	±2	4	4.2
HAK31160	160	6	8	4000	±2	4.3	4.5

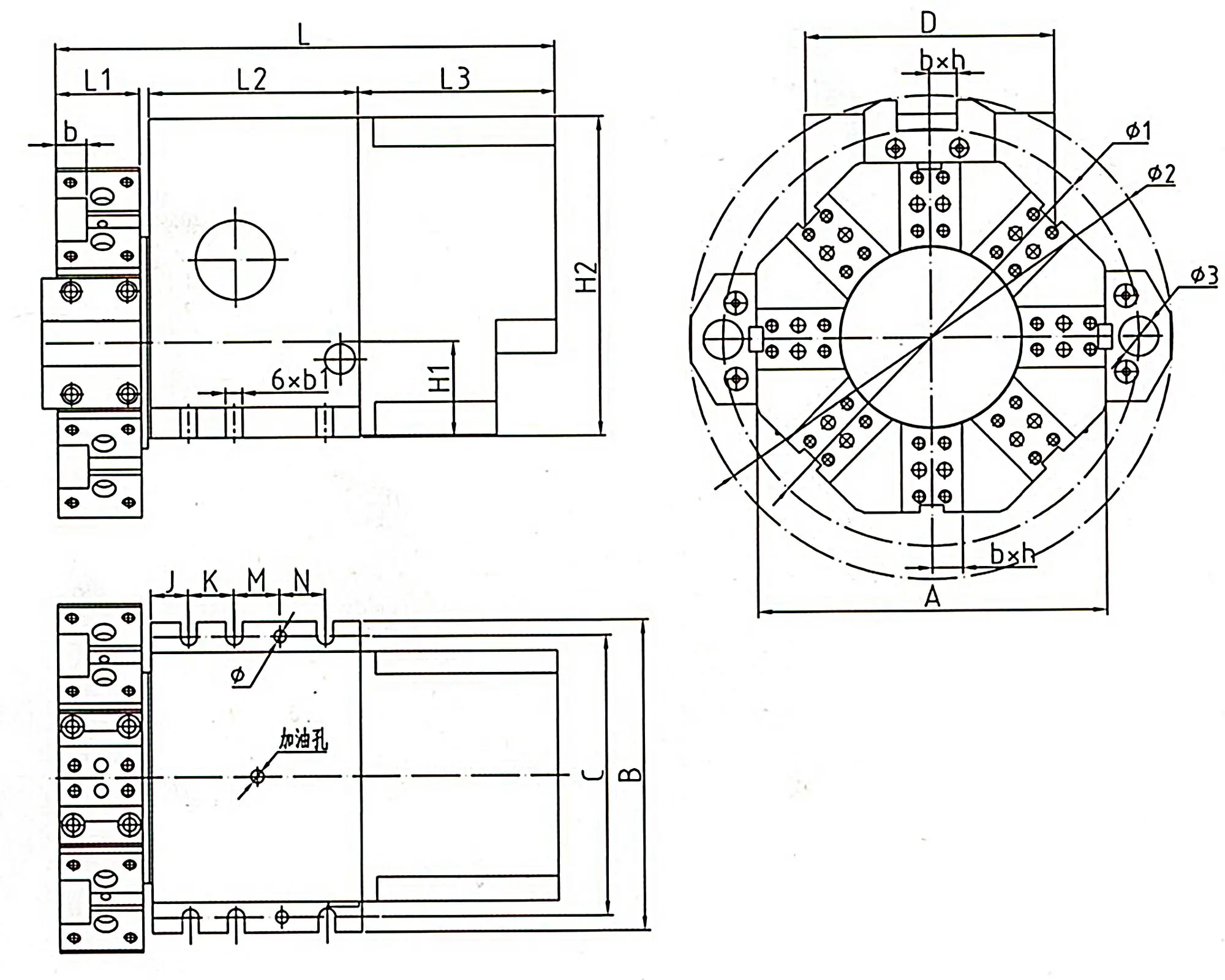

Size Parameters

Model/Dim	A	B	C	D	H1	H2	b1	b	h
HAK31063	230	205	185	165	63	210	11	20	20
HAK31080	260	210	190	180	80	230	11	25	25
HAK31100	300	240	220	200	100	260	13	25	25
HAK31125	340	288	260	230	125	300	18	32	32
HAK31160	460	380	345	306	160	380	22	40	40



Model/Dim	L	L1	L2	L3	J	K	M	N	φ	φ1	φ2	φ3
HAK31063	329	55	138	130	25	30	30	30	φ8	φ274	φ318	φ25
HAK31080	350	60	147	130	32	32	32	32	φ8	φ310	φ366	φ25
HAK31100	384	72	164	140	25	40	30	30	φ10	φ360	φ420	φ32
HAK31125	459	85	204	150	32	44	43	43	φ12	φ420	φ492	φ40
HAK31160	564	115	265	160	40	48	56	48	φ22	φ560	φ640	φ50
