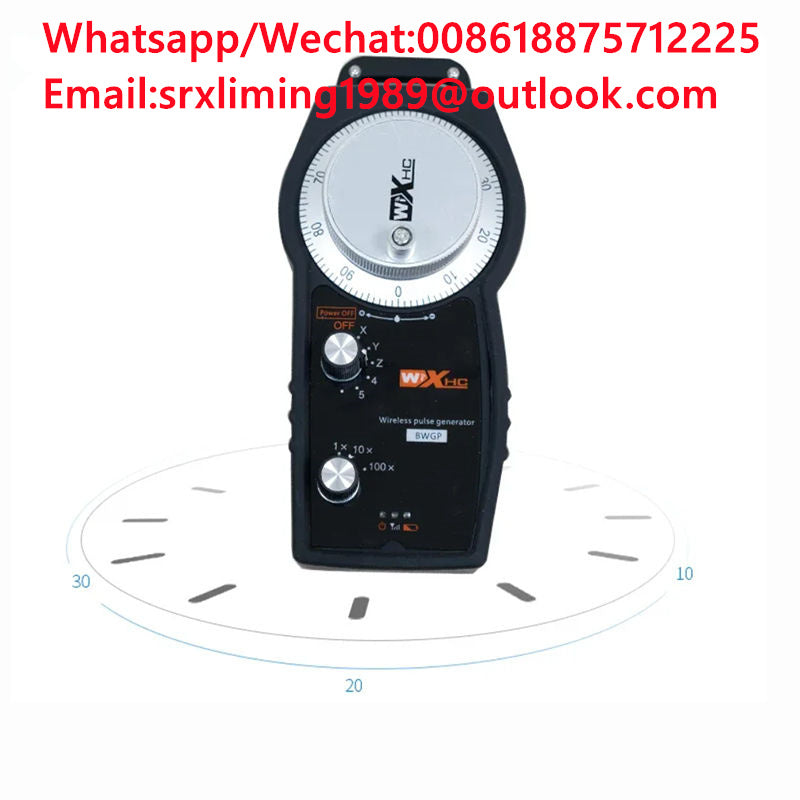

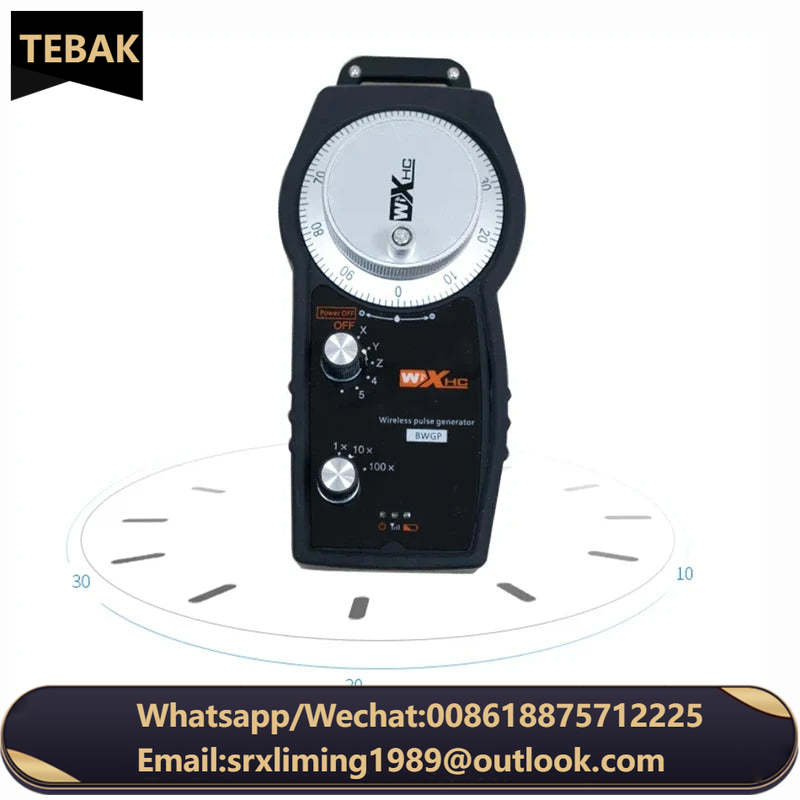

General 5 Axis Wireless Electronic MPG Manual Pulse Generator Support SIEMENS MITSUBISHI FANUC FAGOR NUMLNC FUTURE SYNTE CNC

General 5 Axis Wireless Electronic MPG Manual Pulse Generator Support SIEMENS MITSUBISHI FANUC FAGOR NUMLNC FUTURE SYNTE CNC

$59.00 USD
$59.00 USD $59.00 USD
Sale Sold out
model number

XHC Manufacturer 5 axis wireless handwheel wireless handwheel Siemens MITSUBISHI wireless Mpg pendant handwheel

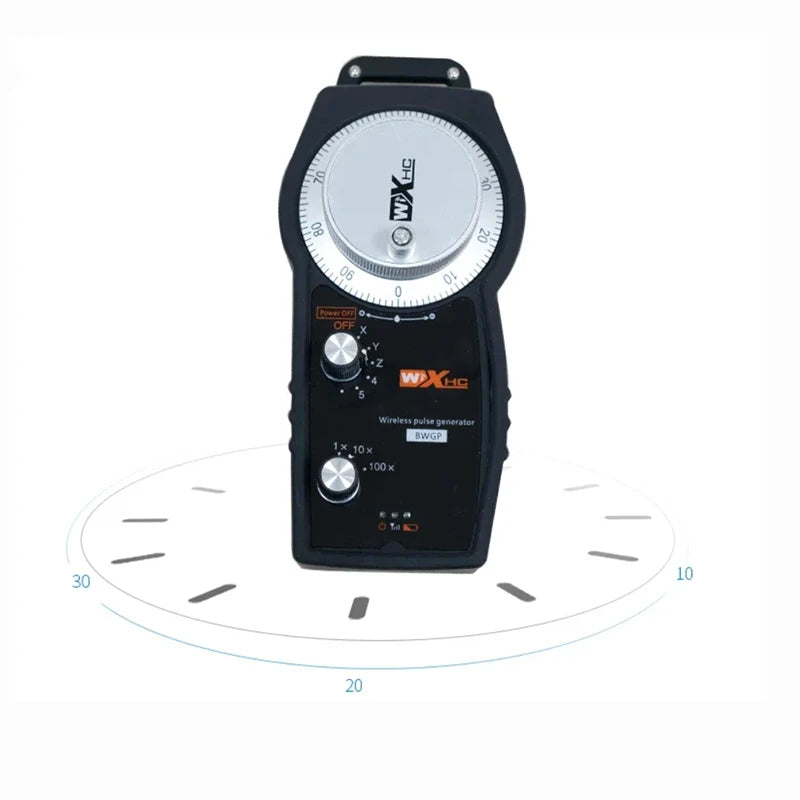

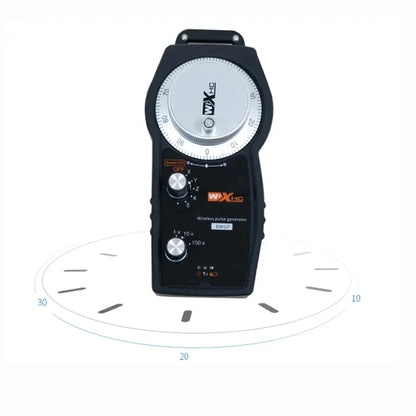

TEBAK General 5 Axis Wireless Electronic MPG Manual Pulse Generator Support SIEMENS MITSUBISHI FANUC FAGOR NUMLNC FUTURE SYNTE CNC

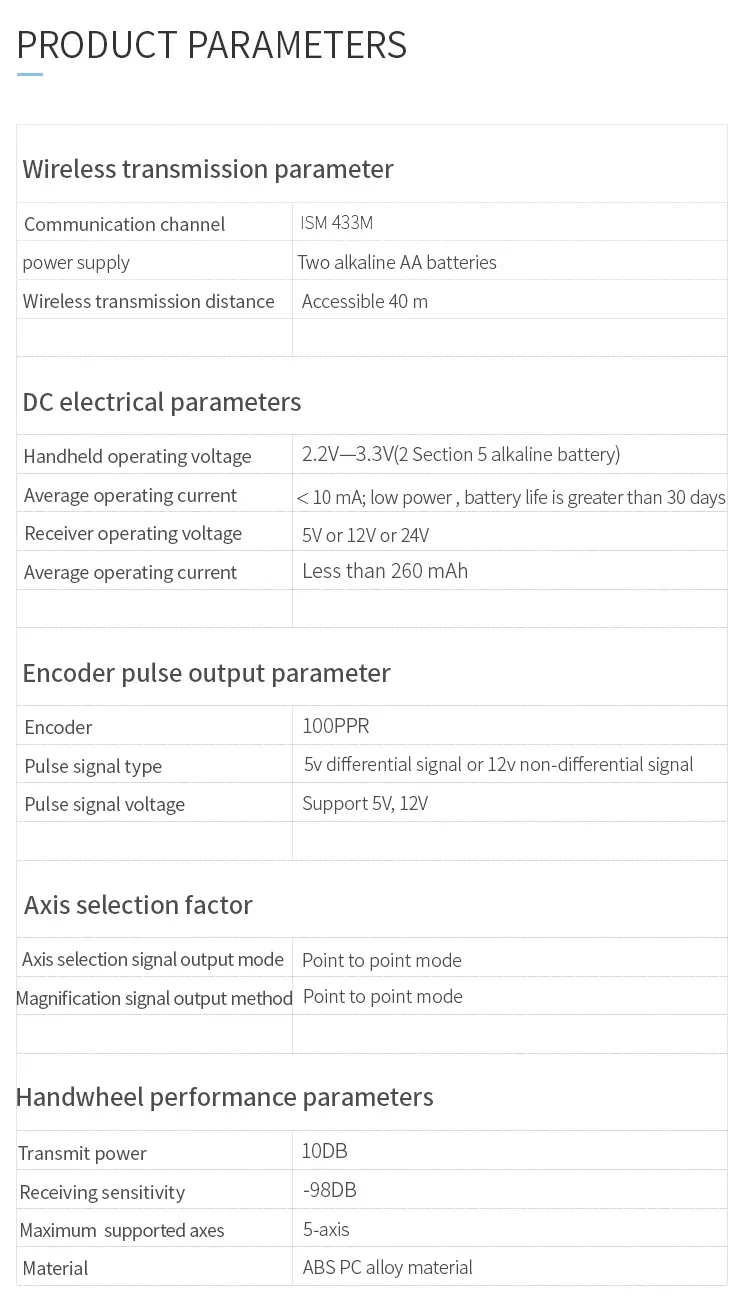

Product Description:

Model:
BWGP

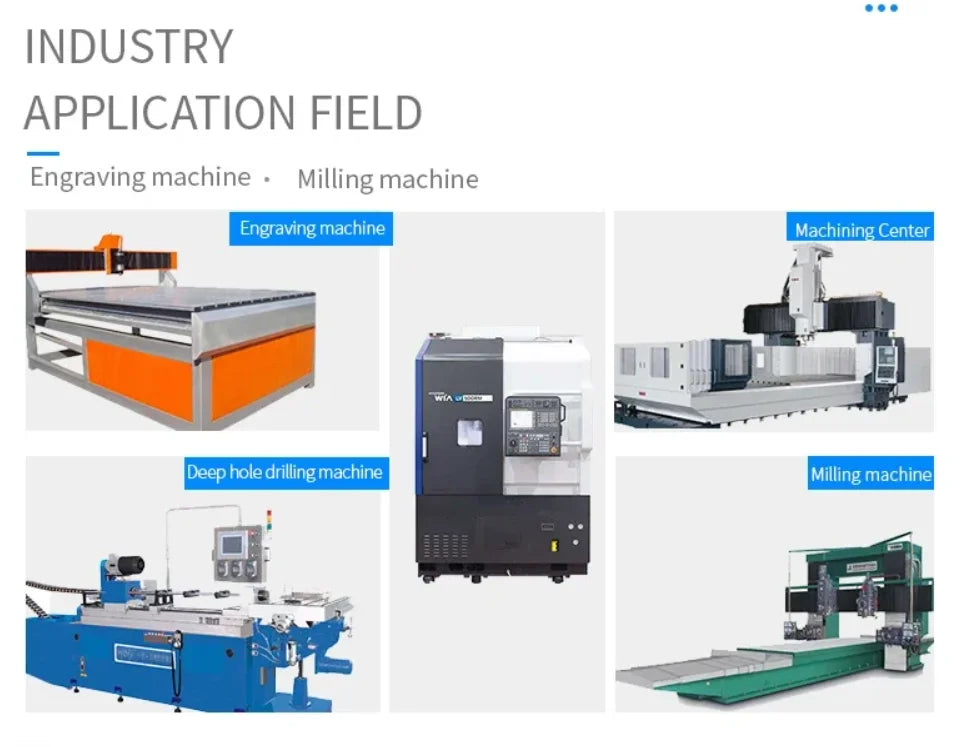

Application:
5-axis wireless electronic handwheel. Siemens, farnaco, Fargo, Mitsubishi, Hyde and other systems are applicable. Point to point.



type

Wireless handwheel (instead of wired handwheel)

Number of axes

5

Applicable system

FANUC,Mitsubishi,Siemens,Higerman,Fagor,etc.



If the system you use is not listed here, please refer to the table

Emergency stop button

No

Communication frequency

433MHZ

anti-interference

The same range supports 32 sets of equipment to operate stably at the same time

Pulse signal

Support differential and non differential, NPN, PNP and other signal types

relevant

Support point to point

Parameters related to model selection

Please let us know your model number after selection

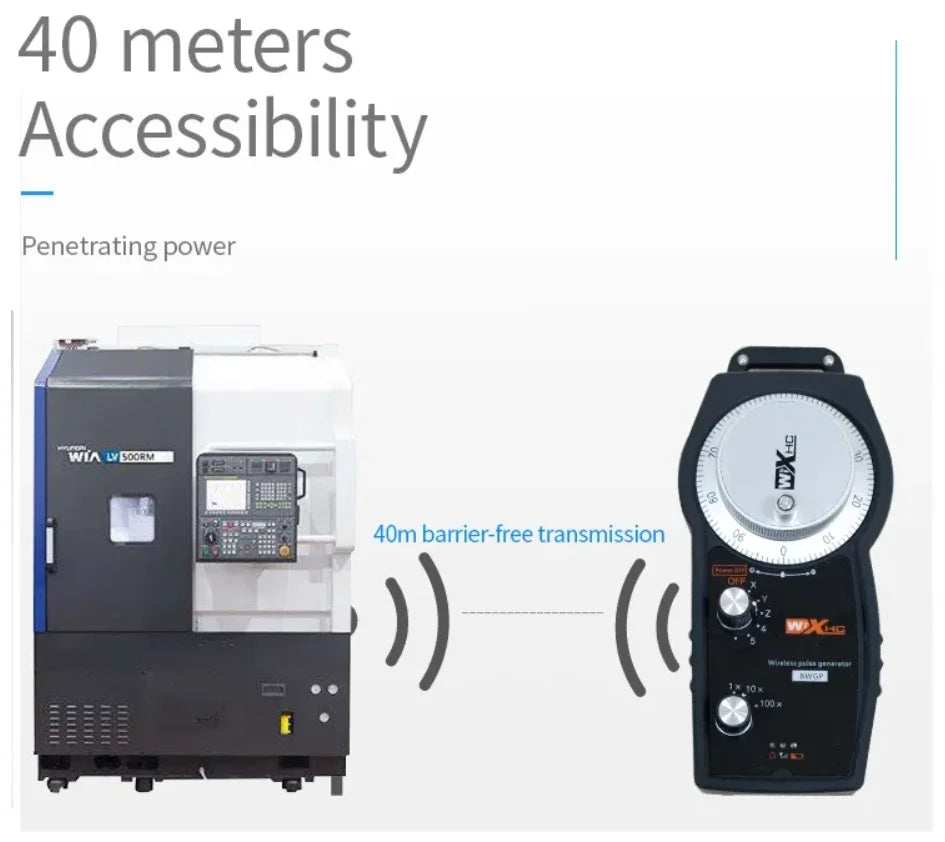

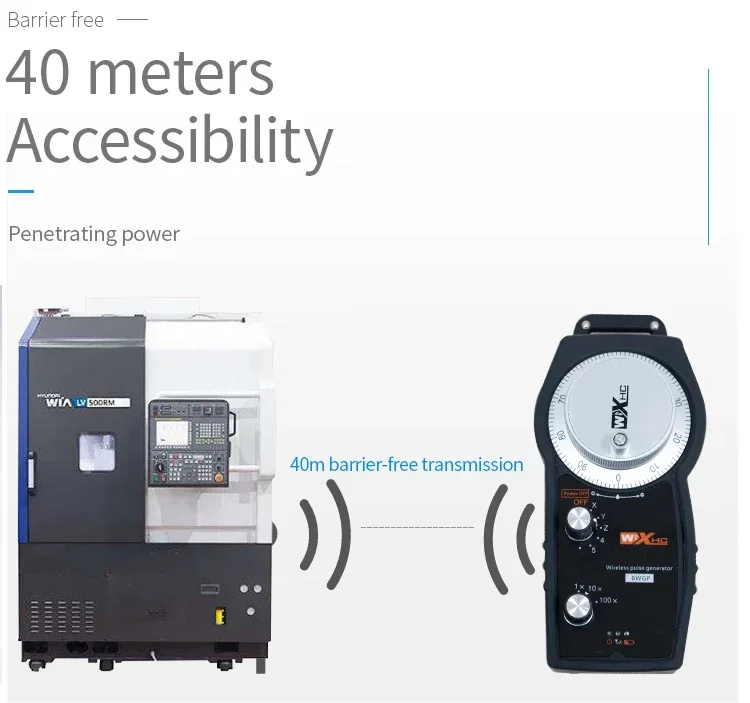

Signal transmission distance

40 meters wireless operating distance

parameter

A pulse encoder, 100 pulses/turn
Model selection:



Selection parameters



1

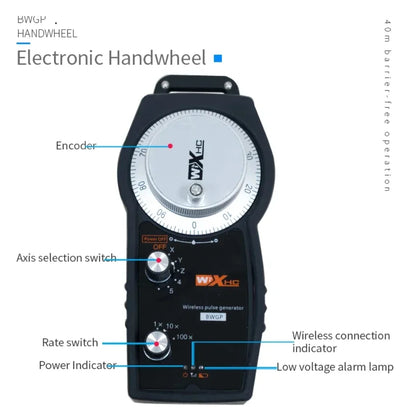

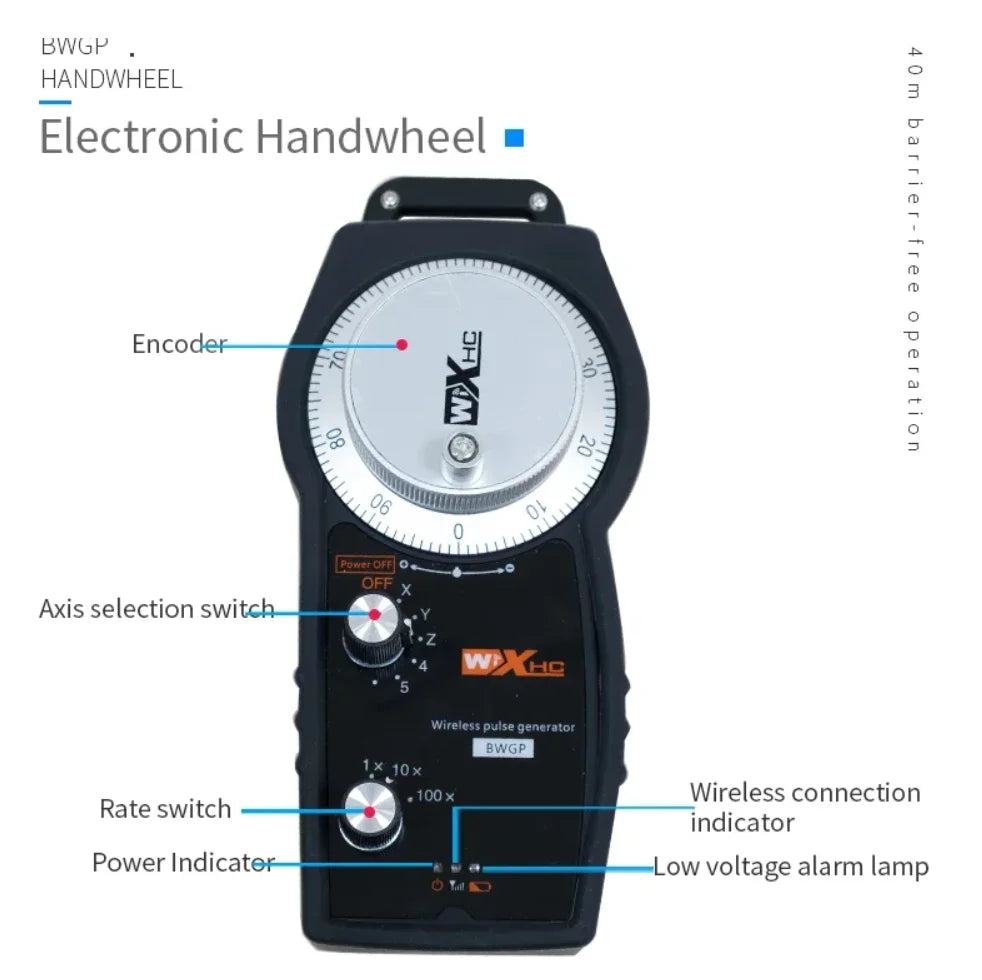

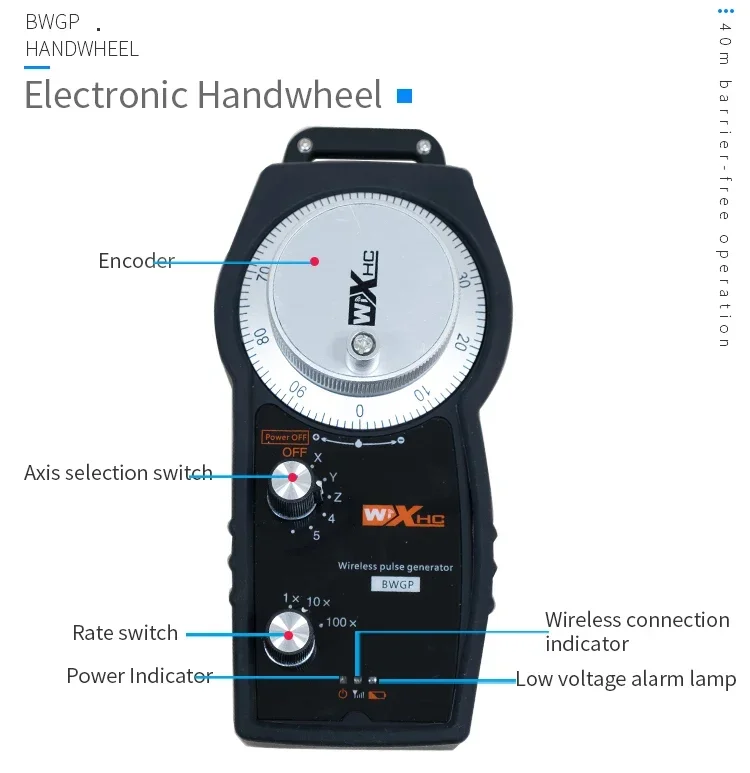

Appearance of the product:



A /B/C/S/E represents the model of A/B/C/S/E .

2

TWGP: means with emergency stop button;



WGP: means without emergency stop button

3

Pulse signal standard:


01:Represents 5V, 25 mA; A, B pulse signal output: 100PPR


03:Represents 5V, differential signal; A, A-; B, B-; pulse signal output:100PPR


02:Represents 12V, 5 mA; A, B pulse signal output: 25PPR (suitable for Mitsubishi system)


04:Open circuit output; A, B pulse signal. Low level, NPN output. (suitable for PLC system)


05:Source output; A, B pulse signal, high level output, PNP output.(suitable for PLC system)

4

The number of axes supported by the handwheel:

5 means 5 axes;

6 means 6 axes;

7 means 7 axes

5

Handwheel axes selection output mode:



A means point-to-point output;


B means coded output (support binary, gray code, etc.)

6

Handwheel maglification output mode:



A means point-to-point output;


B means coded output (support binary, gray code, etc.)

7

Expansion buttons on the handwheel:



3 means supporting 3 expansion buttons;



X means that the magnification signal is a special output mode of pulse output, which is unique to Siemens systems.


No X means that the magnification signal is an ordinary signa output;

8

Indicates the working voltage of the wireless signal receiver:

05 means 5V power supply;

12 means 12V power supply;

24 means 24V power supply


Packaging :



Packaging: Neutral carton packaging



Accessories included: 1 *manual 1*receiver 1*control



Shipping:



A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)



B. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.



C. We can arrange shipment by sea based on customer request or only send to china mainland for free shipping
