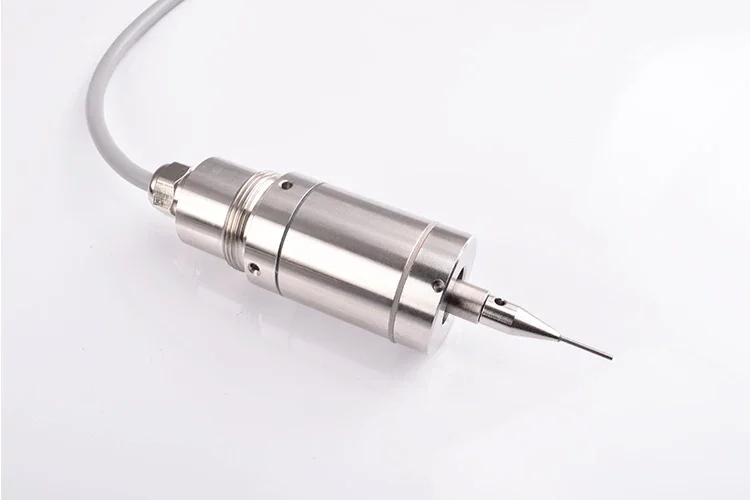

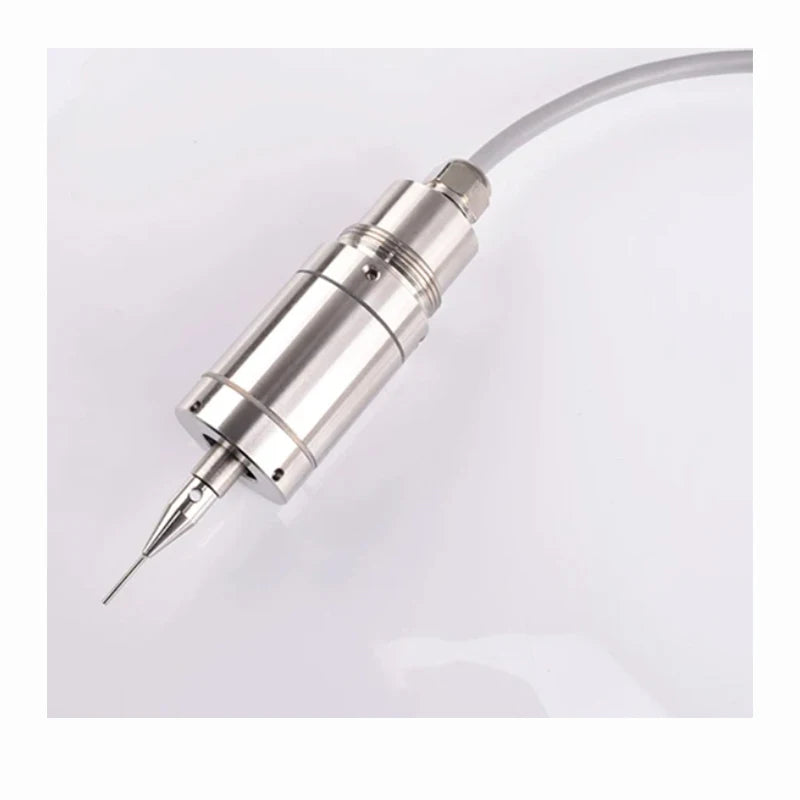

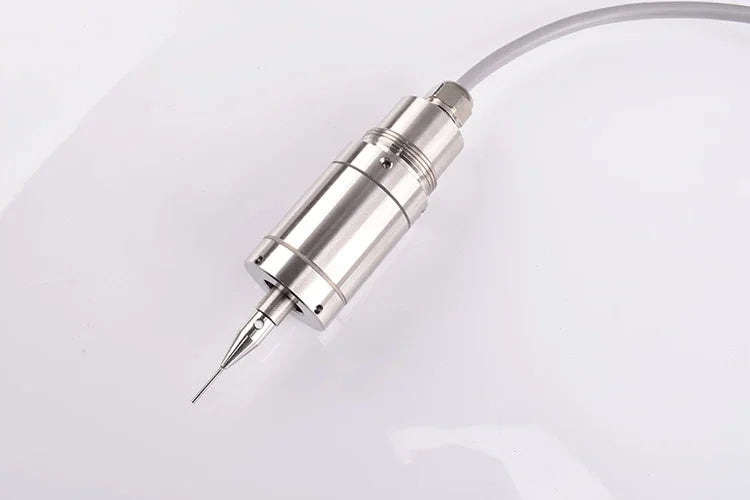

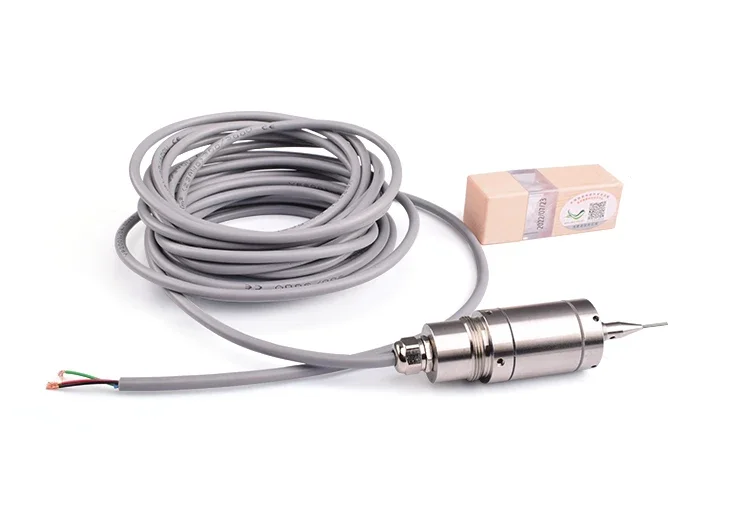

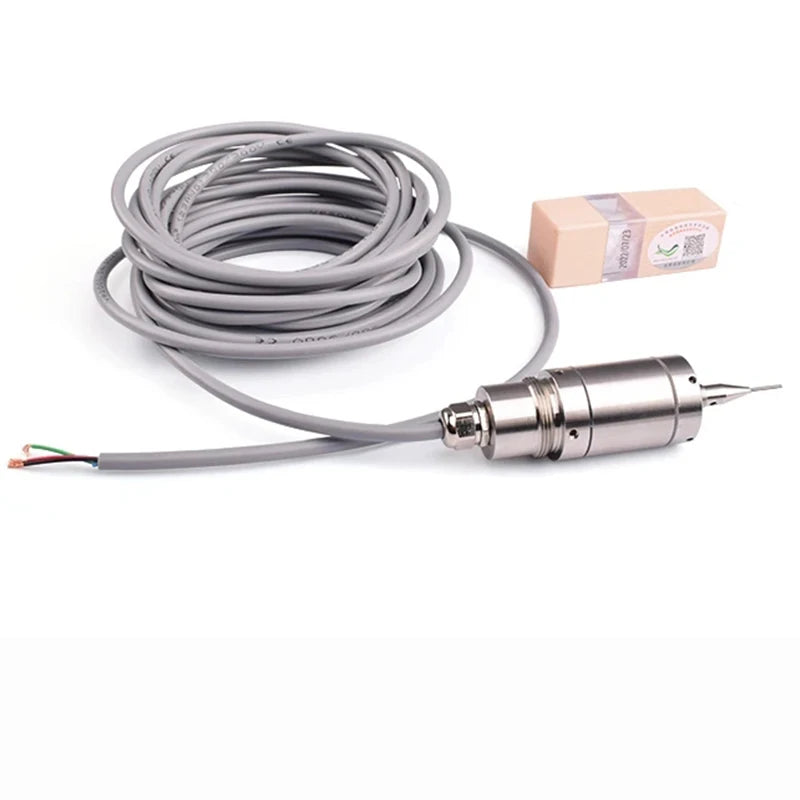

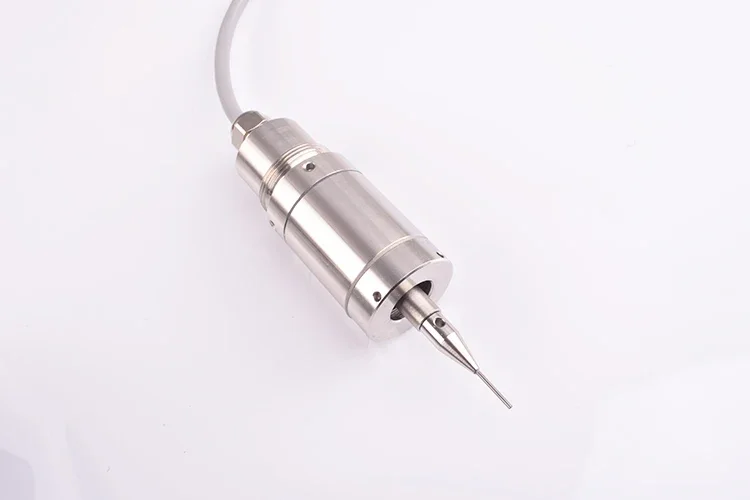

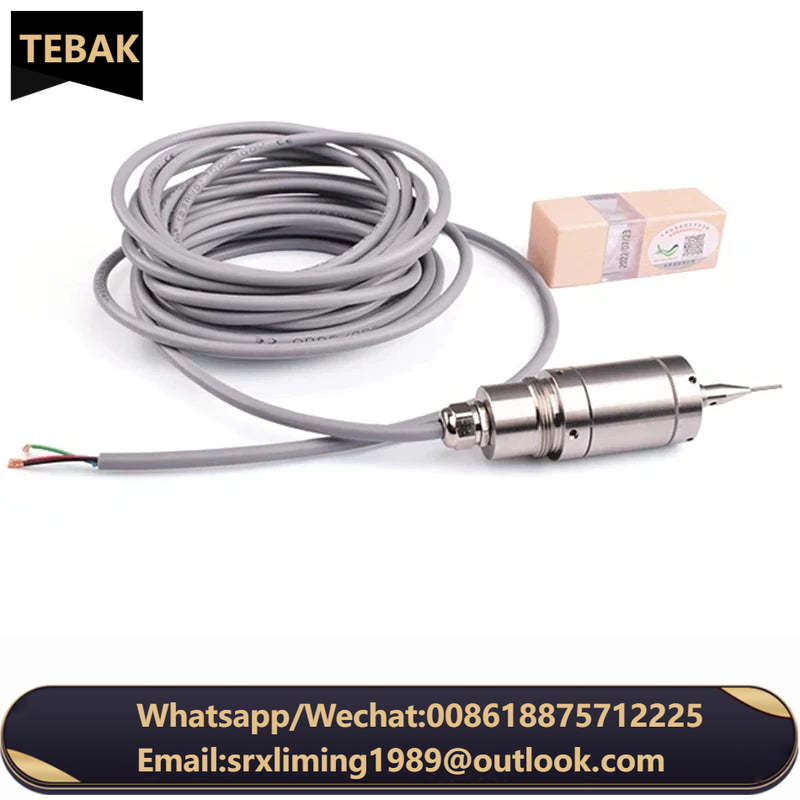

FT-60 Edge Finder Wired Probe CNC Machine Tool Automatic Centering Engraving Machine Probe Sensor High Precision 0.001mm
FT-60 Edge Finder Wired Probe CNC Machine Tool Automatic Centering Engraving Machine Probe Sensor High Precision 0.001mm
Couldn't load pickup availability
FT-60 edge finder wired probe CNC machine tool automatic centering engraving machine probe sensor high precision 0.001mm
The advantages:
Stability and safety
Peration mode suitable for workshop
|
Model
|
FT-60
|
|
Precision
|
±1μm
|
|
Triggering direction
|
±X , ±Y , ±Z
|
|
Maximum needle override
|
xy:13° Z=5N
|
|
Probe contact force
|
x/y=2.5N Z=2N
|
|
Diameter of probe
|
φ1mm
|
|
Measuring speed
|
50-500mm/min
|
|
Material
|
Stainless steel
|
|
Temperature range
|
0℃-60℃
|
|
Sealing grade
|
IP68:EN60529
|
|
Trigger life
|
8 million times
|
|

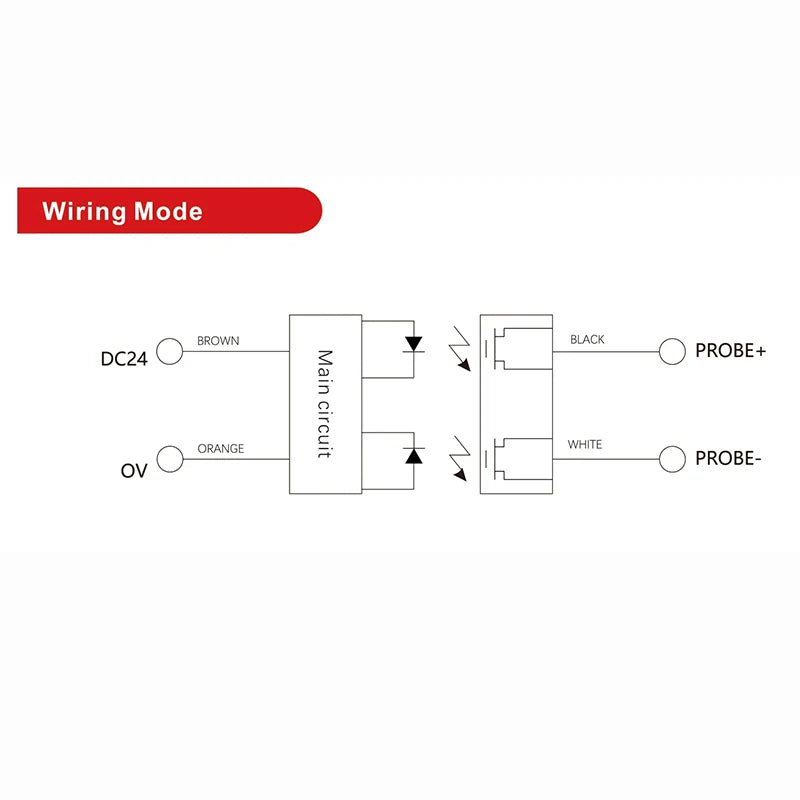

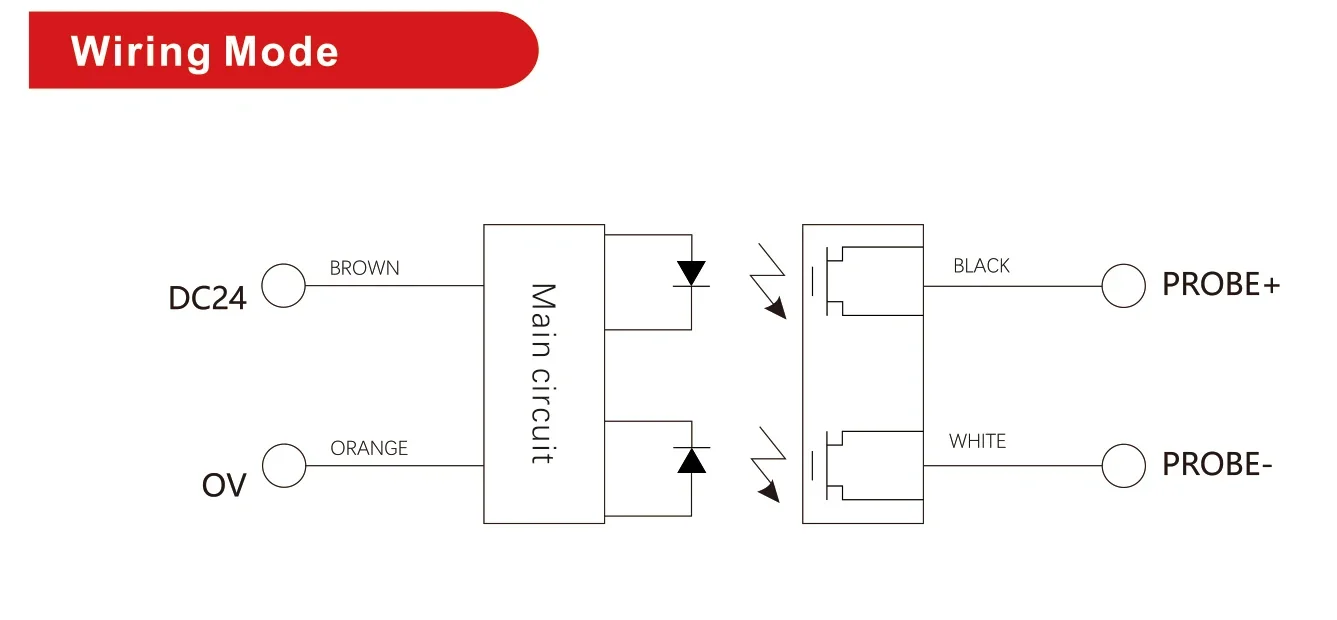

Signal mode
|
Hardware wiring mode (online)
|
|
Scope of application
|
Turning, milling, planing and grinding
|
