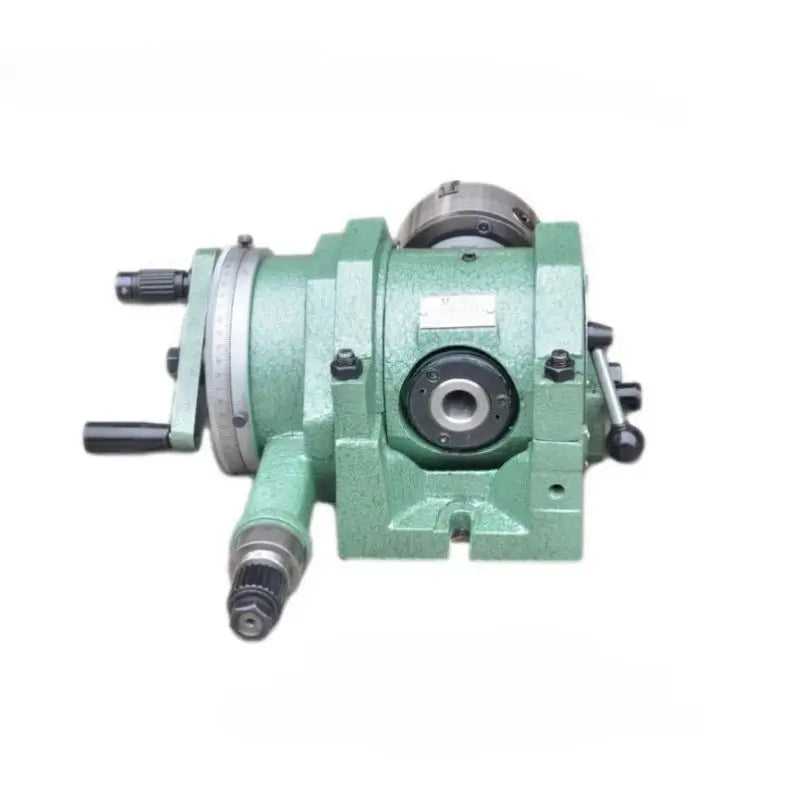

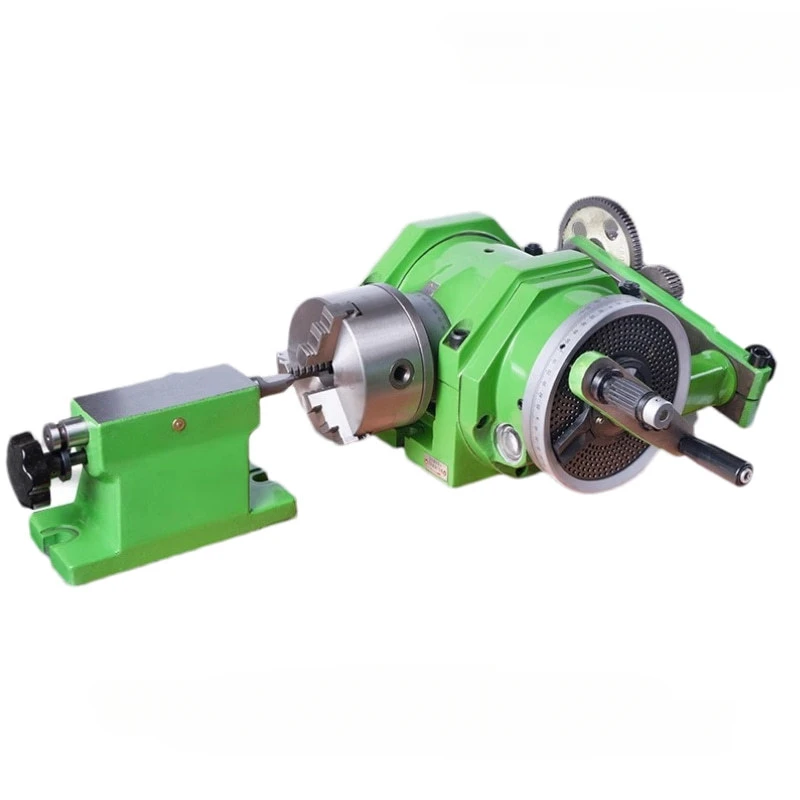

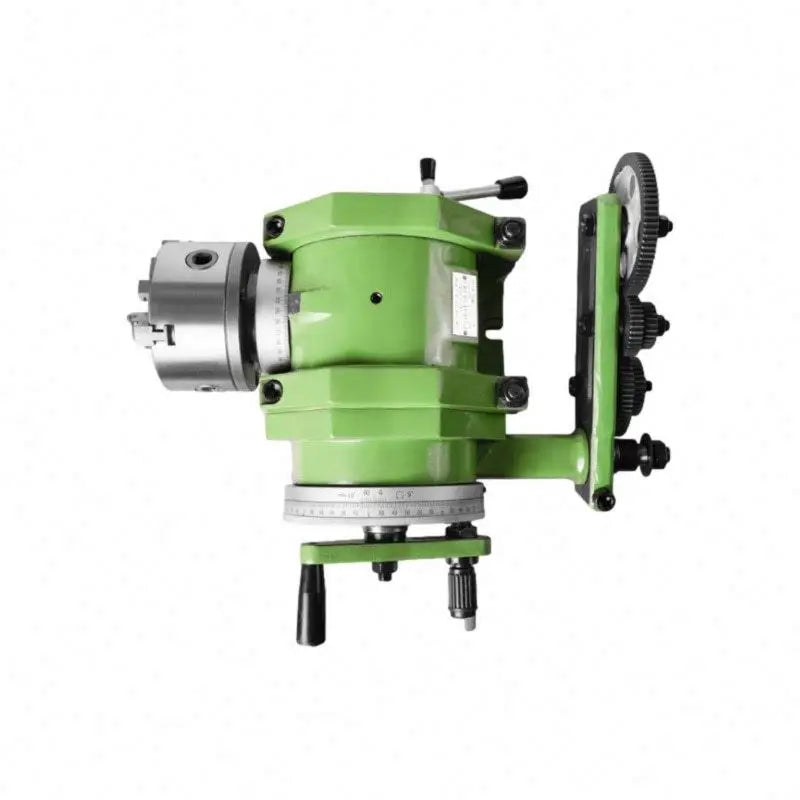

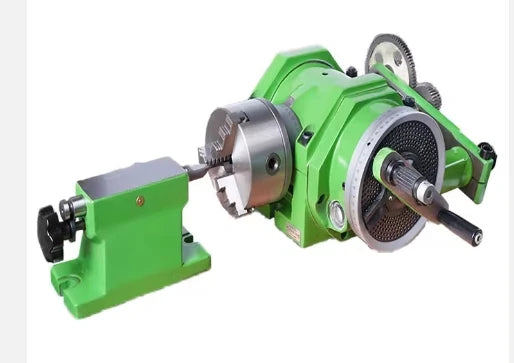

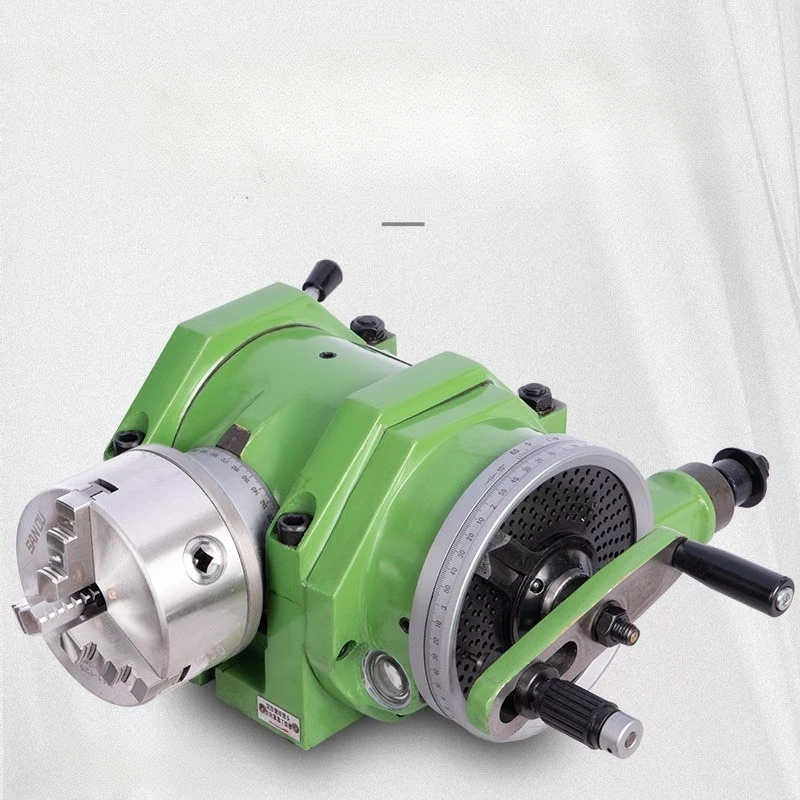

Factory Wholesale Made in China F11-100A Universal Dividing Head for Milling Machine CNC
Factory Wholesale Made in China F11-100A Universal Dividing Head for Milling Machine CNC
Regular price
$1.00 USD
Regular price
$480.00 USD
Sale price
$1.00 USD
Unit price
per
Couldn't load pickup availability

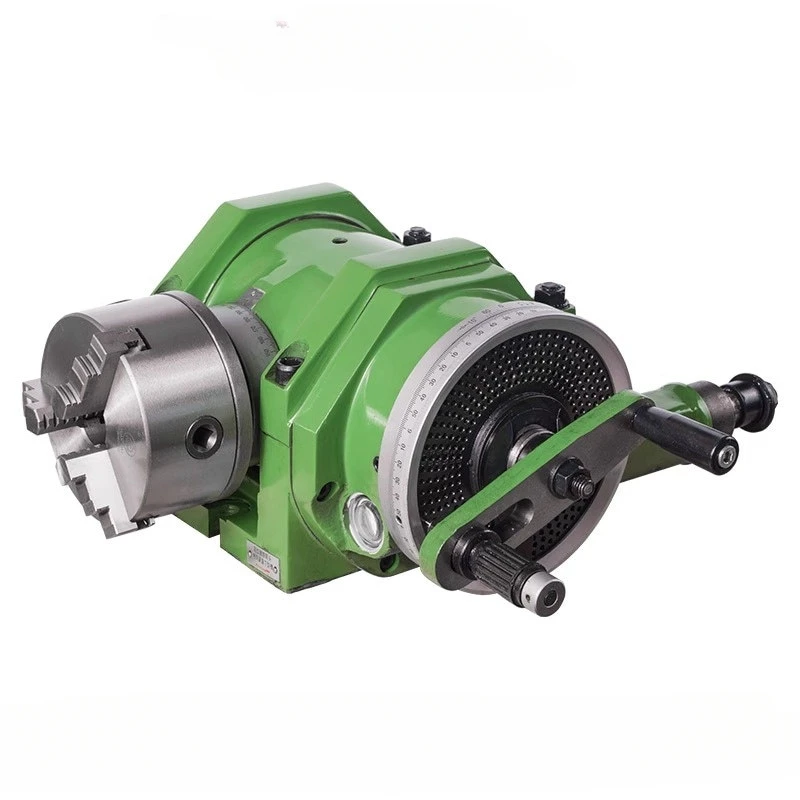

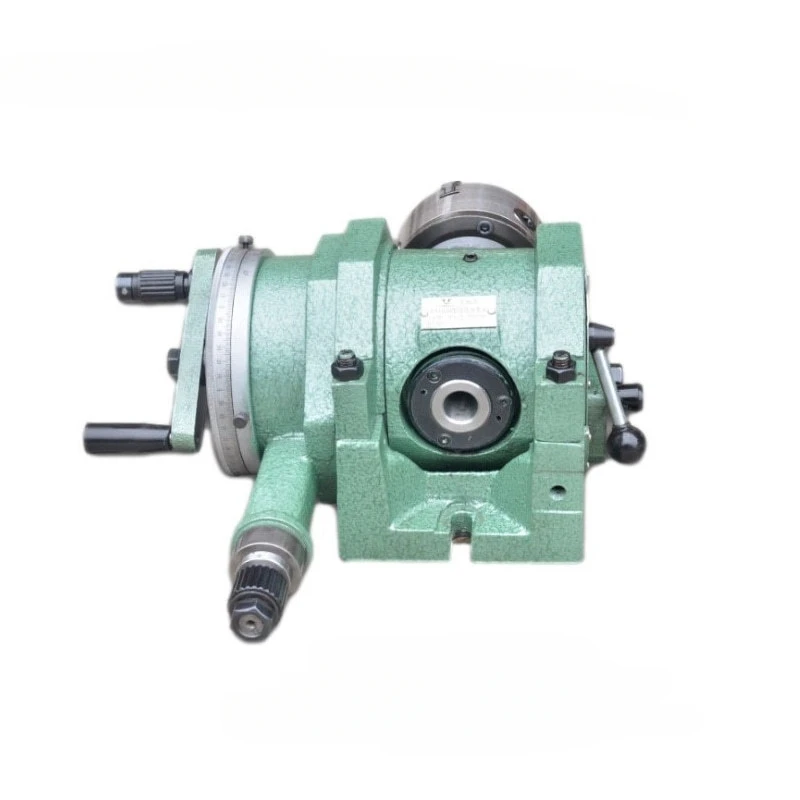

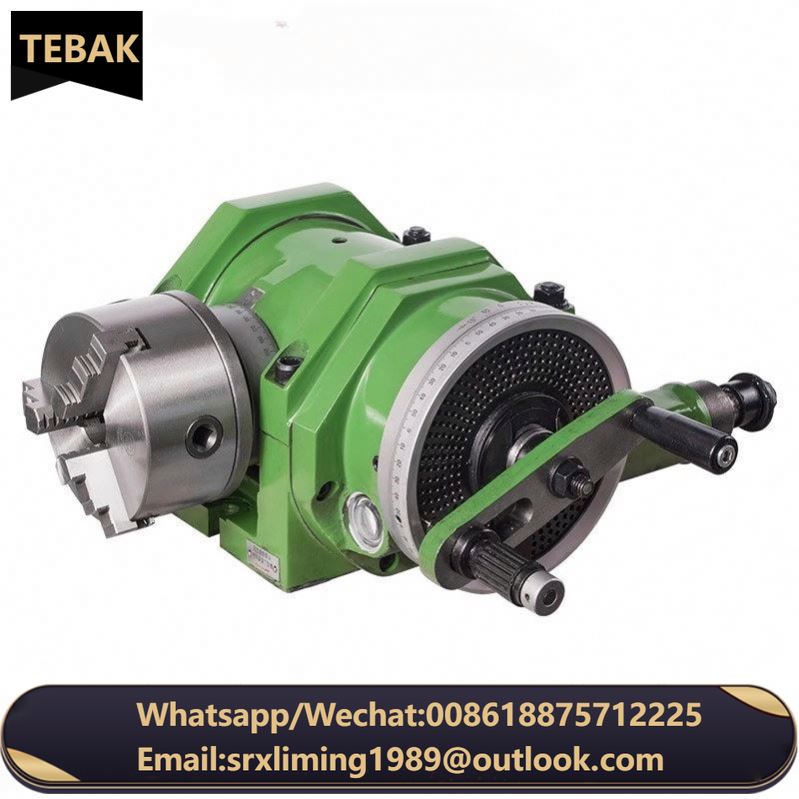

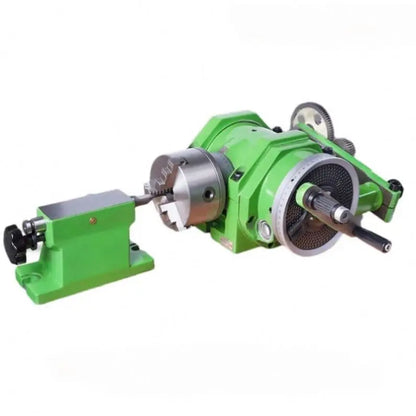

Factory Wholesale Made in China F11-100A Universal Dividing Head for Milling Machine CNC

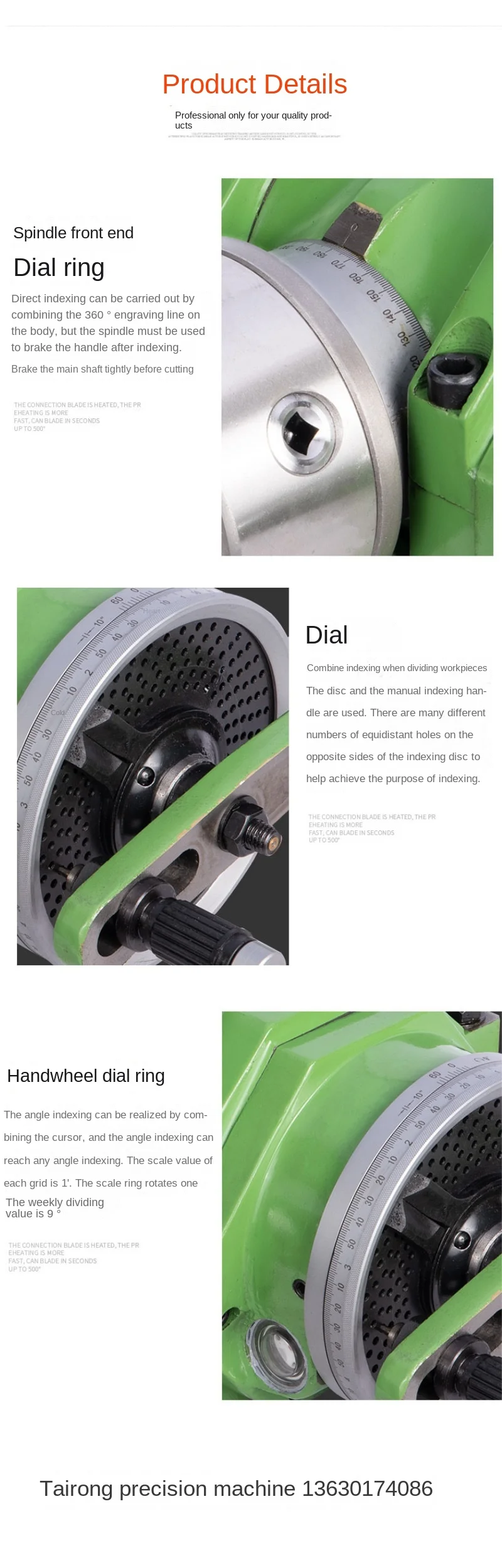

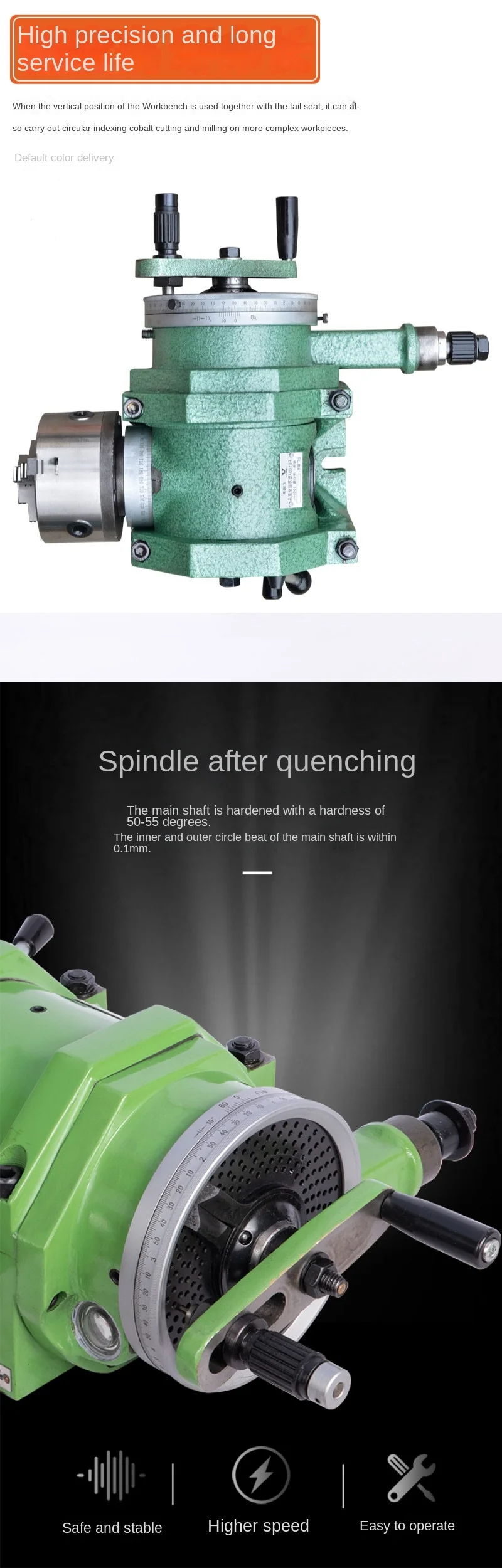

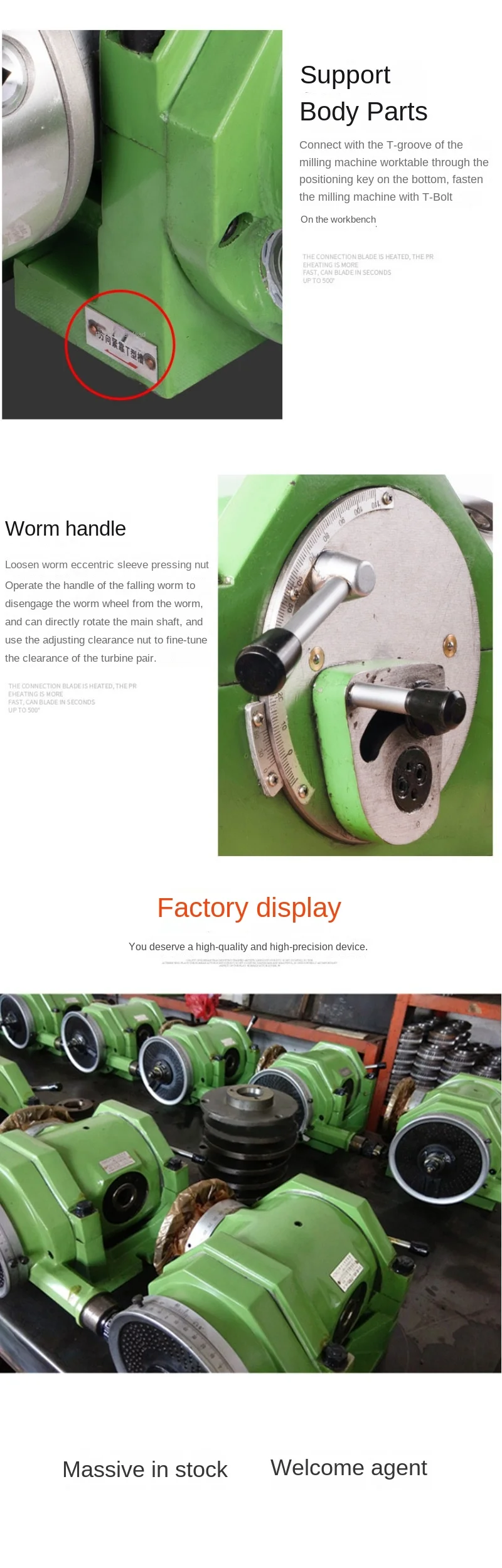

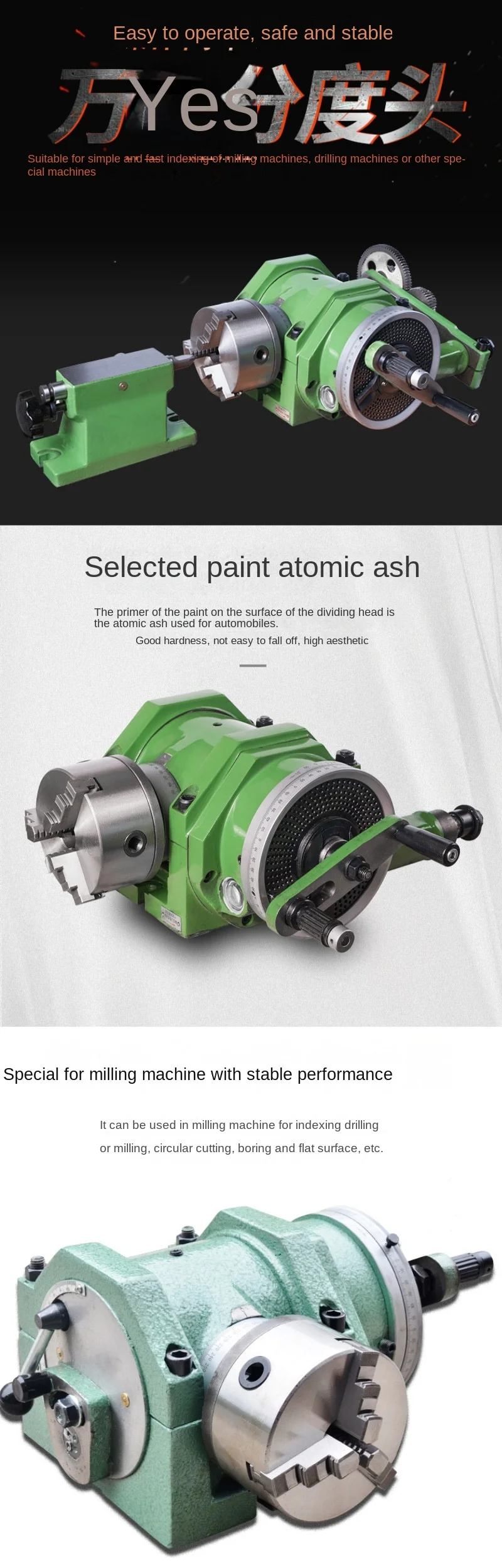

Product Description
Product Description
|
Item
|
|
F11100A
|
F11125A
|
F11160A
|
F11200A
|
||||
|
Center hight mm
|
|
100
|
125
|
160
|
200
|
||||
|
Swivel angle of spindle from it's horizontal posirion(upward)
|
|
≤95°
|
|
|
|
||||
|
Horizontal position(downward)
|
|
≤5°
|
|
|
|
||||
|
Rotating angle of spindle for one complete revolution
of dividing handle |
|
9°(540grad.,1' each)
|
|
|
|
||||
|
Min reading of vernier
|
|
10"
|
|
|
|
||||
|
Worm gear ratio
|
|
1:40
|
|
|
|
||||
|
Taper of spindle bore
|
|
MT3
|
MT4
|
|
|
||||
|
Width of locating key.mm
|
|
14
|
18
|
|
|
||||
|
Diameter of short taper of spindlenose for mounting flange mm
|
|
Φ41.275
|
Φ53.975
|
Φ53.975
|
Φ53.975
|
||||
|
Hole number on index plate
|
1st plate
|
24,25,28,30,34,37,38,39,41,42,43
|
|
|
|
||||
|
|
2nd plate
|
46,47,49,51,53,54,57,58,59,62,66
|
|
|
|
||||
|
Change Gear
|
Module
|
1.5
|
2
|
|
|
||||
|
|
Teht Numbers
|
2.5,30,35,40,50,55,60,70,80,90,100
|
|
|
|
||||
|
Individual indexing error of the spindle for one
complete revolution of dividing handle |
|
±45"
|
|
|
|
||||
|
Cumulate error at any 1/4 periphery of spindle
|
|
±1"
|
|
|
|
||||
|
Max bearing Kg
|
|
100
|
130
|
130
|
130
|
||||
|
Net weight Kg
|
|
67
|
101.5
|
113
|
130
|
||||
|
Gross weight Kg
|
|
79
|
111.5
|
123
|
140
|
||||
|
Overall dimensions mm
|
|
616×465×265
|
635×530×530
|
710×535×342
|
710×535×342
|
||||
