Factory Wholesale Made in China F11-100A Universal Dividing Head for Milling Machine CNC
Factory Wholesale Made in China F11-100A Universal Dividing Head for Milling Machine CNC
Regular price
$1.00 USD
Regular price
$128.00 USD
Sale price
$1.00 USD
Unit price
per
Couldn't load pickup availability
Product Description

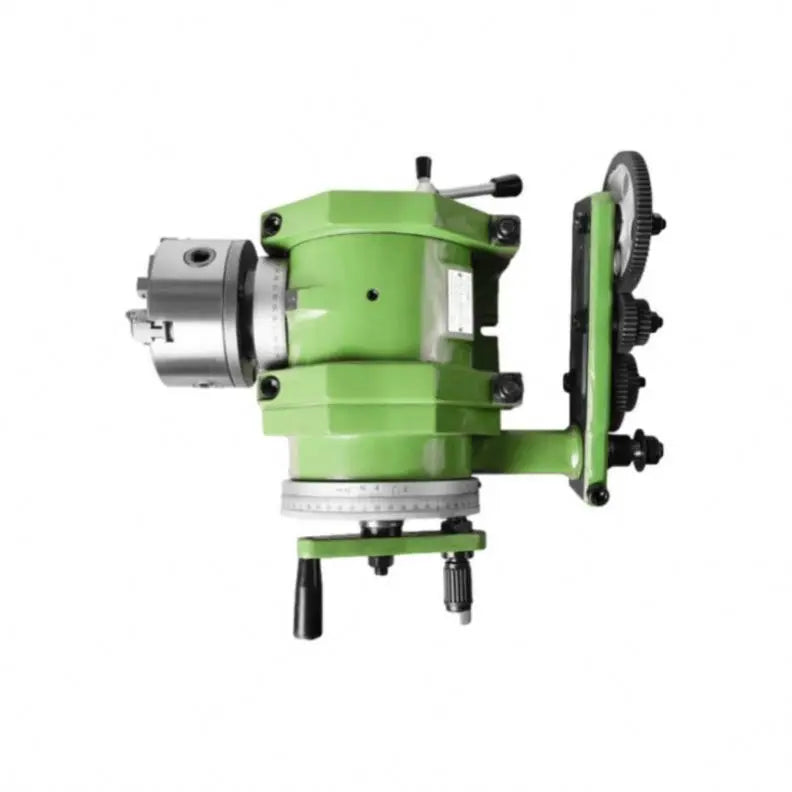

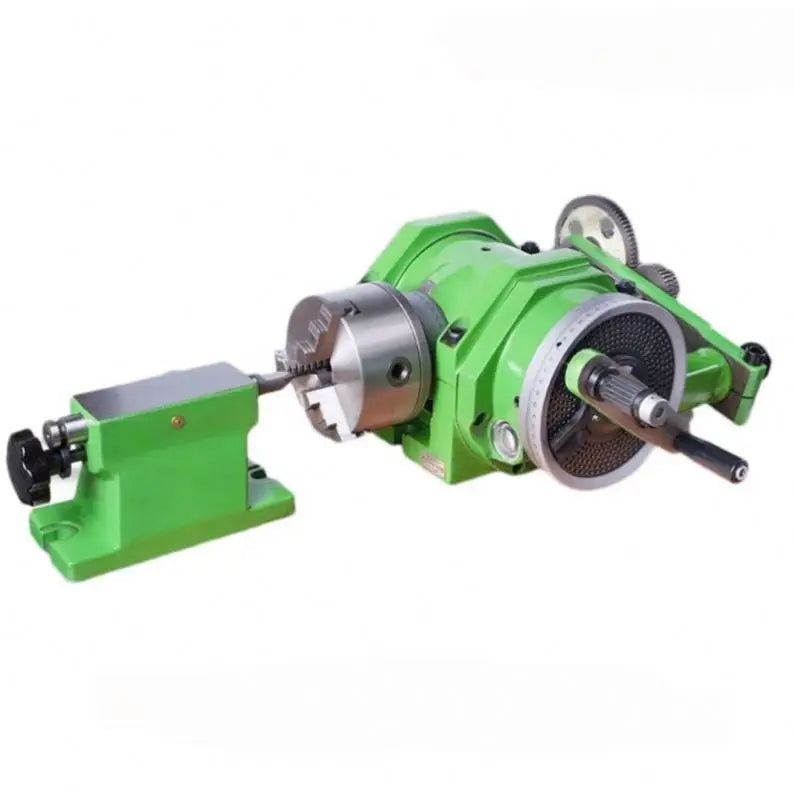

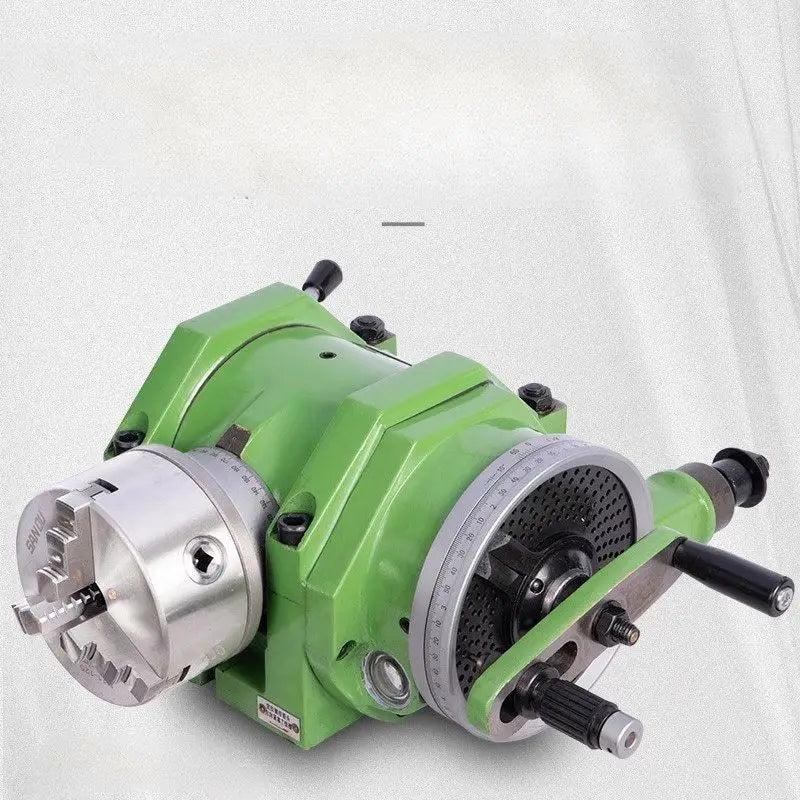

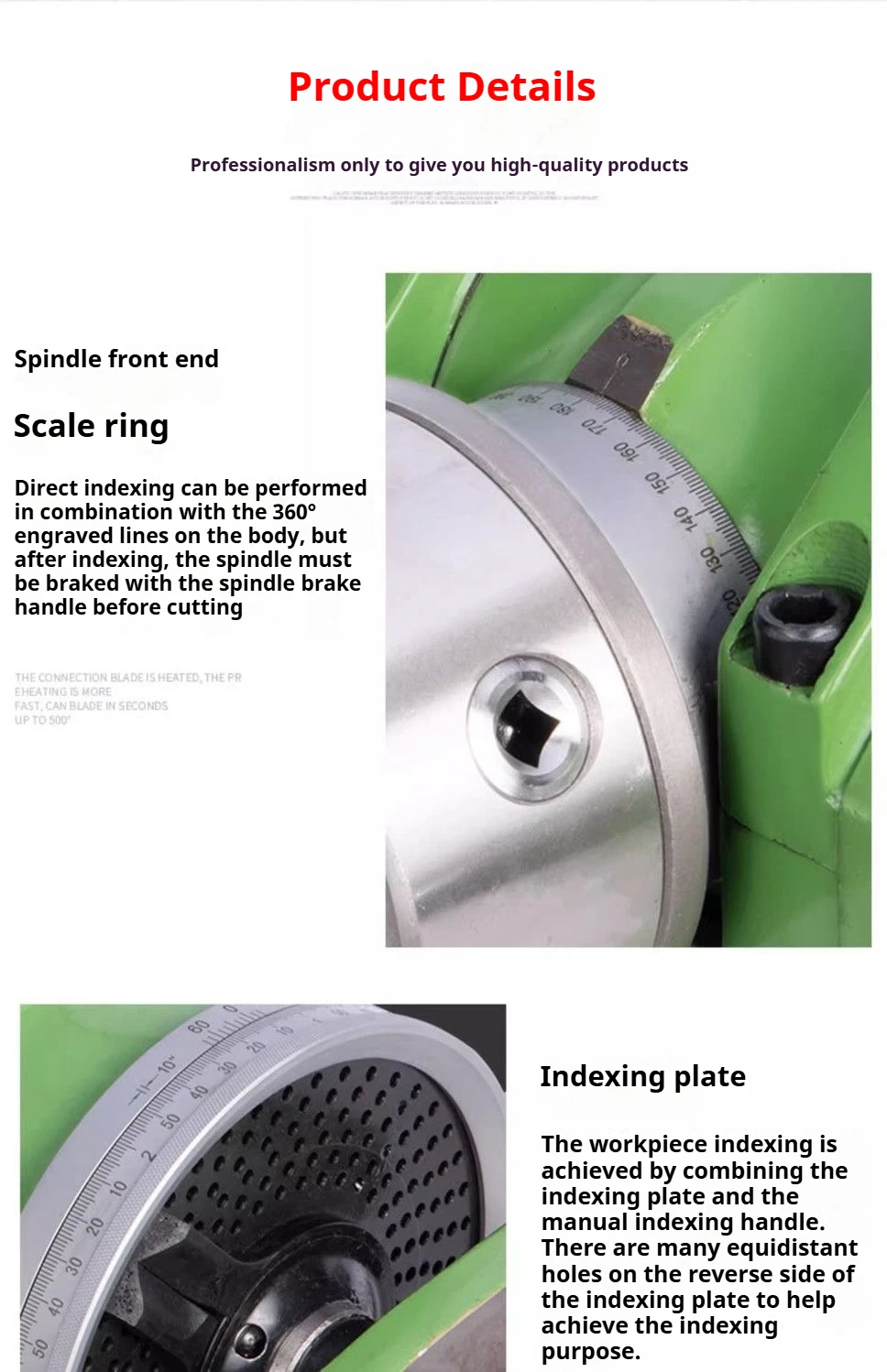

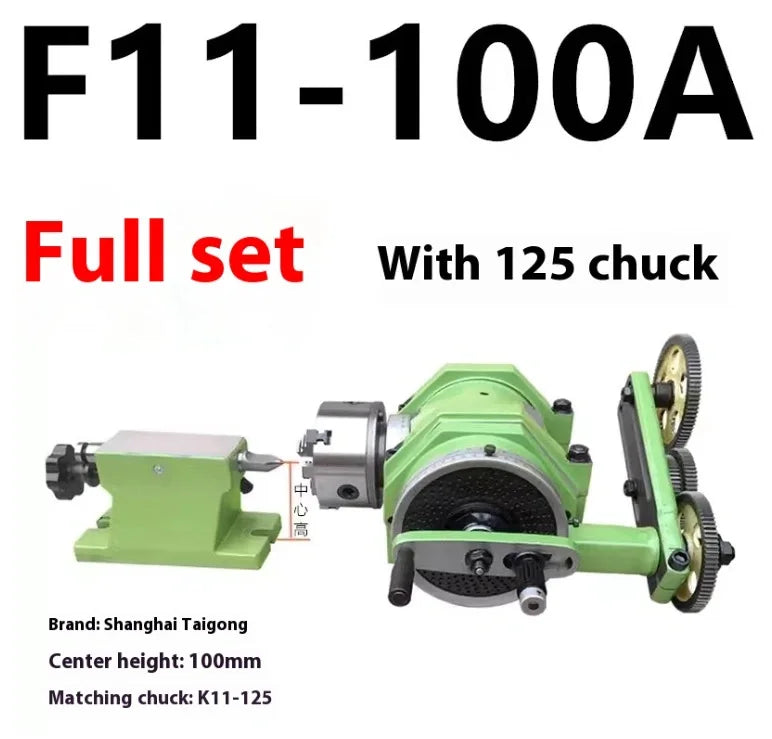

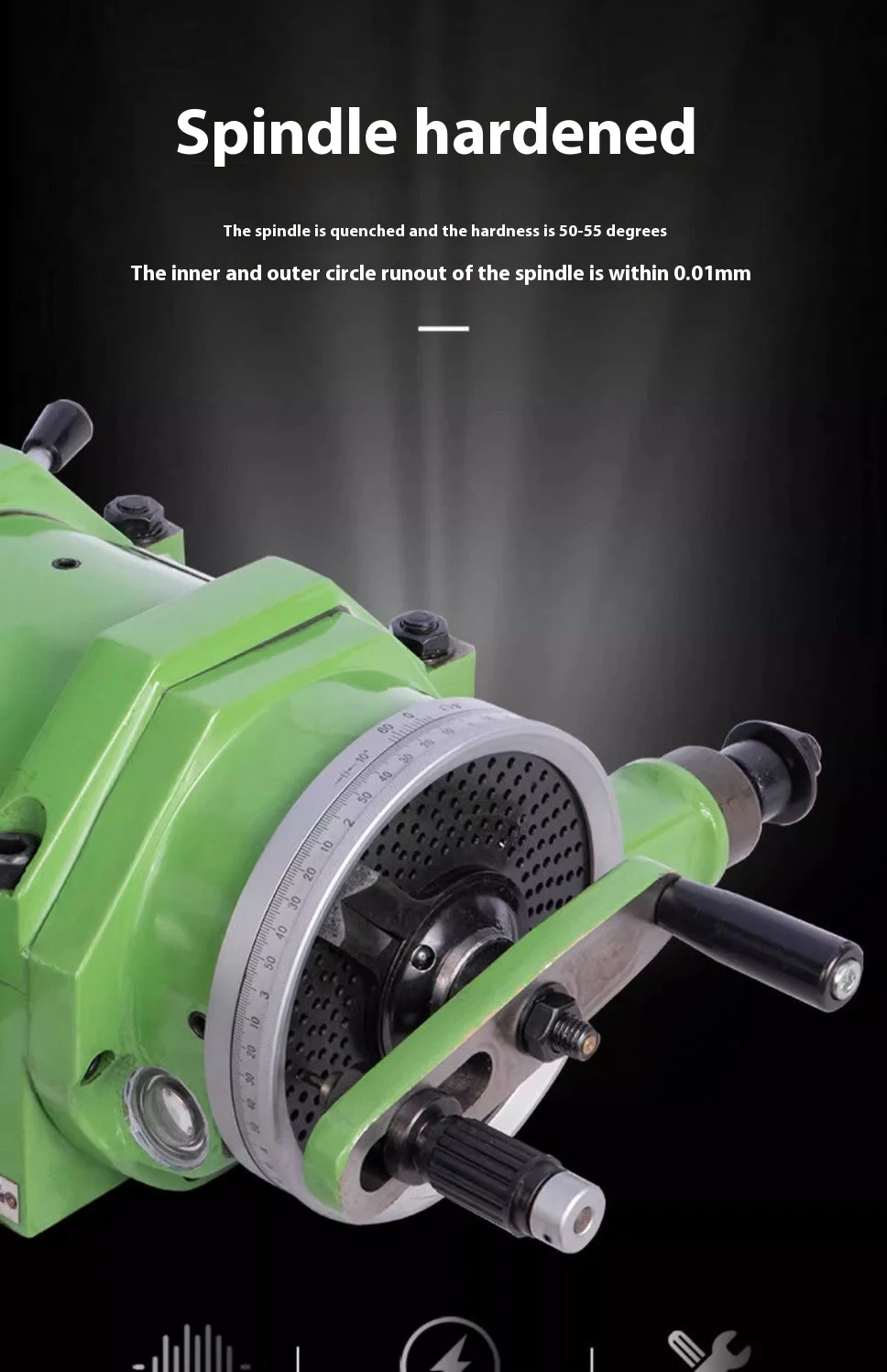

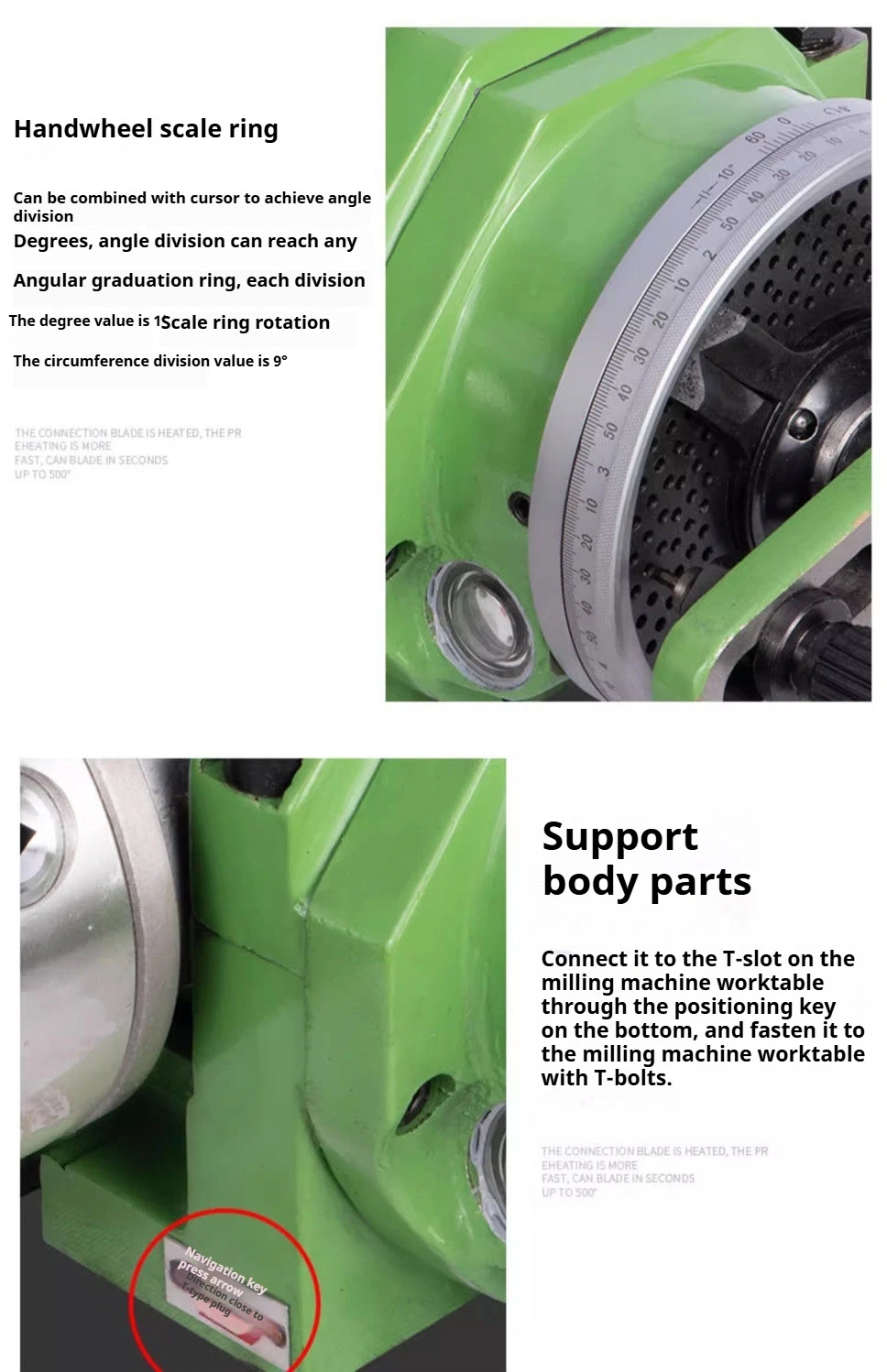

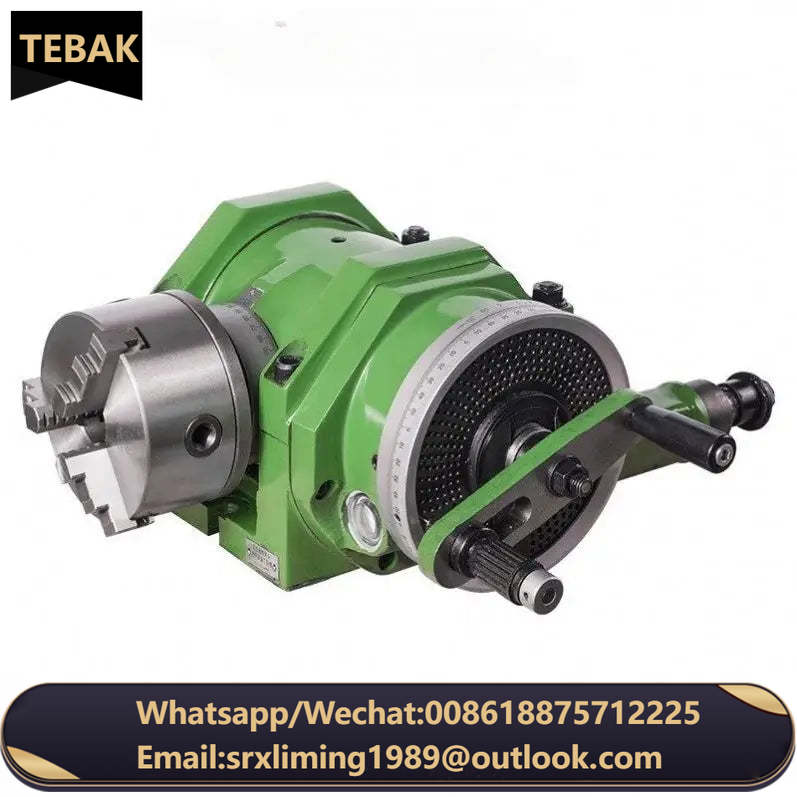

Factory Wholesale Made in China F11-100A Universal Dividing Head for Milling Machine CNC

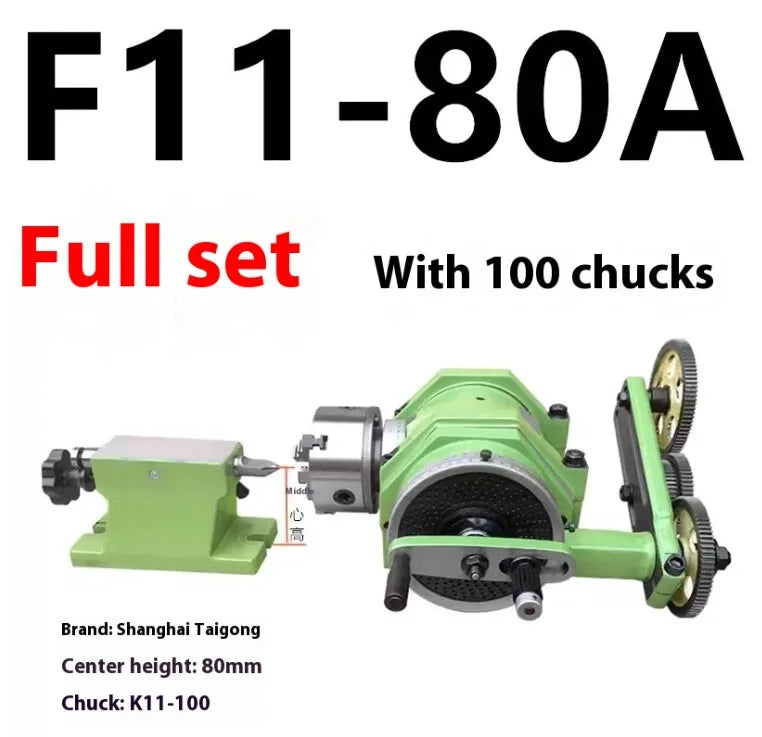

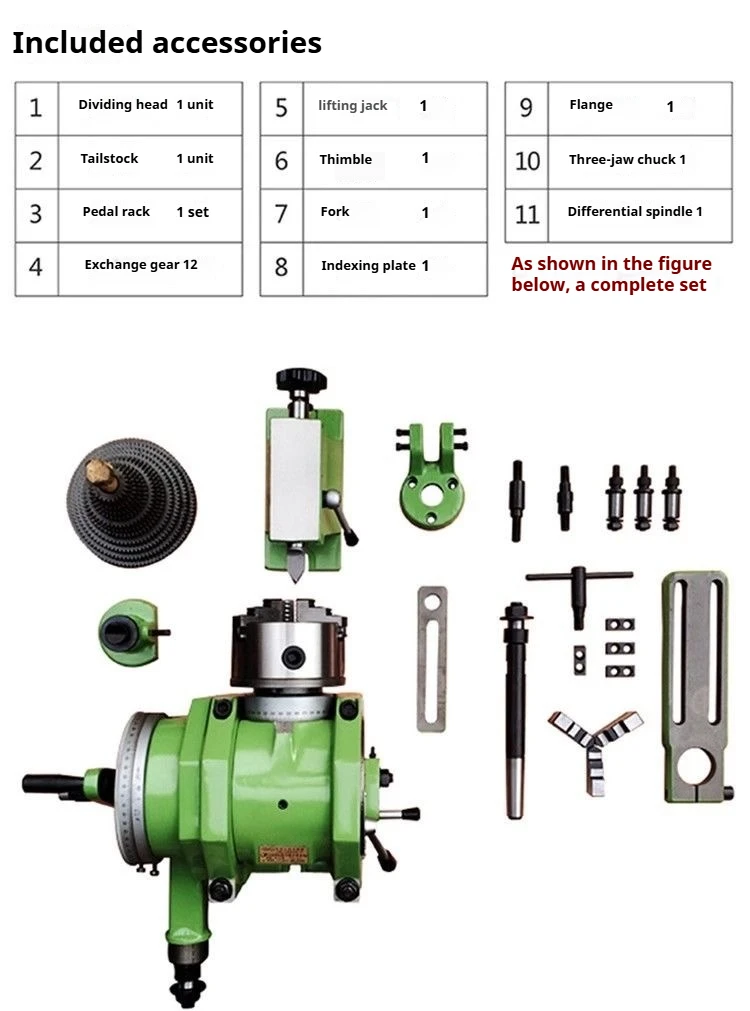

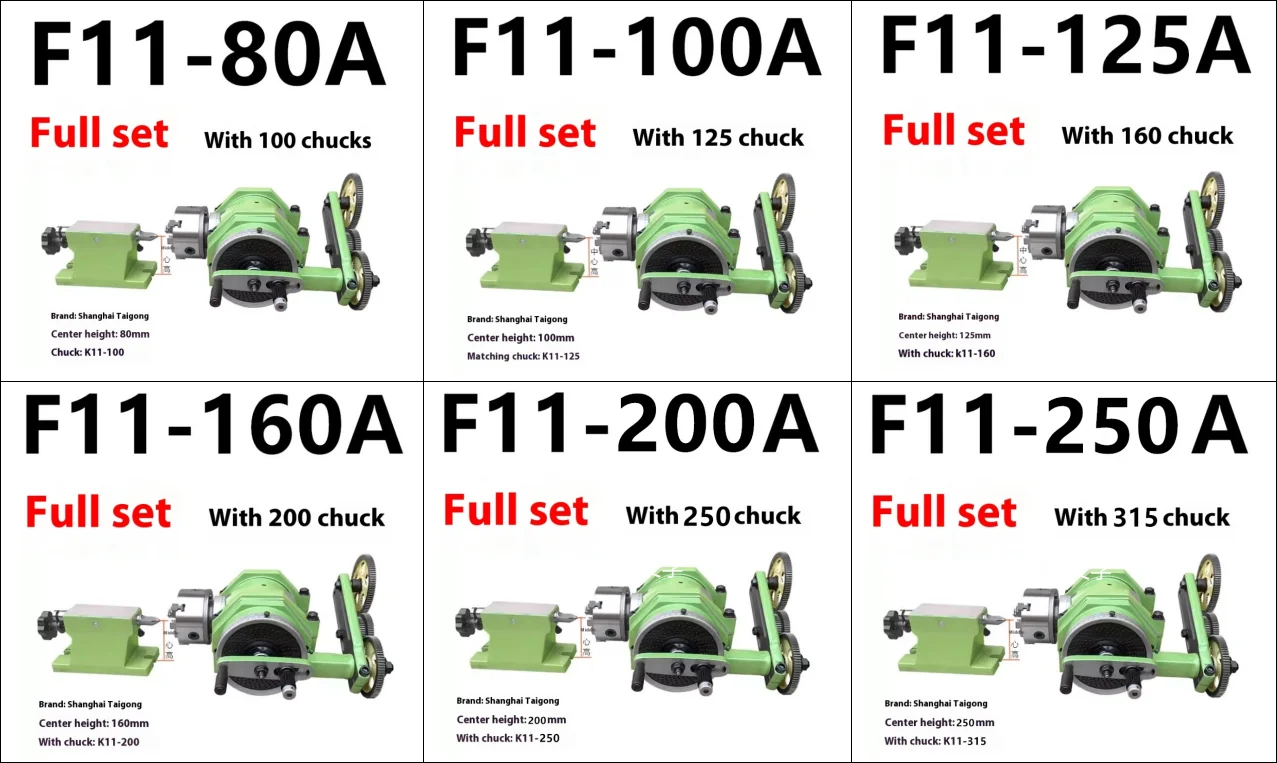

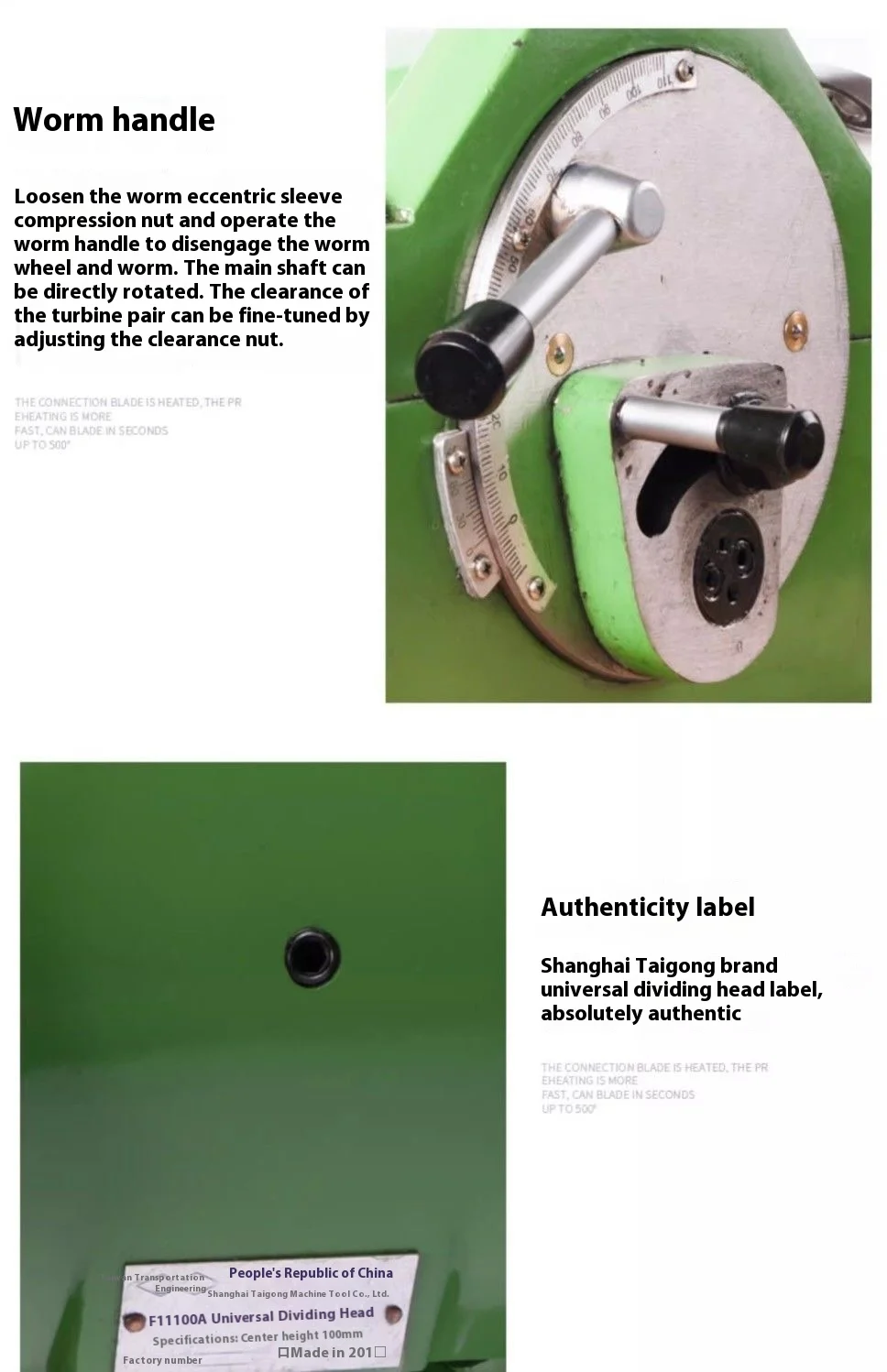

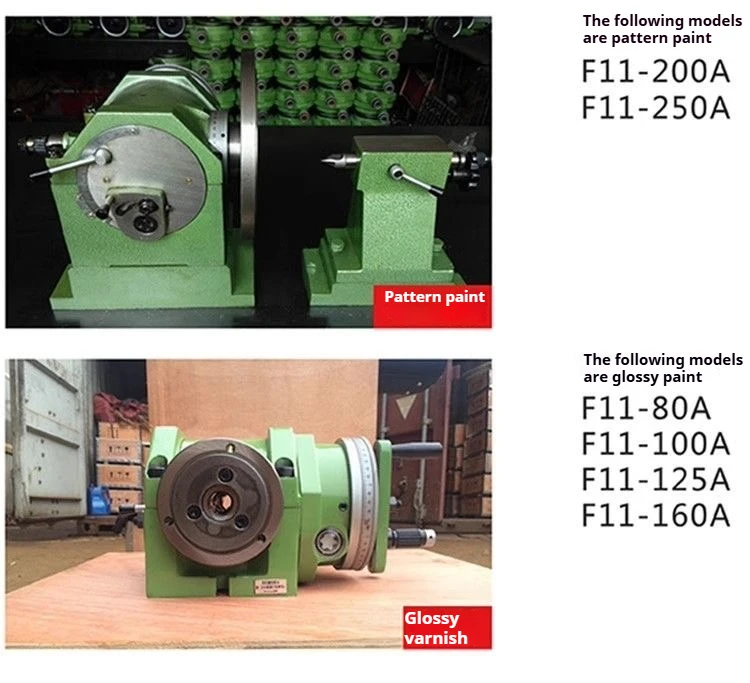

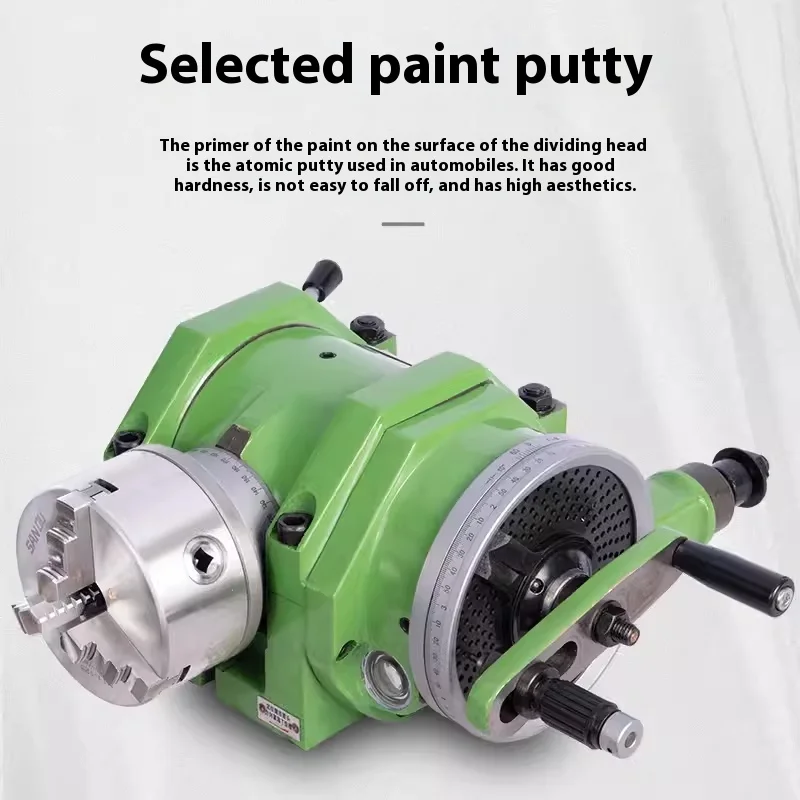

Specification
|
Item
|
|
F11-80A
|
F11-100A
|
F11-125A
|
F11-160A
|
F11-200A
|
F11-250A
|
||||||
|
Center hight mm
|
|
80
|
100
|
125
|
160
|
200
|
250
|
||||||
|
Swivel angle of spindle from it's horizontal posirion(upward)
|
|
≤90°
|
≤95°
|
|
|
|
|
||||||
|
Horizontal position(downward)
|
|
≤6°
|
≤5°
|
|
|
|
|
||||||
|
Rotating angle of spindle for one complete revolution of dividing handle
|
|
9°(540grad.,1' each)
|
|
|
|
|
|
||||||
|
Min reading of vernier
|
|
10"
|
|
|
|
|
|
||||||
|
Worm gear ratio
|
|
1:40
|
|
|
|
|
|
||||||
|
Spindle hole taper (Mohs)
|
|
MT3
|
|
MT4
|
|
MT4
|
MT4
|
||||||
|
Positioning key width
|
|
14
|
|
18
|
|
18
|
18
|
||||||
|
Main shaft flange fixed short cone diameter
|
|
Φ36.541
|
Φ41.275
|
Φ53.975
|
Φ53.975
|
Φ53.975
|
Φ53.975
|
||||||
|
Number of holes on the dividing disc
|
A-disk
|
24,25,28,30,34.37.38,39,41.42.43
|
|
|
|
|
|
||||||
|
|
B-disk
|
46.47.49,51.53.54.57.58.59.62.66
|
|
|
|
|
|
||||||
|
Change gear
|
modulus
|
1.5
|
|
2
|
|
|
|
||||||
|
|
number teeth
|
25,30,35,40.50.55,60.70,80.90,100
|
|
|
|
|
|
||||||
|
Dividing handle, one full rotation, spindle, single indexing error
|
|
60''
|
|
+45''
|
|
|
|
||||||
|
Accumulated error of spindle on any 1/4 circumference
|
|
±1'
|
|
|
|
|
|
||||||
|
Max bearing Kg
|
|
80
|
100
|
130
|
130
|
130
|
130
|
||||||
|
Net weight Kg
|
|
36
|
67
|
101.5
|
113
|
130
|
150
|
||||||
|
Gross weight Kg
|
|
45
|
79
|
111.5
|
123
|
140
|
161
|
||||||
|
Overall dimensions mm
|
|
542×403×220
|
616×465×265
|
635×530×530
|
710×535×342
|
710×535×342
|
748×539×383
|
||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
