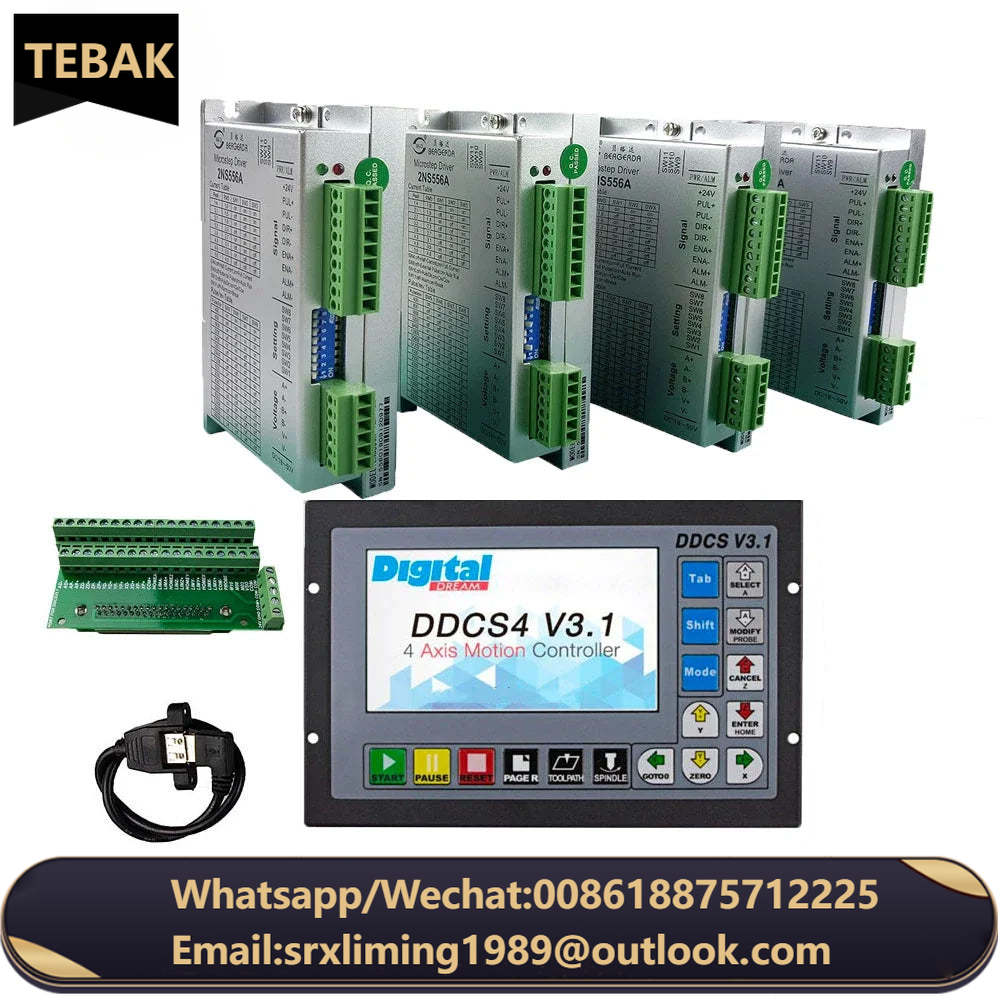

CNC Router 3/4-axis Kit Controller DDCSV3.1 + Stepper Motors Drives 2NS556A For Around 3NM NEMA23/34 motor

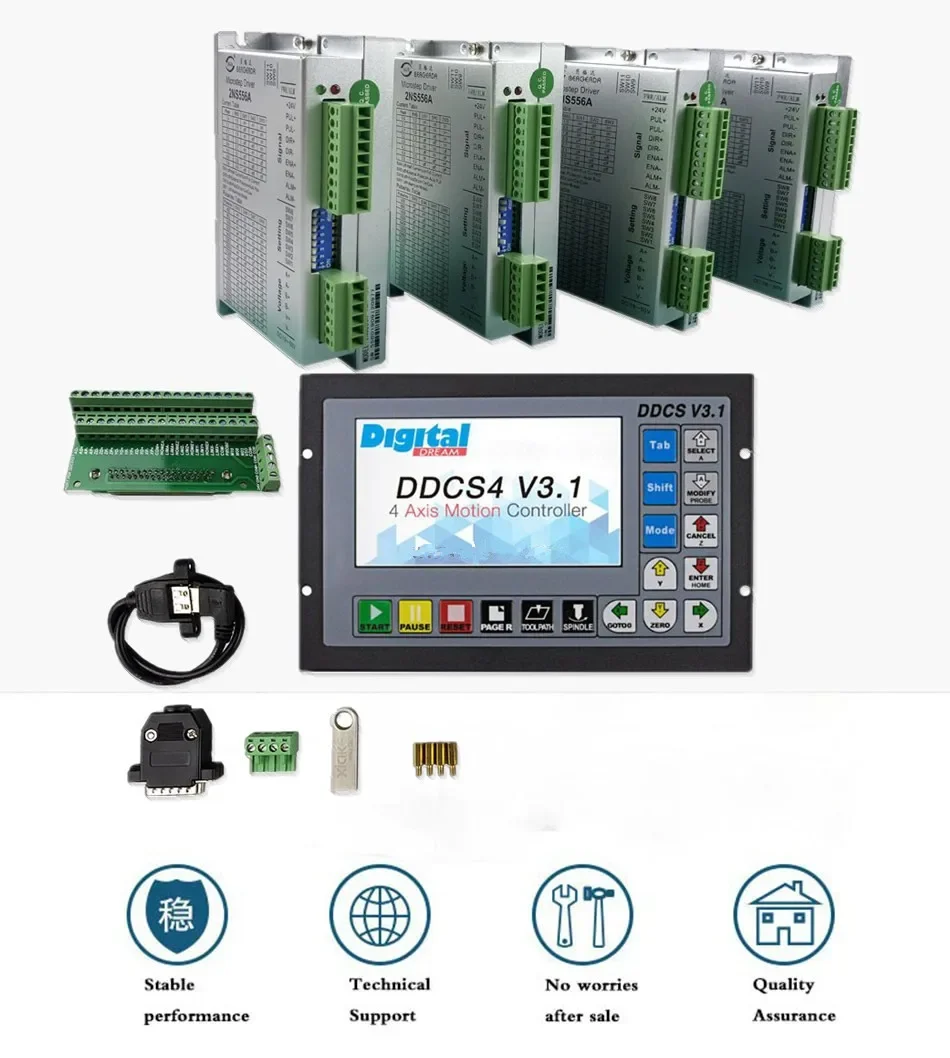

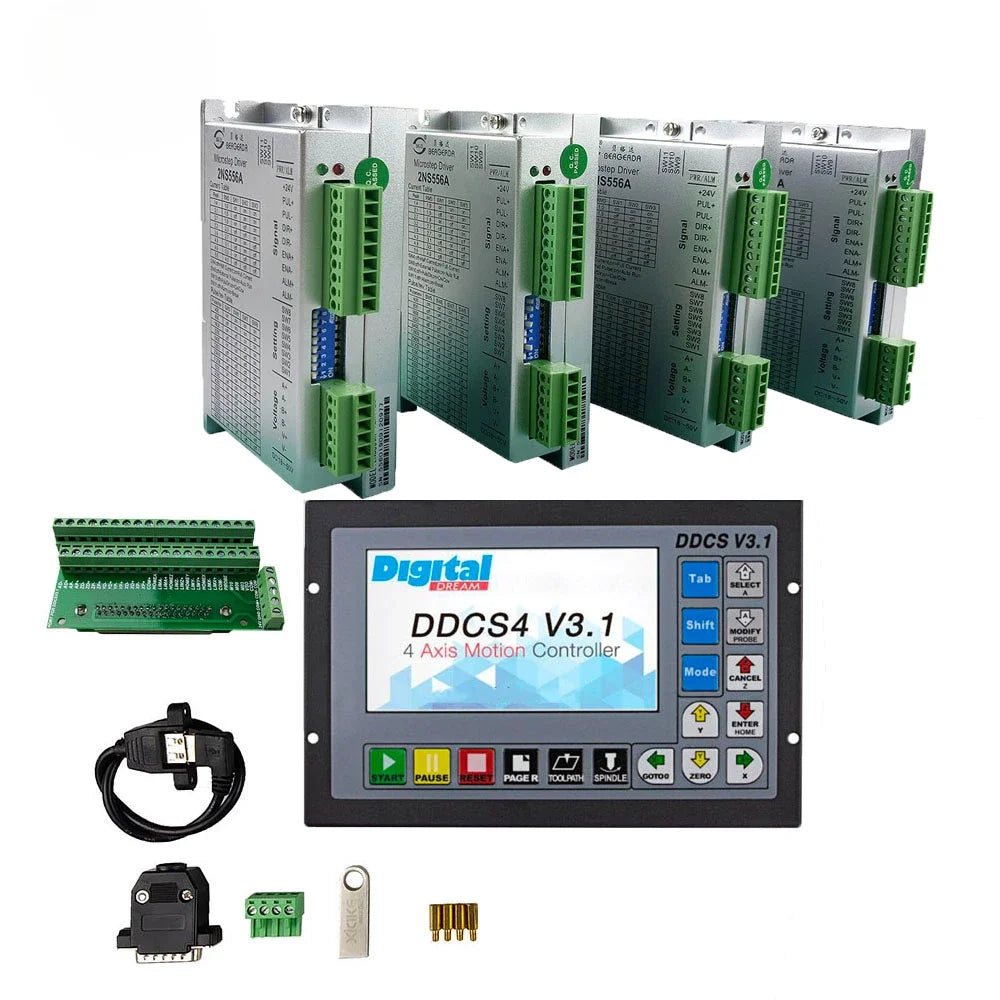

Product Package

3-axis kit packaging:

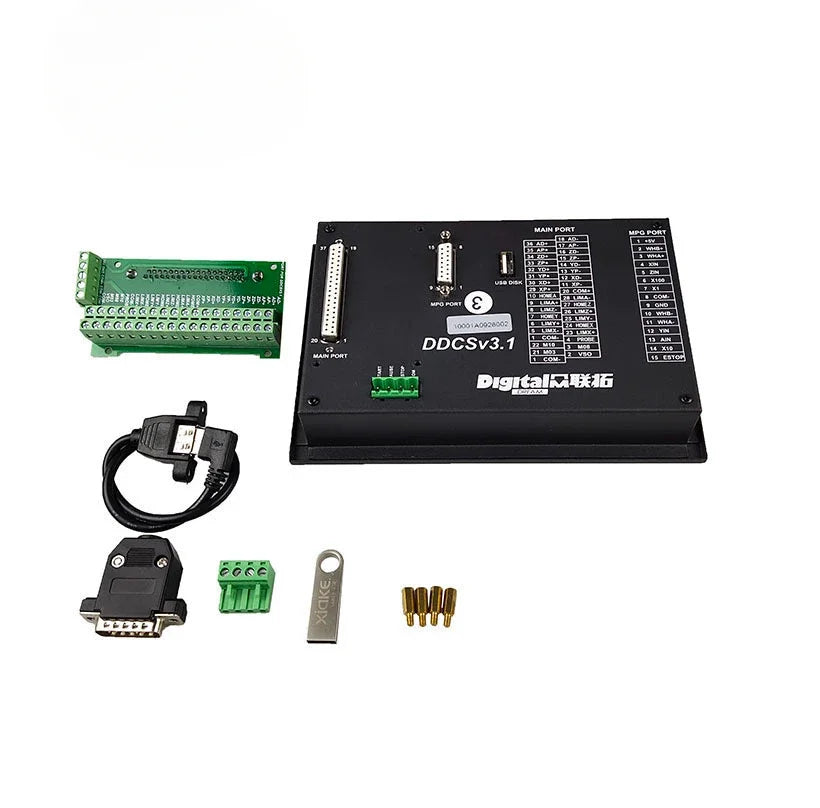

1 X 3-axis DDCSV3.1 Controller
1 x Connection board
1 x USB Flash Disk
1 x Mounting bracket
3 x motor driver 2NS556A

4-axis kit packaging:
1 X 4-axis DDCSV3.1 Controller
1 x Connection board
1 x USB Flash Disk
1 x Mounting bracket
4 x motor driver 2NS556A

Product Description

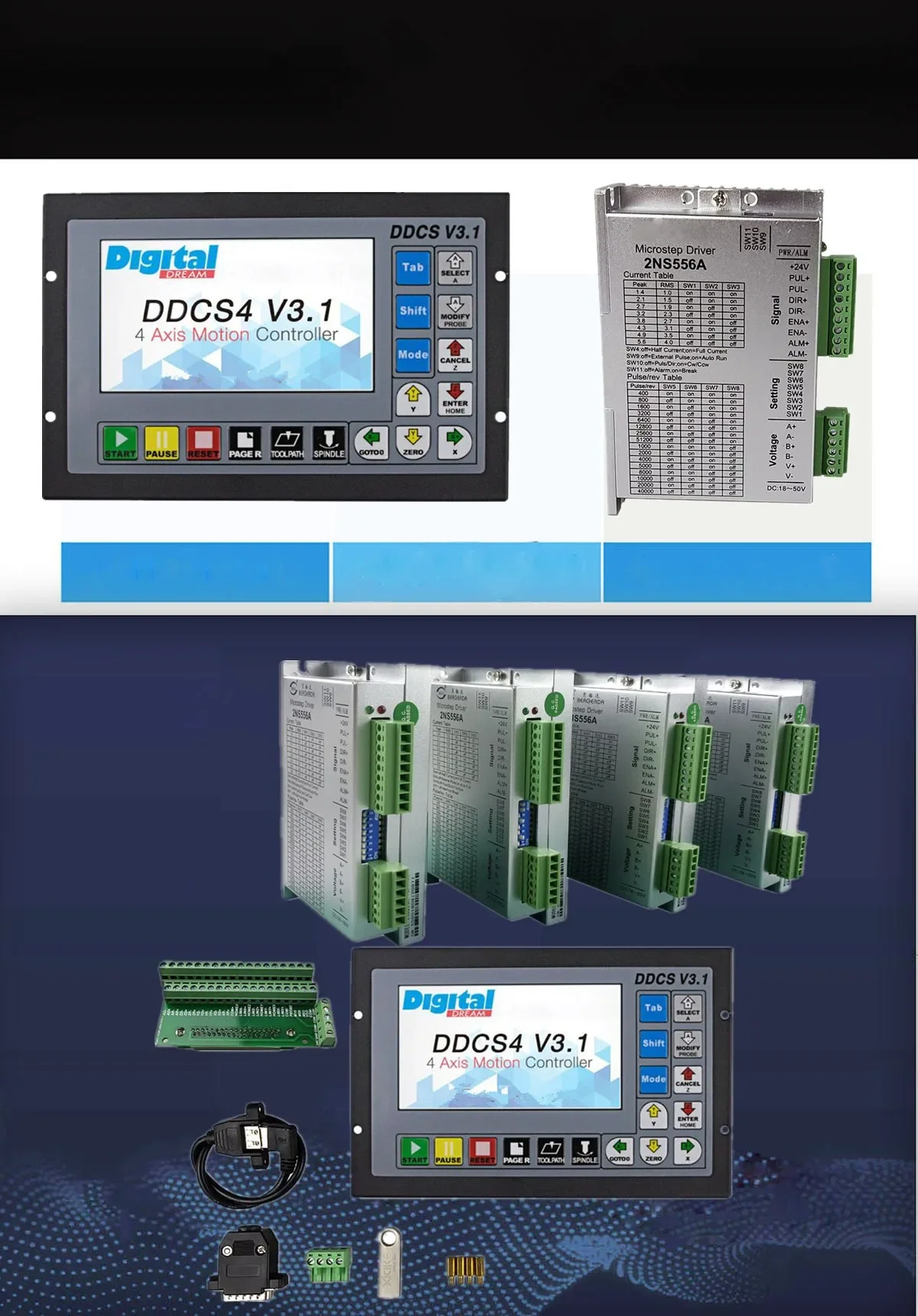

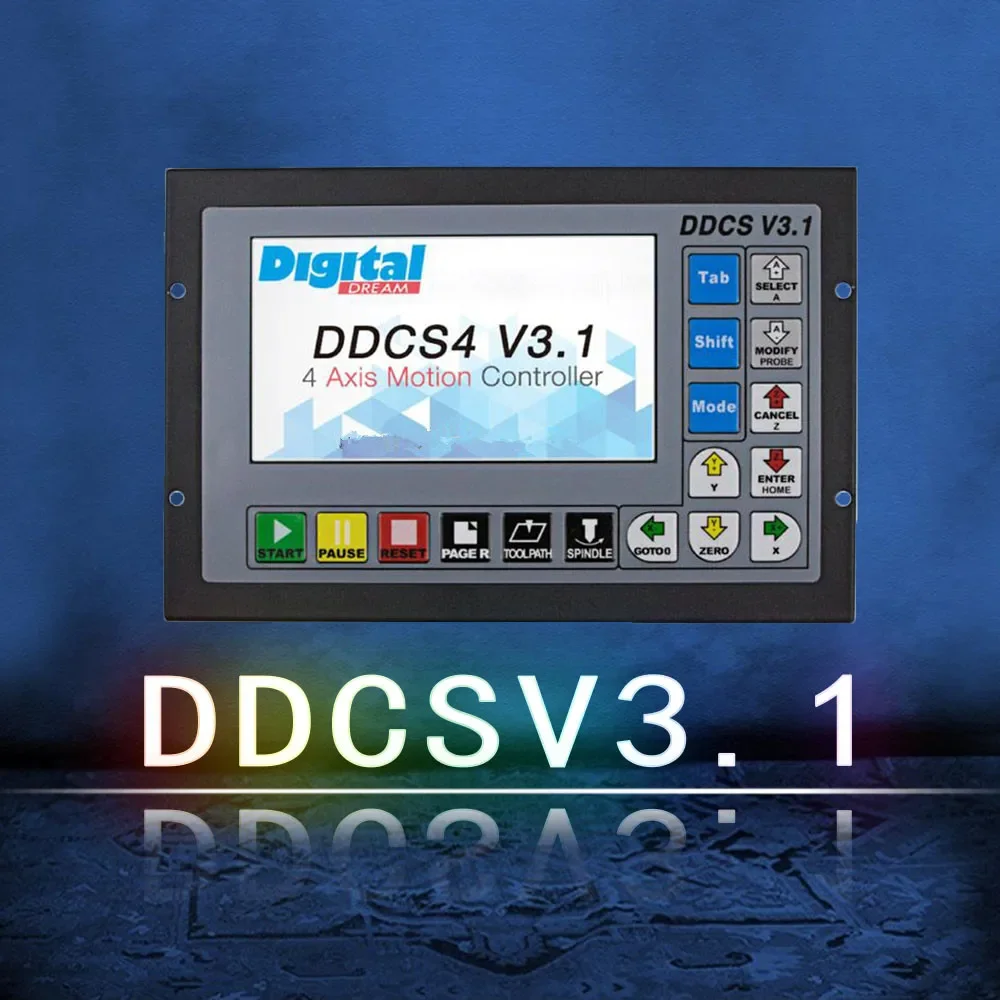

DDCSV3.1 Product Description

DDCSV3.1 is 3 or 4 axis motion controller for stepper and servo systems. We are very proud of this product; it combines great power with a tiny footprint and is easy to use. After a very short time you will be familiar with the functions and this manual will help you. The highest output pulse per axis is 500 KHz. The pulse width is adjustable (refer to driver manual). The control period of each position is only 4 milliseconds. This provides high control precision for stepper motors and servo motors.

Features:

1) American and imperial units in the system can be converted;
2) Handwheel MPG master control page, file page and configuration page, extended keyboard can also operate and edit controller;
3) New trial cut function, single line processing,
4) The tool setting function is increased to 4 modes;
5) The software is greatly adjusted and optimized, and the parameter configuration is greatly increased to make the performance more powerful and reliable;
6) Controller language is Chinese/English/Russian

Appearance and size:

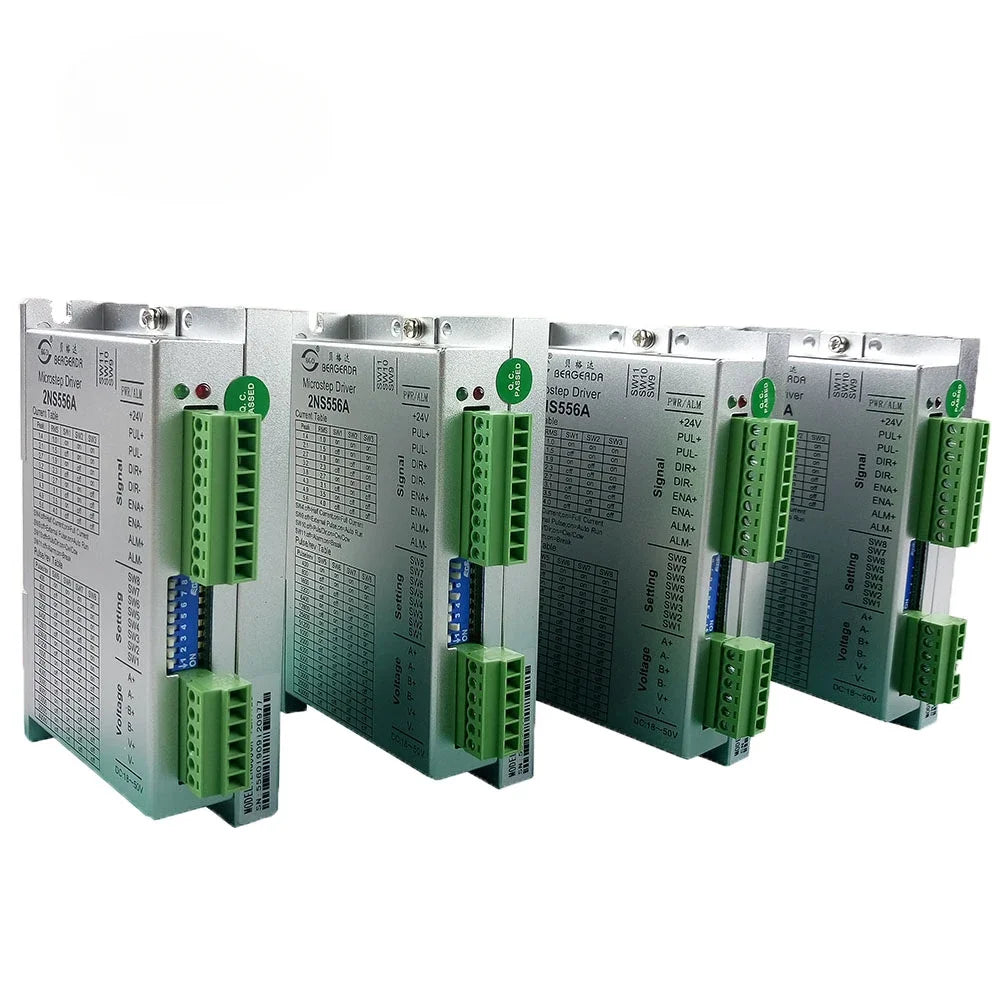

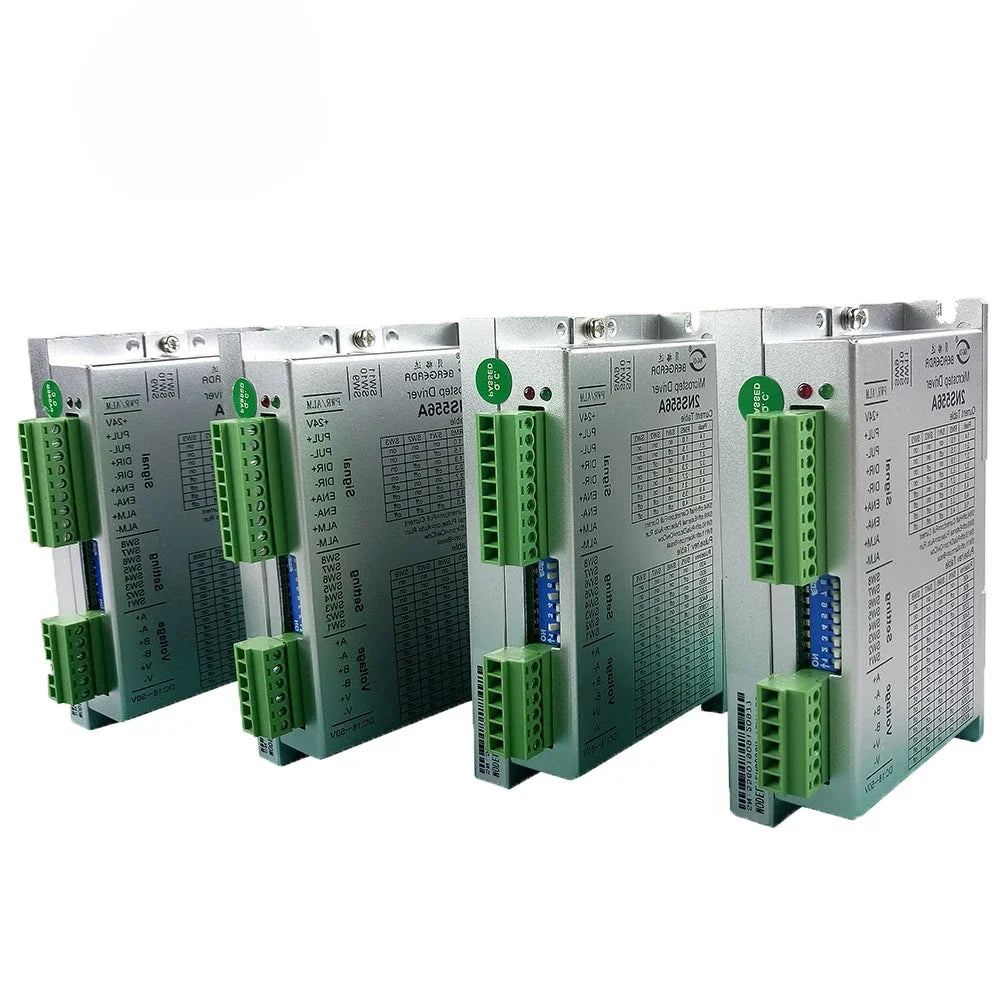

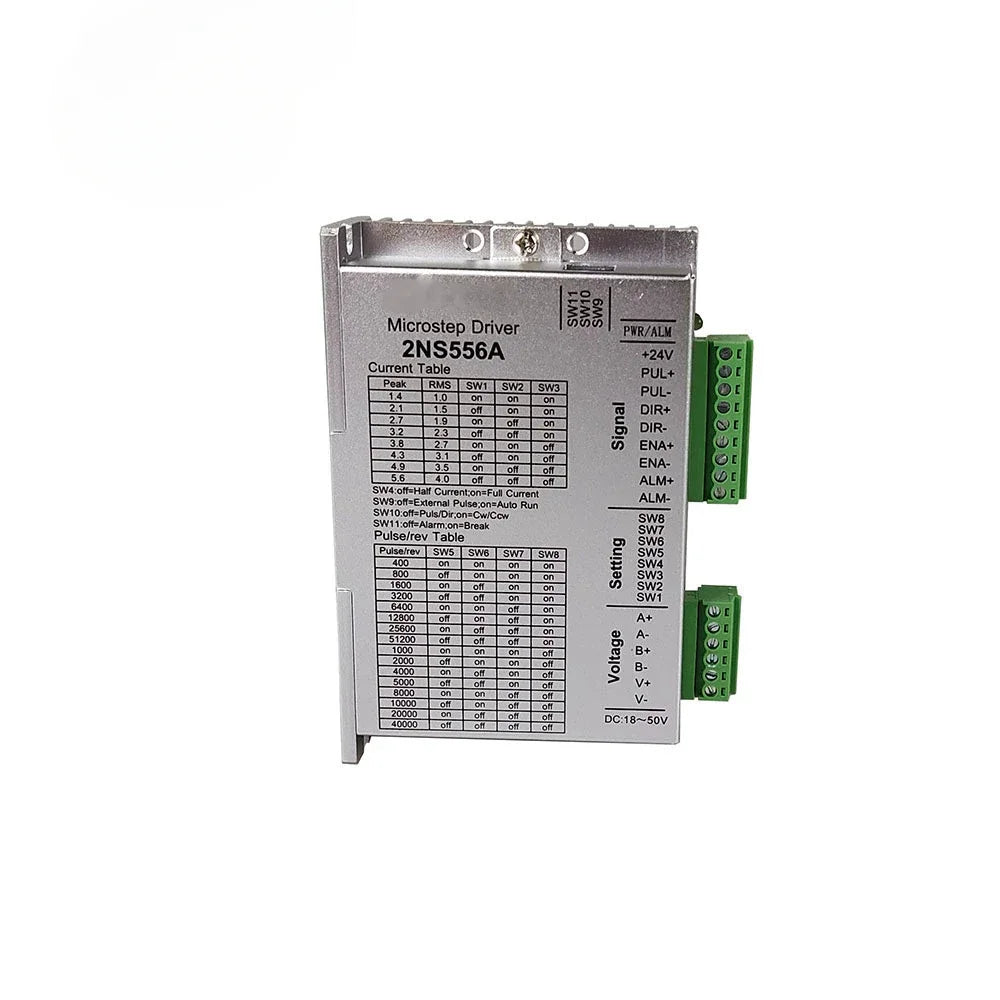

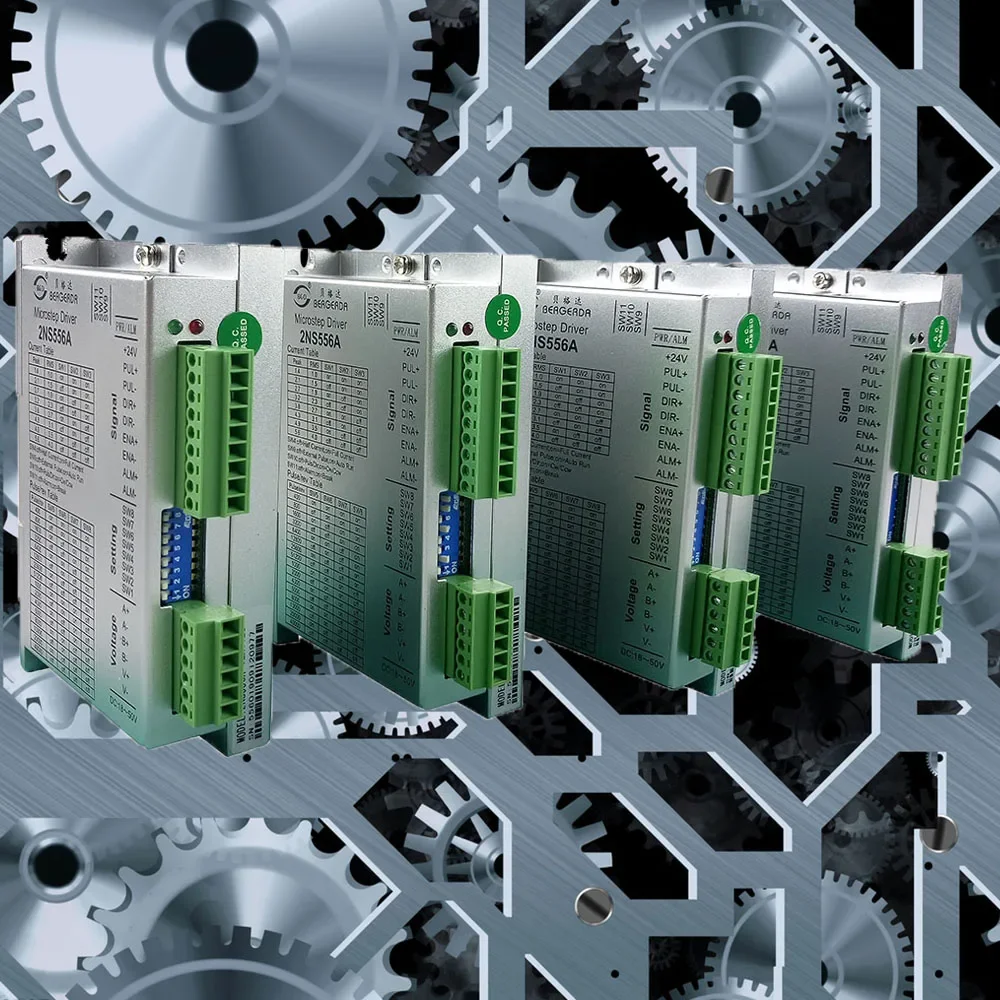

Stepper Motor Driver Product Description

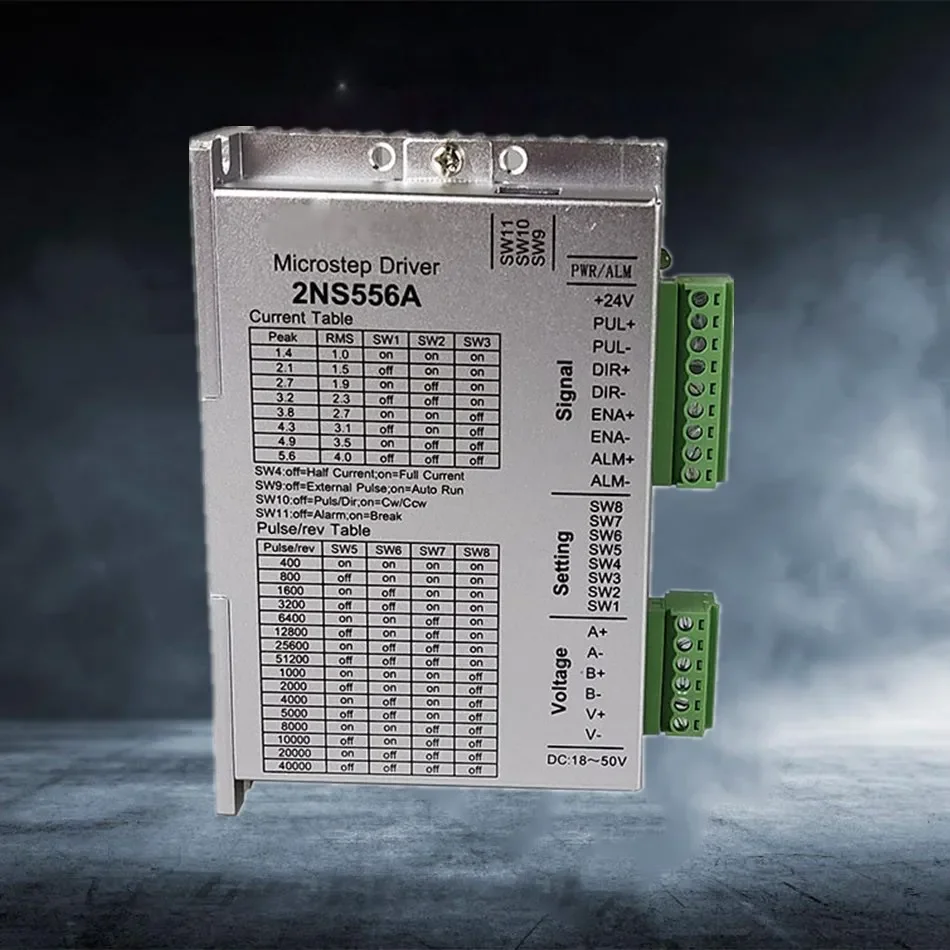

2NS556A is a new digital two-phase stepper motor driver . It adopts the latest 32-bit DSP technology. Users can set the subdivision within 400~51200 and any current value within the rated current, which can meet the application in most occasions. need. Thanks to the built-in micro-segmentation technology, even in the case of low subdivision, high subdivision can be achieved, and the operation at low, medium and high speeds is smooth and the noise is extremely small. The parameter auto-tuning function is integrated inside the drive, which can automatically generate optimal operating parameters for different motors to maximize the performance of the motor.

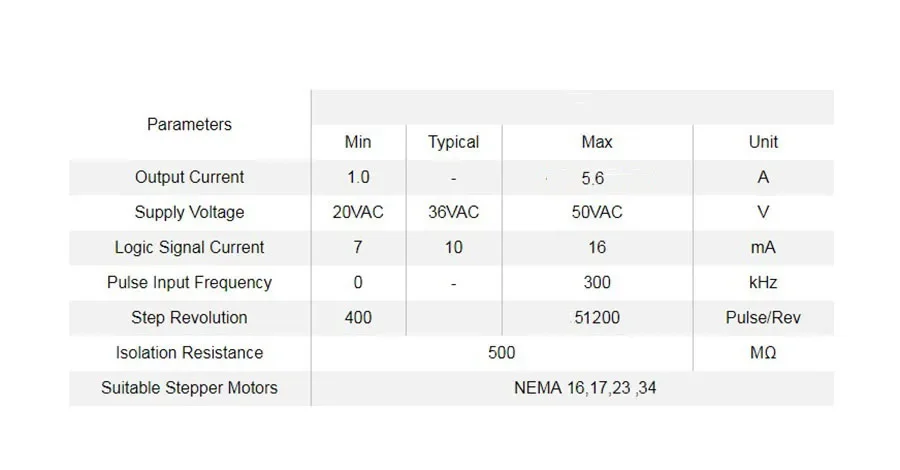

Features:

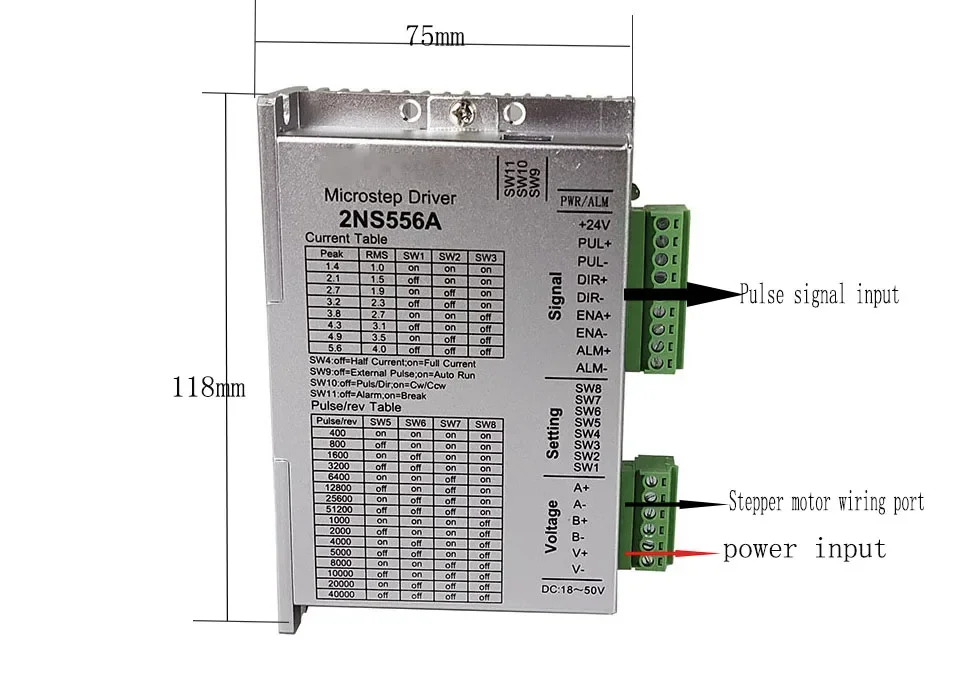

Size:

Note:
