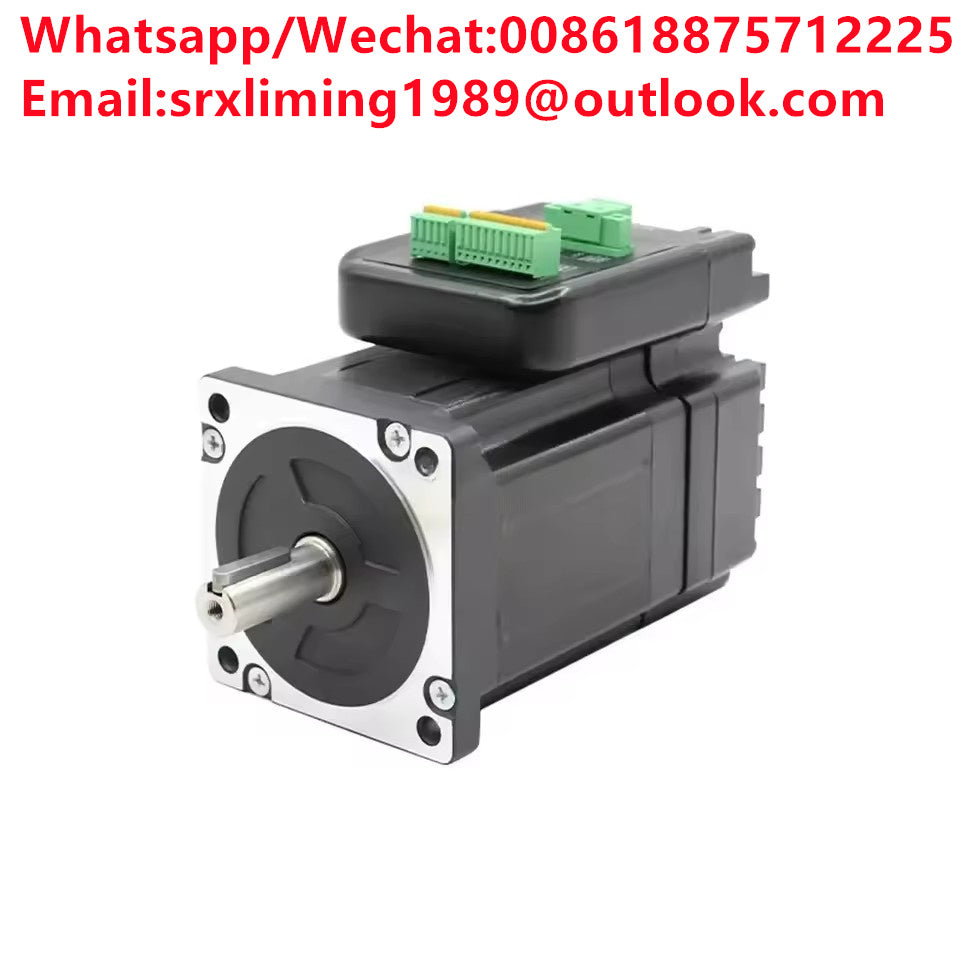

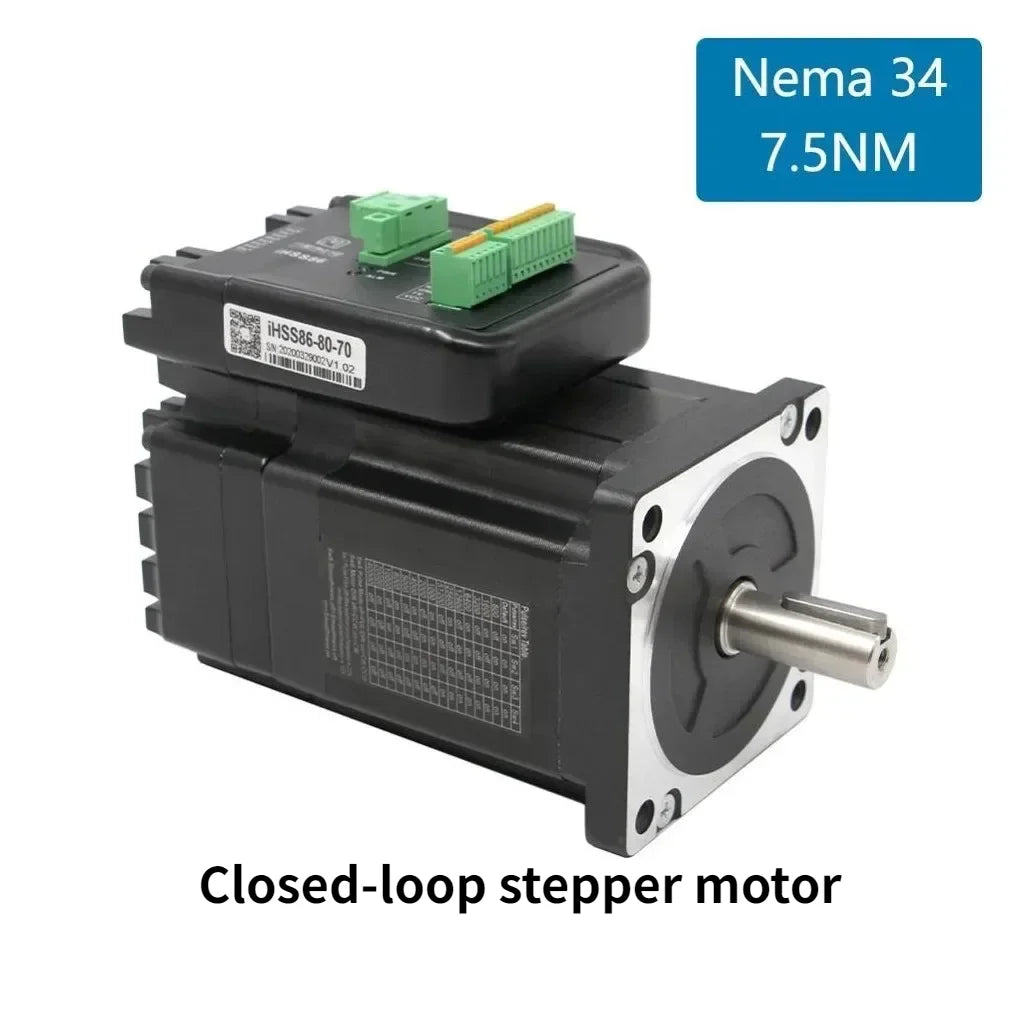

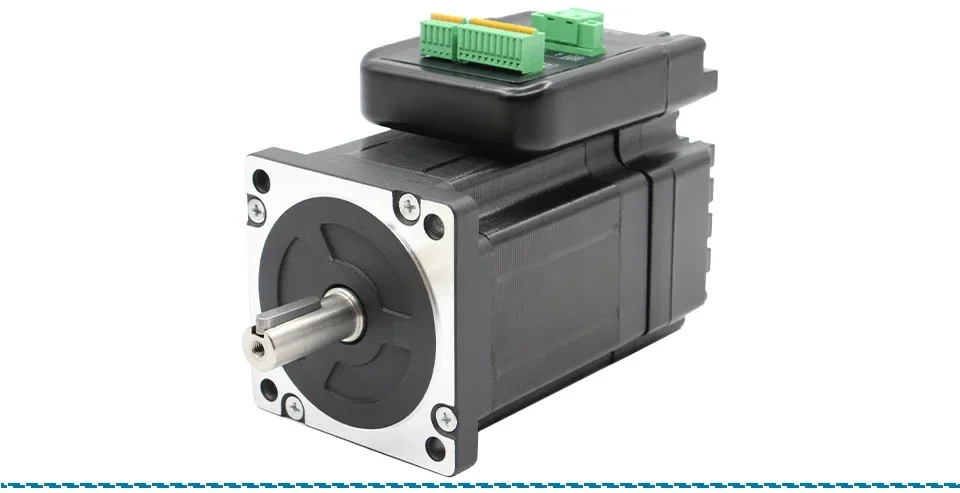

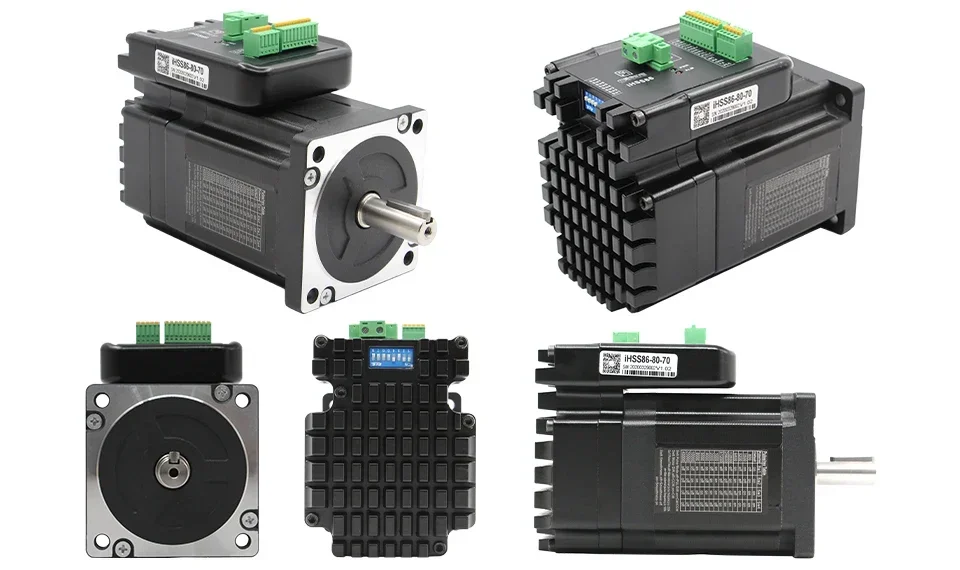

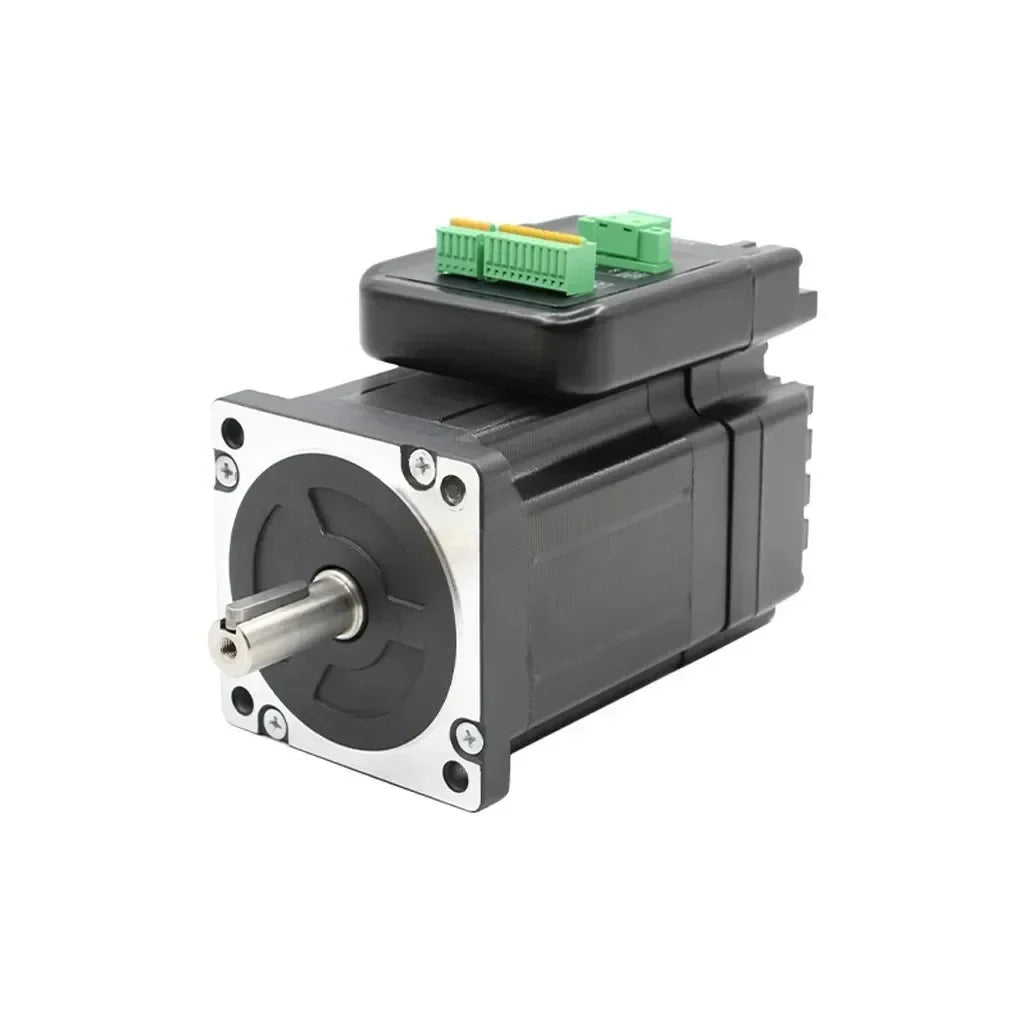

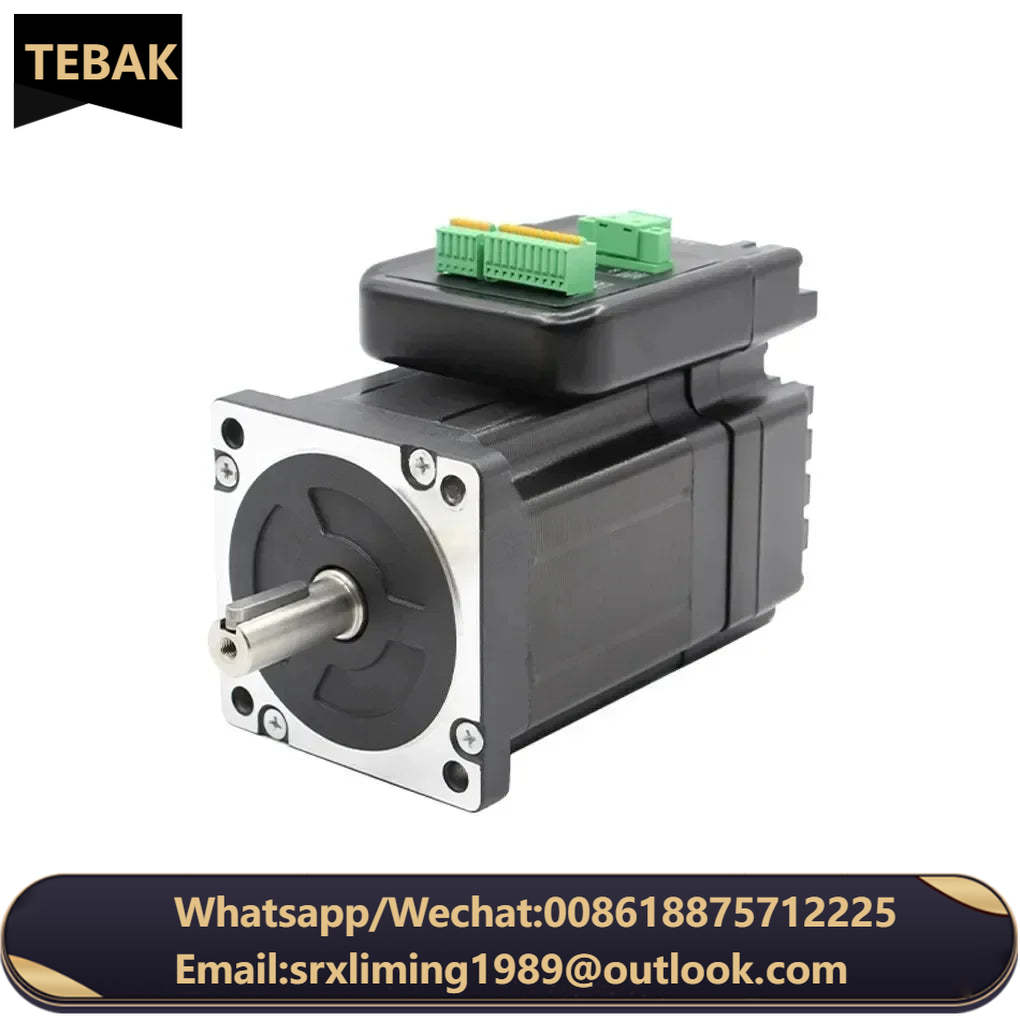

Cnc Original NEMA 34 Integrated Closed Loop Stepper Motor 80V 7.5Nm 2-Phase 86mm Hybrid Stepper Servo Motor IHSS86-80-70



1 x Nema34 7.5Nm 86mm Closed Loop Integrated Stepper Servo Motor & Drive



The IHSS86 integrated stepping servo drive motor integrates the stepping servo drive into the stepping motor motor, and the two are perfectly integrated. This integrated stepping servo drive motor perfectly integrates the servo control technology in the digital stepping drive. The product adopts an optical encoder, and the position feedback is sampled at a high speed every 50 microseconds. Once a position deviation occurs, the position deviation can be corrected immediately. This product is compatible with the dual advantages of progressive technology and servo technology. It has the characteristics of low heat generation, low vibration, and fast acceleration. It is a highly cost-effective motion control product.



Phase: 2

Nema: 34

Step angle: 1.8°

Position accuracy: 1.8±0.09

Holding torque: 7.5N.m

Current phase: 6A

Lead wire: 4

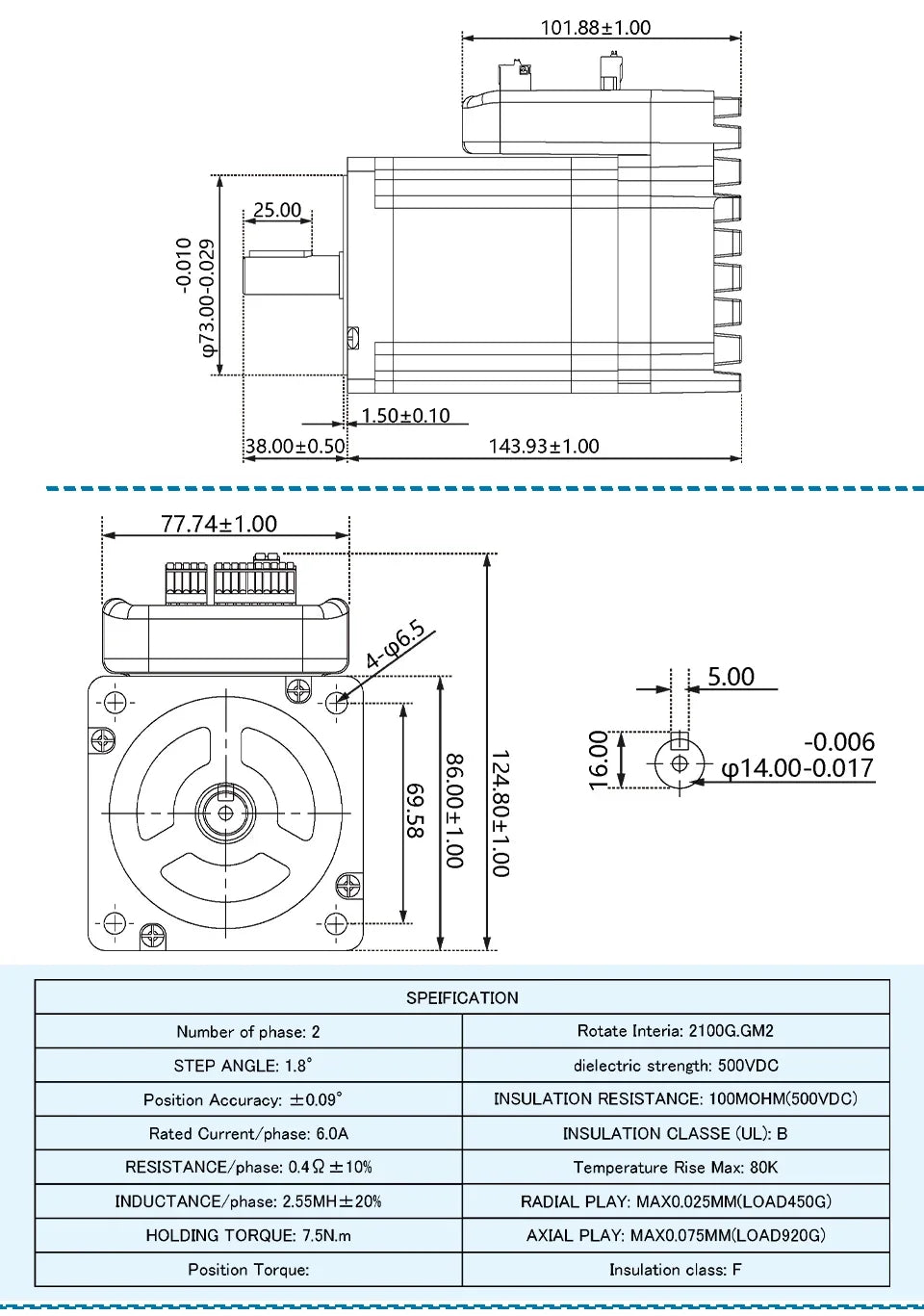

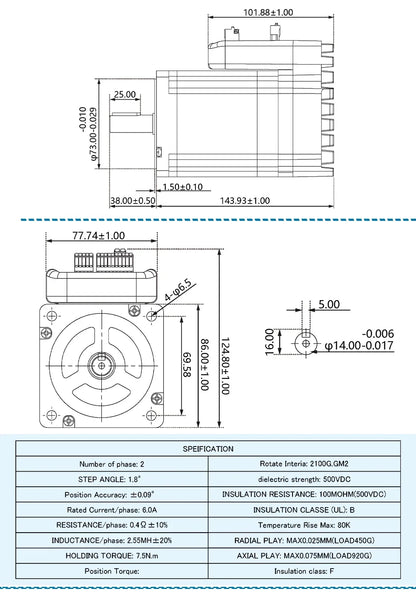

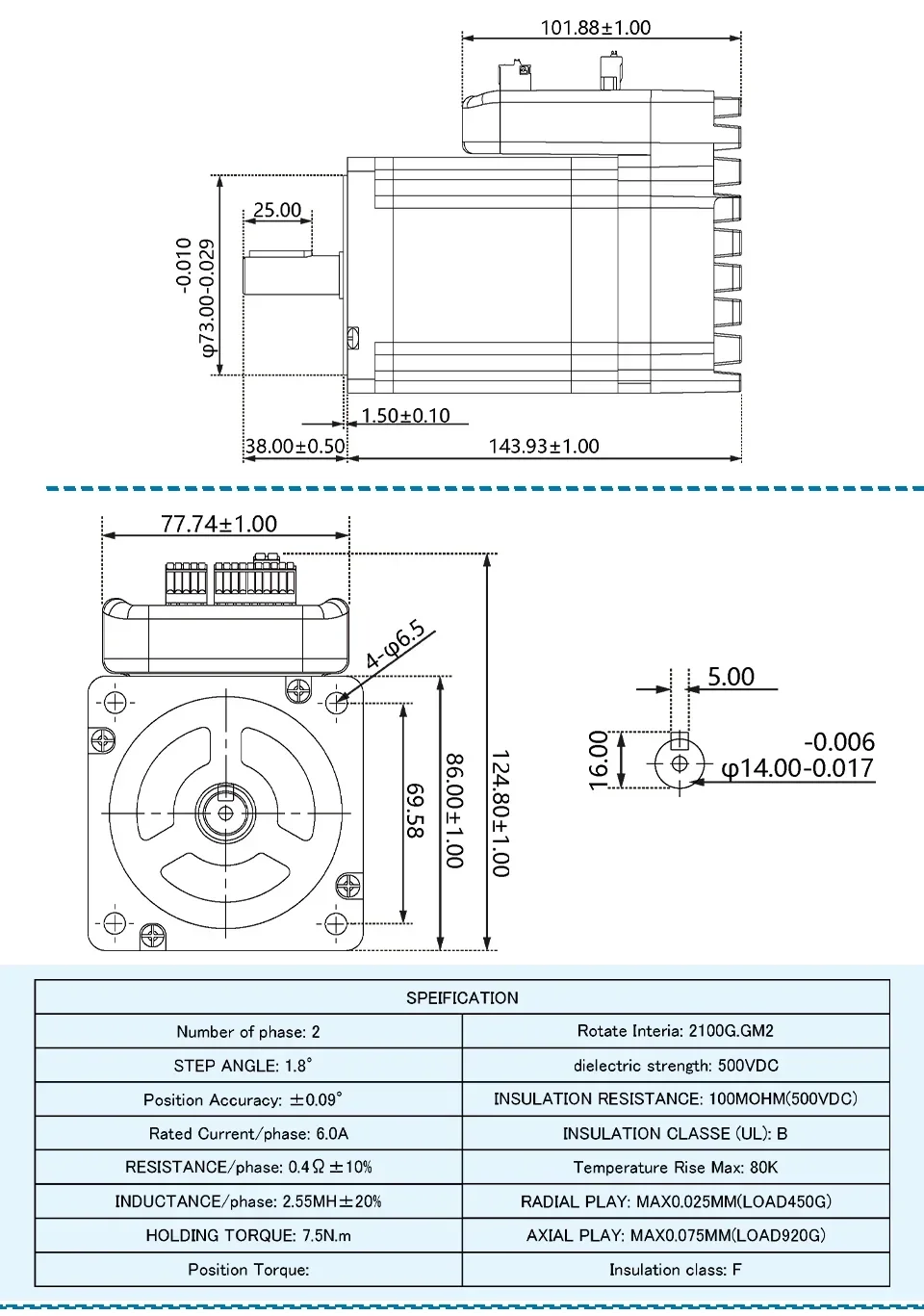

Length: 145mm

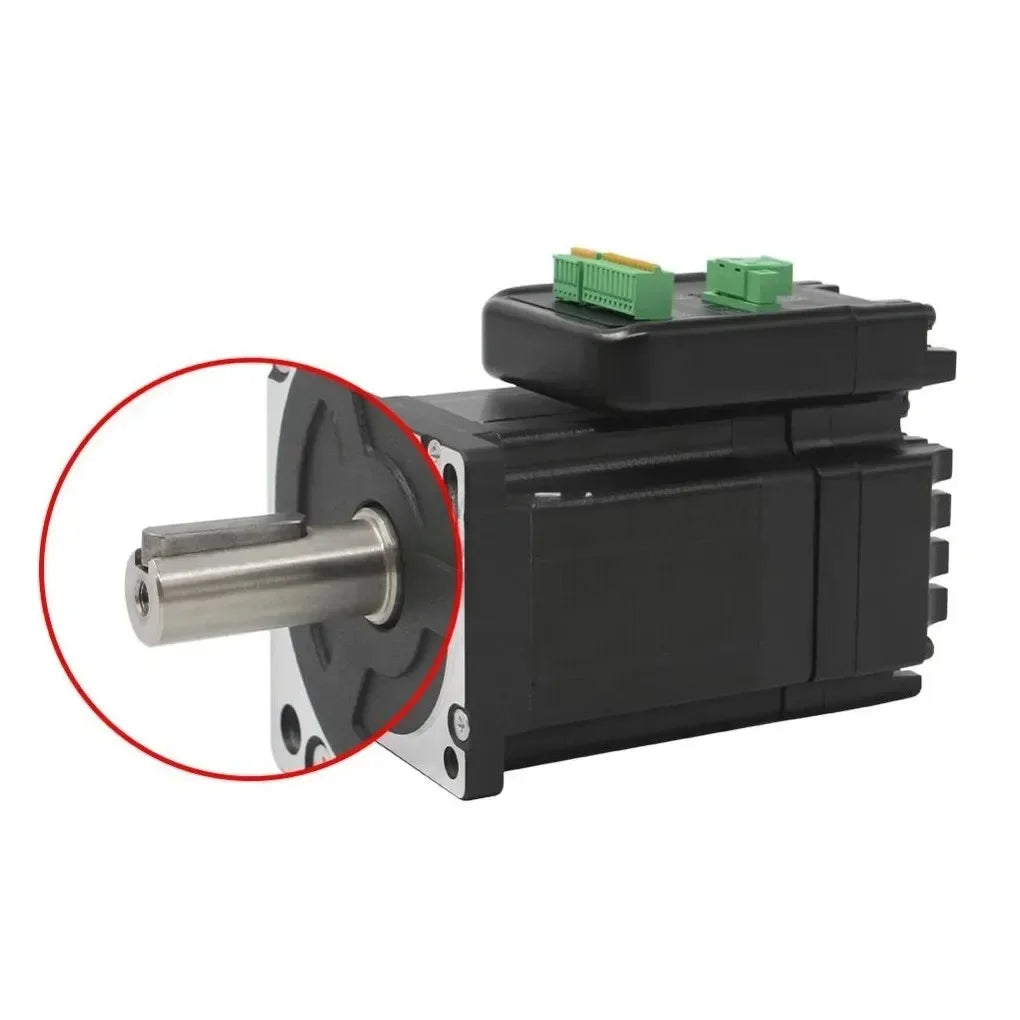

Shaft length: 38mm

Shaft diameter: 14mm

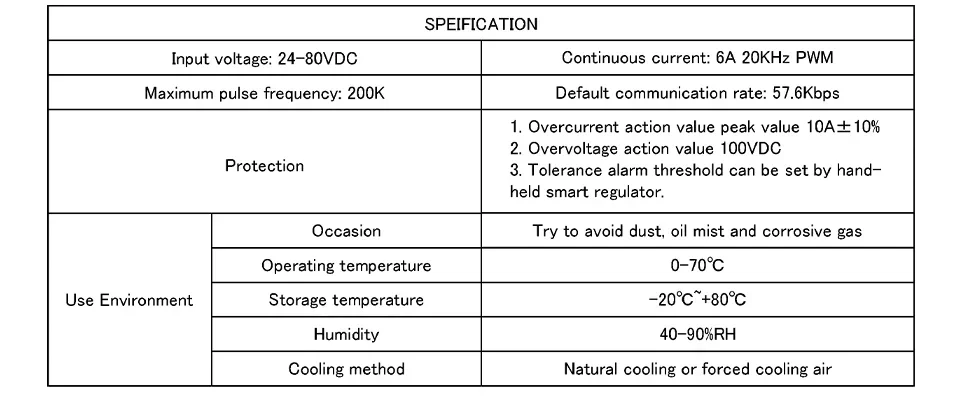

Input voltage: 24-80V

Rotary speed: 0-2000rpm

Encoder: 1000Line





· Integration of motor and drive, eliminating complicated wiring

· No step loss, precise positioning

· 100% rated torque drive motor

· Variable current control technology, high current efficiency

· Low vibration, stable operation at low speed

· Single and double pulse mode selectable

· The degree of pulse interference filtering can be set

· Built-in acceleration and deceleration control to improve the smoothness of start and stop

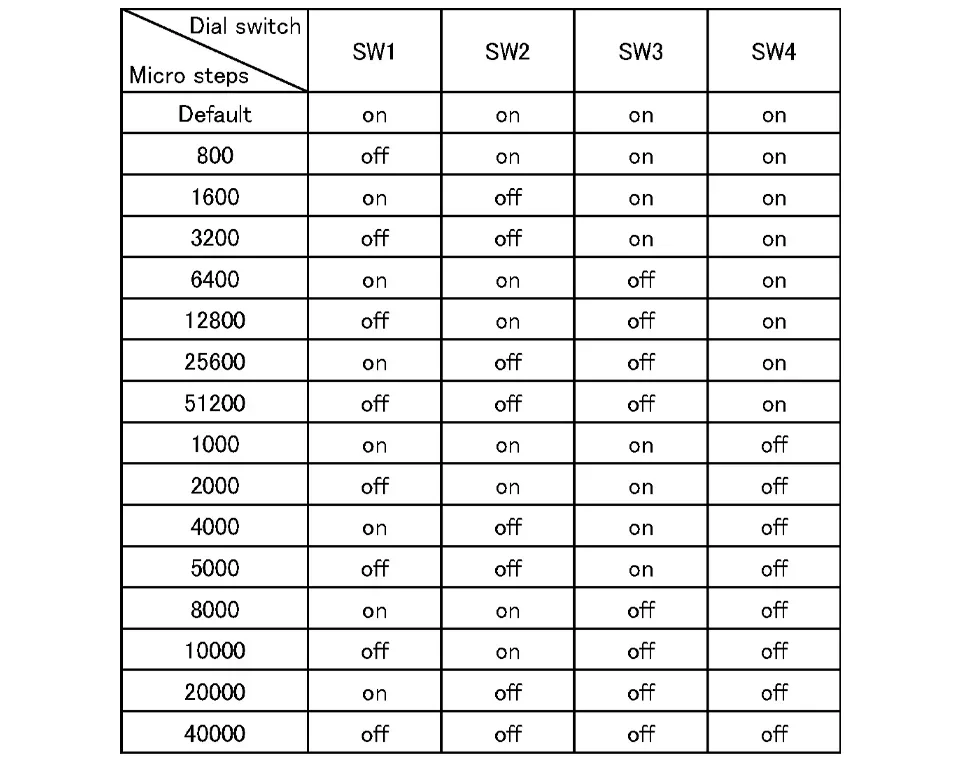

· Users can customize segmentation

· No need to adjust general application parameters

· Overcurrent protection, overvoltage protection, over-tolerance protection

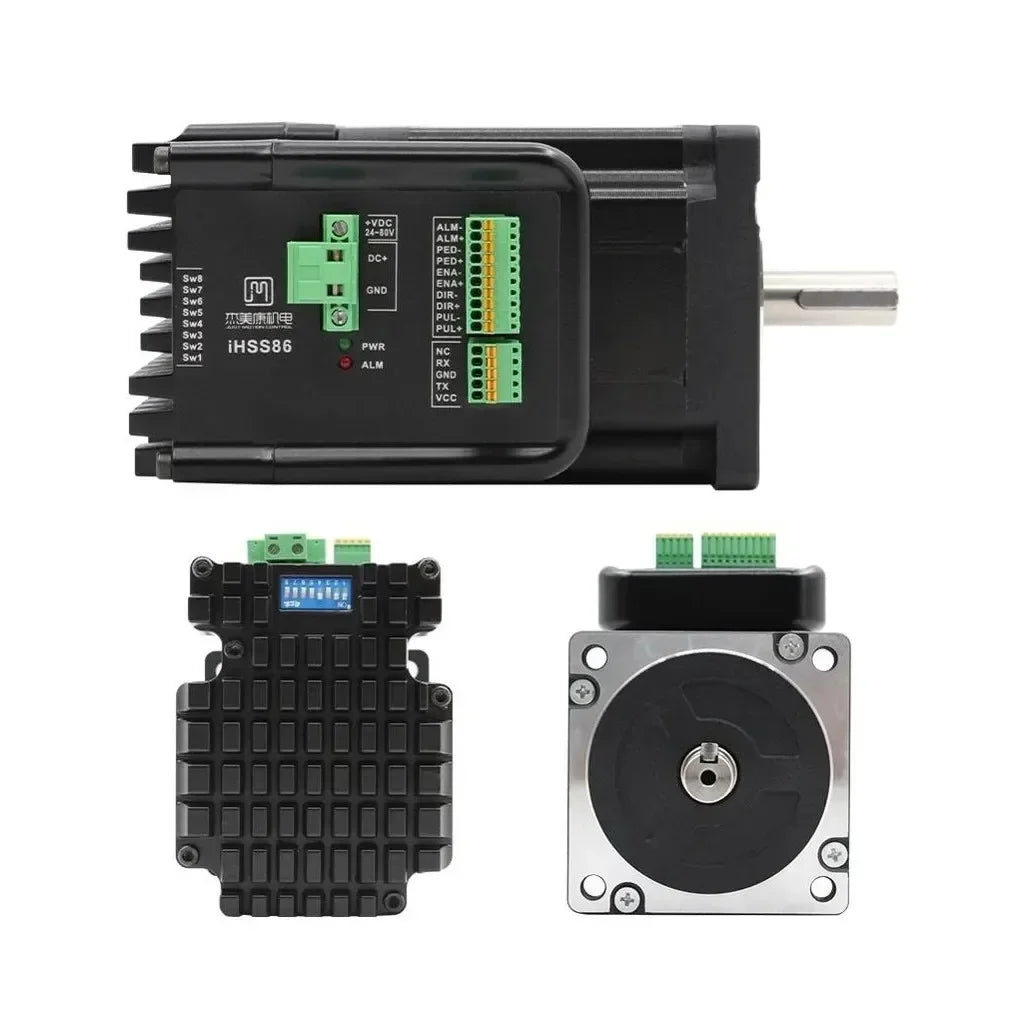

· Green light means running, red light means protection or offline

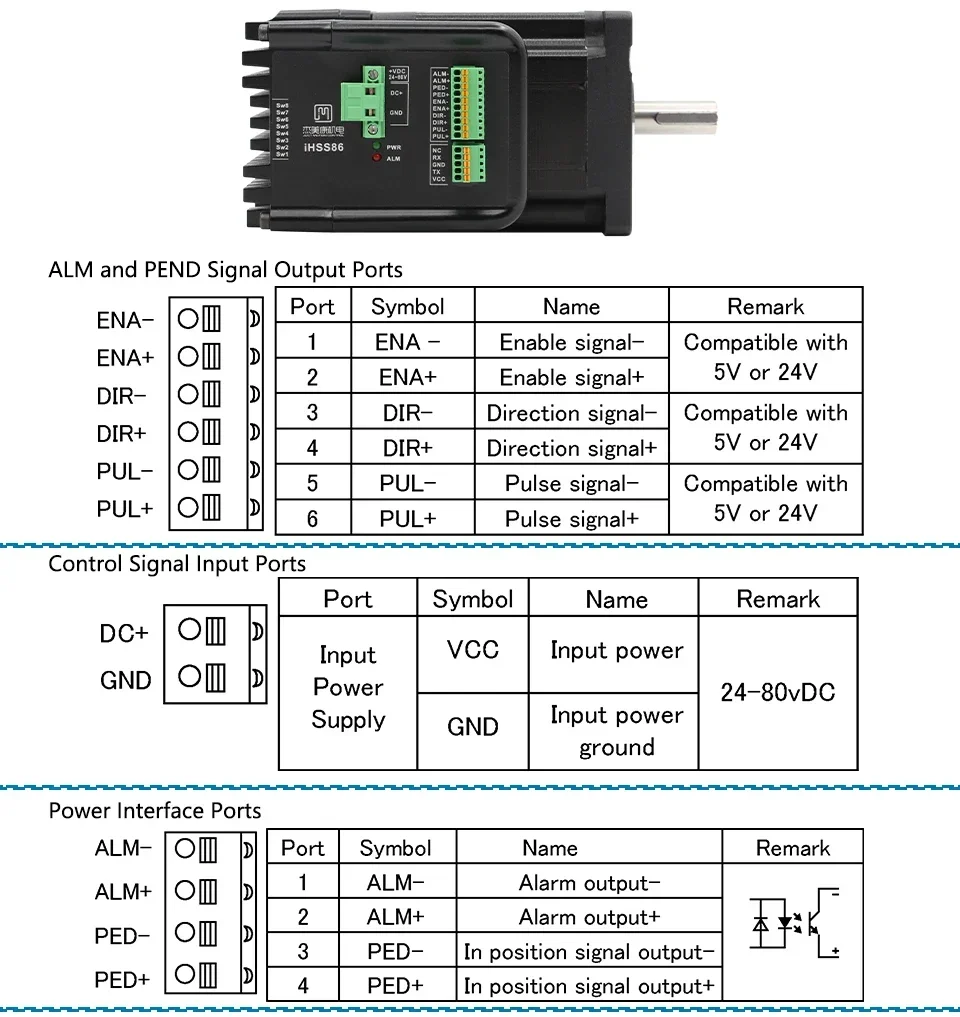

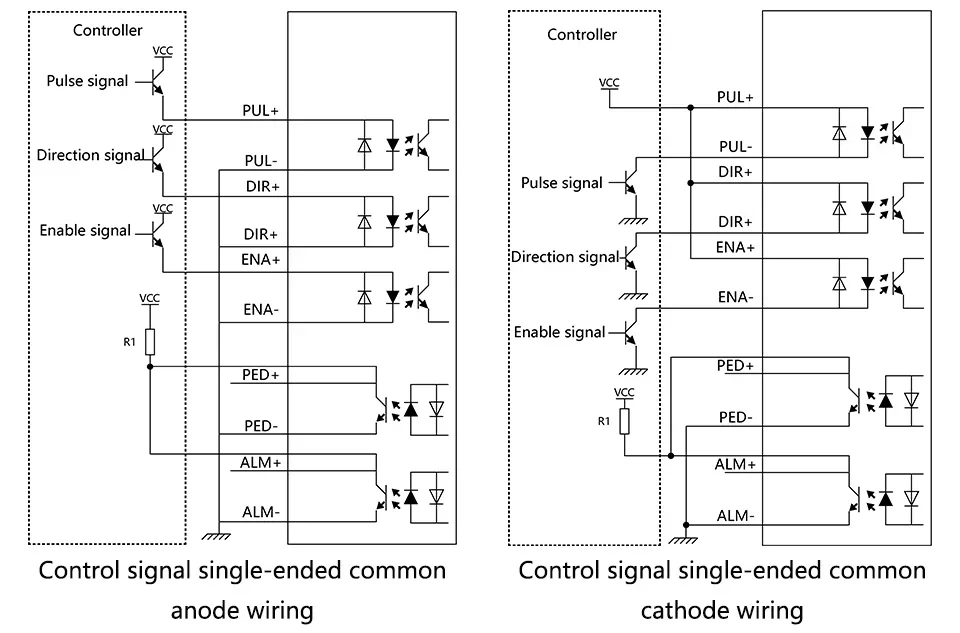

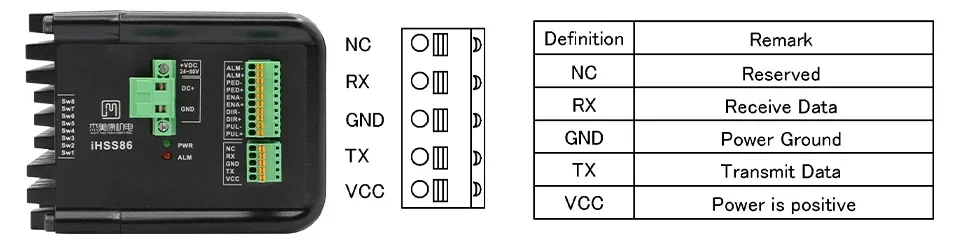

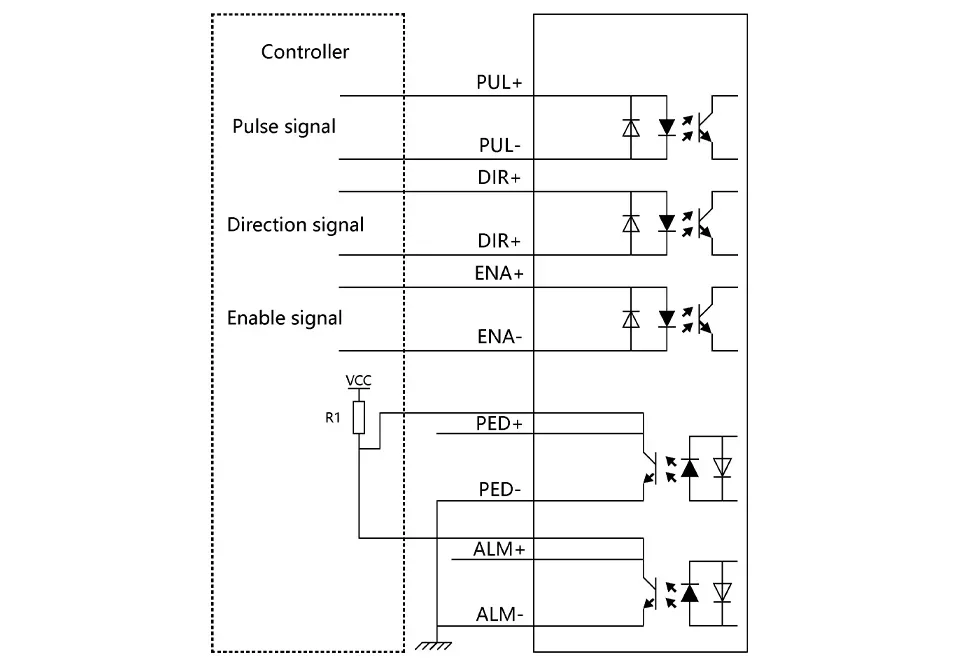

Note: VCC is compatible with 5V~24V. The resistor R1 is connected to the control signal terminal, and its resistance is 3~5K.

SW5 DIP switch sets single and double pulse mode, off means single pulse mode, on means double pulse mode.

When the SW6 dial switch is switched off or on, it can change the direction of the current motor movement, off=CCW, on=CW.

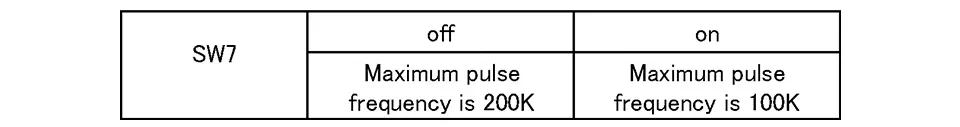

When the SW7 DIP switch is switched off or on, the degree of pulse filtering can be changed. The maximum pulse frequency that can be passed in the off state is 200K, and the maximum pulse frequency that can be passed in the on state is 100K. In addition, other pulse filtering degrees in the on state can be set by P22. (Note: SW7 dialing code needs to be in on state when setting P22 parameter.)

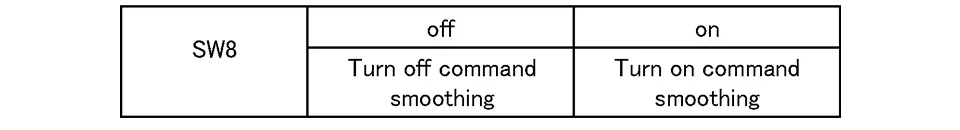

The SW8 dial code sets the smooth command, the off state turns off the smooth command, and the on state turns on the smooth command. In addition, the level of command smoothness can be set by P19 parameter (note: SW8 dialing code needs to be in the on state when setting P19 parameter.)
