CNC Machining Hexagonal Top Measuring Fixture Clamping CNC Batch Parts Processing Side Fixed Tooling Precision Vise

Product use precautions

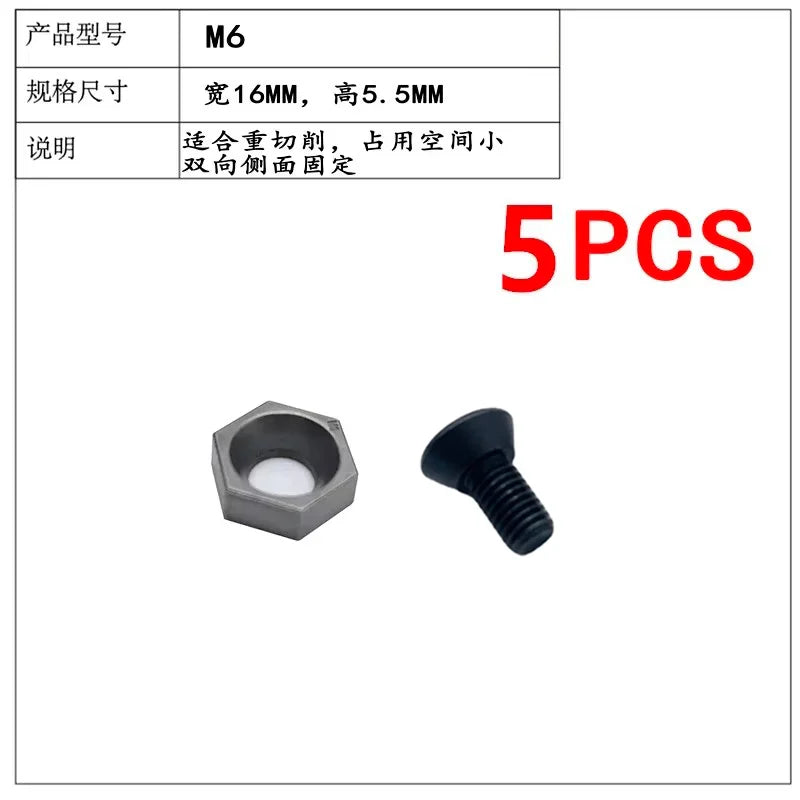

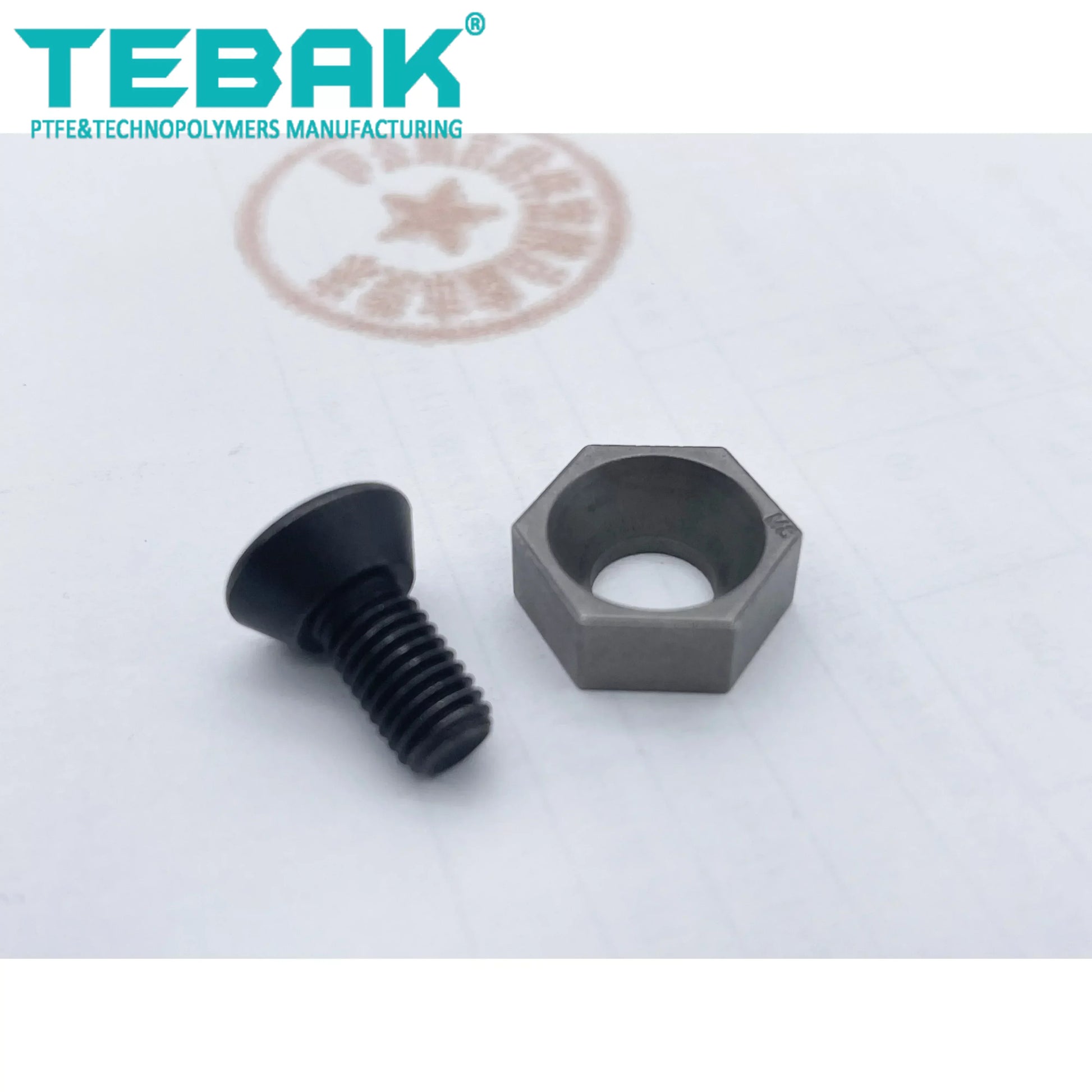

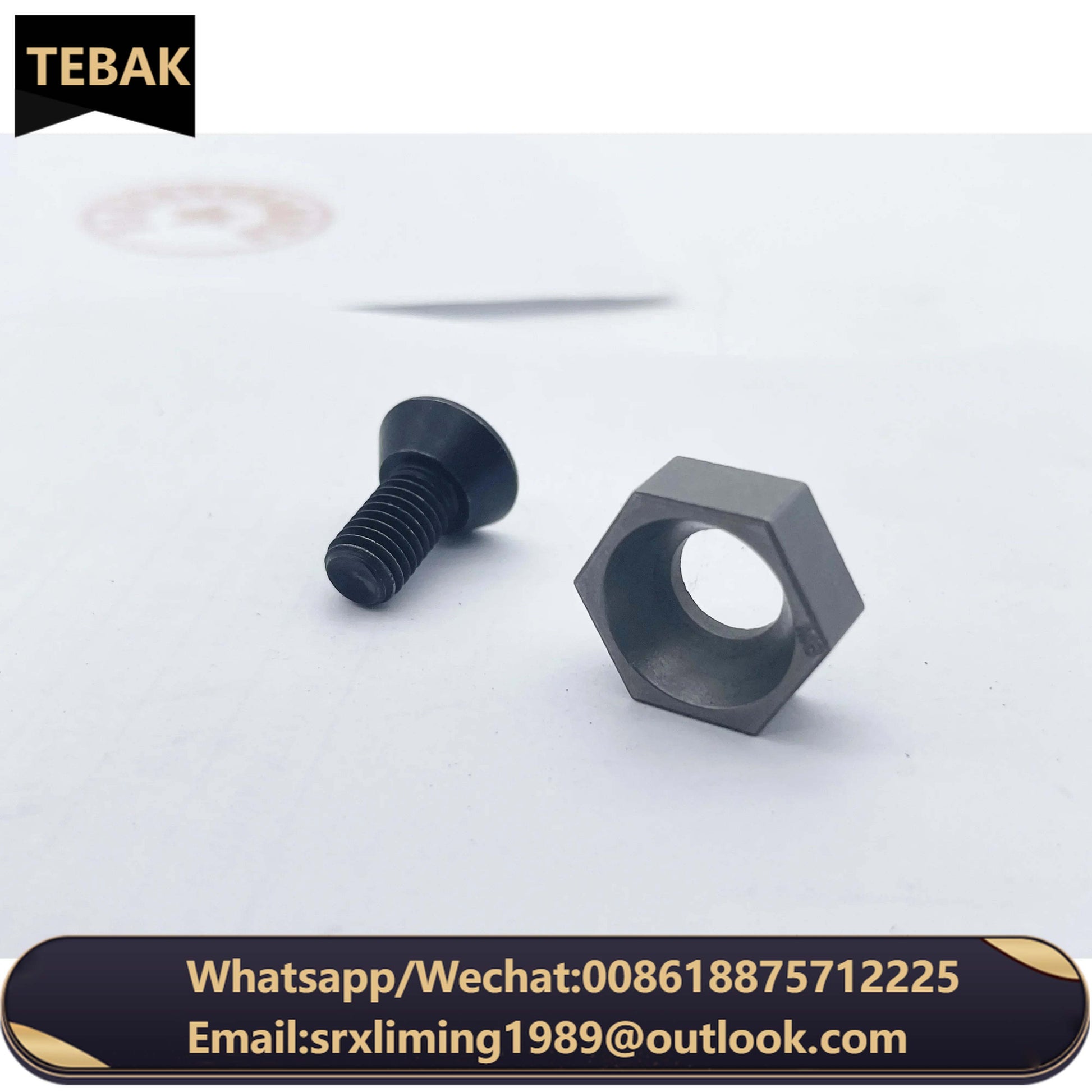

M6: width 16mm, height 5.5mm, the screw hole is about 0.6 in the middle. The distance from the hole to the edge of the part 7.4. Tighten the screw and press the workpiece!

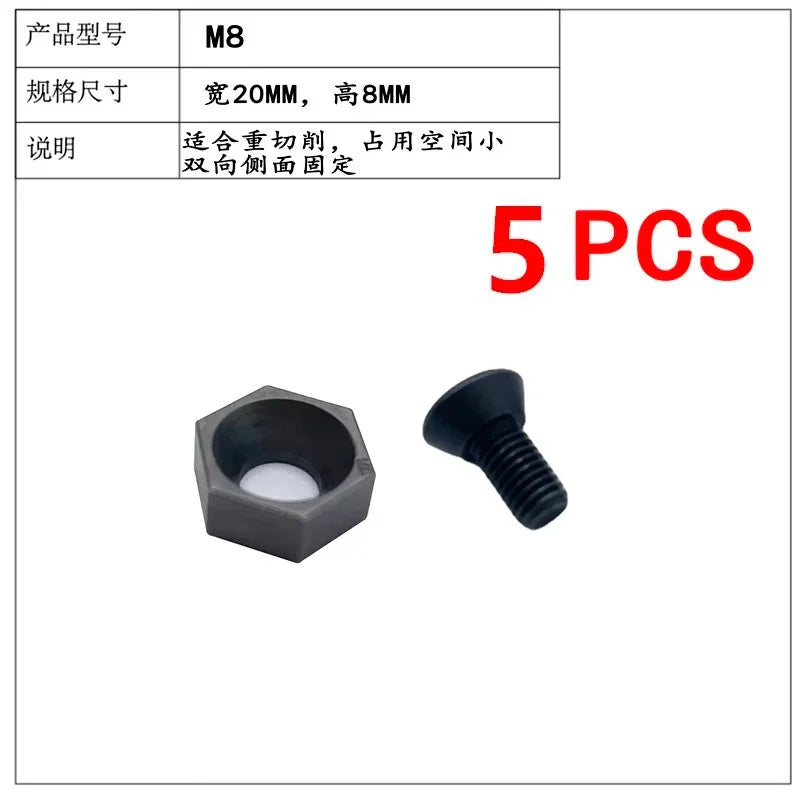

M8: width 20mm, height 8mm, the screw hole is about 0.8 in the middle. The distance from the hole to the edge of the part 9.2. Tighten the screw and press the workpiece!
It is recommended to install a threaded socket on the bottom plate of the fixture, which can increase the strength of the thread!
If the material of the bottom plate of the fixture is aluminum, please install the threaded socket by yourself to prevent slippage!
Please check the instructions carefully to determine whether it is suitable for your part processing!
If you have any questions, you can consult customer service before purchasing! Returns are not supported after purchase, please place an order carefully

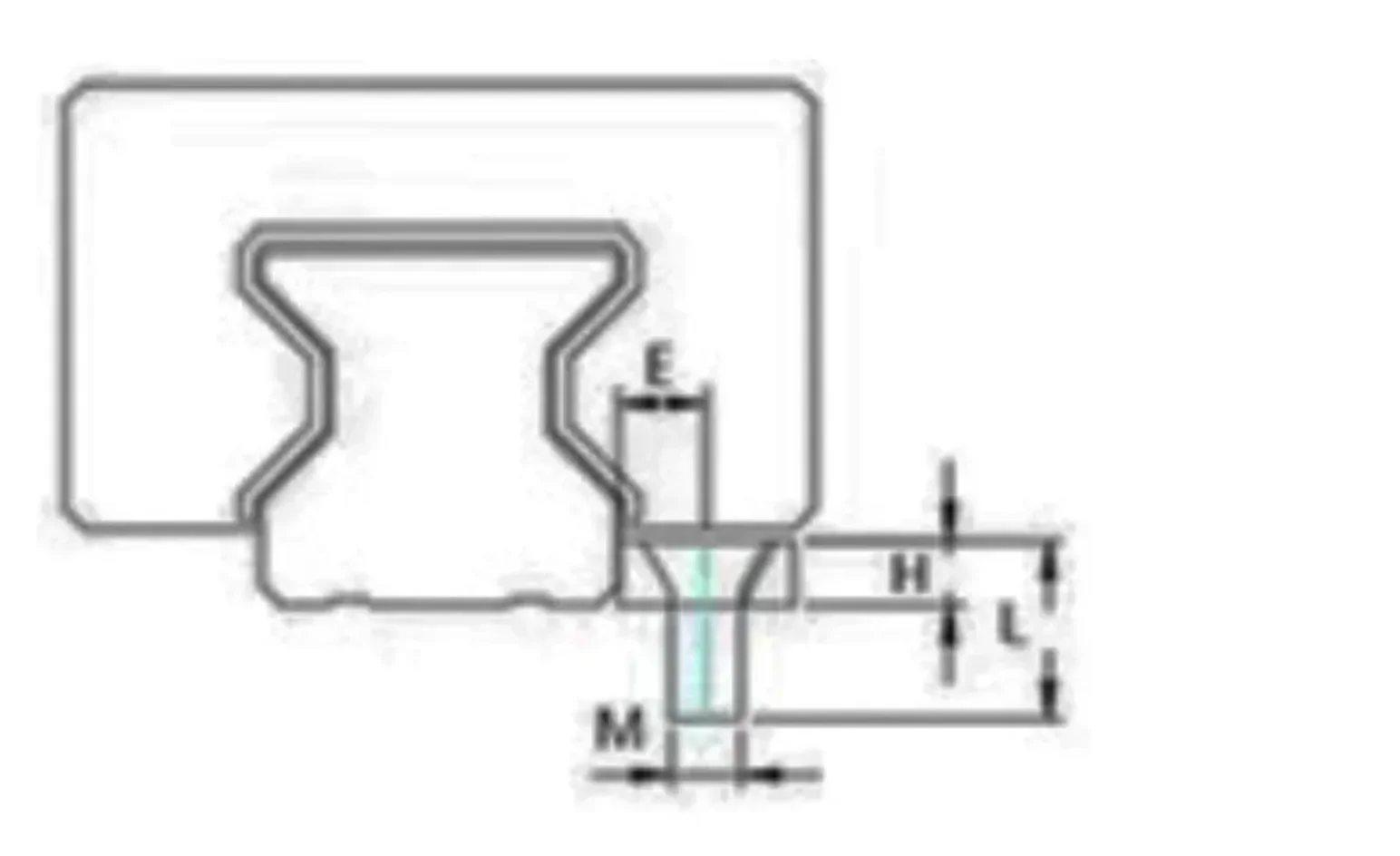

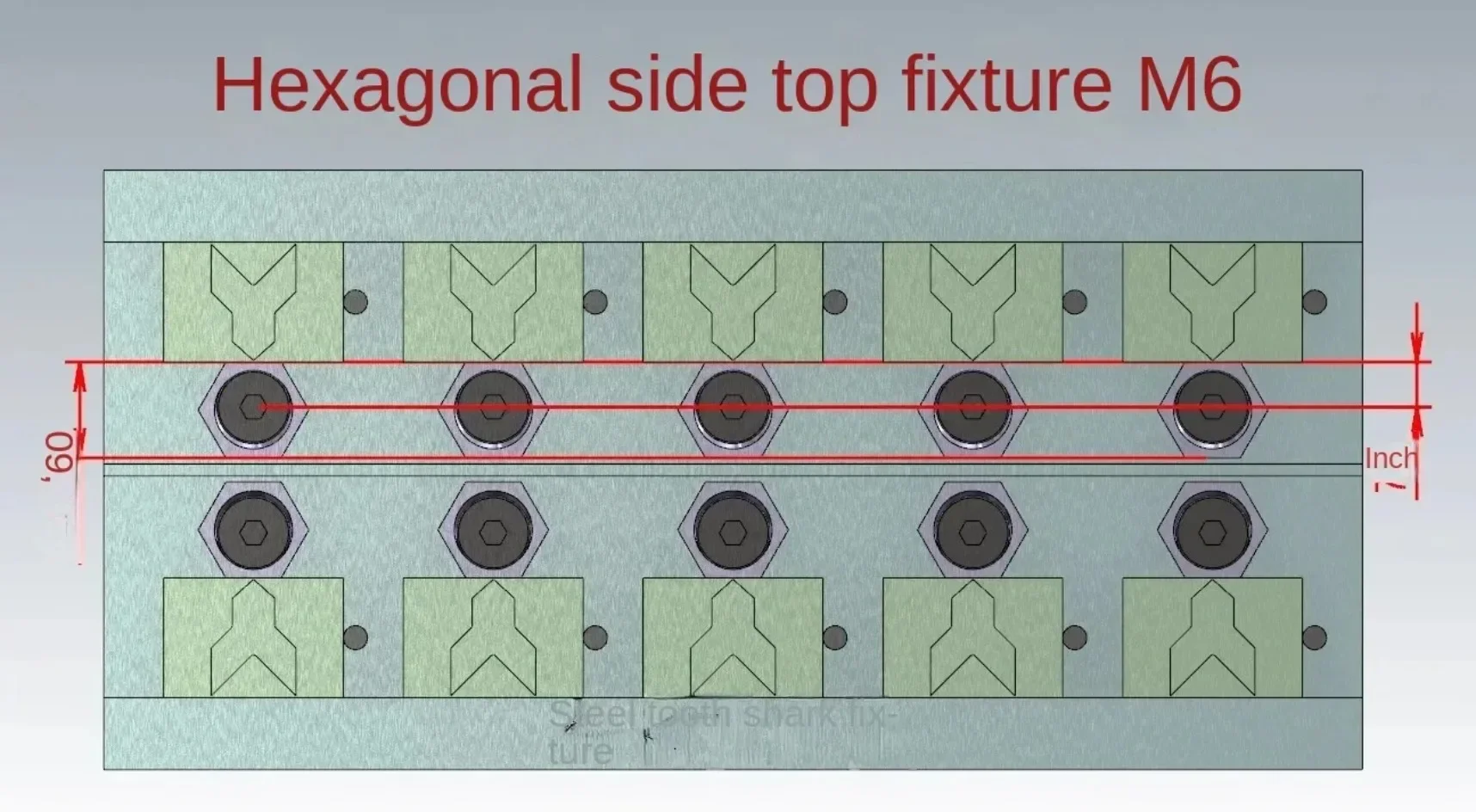

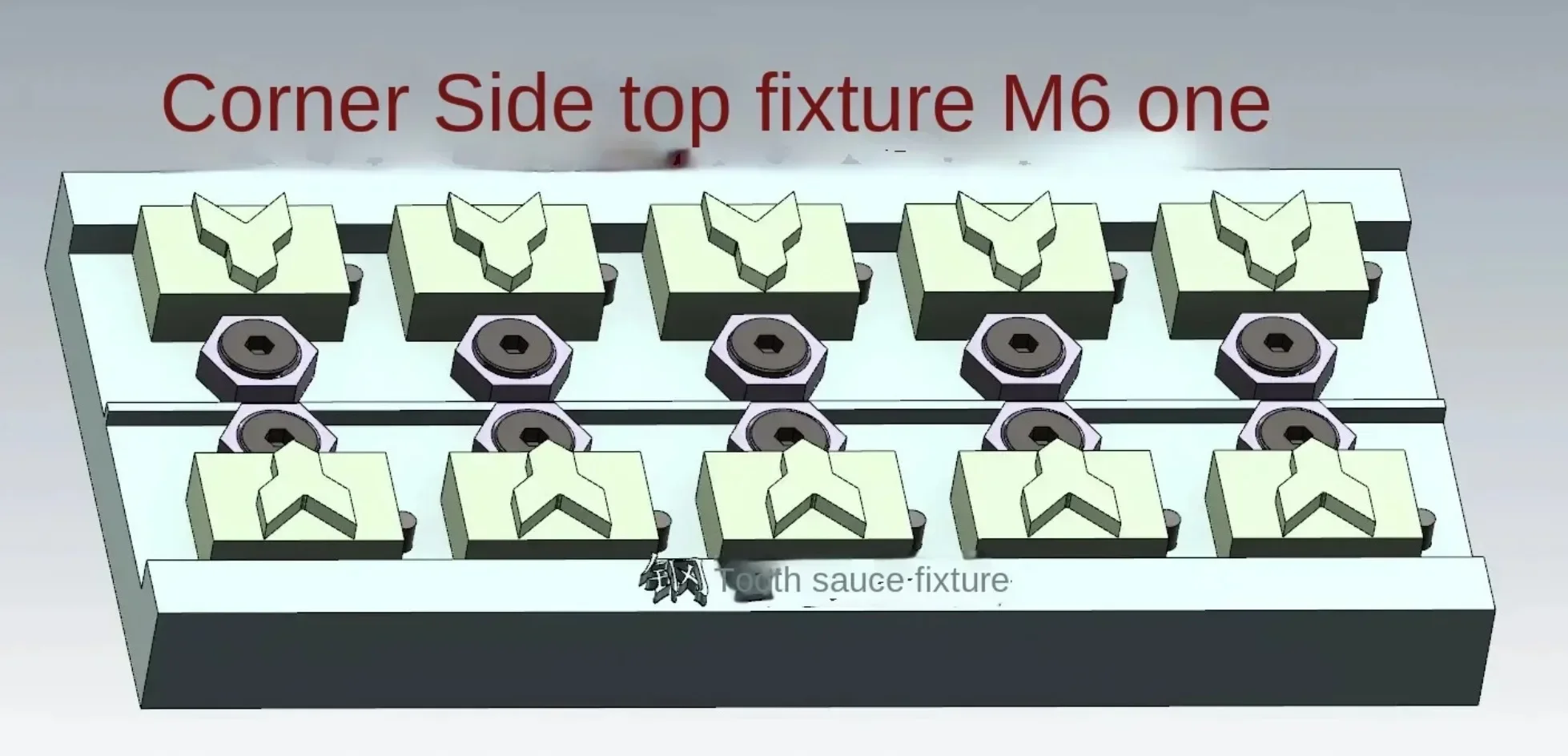

preduct 2d drawing


M6: width 16mm, height 5.5mm, the screw hole is about 0.6 in the middle. The distance from the hole to the edge of the part 7.4. Tighten the screw and press the workpiece!

M8: width 20mm, height 8mm, the screw hole is about 0.8 in the middle. The distance from the hole to the edge of the part 9.2. Tighten the screw and press the workpiece!

①Press down to lock
②gap
③fit

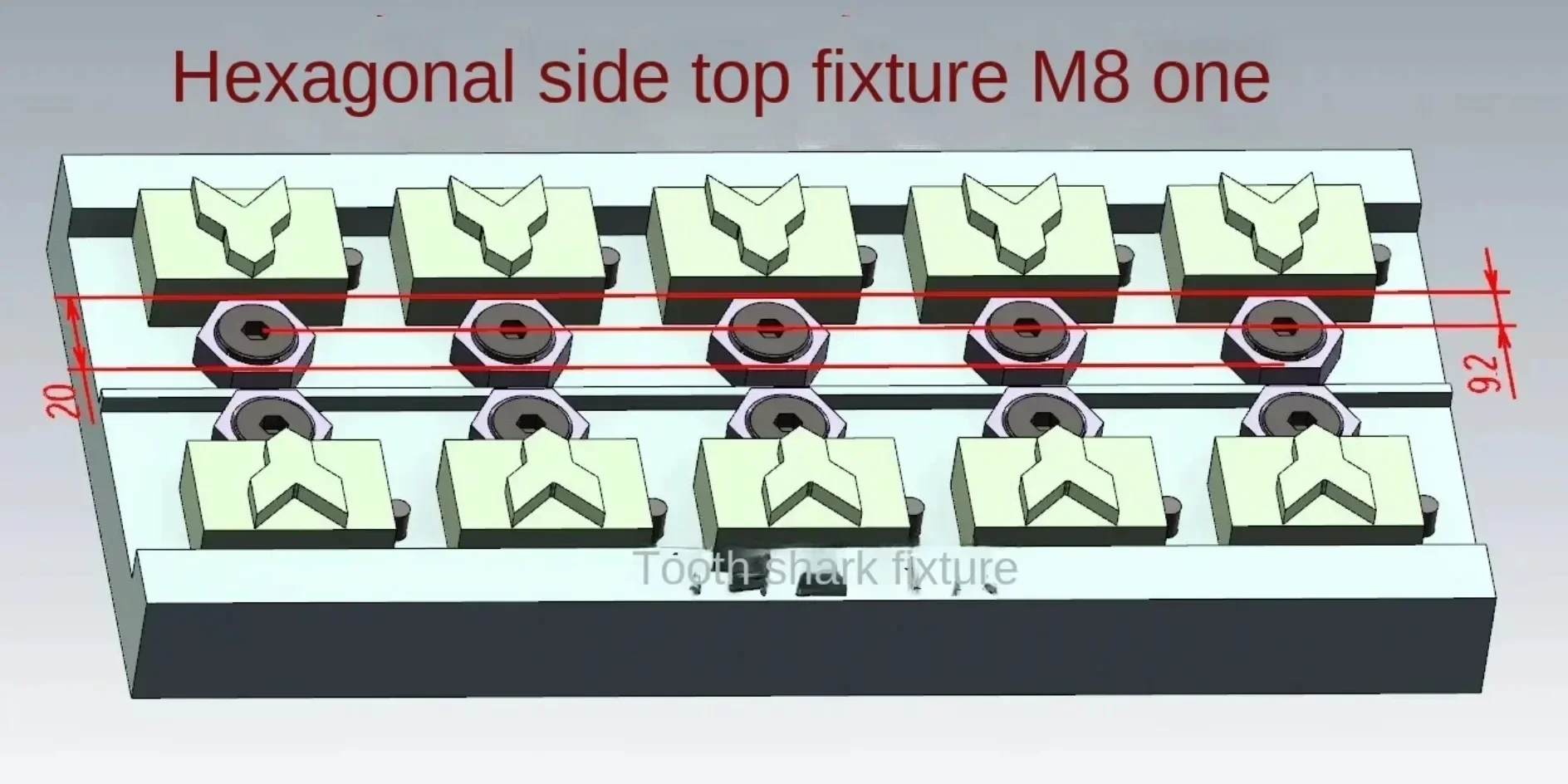

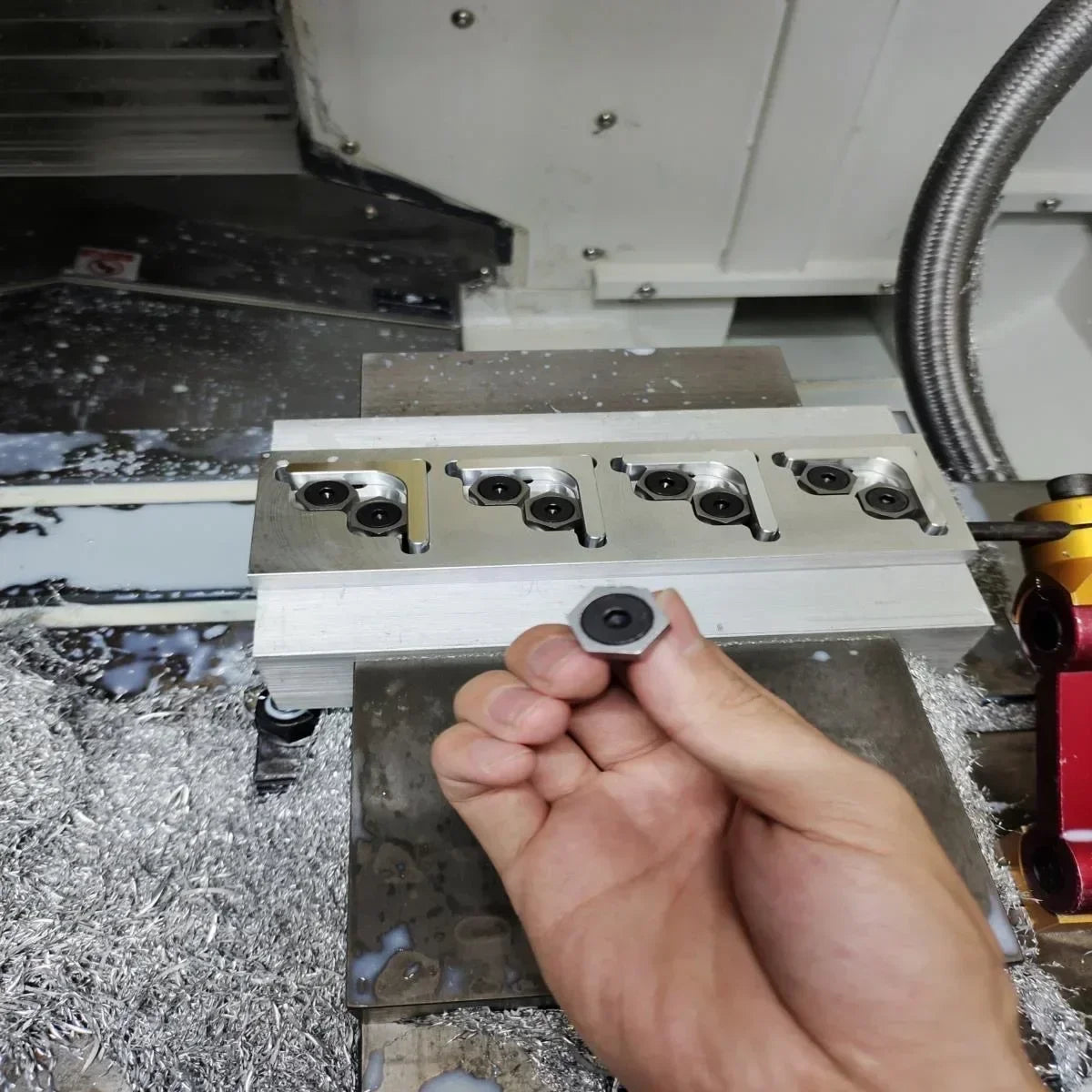

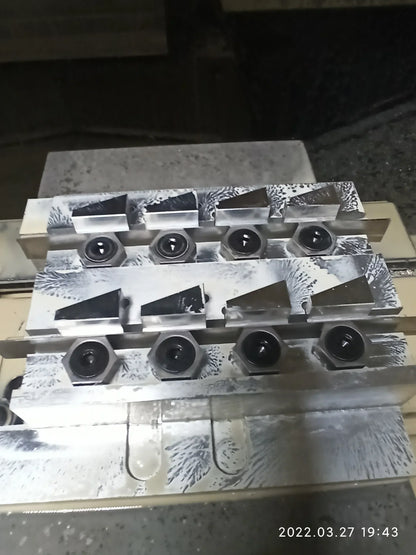

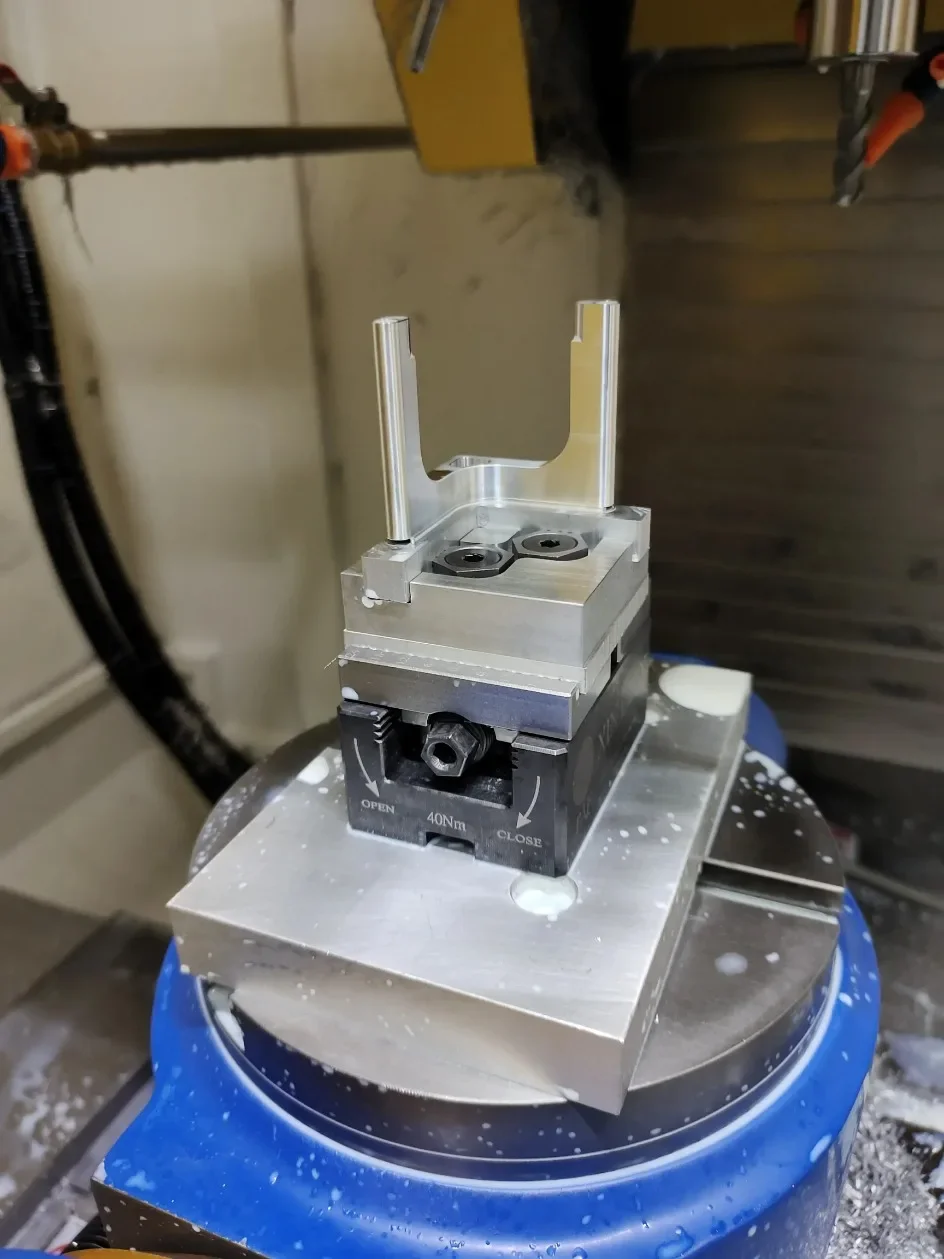

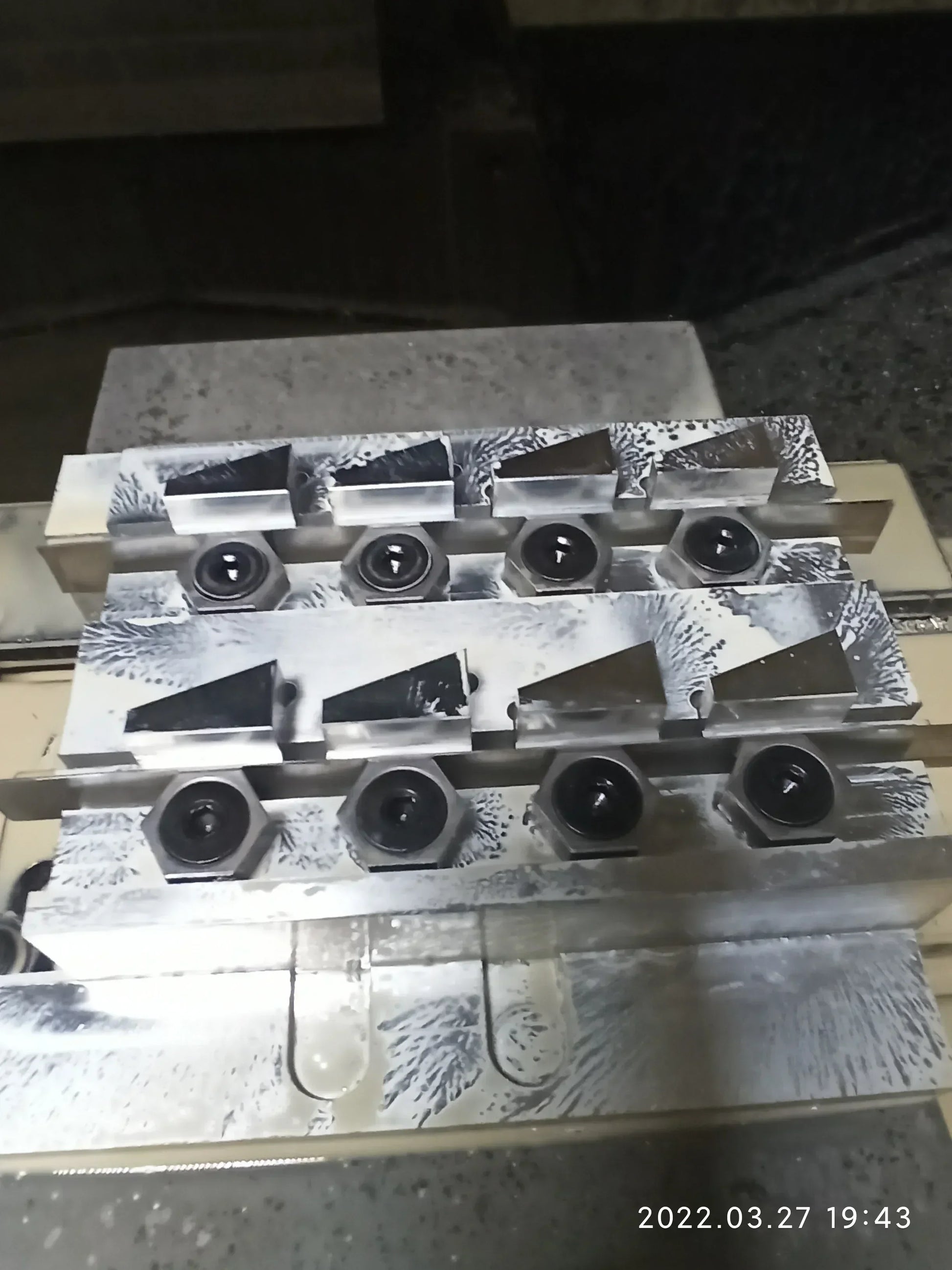

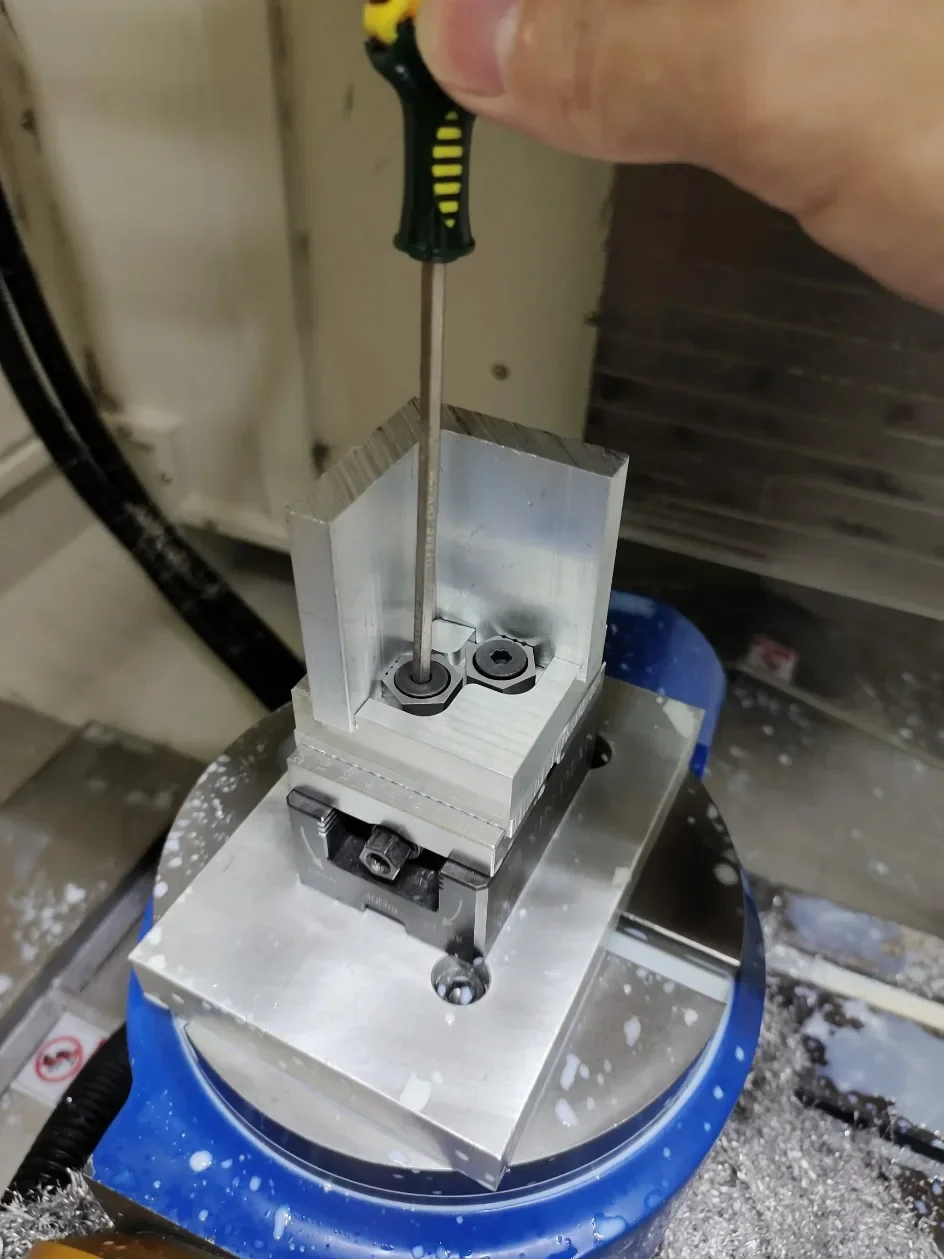

Use Cases

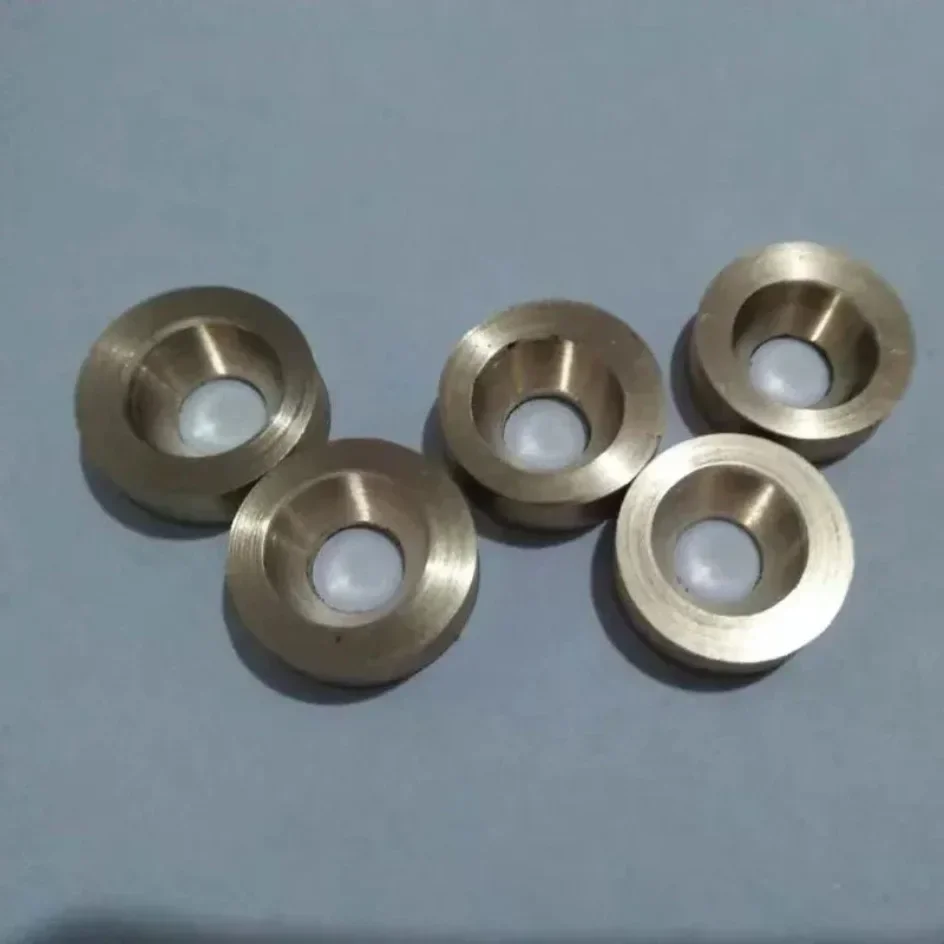

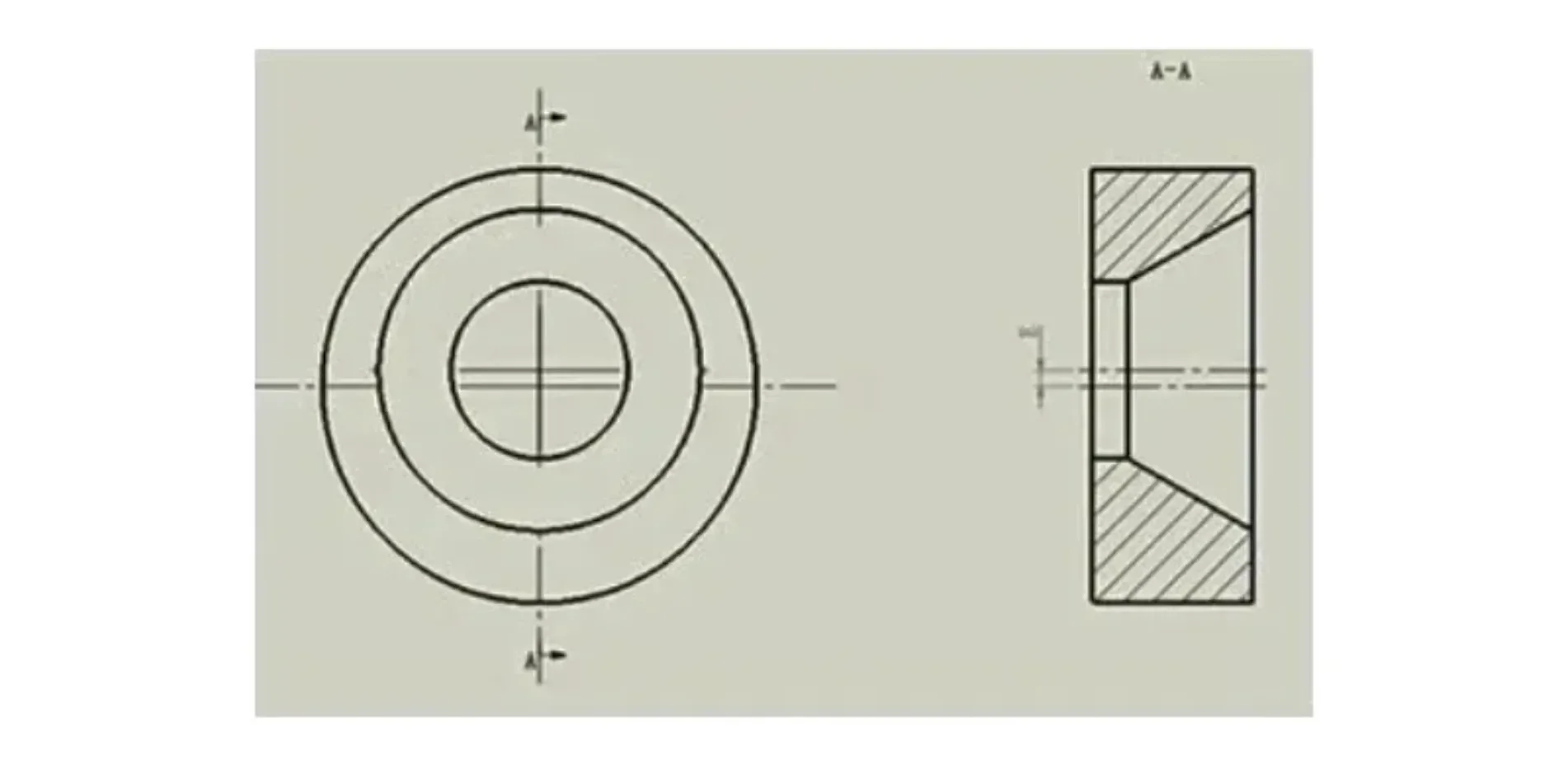

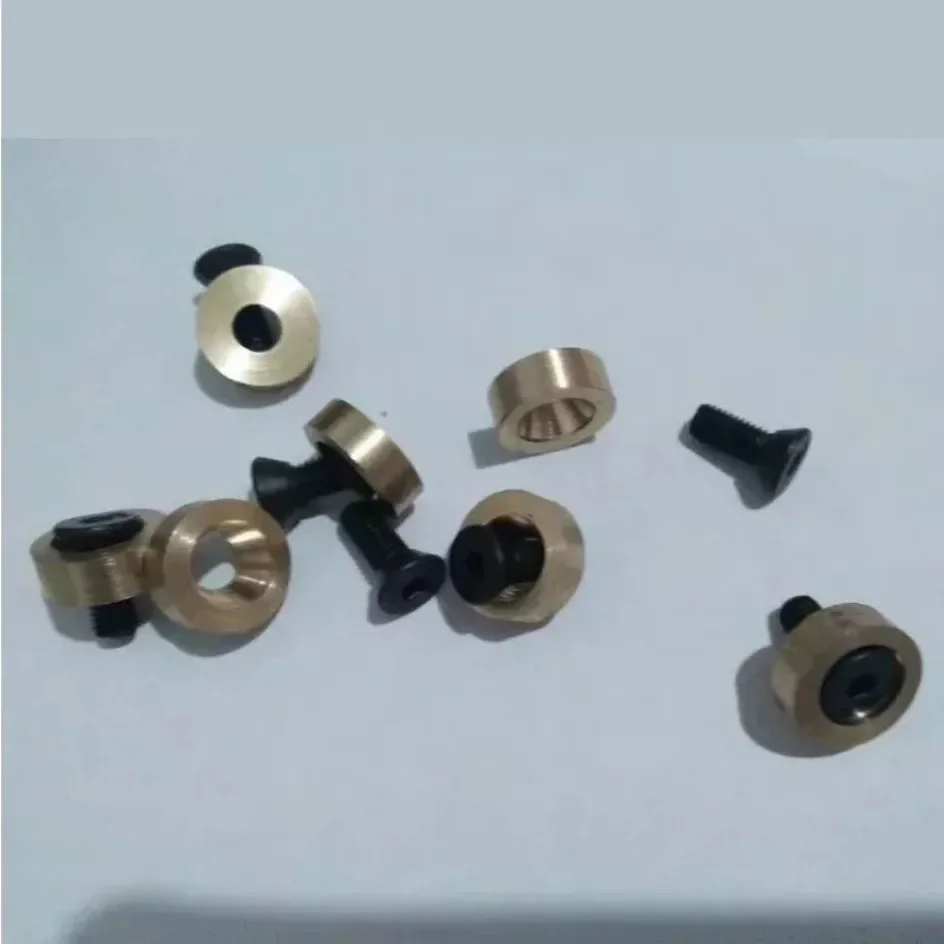

Round eccentric fixture · Auxiliary fixture

Hexagon press block upgrade version. The original hexagonal block is changed into a round block. The hole design is eccentric. Retain the advantages of hexagonal pressing block, and overcome the problem that the workpiece size is not fixed. Because the press block is eccentric, as long as the press block turn, you can be close to the workpiece. The hole distance error in 0.5mm can be installed.
