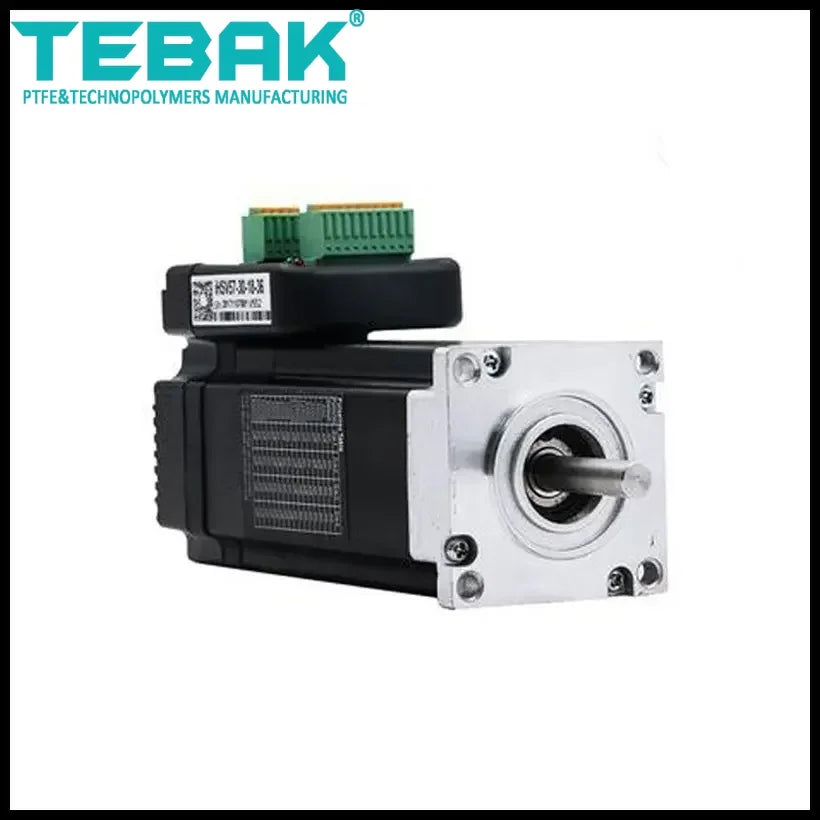

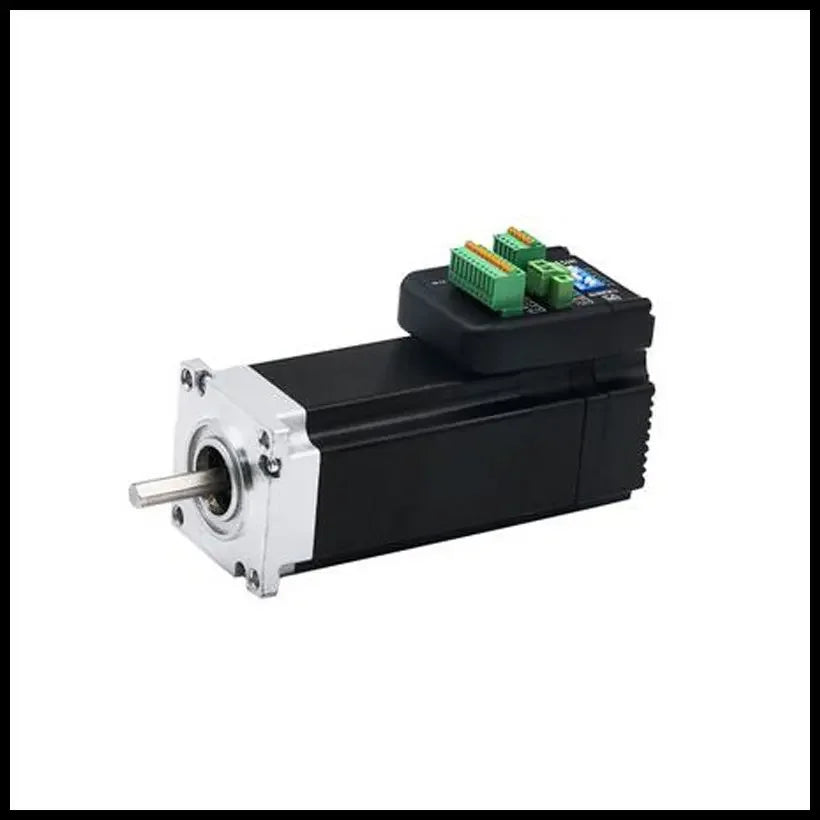

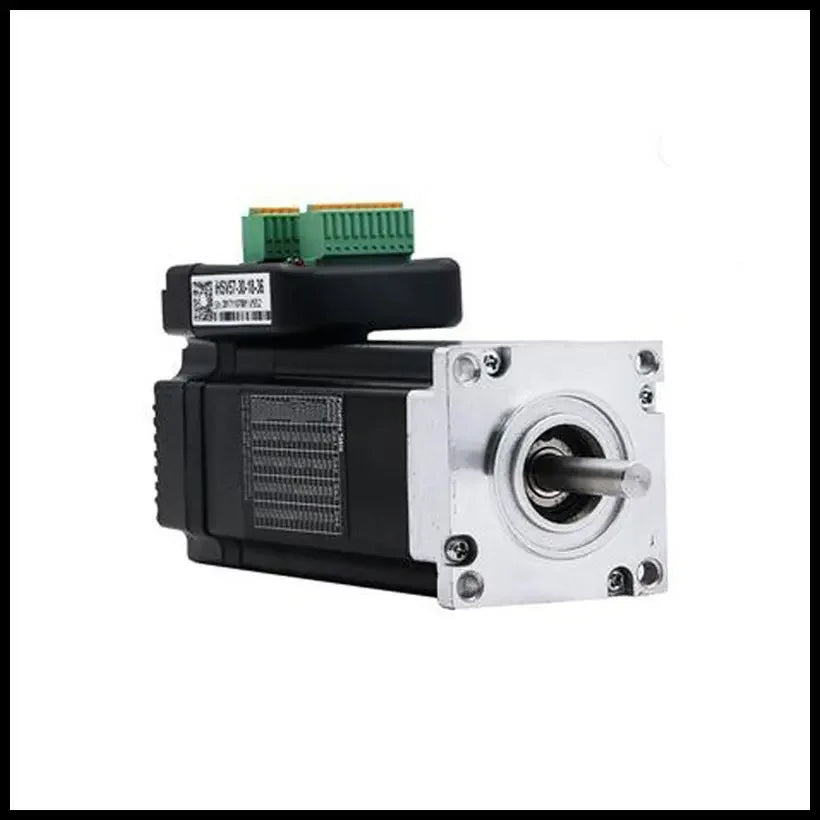

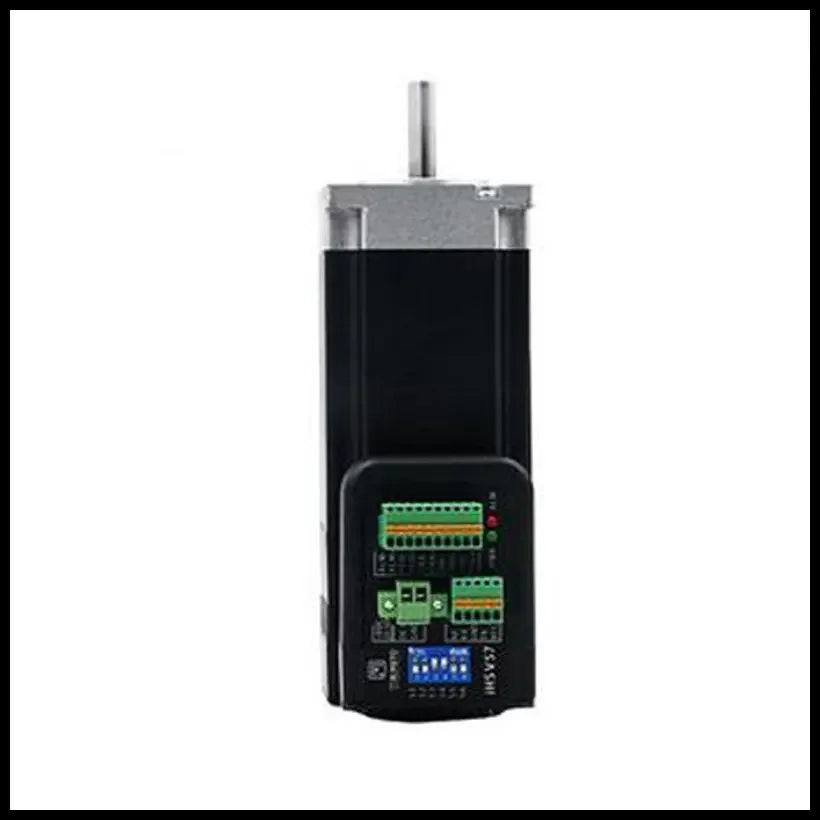

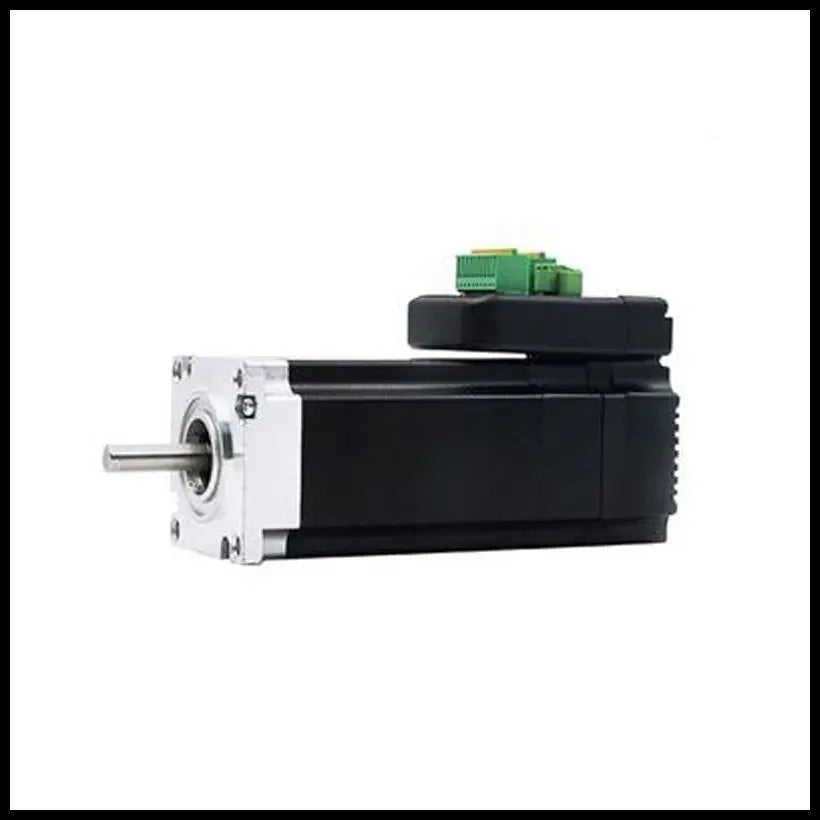

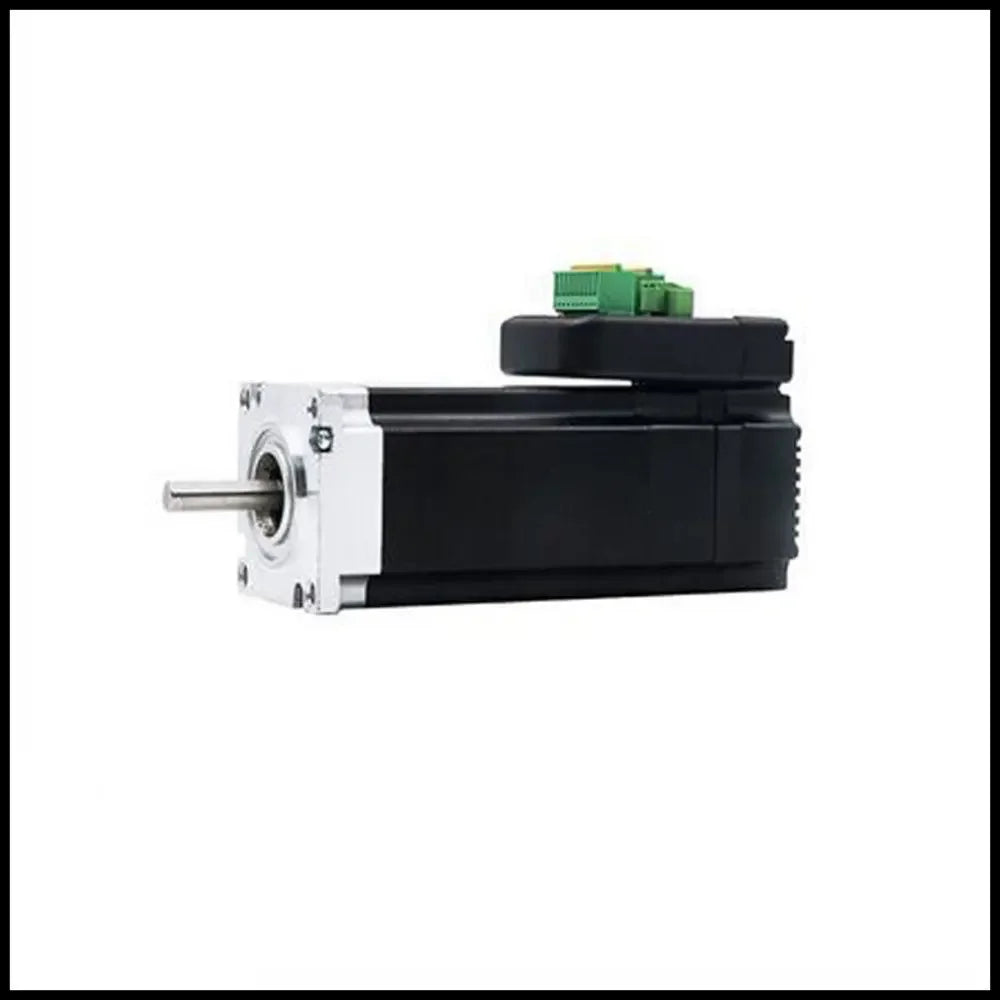

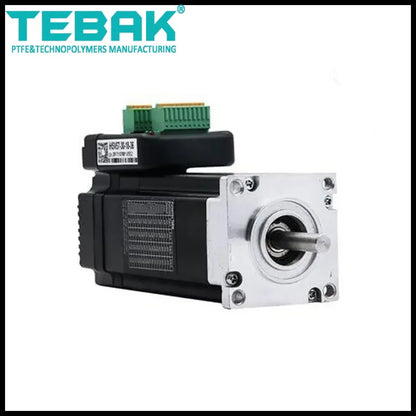

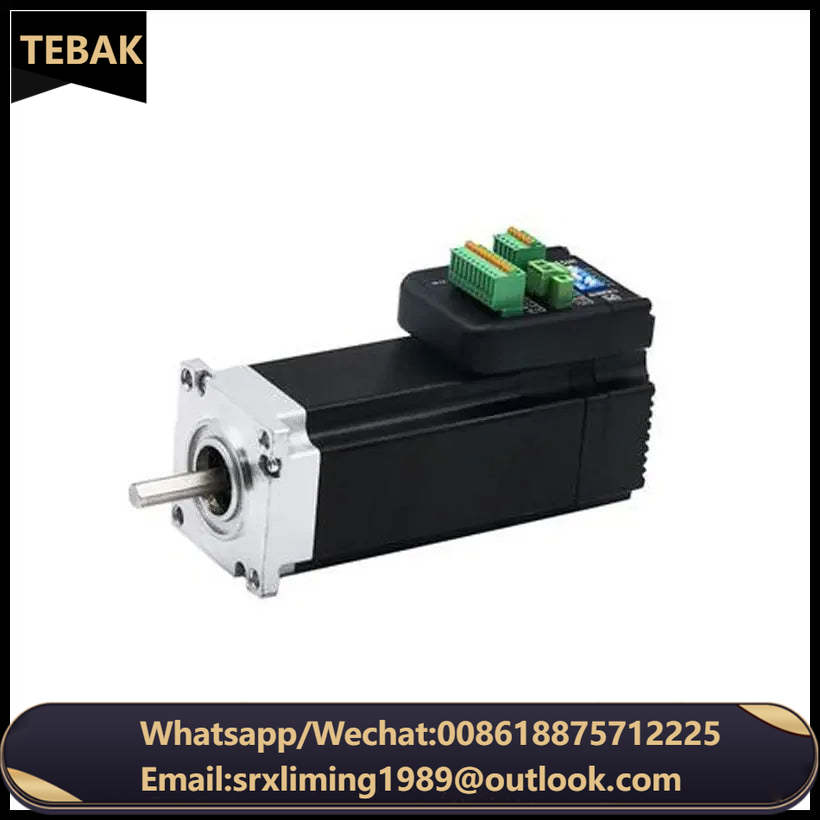

CNC JMC Ethercat Servo Motor Nema23 180W 36V Integrated Easy Motor 3000RPM 7.5A IHSV57-30-18-36-EC for CNC Engraver & Cutting

The IHSV-EC integrated field bus AC servo motor product is an EtherCAT integrated field bus AC servo motor. It uses the standard CoE communication protocol and has built-in CIA402 motion control protocol for cycle synchronization position (CSP), cycle synchronizationspeed (CSV), and cycle synchronization torque ( CST), contour position (PP), contour speed(PV), contour torque (PT) and homing (HM) mode; through the optimized PID control algorithm,to achieve full digital control of position, speed, torque, with Compared with thecombination of traditional servo drive and servo motor, the cost is lower, the installationis more convenient, the temperature rise of the motor is effectively suppressed, thevibration of the motor is significantly reduced, and the high-speed performance of the motoris greatly enhanced. Comes with 3 digital signal inputs for zero return reference, positiveand negative limit input and probe function; comes with 1 digital signal output for in-placeoutput signal and alarm signal selection output; built-in brake control circuit; Current,overvoltage, undervoltage, and position tolerance protection; RJ45 network communicationinterface, highly integrated design, eliminating encoder, motor power line and signal line,convenient wiring, reducing system complexity; is a cost-effective Very high industrial busmotion control products.

Technical Feature：

No lost step, accurate positioning
100% rated torque to drive the motor
The built-in brake circuit can be connected with 24VDC power supply
Download parameters via RS232C from PC or Text Display
Support standard RS-485 and CAN bus
Support standard Modbus-RTU protocol which can switch with CANopen protocol
Follow the CSP/CSV/CST/PP/PV/PT/HM mode of CIA402 motion control protocol, easy to develop
Built-in CW, CCW, SW IO input signal with 5V or 24V for the limit switch and homing
A BREAK and PEND signal output signal

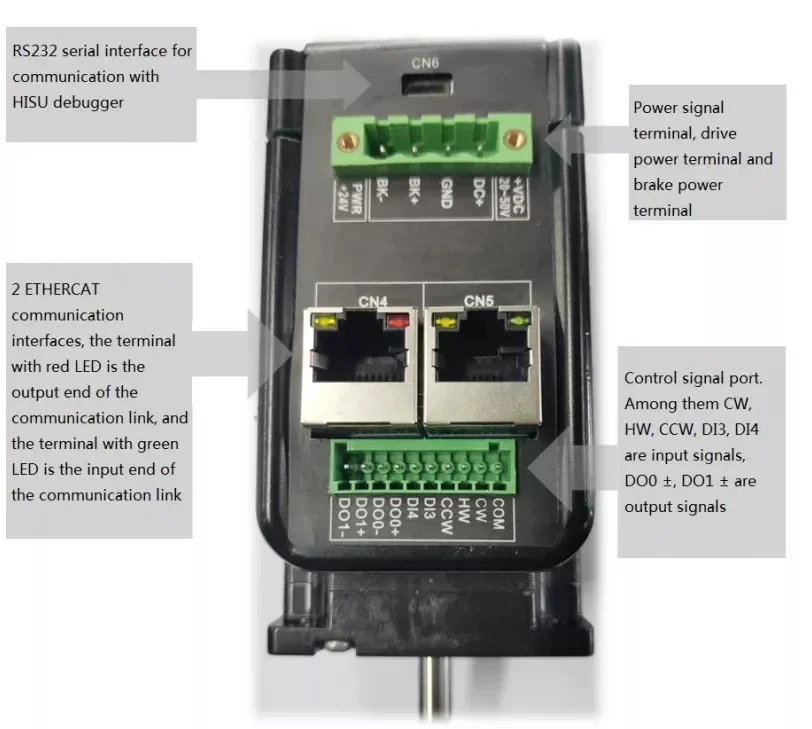

RJ45 standard network connection, the slave through the twisted pair cable can be connected
The maximum transmission frequency is 1Mbps, and the maximum transmission distance is up to 1KM
Electro-rheology control technology, high efficiency
User-defined subdivisions
Compatible 1000 and 2500 pulses encoders
No adjustment in general application
Overcurrent, I2T, Over-voltage, Undervoltage, Overheat, Overvelocity, Overerror Protections.

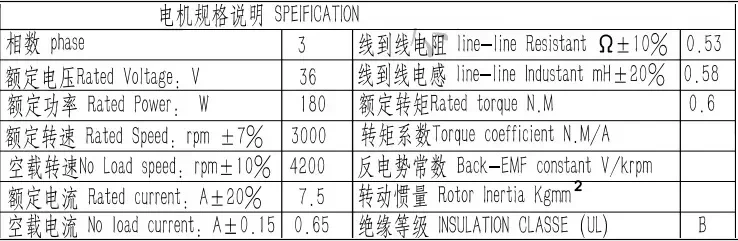

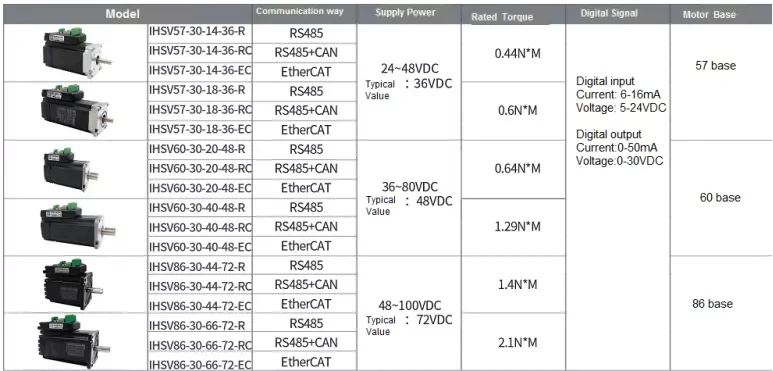

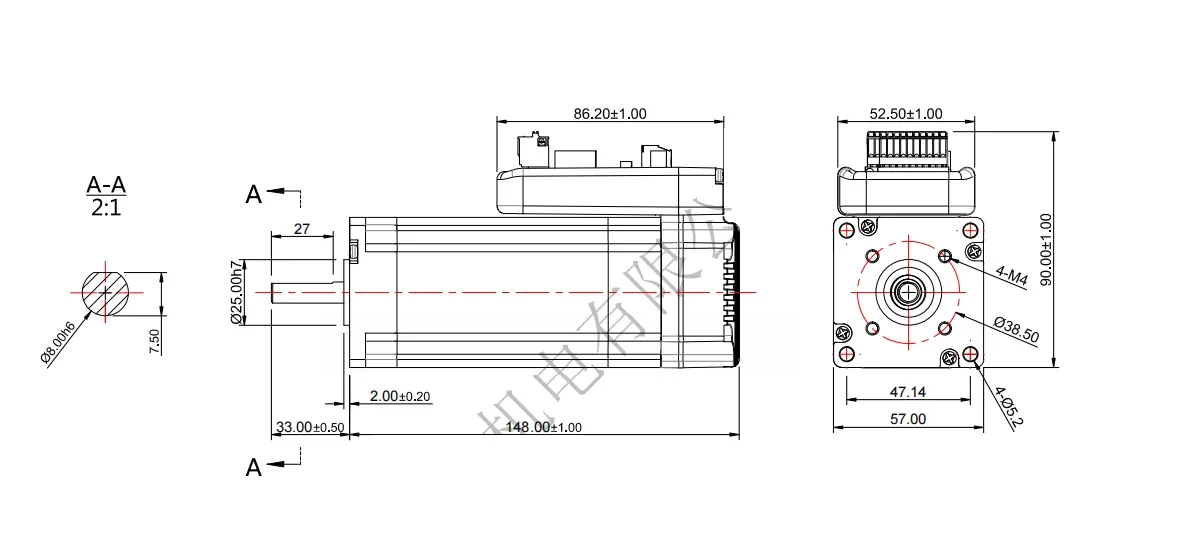

Drawing & Specifications：
