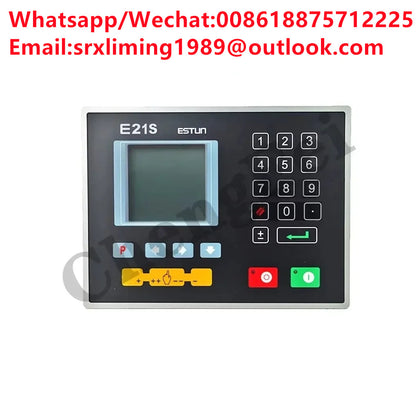

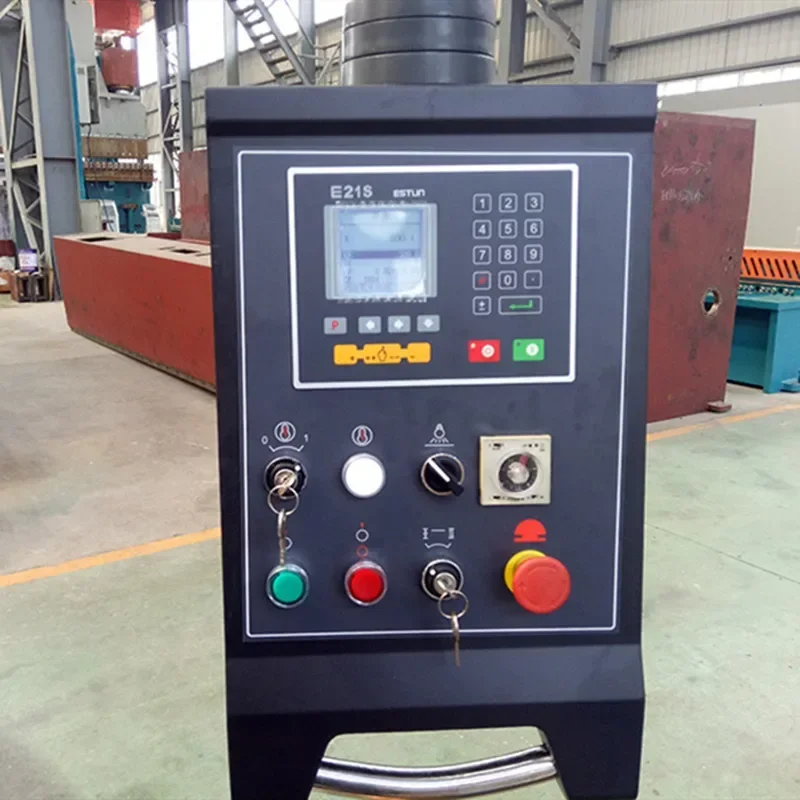

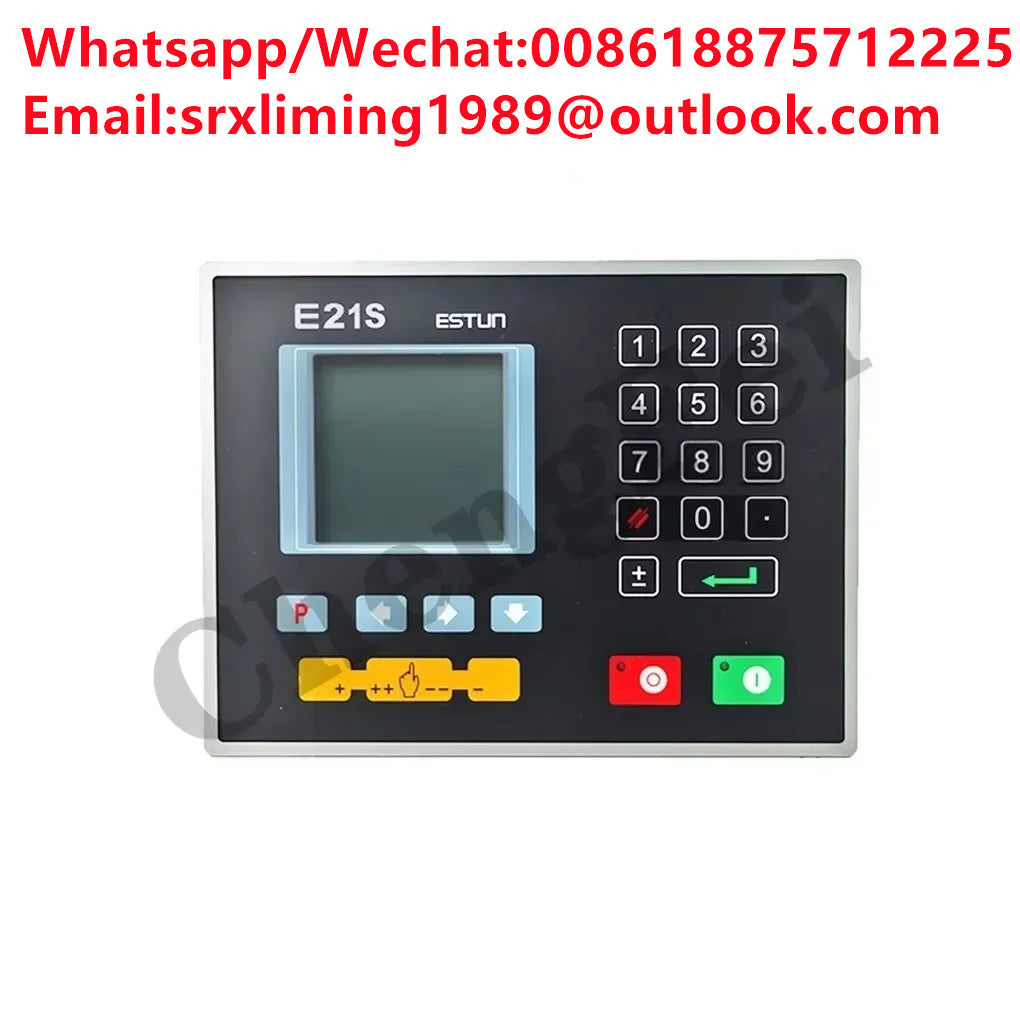

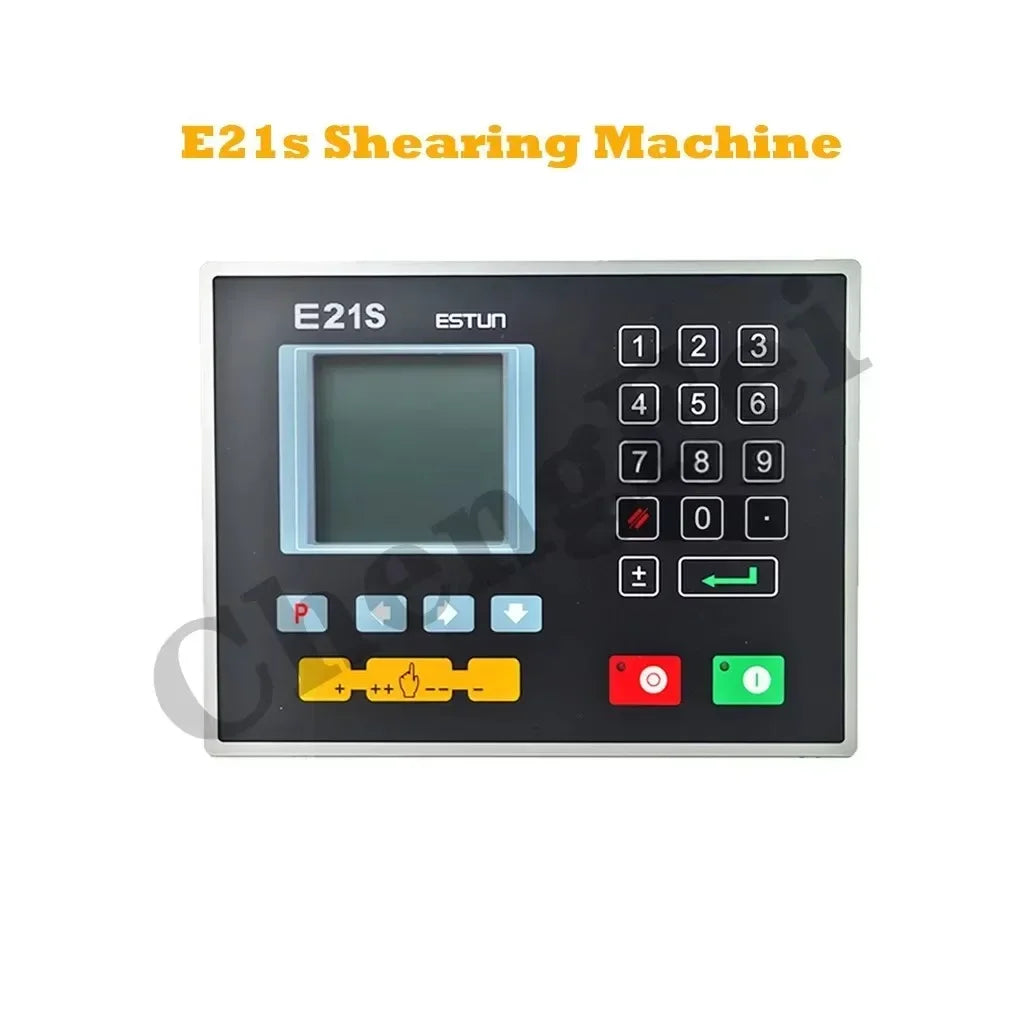

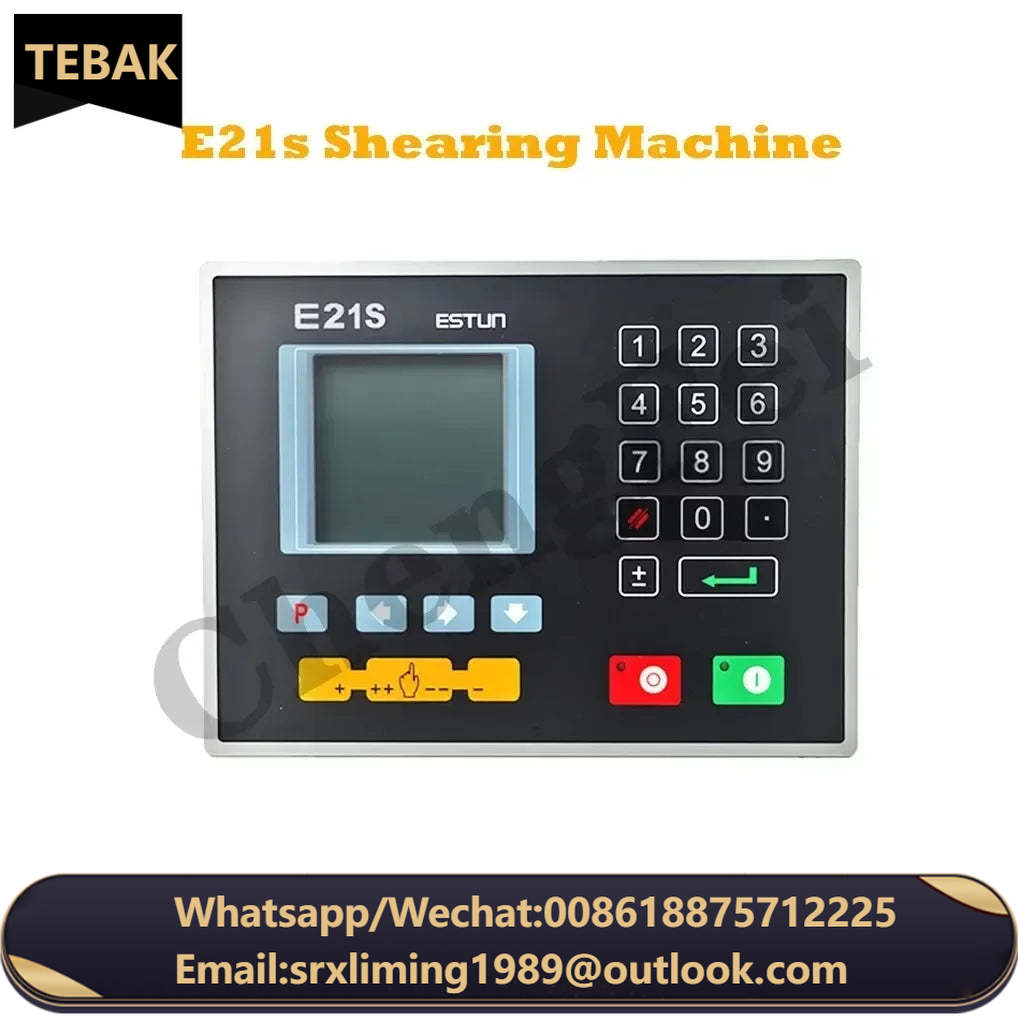

CNC Estun E21s Shearing Machine System Motion Controller Digital Display Control Panel E21 System Encoder

Product introduction:

This product is equipped with the shear machine dedicated numerical control device which is applicable to various users. Based on ensuring work precision, the cost of numerical control shearing machine is reduced significantly.

Features of this product are listed below:

Back gauge can be controlled.

Cut-angle can be controlled.

Cut-gap can be controlled.

Stroke time can be controlled.

Intelligent positioning control.

Unilateral and bidirectional positioning which eliminates spindle clearance effectively.

Retract functions.  Automatic reference searching.

One-key parameter backup and restore.

Fast position indexing.  40 programs storage space, each program has 25 steps.

Power-off protection.

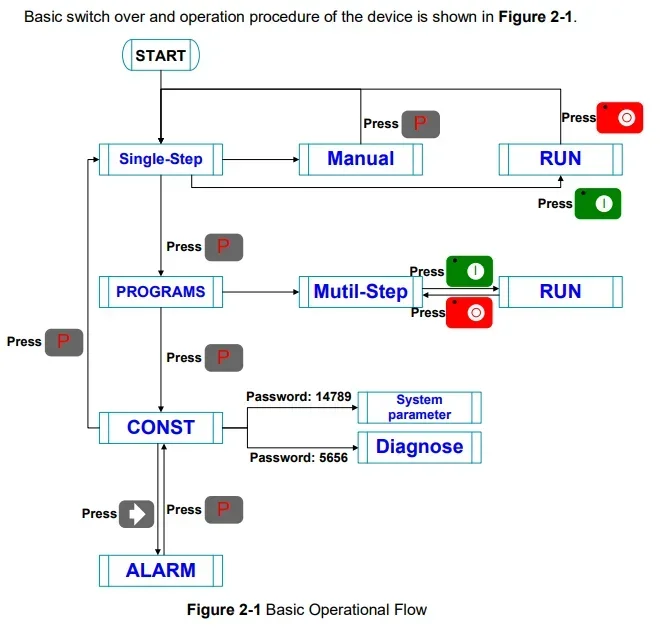

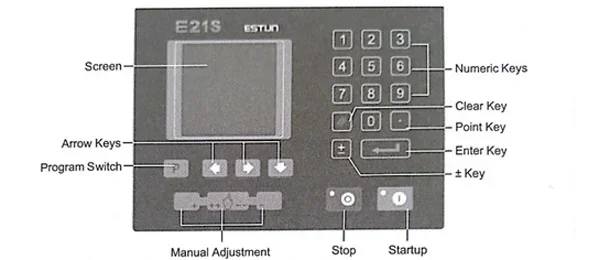

Single-Step Description:

1. The default page is SINGLE; also, you can press the P key several times, switching to the SINGLE page.

2. Press Arrow Keys to select the parameter you want to program.

3. Press Numeric Keys to program a desired value.

4. Press Enter Key to complete the setting.

5. Follow the above methods to program the other parameters.

6. After finishing the program, press Startup Key to run the device.
