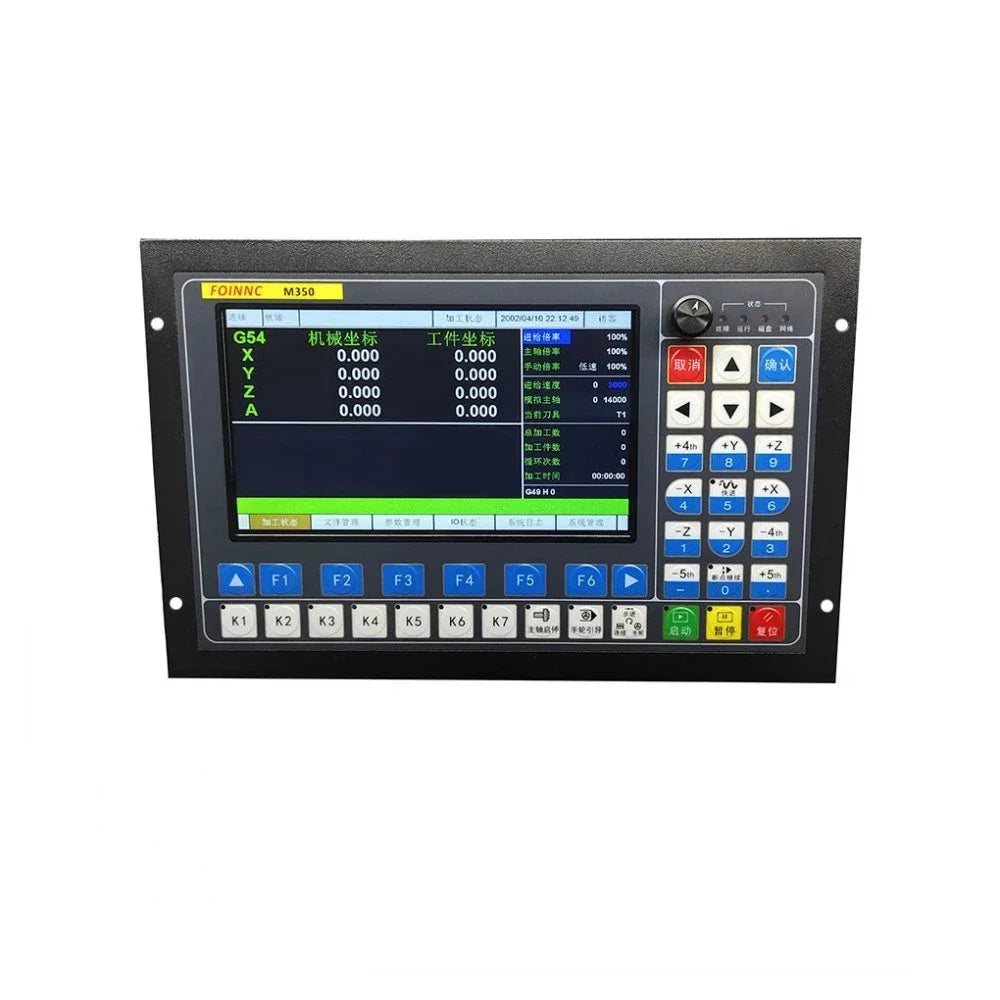

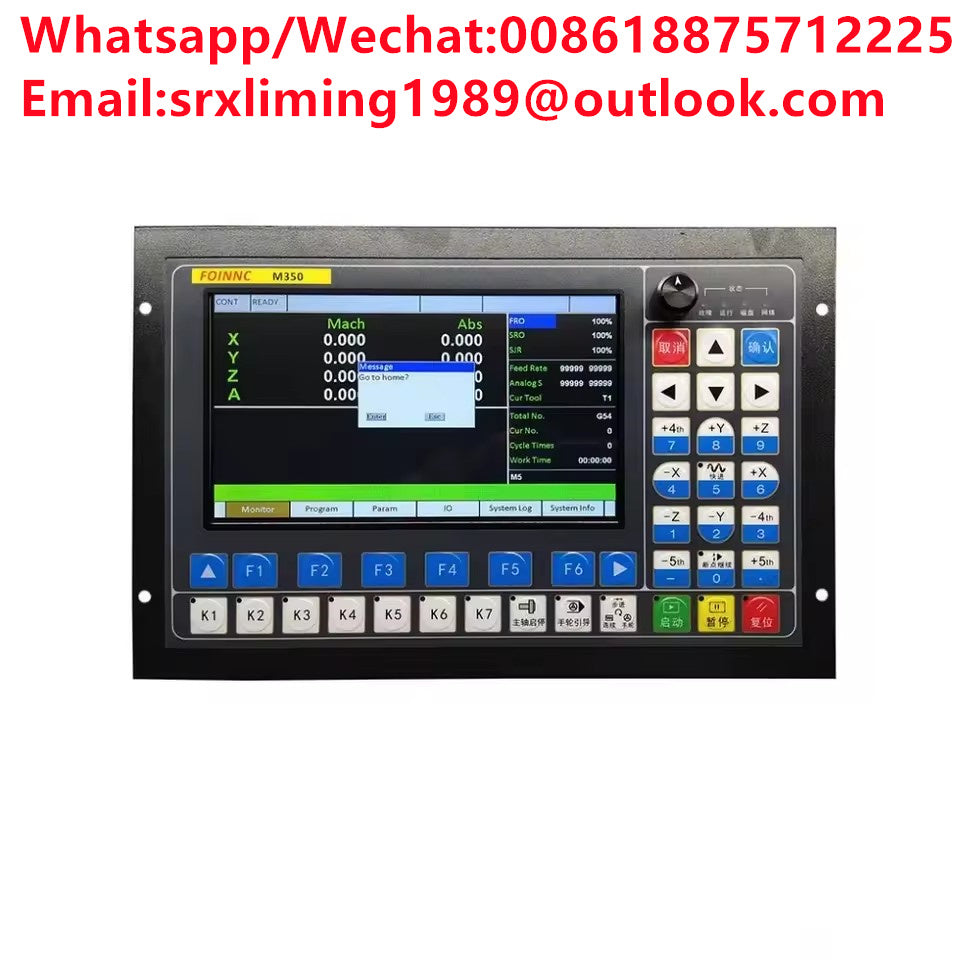

CNC DDCS-EXPERT M350 3/4/5 Axis CNC Standalone Offline Controller Support Close-loop Stepper/ATC Controller Replace DDCSV3.1 MPG

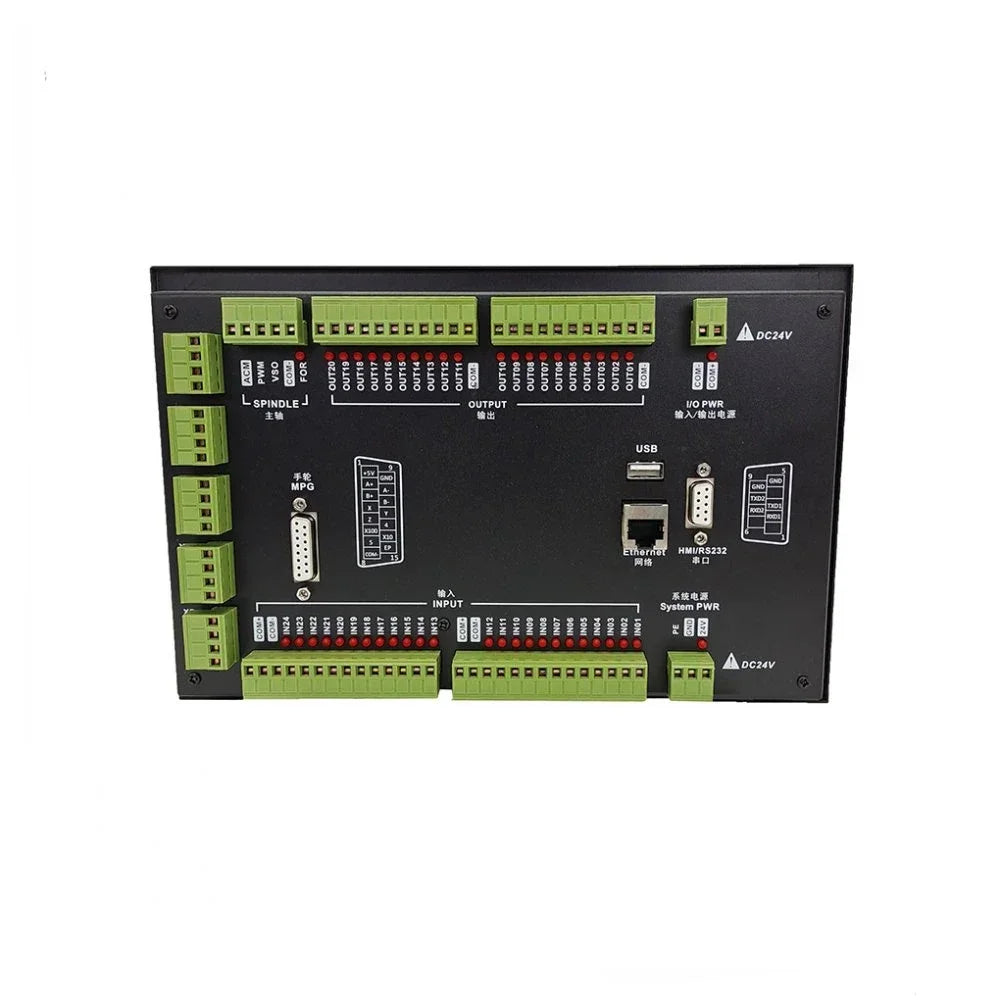

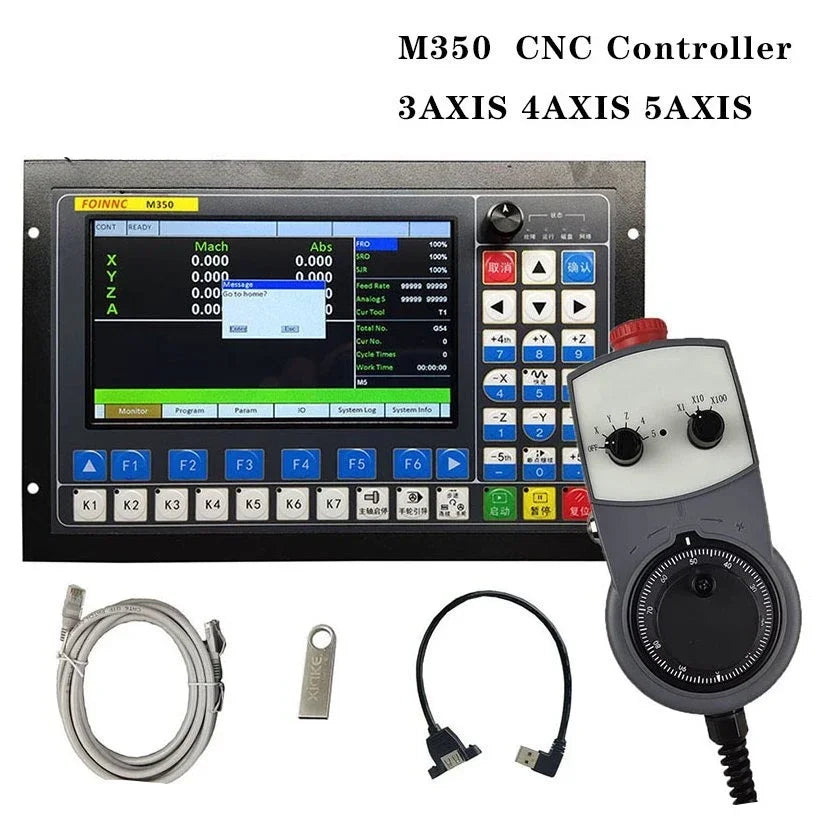

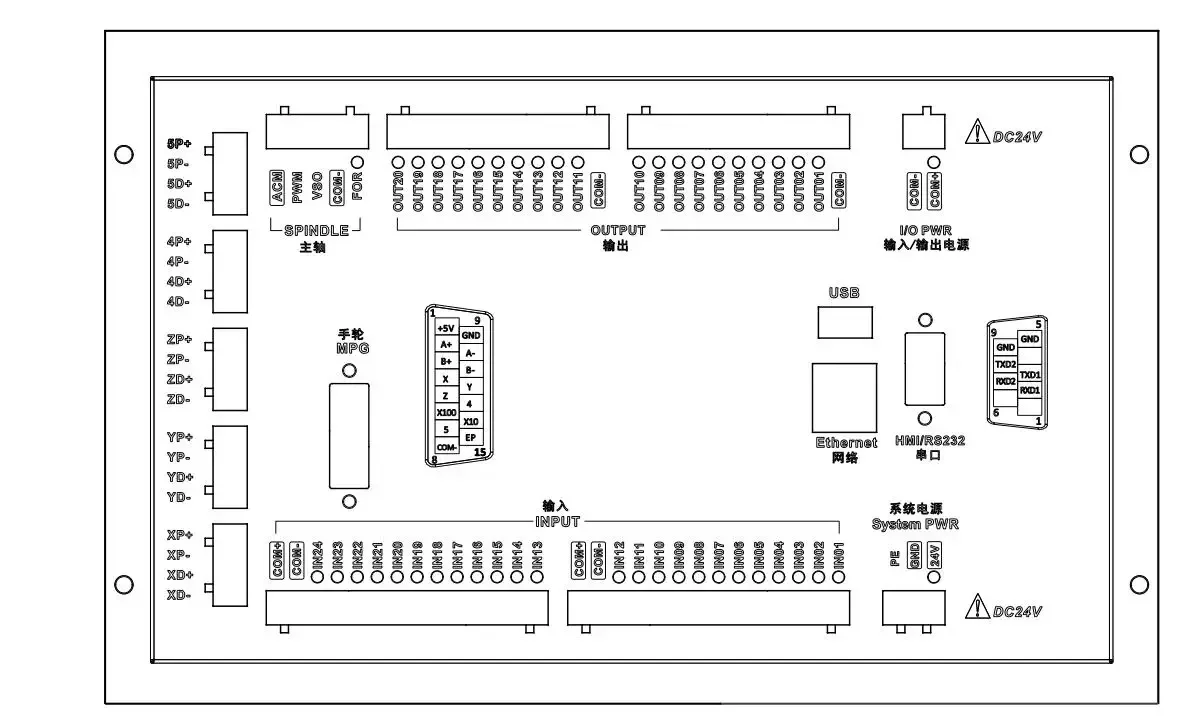

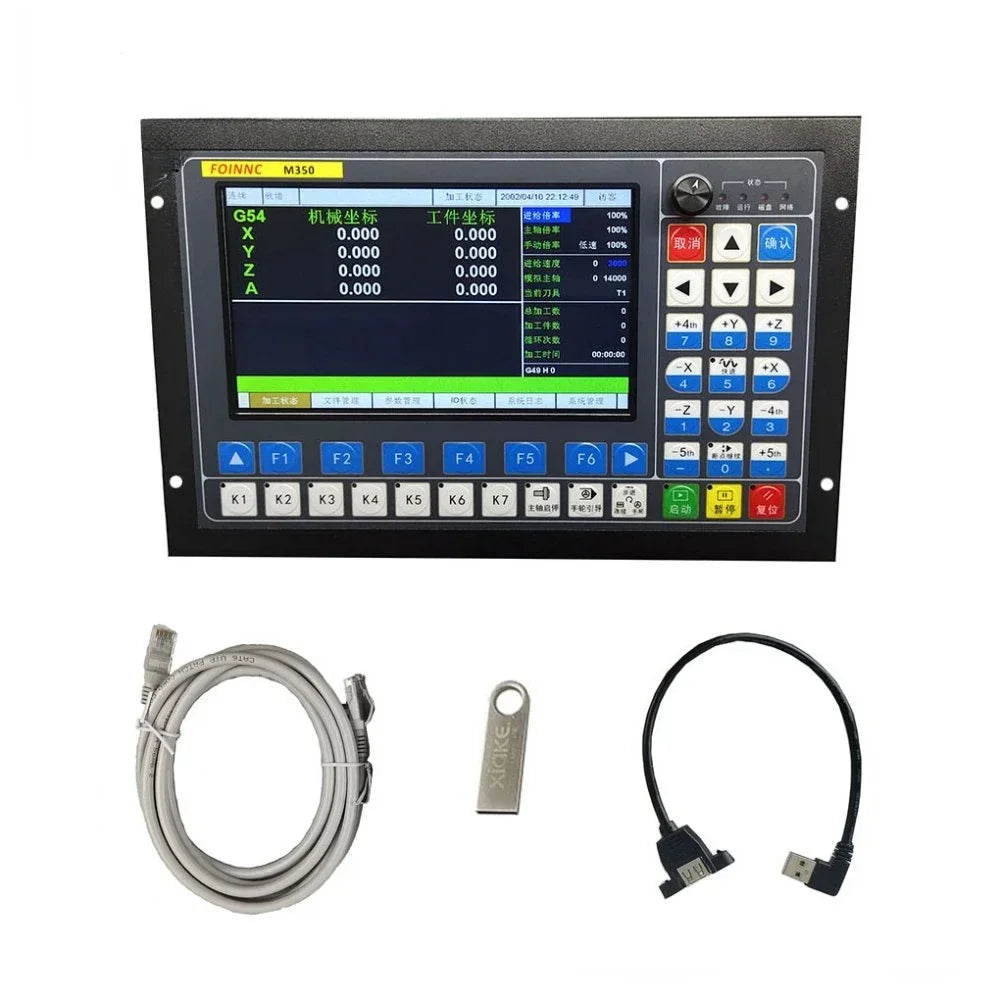

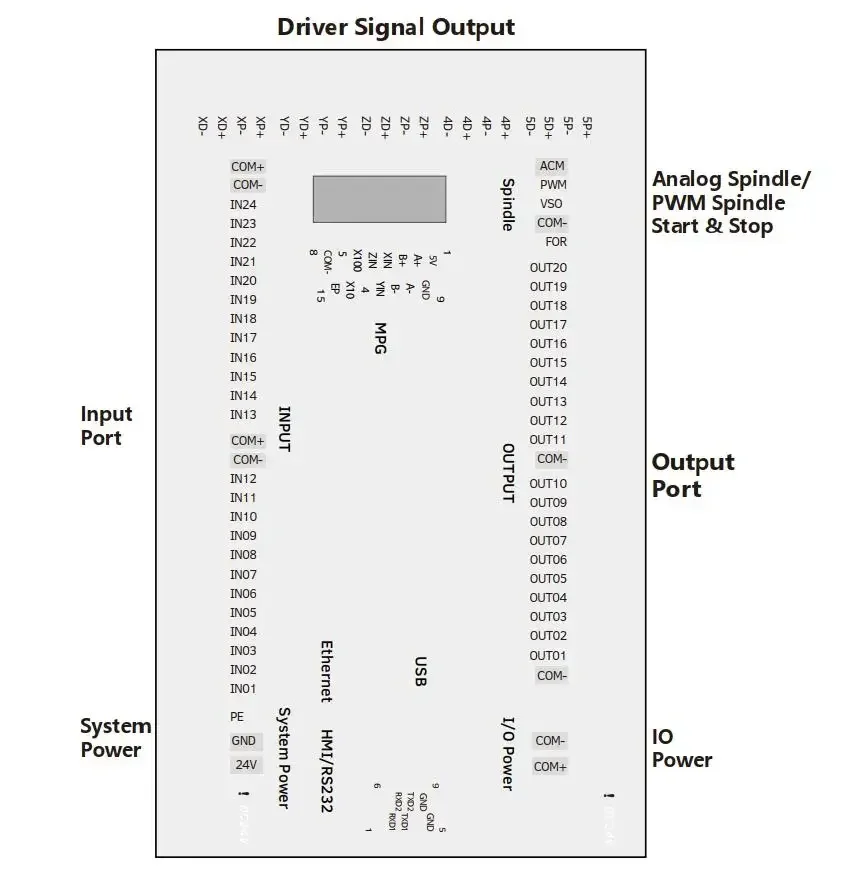

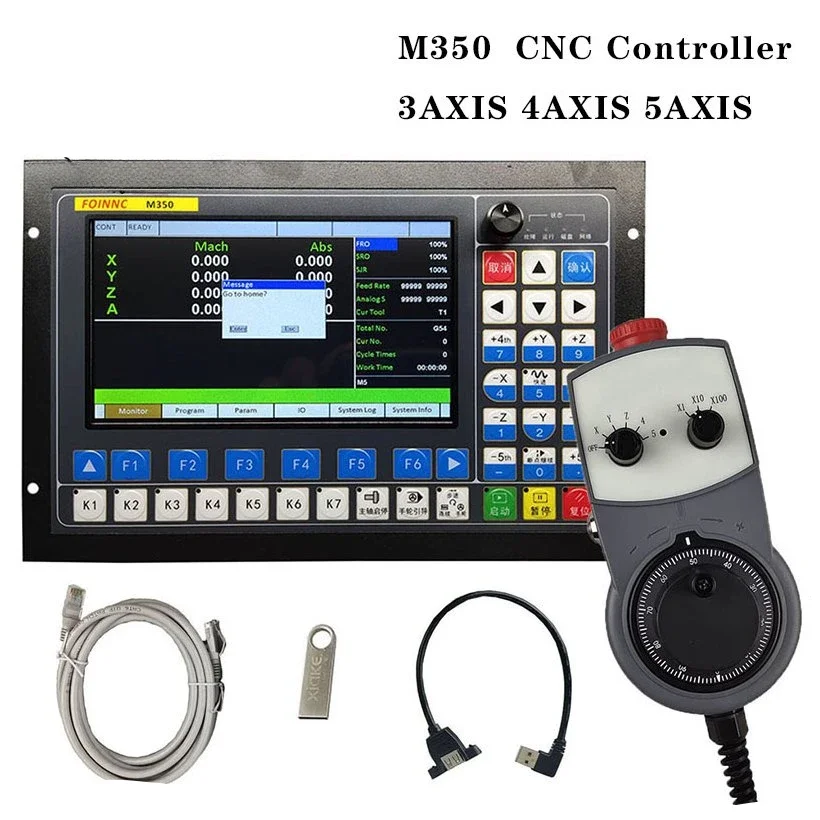

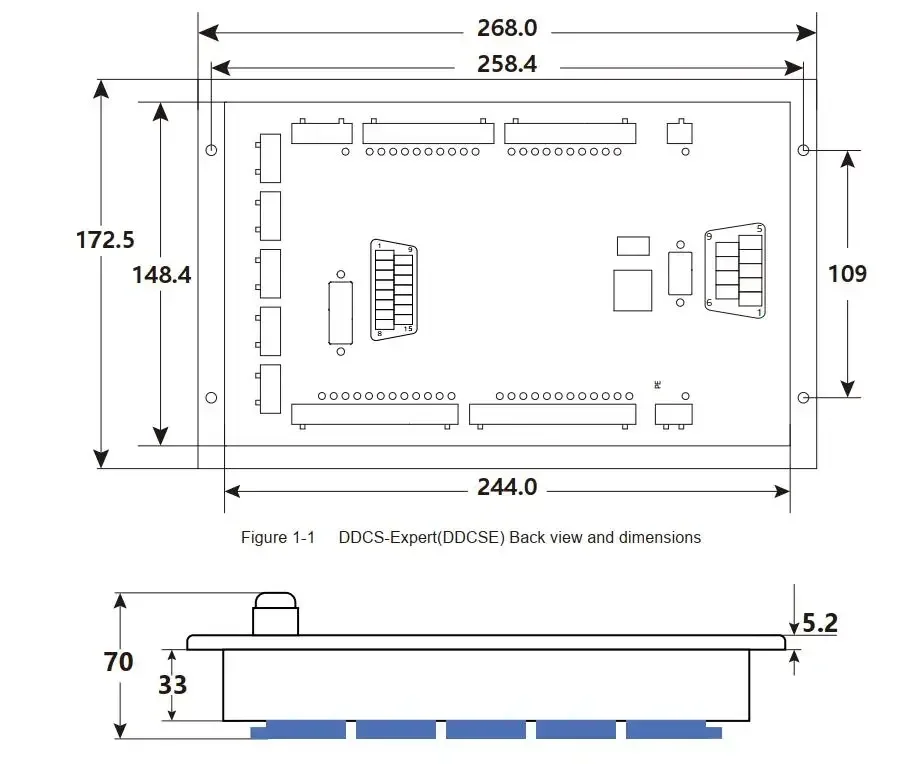

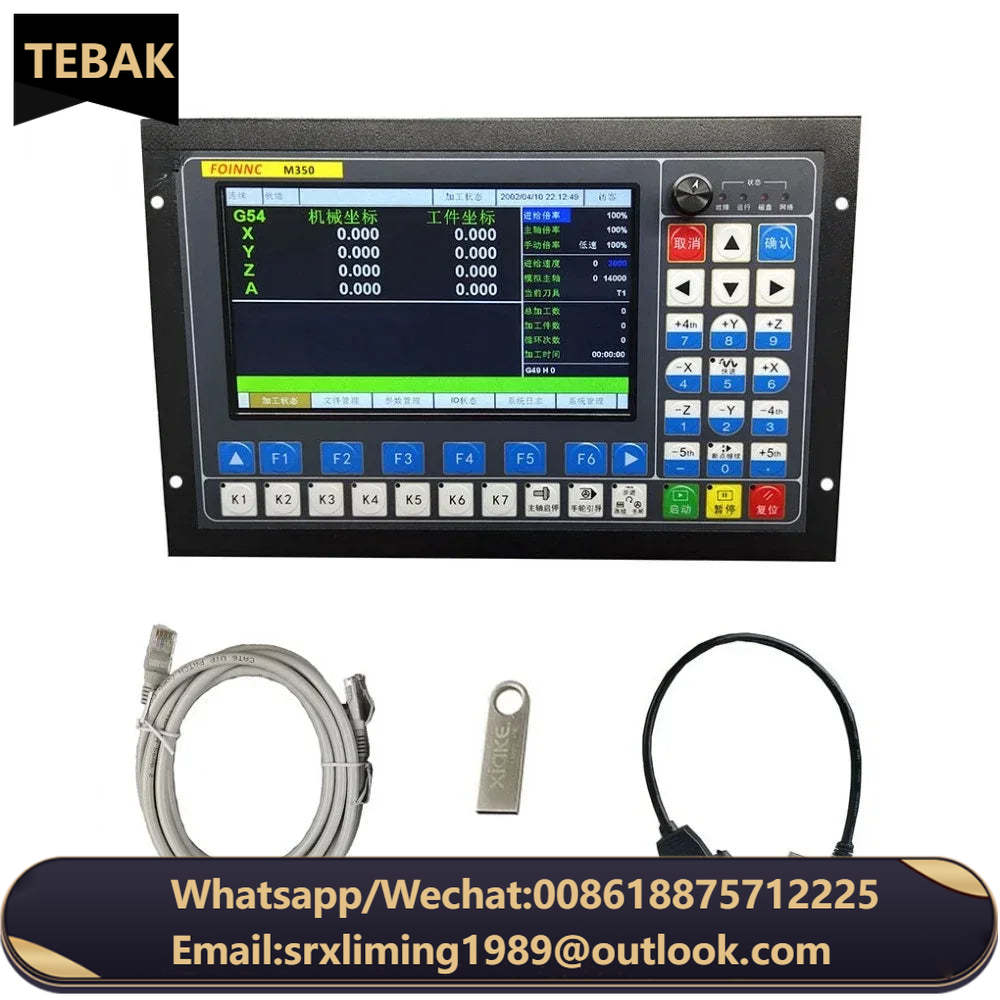

Packing list:

1 x Controller
1 x Network cable
1 x U Disk
1 x USB extension cable

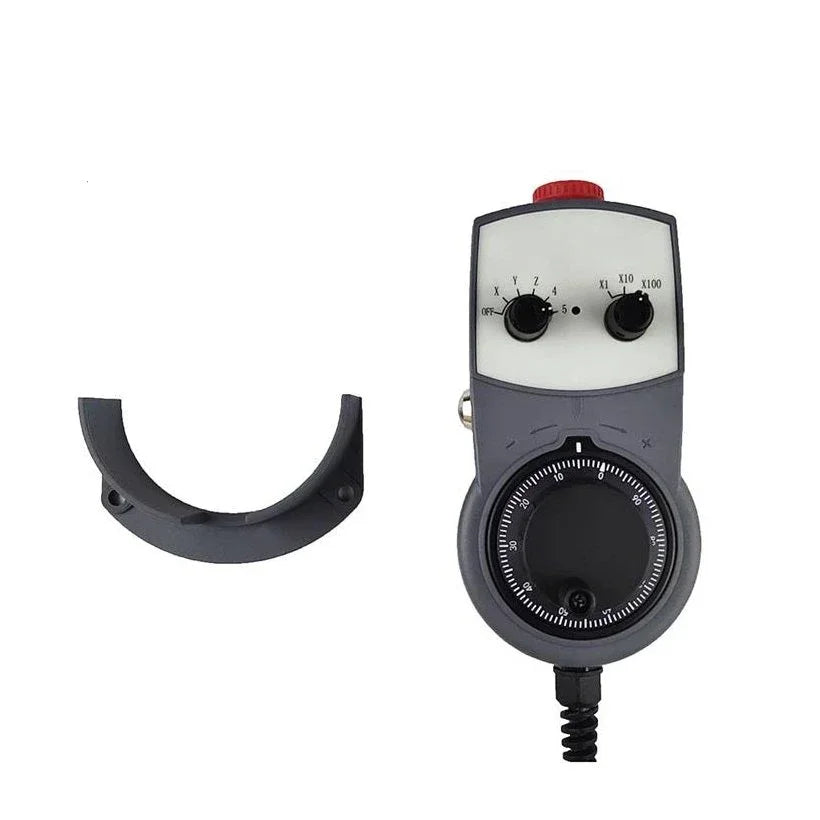

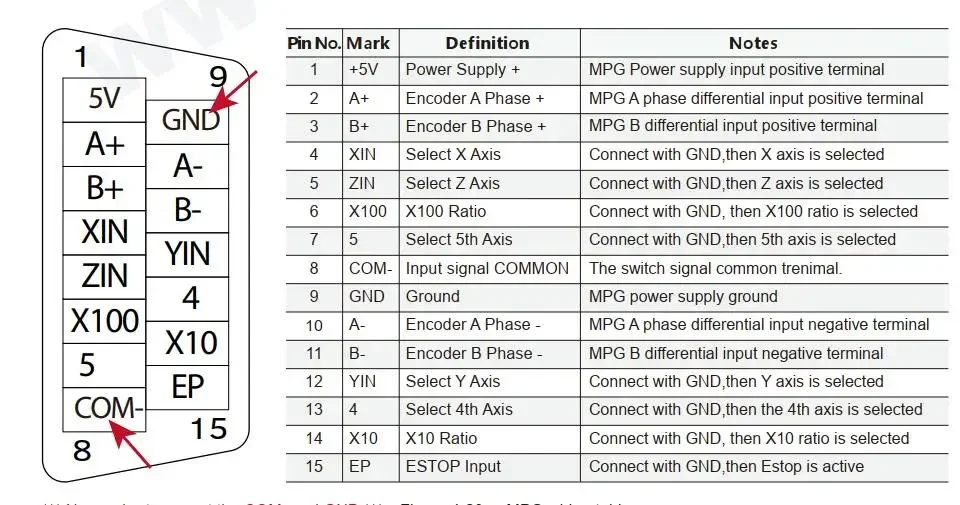

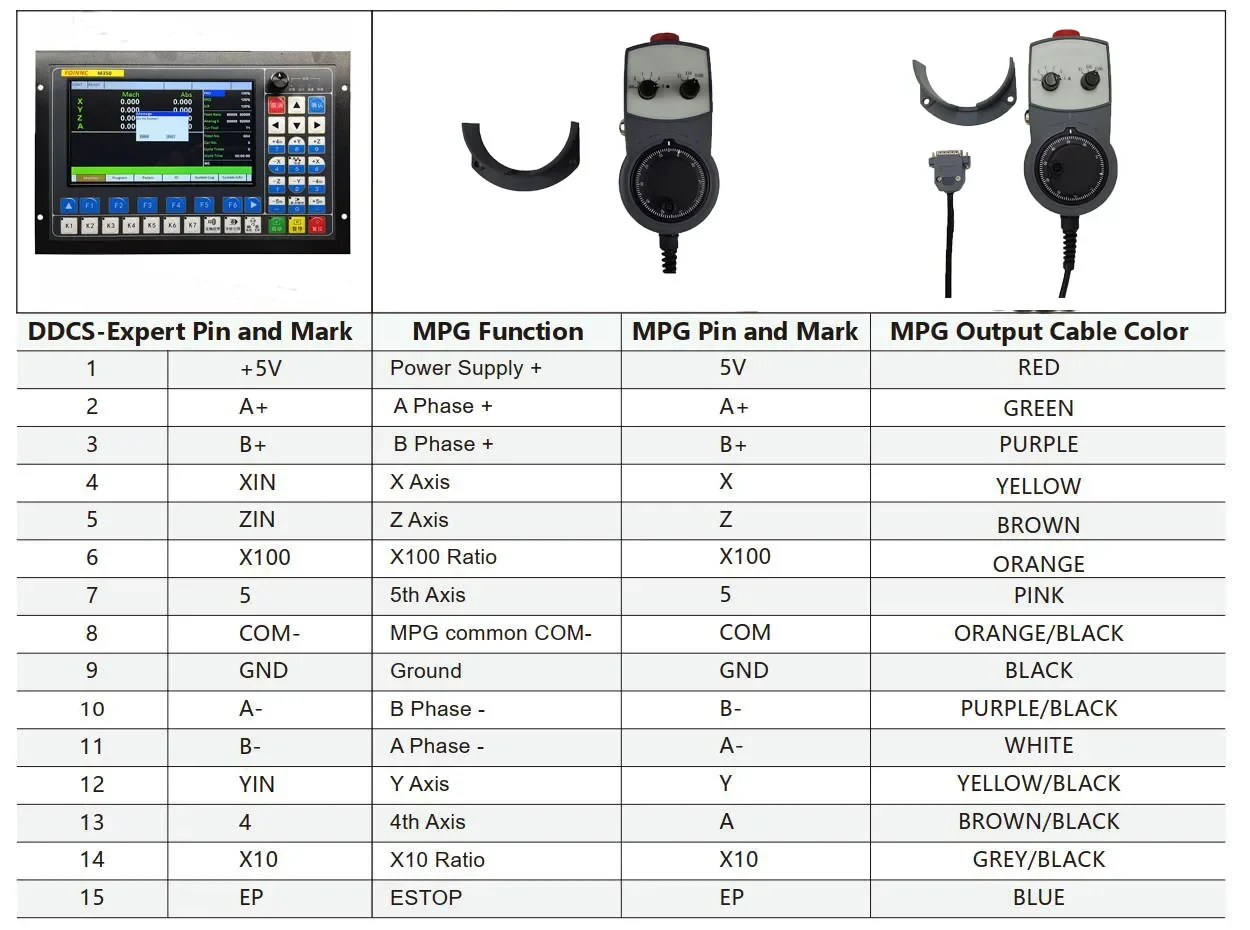

1 x Handwheel

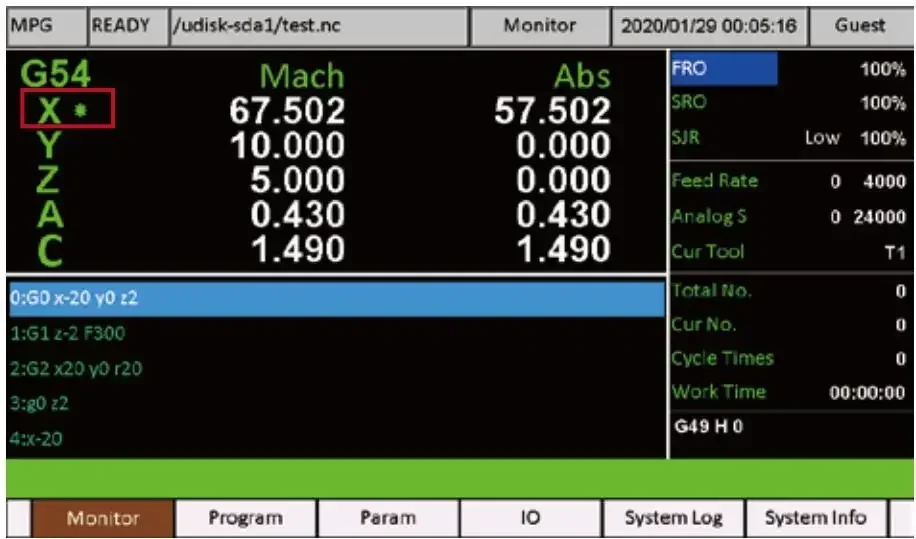

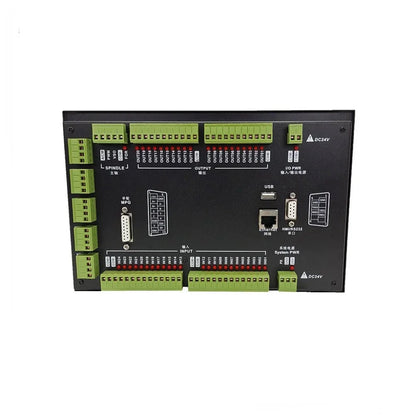

Introduction:

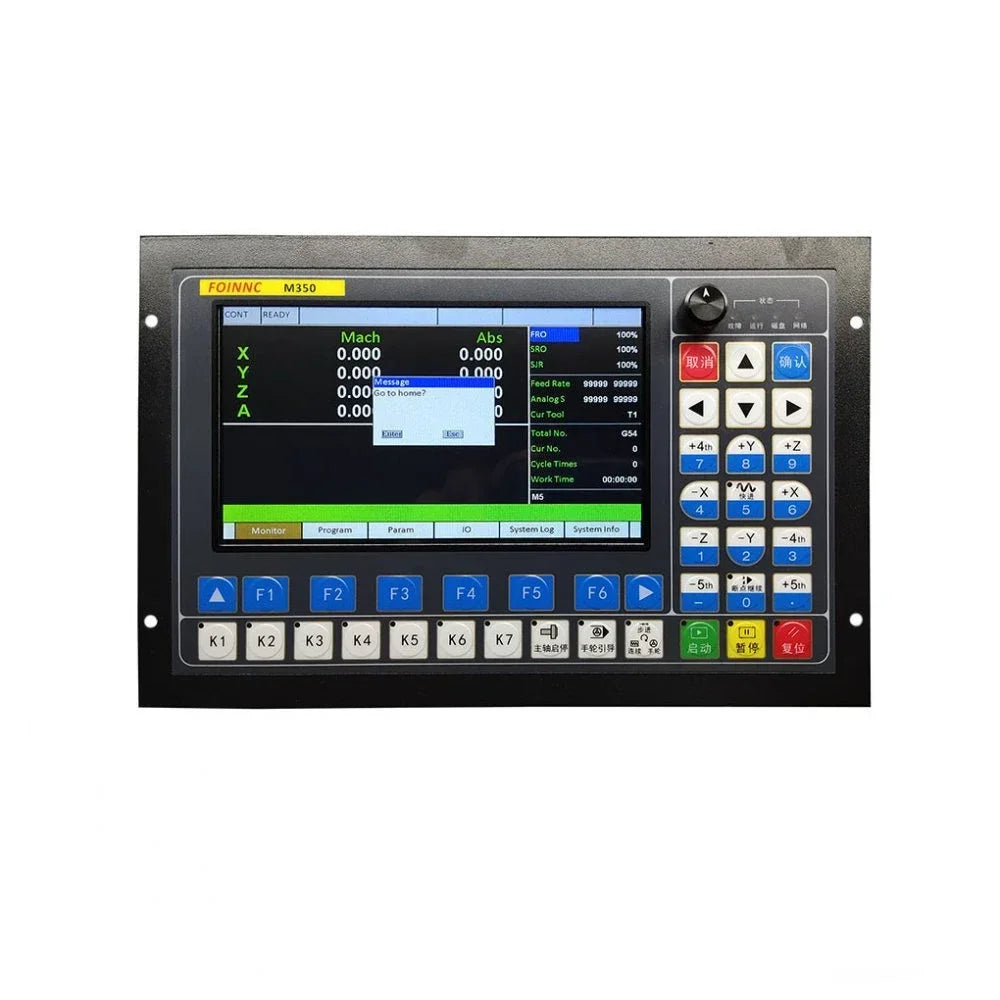

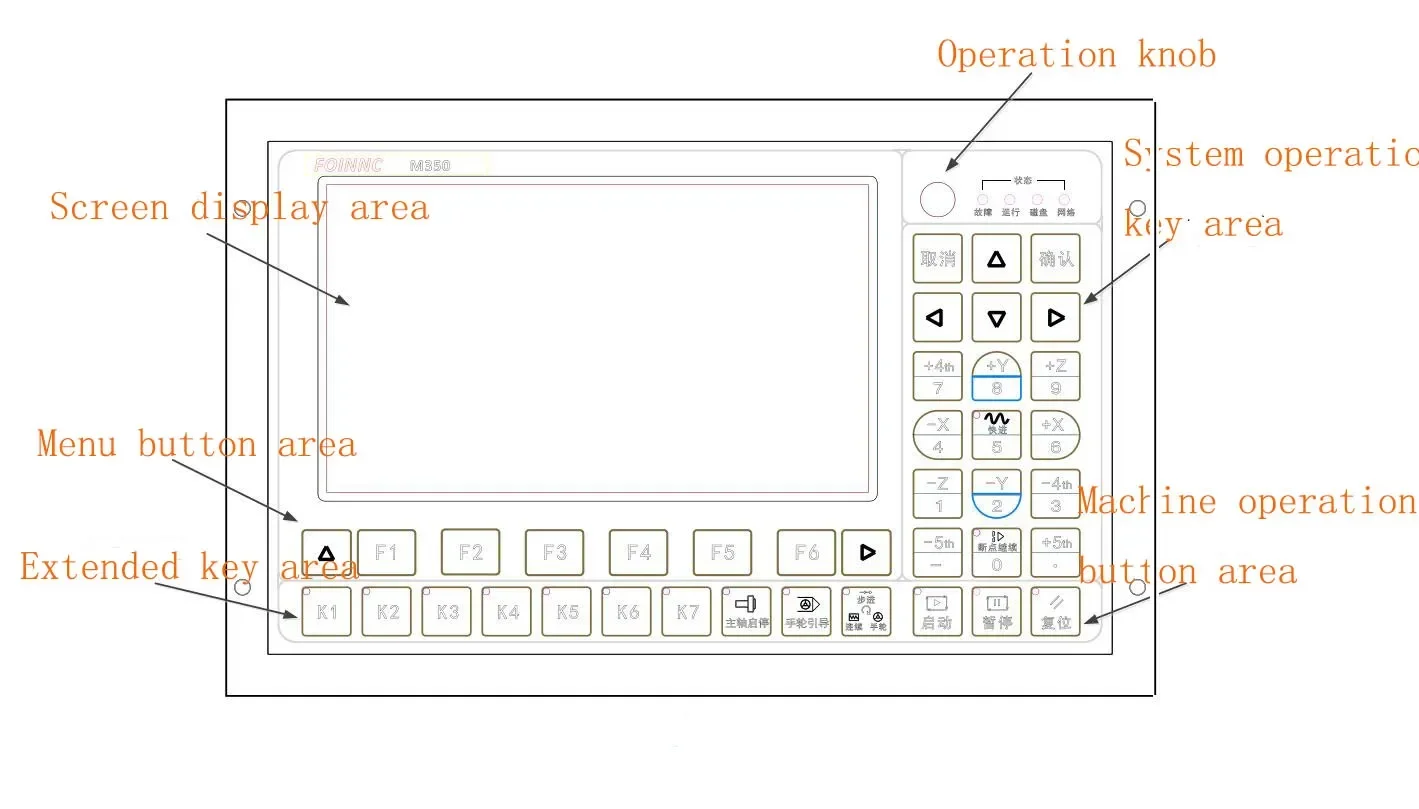

The M350 system is a professional 3-5 axis motion controller based on an integrated platform. It is equipped with a 7-inch full-color screen, full keyboard input, and customizable function keys to make the user more convenient. It supports multiple processes, straight line tool magazines, circular disc tool magazine function. The interface and structure use the conventional method in the market, with simple operation, easy to learn and understand, and convenient installation. The system uses an advanced adaptive speed control algorithm, which has the characteristics of high processing efficiency and good surface quality. Meet the needs of various engraving machines, engraving and milling machines, cutting machines.

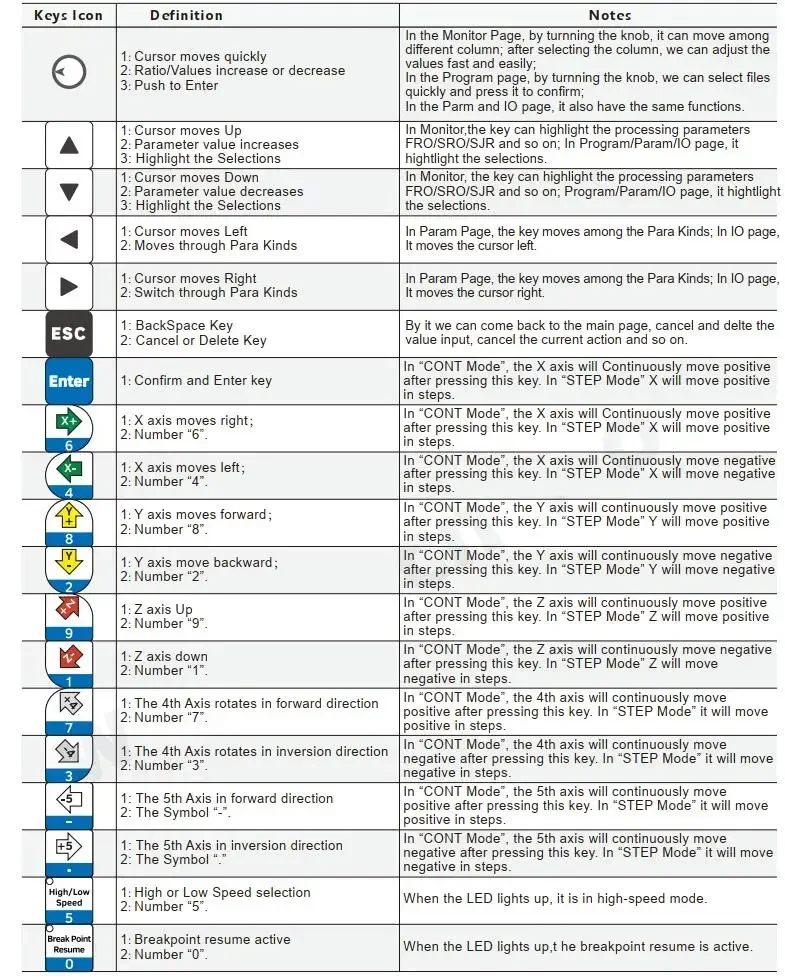

System caracteristics:

Maximum number of control axes: M350 five-axis, 2-5-axis linear interpolation, 2-axis arbitrary circular interpolation;

Mode of operation: conventional engraving machine system operation;

Screen size: 7 / 10.2 inches;

Screen resolution: 1024 * 600;

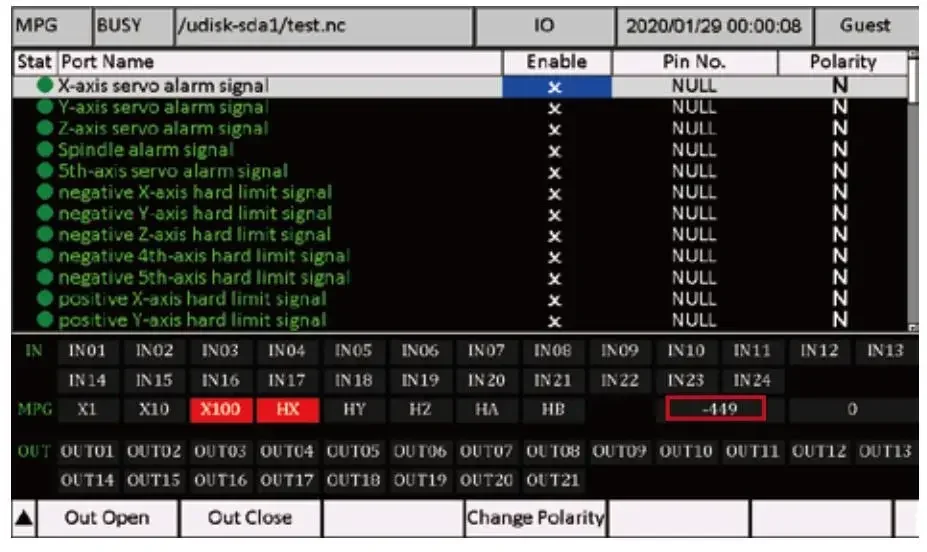

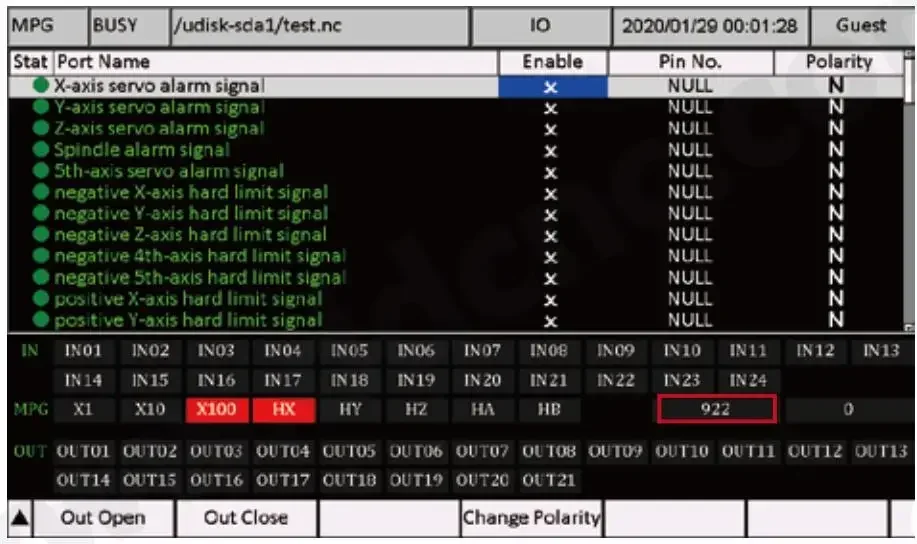

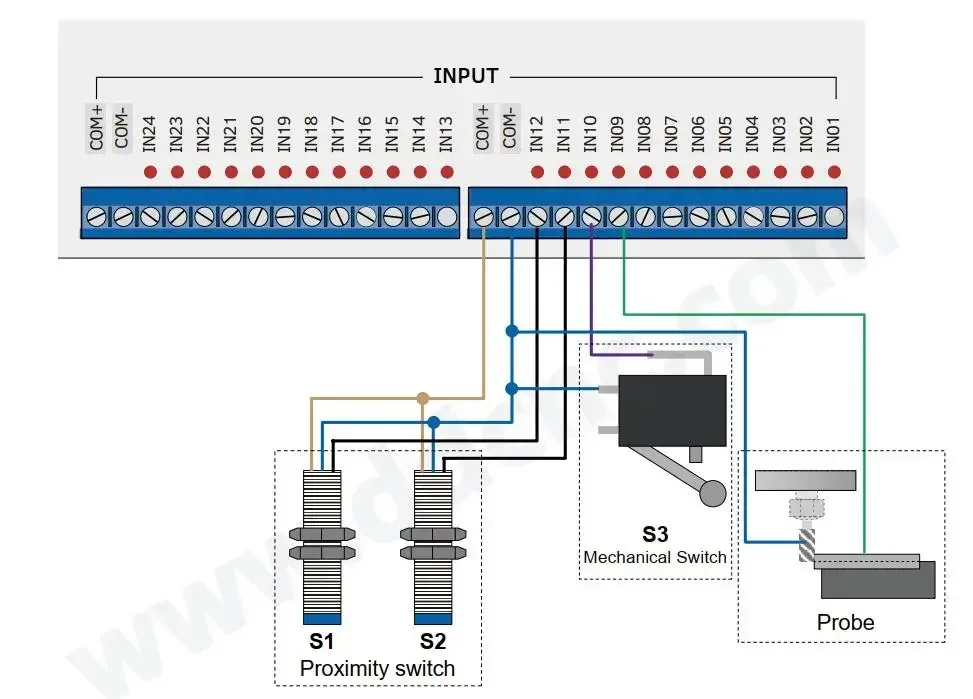

I / O: standard M6xx IO 20/21, standard M3xx IO 24/21;

Analog voltage output: 0-10V;

PWM output: only support M3xxz

Tool magazine type: multi-process, straight row, disc;

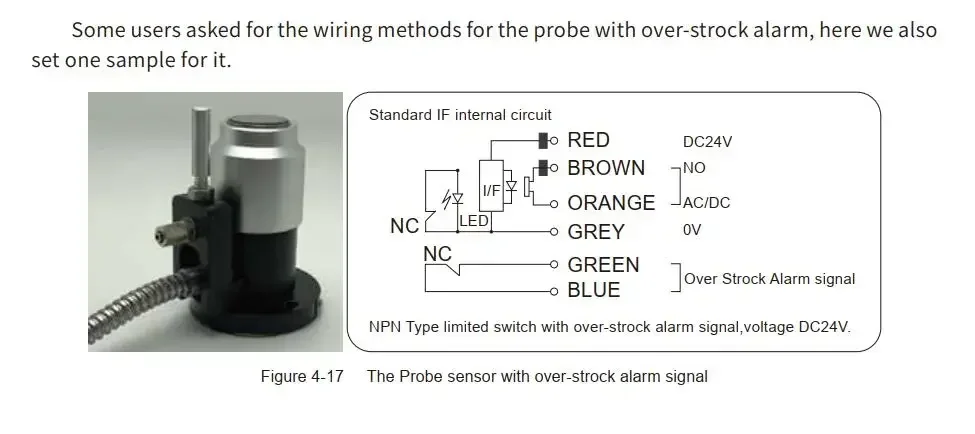

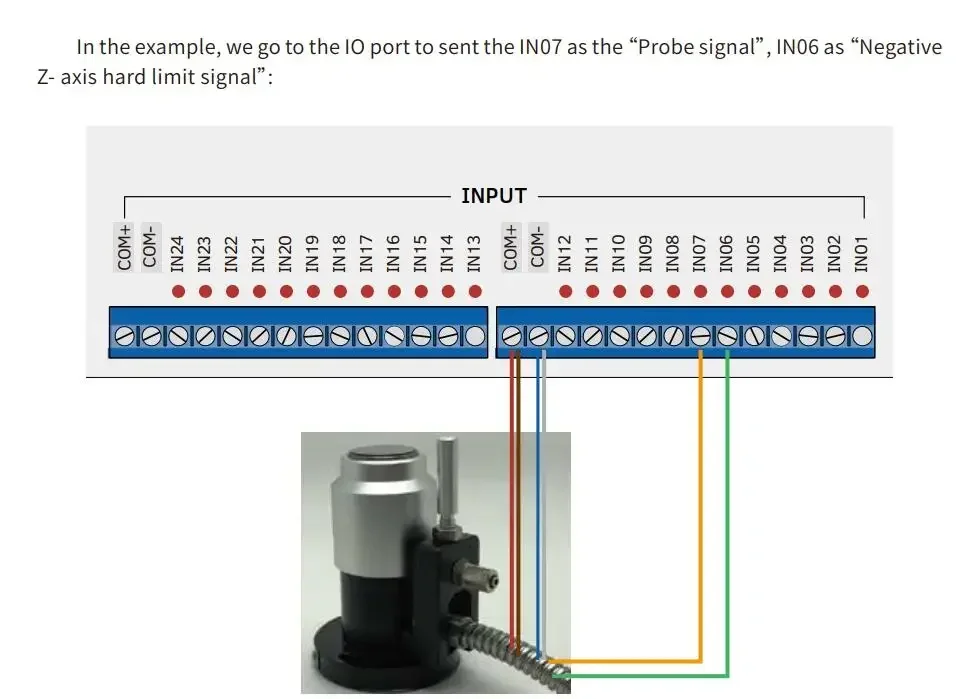

Tool setting mode: support automatic and manual tool setting;

Tool setting type: Fixed tool setting, floating tool setting, first tool setting / second tool setting;

Compensation methods: Steering gap compensation, radius compensation, length compensation;

Interpolation algorithm: S-shaped, hard circular arc algorithm, soft circular arc algorithm;

Language: support Chinese and English;

CNC software alarm: program error, operation error, over-travel error, servo drive alarm, etc .;

Network: support file sharing and remote file online processing;

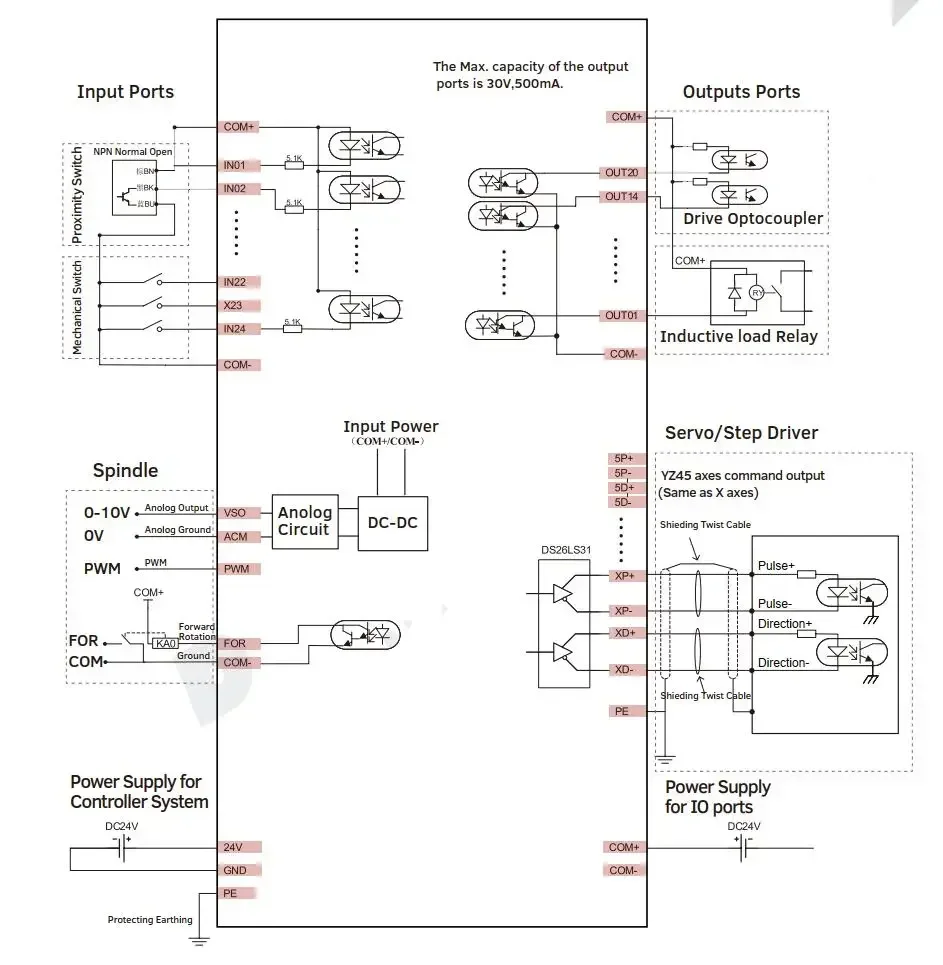

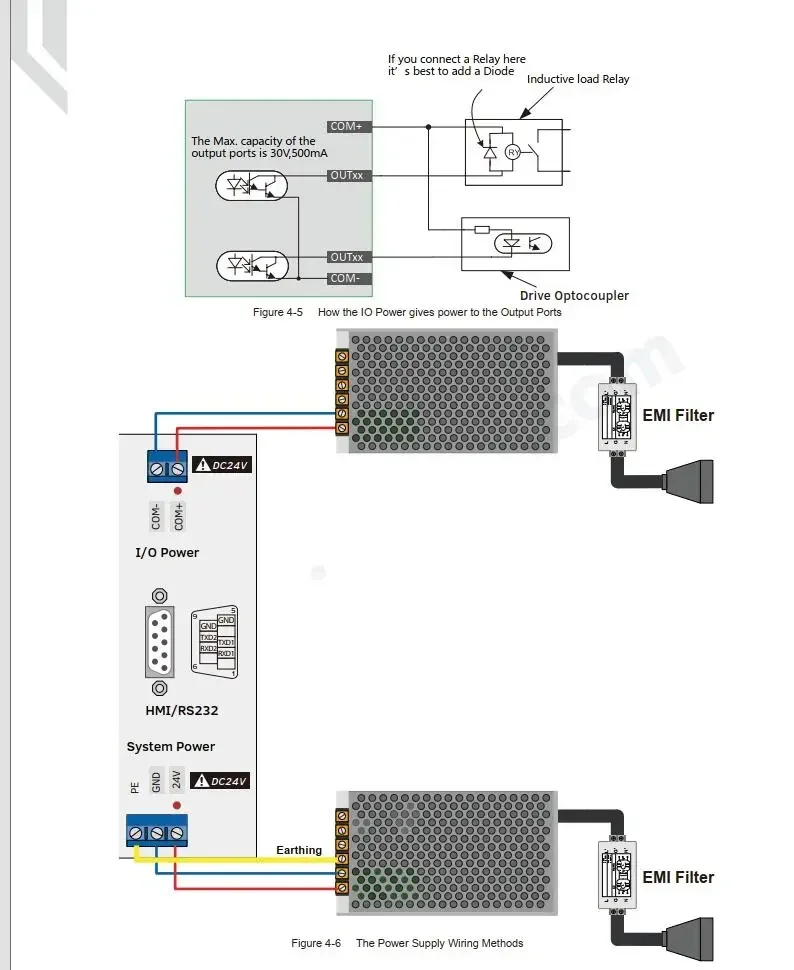

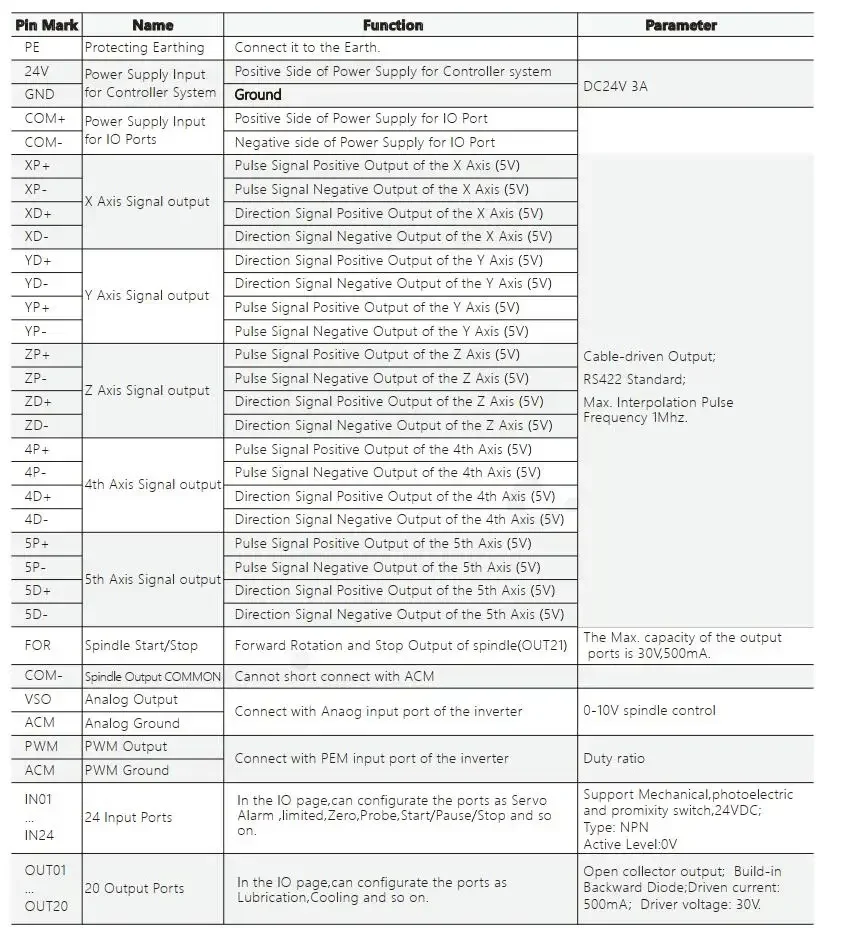

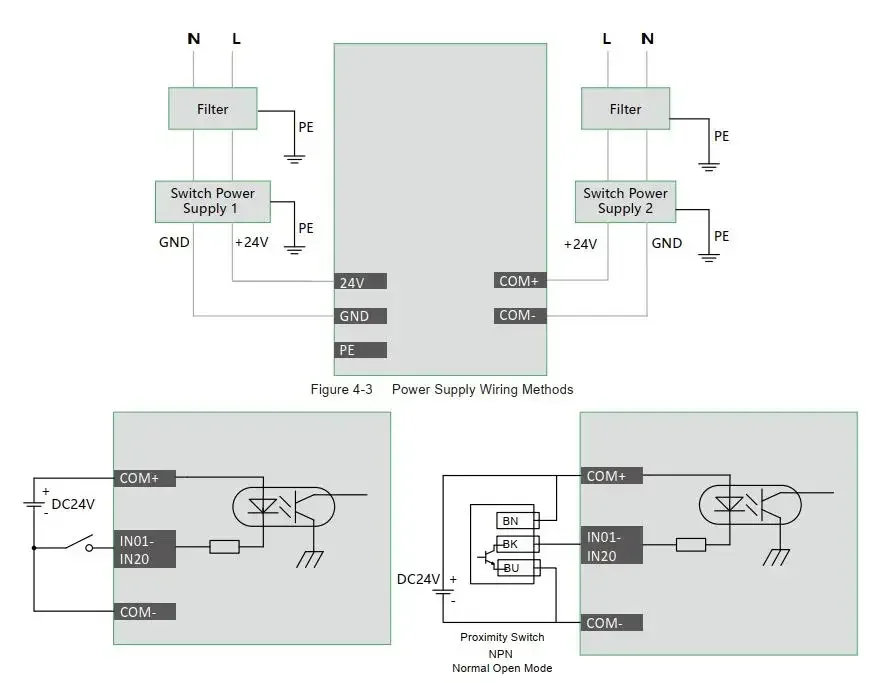

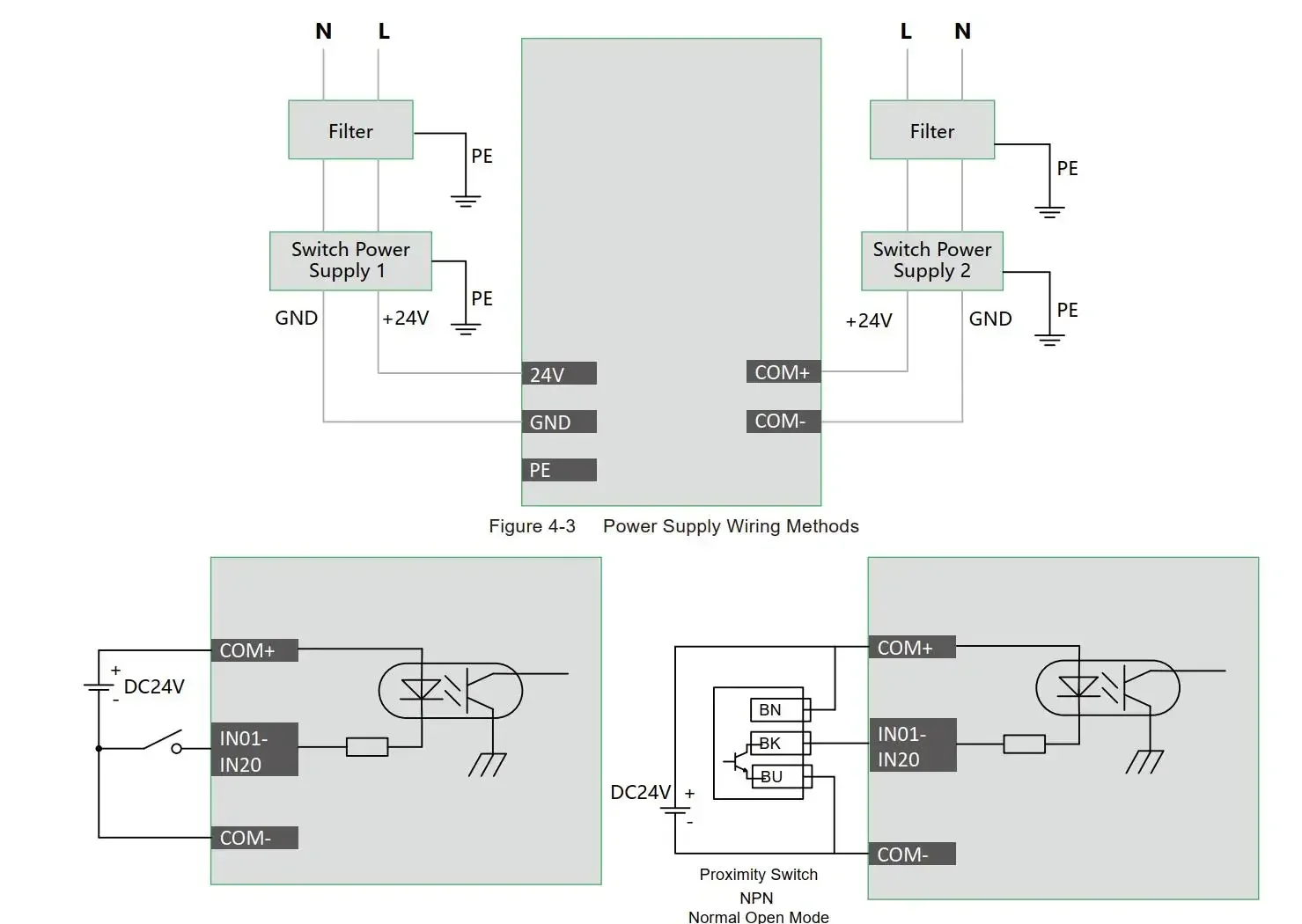

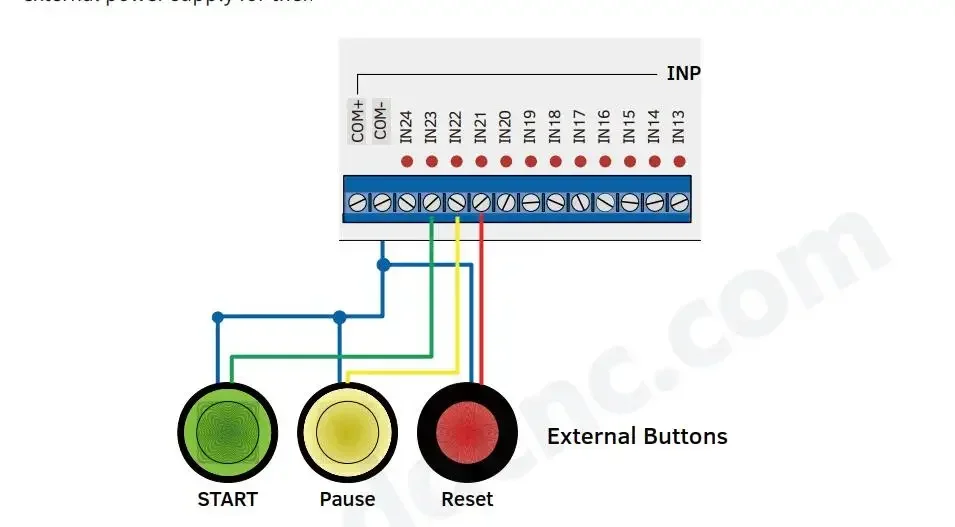

Open collector output, maximum output current 500mA, can directly drive the relay;

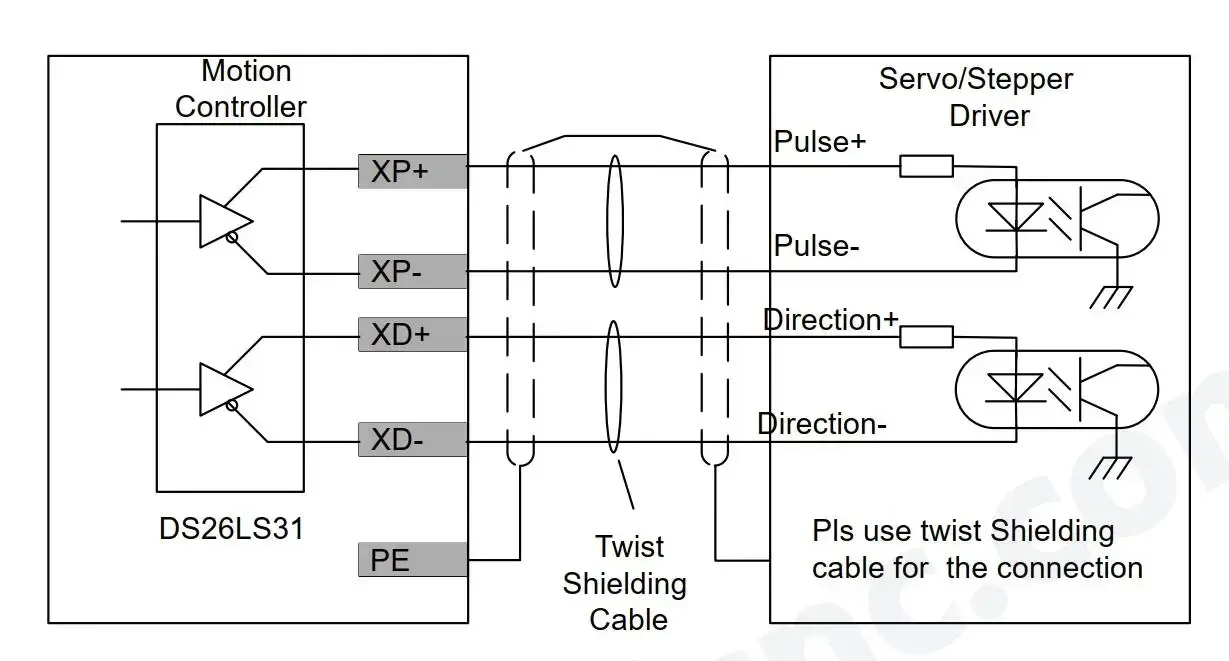

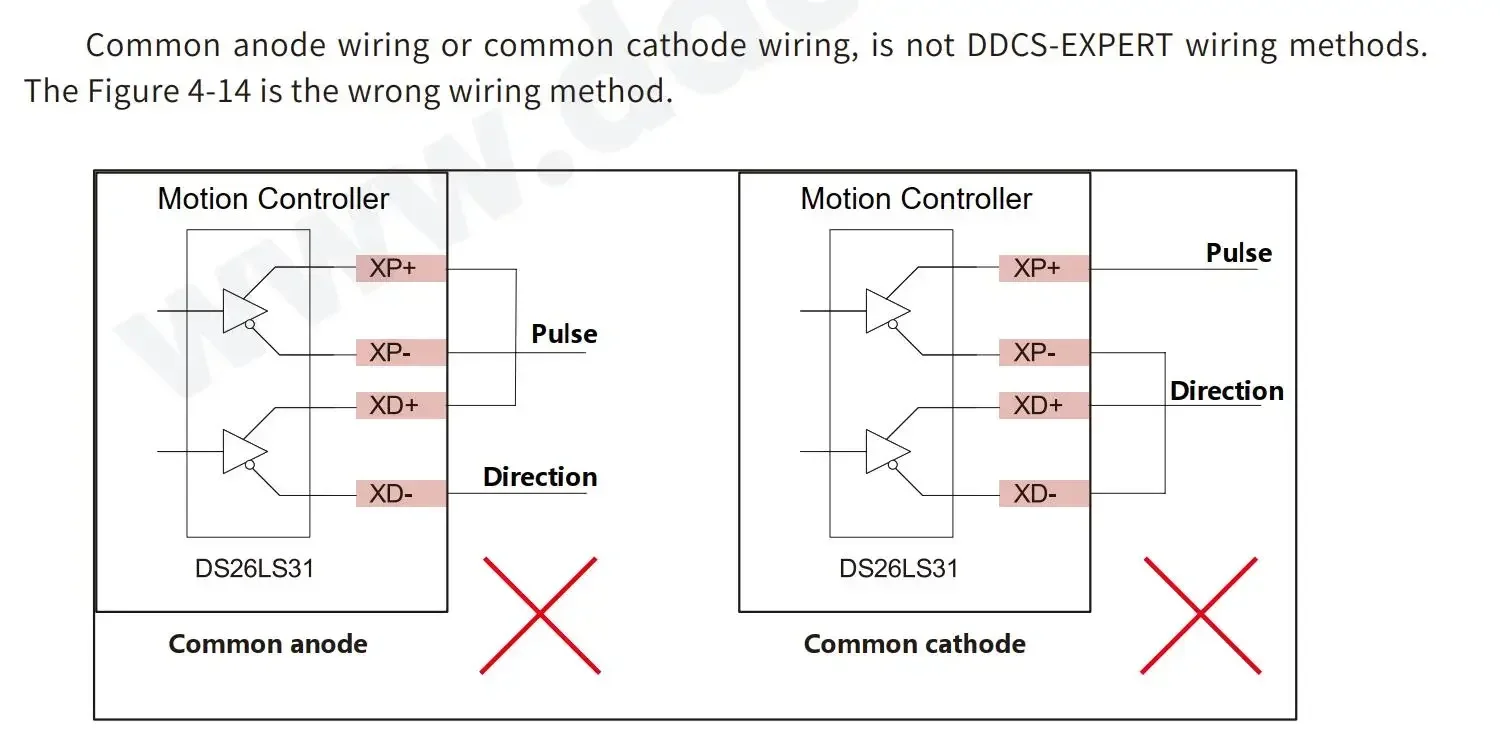

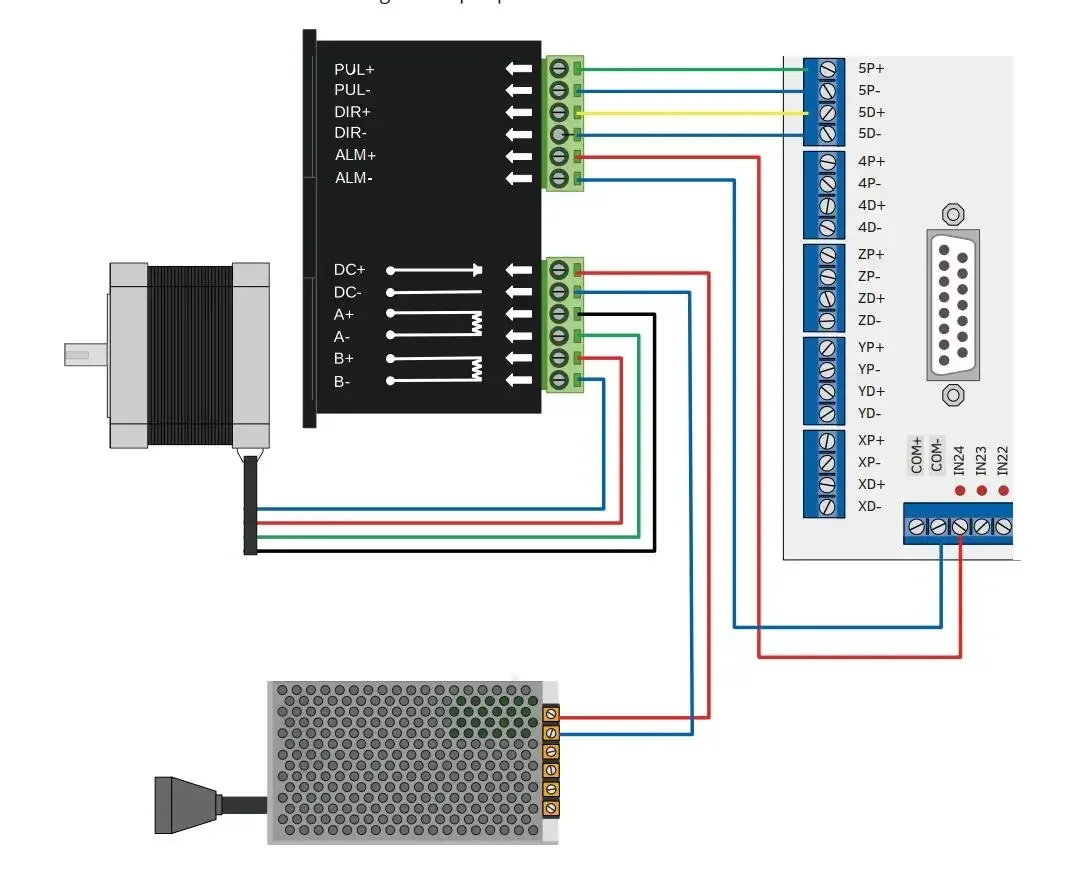

The pulse direction adopts differential output and the maximum frequency of interpolation pulse output is 1MHZ;

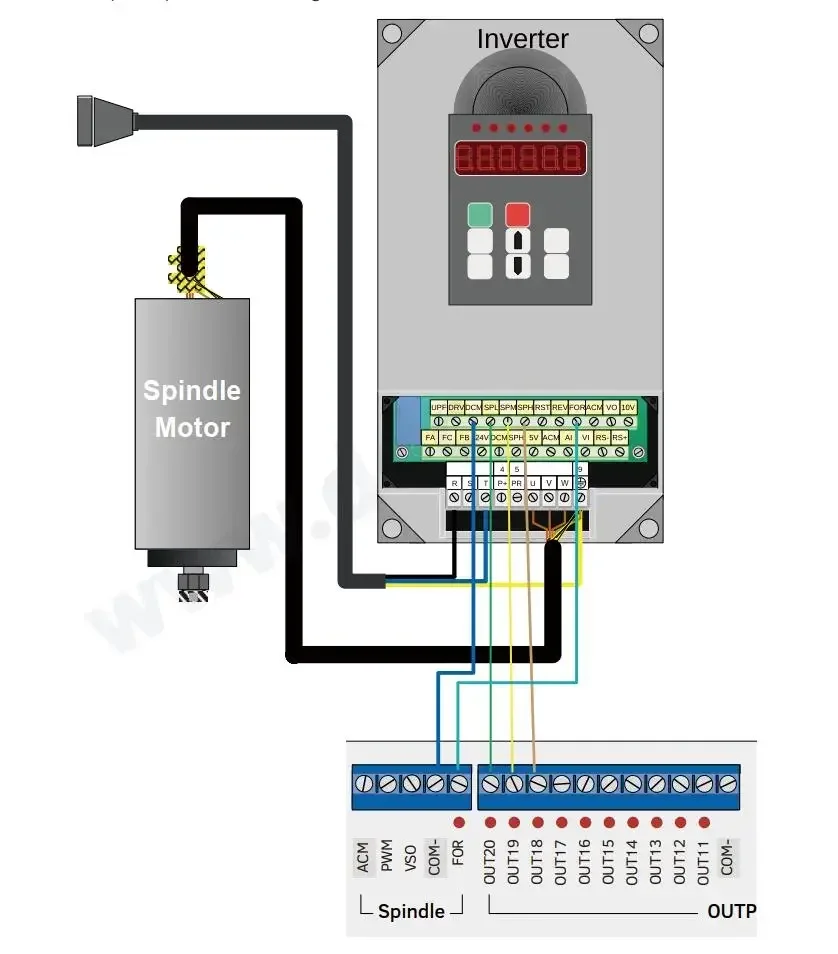

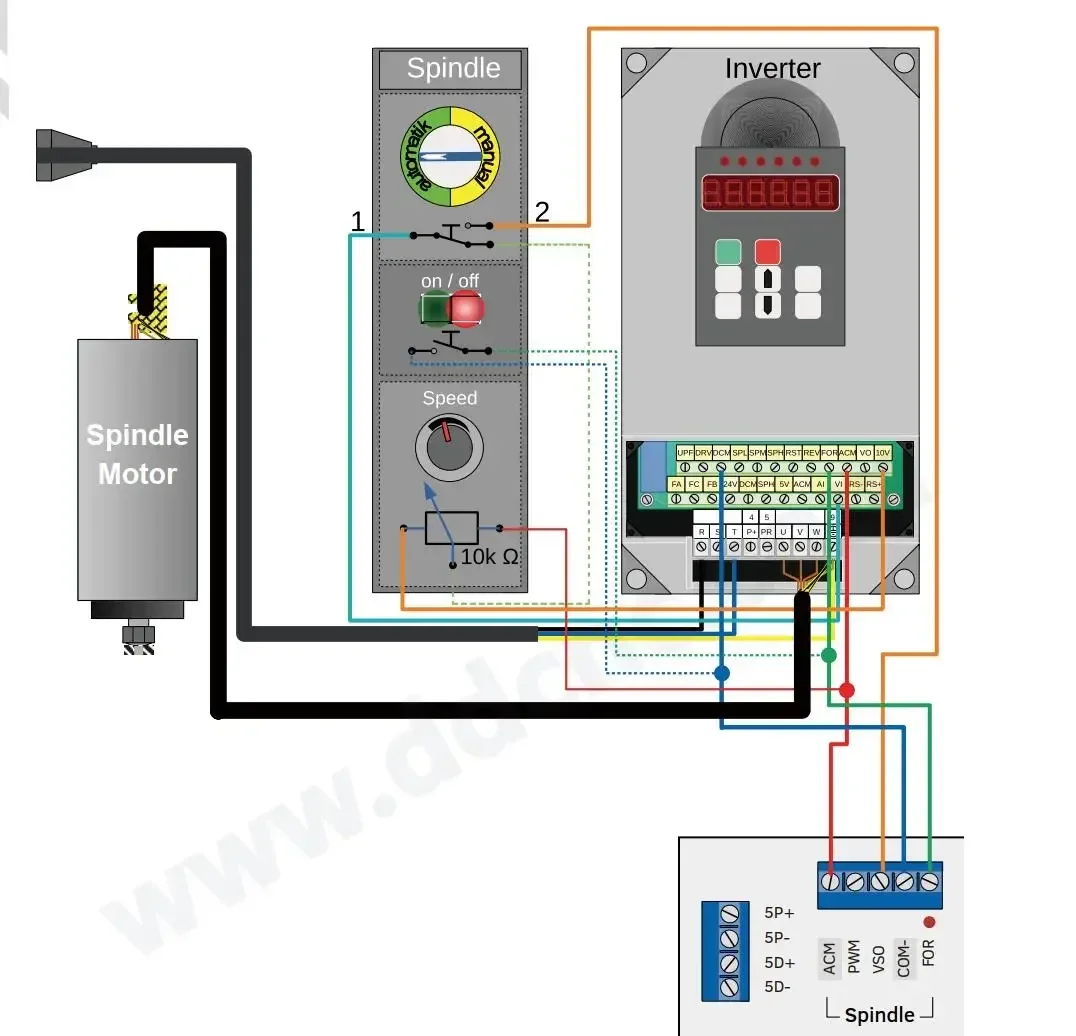

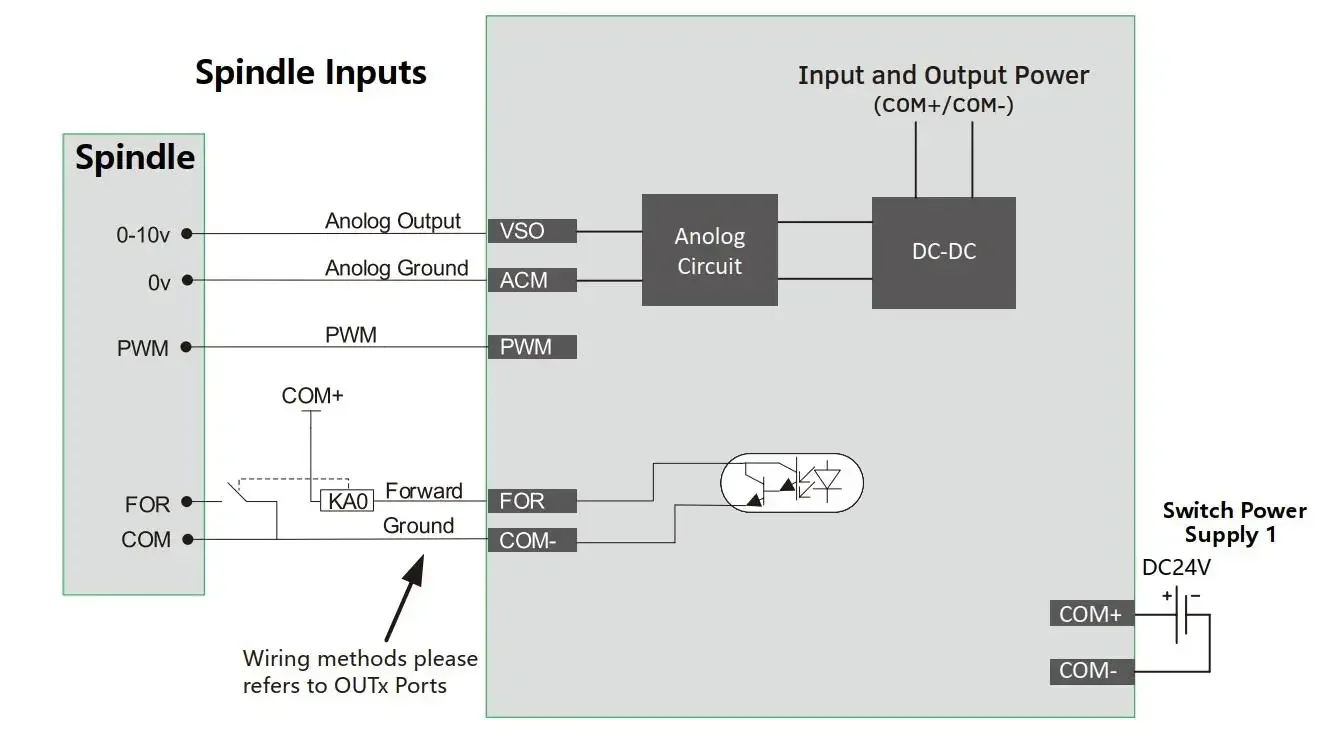

Spindle control mode: Multi-step speed (4 steps and 16 speeds), analog (0-10v), servo axis;

Compatible with standard G codes. General support CAD / CAM software such as ArtCam, MasterCam, ProE.

User interacts with external file through U disk and works completely offline;

Multi-stage pretreatment, processing path adaptive advance speed control, fast processing speed, high precision and good processing continuity;

High-speed continuous processing of small line segments, automatically selecting the most efficient algorithm from a variety of small line segment control algorithm;
