CNC 3D photoelectric edge finder engraving machine three-dimensional centering rod high precision 0.001mm HCT Hr20 cyclmotion

Product Introduction

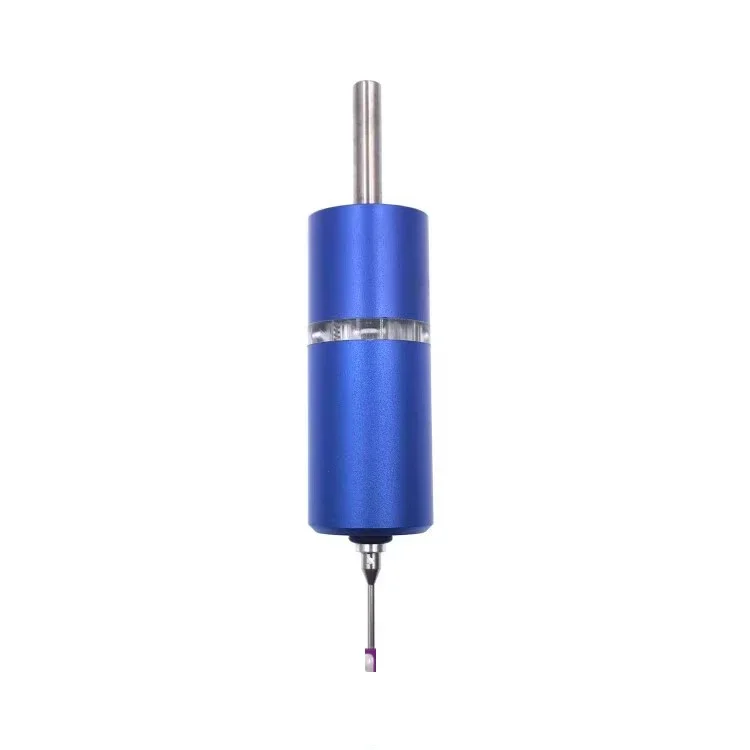

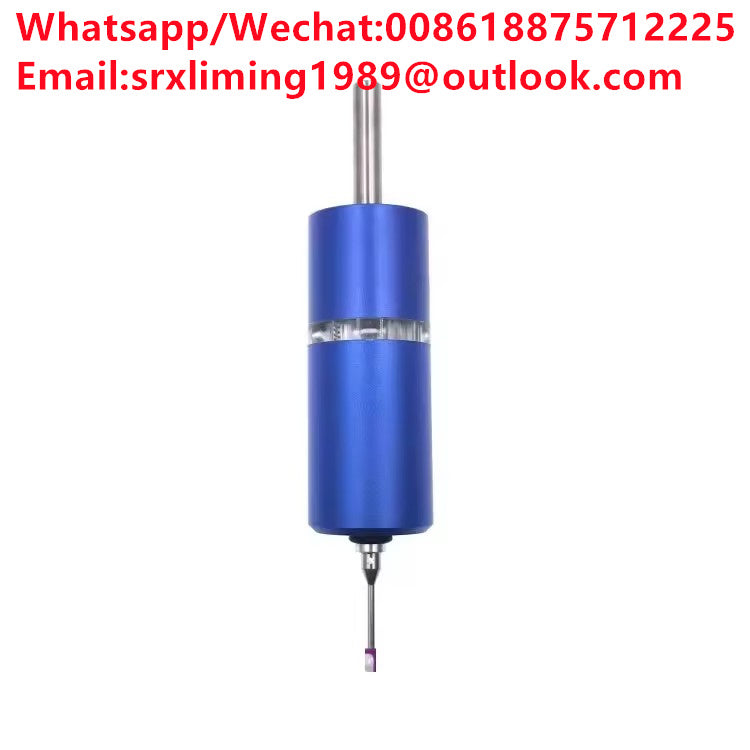

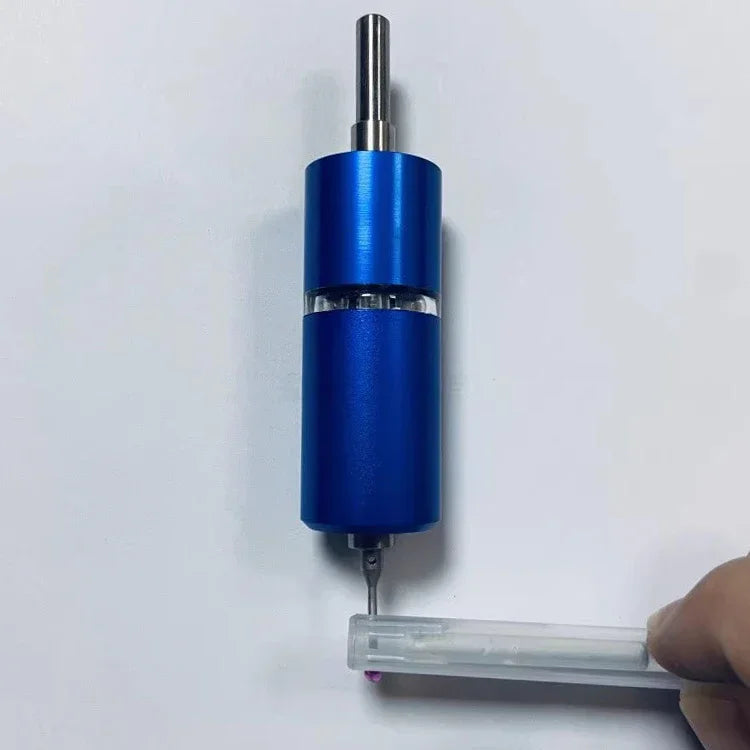

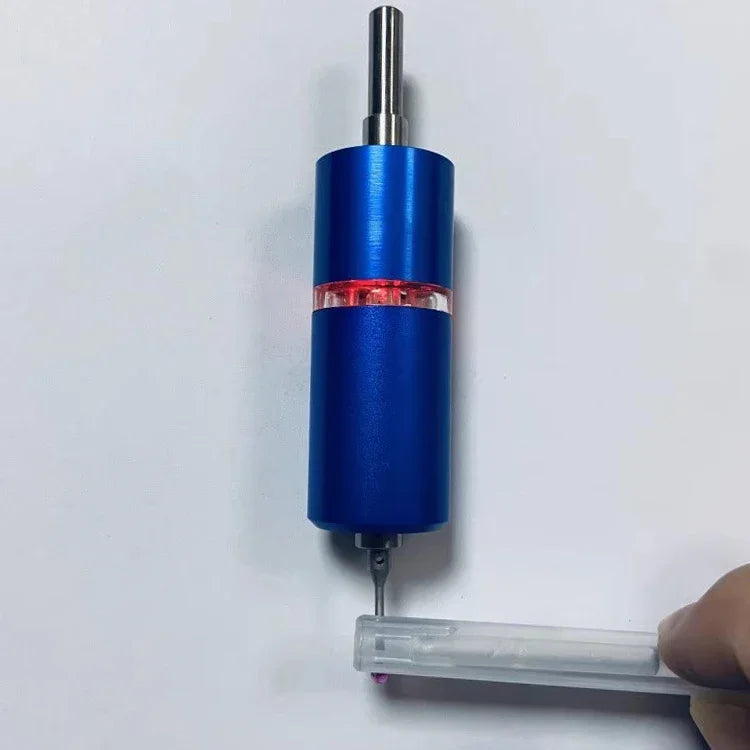

The high-precision machine tool probe is composed of the main body of the measuring head and the stylus. The main body of the probe is installed on the spindle of the machine tool. When the stylus touches the object, a collision signal ring light will be generated. The accuracy of the machine tool and the size of the workpiece to be detected are clearly visible on the digital display of the machine tool. The deviation size is corrected on the spot, and the processing is in place at one time. .
The main purpose
It is mainly used for online inspection of CNC machining centers, large gantry machining centers and other CNC machine tools, instead of calipers, dry rulers, dial indicators, inner and outer diameter dry rulers, and center rods and other traditional tools and measuring tools, fast clamping and adjustment. Positioning, precise, fast and easy.
The main function
It can identify the accuracy of the machine tool, and manually compensate and restore the accuracy of the machine tool;
Manually compensate the backlash of the machine tool to restore and improve the accuracy of the machine tool;
Can replace the first knife, set the height of the Z axis;
Manually measure depth, width, length, aperture, groove position, inner and outer circle, coordinate position, etc.;
0.002mm high precision fast centering and edge finding function;
The function of ensuring the 0 005mm machining accuracy of the machine tool;
technical parameter

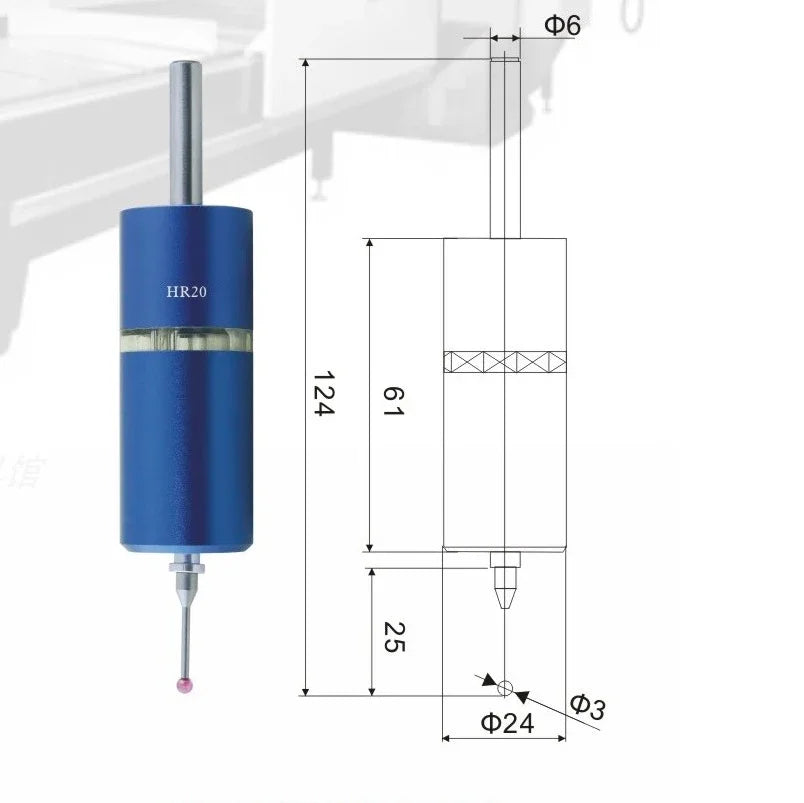

HR20 measuring head is a 5-way trigger probe: X, tY, +Z
One-way repeatability S1μm
Measuring overtravel range: 15" on one side
Trigger life: 2100 million triggers
Z-axis forward protection distance: LF-4mm, MF -3mm, EF-2mm
Positive and negative power supply voltage: 50V24V
Can be equipped with styli type: general M3 thread series styli
Probe elasticity type: SF (standard elasticity) MF (medium elasticity)
Oil-proof and anti-fouling, protection grade IP67
